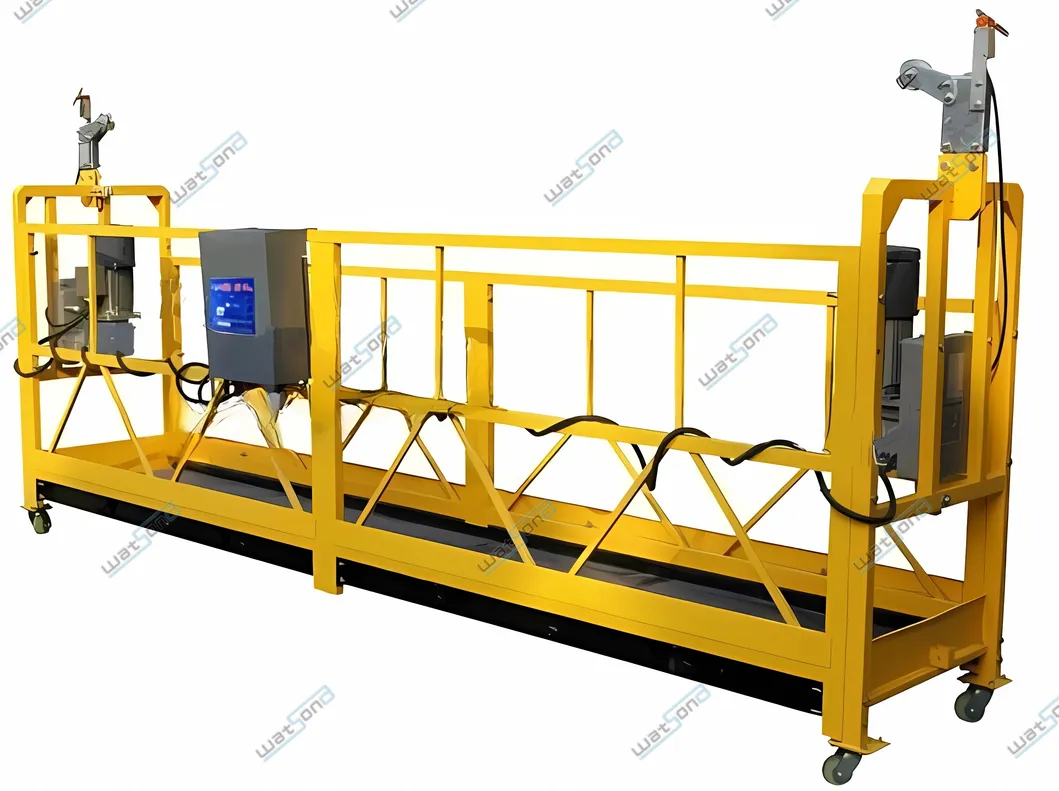

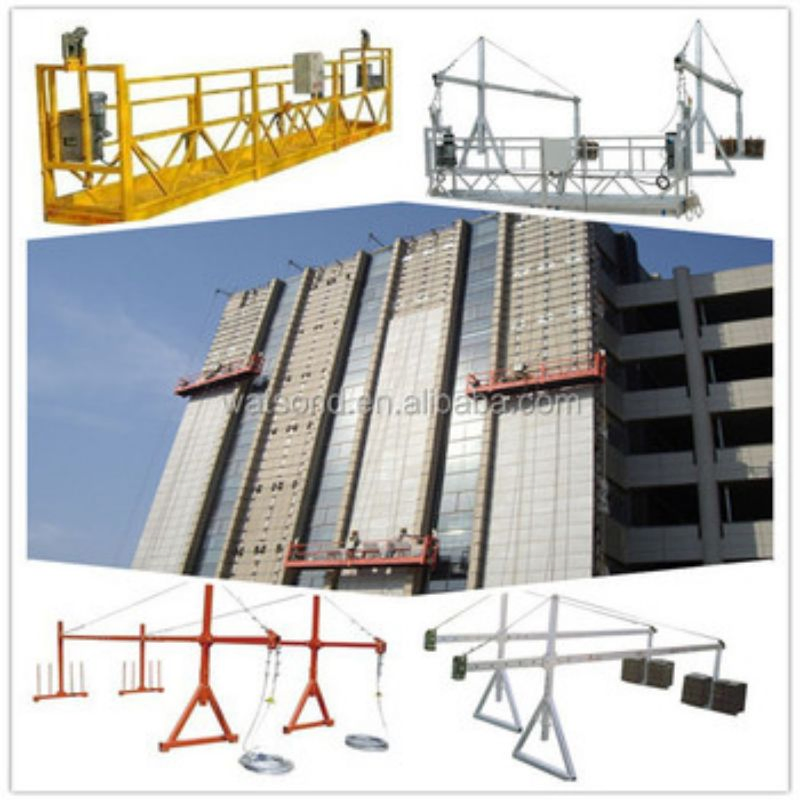

Working Platform: The professional workplace for high-altitude tasks.
1) Q235 steel + customized painting
2) Q235 steel + Hot-dipped Galvanized
3) Aluminum Alloy + customized painting
Standard length: 6m (2m+2m+2m) or (1.5m+2m+2.5m). Fully customizable from 1.0m to 3m sections.
Equipped with 4pcs Bottom Wheels for easy movement and optional Wall Rollers to protect building surfaces.
| Description | Specification |
|---|---|
| Model | ZLP1000 |
| Rated Load | 1000 Kg |
| Lifting Speed | 8.0±0.5 m/min |
| Lifting Height | 100 m |

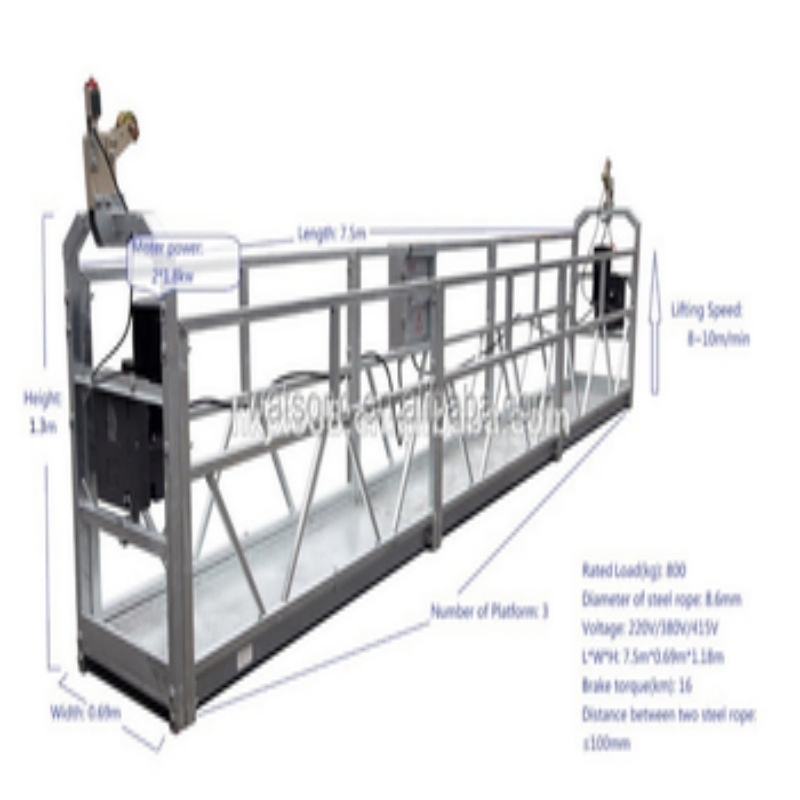

| Platform Dimension | 7.5m (2+2+2+1.5) × 0.69 × 1.45m |

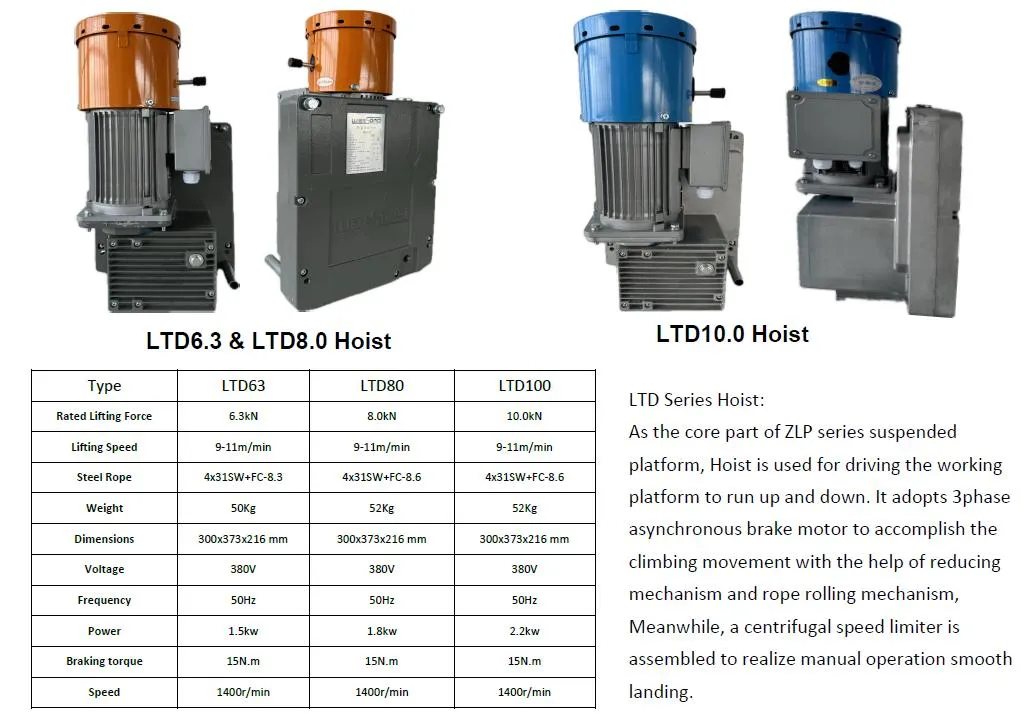

| Hoist Model | LTD100 (2.2 kw * 2) |

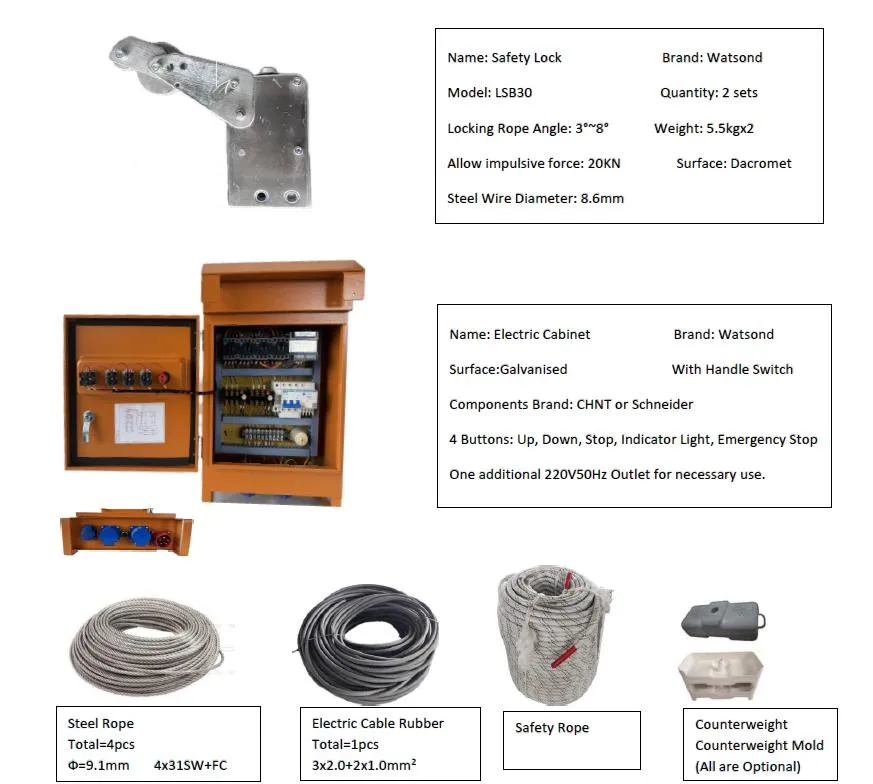

| Safety Lock | LSG30 |
| Steel Wire Rope | 4 x 31SW+FC - D-8.6 mm |
| Voltage | 380V/50Hz or 220V/60Hz |

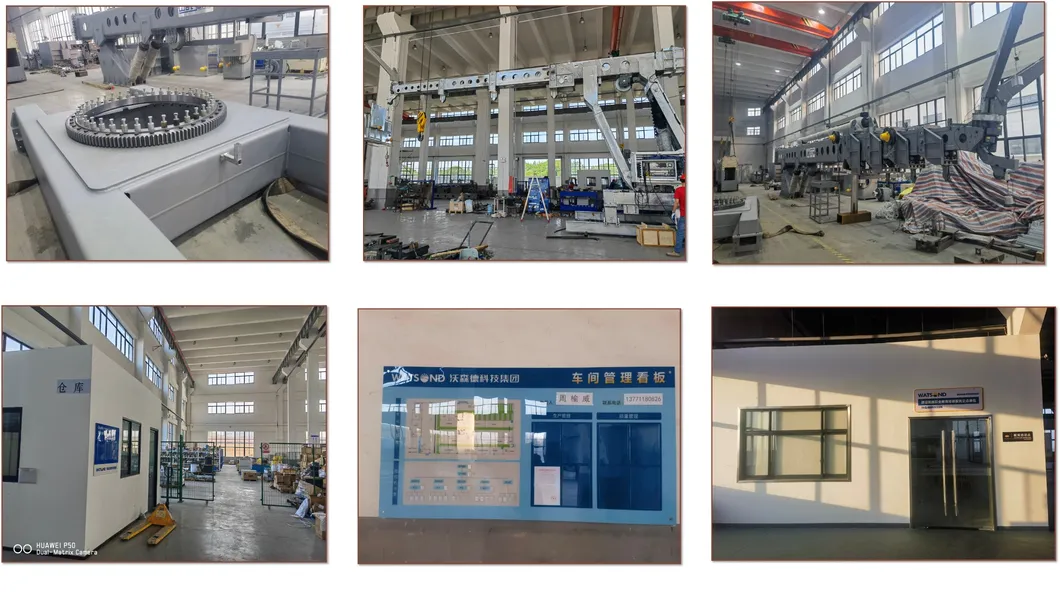

Our company is a professional manufacturer of BMU, suspended platforms, and aerial work equipment, integrating design, manufacturing, and installation.
Developing the best customized plans according to specific project requirements.
Utilizing 3D software and finite element analysis to ensure product safety and structural rationality.

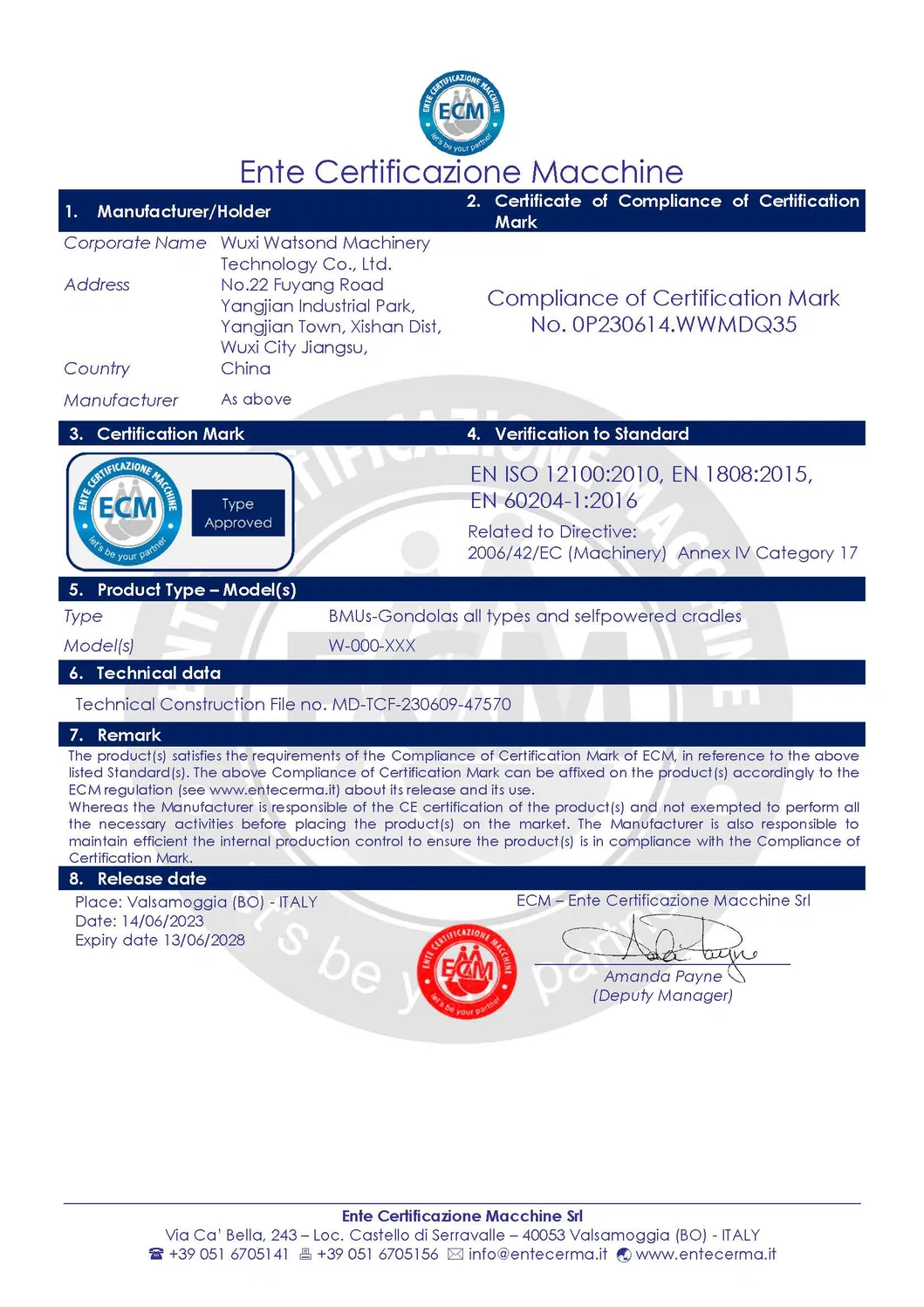

Strict adherence to international standards with CE, TUV, and ISO9001 certifications.
Providing 24-hour emergency maintenance and technical service for global clients.
