Zjt Ecological Concrete Panel Green Wall System for Beach House

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Model NO.
ZJT-1884
Certification
ROHS, ISO9001
Customized
Customized
Brand
Zjt
Panel Material
Nonmetal
Type
Sandwich Panels
Material
Cement Calcium Board, EPS, Cement etc.
Application
Wall, Floor, Roof and Prefab Buildings etc.
Fire Resistance
>4 Hours
Specification
2270/2440mm*610mm
Production Capacity
20000sqm Per Week
Product Description

Ecological concrete panel green wall system for beach house

💡
Introduce:
The lightweight Energy-saving Composite Wall Panel is a lightweight composite wall with thin fiber cement board, calcium silicate board or two panel, filled with non bearing plate core material of a lightweight composites. The product has a solid, lightweight, thin body, high strength, impact resistance, heat insulation, sound insulation hanging strong.

Fireproof, waterproof, easy cutting, small weight, sound insulation and heat insulation and other comprehensive advantages of wall materials incomparable, mainly used for household wall building, interior wall and exterior wall, fire wall, the wall can effectively reduce the occupied area, improve the residential rate, reduce the structural load, improve the seismic capacity of buildings and safety performance and low cost, is the best alternative to the traditional solid clay brick.

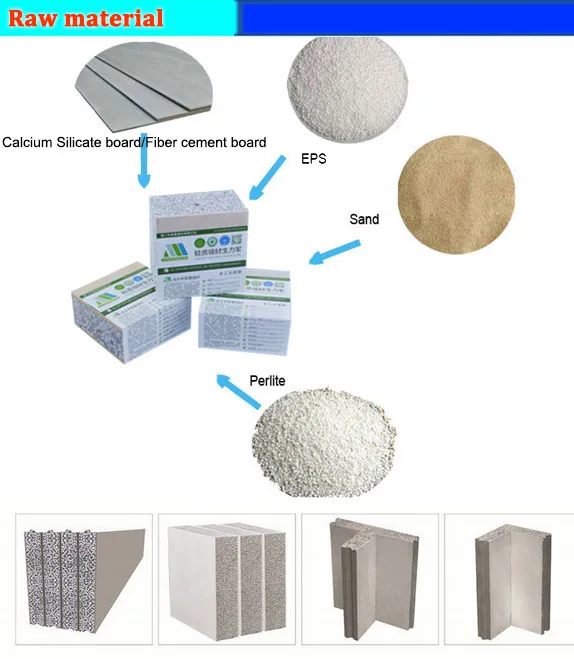

Sandwich wall panel is a new kind of lightweight energy saving building materials, composited by EPS polystyrene foam, cement and sand as core materials, 5mm thickness calcium silicate board or fiber cement board as surface panel on both sides.

Ecological Concrete Panel
Specification
Structure 1). Surface: Fiber reinforced calcium silicon or cement calcium board
2). Core: Cement, EPS, sand, fly ash
Size 1). Length: 1200-3000mm
2). Thickness: 60/75/90/120/150/180mm
3). Width: 610mm
Color Regular is white, other colors are all available.
Application Floor, Roofing, wall, Villa, prefab, building etc.
Character Lightweight, insulation, fireproof, waterproof, fast installation, and environmental etc.
Package Layer of foam cloth between each panel, hard paper to protect angles, whole pallet with thin film.
Key Features
1Green: 100% free of harmful substances and non-radioactive, standard GB6566-2001.
2Lightweight: Volume-weight only 750-800kg/m3, equal to 1/6 of brick weight.
3Space Saving: Increases valid space by 1m2 per 11.8m of wall compared to traditional materials.
4Waterproof: Keeps dry without stains; suitable for wet areas like kitchens and bathrooms.
5Fireproof: Limit is more than 4 hours under 1000 degrees.
6Sound Insulation: 90mm thickness gains sound insulation of 42dB.

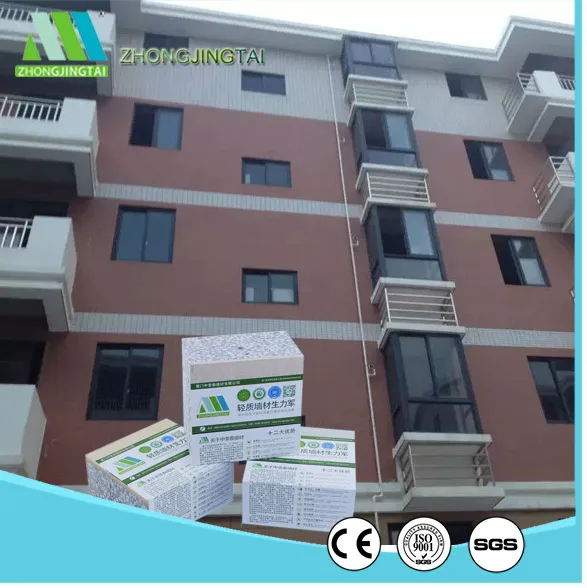

Product Detail 1 Product Detail 2

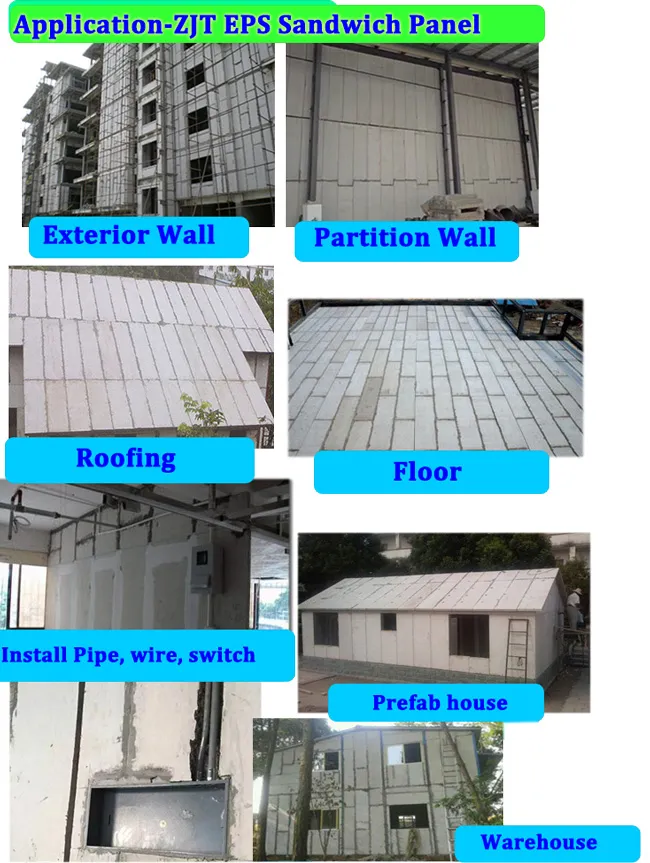

Installation View
Production & Exhibition

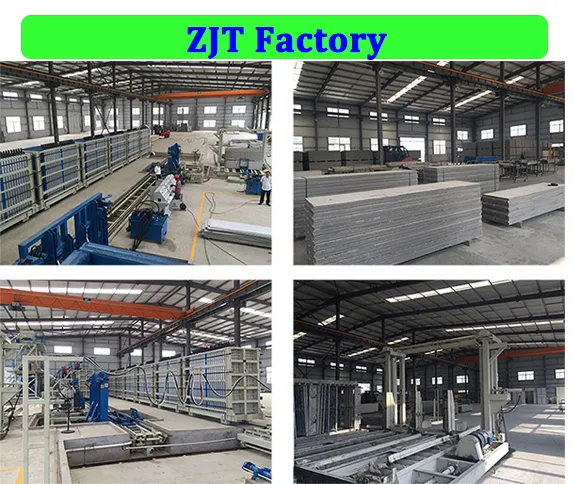

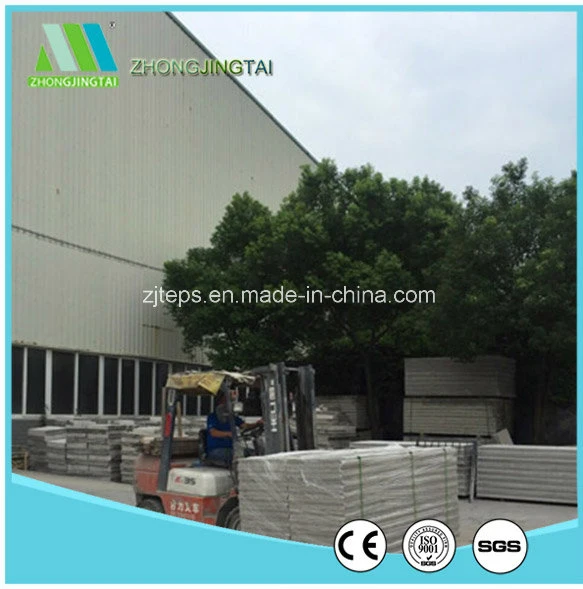

Factory Facility Exhibition Display
Frequently Asked Questions
What is the fire rating of the EPS sandwich panels?
The panels have a fire resistance limit of more than 4 hours and do not emit toxic gases even under 1000 degrees Celsius.
Are these panels suitable for wet areas like bathrooms?
Yes, they are moistureproof and waterproof. They will keep dry and leave no stains even in humid environments.
How much weight can the panels support?
The panels can be nailed or grooved to hang heavy objects. The surface is smooth enough for direct finishing with tiles or wall trims.
Do these panels provide sound insulation?
Yes, the raw materials provide excellent sound insulation. For example, a 90mm thick panel offers insulation of up to 42dB.
Are the materials environmentally friendly?
Absolutely. The panels are 100% free of harmful substances and are classified as non-radioactive A-class products.
What are the primary applications for these panels?
They are widely used for interior and exterior walls, flooring, roofing, and in the construction of villas and prefabricated buildings.
