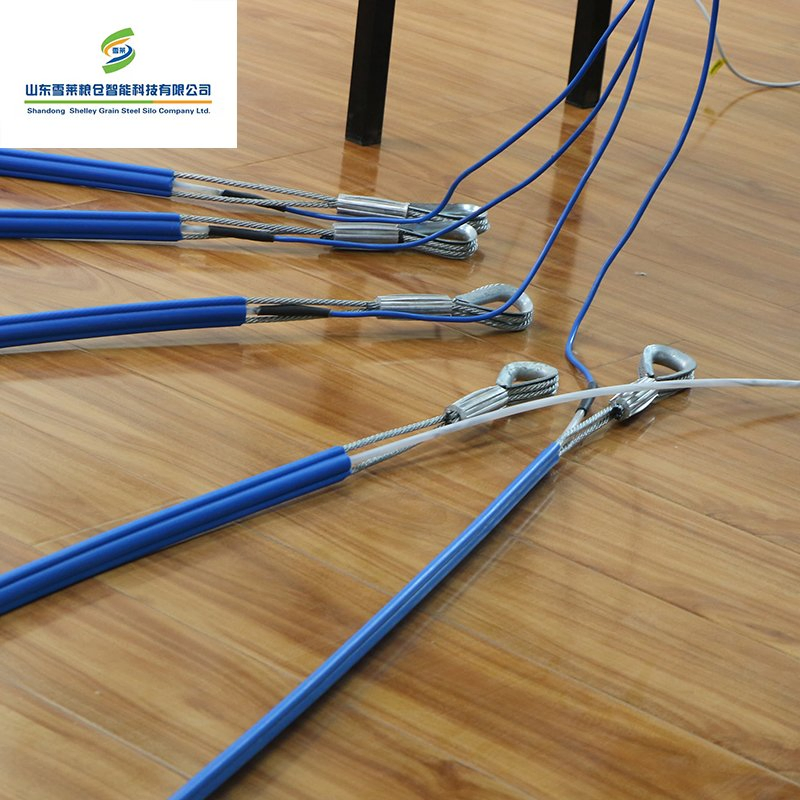

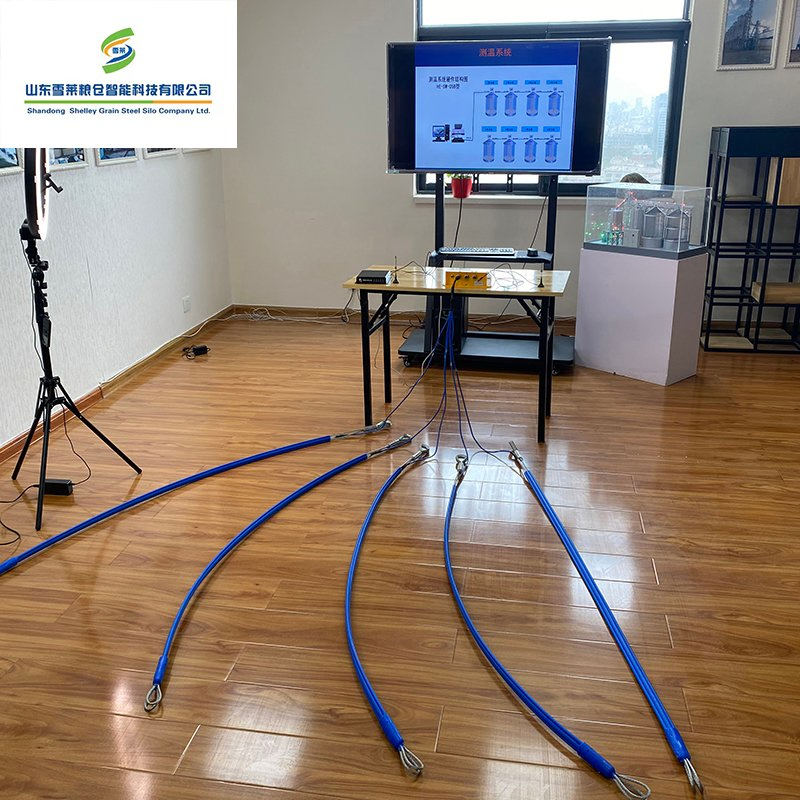

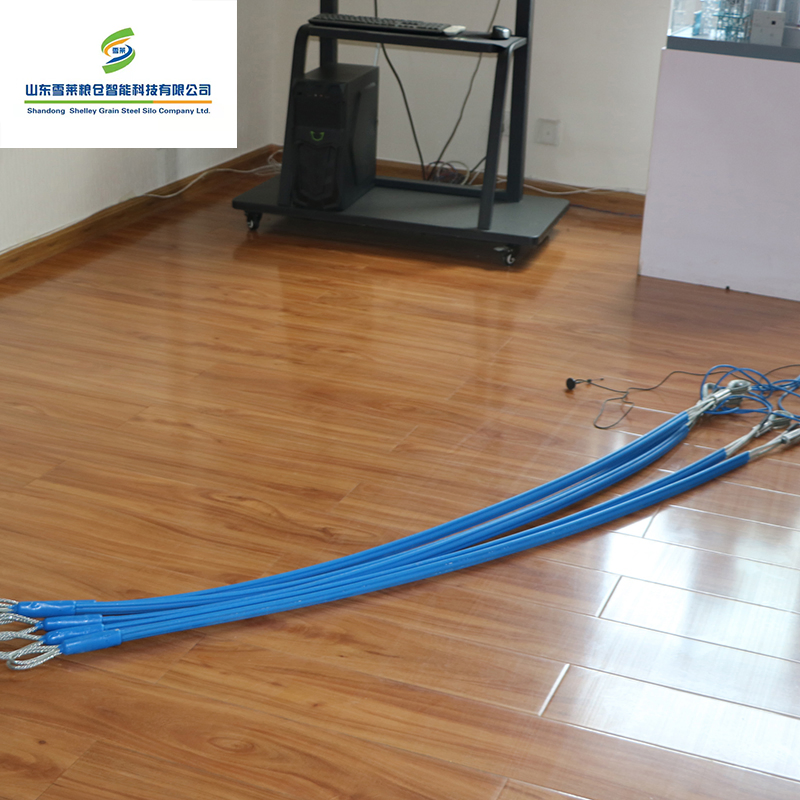

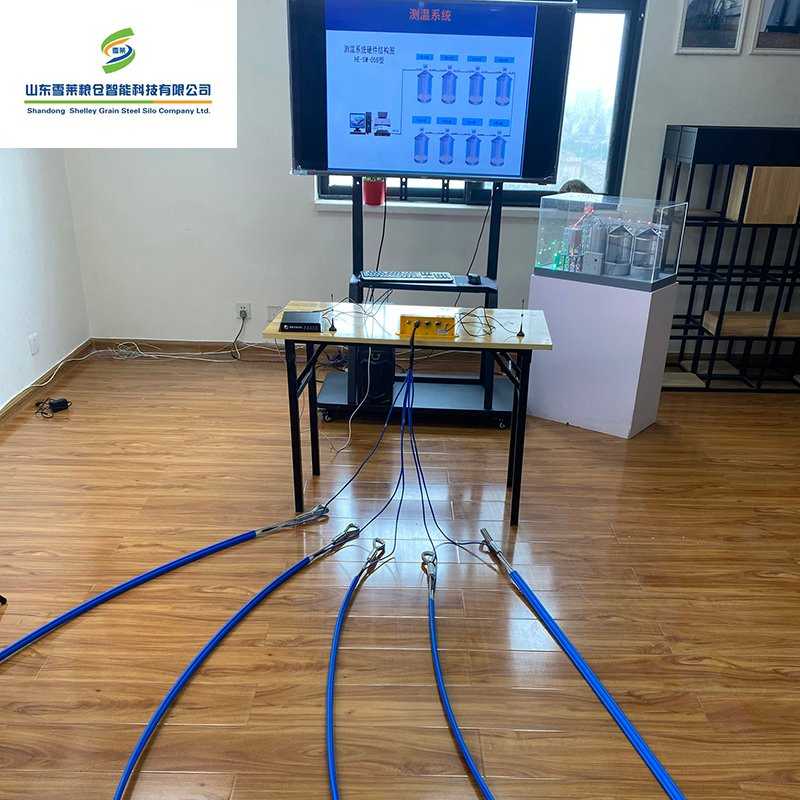

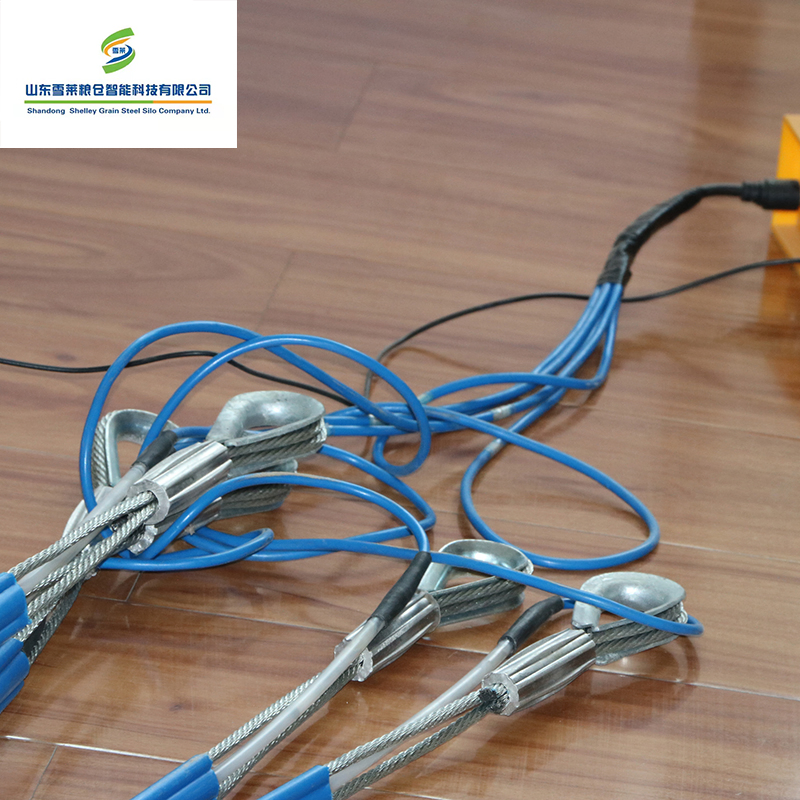

Grain Wheat Corn Soybeans Silo Used Temperature Monitoring 18b20 Sensors Cables System

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.Customized
ShapeCables System
TypeTemperature Monitoring
UsageGrain Steel Silos
MaterialPlastic + Electronic Components
FunctionTemperature Monitor
Temperature Range-30~ 70 ℃
SensorDs18b20
Warranty3 Years
HS Code8544200000
🔍 Product Overview

The Temperature Monitoring System is a key component of the grain storage control system. It is vital to maintain stored grains at the correct temperature to prevent spoilage and loss of value. Temperature changes inside the storage silos often indicate potential issues such as grain rot or pest infestations. This system is capable of real-time monitoring to ensure grain quality.

Grain Monitoring System

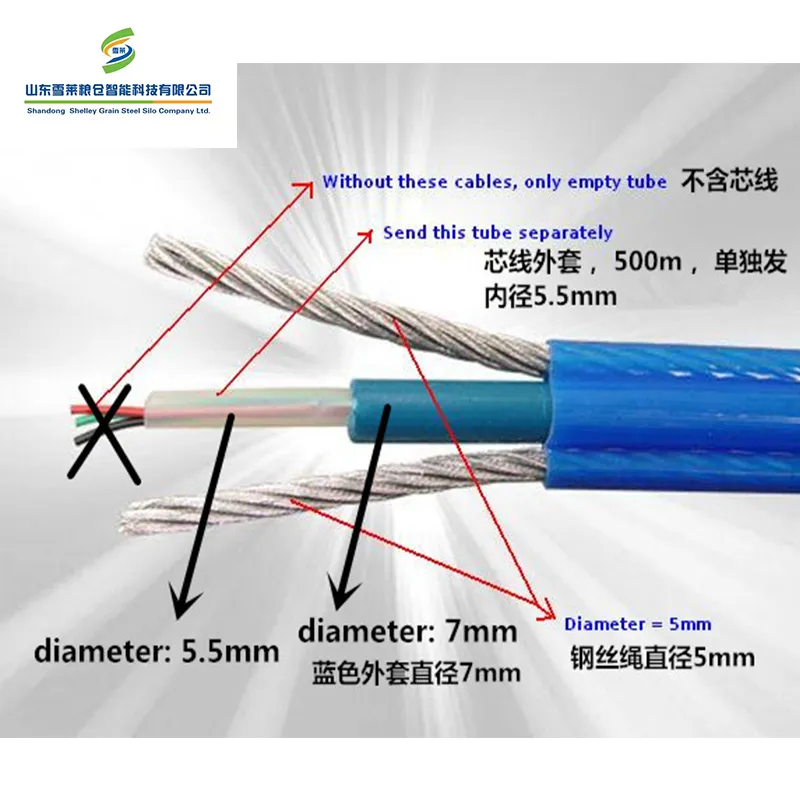

Silo Sensors
⚙️ Technical Specifications:
  • Temperature measuring range: -30ºC to +70ºC
  • Resolution ratio: 0.2ºC
  • Measurement error: ±1ºC
  • Cable tension: Not less than 2.5 tons

High-Quality Sensors: The system utilizes specialized 18B20 sensors, known for high sensitivity and reliability in grain environments.

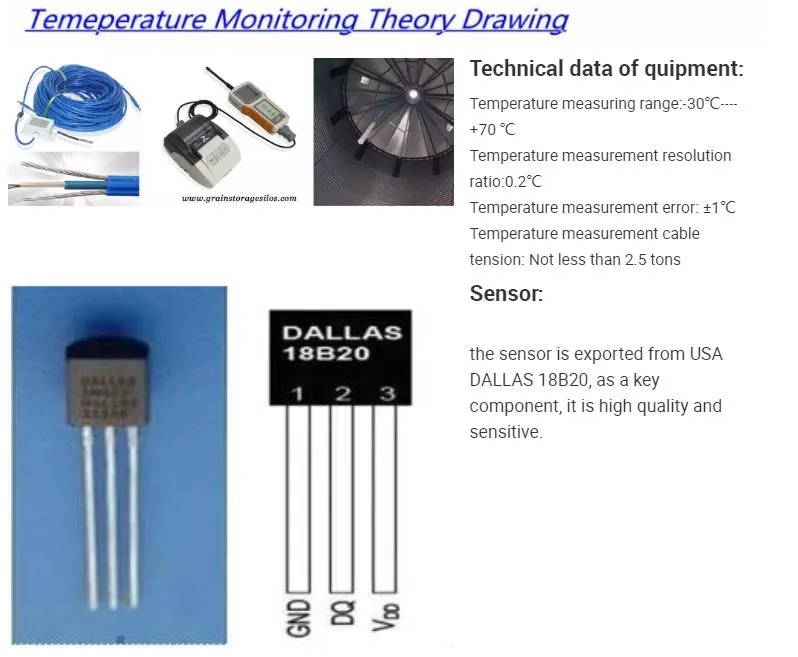

Sensor Details

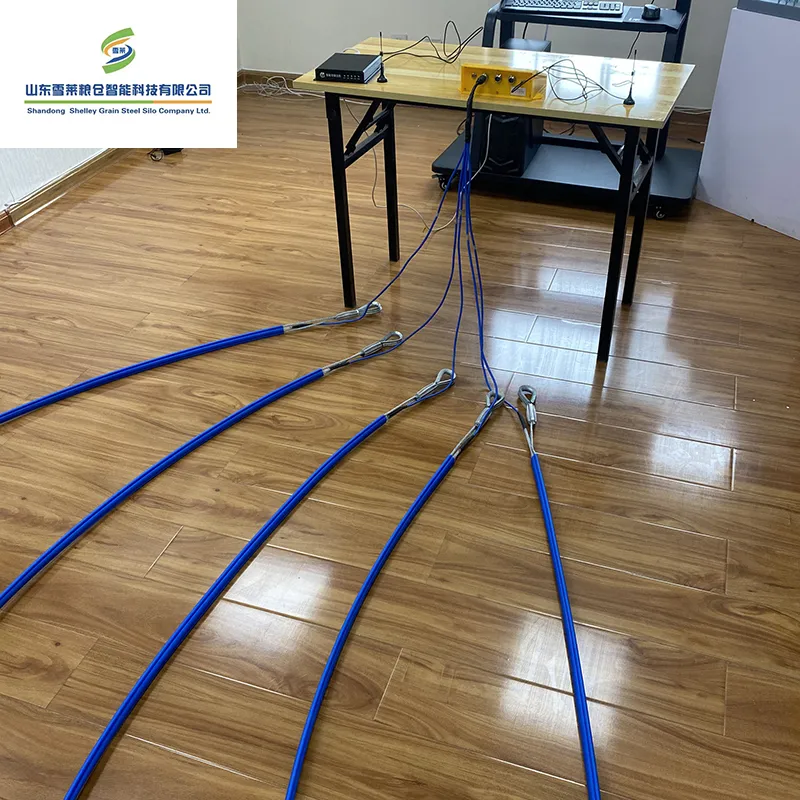

Monitoring Box

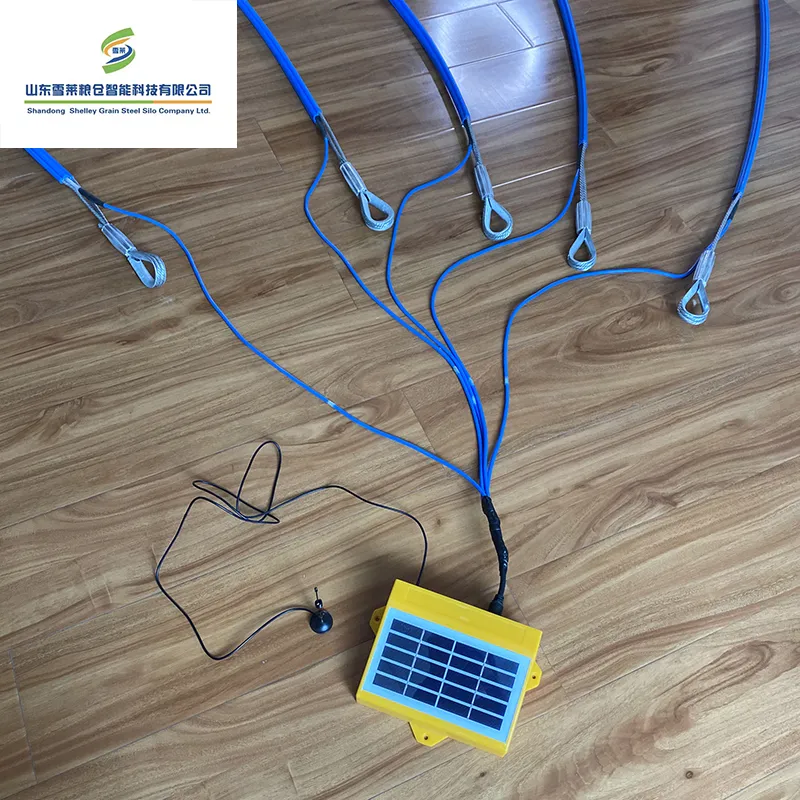

Extension Units
📊 System Configuration
ITEM MODEL QTY Remark
Computer & Printer Standard 1 set each -
Monitoring Software BL-11 1 set -
Control Host BL-11 1 set -
Extension Units BL-11 4 sets -
Cables 8 pts/14m 60 pcs 6 lines per silo, 8 points per line
Humidity Sensors 1500 11 pcs -
📦 Packing & Delivery

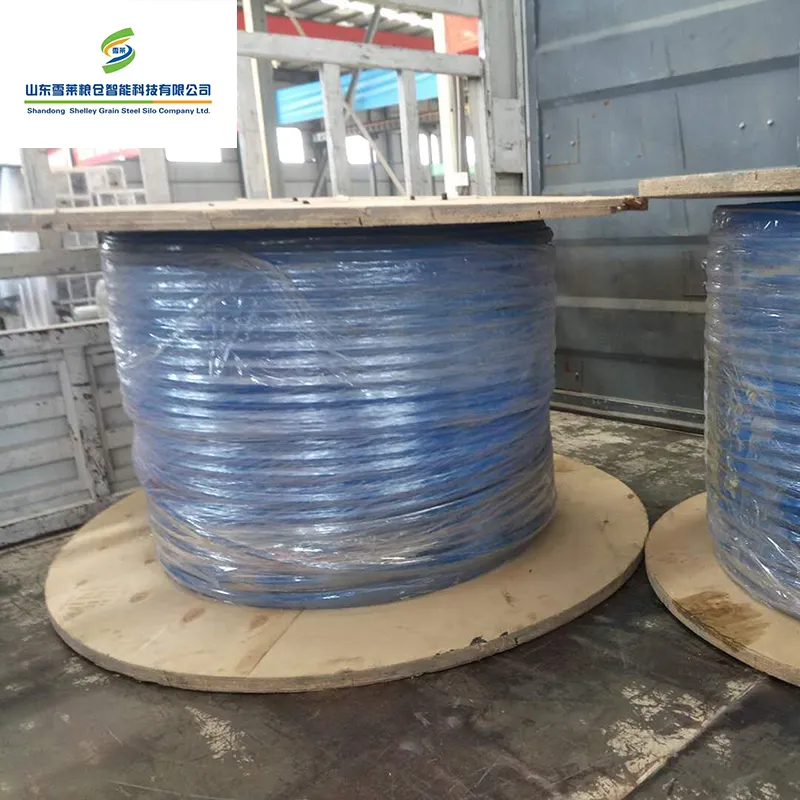

Components are packed using PE film in rolls and secured on pallets. Customized packaging is available upon specific request to ensure safe transport.

Silo Installation
Packaging
📜 Quality Assurance

Our systems are manufactured with precision using advanced fiber laser cutting and CNC bending machines. We hold multiple certifications including ISO, BV, and CE, ensuring high product standards and competitive reliability.

Certification Documents
Production Line
Frequently Asked Questions
What certifications does the monitoring system have?
The system carries ISO, BV, and CE certifications to ensure international quality compliance.
Can the silos and monitoring cables be customized?
Yes. While some steel silo diameters are fixed, components like flour silos, square silos, and temperature cable lengths can be customized for production.
What is the HS code for these products?
The export customs code for the monitoring cables is 8544200000, and for the storage structures is 7309000000.
How is the installation handled for international projects?
For projects abroad, we generally provide 1-2 specialists to guide the installation on-site.
What materials are used in the silo construction?
The top and barrel consist of galvanized steel sheets. Cone bottoms vary by diameter: 4.5m uses galvanized sheet, while 4.5m to 11m uses carbon steel sheet.
Do you provide supporting equipment for the silos?
Yes, we provide cleaning equipment (screens, dust removal) and conveying equipment (hoists, scrapers, belt conveyors, and screw conveyors).
