⚙️ Basic Information
| Model NO. |
TPU |
Installation |
Horizontal Type |
| Layout |
Coaxial |
Gear Shape |
Conical - Cylindrical Gear |
| Step |
Three-Step |
Type |
Gear Reducer |
| Input Shaft Speed |
≤1500r/Min |
Operating Temp |
-40 ℃ to +40 ℃ |
| Allowable Torque |
6478nm |
Series |
Single-Stage |
| Gear Type |
Worm Gear Reducer |
Origin |
China |
🎬 Product Presentation
📝 Product Description

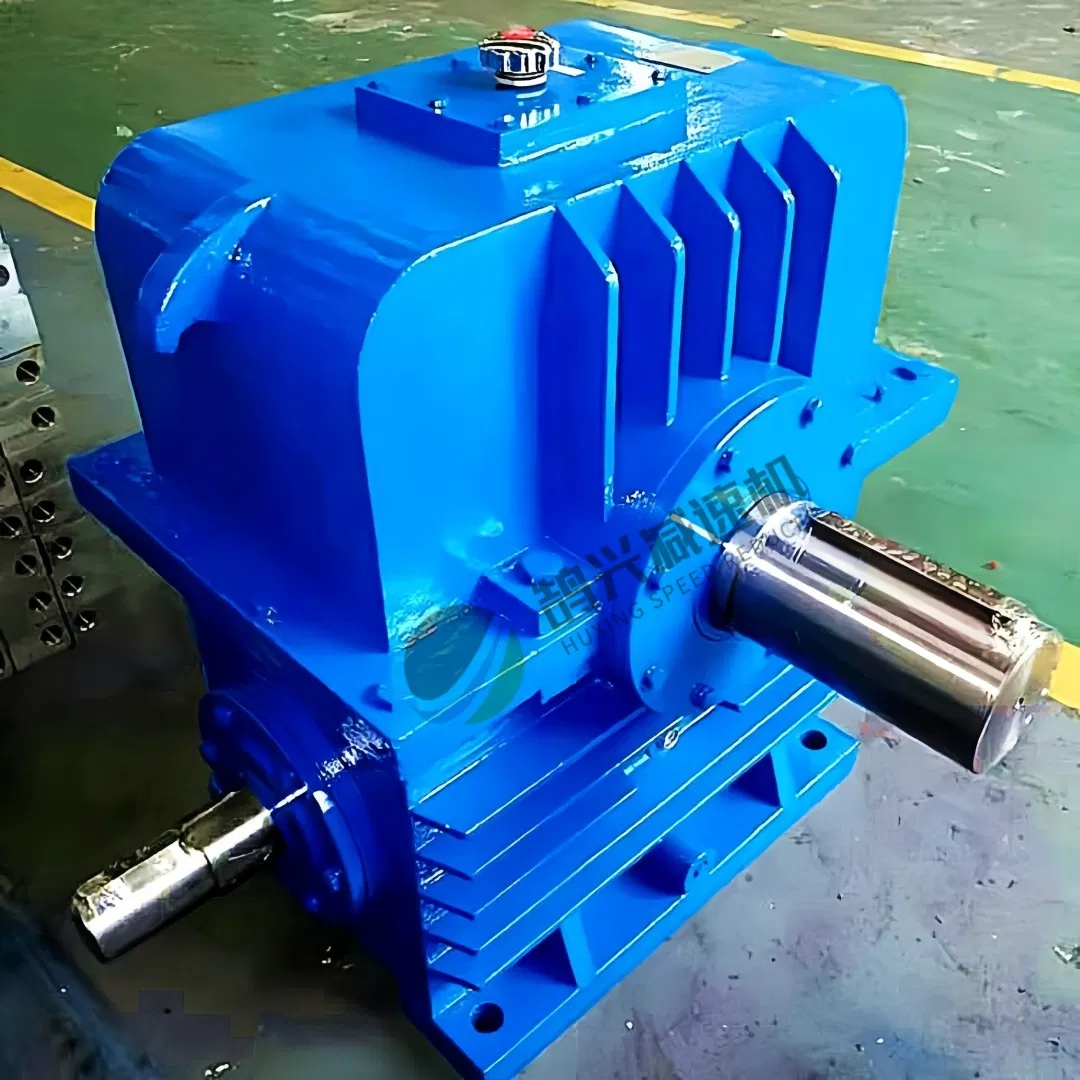

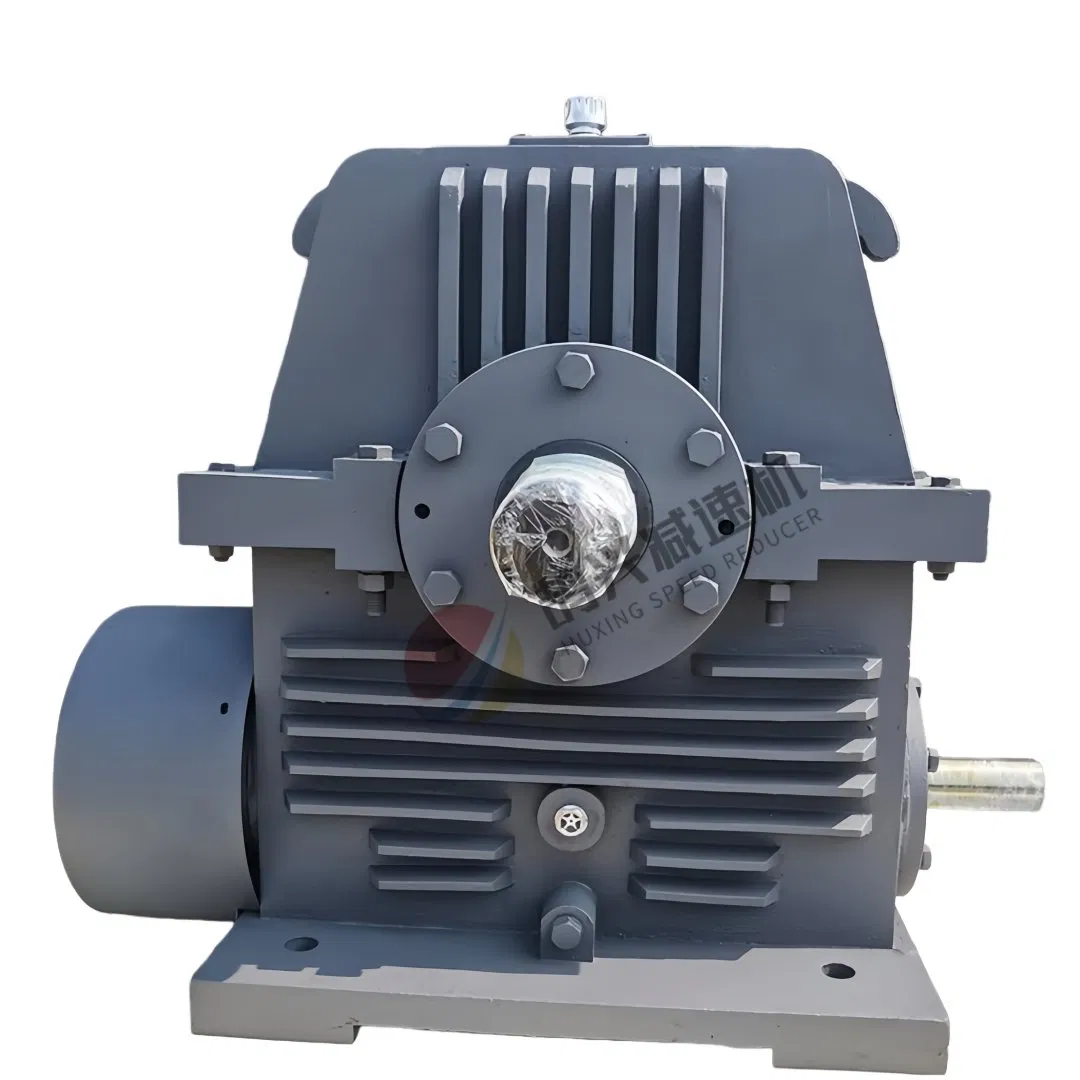

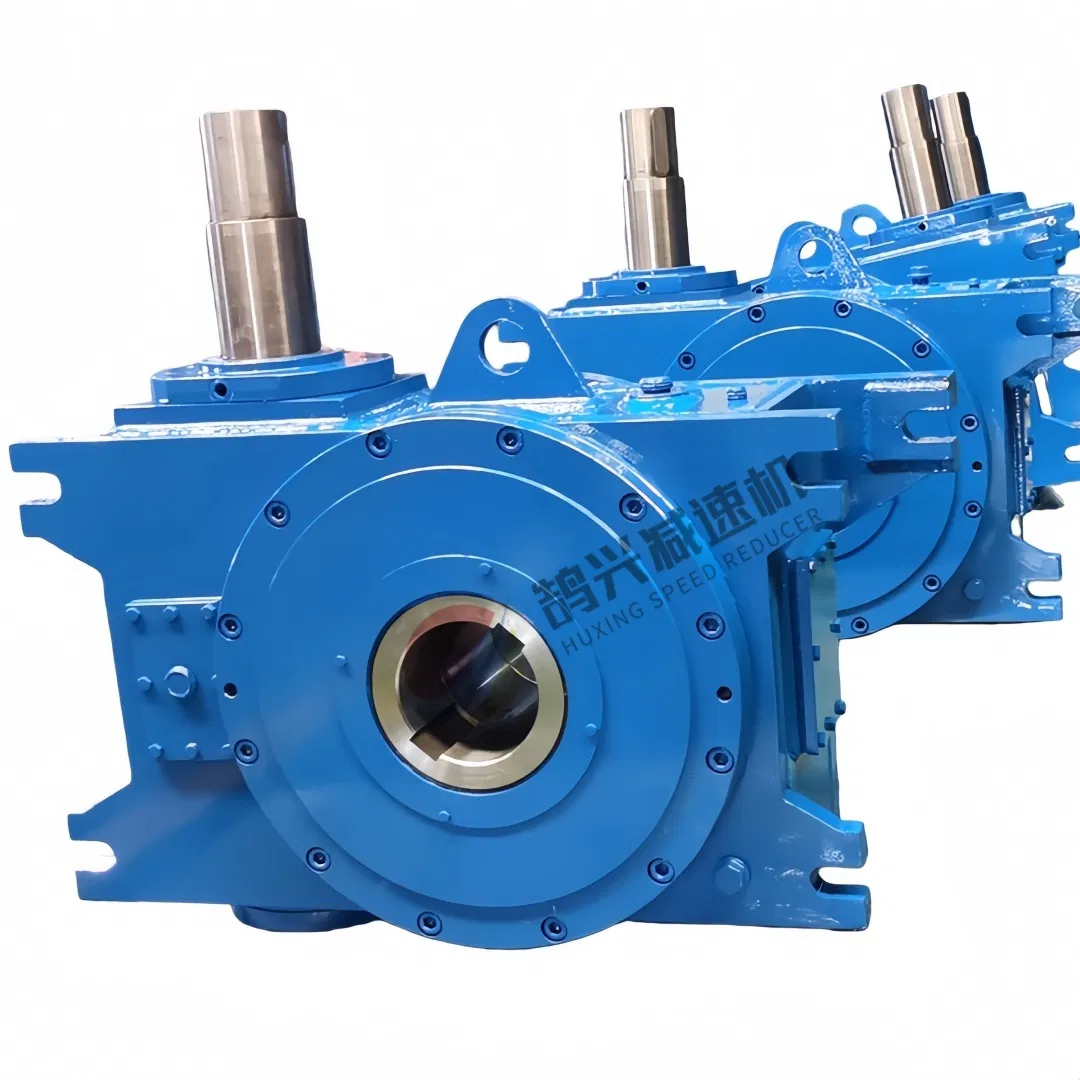

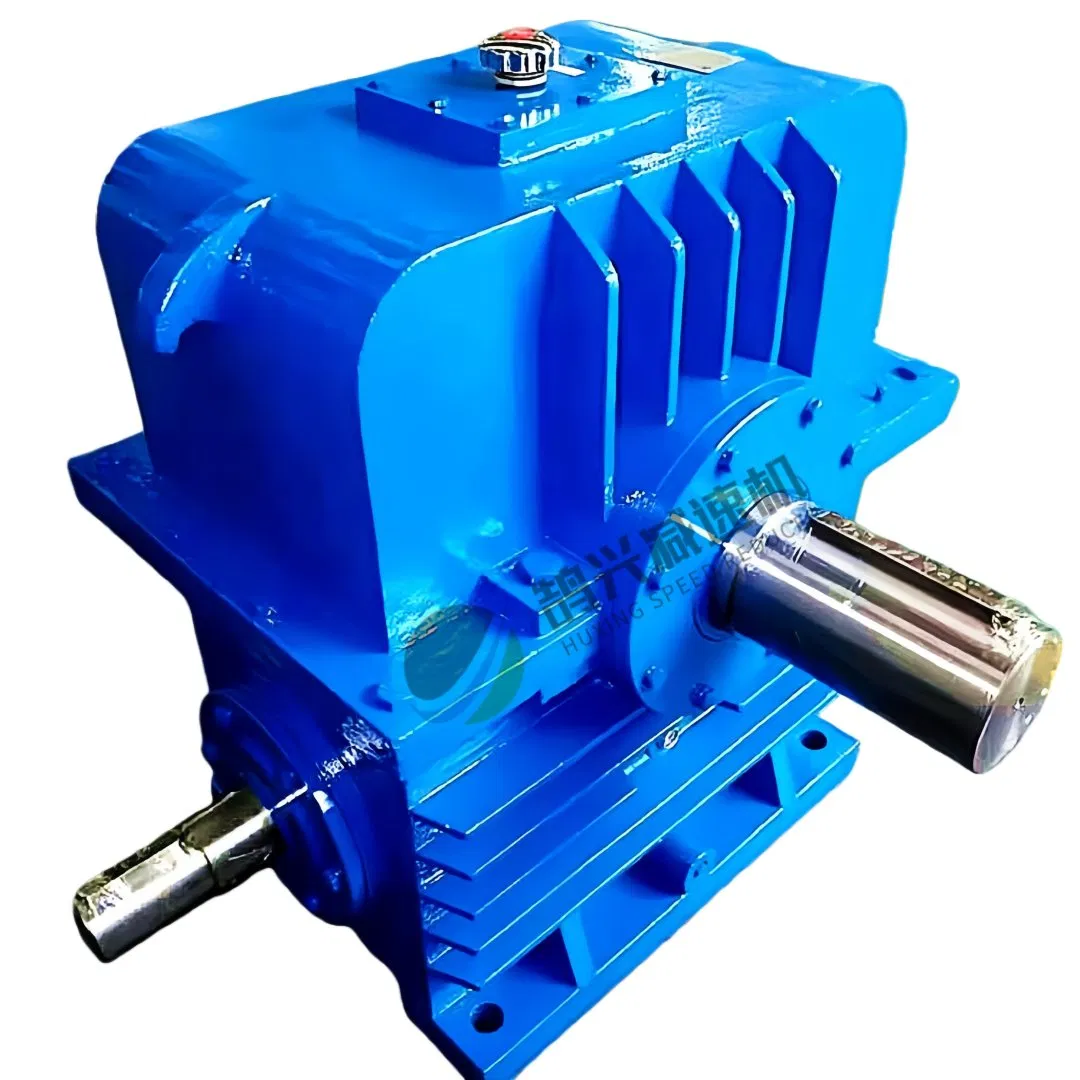

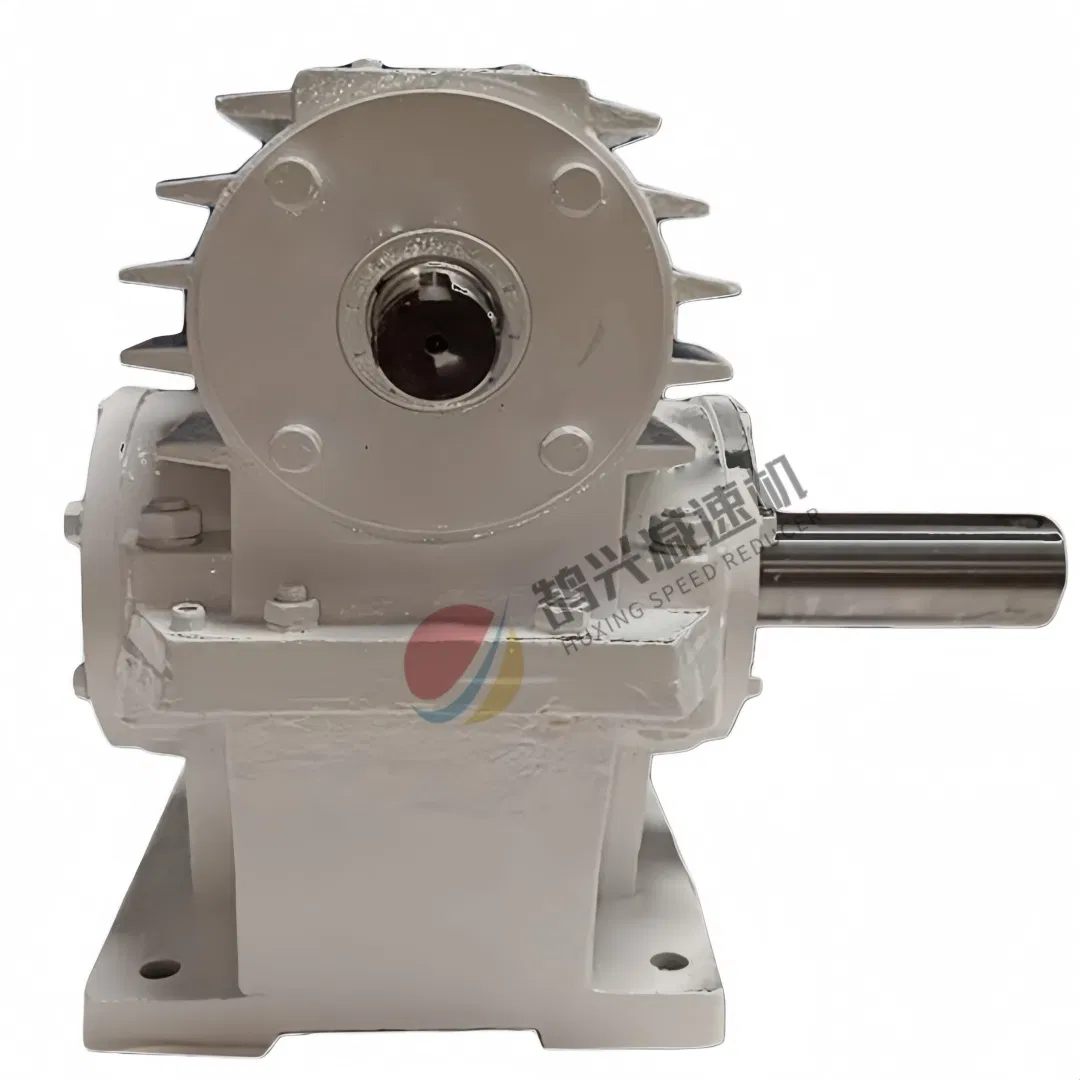

Flat Secondary Enveloping Gearbox
This high-performance gear system utilizes advanced materials and specialized heat treatment to ensure maximum durability and efficiency.
💎

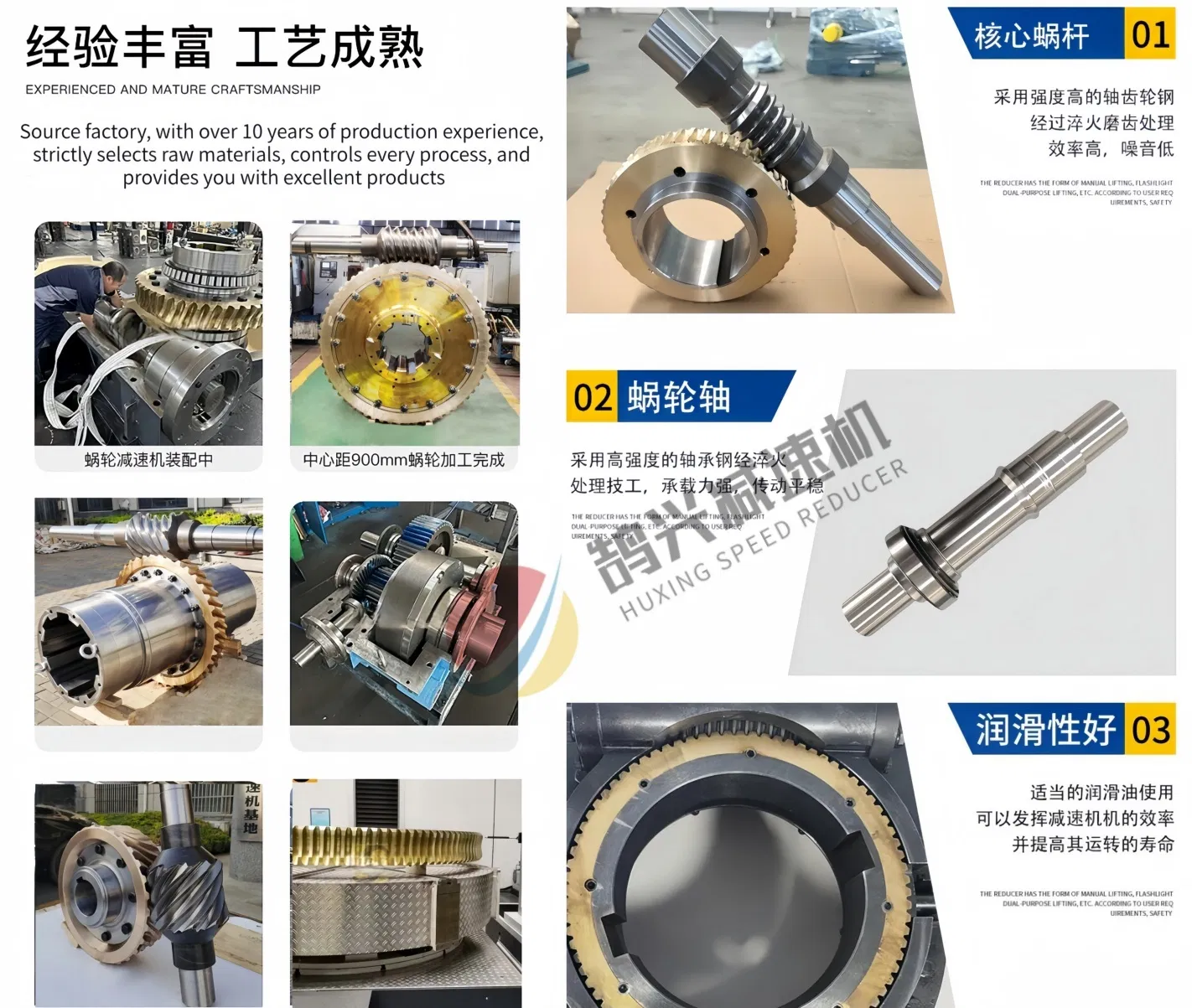

Premium Materials: The worm gear is crafted from alloy steel (40Cr, 42CrMo, 38CrMoAl) with ion nitriding treatment, reaching hardness levels over HRC 58.
🔄
Superior Meshing: Features multi-tooth contact and instantaneous double line contact, achieving a contact area of over 70%.
📈
High Efficiency: Large comprehensive curvature radius and optimized contact angles facilitate the formation of dynamic pressure oil films.
🛡️
Wear Resistance: Worm gears are made of tin bronze ZCuSn10Pb1 centrifugal casting for long-term service life.
📊 Technical Specifications
| Efficiency | 94% - 98% |
| Cabinet Material | High quality aluminum alloy steel |
| Installation Type | Flexible / Any orientation |
| Available Types | TPA / PTS / PTU / PWO / PWU / PWS |

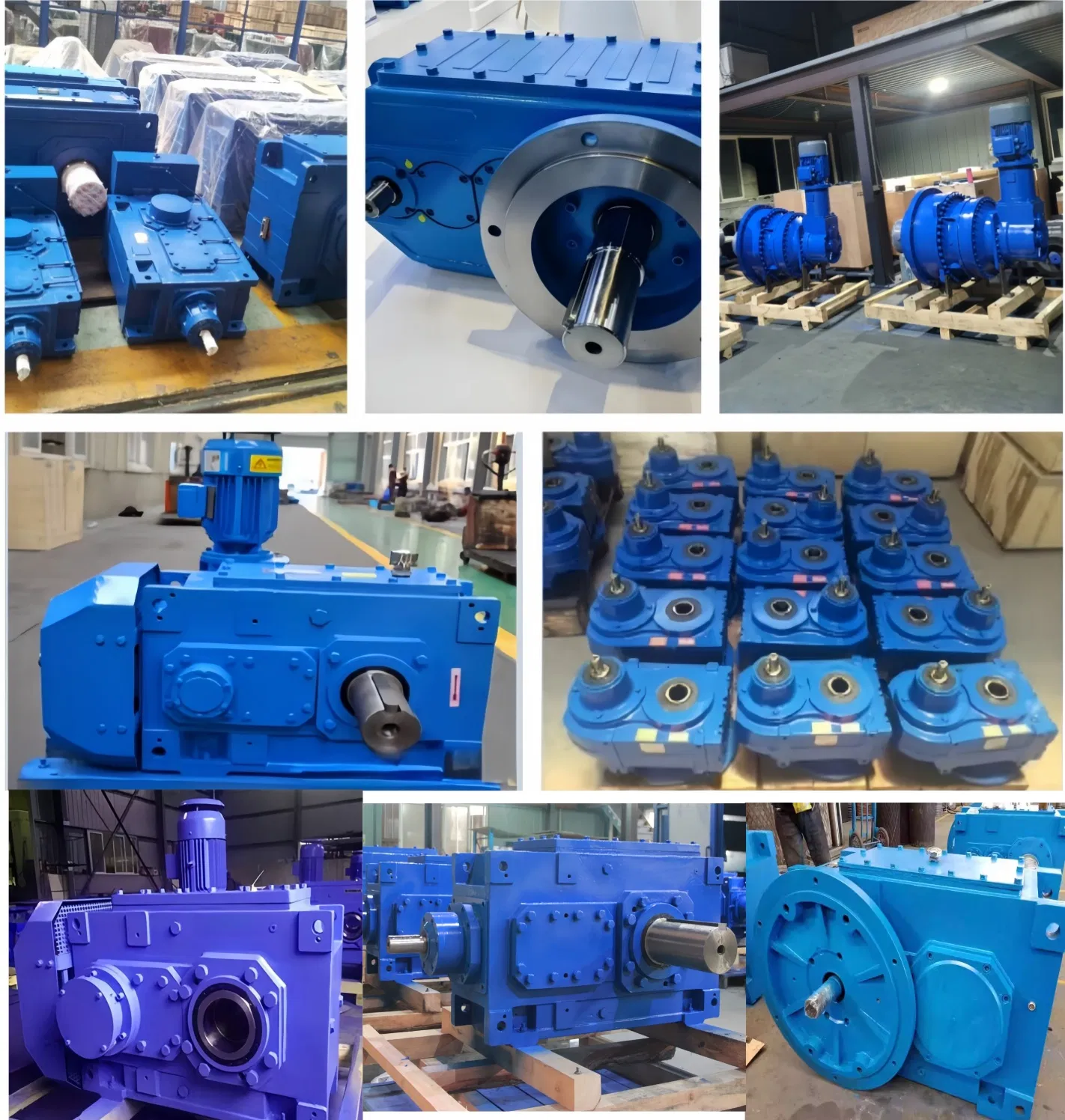

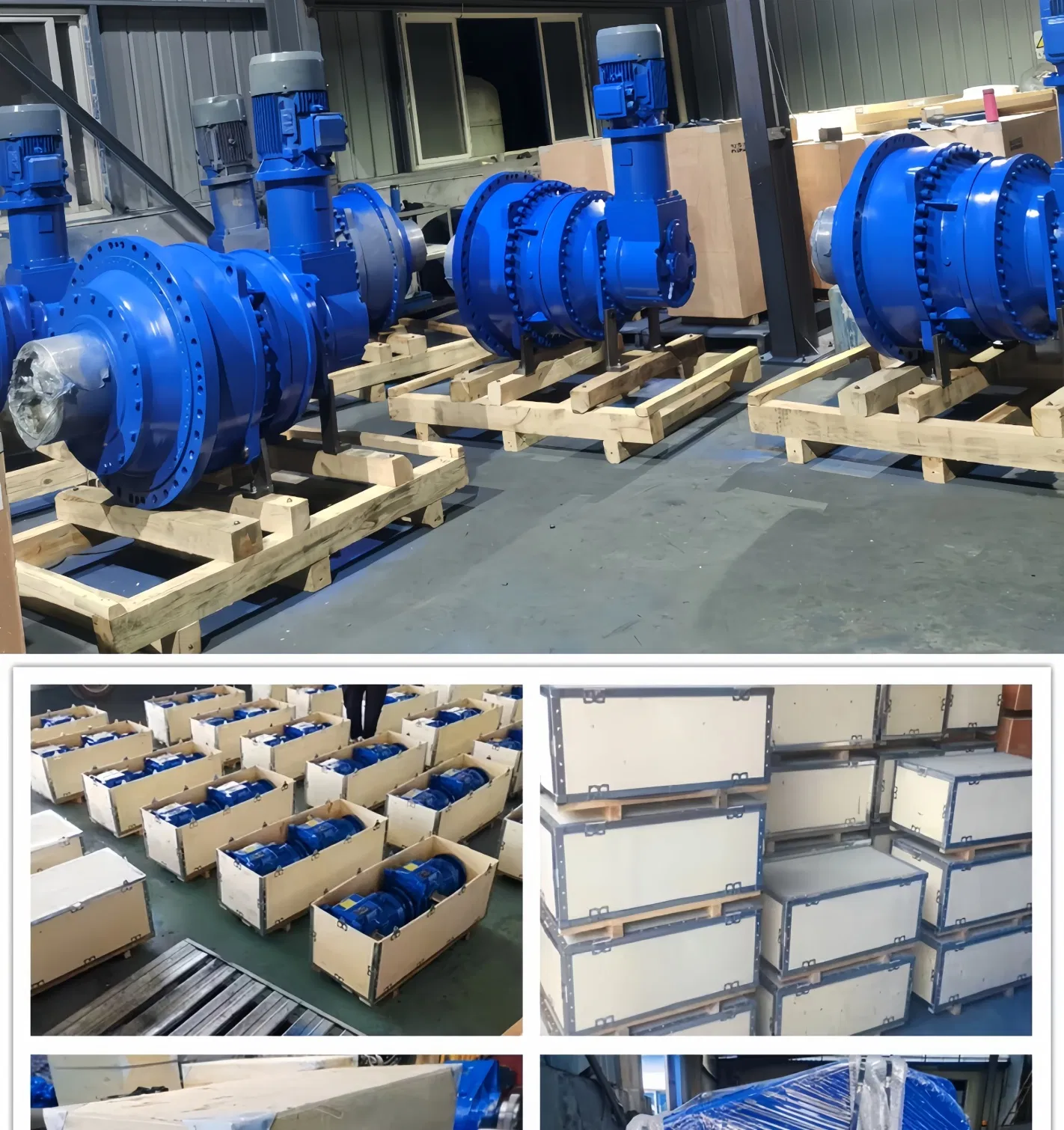

📦 Packing & Delivery
| Package Size |
80.00cm * 50.00cm * 60.00cm |
| Gross Weight |
55.000kg |
🏆 Quality Assurance & Profile

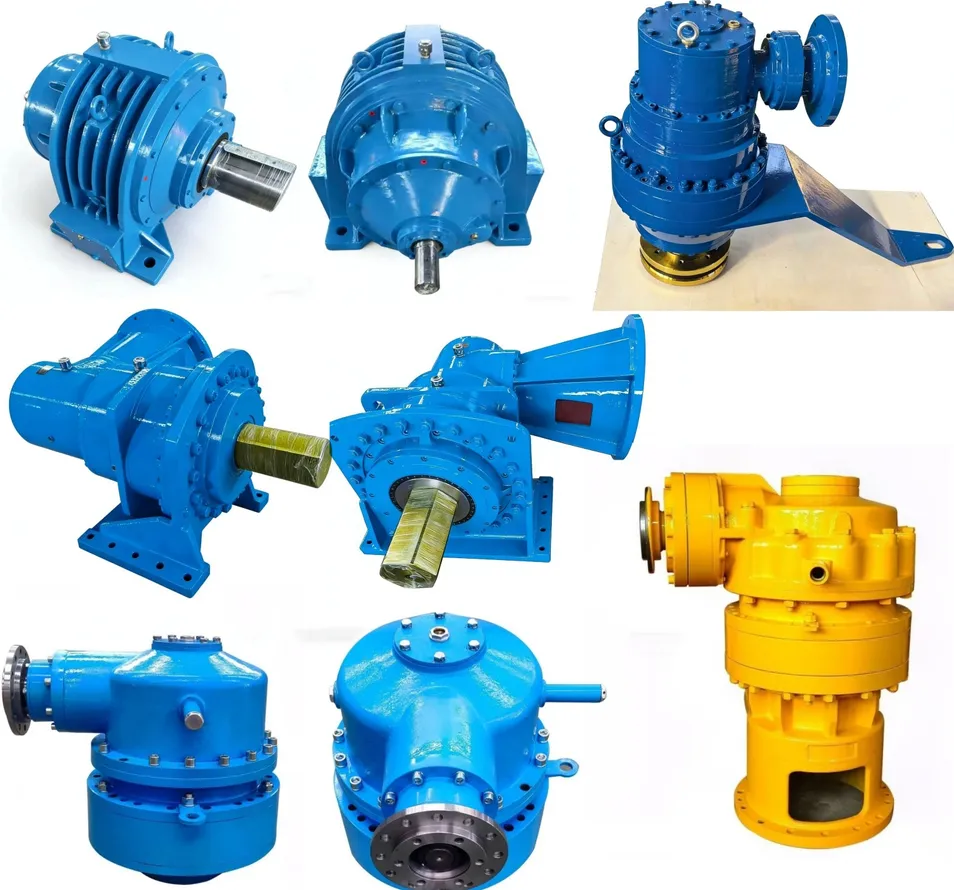

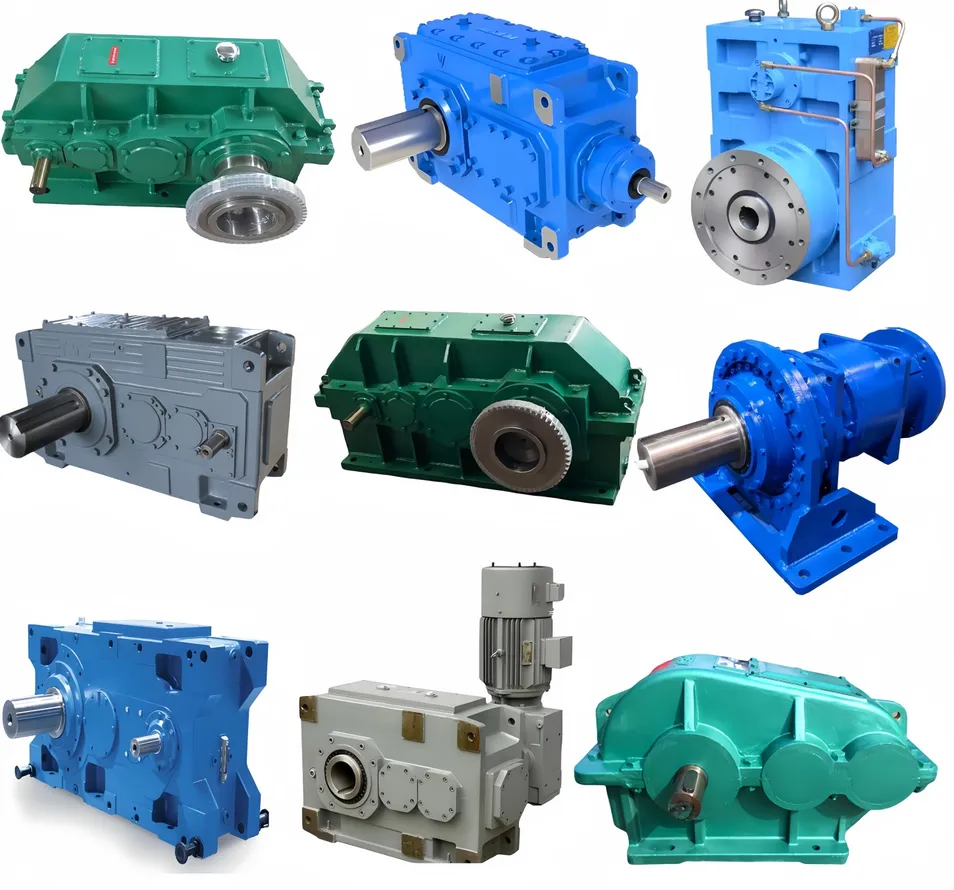

We are a modern comprehensive enterprise specializing in the R&D, manufacturing, and sales of gearboxes, gearmotors, and elevators. With two major production bases covering 470,000 square meters, we provide efficient mechanical transmission solutions worldwide. Our products include Helical, Parallel Axis, Bevel Gear, and Precision Planetary reducers used in chemical, food, packaging, and automation industries.
❓ Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
We operate as both a factory and a trading company with over 15 years of export experience, maintaining our own production facilities and long-term partnerships.
Q2: Can I purchase samples before placing a bulk order?
Yes! Sample orders are welcome to test the quality of our products and services.
Q3: How do you control product quality?

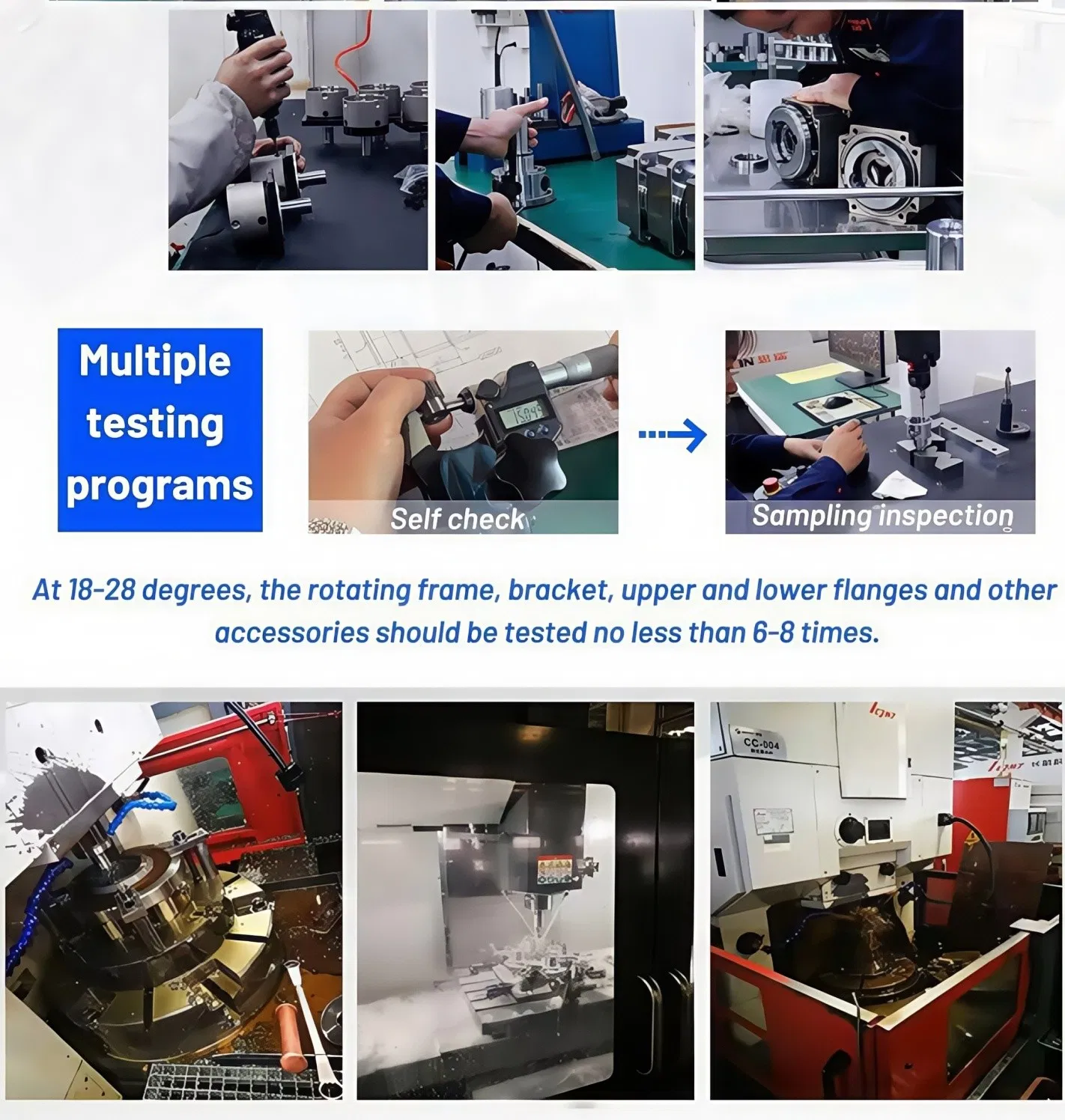

We follow the ISO9001 system with CE/UL certifications. Quality control includes material inspection, production patrol inspection, and a final product check (at least 3 times) before shipment.
Q4: What payment methods do you accept?
We accept Credit Card, T/T Wire Transfer, MoneyGram, Western Union, and other standard international payment methods.
Q5: Do you offer OEM/ODM services for branding?
Yes, professional OEM/ODM services are available. We can apply your logo to products for bulk orders as per your requirements.
Q6: What are your main service advantages?
We provide 24/7 prompt response, customized drawing support, flexible MOQ, and comprehensive technical training for product maintenance and diagnosis.
