Thermal Insulation Lightweight Large-Format Commercial Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Large-Format Commercial Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Large-Format Commercial Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Large-Format Commercial Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Large-Format Commercial Building Facades Composite Stone Honeycomb Panel
1 / 5
Thermal Insulation Lightweight Large-Format Commercial Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Large-Format Commercial Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Large-Format Commercial Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Large-Format Commercial Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Large-Format Commercial Building Facades Composite Stone Honeycomb Panel

Thermal Insulation Lightweight Large-Format Commercial Building Facades Composite Stone Honeycomb Panel

Customization: Available
After-sales Service: One Year
Warranty: One Year
Send Inquiry

Product Description

Basic Information

Model NO.
sc-01
Material
Stone Honeycomb
Performance
High Intensity
Function
Exterior Walls, Ceilings, Partitions
Fire Level
Class A / A2
Panel Thickness
10-30mm (Stone 3-5mm)
Life Cycle
30 Years+
Sound Insulation
RW 15 dB

Product Description

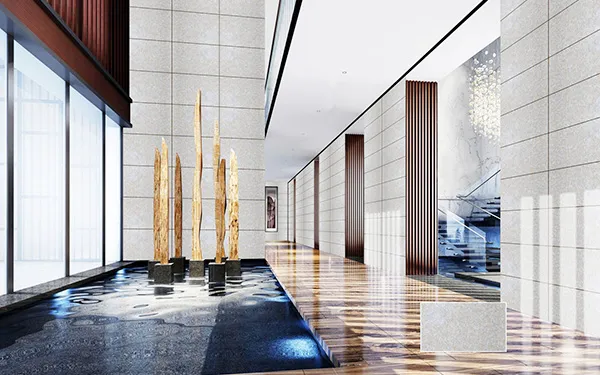

Stone Honeycomb Panel 1

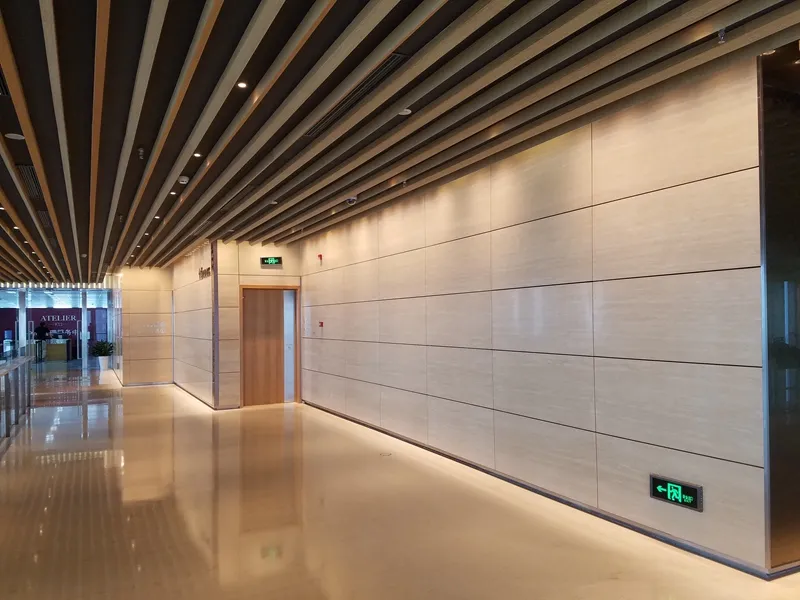

Stone Honeycomb Panel 2
  • ✓

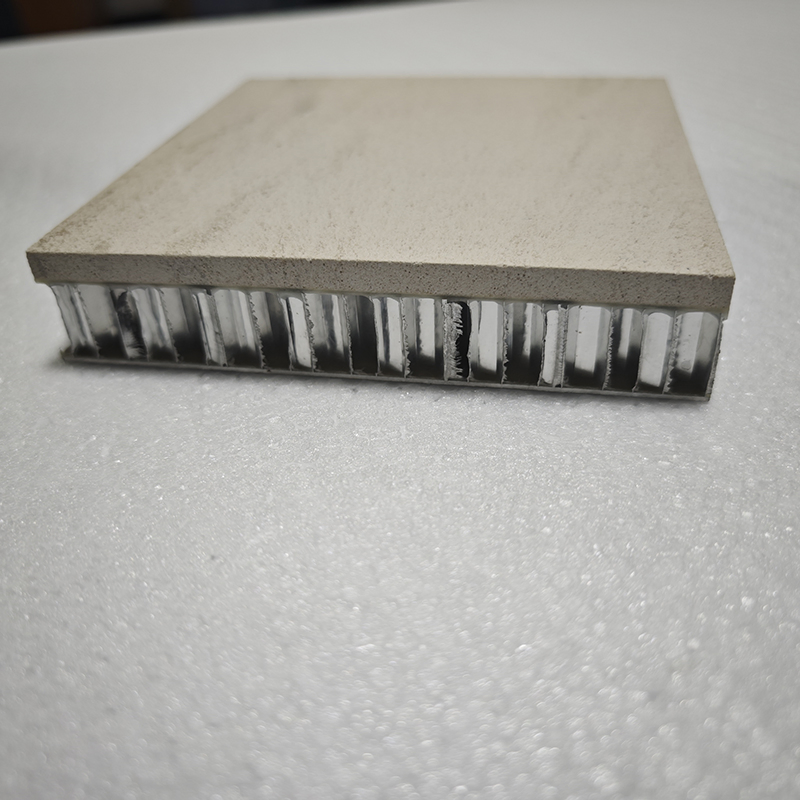

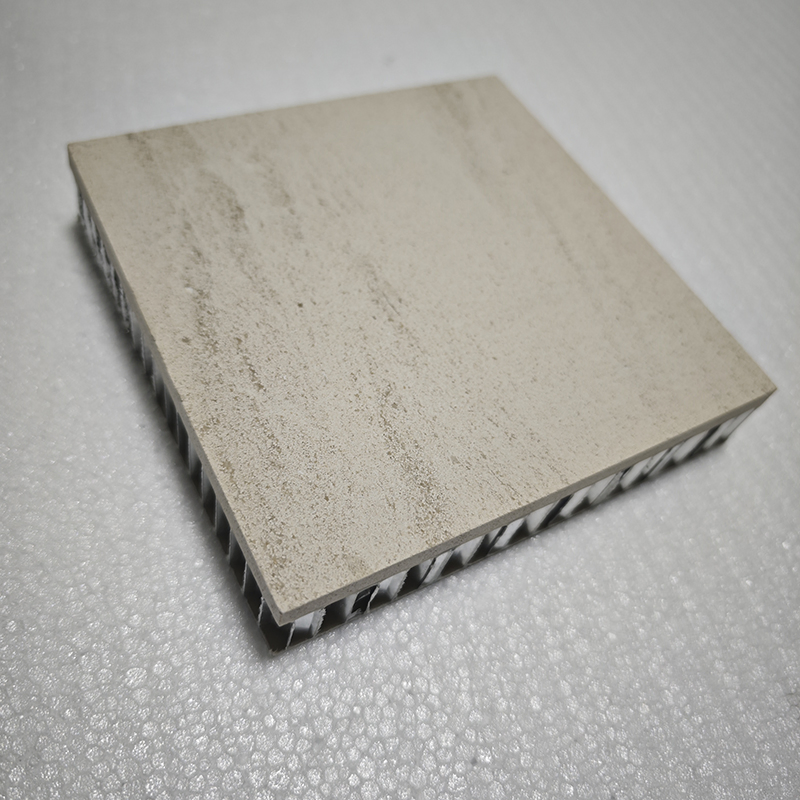

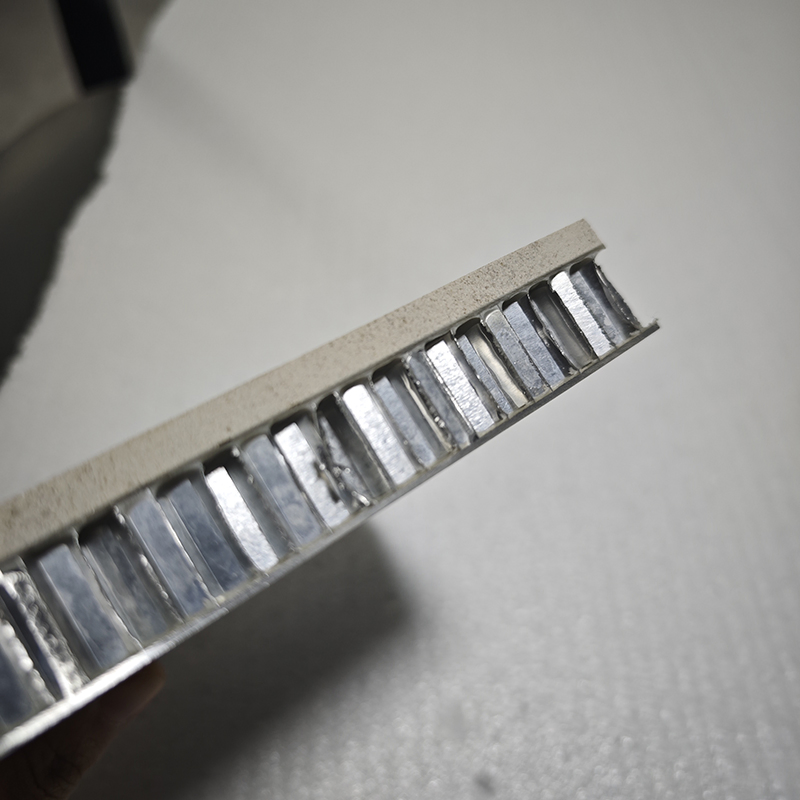

    Lightweight & High Strength: Stone veneer (3-5mm) bonded to aluminum honeycomb core, 1/5 the weight of solid stone with 3x higher strength.
  • ✓
    Authentic Stone Texture: Natural granite/marble surface with original aesthetics.
  • ✓
    Flat & Rigid: Honeycomb structure ensures exceptional flexural rigidity, resisting warping.
  • ✓
    Eco-Friendly: Reduces quarrying needs; aluminum core is fully recyclable.

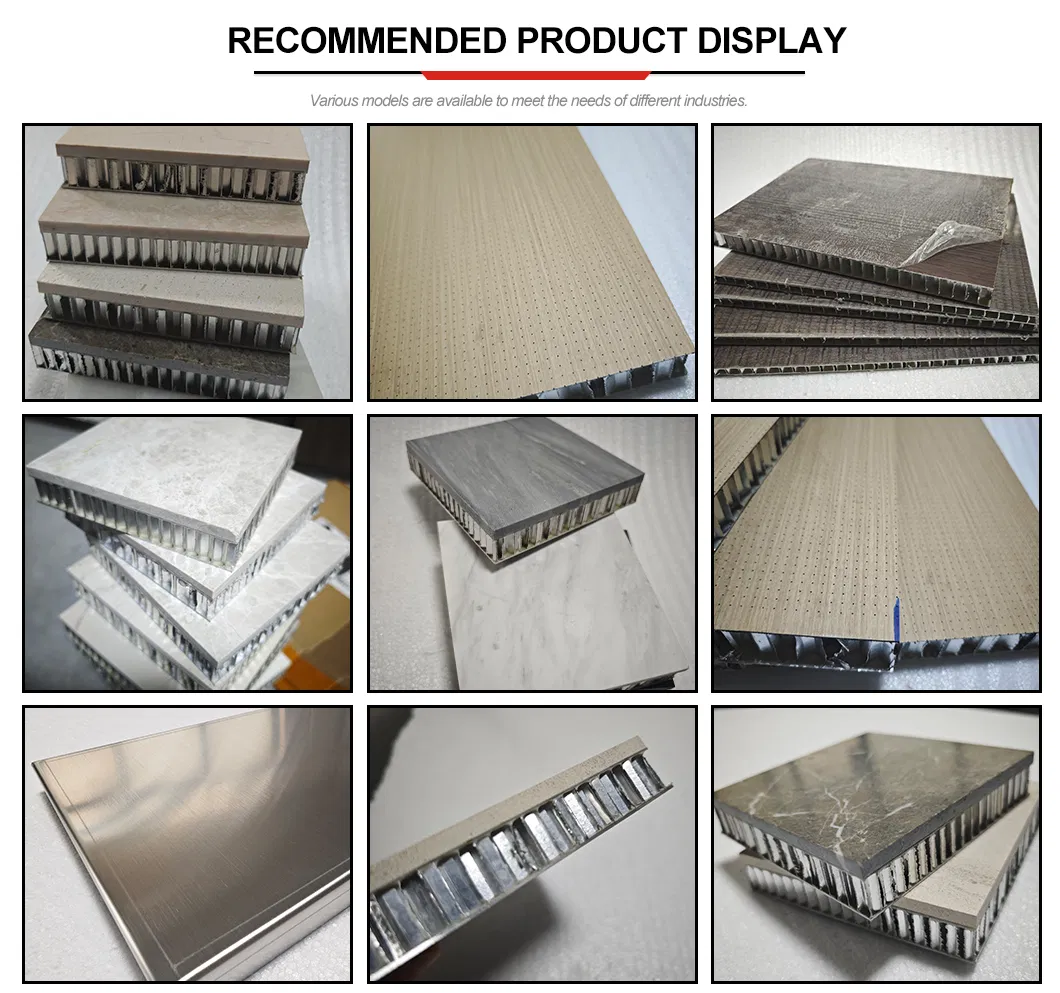

Building Facade Detail

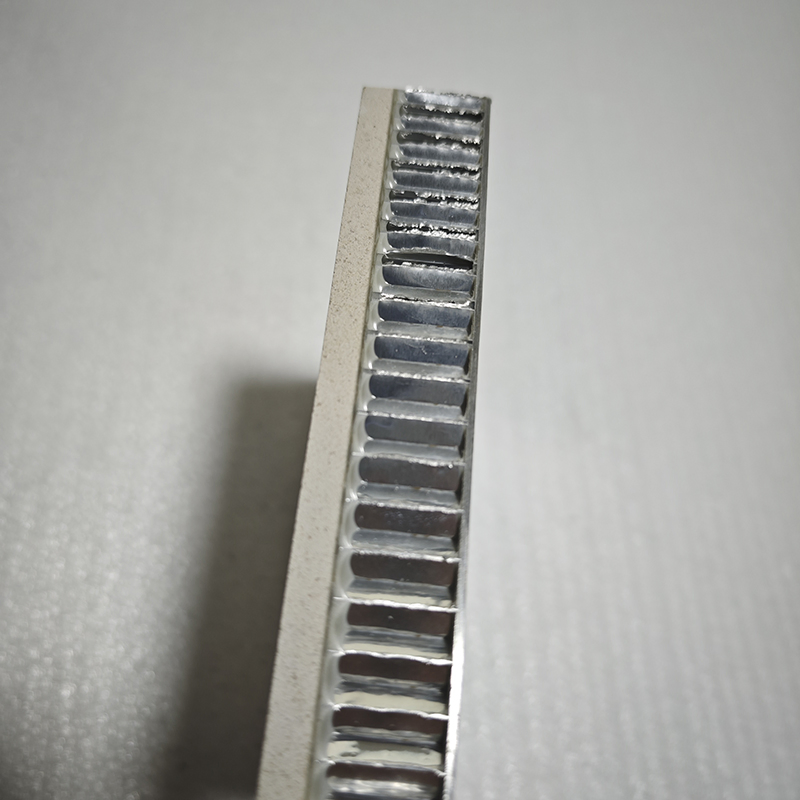

Panel Structure

Key Advantages:

  • ● Cuts steel support costs; 50% faster installation.
  • ● Seismic/Wind Resistant: Passes JIS/GB wind pressure tests.
  • ● Thermal/Acoustic Insulation: Blocks sound/heat (15dB+ noise reduction).

Technical Specifications

Panel thickness 10-30mm (stone 3-5mm + aluminum core) Flexural strength ≥7.0MPa (GB/T 17748)
Fire protection level Class A2 (EN 13501-1) Weather resistance No corrosion after 3000h salt spray test
Packaging Export Plywood boxes Function Exterior walls, ceilings, partitions, ships
Production Capacity 100,000 m2/year Service Life 25-30+ Years

Composite Solutions Expertise

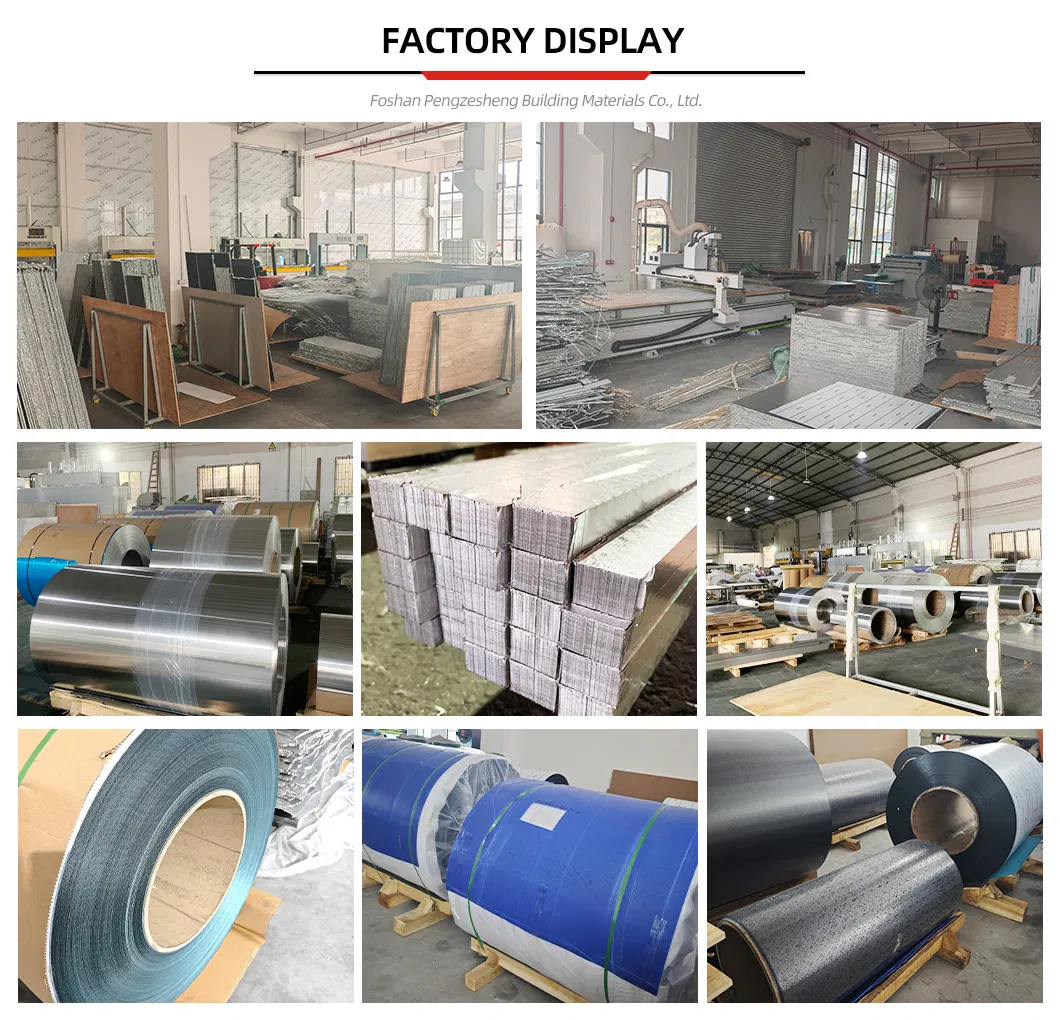

Manufacturing Center

With 10 years of specialized expertise in advanced honeycomb composite panels, we deliver precision-engineered solutions for architectural facades, interior systems, and industrial applications worldwide.

Core Capabilities:

  • Automated Production: Equipped with CNC routers and vacuum hot-press bonding systems.
  • Strict QC: Adherence to GB, ASTM, and EN standards; SGS-certified peel strength.
  • Customization: Support bespoke sizes up to 4000×2000mm.

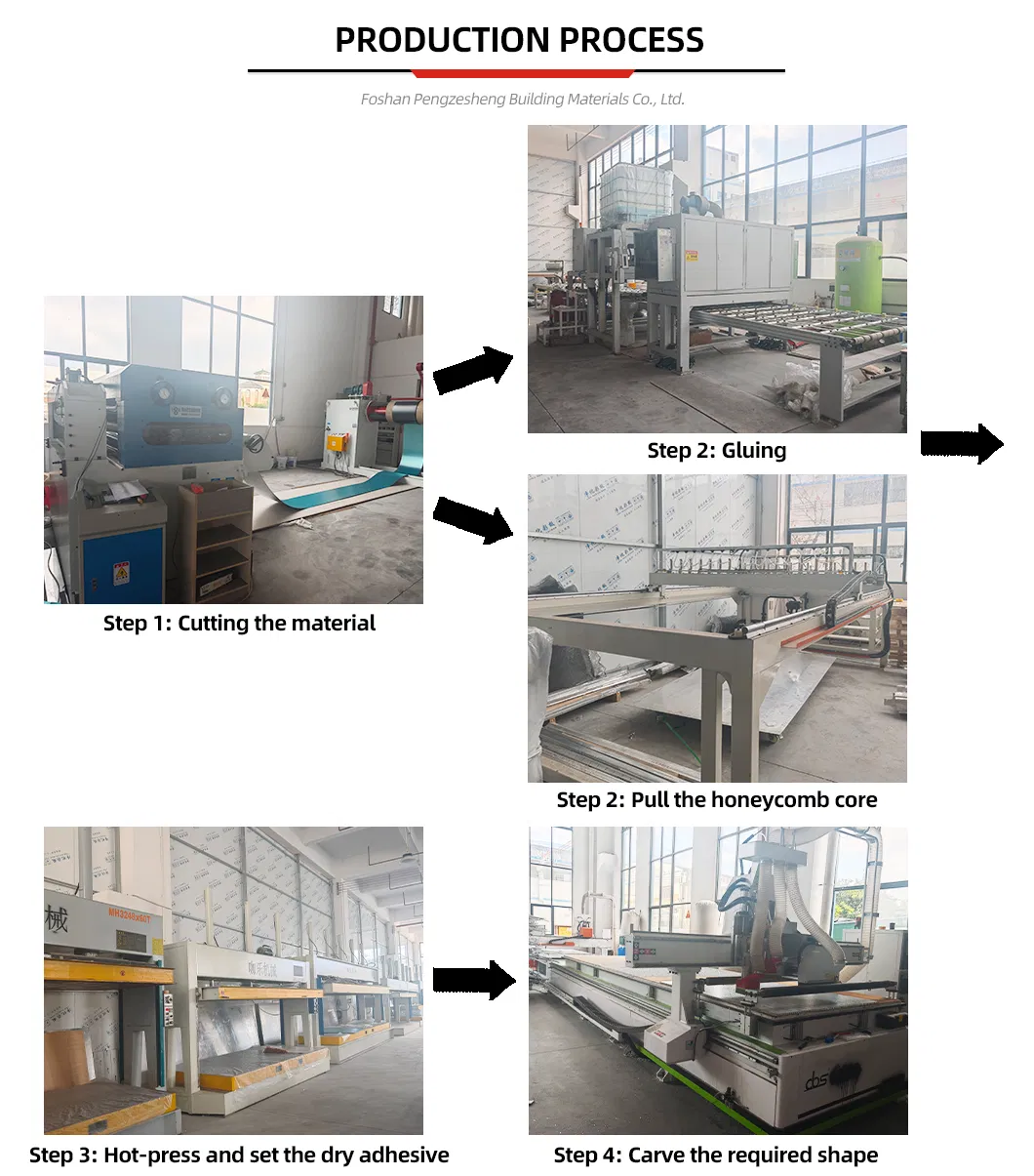

Production Process

Production Line
1. Raw Material Preparation
AA3003/AA5052 aluminum coils and AA3003H18 honeycomb cores.
2. Face Sheet Pre-Treatment
Chemical conversion and PVDF coating (3-coat/2-bake system).
3. Composite Bonding
Vacuum hot pressing at 120-140℃ with epoxy or PU adhesive.
4. Post-Processing
CNC trimming, waterjet cutting, and edge sealing.
5. Quality Control
Peel strength testing (≥7N/mm) and laser flatness scanning.

Packing & Delivery

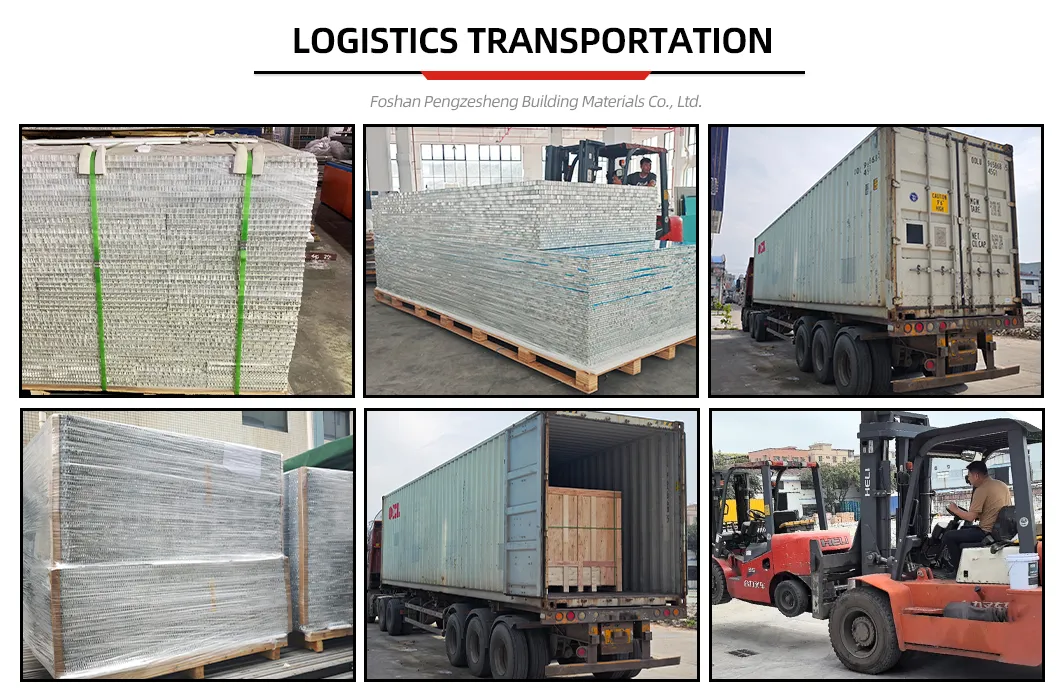

Plywood Box Packing

All panels are securely packed in export-standard plywood boxes to ensure protection during international sea and air freight.

Frequently Asked Questions

Q1: How does the weight of stone honeycomb panels compare to solid stone?
A: Stone honeycomb panels are approximately 1/5 the weight of solid stone slabs, significantly reducing the structural load on buildings.
Q2: What is the fire safety rating of these panels?
A: Our panels achieve a Class A2 fire protection level according to EN 13501-1 standards, making them suitable for high-rise buildings.
Q3: Can these panels be used for exterior curtain walls?
A: Yes, they are specifically engineered for exterior cladding, providing high wind resistance and weather durability (3000h salt spray tested).
Q4: What are the sound insulation properties?
A: The aluminum honeycomb core provides excellent acoustic damping, achieving a noise reduction of over 15dB.
Q5: What is the expected lifespan of the product?
A: For outdoor curtain walls, the panels have a life cycle of 30 years or more with minimal maintenance.
Q6: Are the materials recyclable?
A: Yes, the aluminum honeycomb core is fully recyclable, and the production process uses VOC-free adhesives, contributing to green building standards.
