Temperature-Controlled Pallet Lifter Solutions for Cold Chain Logistics

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Technical Specifications

Model NO.
HYD-TSJ1.5
Type
Multi-Layer Warehouse
Material
Steel, Aluminium
Height
>15m
Load Capacity
>500kg per Layer
Operation
Unmanned Operation
Environment
Cold Chain / General Storage
Support
24/7 Life Cycle Support
🏗️

Temperature-Controlled Pallet Lifter Solutions

Pallet lift is a logistics solution employed in multiple sectors to raise a load to the desired height. In its simplest form, a pallet lift is a tool widely used in warehouses to elevate goods a number of feet. This facilitates the loading/unloading of trucks and improves operator access to products.

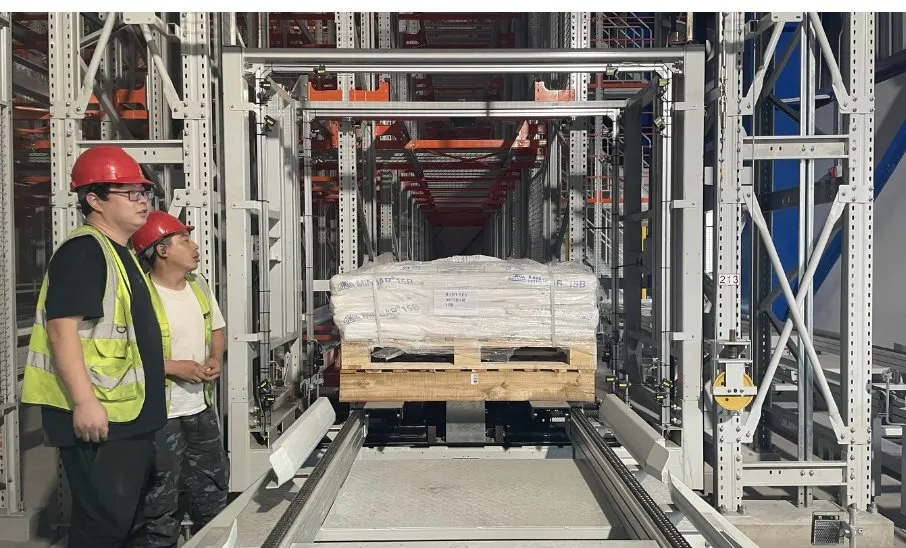

Vertical conveyors are a more sophisticated version used in Automated Storage and Retrieval Systems (AS/RS). Driven by electric motors, they serve to connect different conveyor line levels, automate truck loading and unloading, and streamline material flow within vertical warehouse spaces.

🌟

Key Advantages

High-bay Capability: Lifts pallets up to 40m in height for maximum space utilization.
High Load Capacity: Robust construction supports weights up to 3,000 kg.
Great Speed: Achieves speeds up to 80 m/min for maximum throughput.
Wide Temperature Range: Operates efficiently from -30 °C to 40 °C, ideal for cold chain.

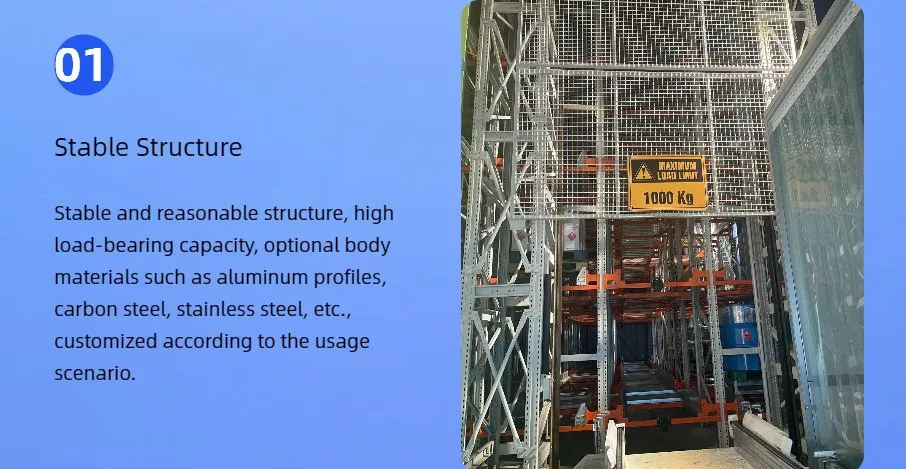

Safe Operation: Stable vertical transport safeguarding the integrity of the goods.
⚙️

Technical Parameters

Item Basic Data
Motor ReducerSmart Motor System
Control ModeManual / Automatic / On-line
Speed AdjustingFrequency Control
Safety MethodElectrical interlocking; Protecting and guiding direction
Pallet DetectionPhotosensor
Chain RailLow friction nylon rail
Conveyor Speed60m/min
Noise Level≤ 65 dB
🚀

System Applications

Our extensive pallet conveyor solutions provide flexible, scalable options for virtually any requirement:

  • Receiving: Efficiently move incoming pallets for unloading or bulk storage.
  • Palletizing: Transport empty and full pallets into position for automation.
  • Load Storage: Ensure stable flow into and out of high-density storage.
  • AS/RS: Direct stable flow to and from dense automated storage systems.
  • Manufacturing: Smooth flow for end-of-line stacking and stretch-wrapping.
🔄

Our Implementation Process

Step 1: Define - Determine project objectives with stakeholders.
Step 2: Measure - Collect data to understand specific business needs.
Step 3: Analyze - Create predictive models based on operating data.
Step 4: Design - Develop the best structural and logical layout.
Step 5: Validate - Feasibility analysis and cost estimation.
Step 6: Presentation - Finalizing the best turnkey solution.

Frequently Asked Questions

What types of automated storage systems do you provide?
We offer Unitload AS/RS (pallet type), Miniload AS/RS (box/container type), shuttle sequencing systems, and rack-supported building solutions.
Can these lifters operate in sub-zero environments?
Yes, our vertical conveyor systems are designed to operate in a wide temperature range from -30 °C to 40 °C, making them perfect for cold chain logistics.
What is the maximum load and height for the vertical lift?
Our systems can lift loads up to 3,000 kg and reach heights of up to 40 meters, depending on the specific model and warehouse configuration.
What safety features are integrated into the systems?
Systems include electrical interlocking, photosensors for pallet detection, protecting/guiding rails on both sides, and high-quality sealed bearings for stable transport.
How is the system maintenance handled?
Our solutions are designed with modular components and bolted construction to ensure minimal maintenance and maximum uptime, backed by 24/7 life cycle support.
Is the system compatible with existing warehouse equipment?
Yes, the compact and modular design allows for easy integration with existing conveyor lines, electric monorail systems, and various host management systems.
