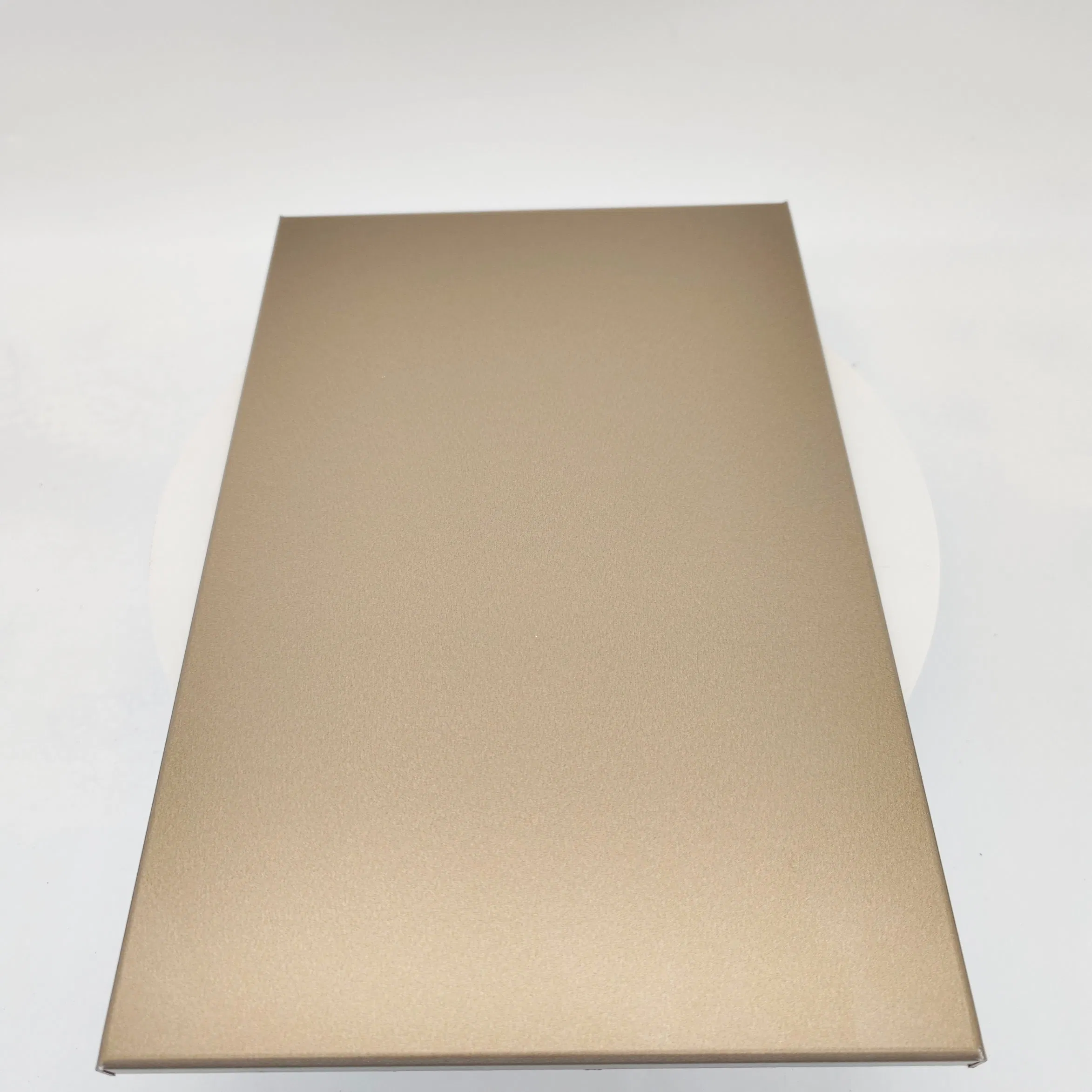

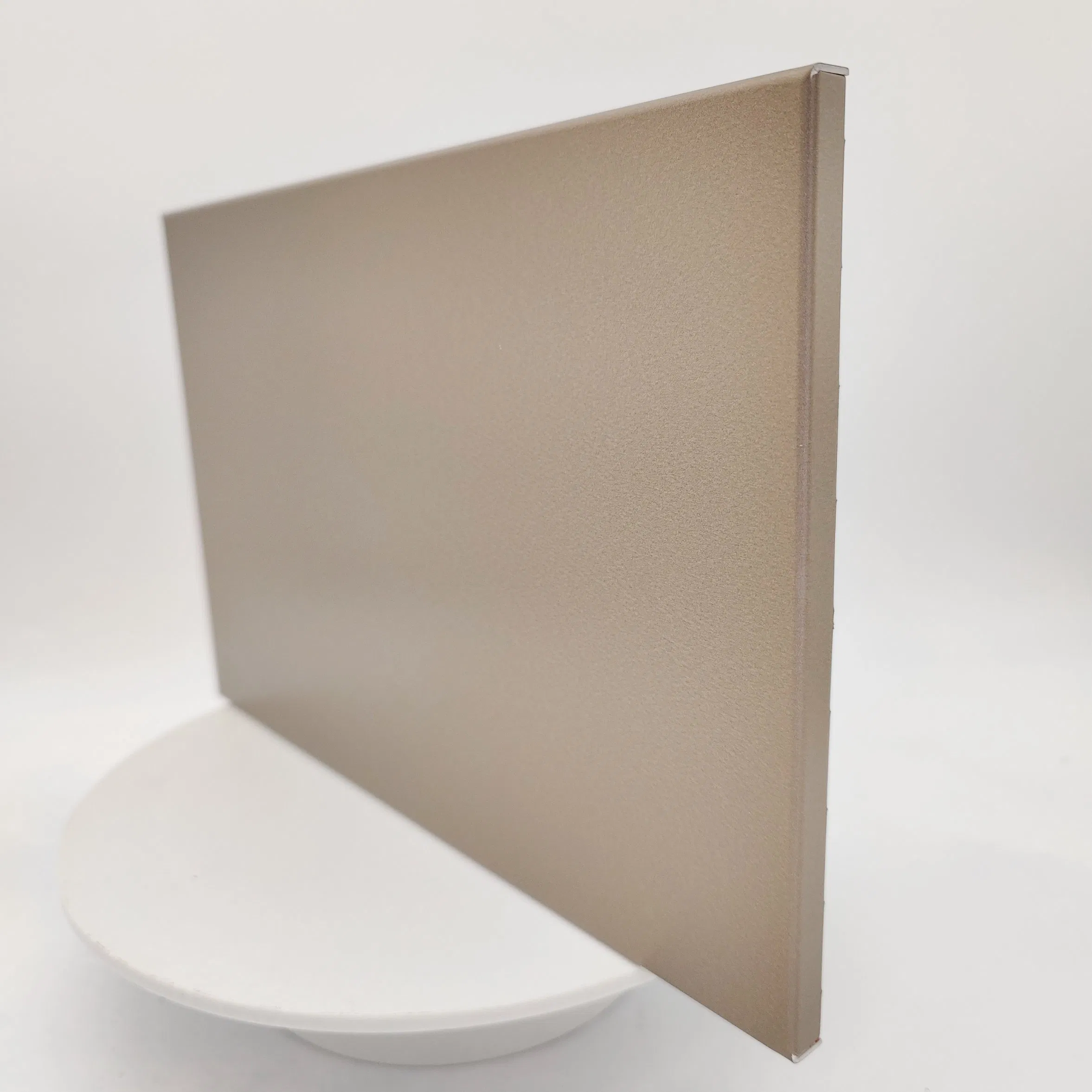

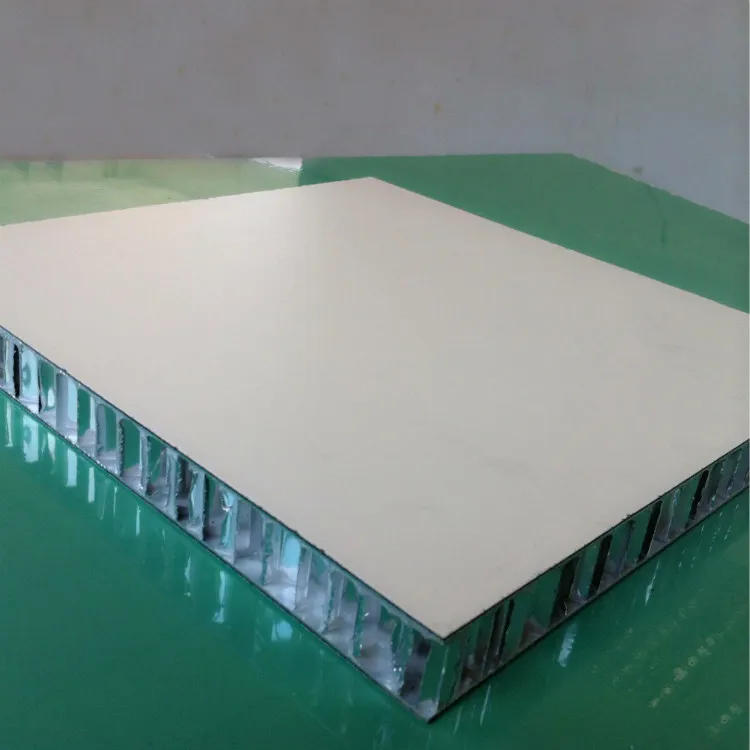

Aluminum honeycomb panels are lightweight composite materials made of two aluminum sheets bonded to a honeycomb-shaped core. They offer high strength-to-weight ratio, rigidity, and good thermal and acoustic insulation. Commonly used in architecture, transportation, and aerospace, they provide structural efficiency and aesthetic appeal.
| Item | Parameter Description |
|---|---|
| Product Name | All-aluminum honeycomb panel |
| Regular size | 1220×2440mm, 1200×2800 (customization supported) |
| Thickness range | 7mm ~ 30mm |
| Panel thickness | 0.7mm ~ 2mm aluminum plate |
| Honeycomb core specifications | Side length 3mm~10mm |
| Aluminum foil thickness | 0.035mm ~ 0.1mm |
| Panel material | 3003/5052 aluminum alloy |
| Surface treatment | Film/fluorocarbon spraying/powder spraying/anodizing, etc. |
| Fireproof grade | A2/B1 (according to GB8624 standard) |
Surface technology: film lamination, spraying, roller coating

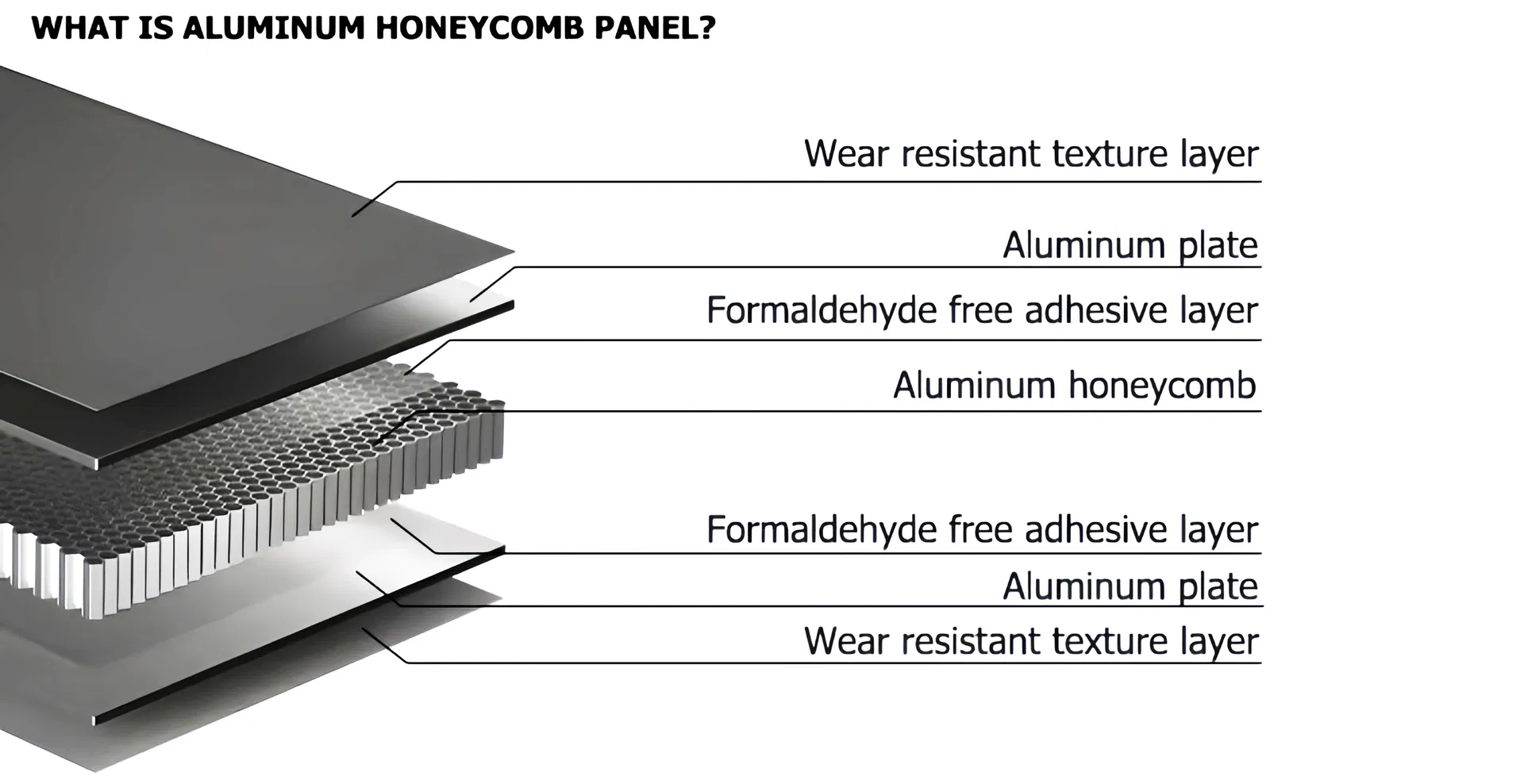

Panel material: aluminum plate (0.7mm ~ 2mm)

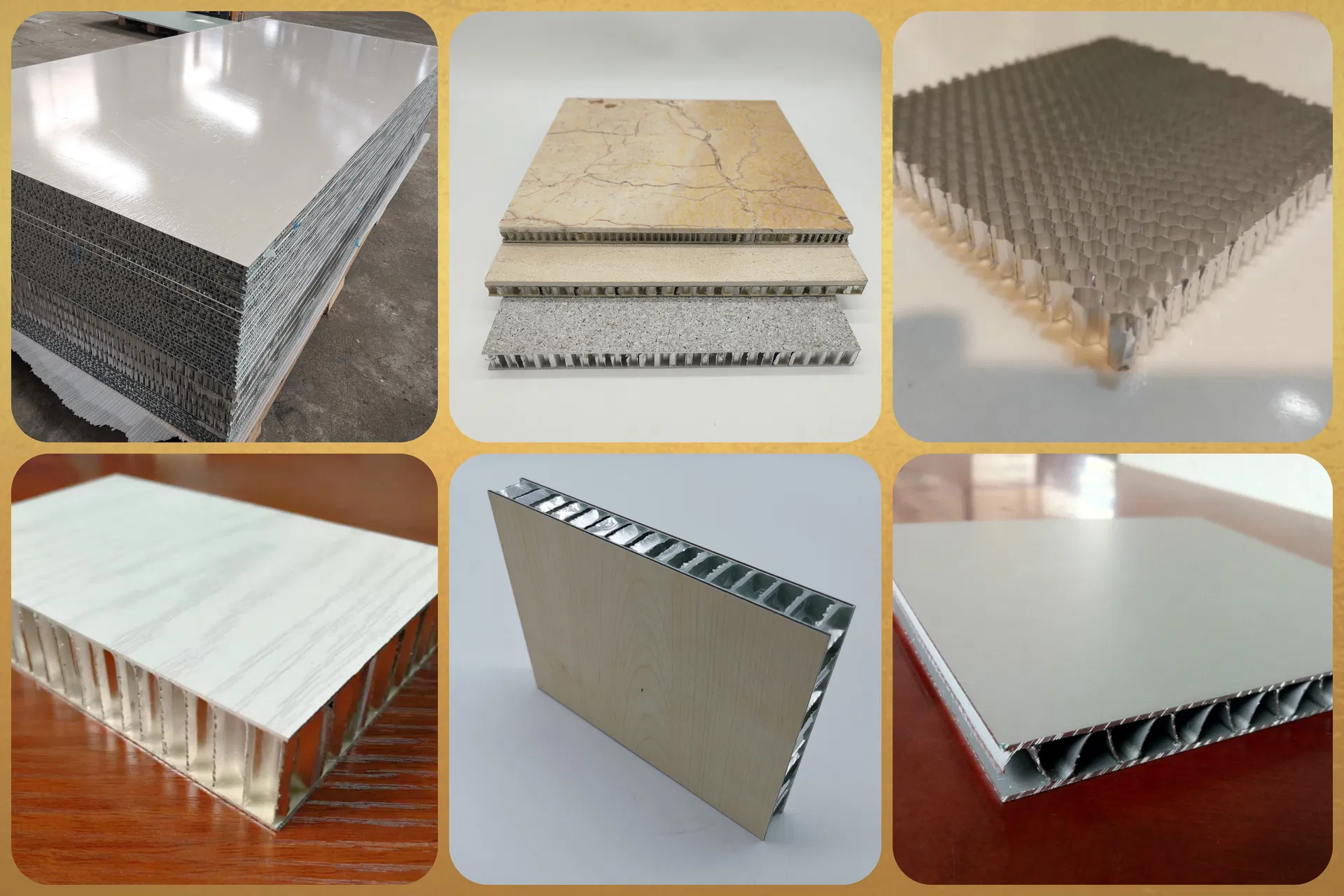

Core material: aluminum honeycomb core (hexagonal structure)
Backboard: aluminum plate

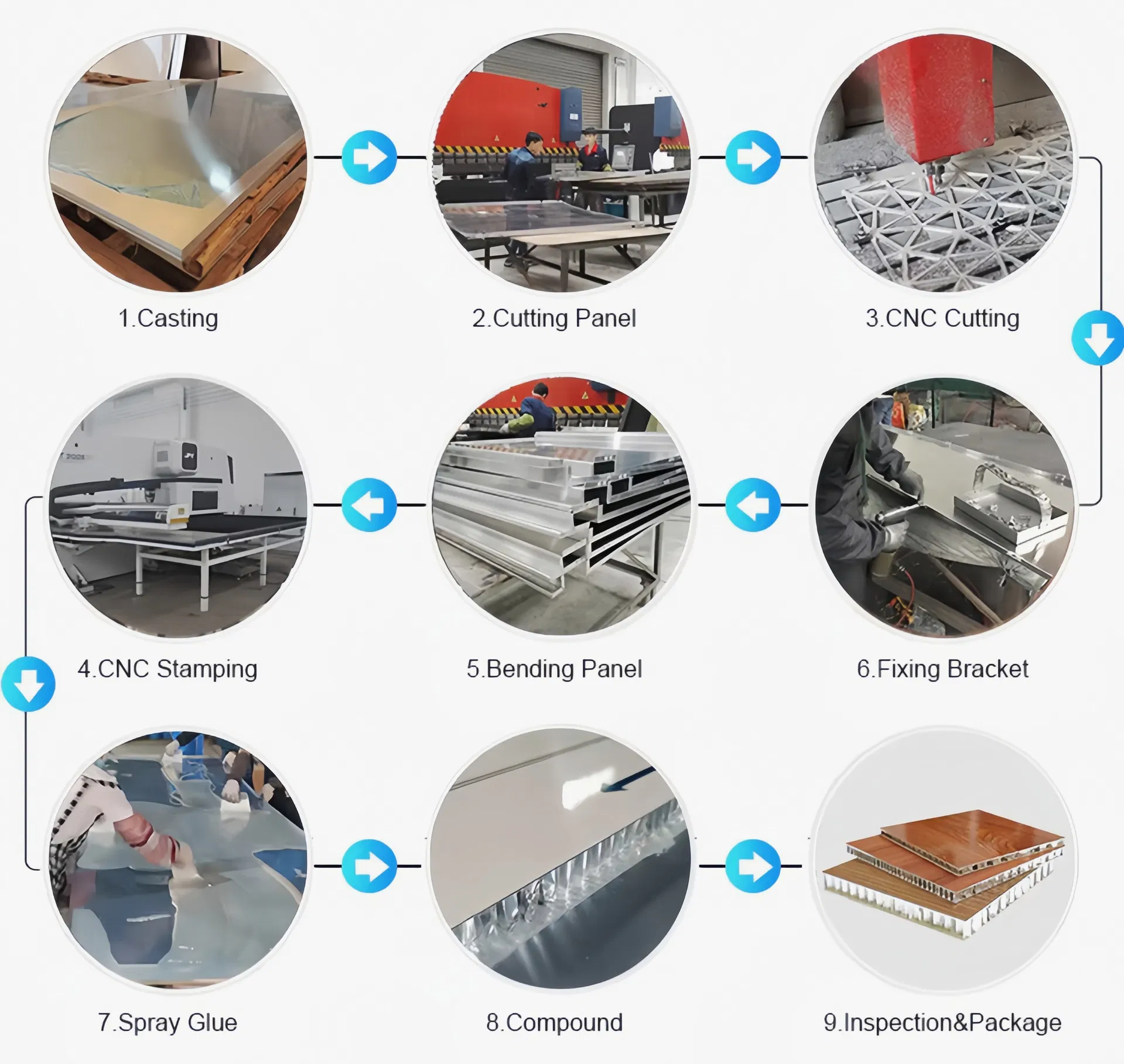

Bonding: aviation-grade adhesive, hot pressing composite
Lightweight and high strength

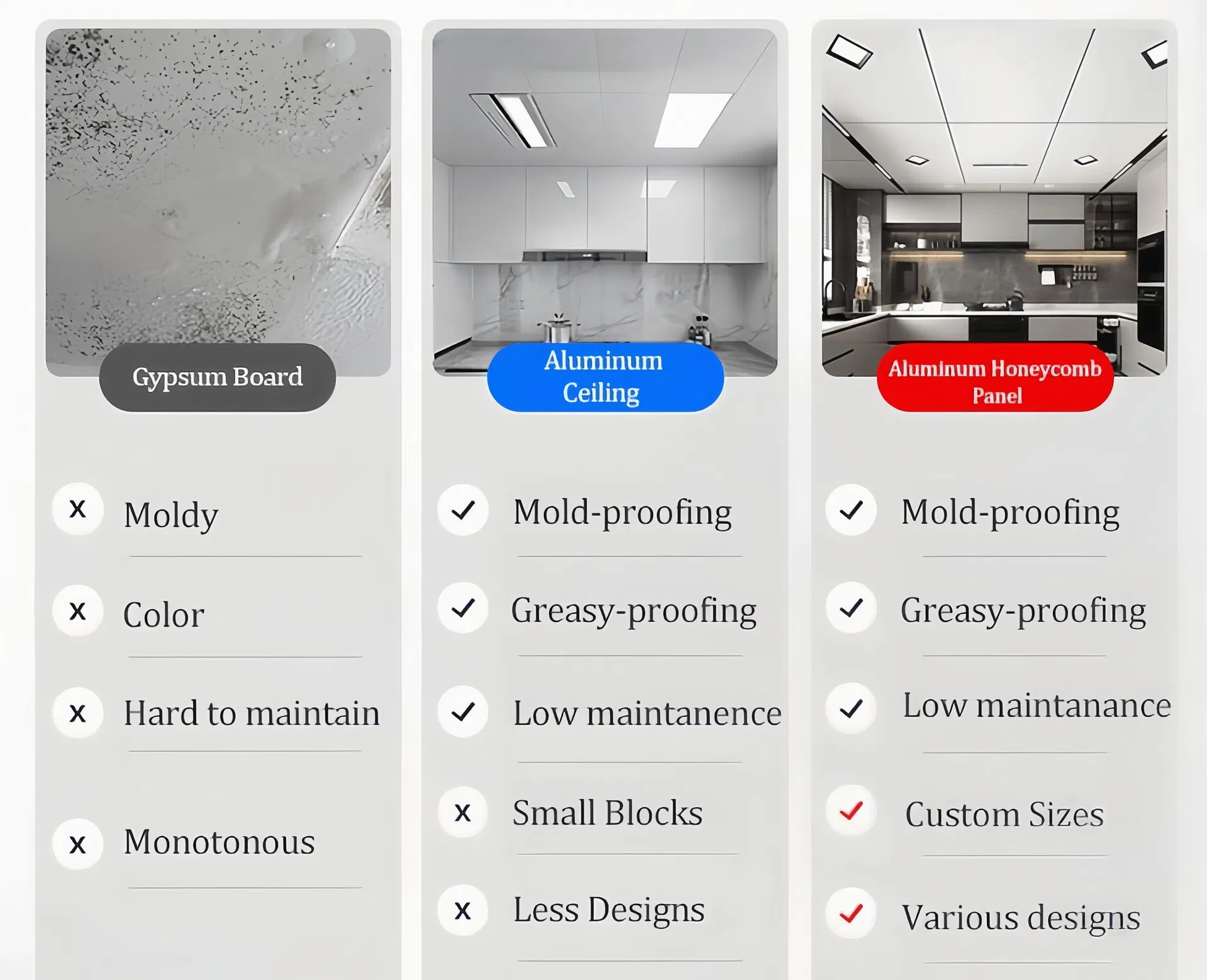

Fireproof and moisture-proof
Sound insulation and heat insulation

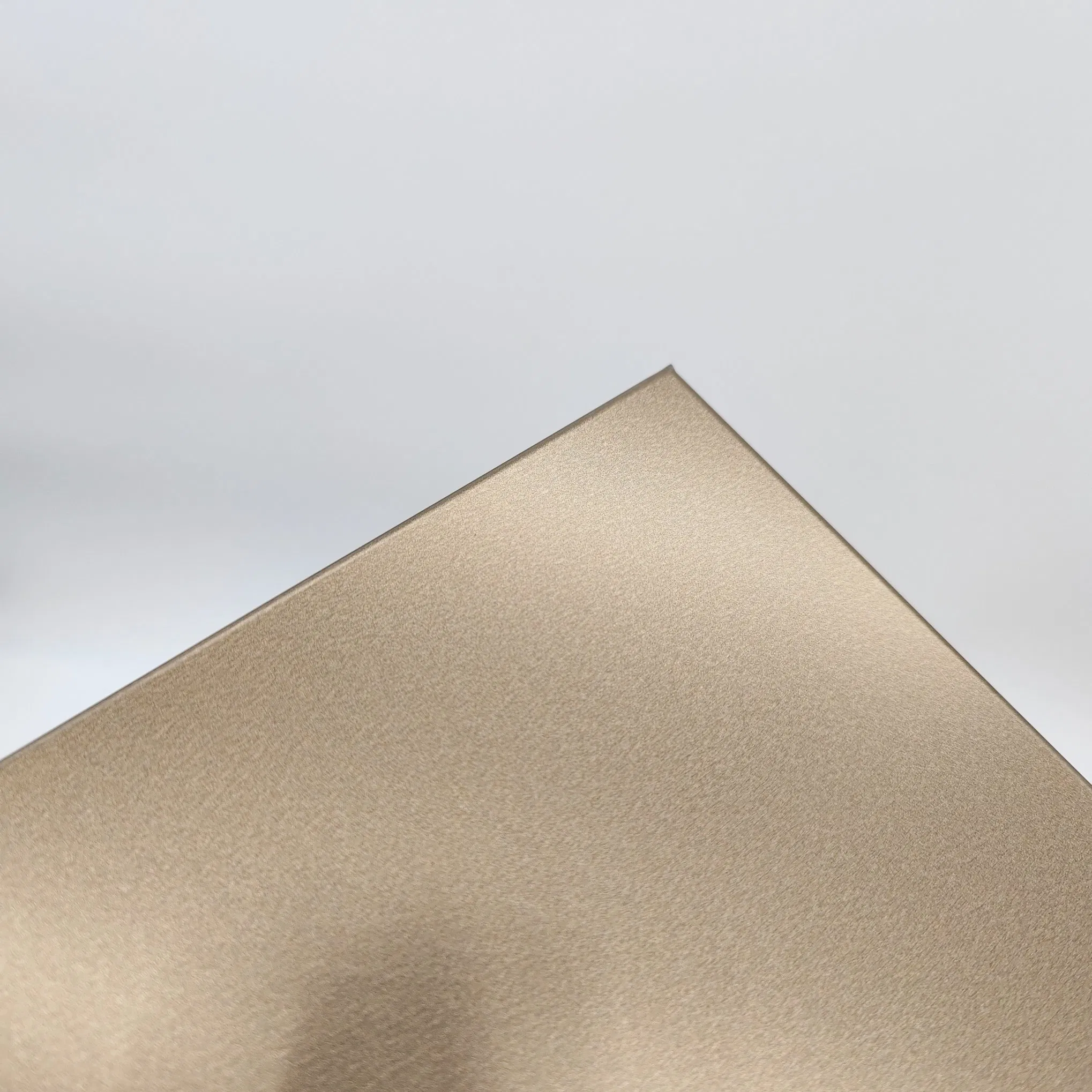

Smooth surface
Environmentally friendly
Customizable

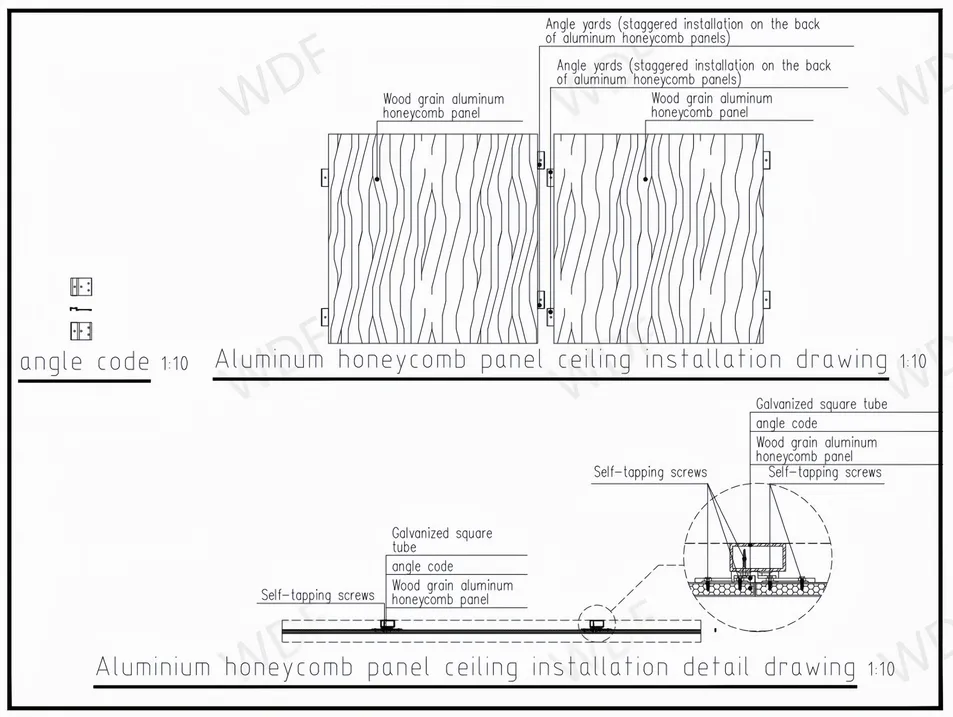

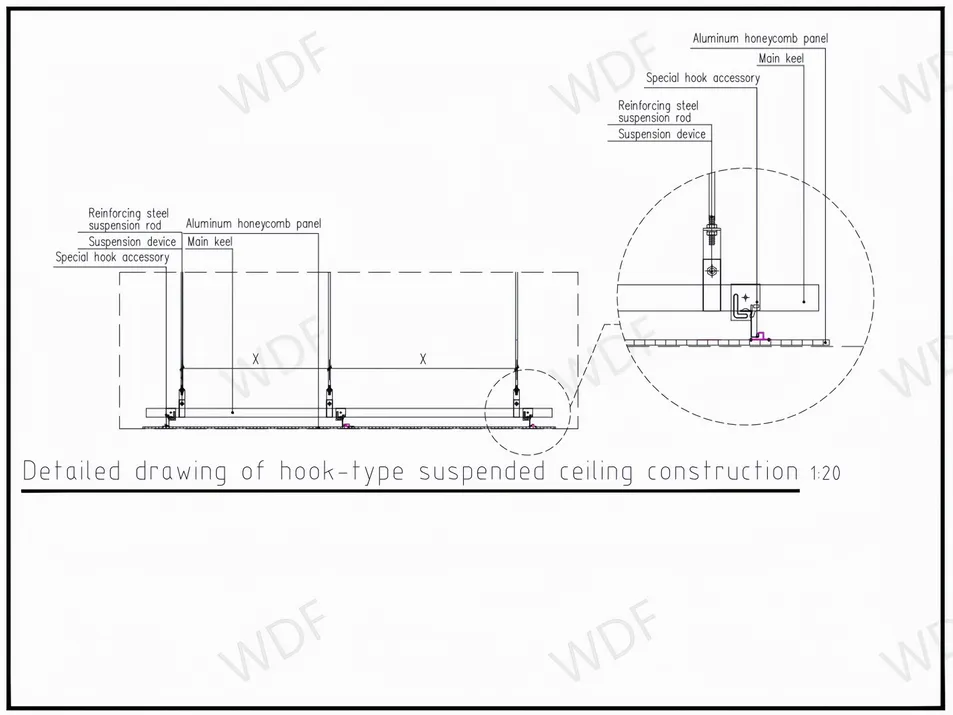

Aluminum honeycomb panels are suitable for installation in dry hanging systems and exposed/dark keel structures. Supporting aluminum alloy hangers, pressure strips, sealants and other auxiliary materials are provided. It can also be installed by leveling the steel structure and fixing the corner code; the third method is to directly glue the wall after leveling.
Aluminum Honeycomb Panel

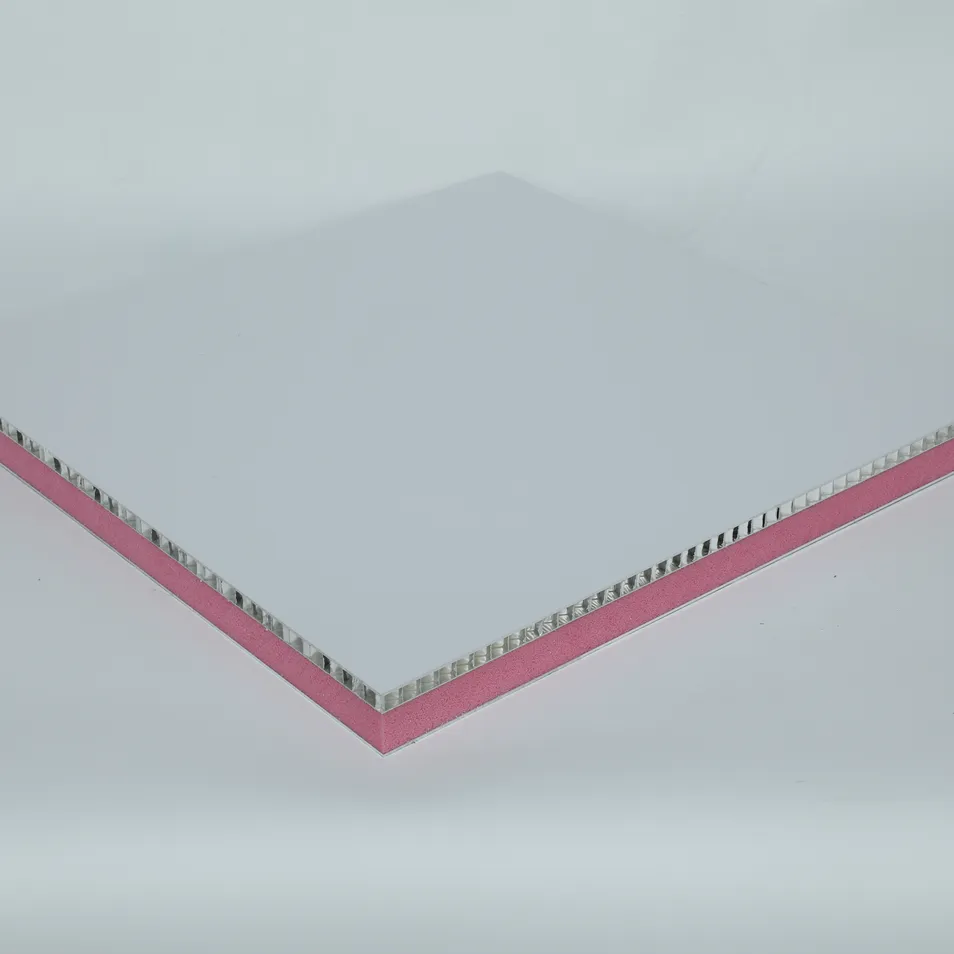

Alu EPS Panel

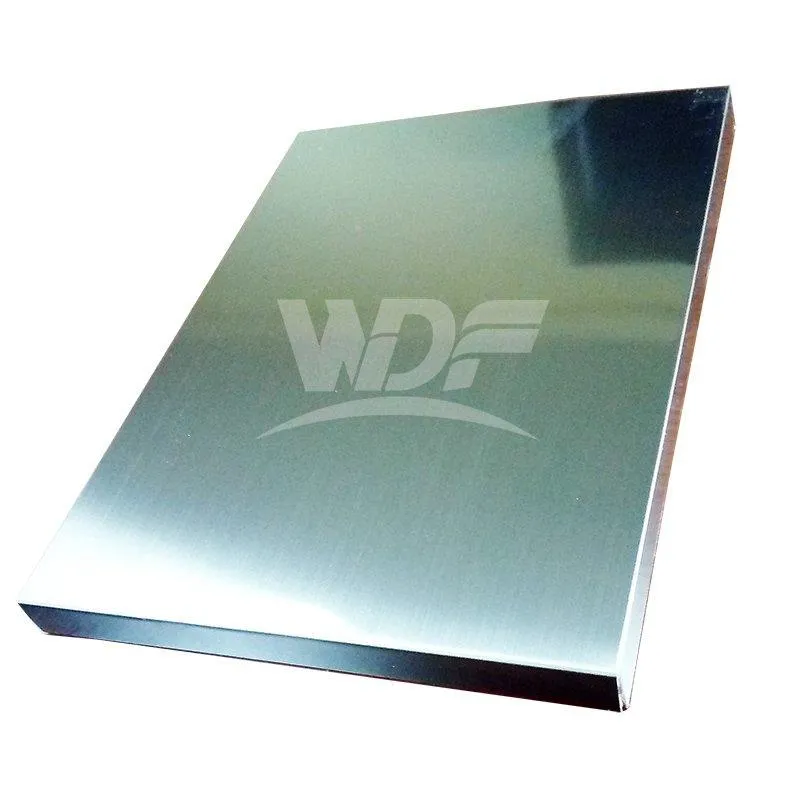

Stainless Steel Honeycomb Panel

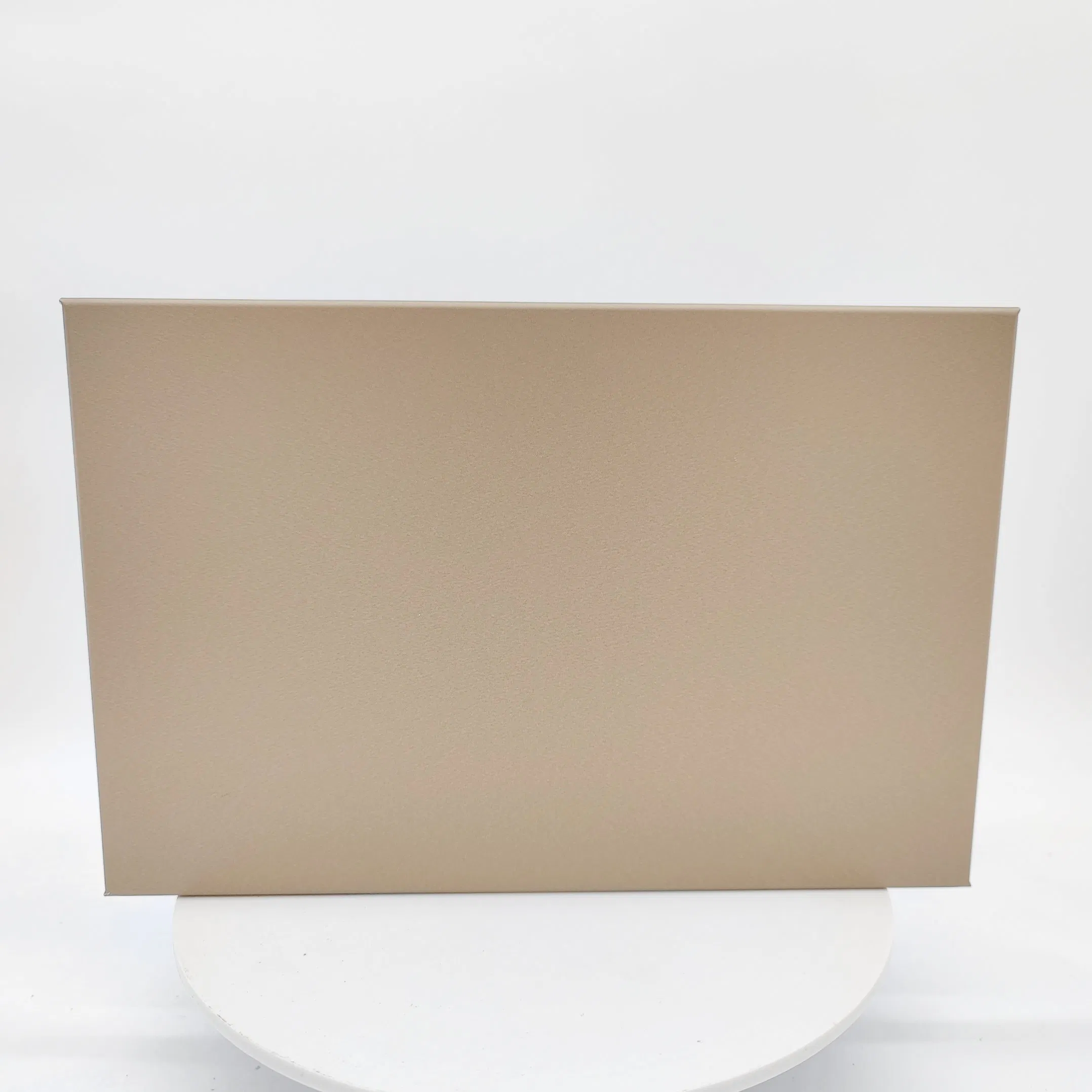

Stone Aluminium Honeycomb Panel

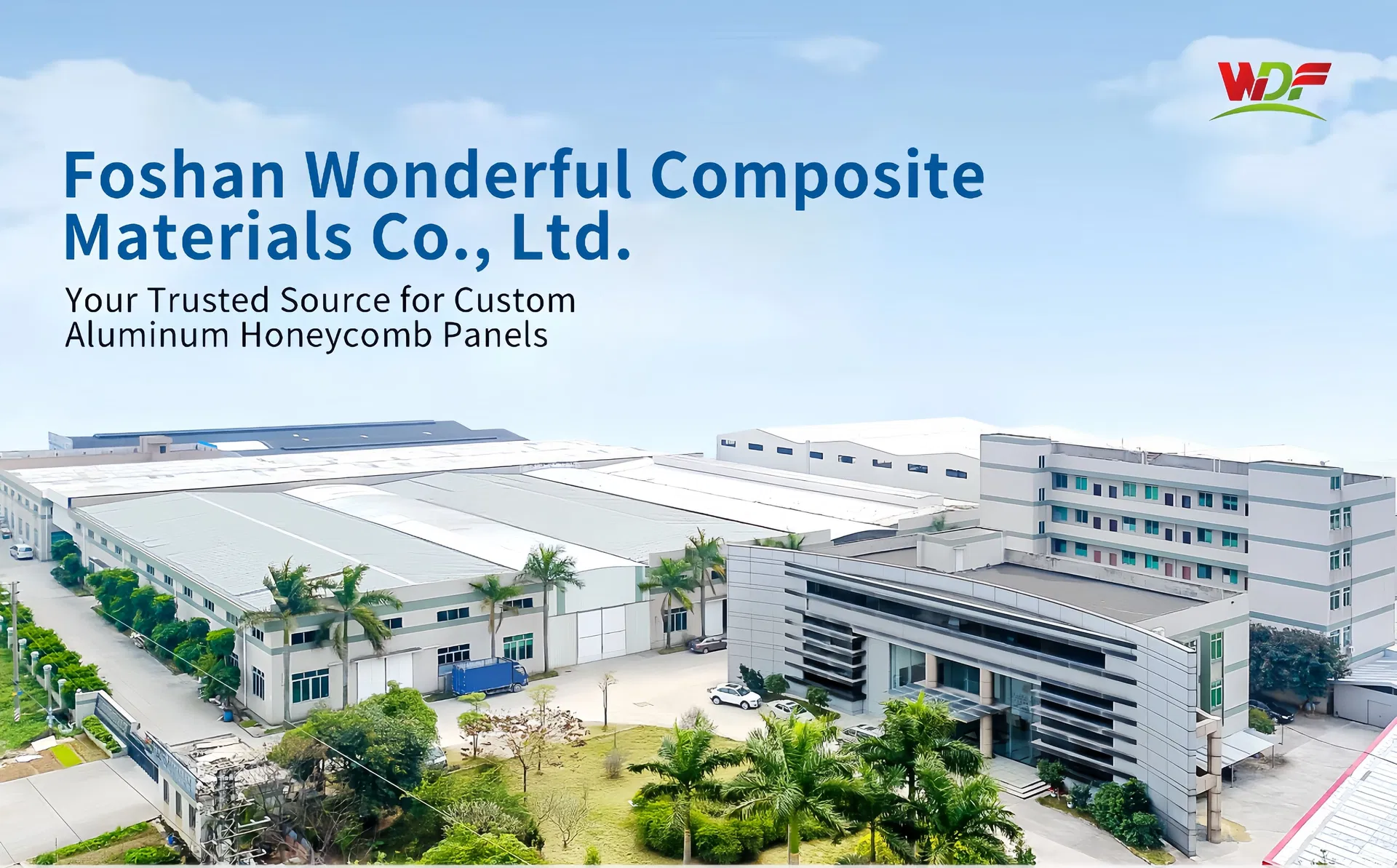

We are a specialized high-tech enterprise engaged in new composite materials research and development, production, and sales. Our facilities cover more than 30,000 square meters. Using advanced German composite equipment and technology, we specialize in producing aluminum honeycomb cores, panels, and stainless steel composite solutions.
