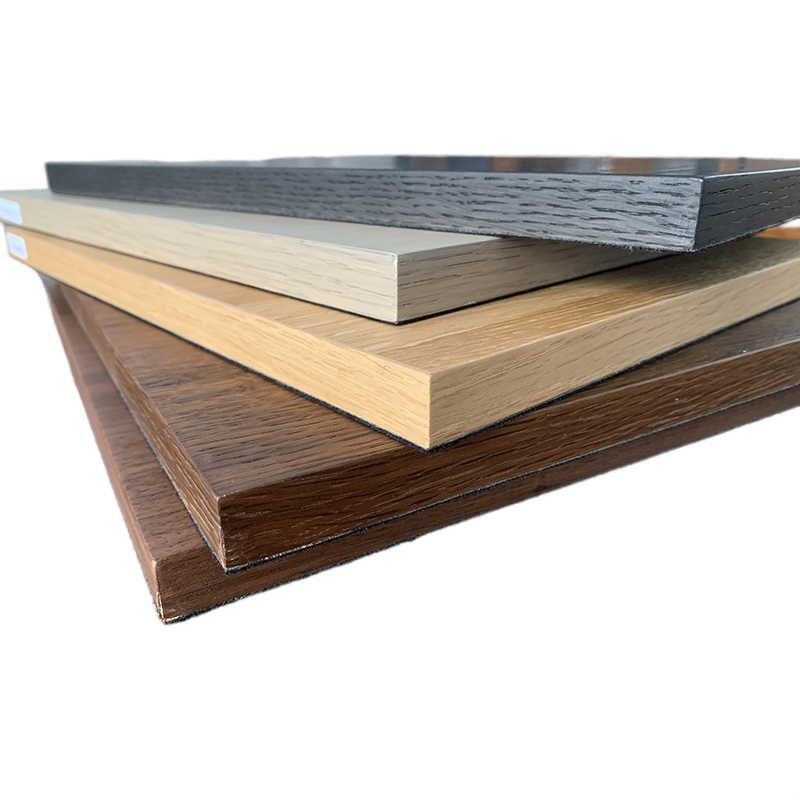

Premium Soundproof Acoustic Partition Wall with Honeycomb Core

1 / 5

Premium Soundproof Acoustic Partition Wall with Honeycomb Core

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Material: Aluminum Alloy

Performance: High Intensity

Function: Walls, Ceilings, Partitions, Ships

Fire Level: A (Non-combustible)

Thickness: 5mm~30mm (Customizable)

Life Cycle: 30 Years+

Sound Insulation: RW 25 dB

Temperature: -50ºC~+150ºC

⭐ Product Features

🚀 Performance Selling Points

Ultra-light & High-strength: Weight is only 1/5~1/8 of traditional stone, while bending strength is increased by 3~5 times.

Flat & Stable: The honeycomb core layer disperses stress and avoids temperature deformation.

Easy Installation: Dry hanging method shortens construction periods by more than 50%.

🌿 Environmental & Safety

100% Recyclable: Aluminum panels and cores are fully sustainable materials.

Fire Resistant: Class A non-combustible material with a melting point of 660℃.

Low Emissions: Zero formaldehyde release and reduced carbon footprint during production.

🏢 Application Scenarios

Architecture

Skyscraper Facades
Luxury Hotel Feature Walls
Hygienic Hospital Walls
Airport Interior Systems

Industrial & Transport

High-speed Train Interiors
Marine Fireproof Bulkheads
Cleanroom Ceiling Systems
Laboratory ESD-safe Panels

📋 Technical Specifications

Parameter	Details	Parameter	Details
Thickness	5mm - 30mm (Customizable)	Panel Options	Stone (3-5mm), Aluminum (1-2mm), Ceramic
Temperature Range	-50℃ to +150℃	Service Life	30 Years+ (Outdoor)
Fire Protection	Class A	Sound Resistance	25dB+ Noise Reduction
Capacity	100,000 m²/year	Packaging	Export Plywood Boxes

💎 Manufacturing Excellence

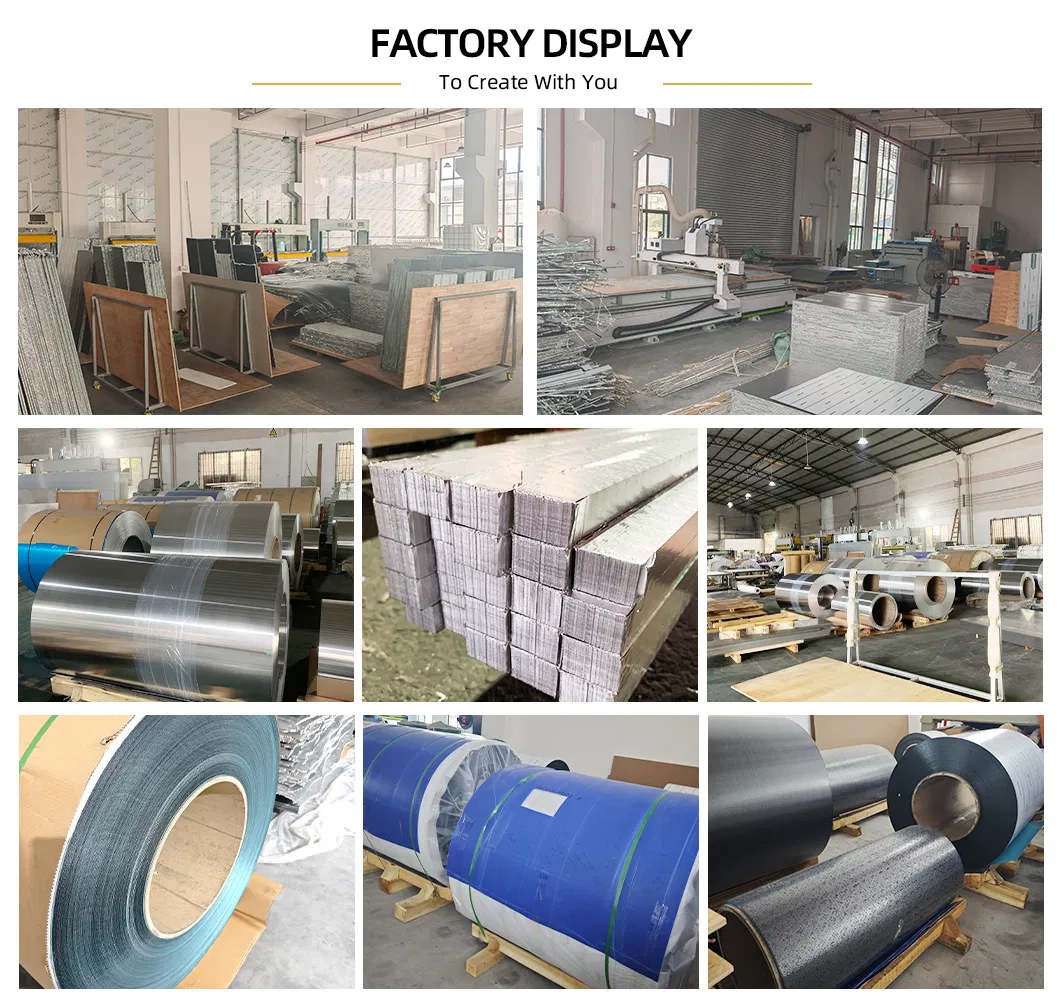

Leveraging 10 years of specialized expertise in advanced honeycomb composite panels, our solutions meet global standards for architectural facades and industrial applications. Our 15,000m² production base is equipped with automated CNC routers and vacuum hot-press systems to ensure ASTM C297-compliant strength.

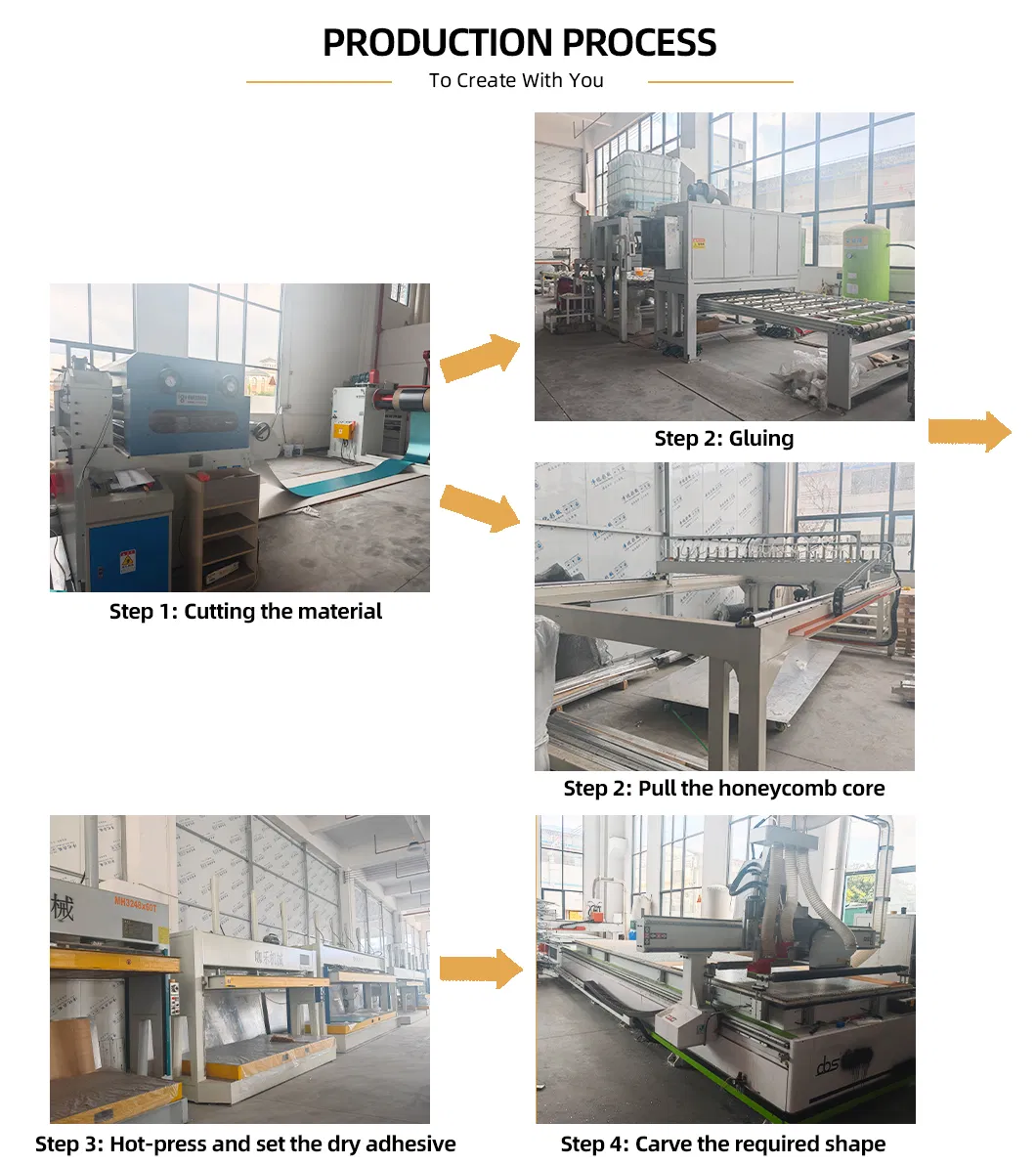

⚙️ Production Process

Raw Material: AA3003/AA5052 aluminum coils and AA3003H18 foil cores.

Pre-Treatment: Chemical conversion (Chromating) for superior coating adhesion.

Stabilization: Core stabilization using phenolic resin at controlled densities.

Composite Bonding: Vacuum hot-pressing at 120-140℃ under 1.2MPa pressure.

Precision Cutting: CNC waterjet trimming with ±0.5mm tolerance.

Quality Control: Strict peel tests (≥7N/mm) and laser flatness scanning.

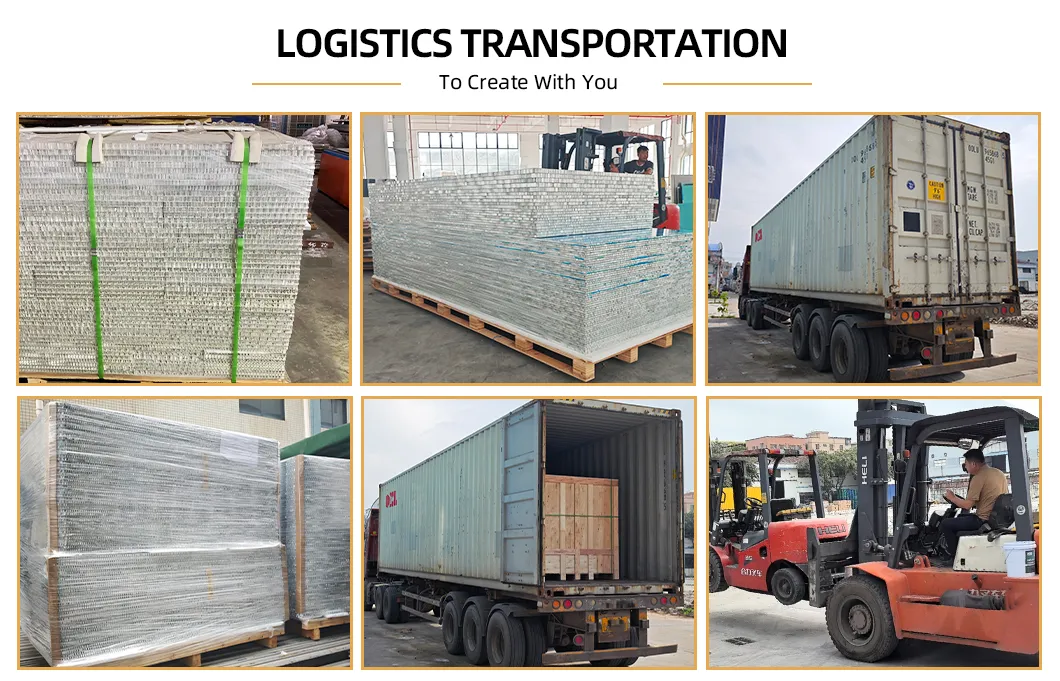

📦 Packing & Delivery

Standard packaging includes heavy-duty plywood boxes suitable for international sea and air freight. Individual panels are protected with surface films to prevent scratches during transport.

❓ Frequently Asked Questions

Q1: What are the main advantages of using aluminum honeycomb panels over solid stone?

A1: Honeycomb panels offer an 80% weight reduction compared to solid stone, making them safer for skyscrapers while providing 3 times the safety factor and easier installation.

Q2: Can these panels be used in high-humidity or coastal environments?

A2: Yes, our panels are waterproof and moisture-proof. With PVDF coating or anodized finishes, they offer salt spray resistance for over 4,000 hours (ASTM B117).

Q3: How effective is the sound insulation of the honeycomb structure?

A3: The honeycomb core creates a structural barrier that provides sound resistance and noise reduction of 25dB or more.

Q4: What is the fire rating of these composite panels?

A4: Our panels are Class A non-combustible. They have been tested according to GB 8624 and ASTM E84 standards, with a melting point of 660℃.

Q5: Can you provide customized sizes and shapes?

A5: Absolutely. We support bespoke sizes up to 4000×2000mm and can process panels into curved surfaces (radius ≥ R500) or perforated designs.

Q6: Are the materials used in production environmentally friendly?

A6: Yes, both the aluminum panels and honeycomb cores are 100% recyclable. Our production uses VOC-free adhesives and is LEED contributive.
