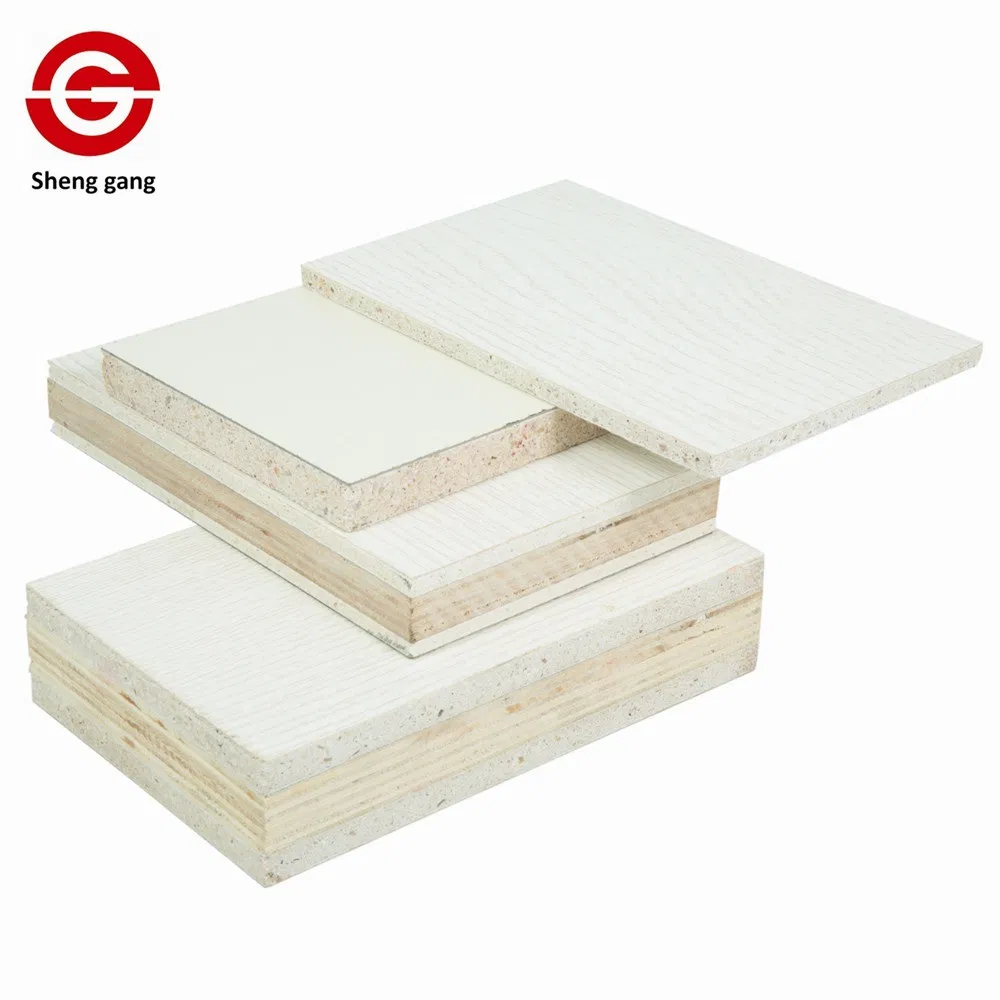

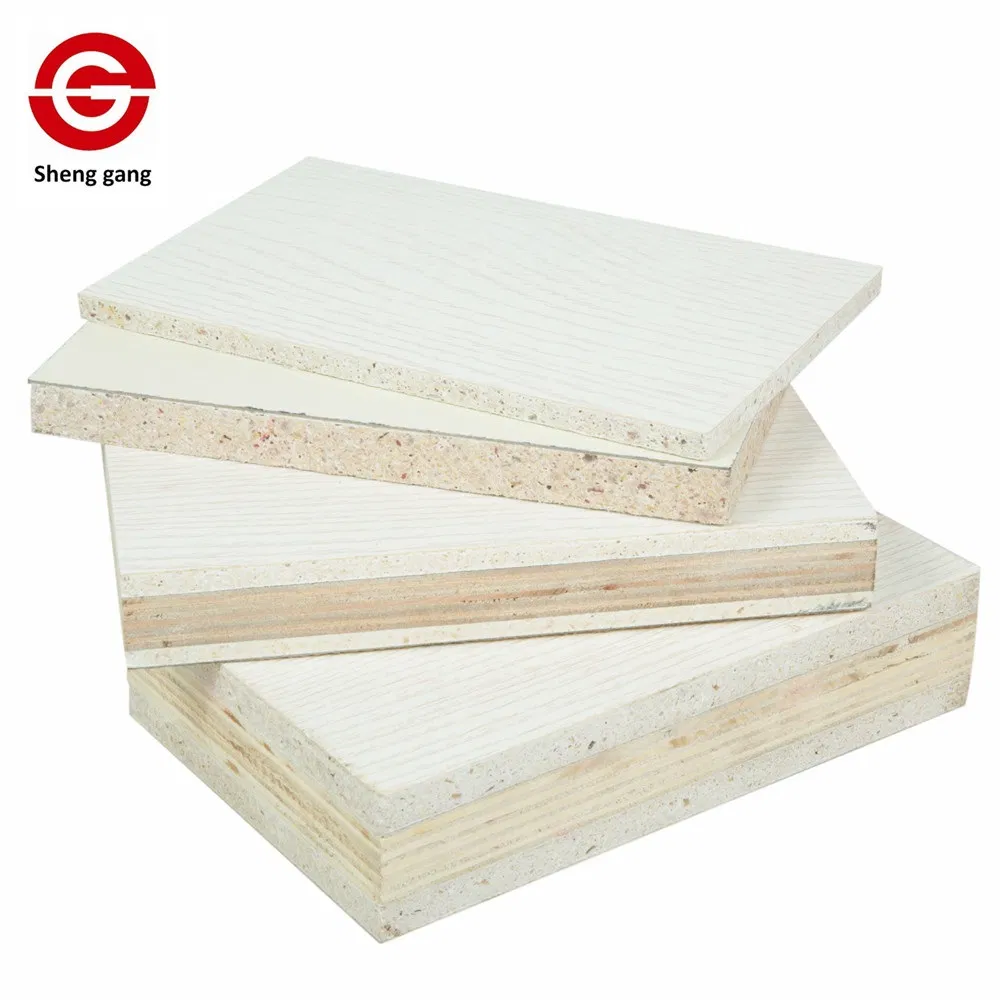

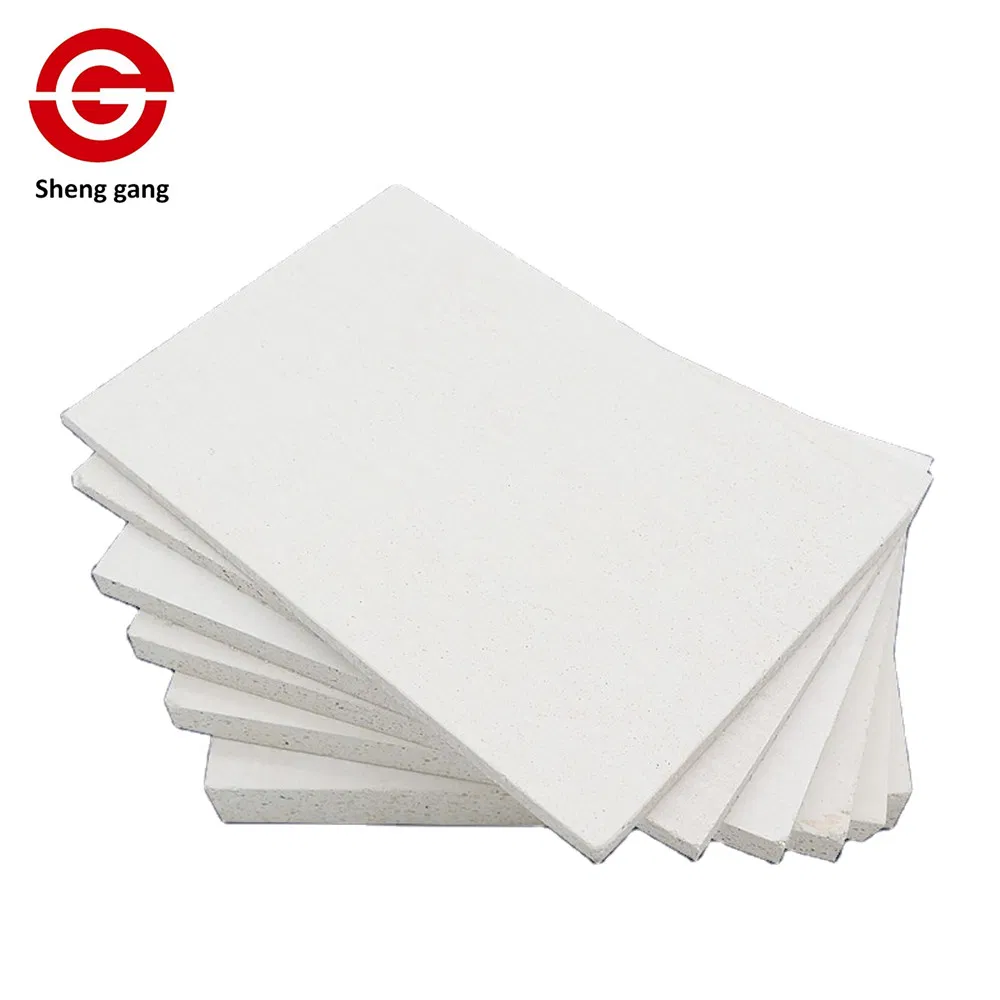

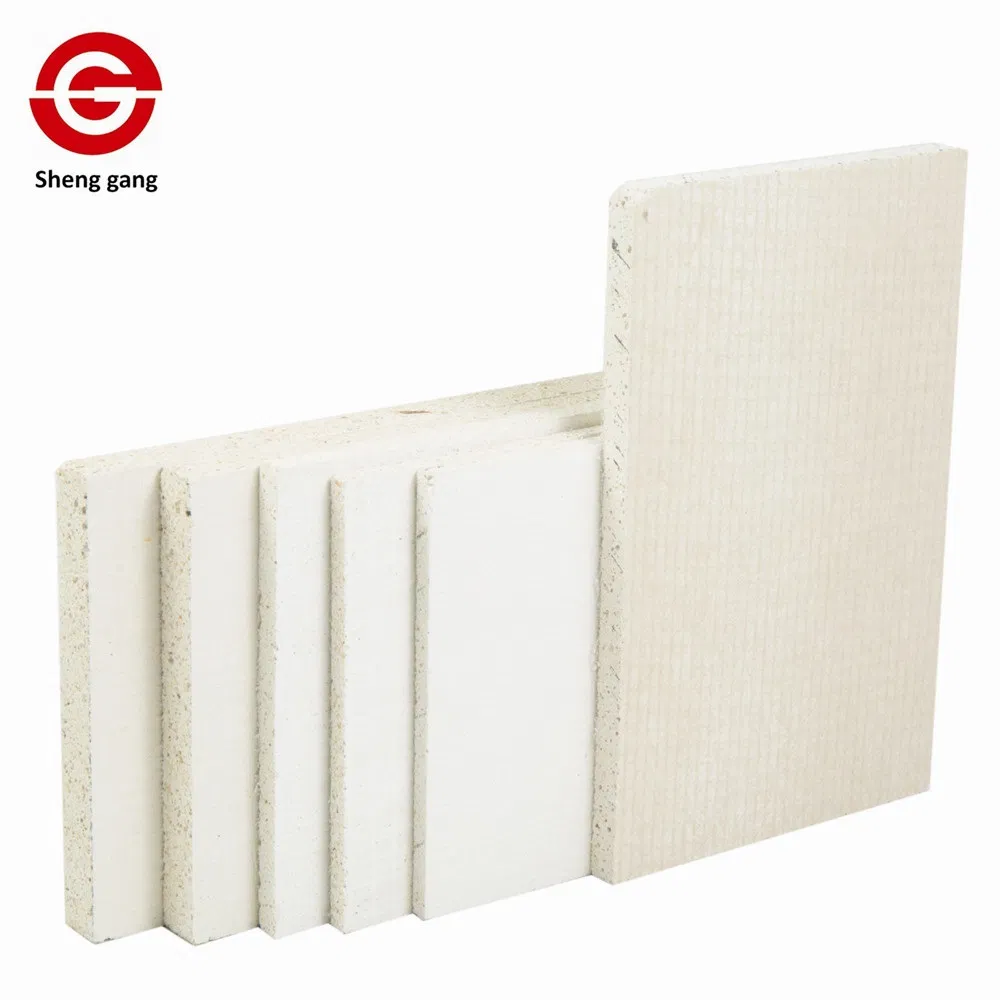

Sound Insulation and Mothproof for Building Material
Sound Insulation and Mothproof for Building Material
Sound Insulation and Mothproof for Building Material
Sound Insulation and Mothproof for Building Material
Sound Insulation and Mothproof for Building Material
1 / 5
Sound Insulation and Mothproof for Building Material
Sound Insulation and Mothproof for Building Material
Sound Insulation and Mothproof for Building Material
Sound Insulation and Mothproof for Building Material
Sound Insulation and Mothproof for Building Material

Sound Insulation and Mothproof for Building Material

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview

Model NO.
1220*2440
Refractoriness
800-1400°C
Surface Treatment
Full Body Tiles
Material
Glass Fiber Mesh
Diameter
3-20mm
Apparent Density
0.8-1.2/Cm3
Transport Package
Pallet or in Bulk
Production Capacity
10000/Piece

Product Gallery

Building Material Sound Insulation

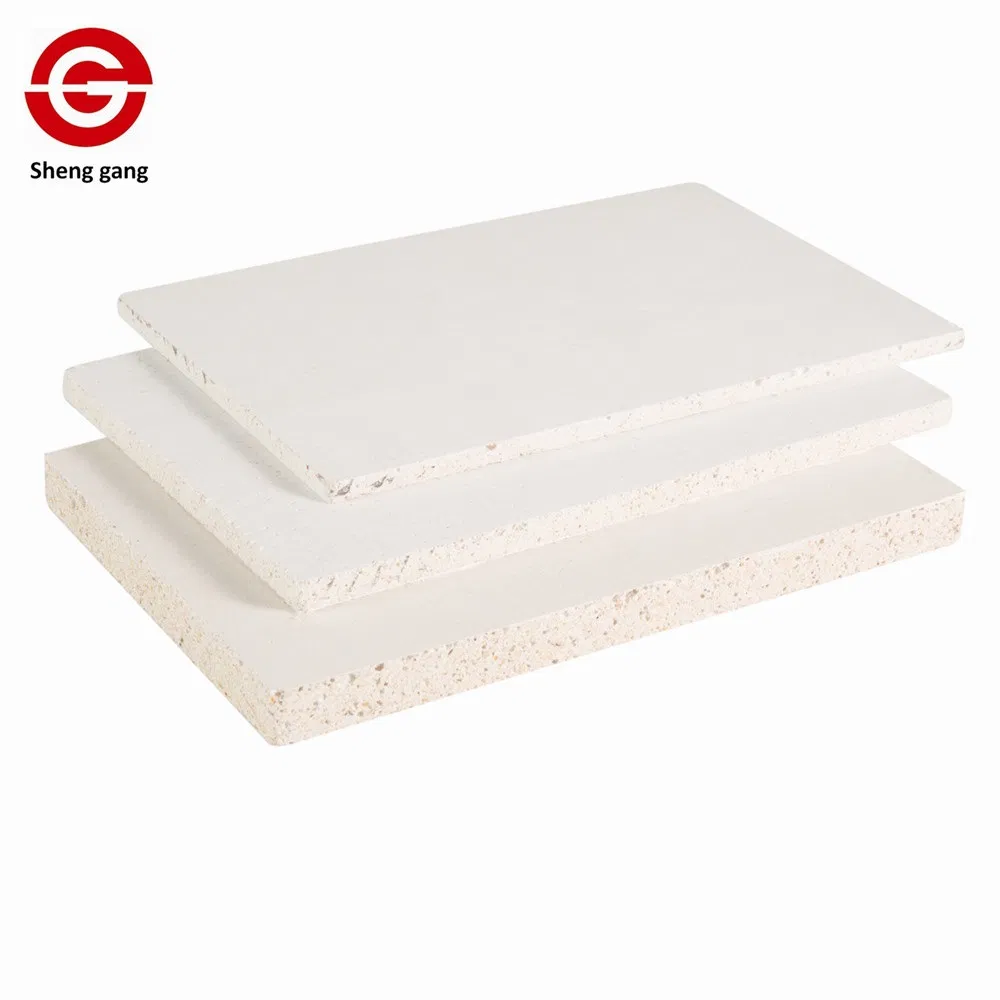

Detail 1

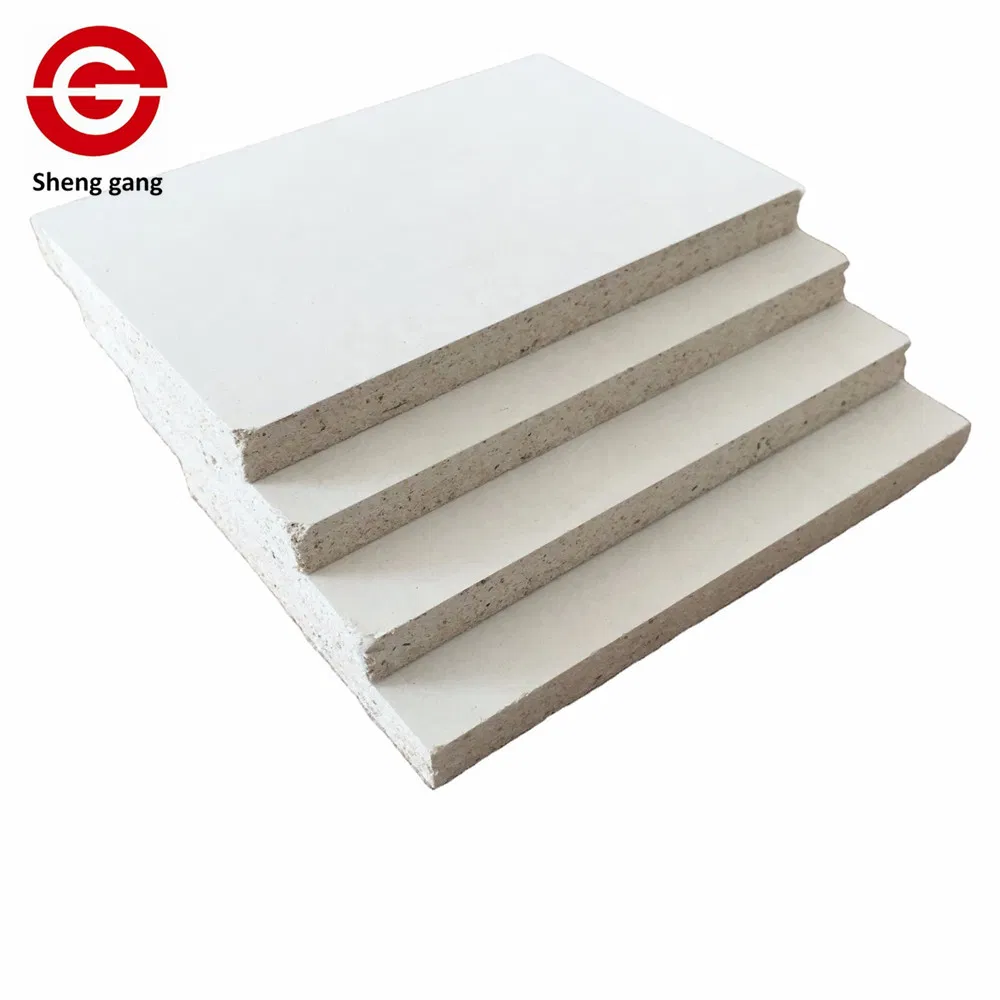

Detail 2

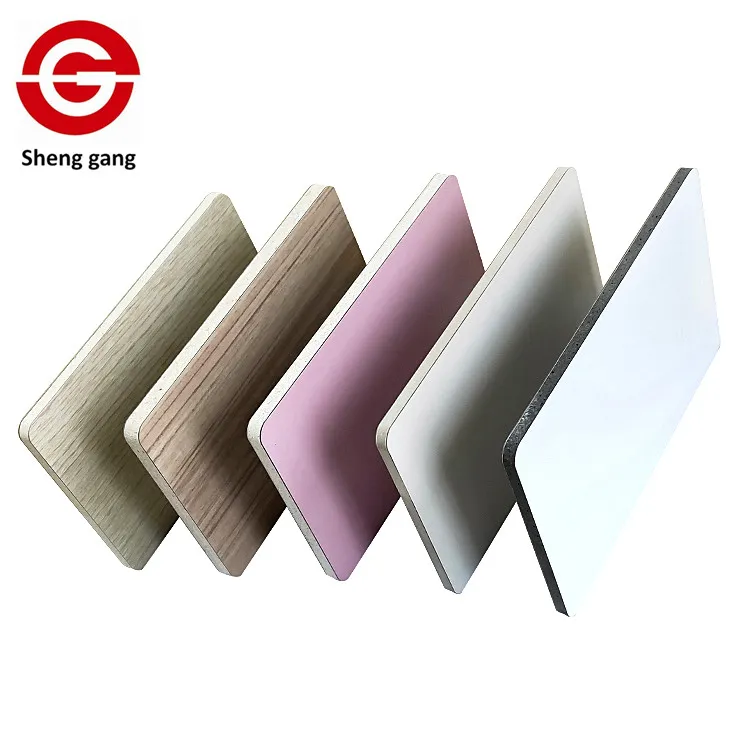

Detail 3

Product Specification

Test Items Detection Value Test Standard/Description

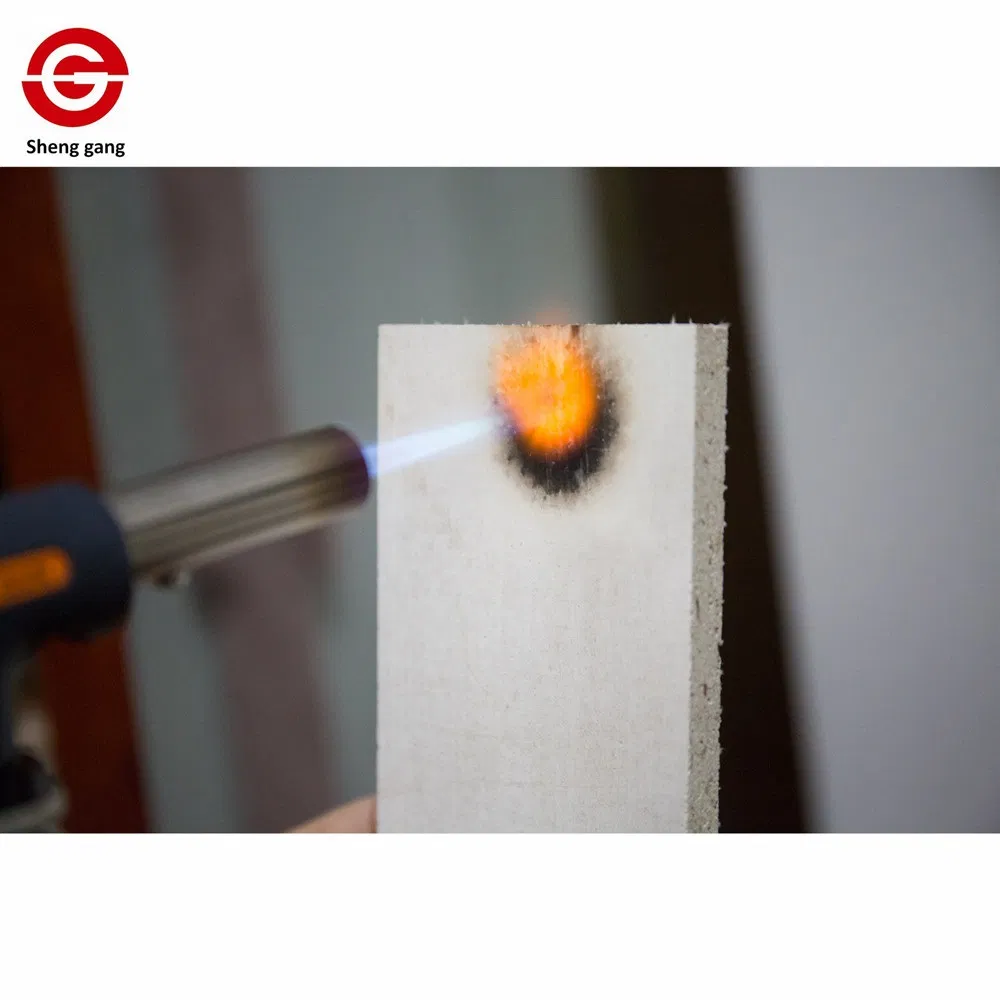

Fireproof characteristic A grade non combustible GB8624
Density 0.96g/cm3 GB/T7019-1997
Intensity of bending resistance when dry 18Mpa GB/T719-1997
Intensity of bending resistance (moisture-saturated) 22Mpa GB/T719-1997
Deformation rate (moisture pick up) 0.26% GA160-1997
Shrinking rate when heated 1.0% GA160-1997
Water permeability No drop of water on back CNS 13778
Impact resistance No crack, strip or run through CNS 13778
Thermal resistance 1.14m2k/w GB/T13475-92
Sound insulation ≥44dB GBJ121-88
Security 100% free of asbestos, formaldehyde, and benzene Verified
Radioactivity Unlimited scope of application GB6566-2001

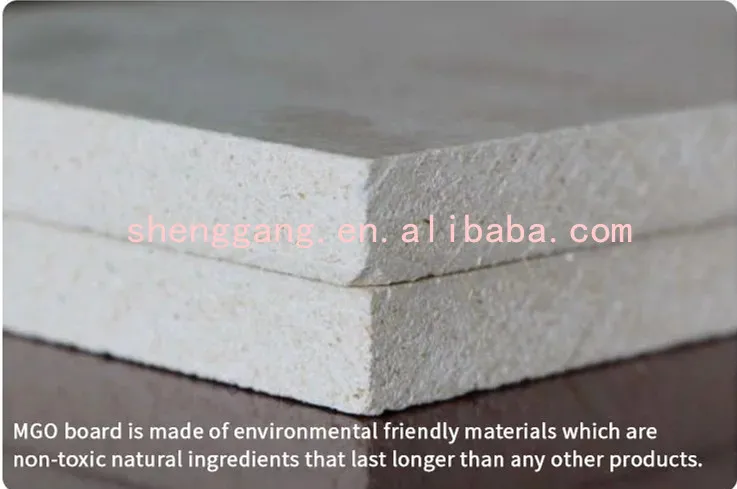

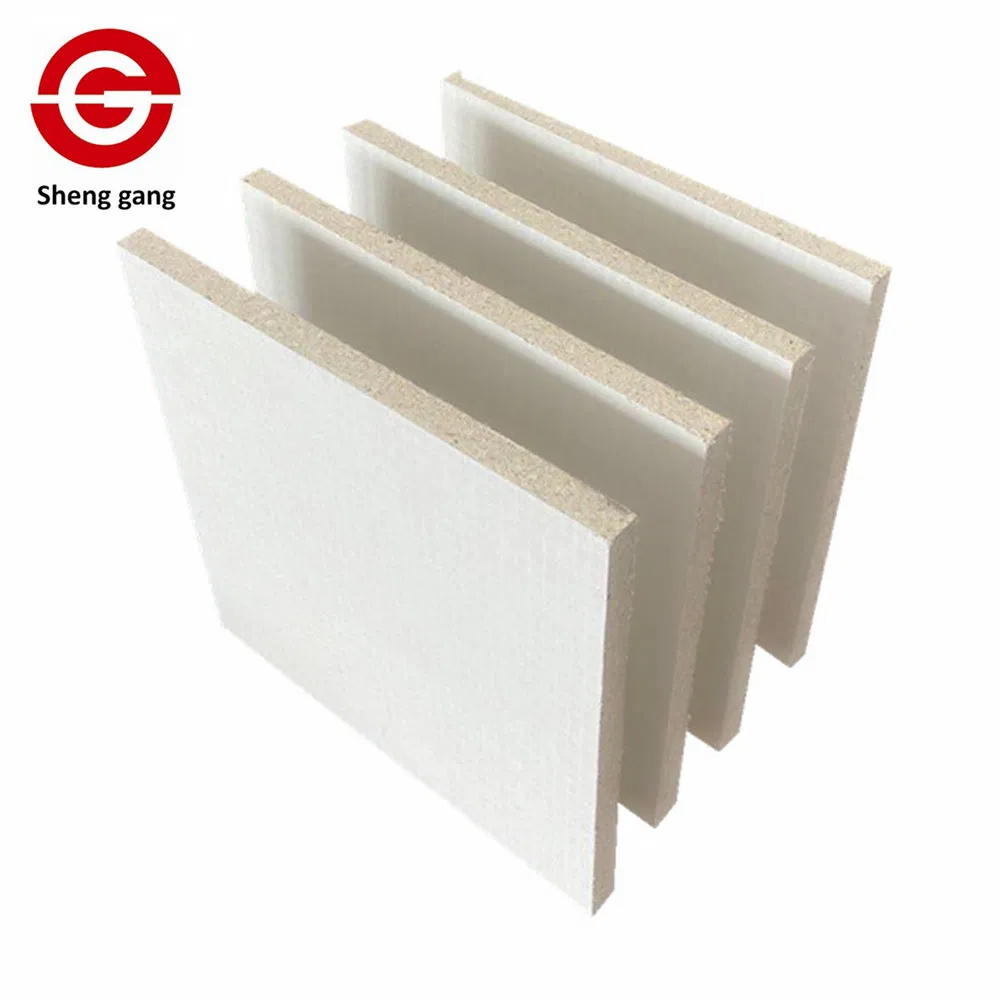

Spec Image 1 Spec Image 2

Product Benefits

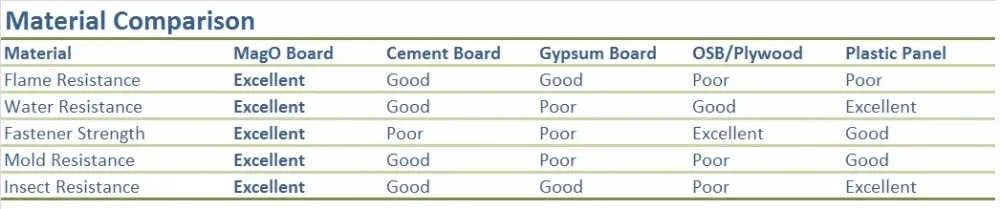

Benefits Banner
  • 1. Highly water resistant backer board.
  • 2. Won't rot, swell or degrade over time.
  • 3. Environmentally friendly composition.
  • 4. Compatible with various painting and polished finishes.
  • 5. Ideal for bathrooms, kitchens, and moisture-rich settings.
  • 6. Easy to score and snap with standard blades (no mechanical cutting needed).
  • 7. Fire Rated A1 Non-combustible.
  • 8. Can be used with underfloor heating systems.
Application view

Product Application

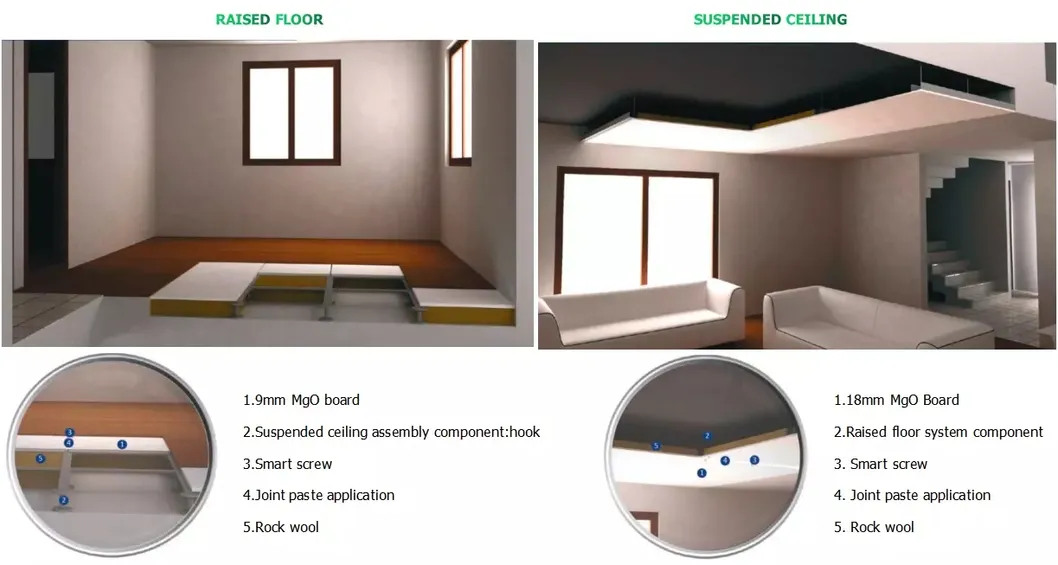

Application Overview

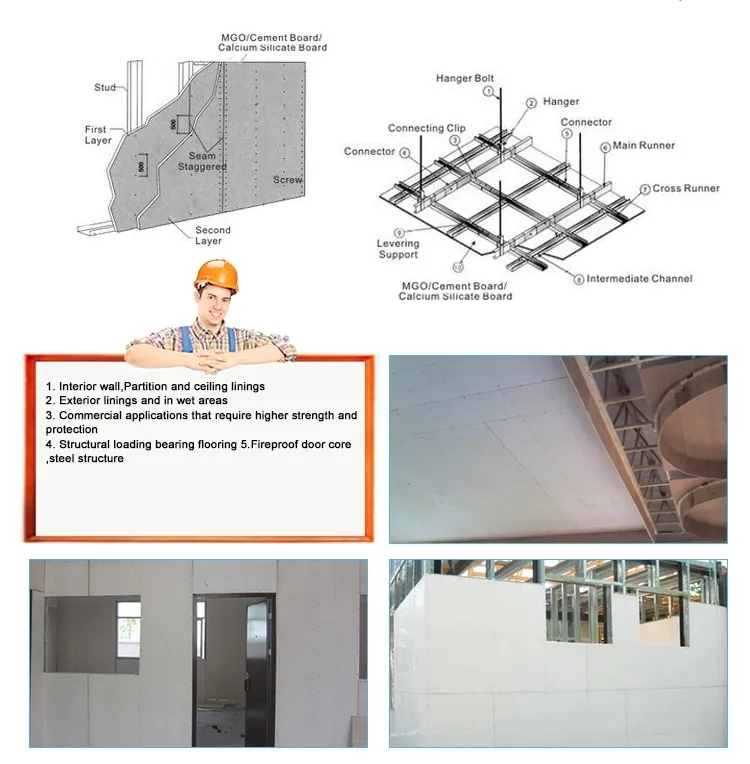

App 1

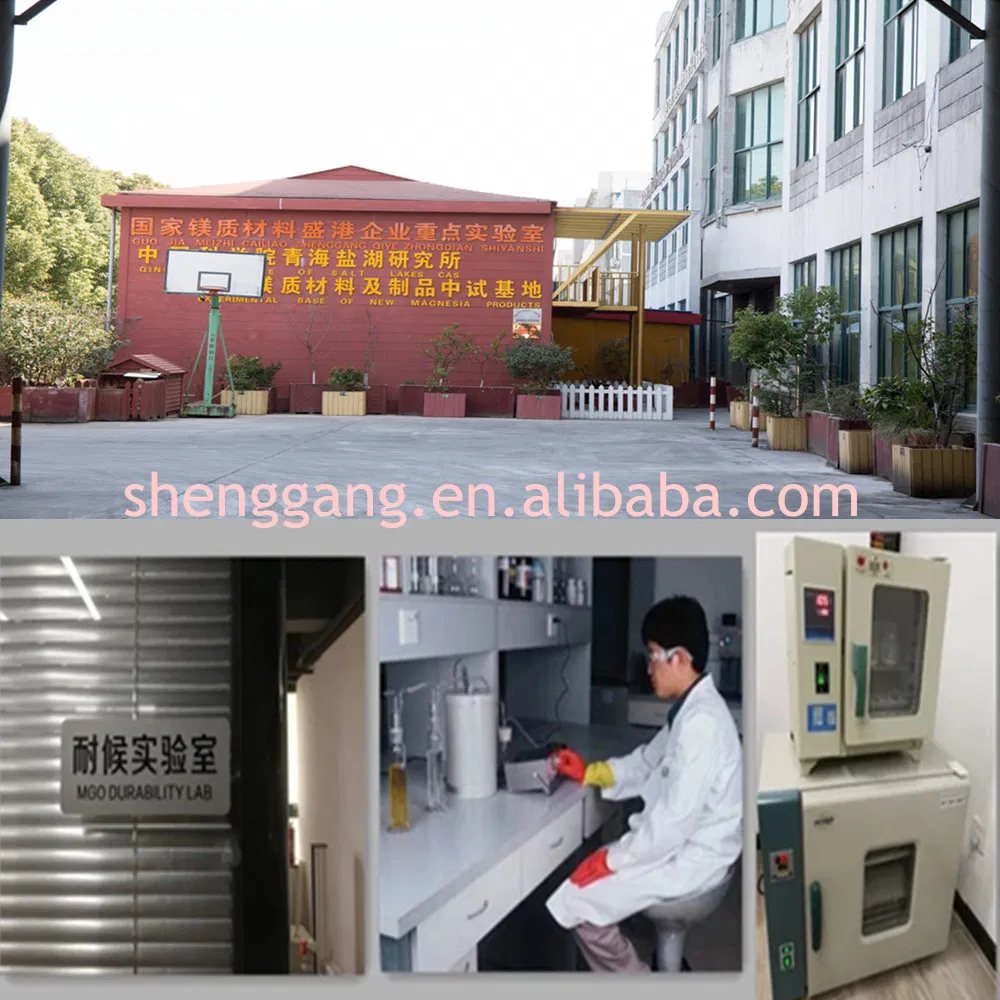

App 2

Frequently Asked Questions

Q: What is the fire resistance rating of the board?
A: The board is Fire Rated A1 Non-combustible and can withstand temperatures between 800-1400°C.
Q: Is this board suitable for wet areas like bathrooms?
A: Yes, it is a water-resistant backer board that won't rot or swell, making it ideal for kitchens and bathrooms.
Q: Does the material contain harmful substances?
A: No, the product is 100% free of asbestos, formaldehyde, and benzene, ensuring safety for all applications.
Q: Can I cut the board without power tools?
A: Yes, it is designed to be easy to score and snap using a standard cutting blade.
Q: Can it be used with underfloor heating?
A: Absolutely, it is compatible with underfloor heating systems due to its excellent thermal resistance properties.
Q: What is the standard size of the board?
A: The standard specification is 1220mm x 2440mm with a diameter/thickness range of 3-20mm.
