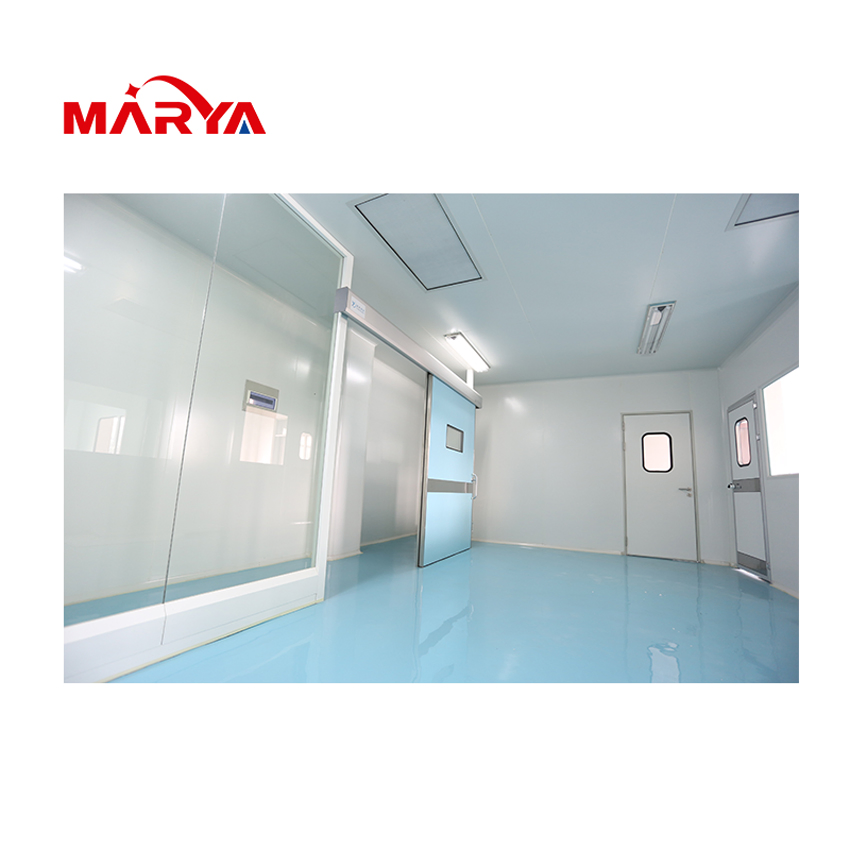

Shanghai Marya Modular Clean Room Cleanroom System for Pharmaceutical and Biotech Applications

1 / 5

Shanghai Marya Modular Clean Room Cleanroom System for Pharmaceutical and Biotech Applications

Customization:	Available
After-sales Service:	1 Year
Layers:	Customized

Send Inquiry

Product Description

Basic Information

Usage	Dust-Proof Workshop, Electrostatic Workshop, Food And Chemical Industry, Heavy Industry, High-Voltage Power Plant, Research Facility, Specialized Workshop, Textile And Electronic Processing, Warehouse, Pharmaceutical Factory
Cleanroom Panel	Color Steel Panel, Stainless Panel, HPL Panel
Panel Thickness	0.5mm, 0.6mm, 0.7mm, 0.8mm
Cleanroom Door	Wing Door (Single Door, Double Door, Unique Door)
Requirements	GMP / FDA
Humidity Design	30-60%
Equipment Supply	Air Shower, Pass Box, Weighing Booth, Isolator
Origin	China

Packaging & Delivery

Package Size	200.00cm * 100.00cm * 100.00cm
Package Gross Weight	100.000kg

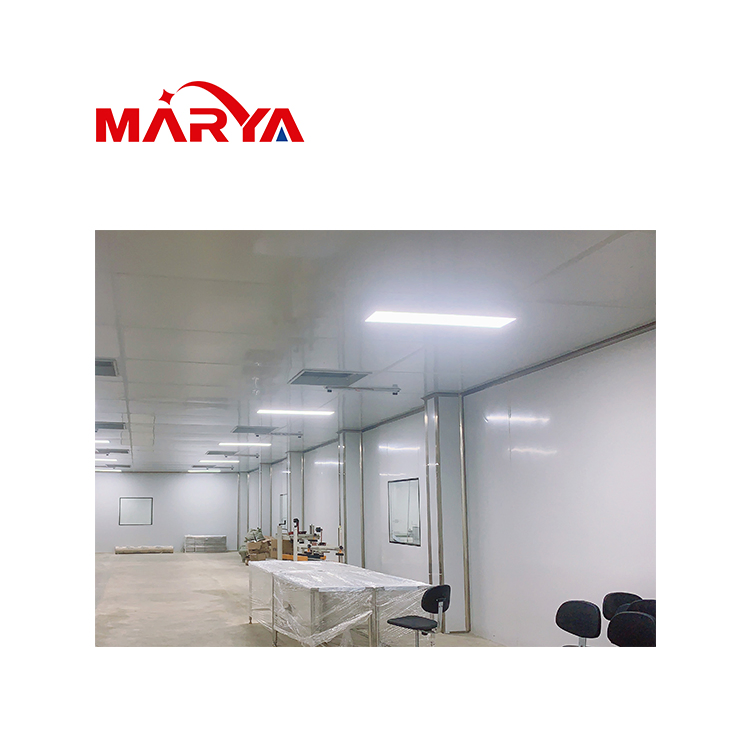

Modular Clean Room System for Pharmaceutical and Biotech Applications

I. Cleanroom Materials

Cleanroom material is composed of cleanroom panels, doors, windows, relative connections, and attachments.

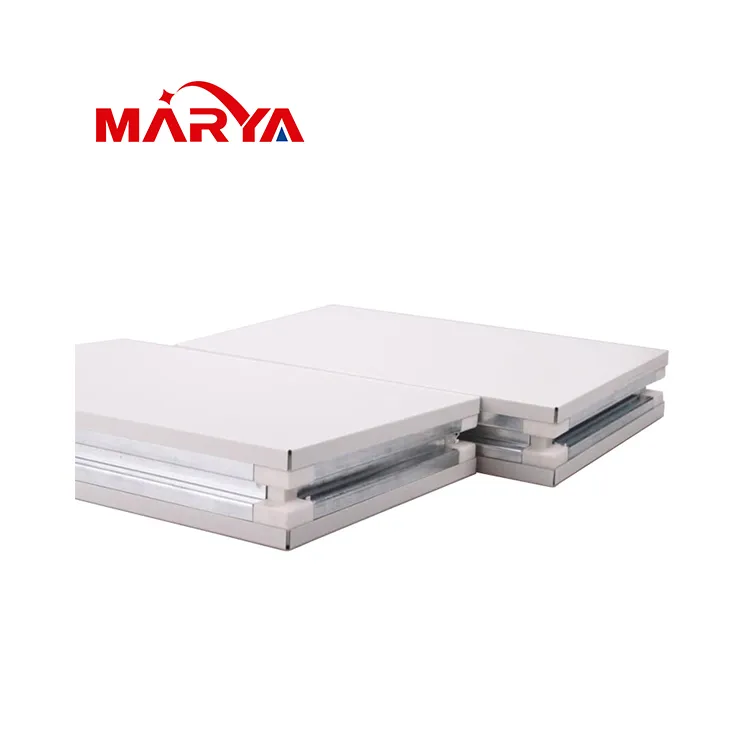

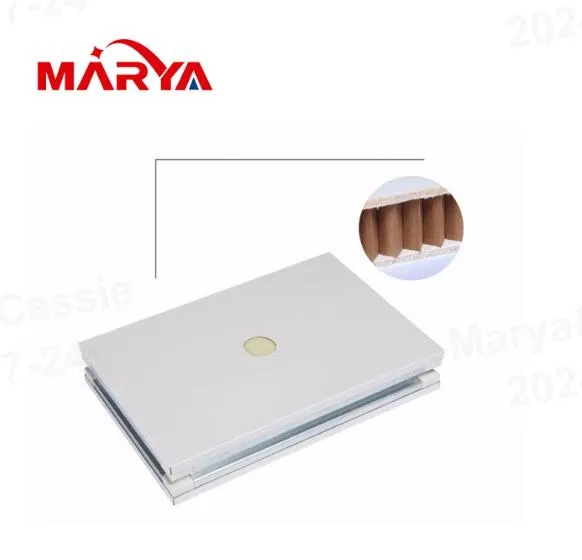

1. Cleanroom Panel

Standard thickness: 50mm, 75mm, 100mm;
Panel material: color steel panel, stainless panel, HPL panel;
Filling material: glass magnesium, rock wool, aluminum honeycomb, paper honeycomb, EPS, PU, etc.

Hand-made vs Machine-made: Hand-made panels offer high strength and fire resistance (Grade A), while machine-made panels provide fast processing and lower construction costs.

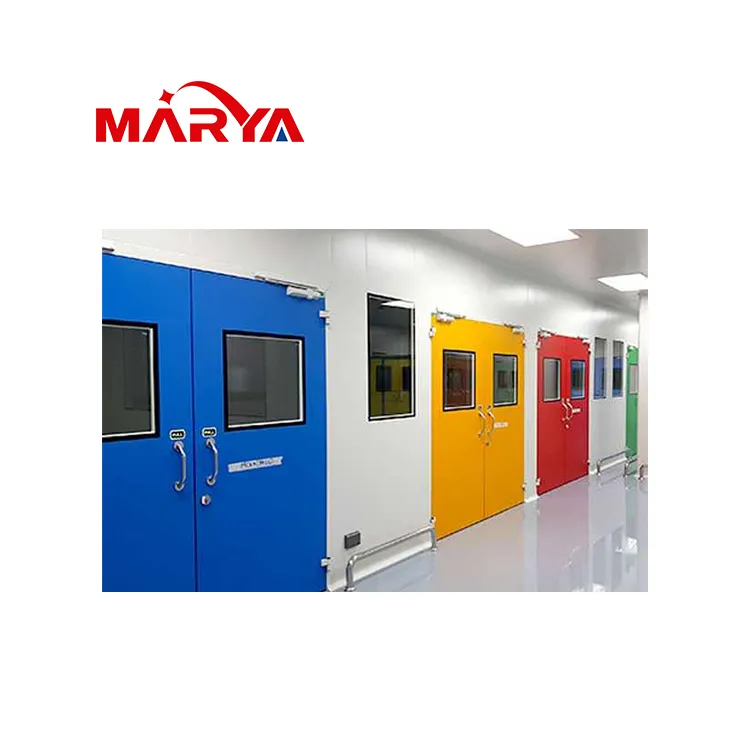

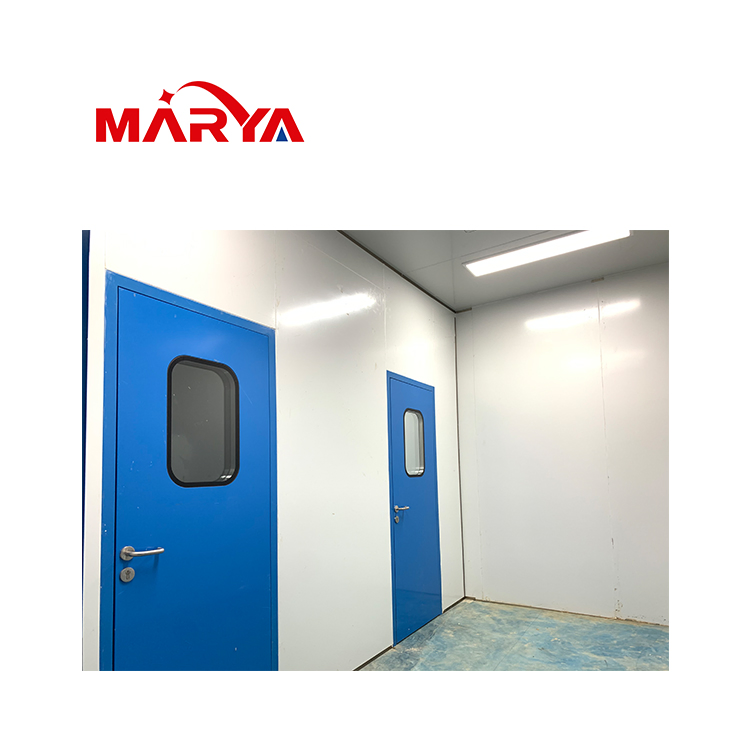

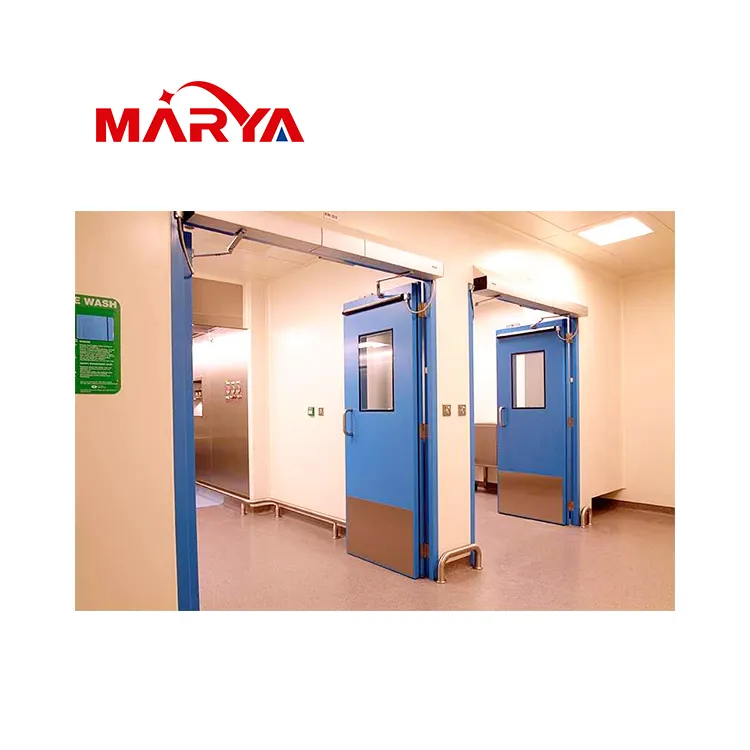

2. Cleanroom Door

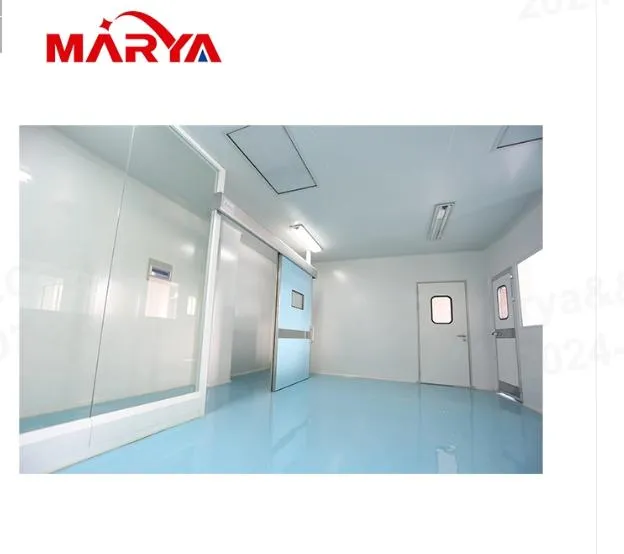

Classifications: Swing doors, electric sliding doors, fast rolling doors.
Features: High-quality 304 stainless steel hinges, automatic lifting sealing strips at the bottom to ensure air tightness.
Design: Meets GMP safety requirements, dust-free, and easy to clean.

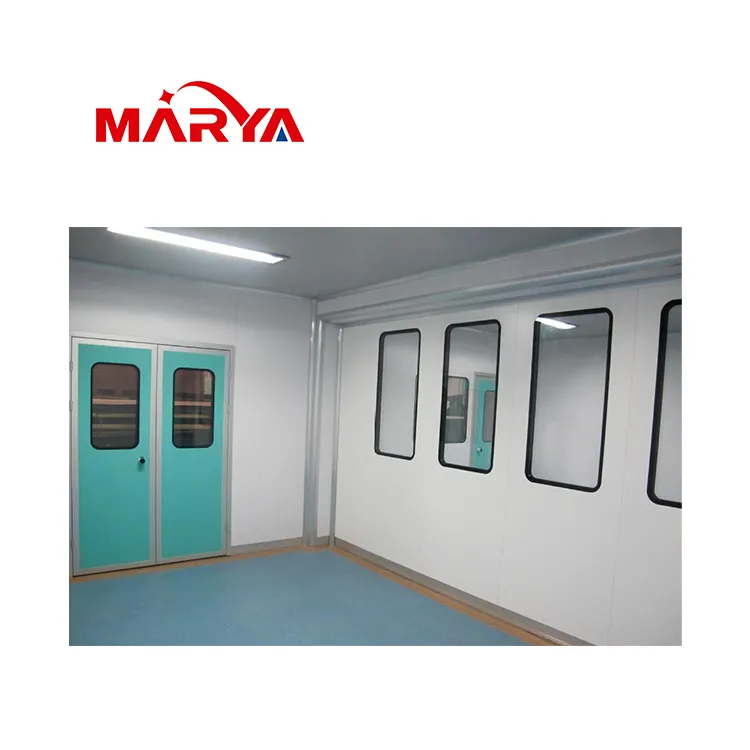

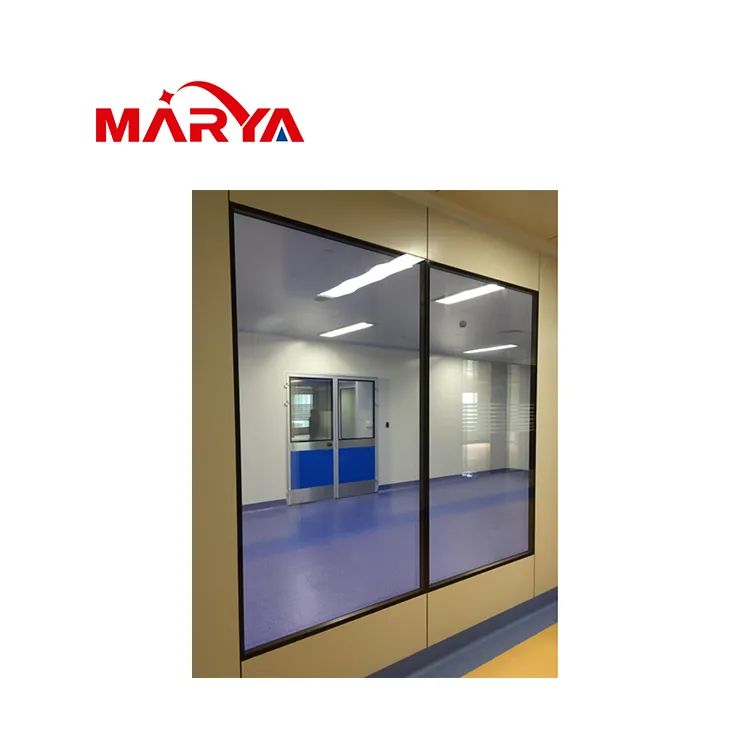

3. Cleanroom Window

Materials: Double-layer tempered glass with aluminum or stainless steel frames.
Features: Anti-condensation, sound insulation (up to 45 decibels), and thermal insulation.
Applications: Pharmaceutical labs, food factories, and electronics workshops.

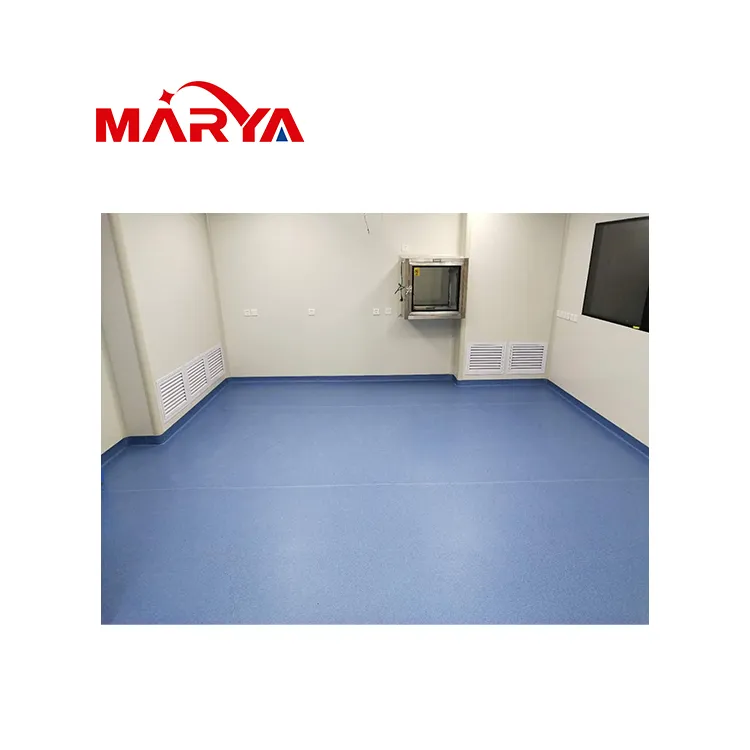

4. Cleanroom Floor

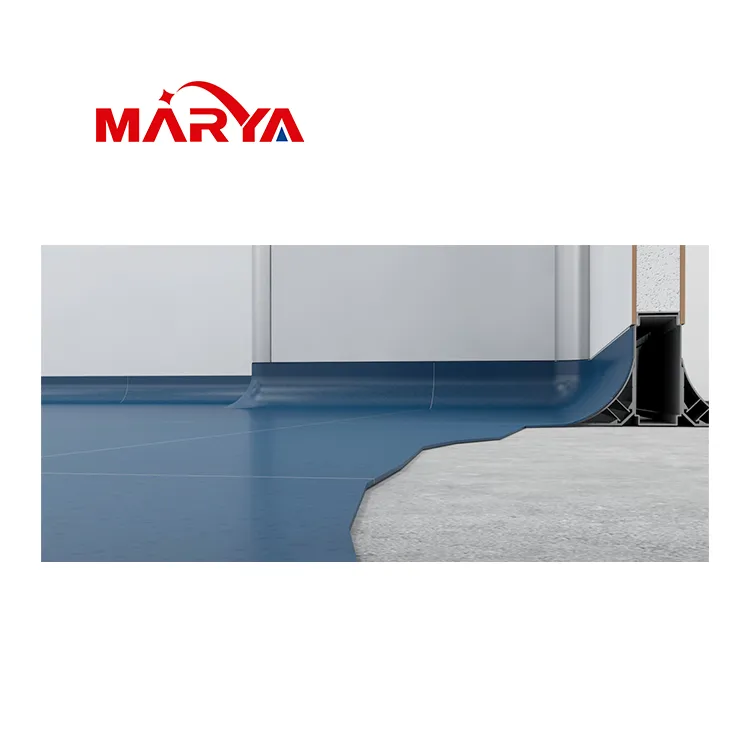

PVC Floor: Antimicrobial, shock-absorbing, and cost-effective.
Epoxy Self-leveling: Seamless, dust-free, and resistant to heavy pressure.
Epoxy Quartz Sand: Highly decorative, wear-resistant, and anti-slip.

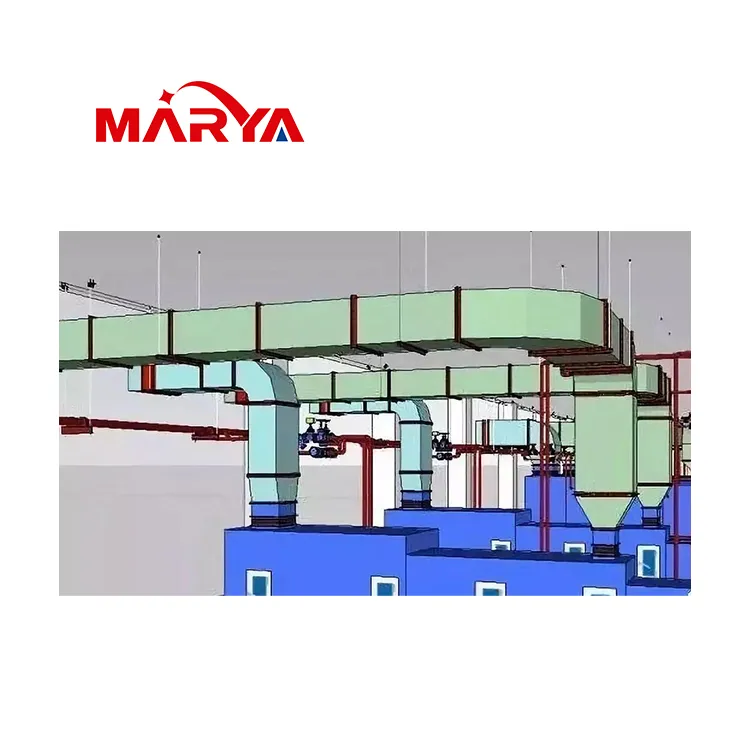

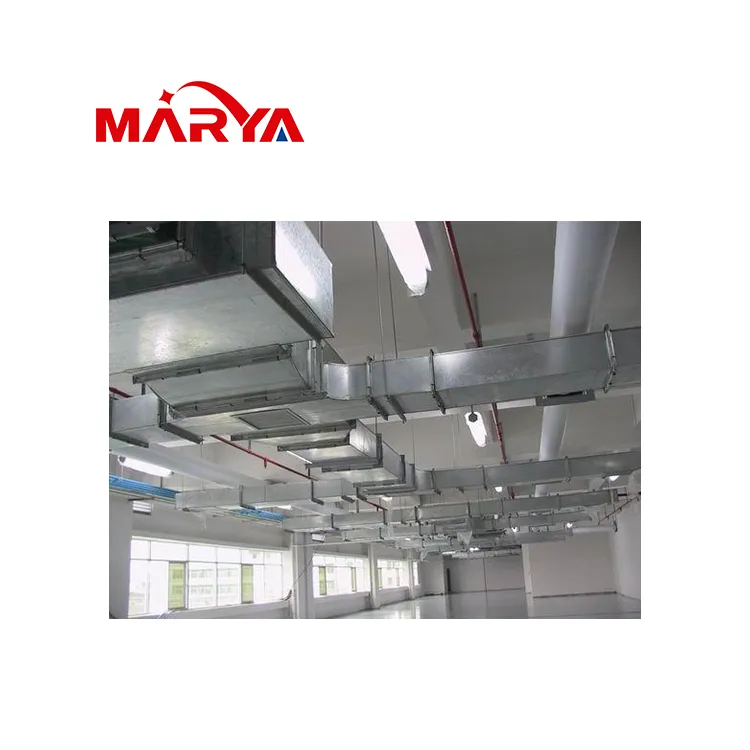

II. Cleanroom HVAC System

The HVAC system maintains precise temperature, humidity, air velocity, and pressure to ensure environmental cleanliness.

Core Functions: Air filtration, positive pressure control, and temperature/humidity regulation to inhibit bacterial growth and maintain air quality.

System Components

HVAC System	Chiller System	Lighting & Electricity	Accessory Equipment
Furnace & Heat Exchanger	Air/Water Cooling Chiller	Cleanroom Lighting	Static/Dynamic Pass Box
Evaporator Coil	Air Handling Unit (AHU)	Flush Type Fixtures	Air Shower
Thermostat & Ductwork	Humidifier/Dehumidifier	Cleanroom Telephone	FFU / Laminar Airflow

Production Display

Frequently Asked Questions

Q1: What are the standard thicknesses for cleanroom panels? A: The standard thicknesses available are 50mm, 75mm, and 100mm, with surface panel thicknesses ranging from 0.5mm to 0.8mm.

Q2: Can the cleanroom doors be customized? A: Yes, doors can be customized by specification, material (stainless steel or color coating), and opening mode (swipe card, fingerprint, or manual).

Q3: How does the double-layer window prevent condensation? A: The windows feature a hollow double-layer glass design with special moisture-absorbing treatments in the cavity to prevent condensation during temperature shifts.

Q4: What are the main benefits of the HVAC system in a cleanroom? A: It ensures sterile conditions through air filtration, maintains positive pressure to prevent contamination, and regulates humidity to inhibit bacterial growth.

Q5: Which flooring is best for high-impact pharmaceutical workshops? A: Epoxy quartz sand floors are ideal for high-impact areas due to their pressure resistance and durable integrated structure.

Q6: Are your cleanroom systems compliant with international standards? A: Yes, our systems are designed to meet strict GMP and FDA requirements for pharmaceutical and biotech applications.
