Homecoxa Panels
1 / 5
| Model NO. | UPVC-095 |
|---|---|
| Material | Synthetic resin (Polyvinyl Chloride) |
| Type | Plain Roof Tiles |
| Shape | Semi-Cylindrical / Trapezoidal / Wave |
| Size Width | 1130mm, 900mm, 1360mm |
| Length | Customized |
| Thickness | 1.5mm, 2.0mm, 2.5mm, 3.0mm |

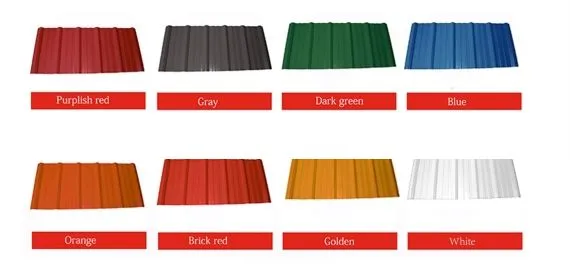

| Color Options | White, Red, Blue, Green, Grey, etc. |
| MOQ | 1000 Sqm |
| Lead Time | 10~15 Days |
| Trading Terms | EXW, FOB, CIF, CNF |

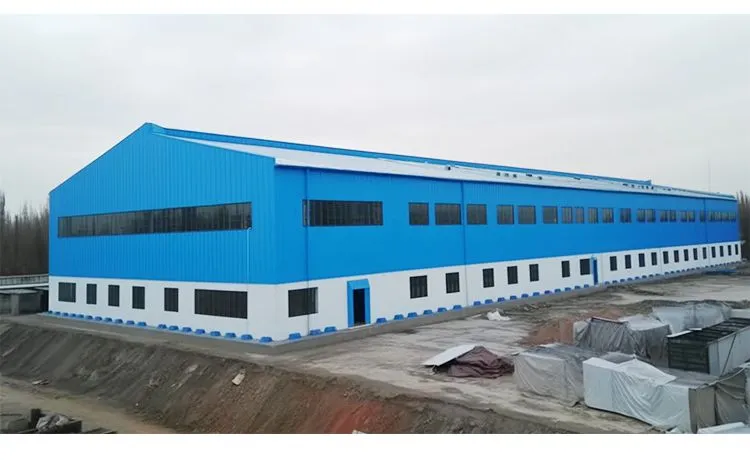

| Application | Factory, Warehouse, Farm, etc. |

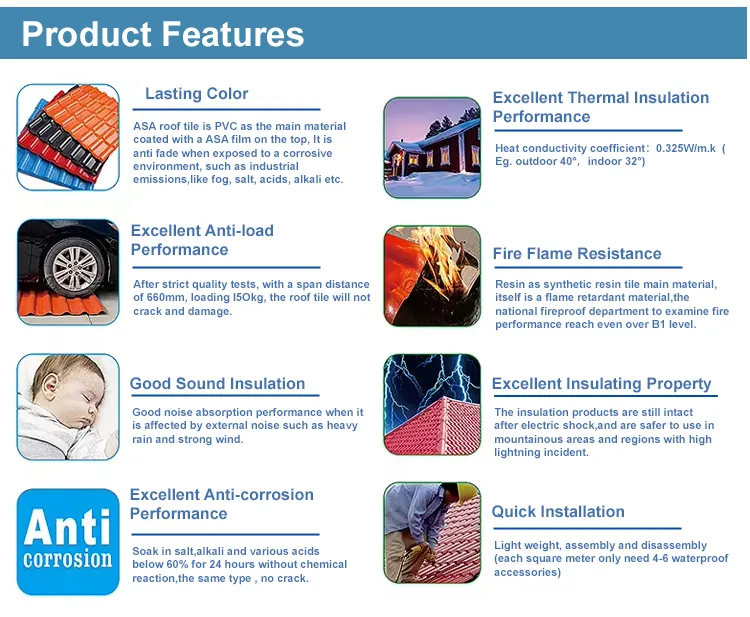

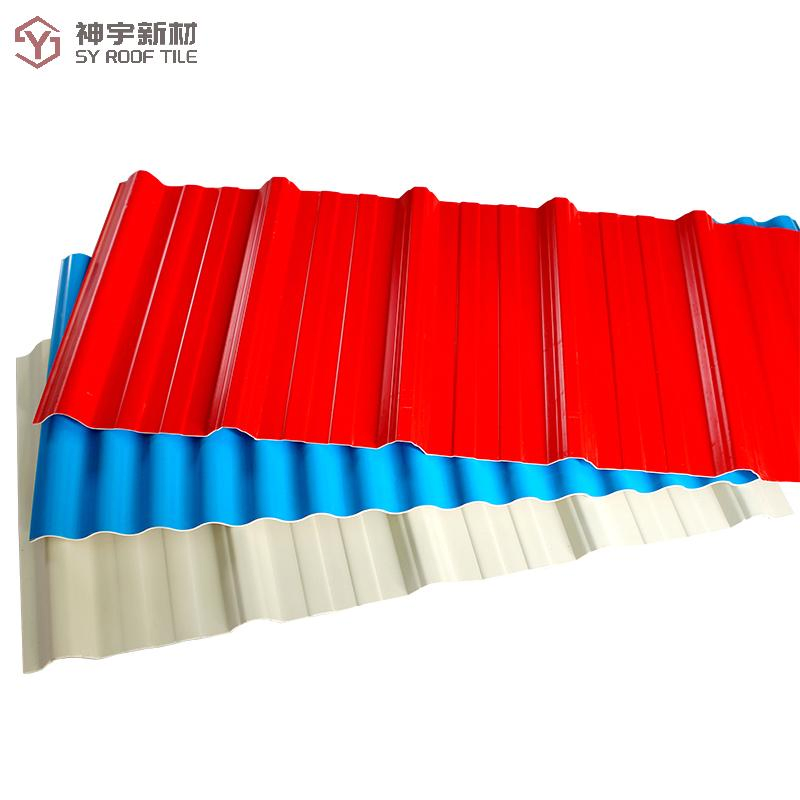

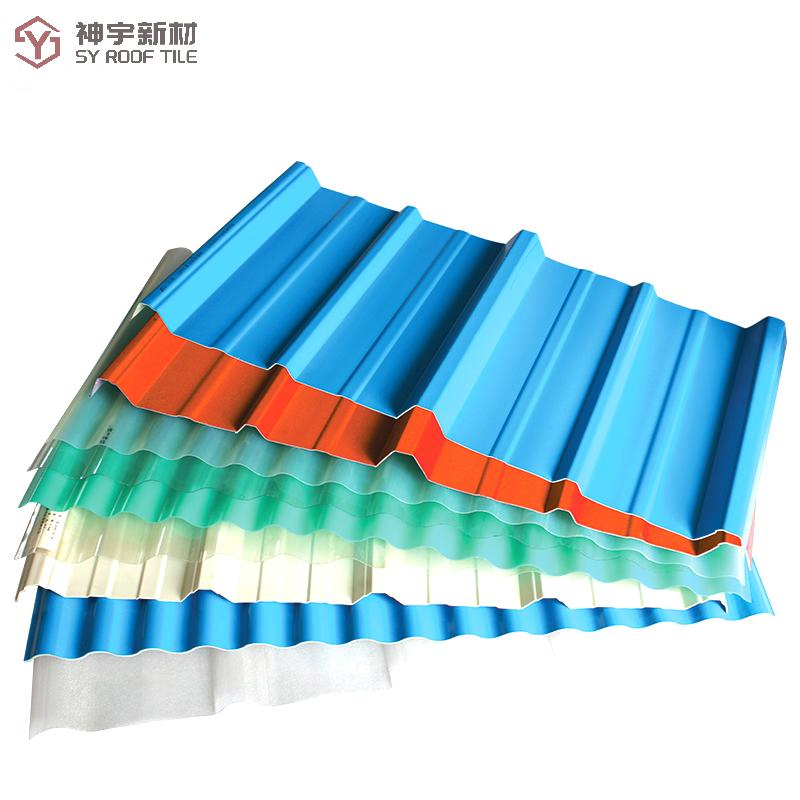

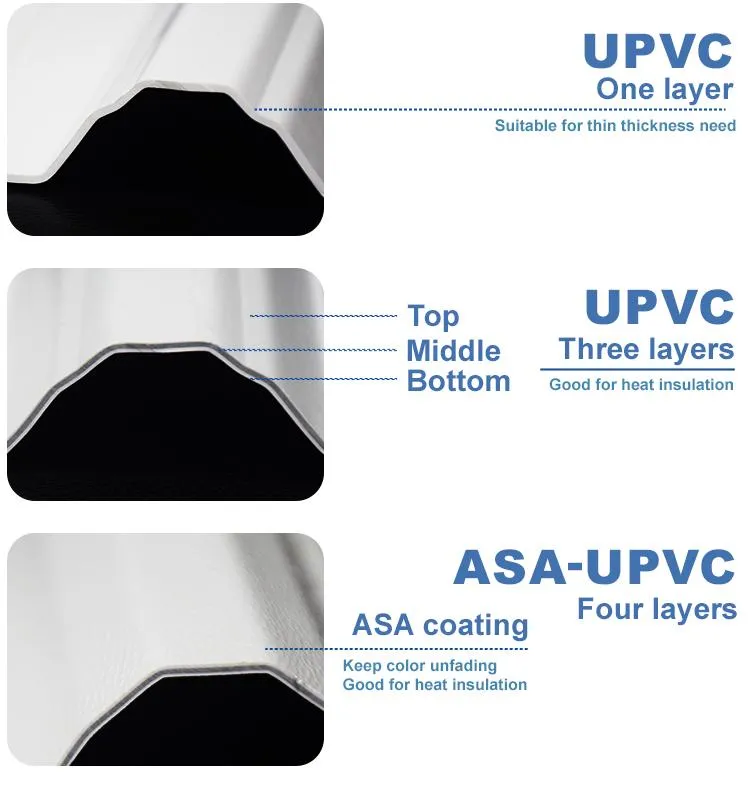

Unplasticized PVC tile. The core standard for roofing solutions with a 10-year life guarantee.
Features a high-weather resistant engineering plastic layer for enhanced durability and corrosion resistance. 15-year life guarantee.
Coated with an ASA layer to prevent color fading for 10 years. Total life guarantee of 25 years.
Low heat conductivity (0.325W/m.k). Maintains indoor comfort even when outdoor temperatures reach 40°C.
Resistant to acids, alkalis, and salts. No chemical reaction or cracks after 24-hour soaking tests.
Excellent noise absorption during heavy rain or strong winds.
High structural integrity; will not crack even if a 1kg steel ball falls from 3 meters height.
Class B1 fireproof rating. PVC resin is naturally flame retardant.
Non-conductive properties make it safer for regions with high lightning frequency.

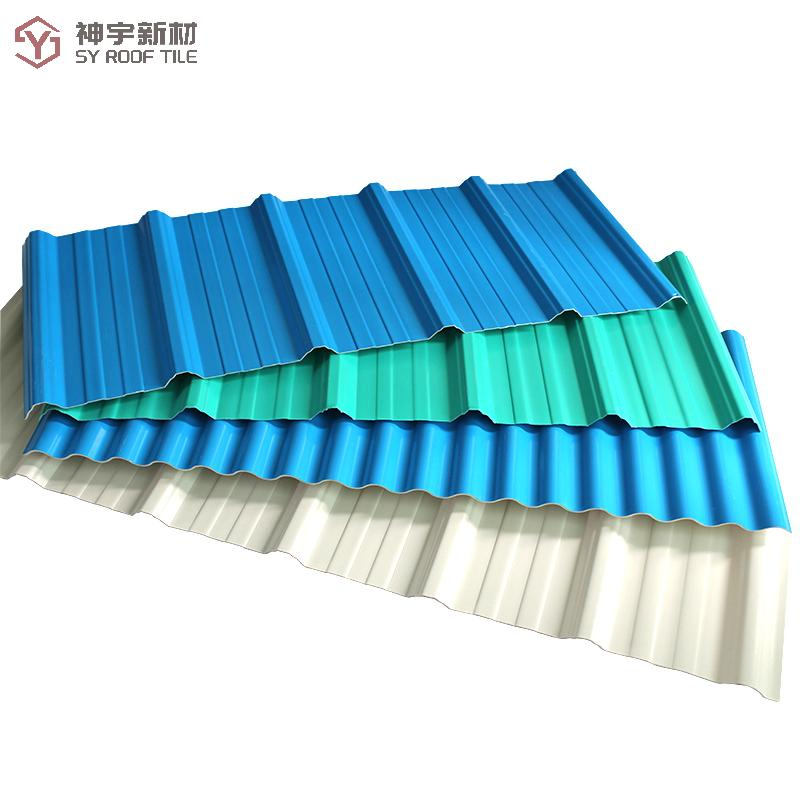

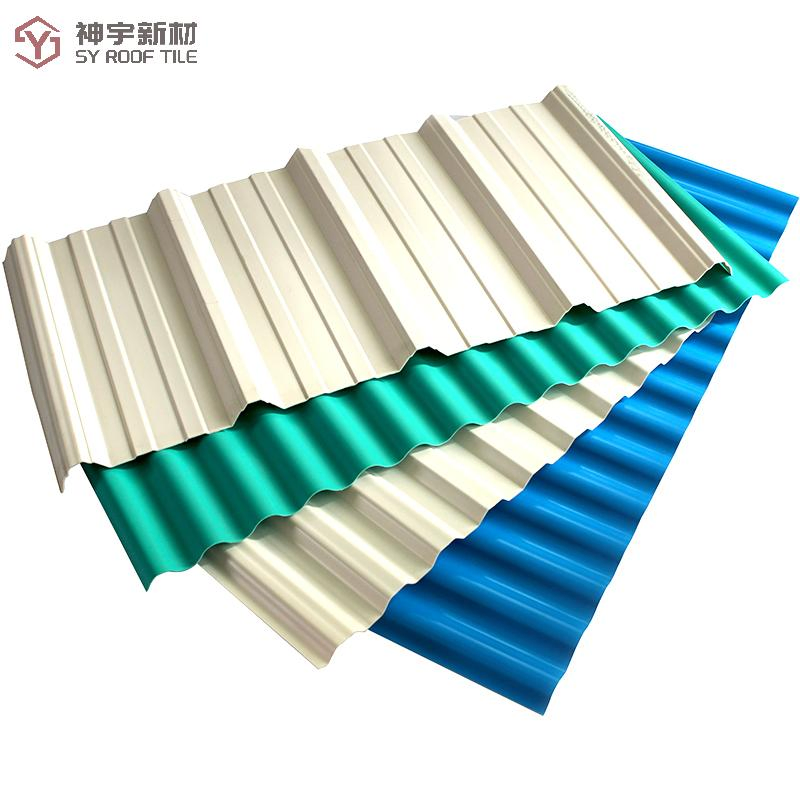

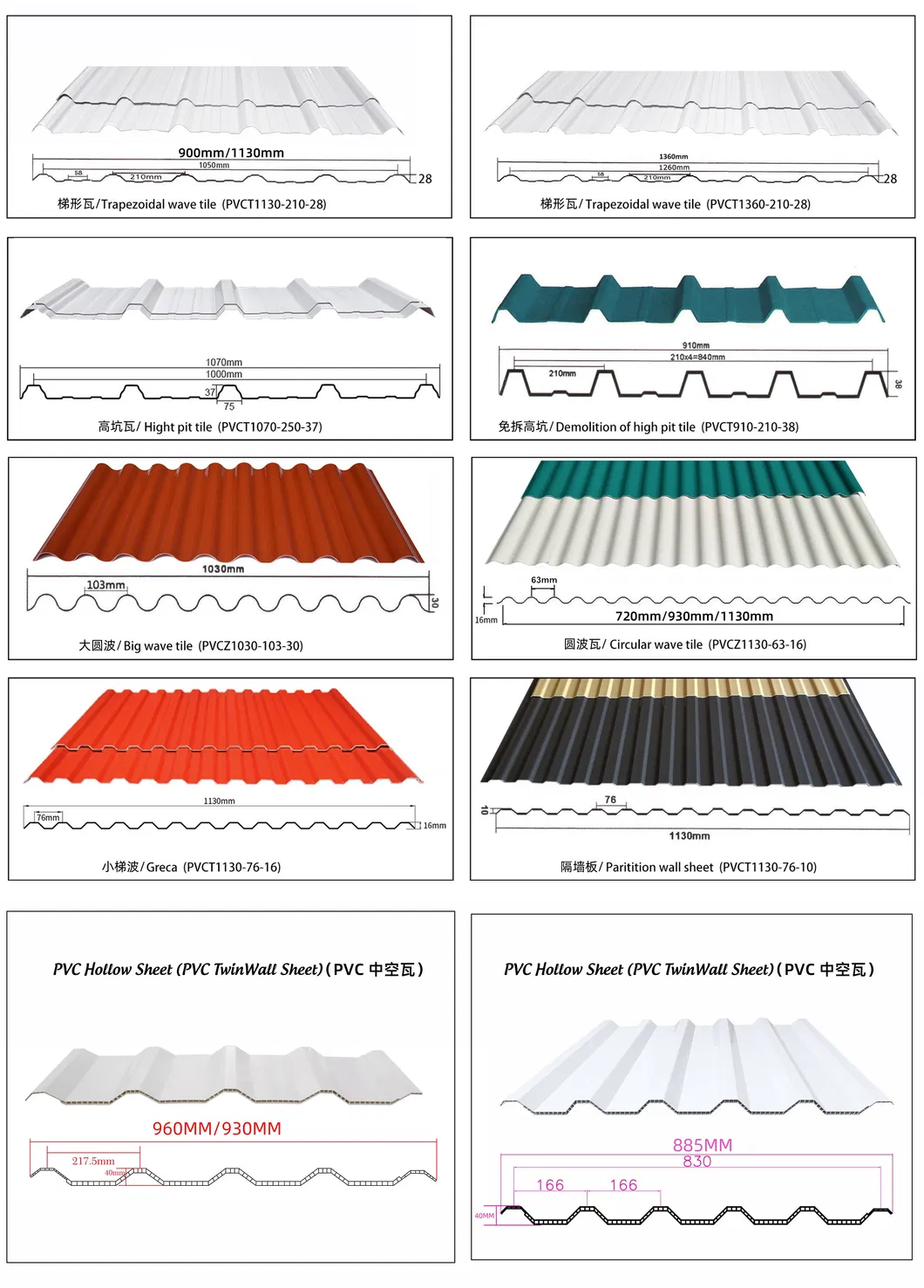

Available in Trapezoidal, High pit, Big wave, Circular, and Greca profiles.

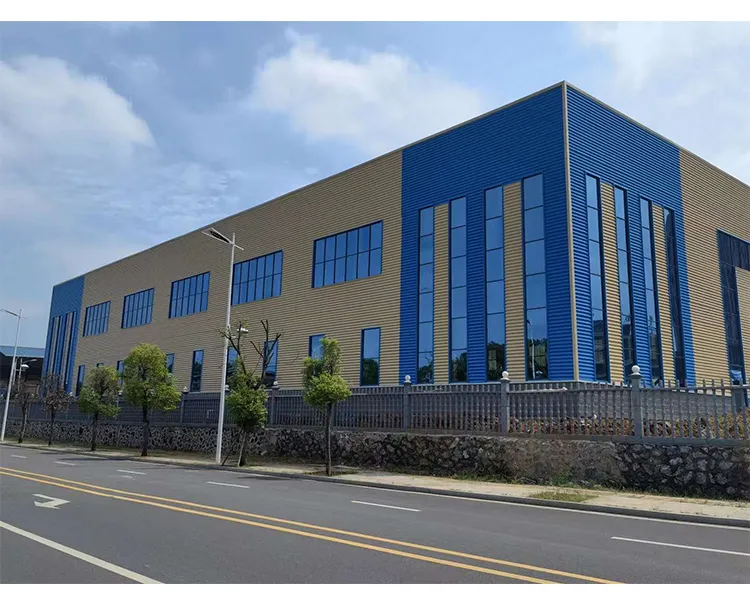

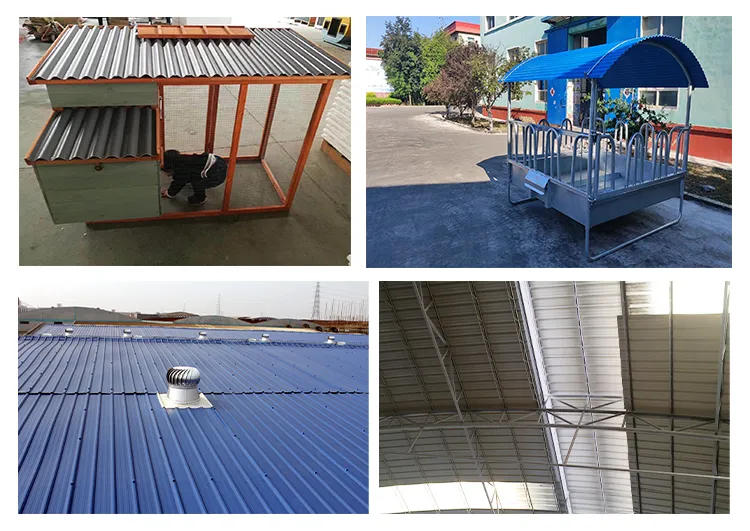

PVC roof tiles are ideal for replacing metal, wood, and stone in various environments:

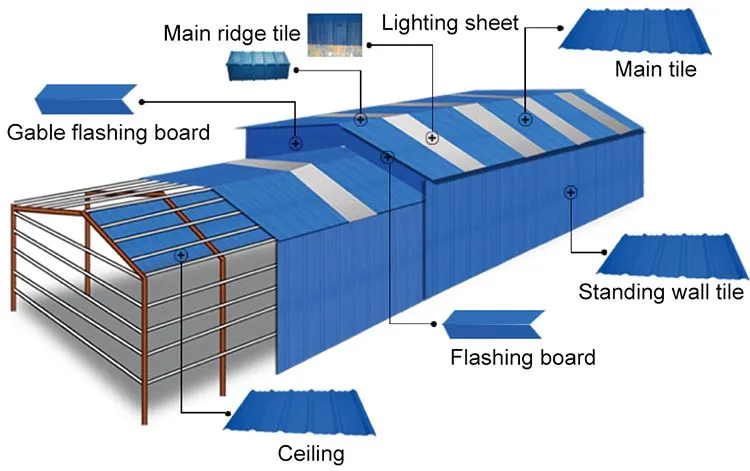

| 1 | Use special waterproof accessories provided for all fixings. |
| 2 | Require 4-6 accessories per square meter. Screws must be at the wave crest. |
| 3 | Fix accessories at every wave crest for top ridges, vertical overlaps, and eaves. |
| 4 | In heavy wind areas, use steel straps for sidewalls without flashing boards. |
| 5 | Ensure sealing rings are used when fixing with hooks; tighten nuts properly but not overly. |
