Sandwich Aluminium Insulated Panel Systems

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

ZJT

Certification

ISO9001, CE, SGS

Panel Material

Nonmetal (Calcium Silicon / Fibre Cement Board)

Core Material

Cement, EPS, Sand and Fly Ash

Size (Thickness)

60/75/80/90/100/120/150/180mm

Standard Width

610mm

Standard Length

2270mm / 2440mm

Sound Insulation

32~56 dB

Fire Resistance

4 Hours Under 1000°C

Thermal Conductivity

0.221W/Mk

Moisture Movement

0.06%

Production Capacity

200,000 m²/Month

Sandwich Aluminium Insulated Panel Systems

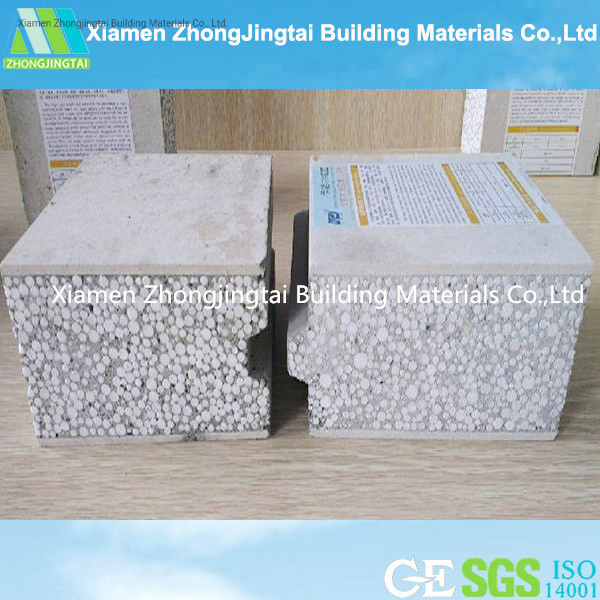

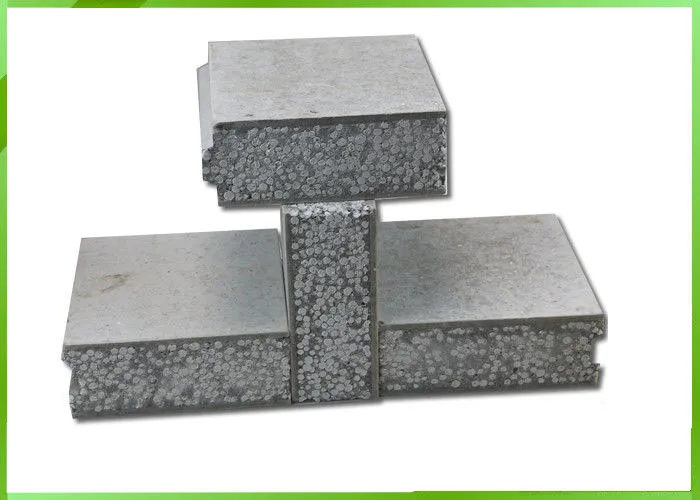

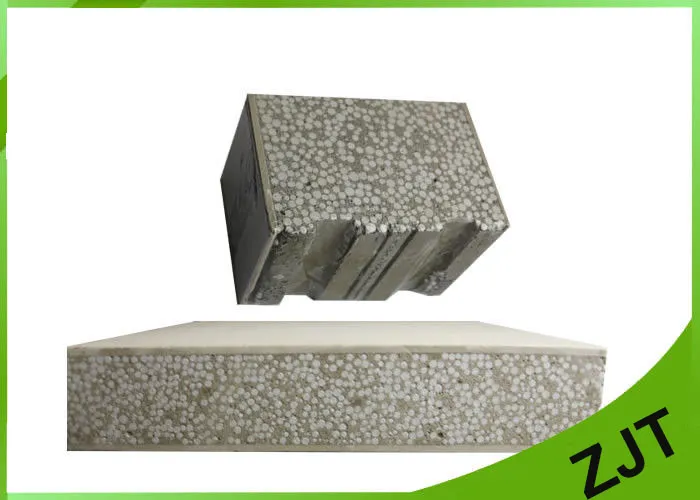

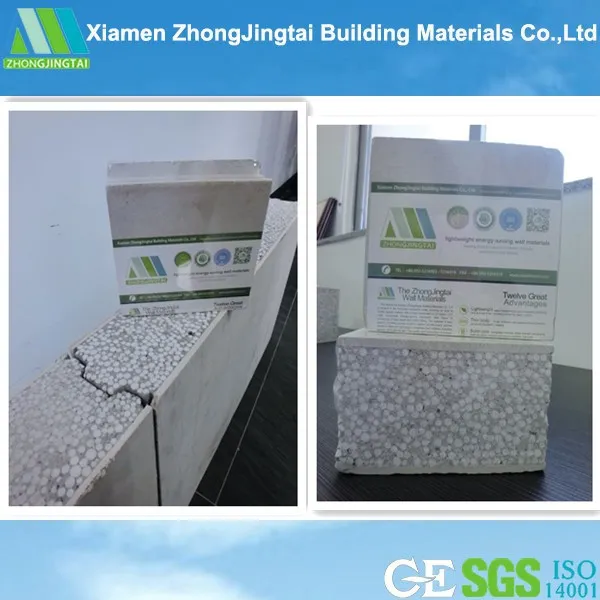

Our energy-saving sandwich wall panels feature a surface made of fiber-reinforced calcium silicon board or cement calcium board, with a solid core of cement, EPS, sand, and fly ash. These panels are designed for modern construction requirements, offering high strength and environmental benefits.

Core Advantages

✓

Light weight and energy saving

✓

Eco-friendly and green materials

✓

Waterproof, Fireproof and heat resistant

✓

Sound insulation and shock resistance

✓

Strong and durable with fast installation

✓

Termite, Pest and Rot resistant

✓

Excellent thermal/sound ratings

✓

Cyclone and Earthquake resistant

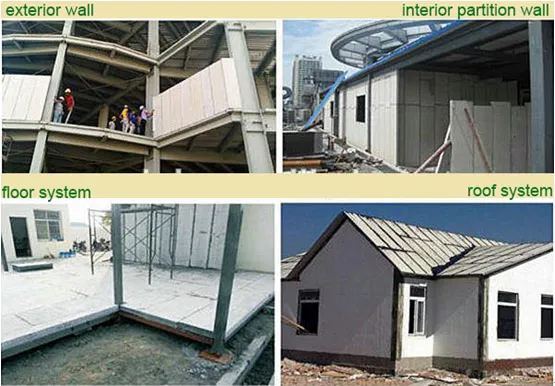

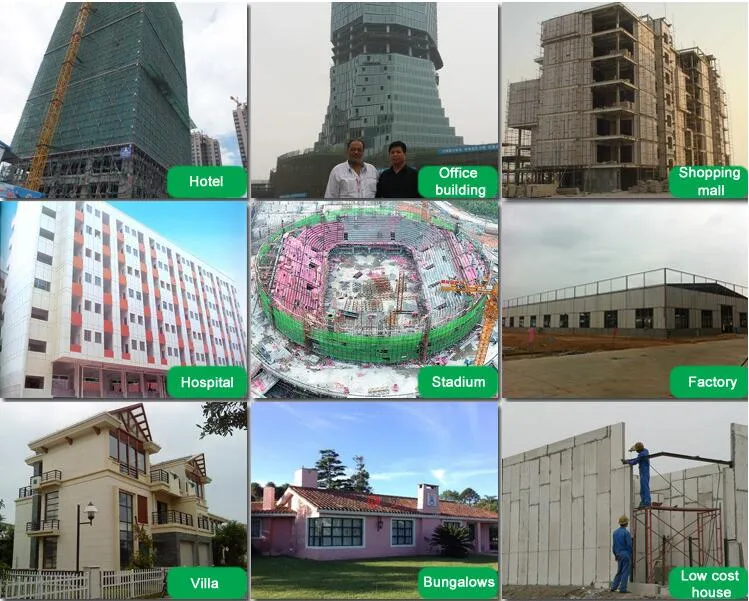

Versatile Applications

●

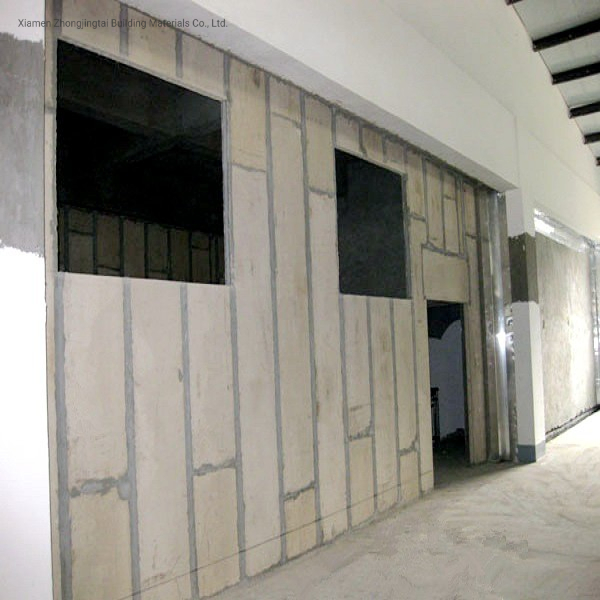

Interior partition (60mm, 75mm, 90mm)

●

Exterior Wall (120mm, 150mm, 180mm)

●

Floor and roof systems

●

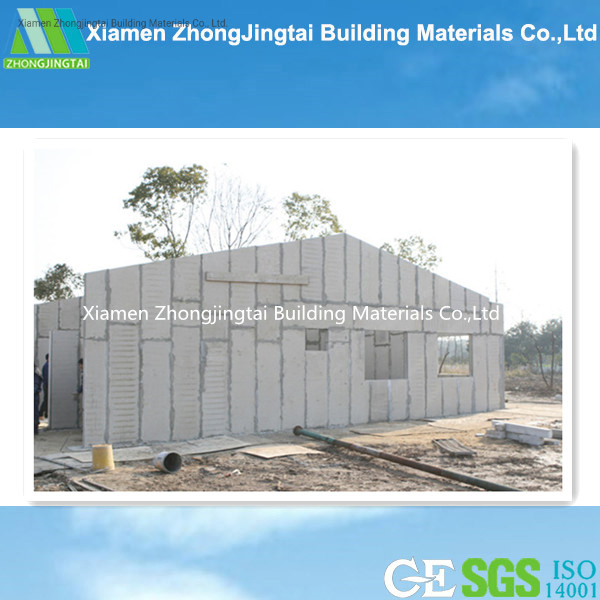

Prefabricated and modular houses

●

High-rise buildings & Modern Offices

●

Schools, Hotels, and ecological residences

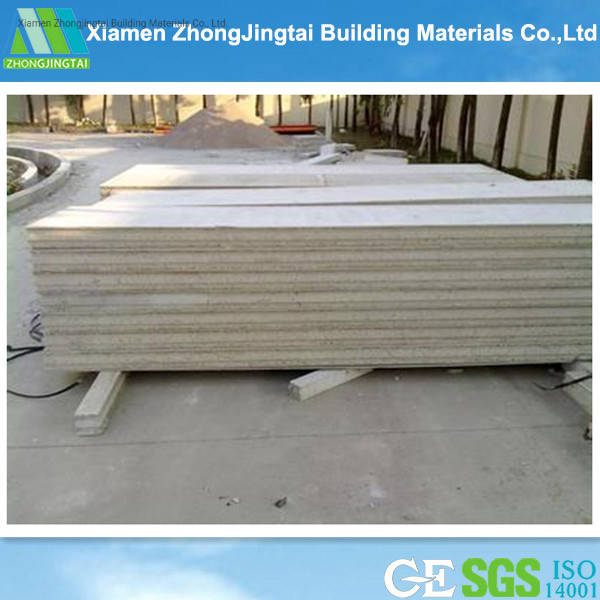

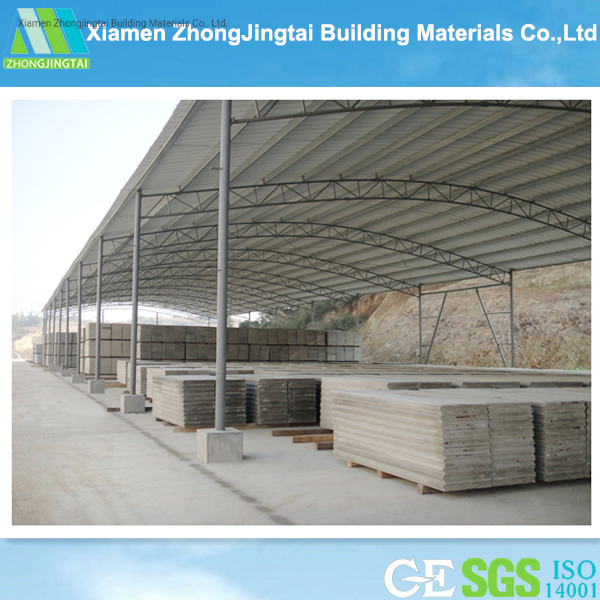

Installation & Packaging

Packing Details:

Held by wooden Pallet or without Pallet.
Bonded with plastic belts and fastened around the corners.
Protected by plastic thin film for safe transport.

Trade Information

Payment

T/T or L/C at sight

Lead Time

20-25 Working days

Shipping Port

Xiamen Port, China

Discounts

Based on order quantity

Frequently Asked Questions

1. What is the fire rating of these sandwich panels?

The panels are highly fire-resistant and can withstand temperatures of 1000 degrees Celsius for up to 4 hours, making them ideal for fire-rated wall construction.

2. Can these panels be used for soundproofing?

Yes, they provide excellent sound insulation with a rating between 32 to 56 dB, suitable for schools, hotels, and office partitions.

3. Are the panels waterproof?

The surface boards (calcium silicon or fiber cement) and the core material are waterproof, preventing rot and moisture-related damage even in humid environments.

4. What is the standard size and can it be customized?

Standard sizes are 2270mm/2440mm in length and 610mm in width. Thickness ranges from 60mm to 180mm. Custom sizes are available upon request.

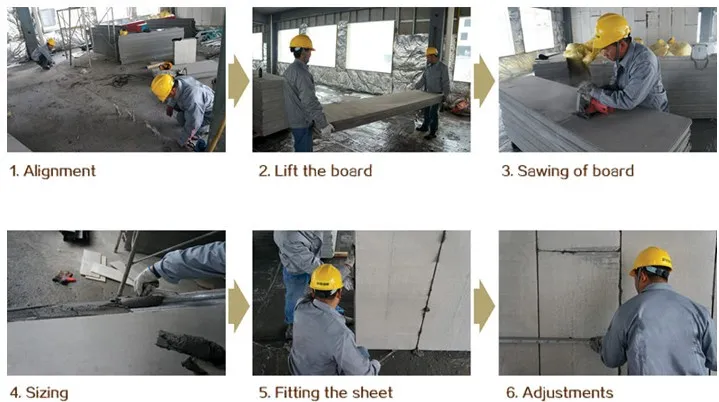

5. Is the installation process difficult?

No, the panels are designed for fast and easy installation. They can be worked with standard tools, and training is available for local unskilled labor.

6. How are the panels protected during shipping?

Panels are securely bonded with plastic belts on pallets, protected by edge guards and wrapped in a thin plastic film to ensure safe delivery.
