Homecoxa Panels
1 / 5
A sturdy steel frame with a plywood face, providing a smooth concrete finish.

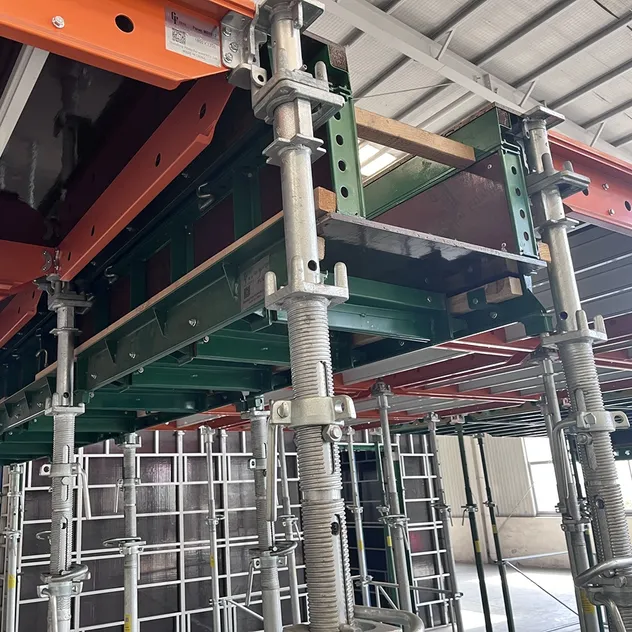

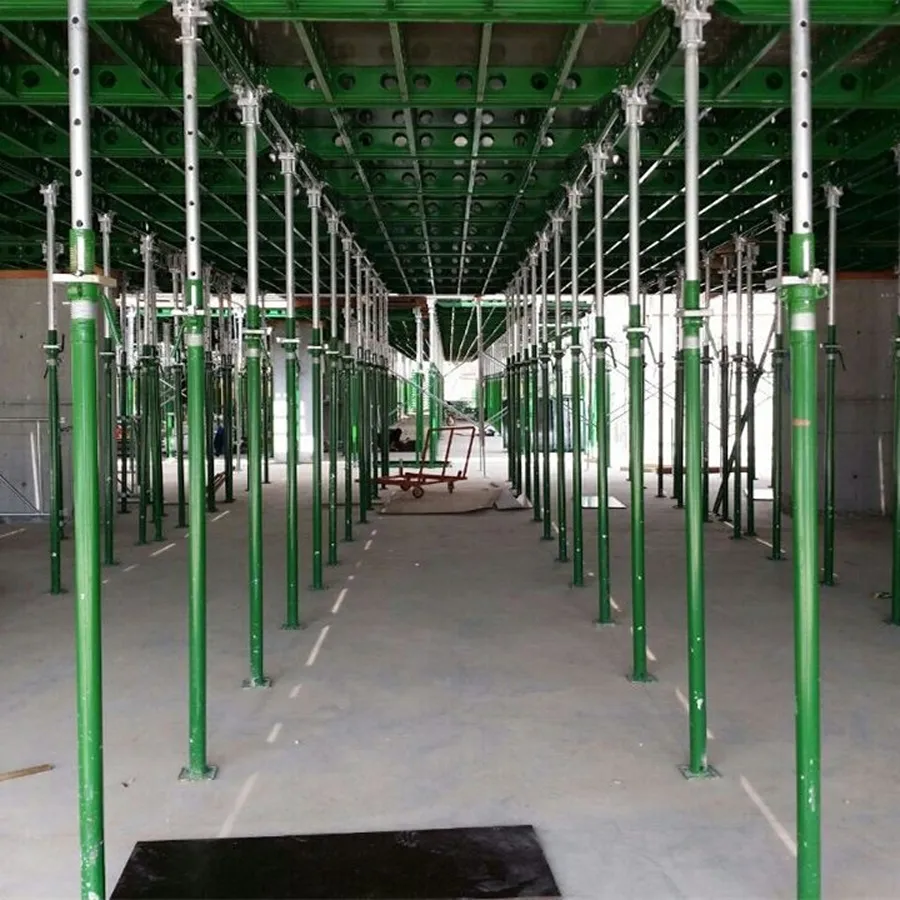

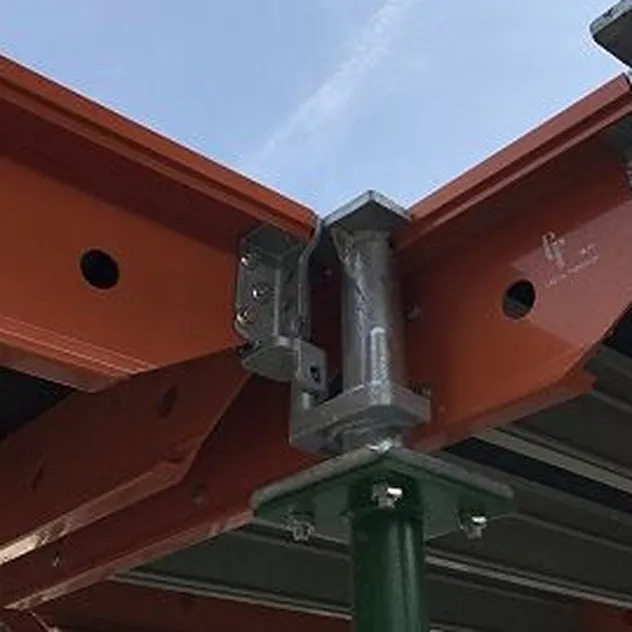

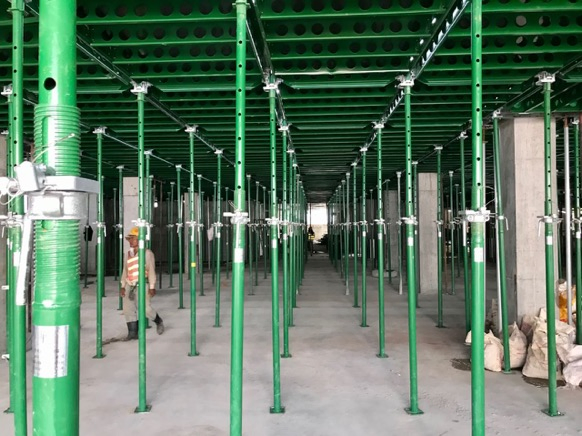

An adjustable support featuring an early stripping mechanism for faster cycle times.

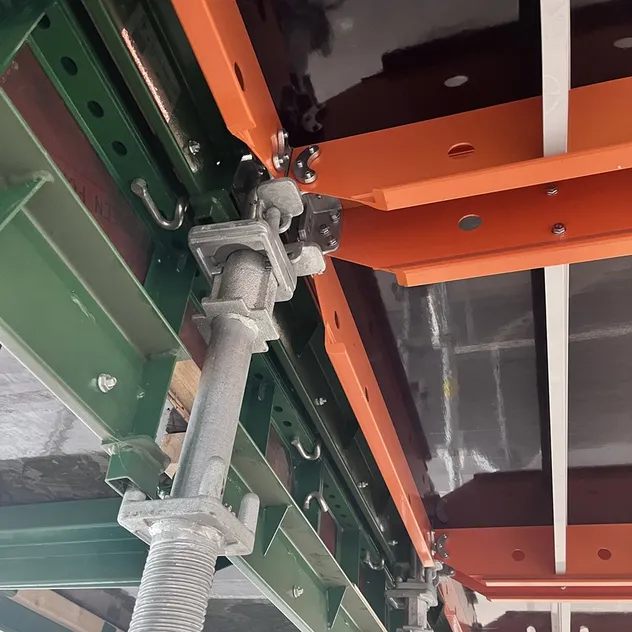

Auxiliary and bridge beams that adapt to complex slab structures with ease.

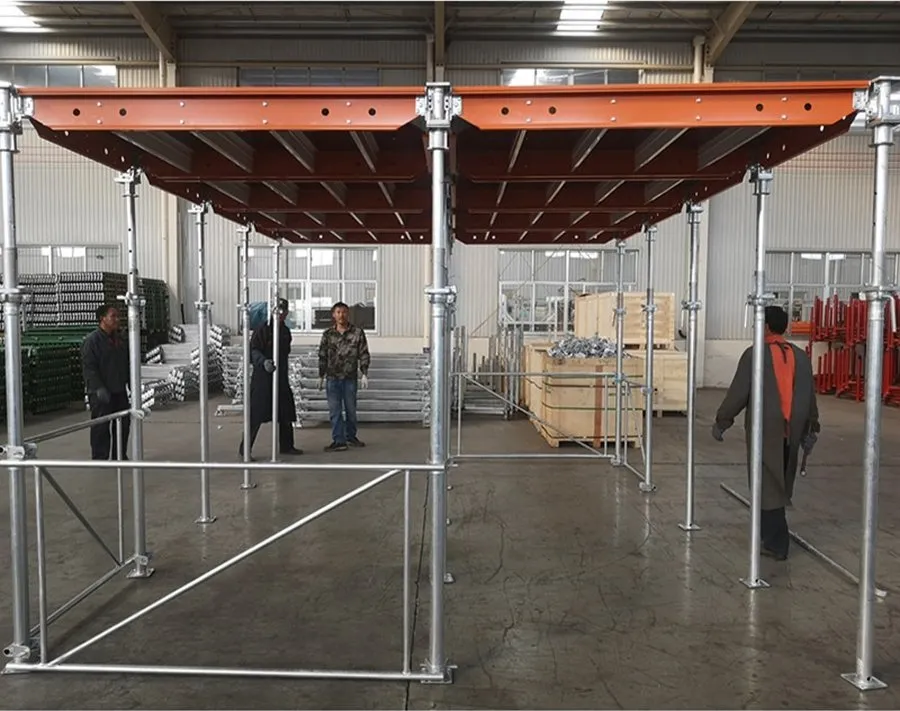

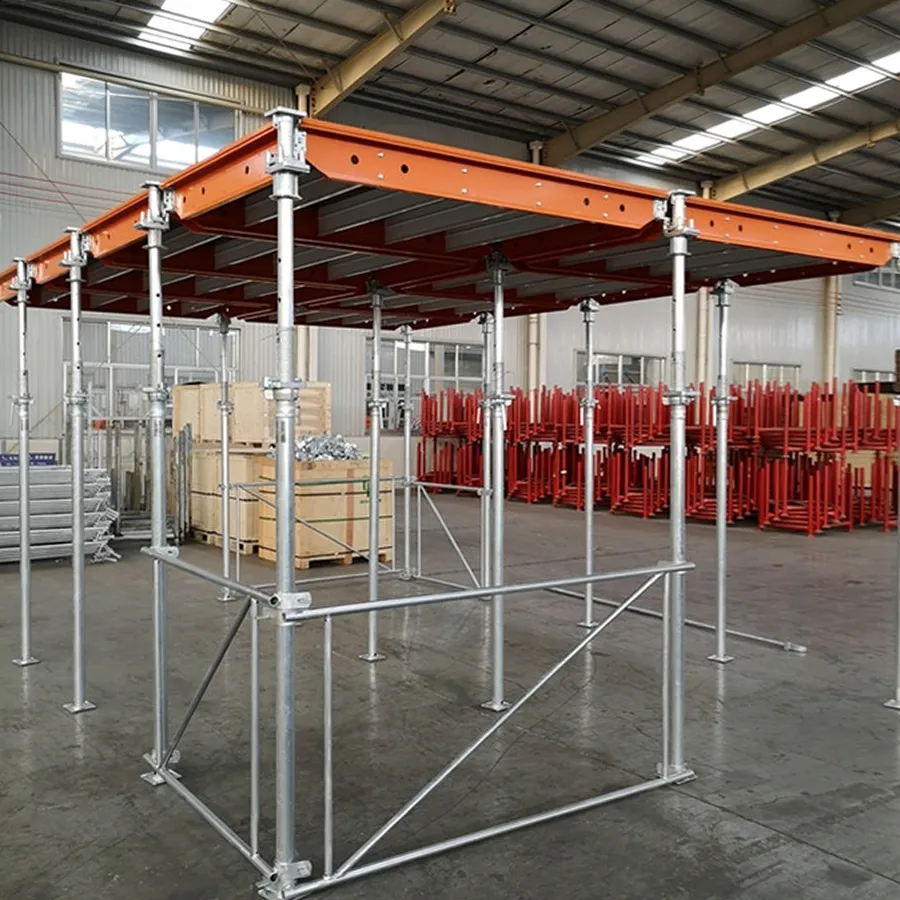

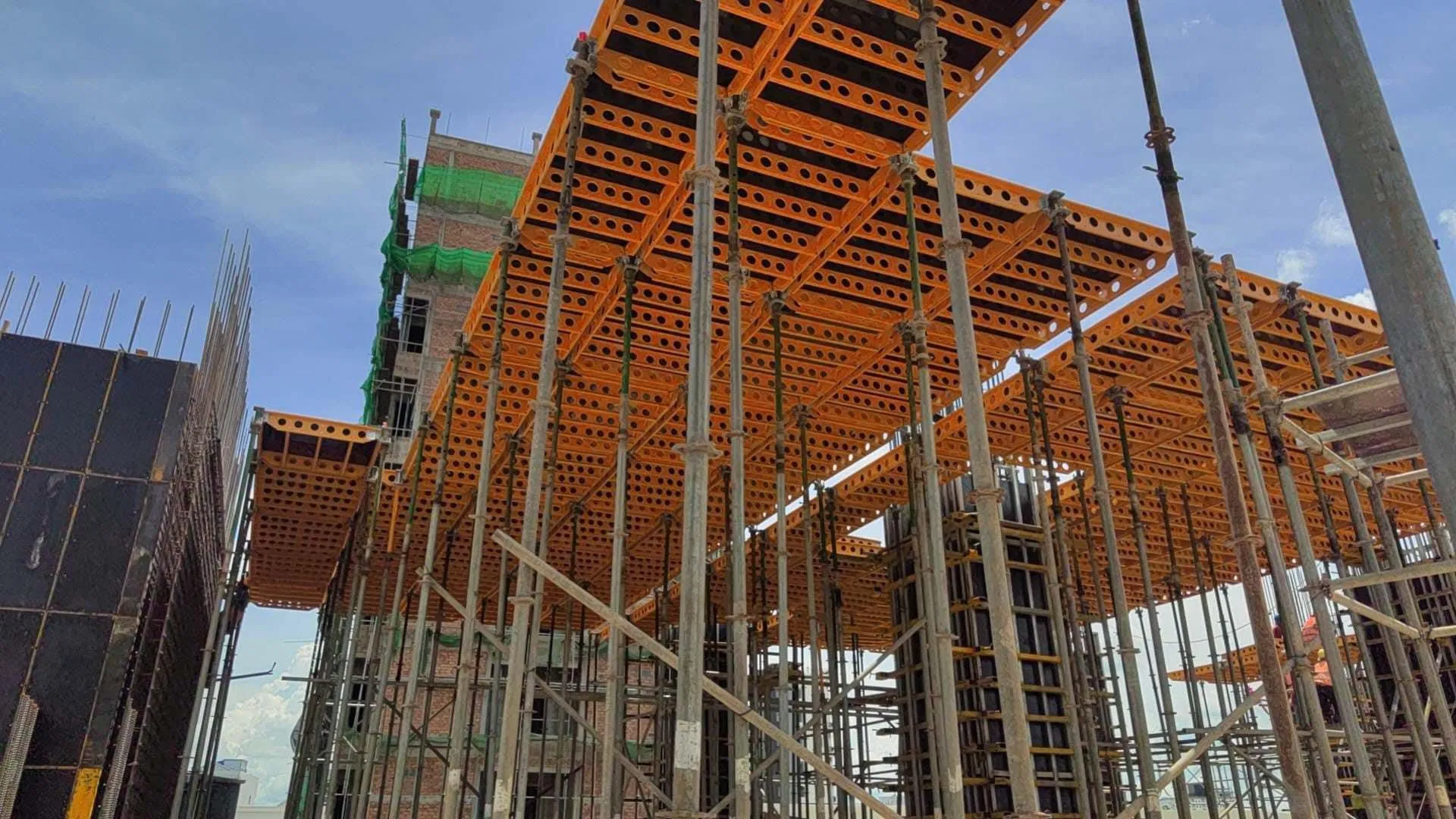

SLAB FORMWORK
Essential components in concrete construction, providing temporary molds and support structures necessary to pour and cure concrete slabs. Engineered for versatility, efficiency, and safety.
| Feature | Advantage | Client Benefit |
|---|---|---|
| Patented Material | Lightweight, high strength, rust-resistant. | Saves Labor: Easy to carry and install. |
| Modular Design | Simple assembly like building blocks. | Reduces Skill Dependency: Quick training for workers. |
| 300+ Reuse Cycles | Long service life. | Lowest Total Cost: More economical than wood. |
| Early Demolding | Mirror-like concrete surface finish. | Shortens Timeline: Eliminates plastering needs. |
| TECHNICAL PARAMETERS | |
| Material Type | Q355b, Q235b Steel |
| Plywood Thickness | 12mm |
| Pressure Capacity | 60kN Per Square Meter |
| Certification | ISO, CE |
| Surface Finish | Painted / Fair-faced Concrete Effect |
| Model | Size (m) | Unit Area (m²) | Weight (kg) |
|---|---|---|---|
| MB1812 | 1.8 X 1.2 | 2.16 | 45 |
| MB189 | 1.8 X 0.9 | 1.62 | 39 |
| MB1512 | 1.5 X 1.2 | 1.80 | 41.4 |
| MB1212 | 1.2 X 1.2 | 1.44 | 34 |
ENHANCED SAFETY: Integrated safety mechanisms including fall protection and secure connections, ensuring a safer working environment.
SUPERIOR FINISH: Provides a stable and rigid forming surface, resulting in high-quality, smooth concrete finishes.
