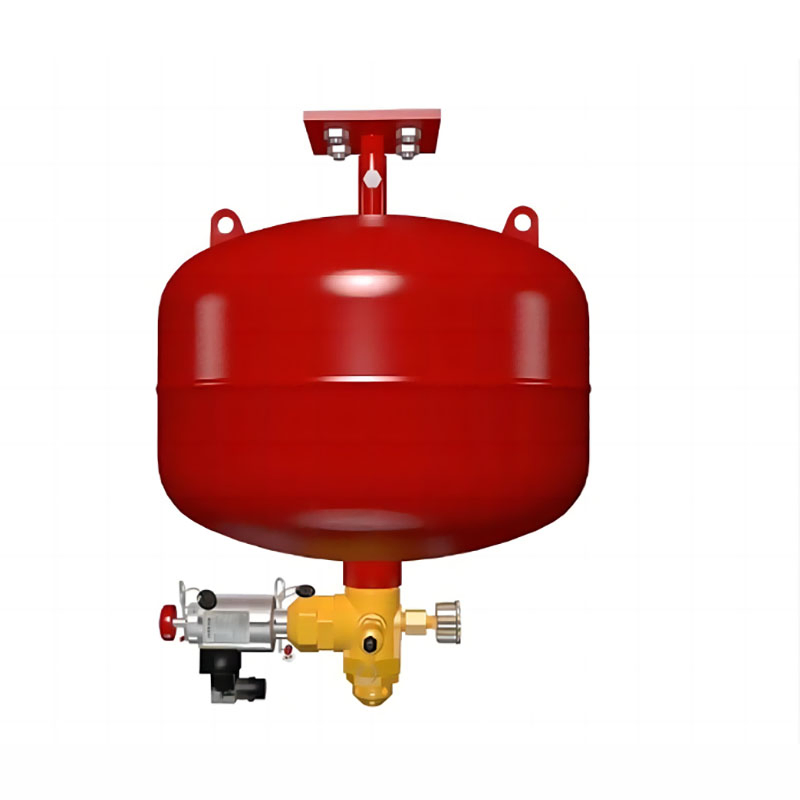

Reliable Hfc-227ea Hanging Fire Extinguishing Solution for Homes

Customization:	Available
Cylinder Volume:	16L, 20L, 30L
Pattern of Extinguishing:	Enclosed Flooding

i

Basic Specifications

Model: 16L

Agent: HFC-227ea (FM200)

Pressure: 1.6MPa

Color: Red

Starting Mode: Solenoid / Temperature

Capacity: 28,000 Sets / Week

★

Electricity Gas HFC227ea Fire Suppression System

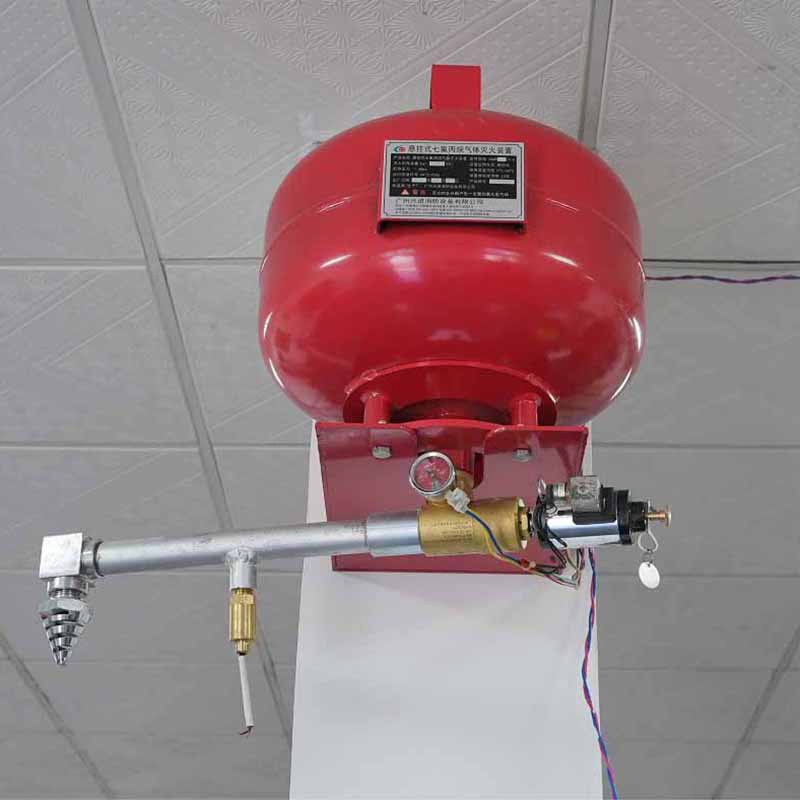

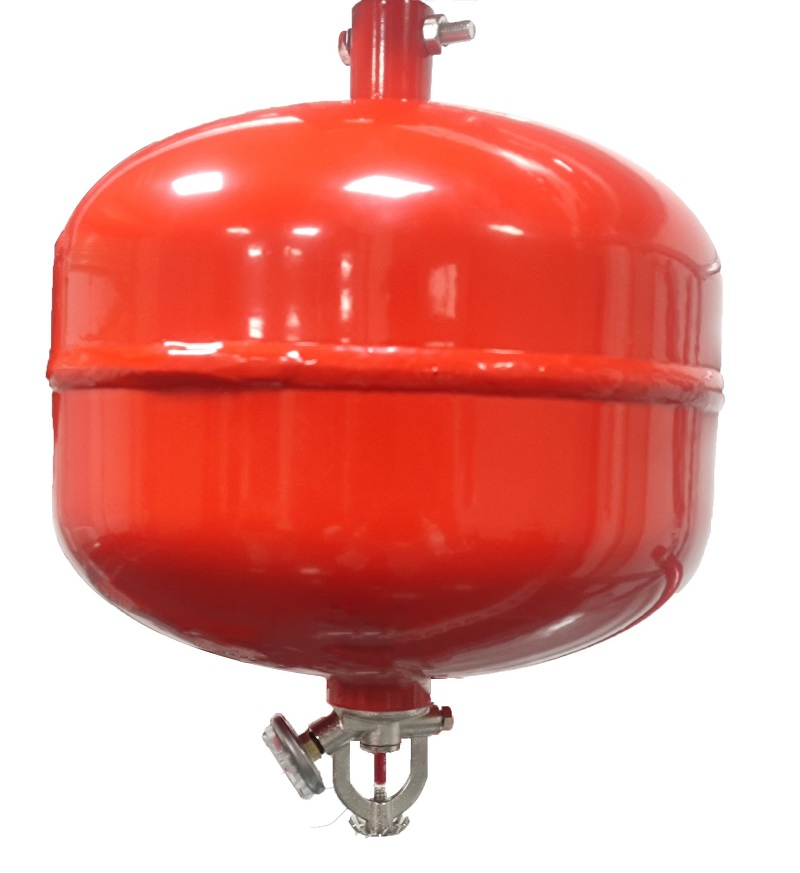

The automatic suspension HFC-227ea/FM200 fire extinguishing device is a modern intelligent suppression solution. It integrates container valves, nozzles, and sensors designed for independent installation on ceilings or walls. This system is highly efficient for smaller rooms where ground space is limited.

Safe Agent: HFC-227ea is colorless, tasteless, non-conductive, and leaves no secondary pollution.
Eco-Friendly: Zero ozone-depletion potential (ODP).
Fast Acting: Short spray time with high extinguishing efficiency.
Intelligent Control: Combines fire detection and automatic control in one unit.

⚙

Technical Parameters

Specifications	Parameters
Tank Size	16Ltr, 20Ltr, 30Ltr
Storage Pressure	1.6 MPa
Max Working Pressure	2.5 MPa
Discharge Time	≤ 8s
Max Filling Rate	1kg/L
Starting Power	DC24V / 1.6A
Operating Temperature	0ºC ~ 50ºC

📊

Coverage Capability

Device Model	Filling Amount (kg)	Max Coverage (m³)	Starting Mode
XQQC16/1.6	16	22.22	Solenoid Actuator (DC24V/1.6A)
XQQC20/1.6	20	27.78
XQQC30/1.6	30	41.67

✔

Components & System Advantages

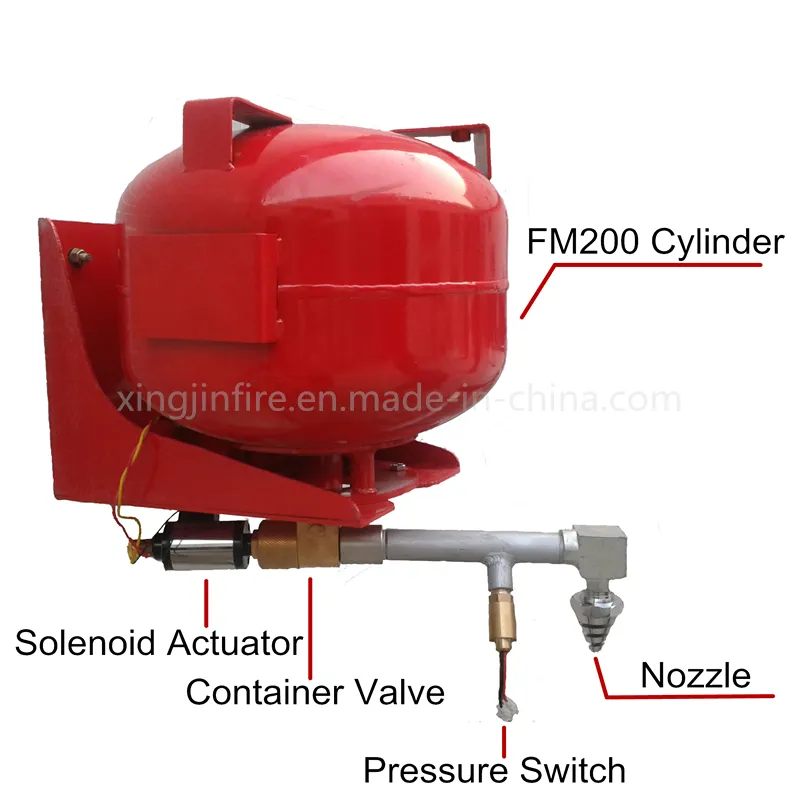

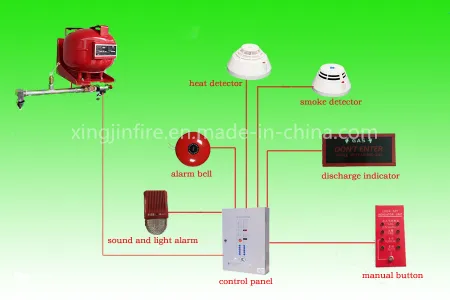

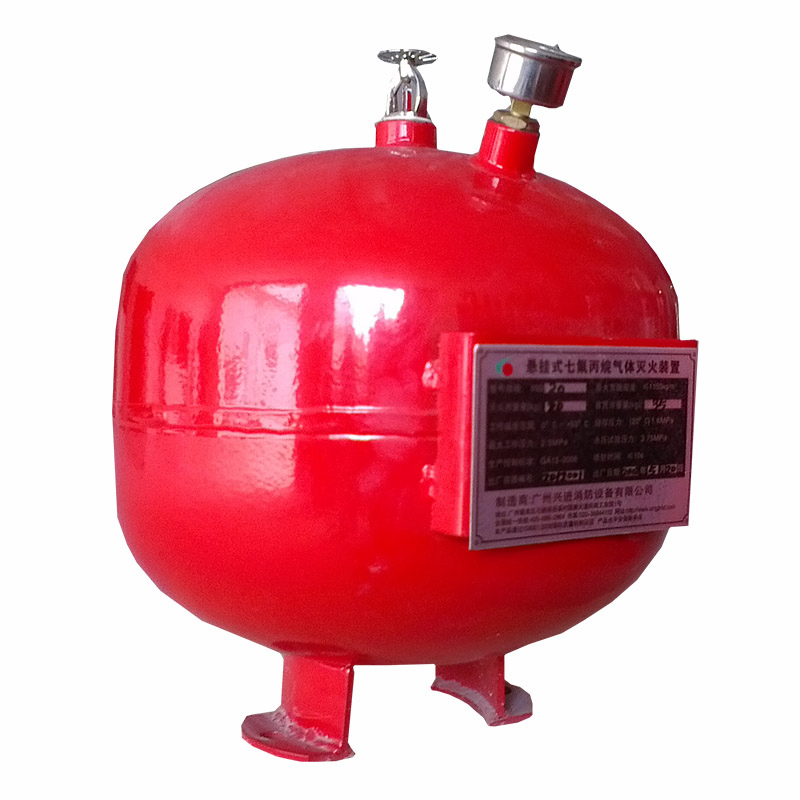

System Components: Includes a spherical pressure tank, HFC-227ea agent, hanging mounting hardware, thermal sensor (liquid-filled glass tube), pressure switch, and stainless steel nozzle.

Space Efficiency: Perfect for small server rooms or electric rooms where floor space is unavailable.
Easy Installation: Lightweight design allows for quick mounting by a single technician.
Reliable Suppression: Provides overall coverage for the entire protected zone.

📦

Packaging & Real-World Applications

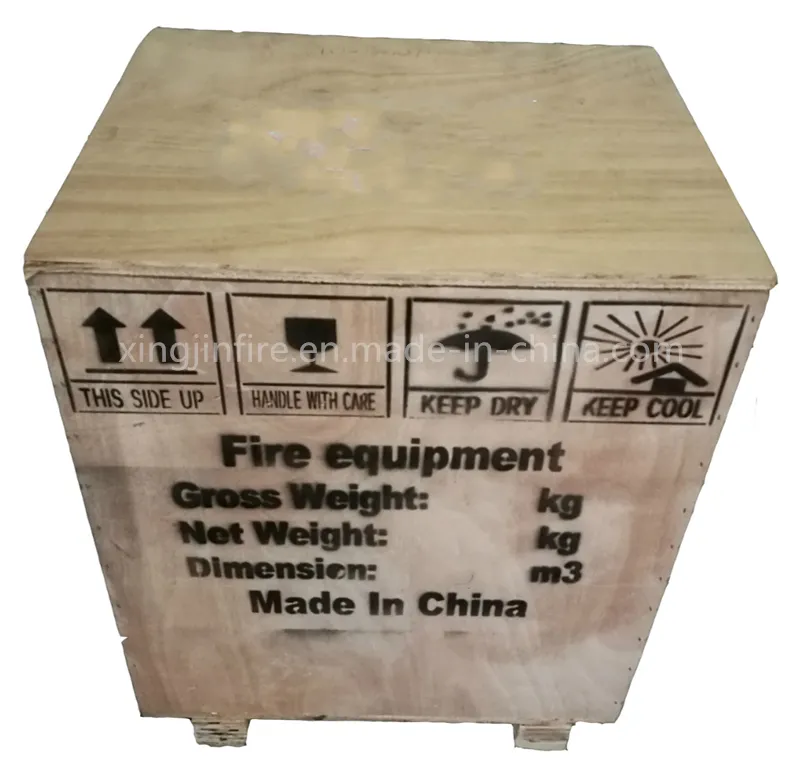

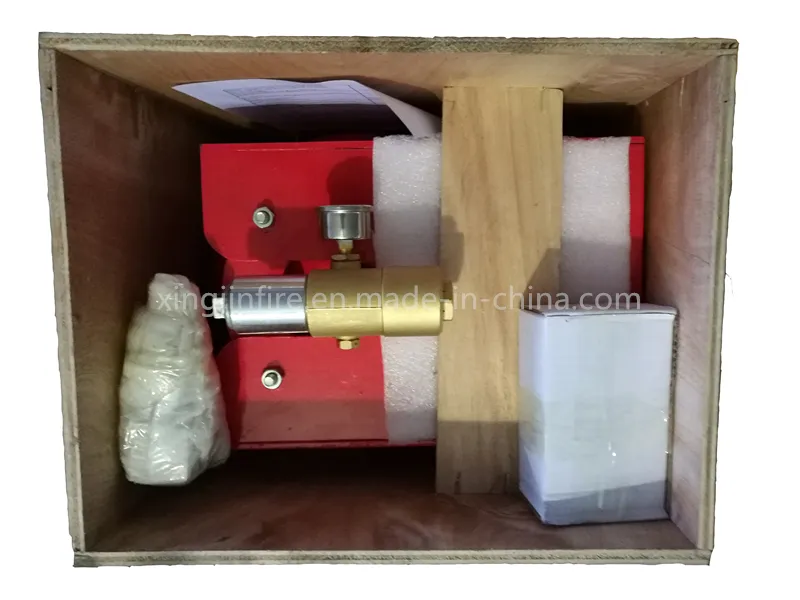

Devices are secured with polyfoam and packed in robust wooden cases or pallets to ensure safety during international transit.

?

Frequently Asked Questions

Q1: Is HFC-227ea safe for sensitive electronic equipment? Yes. HFC-227ea (FM200) is non-conductive and leaves no residue, making it the ideal choice for server rooms, data centers, and electric rooms.

Q2: How fast does the system discharge during a fire? The system is designed to discharge completely in 8 seconds or less to suppress fires at their earliest stages.

Q3: Can these units be customized for OEM projects? Absolutely. We welcome OEM designs and can manufacture units based on your specific drawings and technical requirements.

Q4: What is the typical warranty period? We provide a 5-year quality guarantee on our suppression systems, backed by high-efficiency management and professional engineering.

Q5: What are the primary starting modes for the device? The system typically uses a temperature sensor (thermal glass bulb) and a solenoid actuator (DC24V) for automatic activation.

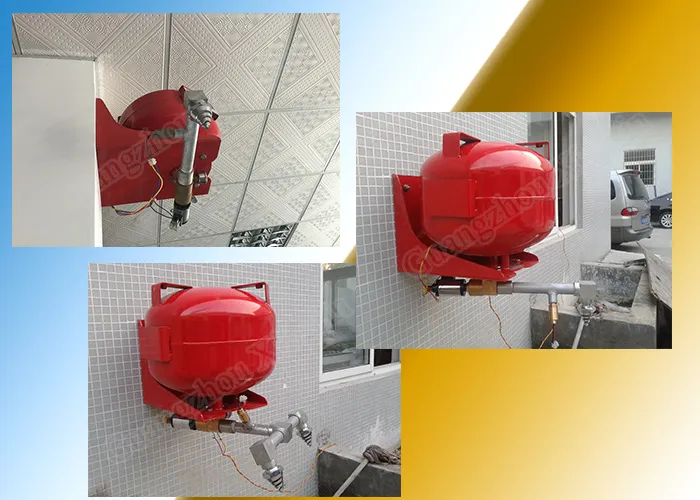

Q6: Does the system occupy floor space? No, this is a ceiling-mounted or wall-suspended design, making it perfect for small zones where ground area is limited.
