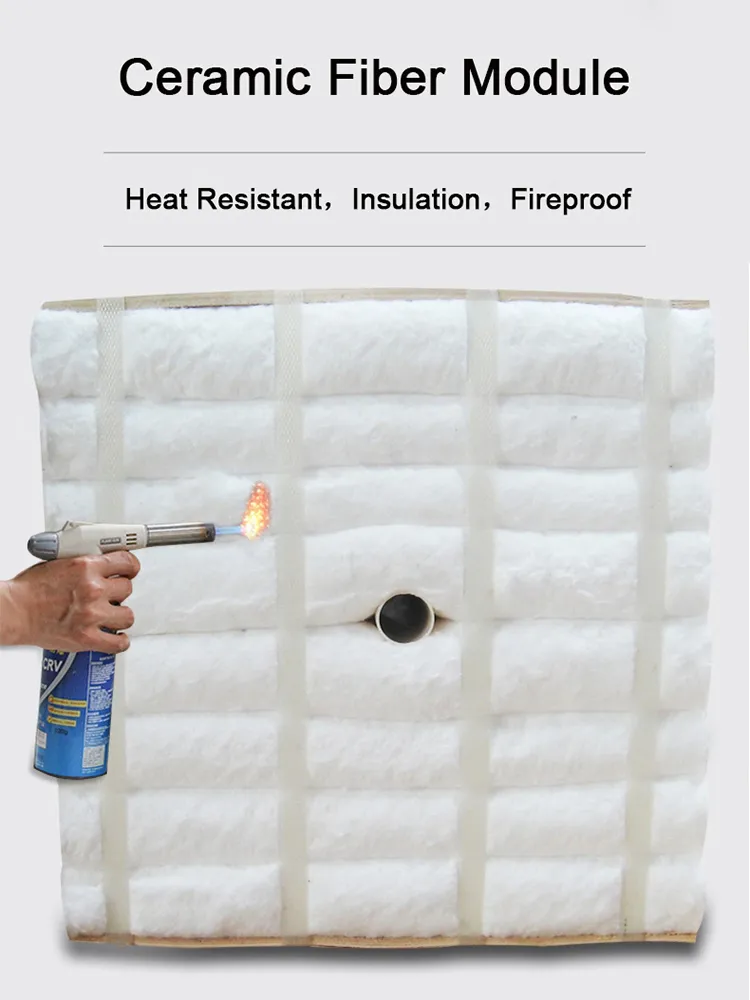

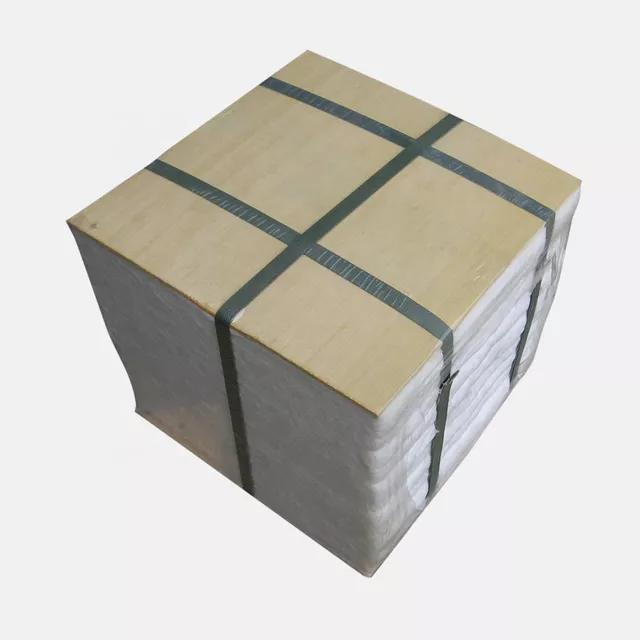

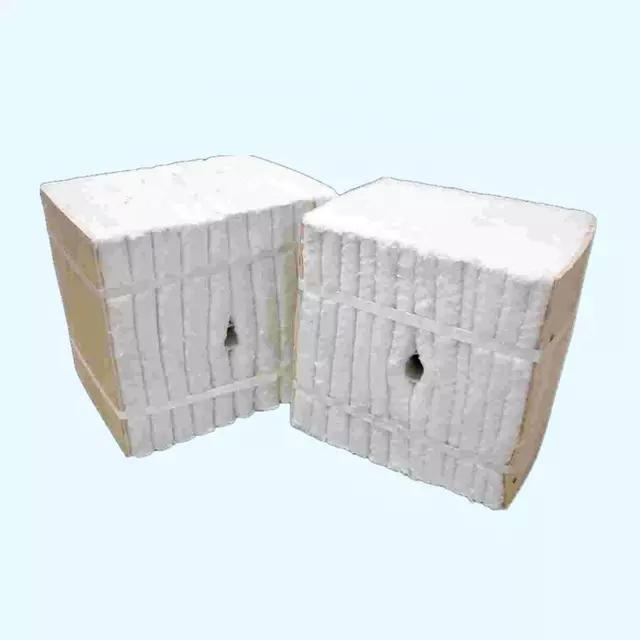

Refractory Material Thermal Insulation Ceramic Fiber Module is specifically designed for ceramic kilns. These modules are made from high-quality ceramic fiber blankets folded or cut by experienced professionals. We use specialized equipment to ensure precise dimensions and a smooth surface, providing superior insulation properties and quick installation for various thermal equipment.

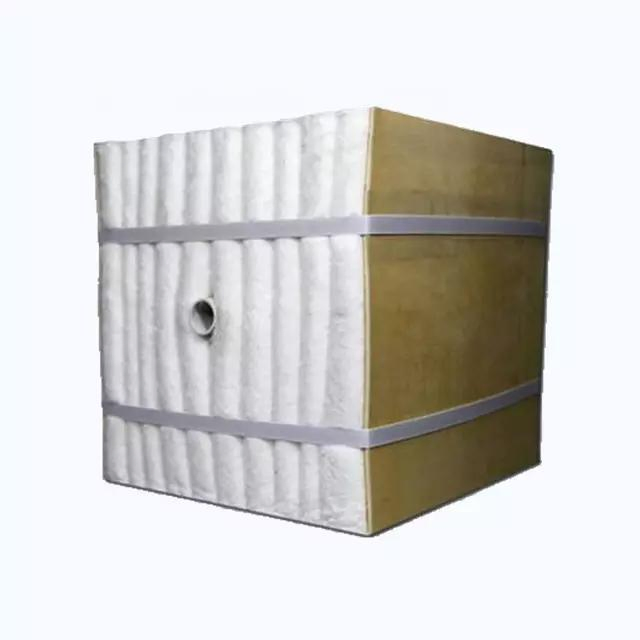

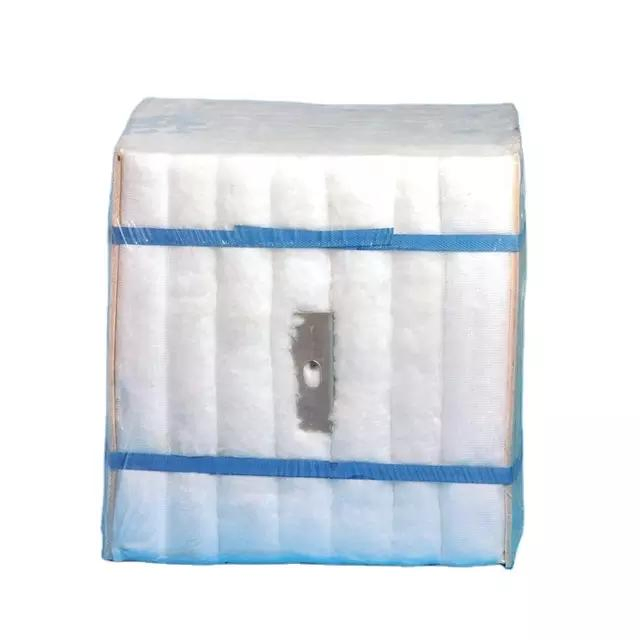

These modules utilize enhanced H-type anchors which offer greater strength and are positioned closer to the cold face to ensure stability at high temperatures. The fixed link is welded with high-quality heat-resistant steel and stamping butterfly plates, enlarging the bearing area and ensuring a firm anchor system.
| Module Type | RS1050 | RS1260ST | RS1260HP | RS1350HA | RS1430Zr | RS1600PMF |
|---|---|---|---|---|---|---|
| Classification Temp (℃) | 1050 | 1260 | 1260 | 1350 | 1430 | 1600 |
| Linear Shrinkage (%) | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.5 | ≤1.5 |
| Density (KG/M³) | 172-240 | 172-240 | 172-240 | 172-240 | 172-240 | 172-240 |
| Al2O3 (%) | 42-44 | 45-46 | 47-49 | 52-55 | 34-36 | 72-75 |
| Al2O3+SiO2 (%) | ≥99.0 | ≥99.0 | ≥99.0 | ≥99.0 | ≥99.0 | ≥99.0 |

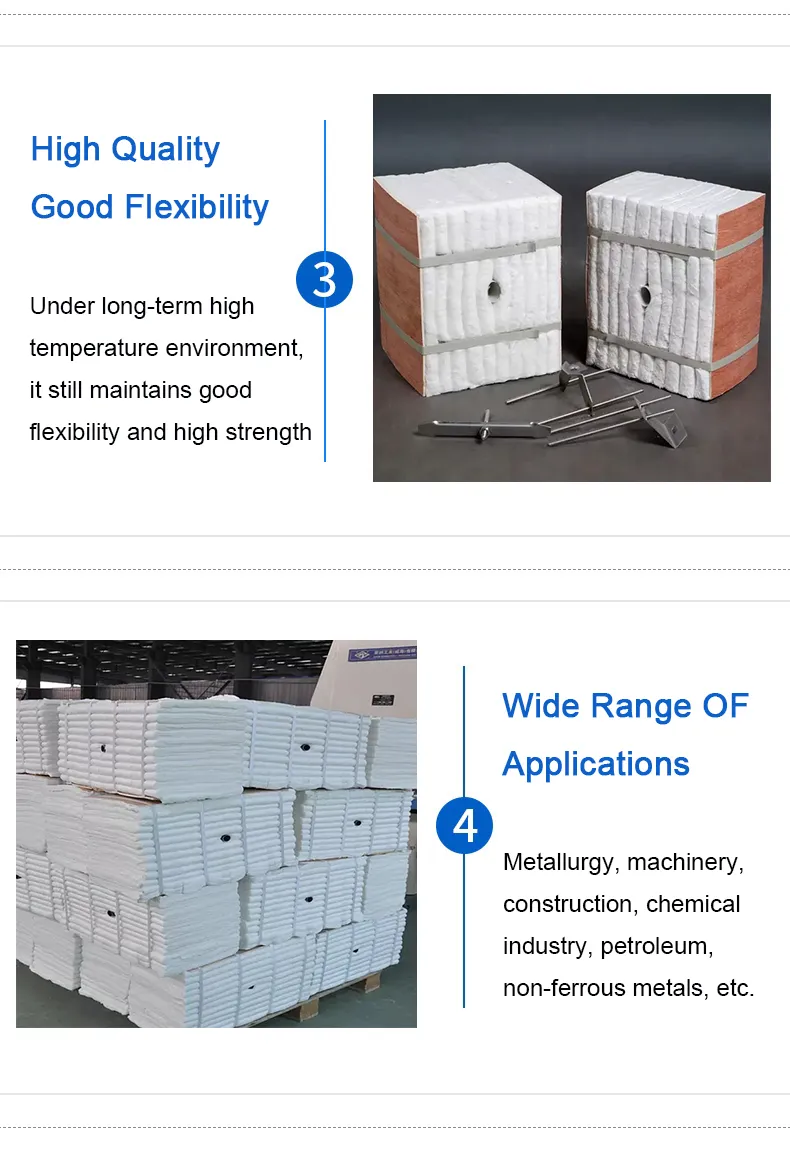

Our ceramic fiber modules are widely used across multiple industries:
Standard Dimensions: (300-600)*300*(150-300)mm (Custom specifications available upon request).
Density Options: 172KG/M³, 192KG/M³, 220KG/M³, 240KG/M³.

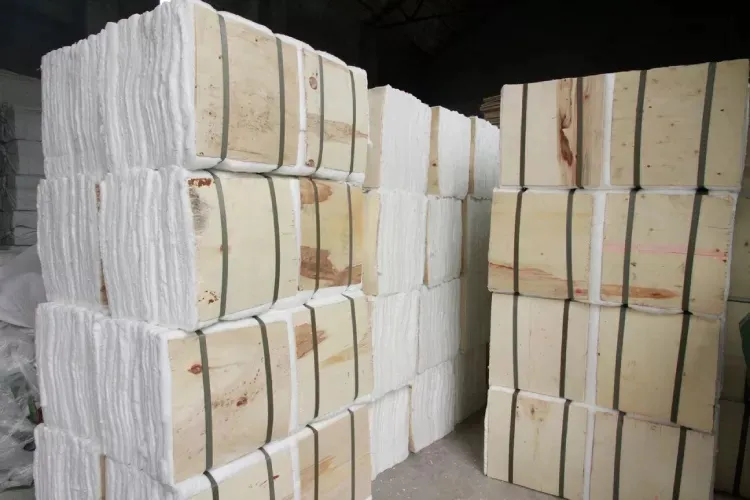

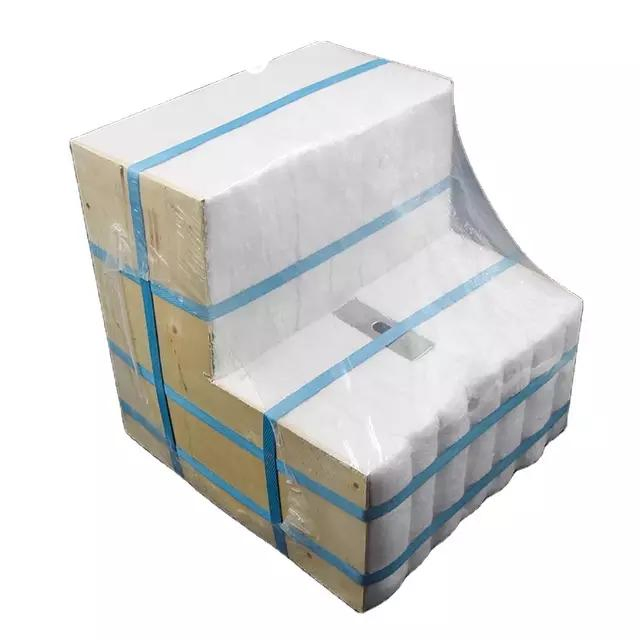

Package: Protective Carton + Pallet for international shipping safety.
Service: Professional construction guidance and installation services are available.
As a leading supplier of refractory materials, we utilize fully automated factories and a dedicated technical team. For over a decade, we have innovated high-temperature furnace technology, exporting high-quality products to over 70 countries across Europe, America, Southeast Asia, and the Middle East.
