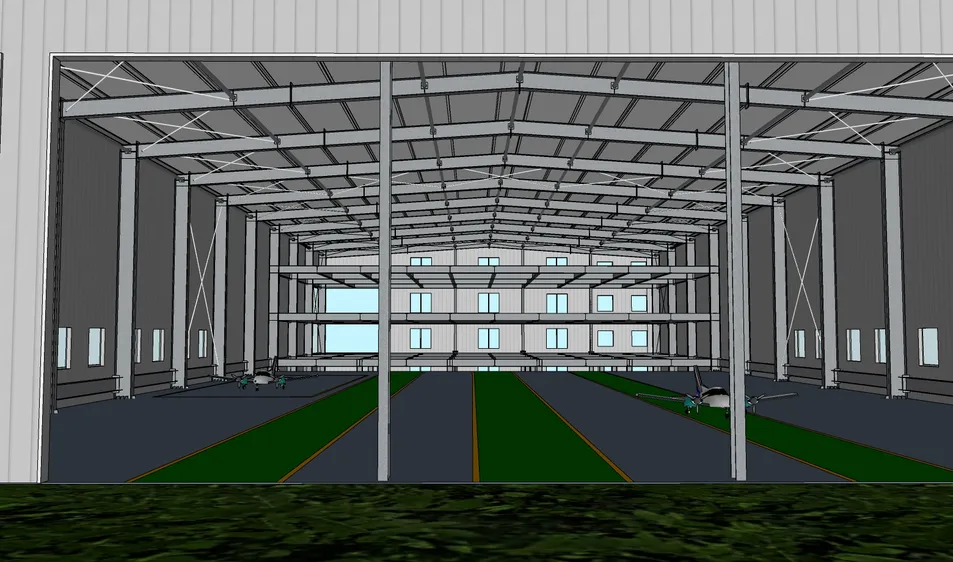

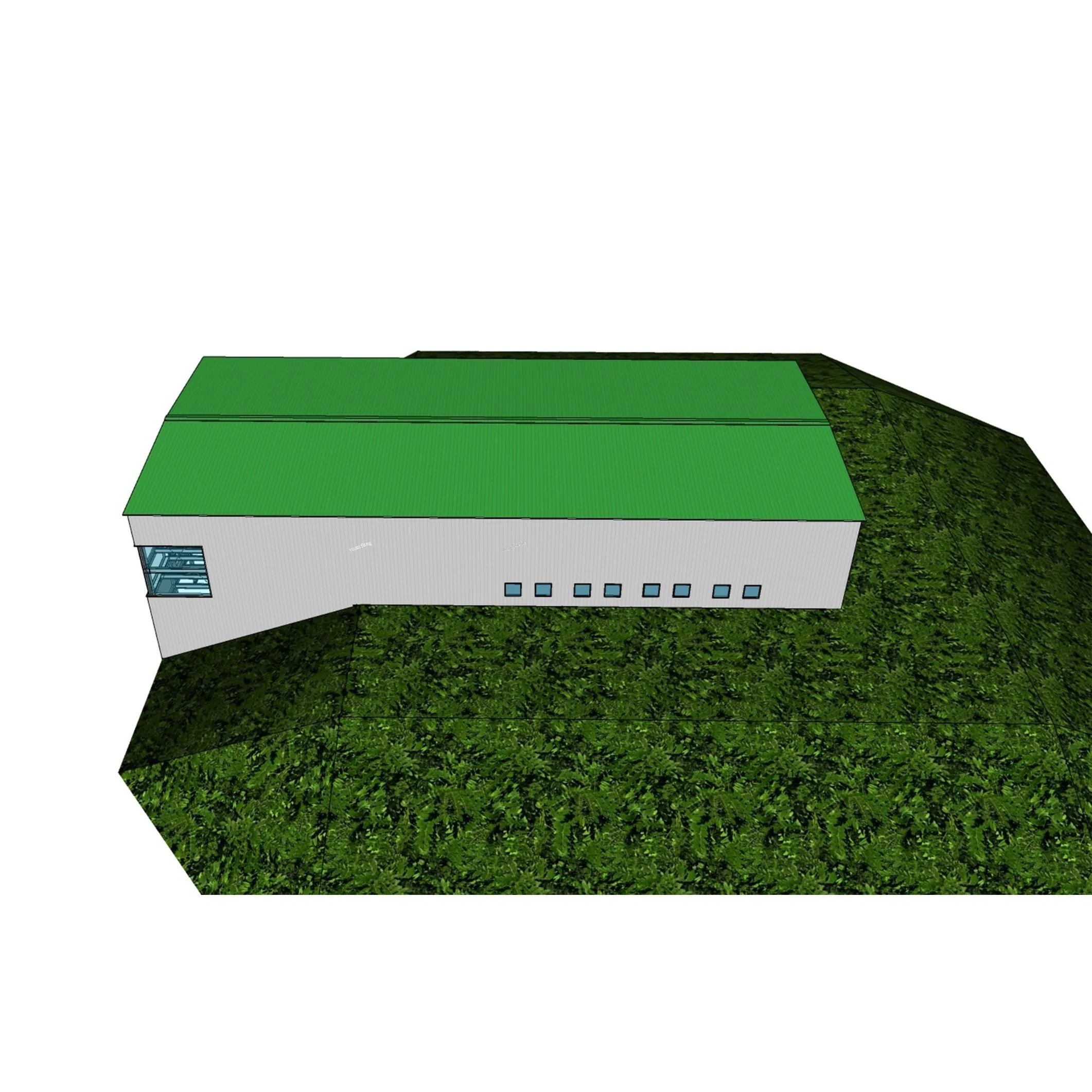

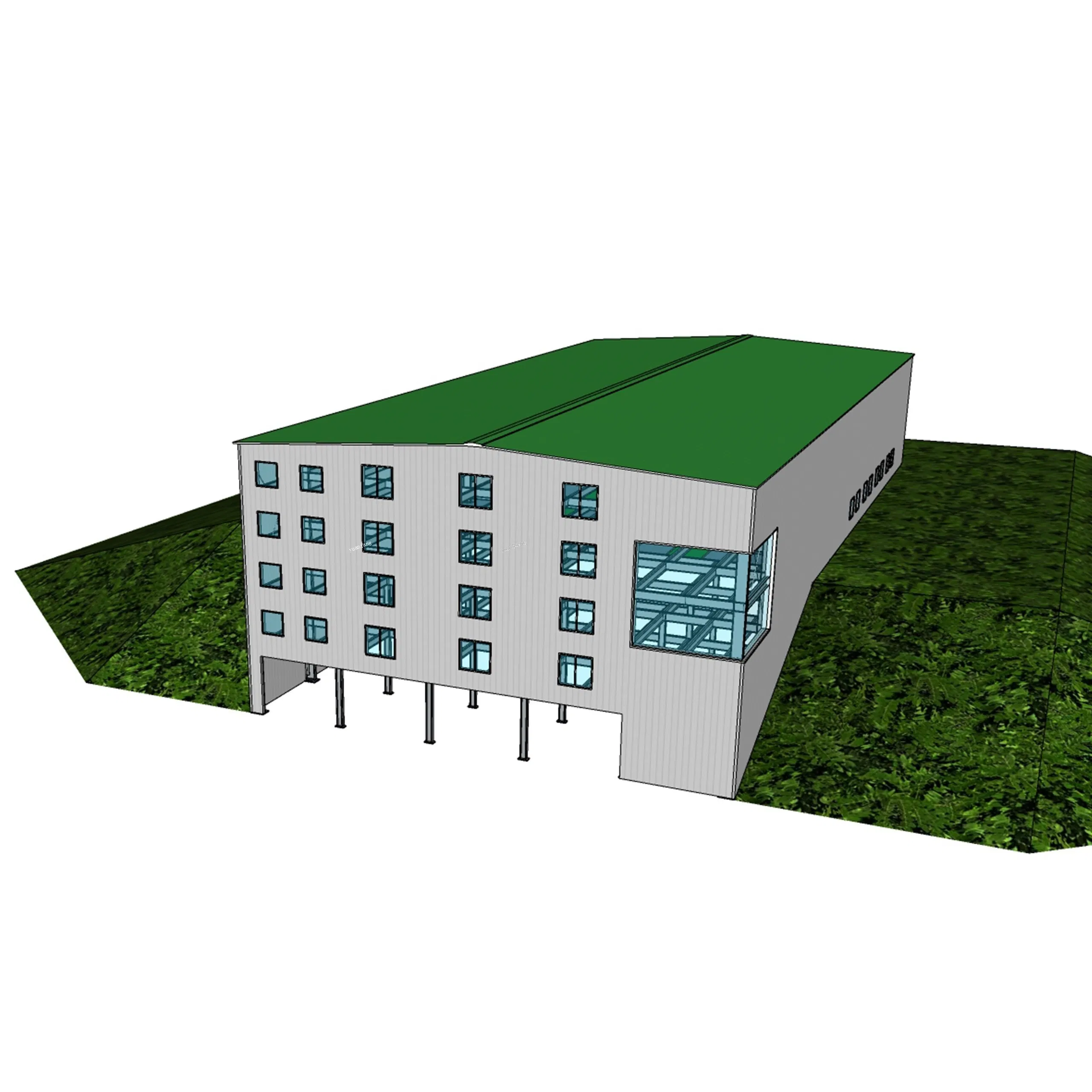

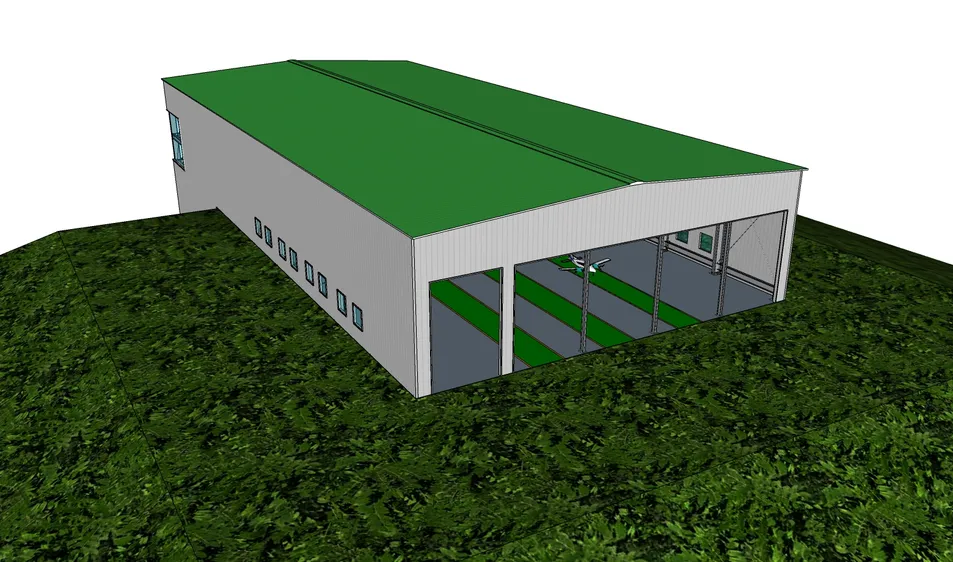

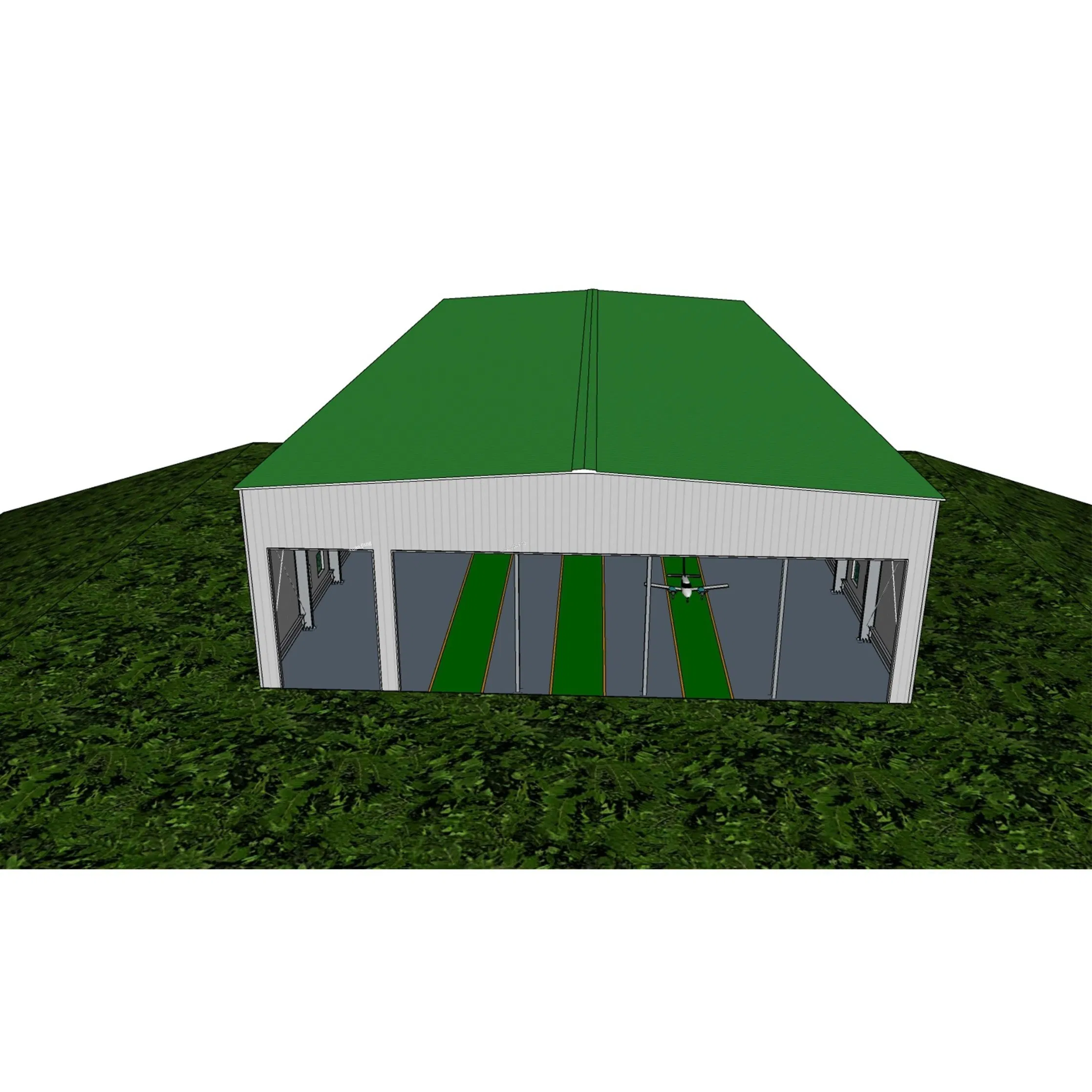

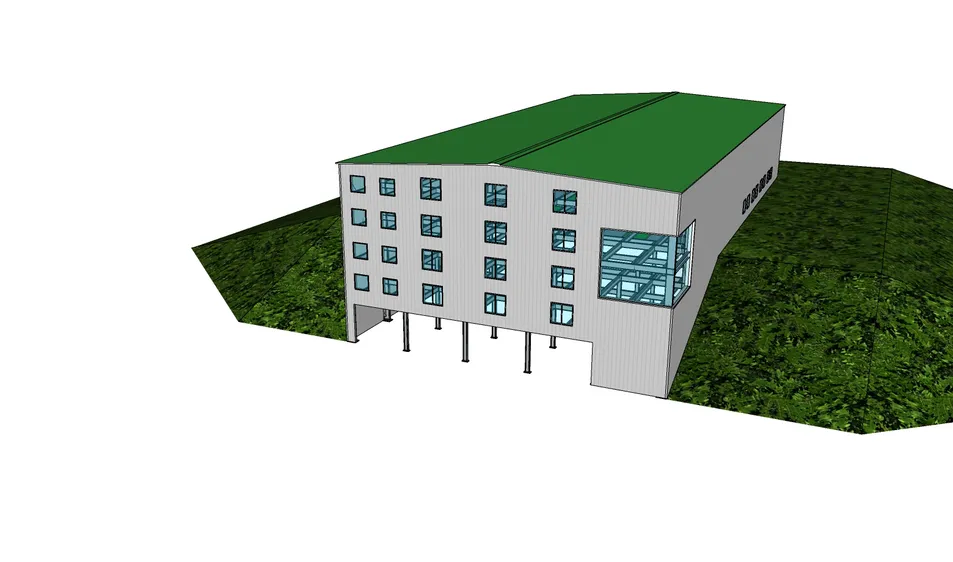

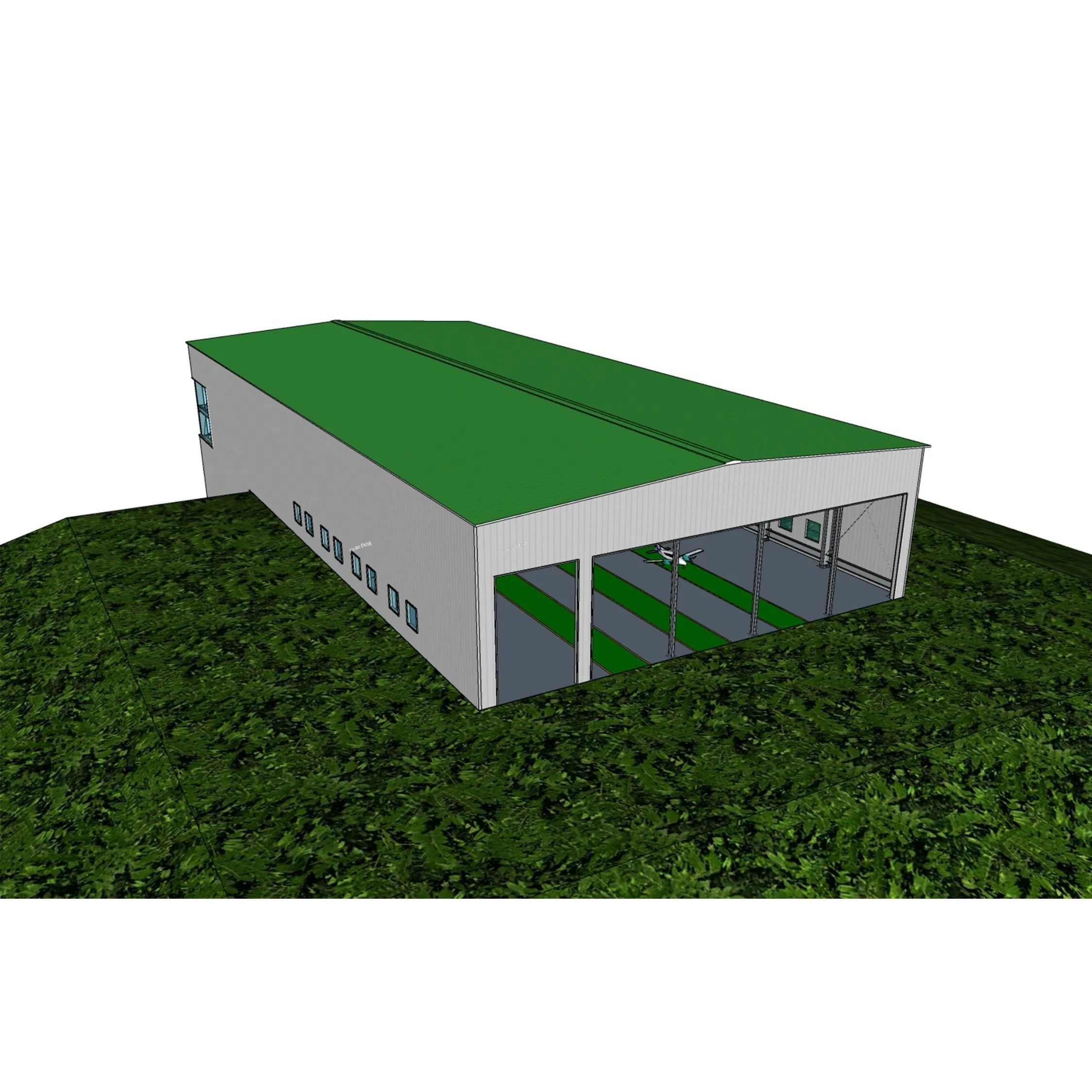

Single-span gabled steel hangar with spread footings. Dimensions: 100m×50m×10m(eave).

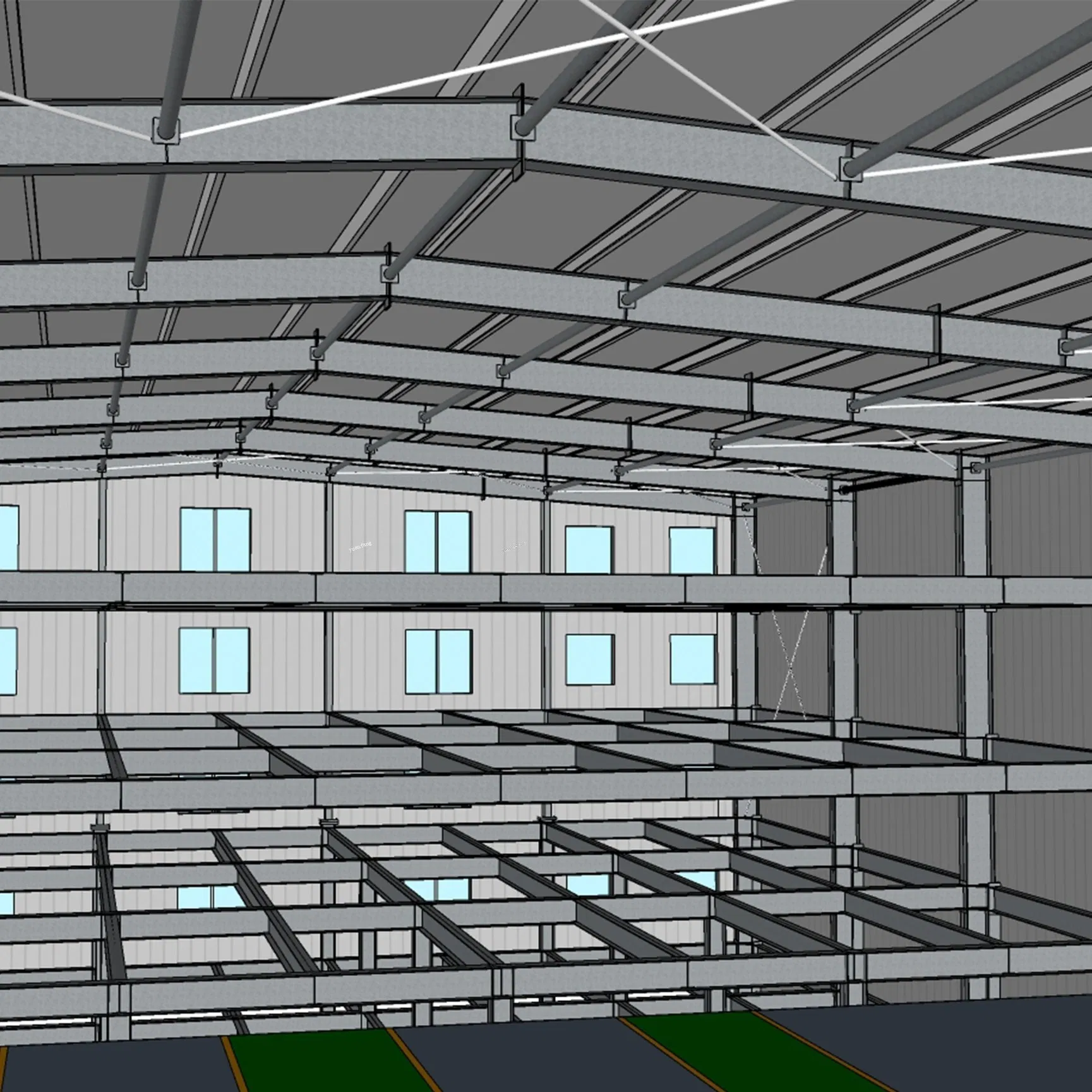

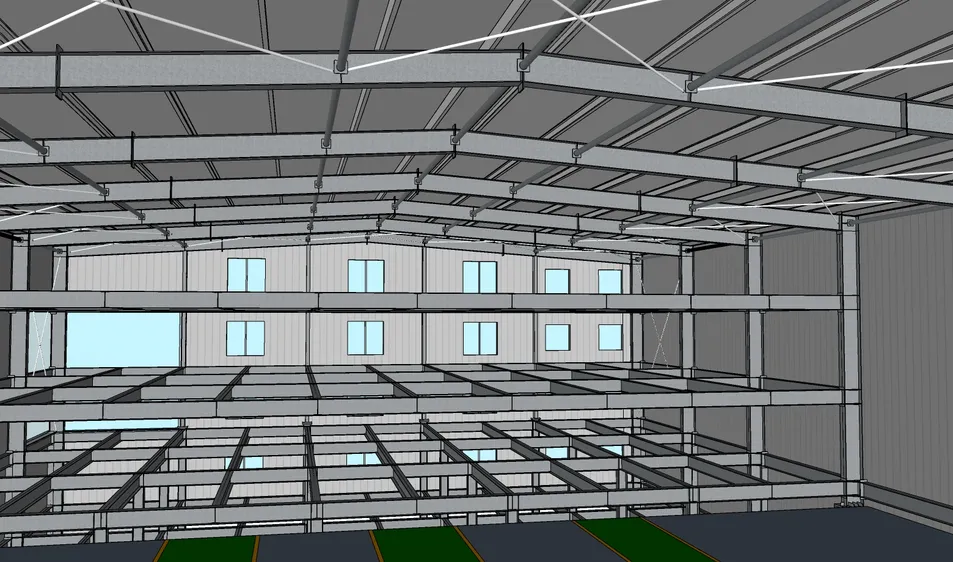

Features one 4m×4m Sliding doors, three internal Mezzanines and a Curtain wall. 0.5mm concealed-fastened steel roof, free drainage design. Total area: 5000sqm.






| Category | Description |
|---|---|
| Structural System | Single-span gabled steel frame structure |
| Foundation Type | Spread footing under columns |
| Dimensions | 100m (L) × 50m (W) × 10m (H) |
| Floor Area | 5000sqm |
| Wall Material | 100mm thick solid shale brick wall + 0.5mm thick profiled steel sheet |
| Roof Material | 0.5mm thick concealed-fasten profiled steel sheet + translucent panels |
| Sliding Doors | 4m (W) × 4m (H) × 2 units |
