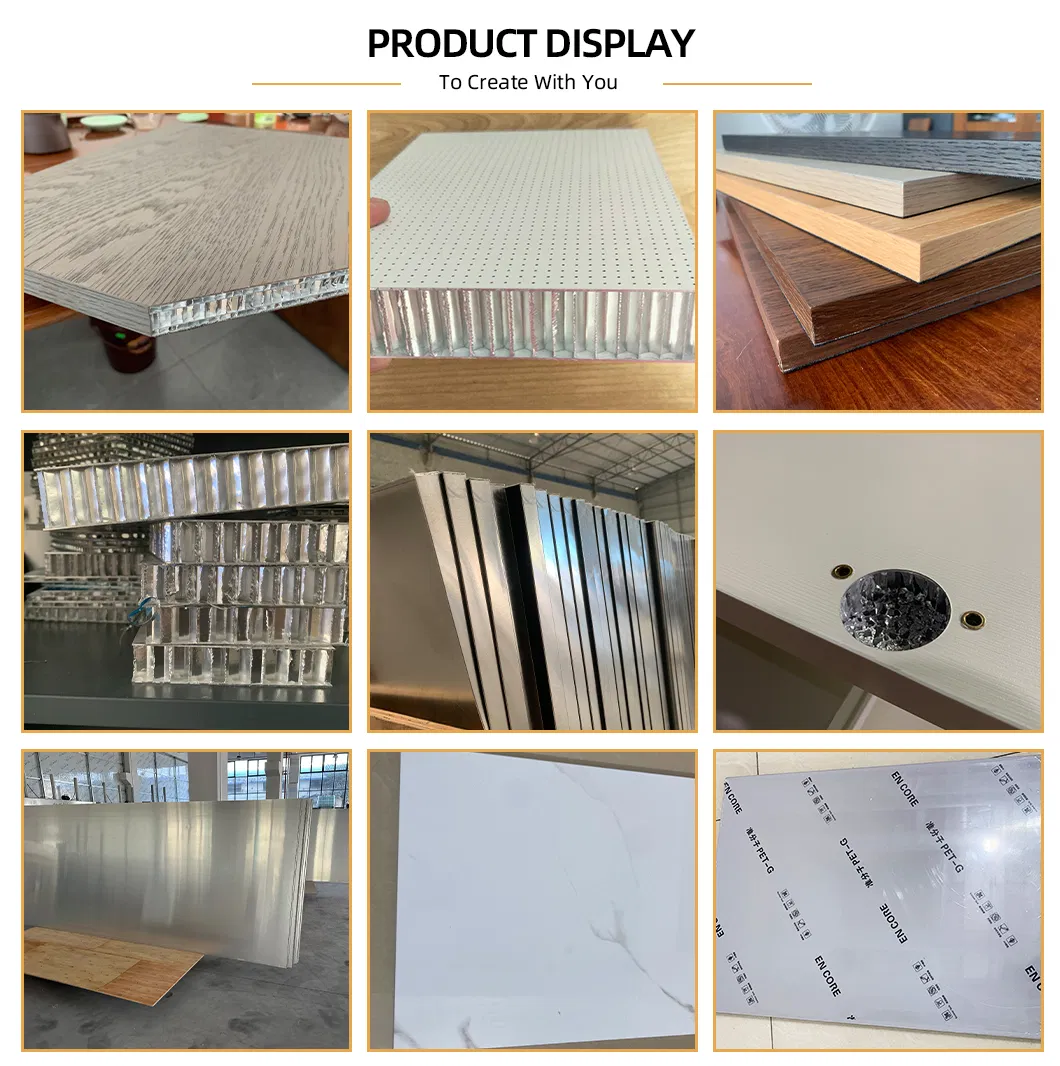

Premium Honeycomb Aluminum Core Panels for Stylish Walls

1 / 5

Premium Honeycomb Aluminum Core Panels for Stylish Walls

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Model NO.:LFW-01

Material:Aluminum Alloy

Performance:High Intensity

Function:Exterior Walls, Ceilings, Partitions, Ships

Fire Rating:Class A

Applicable Temp:-50℃ to +150℃

Life Cycle:30 Years+

Sound Insulation:RW 25 Db

Standard Size:1200*2400mm (Customizable)

Production Capacity:50,000 PCS/Year

Product Description

Key Features

1. Ultra-light and high-strength: Weight is 1/5~1/8 of traditional stone, with bending strength increased by 3~5 times.
2. Flat and non-deformed: The honeycomb core disperses stress and ensures flatness for large-area installations.
3. Easy processing: Supports cutting, bending, punching, and curved surface designs (radian ≥ R500).
4. Efficient installation: Dry hanging method reduces construction time by over 50%.

Environmental & Fire Performance

Sustainability: 100% recyclable aluminum components. 70% energy-saving compared to natural stone mining. Zero formaldehyde release.
Fire Safety: Class A non-combustible material (Melting point 660℃). Smoke-blocking and non-toxic gas release during fire.

Application Scenarios

Architecture: Skyscrapers, ventilated facades, luxury hotels, and ceilings.
Hygienic Spaces: Hospital walls, cleanrooms, and laboratory panels.
Transportation: High-speed train interiors and marine fireproof bulkheads.

Specification

Conventional Thickness	5mm~30mm (total thickness), customizable	Panel Options	Natural stone (3-5mm) / Aluminum (1-2mm) / Ceramic
Applicable Temp	-50℃~+150℃	Life Cycle	30 years+ (outdoor)
Packaging	Plywood boxes, export standard	Fire Prevention	Class A
Productive Force	100,000 m2/year	HS Code	76109000

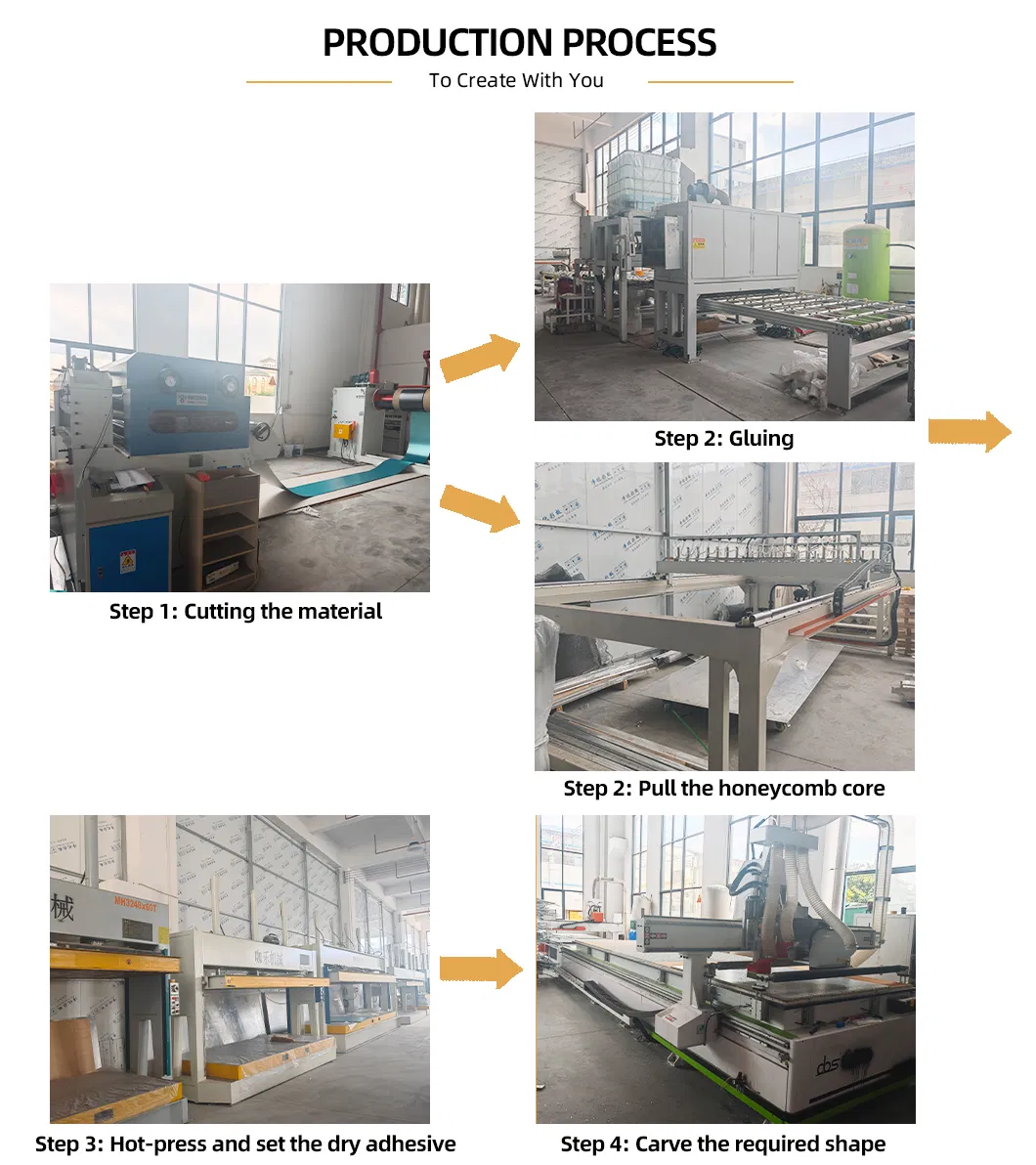

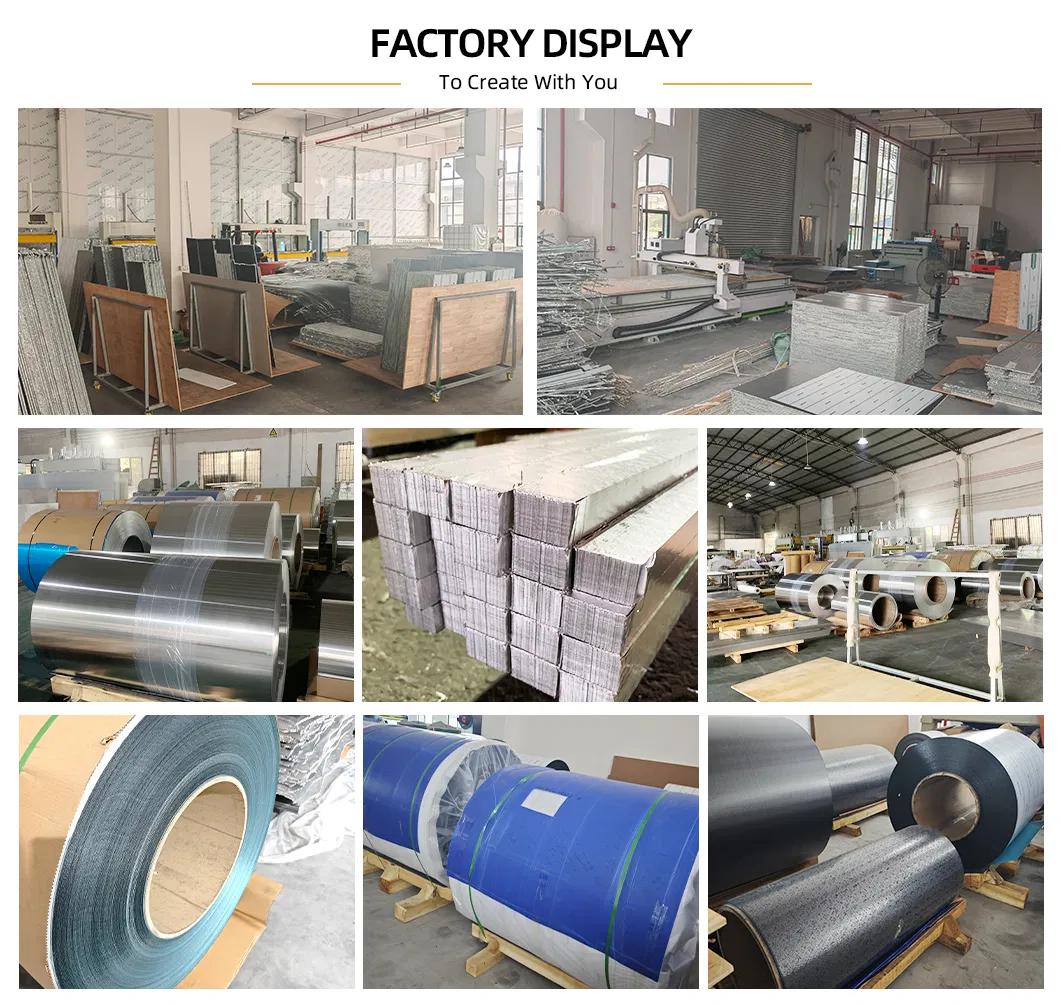

Manufacturing Process

1. Raw Material Preparation: AA3003/AA5052 aluminum coils and AA3003H18 honeycomb foil.
2. Surface Treatment: Chemical conversion and PVDF coating (3-coat/2-bake system) or Anodizing.
3. Composite Bonding: Sandwich assembly using vacuum hot press at 120-140℃.
4. Quality Control: Strict peel tests (≥7N/mm) and laser flatness scanning (≤0.5mm/m²).

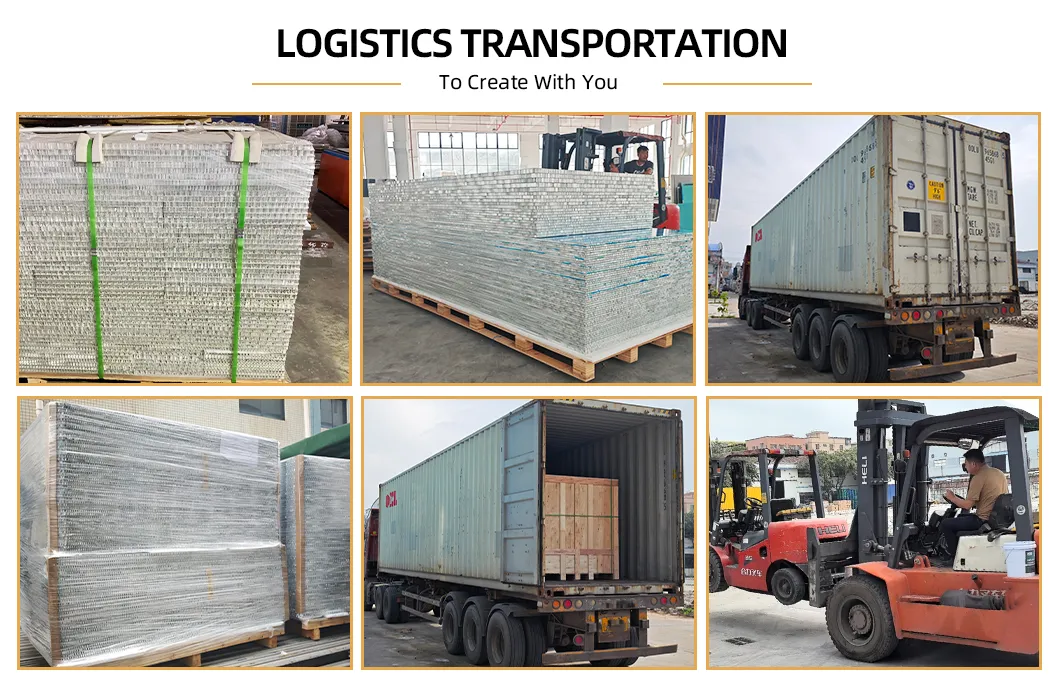

Packing & Delivery

All products are packed in high-quality export plywood boxes to ensure maximum protection during international transit. Standard modules and customized panels are secured with protective films and edge padding.

Frequently Asked Questions

Q1: What are the main benefits of aluminum honeycomb panels? They are extremely lightweight, offering 1/5 the weight of solid stone while providing 3-5 times higher bending strength and excellent flatness.

Q2: Are these panels fireproof? Yes, they are Class A non-combustible materials with a melting point of 660℃ and release no toxic gases during a fire.

Q3: Can these panels be used for curved architectural designs? Absolutely. The panels can be cut, bent, and shaped to support curved surface designs with a radius as low as R500.

Q4: How long is the expected service life? The panels have a life cycle of over 30 years for outdoor curtain walls and 25+ years for general service.

Q5: Is this product environmentally friendly? Yes, the aluminum panels and honeycomb cores are 100% recyclable, and the production process is significantly more energy-efficient than traditional stone mining.

Q6: What is the sound insulation performance? The honeycomb structure provides excellent noise reduction, achieving a sound insulation rating of RW 25 dB+.
