Pre-Pouring Formwork: Innovative Modular Panel-Slab System for Builders

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
MB18...15...12...09/ZA/B35
Technics
Forged
Material
Steel
Type
Stand
Package
Steel Pallets
Specification
1800*1200/1800*900/1800*600
Trademark
GREEN
Origin
Rizhao, China

Company Profile

Established in the dynamic year of 2011, our company stands as a beacon of innovation and excellence, underpinned by a robust registered capital of USD 3,000,000. Our expansive facilities, featuring an impressive 30,000m² of floor space and a 15,000m² state-of-the-art workshop, are strategically located in the vibrant port city of Rizhao, Shandong province. This prime location is equipped with a bustling sea port and a sophisticated high-speed rail network, ensuring seamless transportation and connectivity for our valued clients worldwide.

For over 15 glorious years, our premium quality products have been the cornerstone of numerous industries across the globe, including mining, construction, petrochemicals, and beyond. Our global reach beautifully extends across continents, from Europe and Australia to the U.S.A., Canada, South America, and Africa.

Five-Star Supplier: With more than two decades of unparalleled expertise, we remain steadfast in our commitment to 'high quality, reasonable price, best service,' recognized as a premier five-star supplier in the scaffold field.

Product Description

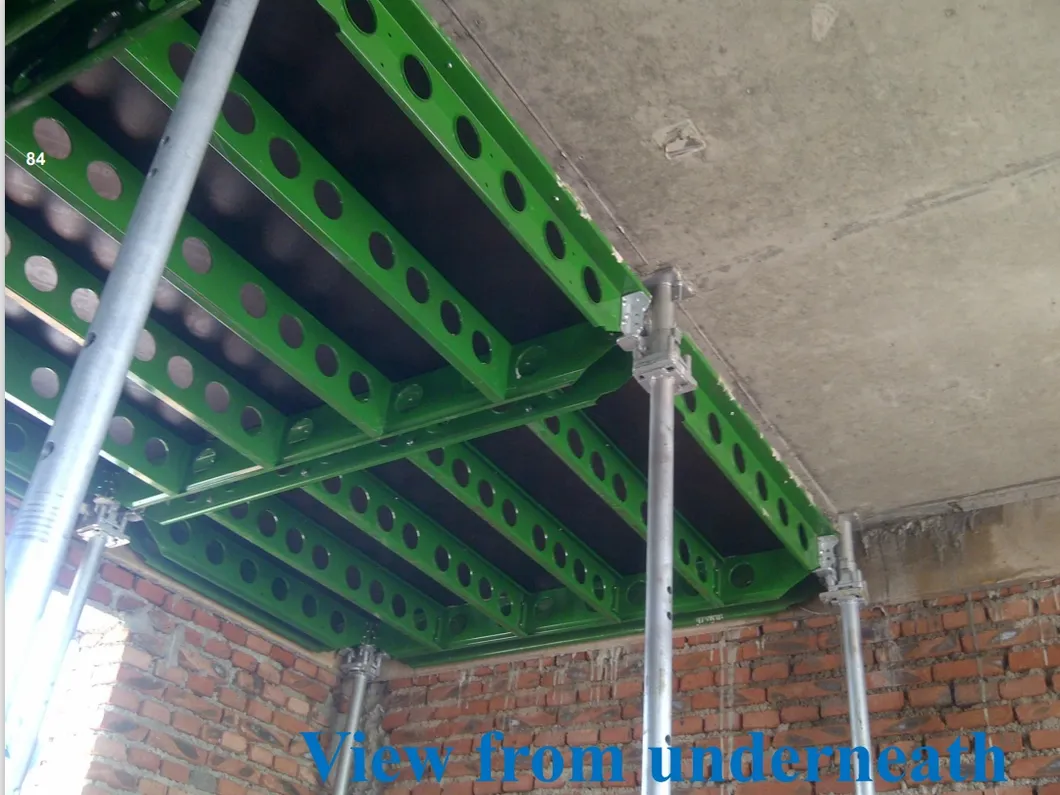

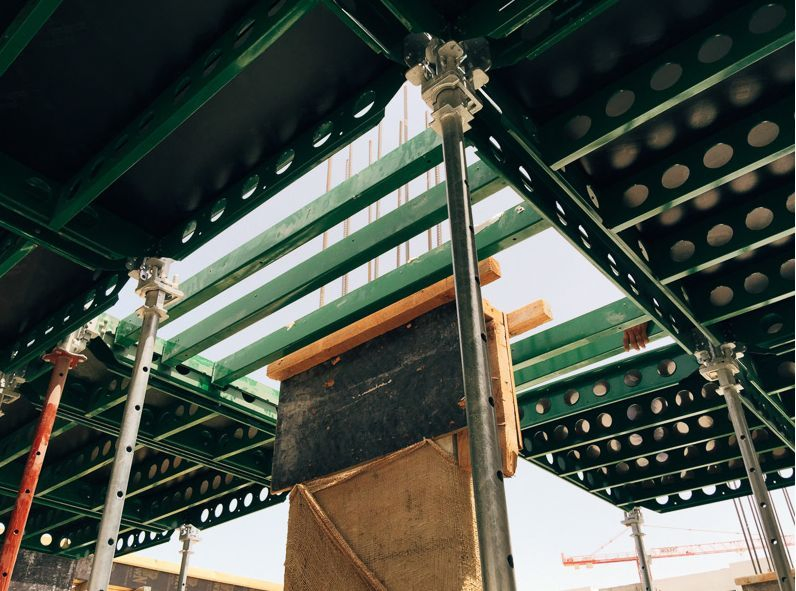

Our cutting-edge formwork system, a sophisticated panel-prop ensemble with a pioneering early stripping mechanism, is meticulously engineered for intricate slab designs featuring high-low cross beams and columns. This ingenious puzzle-style system excels in efficiency, allowing for effortless erection, stripping, and removal, all while maintaining formidable safety standards.

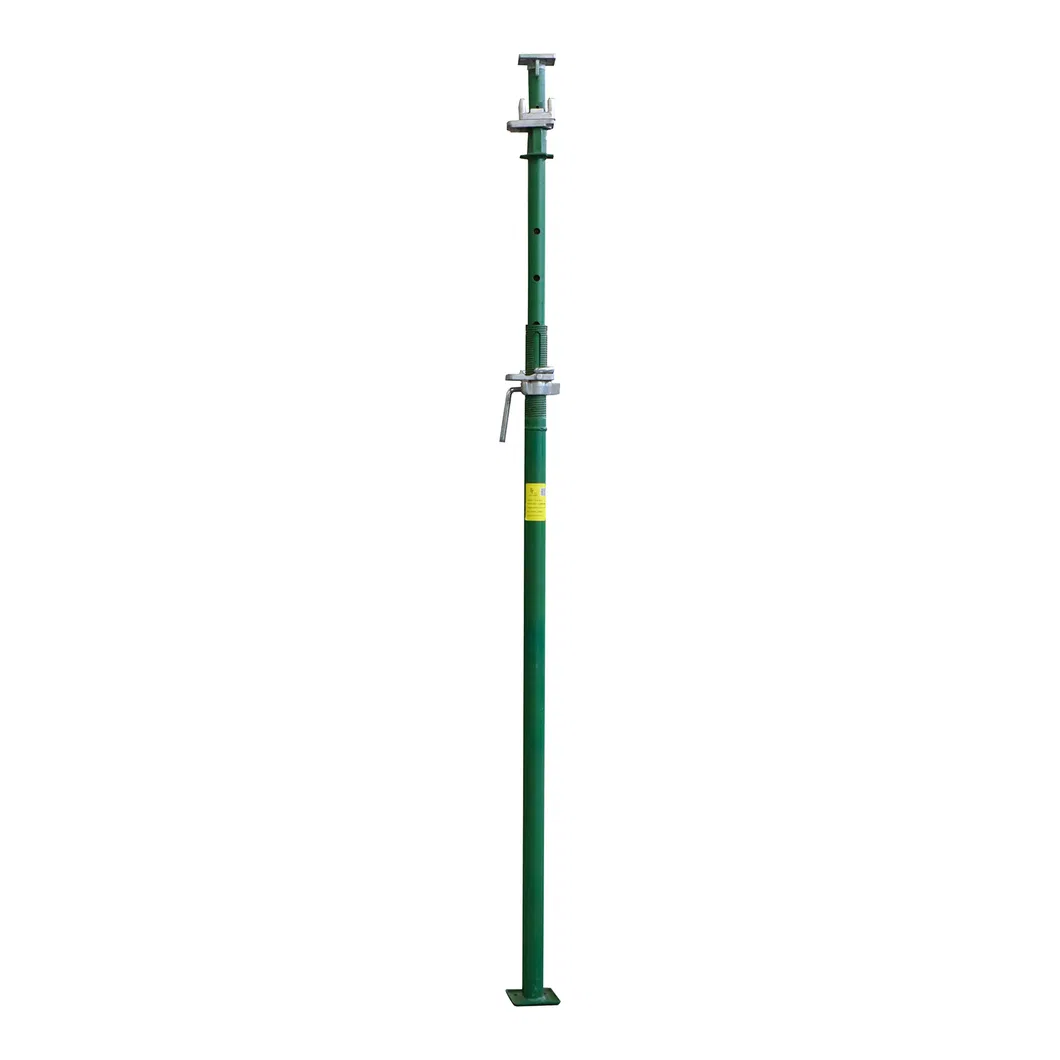

The system adopts the structural mechanism of a 4-leg table using a puzzle-style and systematic installation approach. Both panels and props are crafted from Grade Q345 steel components in CKD forms and are assembled with precision using bolts and nuts to ensure seamless integration.

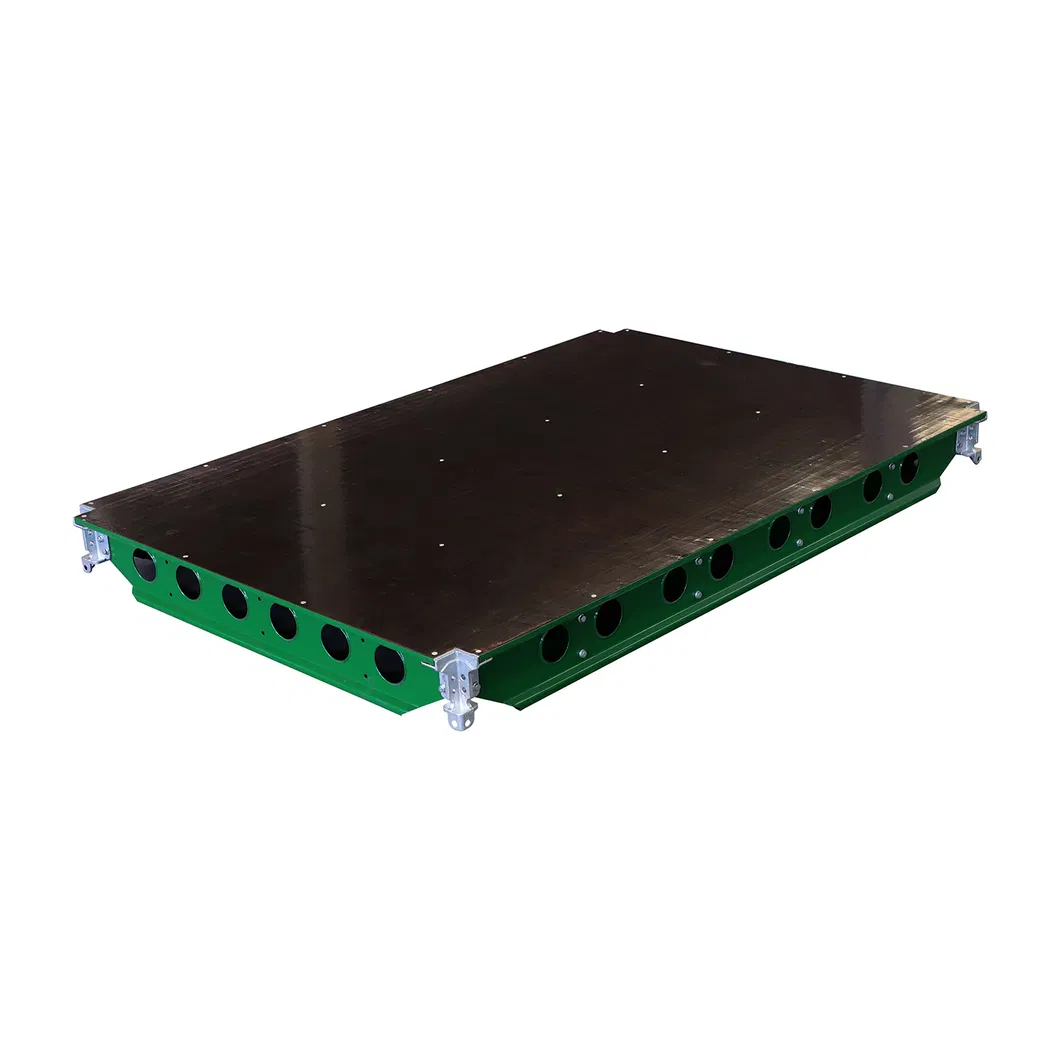

Panel Specifications & Weight

Component Model Unit Weight (KG)
MB1812 1800*120045.00
MB1809 1800*90039.00
MB1806 1800*60031.00
MB1512 1500*120041.40
MB1509 1500*90023.50
MB1506 1500*60019.70
ZB35 B3523.00
ZA35 A3518.50

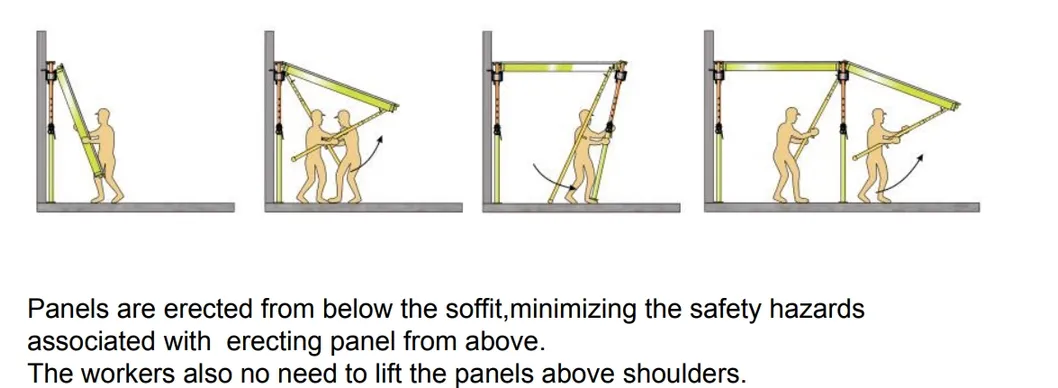

Erect Instruction

Erect Instruction Diagram

Should the allure of our exceptional products captivate your interest, or if you require further information, we warmly invite you to reach out to us without hesitation. It is our utmost privilege to address your inquiries and provide you with superior service.

Frequently Asked Questions

Q What material is the formwork system made of?
The panels and props are crafted from high-grade Q345 steel components, ensuring durability and structural integrity for construction projects.
Q What is the "early stripping mechanism"?
It is a pioneering design that allows for the removal of formwork panels while the main props remain in place, significantly speeding up construction cycles and efficiency.
Q How is the system assembled?
The system utilizes a puzzle-style and systematic installation approach. It uses CKD (Completely Knocked Down) forms that are assembled with precision using standard bolts and nuts.
Q What are the available sizes for the panels?
Standard sizes include 1800*1200mm, 1800*900mm, 1800*600mm, 1500*1200mm, 1500*900mm, and 1500*600mm, catering to various slab design requirements.
Q In which industries can this formwork be applied?
This system is ideal for a wide range of industries including general construction, mining, and petrochemical projects, specifically for complex slab and beam designs.
Q How are the products transported?
All products are securely packed on steel pallets to ensure safety during transit and ease of handling at the construction site.
