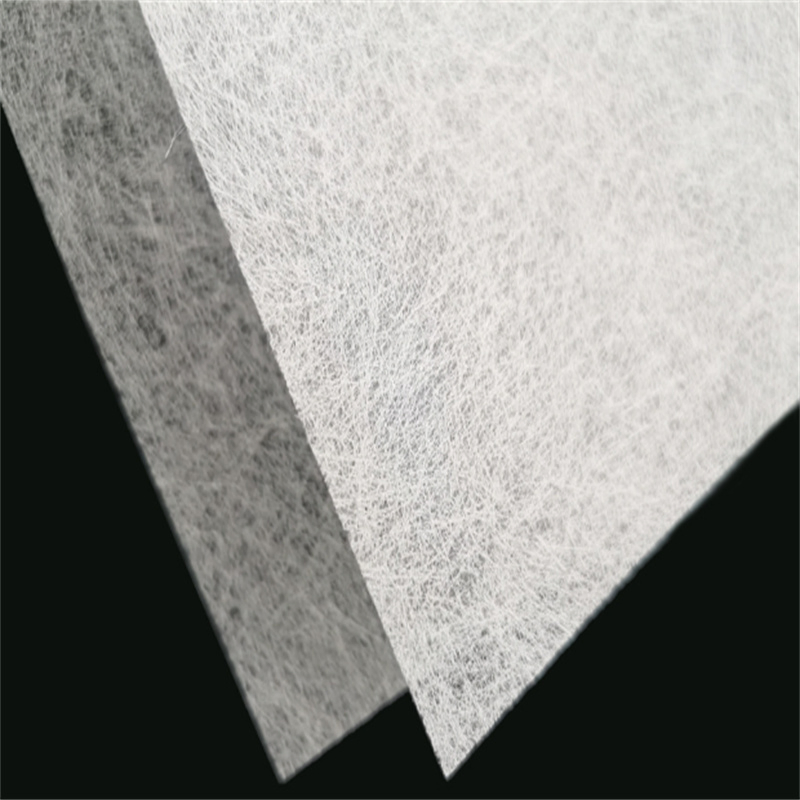

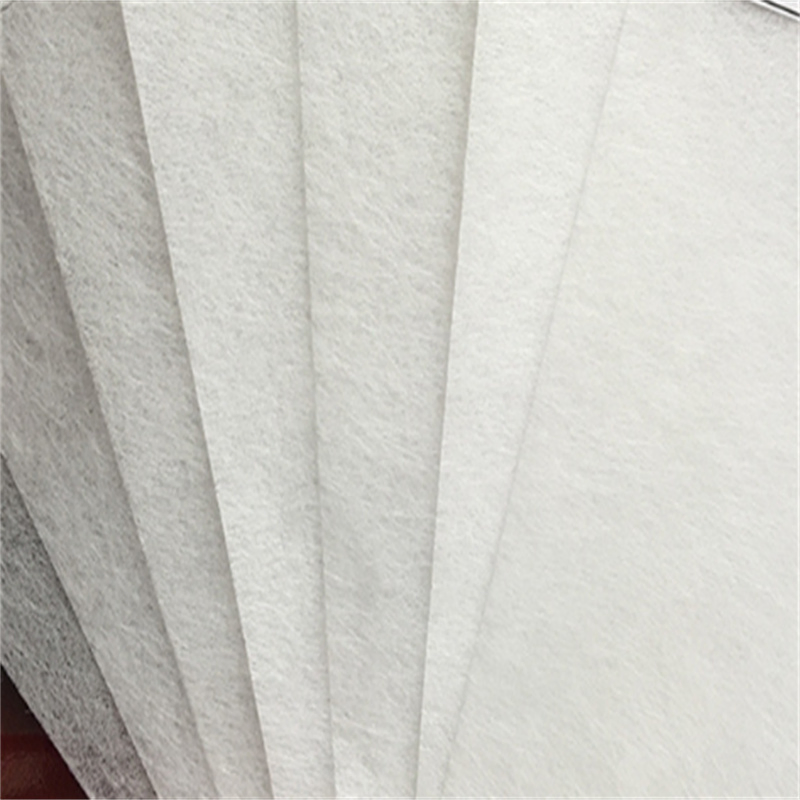

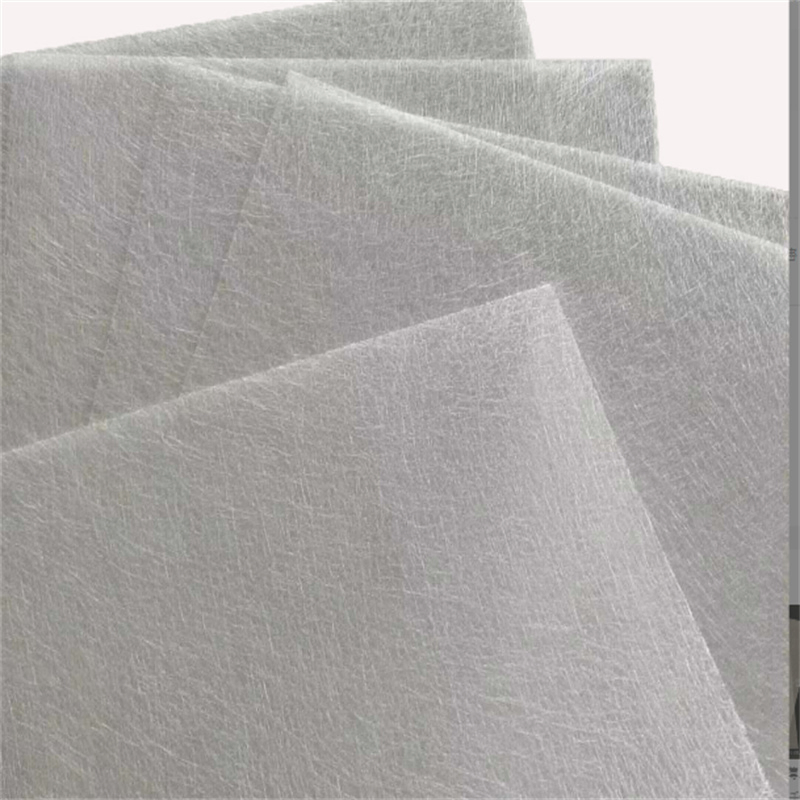

Yarn reinforced polyester mat is made of 100% polyester fiber. Produced with continuous polyester fiber, it is an advanced waterproof material featuring high tensile strength and superior elongation compared to staple polyester mats.
This specialized mat is reinforced with fiberglass yarn, providing exceptionally high tensile strength in the warp direction. This allows it to withstand faster speeds during bitumen membrane production, making it an ideal substrate for APP or SBS-modified bitumen membranes.

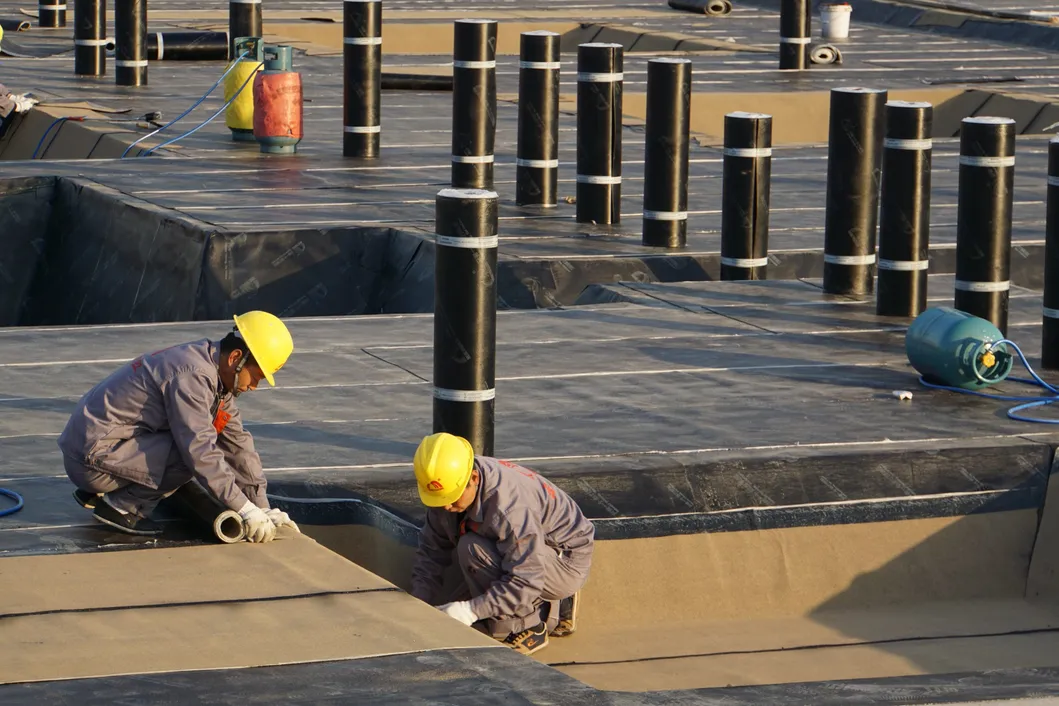

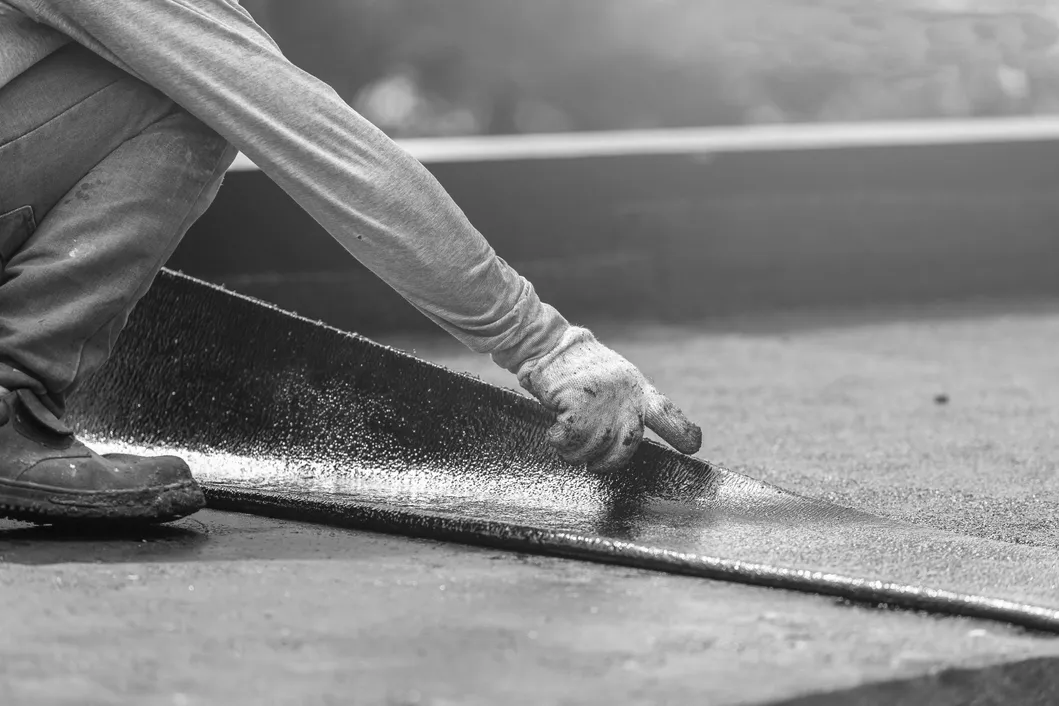

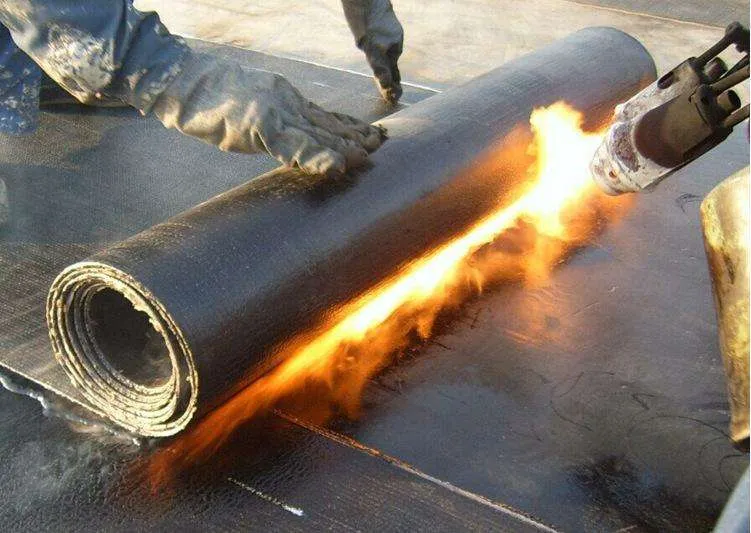

1. Primary substrate for APP or SBS modified bitumen waterproof membranes.
2. Overlay applications for existing asphalt or concrete pavements.
3. New construction reinforcement between asphalt layers.



| Item | Unit | SPY120-F | SPY140-F | SPY160-F | SPY180-F | SPY200-F |
|---|---|---|---|---|---|---|
| Area Weight | g/m2 | 120 | 140 | 160 | 180 | 200 |
| Width | mm | 1020 | 1020 | 1020 | 1020 | 1020 |
| Shrinkage | % | <2 | <2 | <2 | <2 | <2 |
| Tensile MD | N/5cm | 400 | 480 | 600 | 700 | 800 |
| Tensile CD | N/5cm | 250 | 280 | 400 | 500 | 580 |
| Elongation MD | % | 26 | 28 | 30 | 32 | 33 |

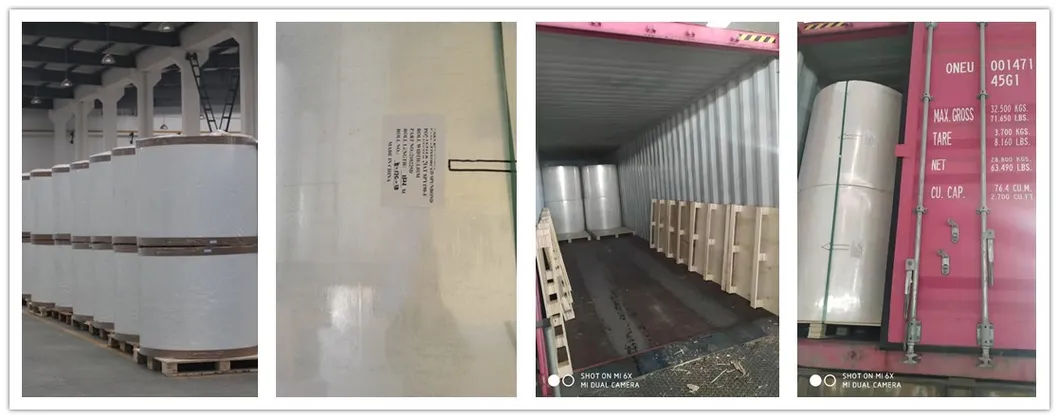

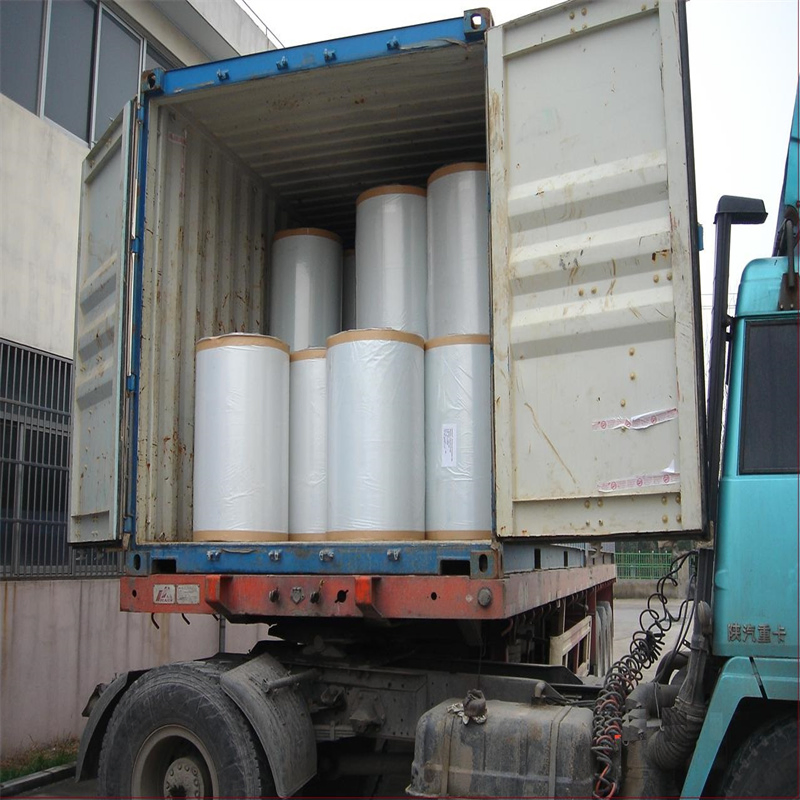

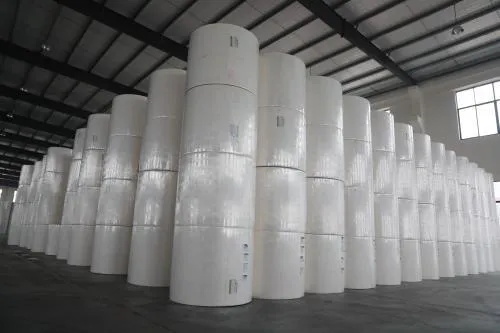

1. Loading quantity: 40 rolls per 40ft container with pallet.
2. Roll packaging: Protective PE plastic film.
3. Storage: Pallets should not be stacked more than 2 layers high.

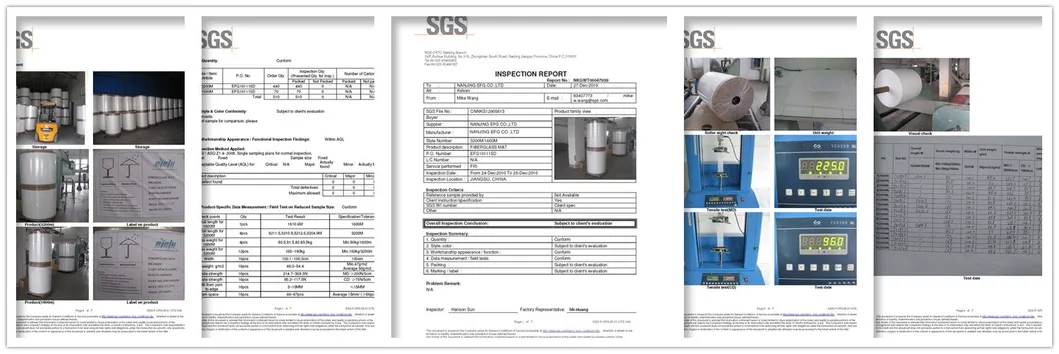

4. Pallets are fumigation-free; certificates are available upon request.
