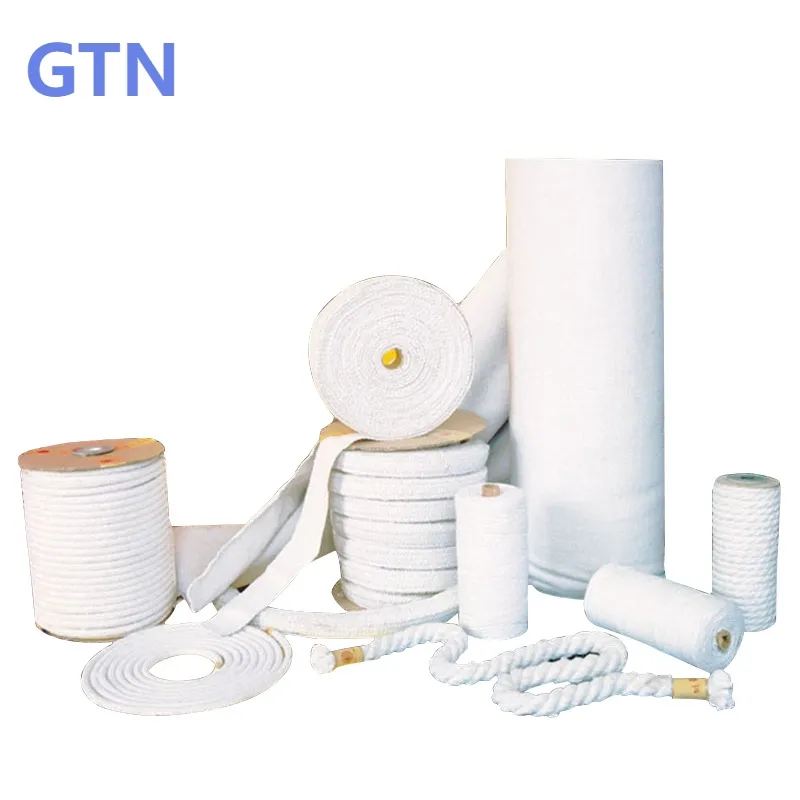

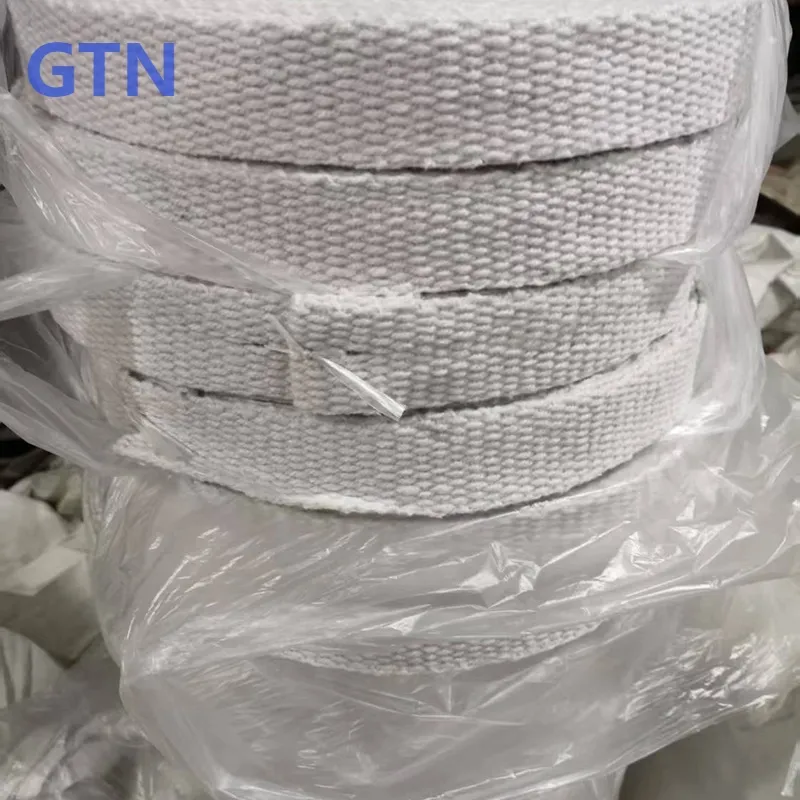

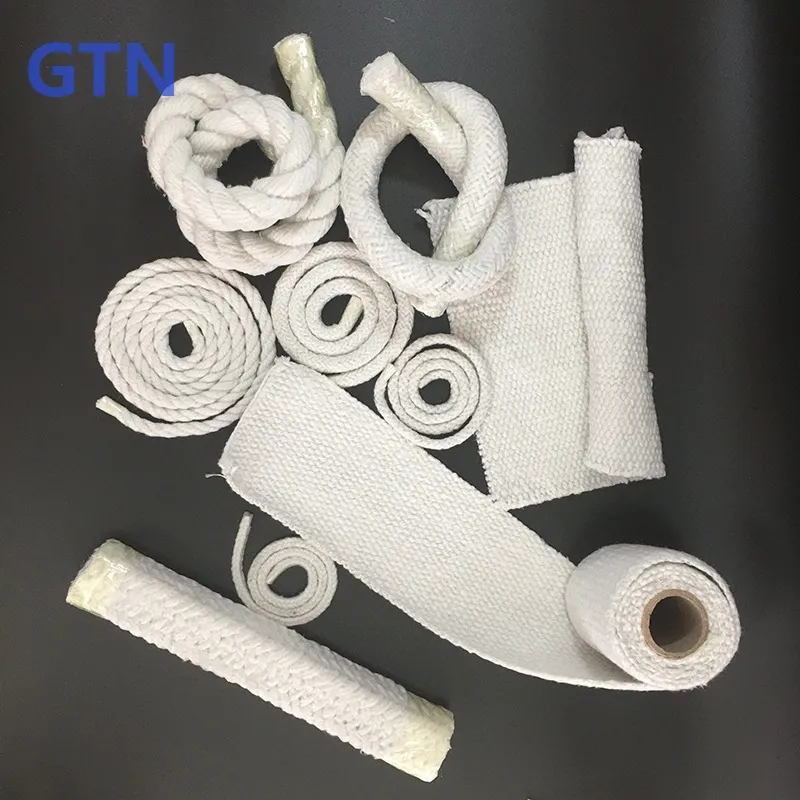

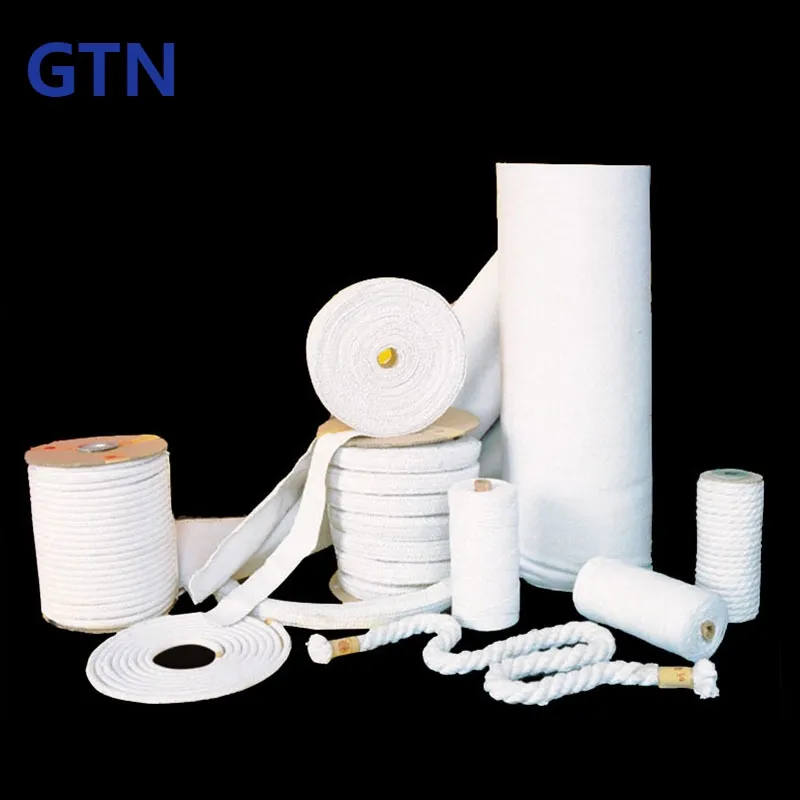

Ceramic fiber & Bio-Soluble fiber textiles include rope, tape, yarn, and cloth. These textiles are woven or braided from yarn consisting of fiber with approximately 20% organic fiber. Inserted materials are reinforced into the yarn and rope to increase the tensile strength of the fiber. Stainless steel inserts are available for obtaining maximum strength at high temperatures, while glass filament inserts are used in applications where electrical resistance is required. These fiber textiles serve as excellent insulation materials for thermal gaskets and wrapping.
| Brand Properties | Bio-Soluble fiber rope/cloth/tap/yarn | Ceramic fiber rope/cloth/tap/yarn | ||
|---|---|---|---|---|
| GF-Reinforced | SS-Reinforced | GF-Reinforced | SS-Reinforced | |
| Classification Temp. (ºC) | 1260 | |||
| Working Temp. (ºC) | 500-600 | 1100 | 500-600 | 1100 |
| Bulk Density (kg/m³) | 500 | |||
| Organic matter (%) | 15 | |||
| SiO2 (%) | 55-65 | 51 | ||
| CaO / Al2O3 (%) | 23-35 (CaO) | 45 (Al2O3) | ||
| Reinforced material | Glass Filament | Stainless steel 304 | Glass Filament | Stainless steel 304 |

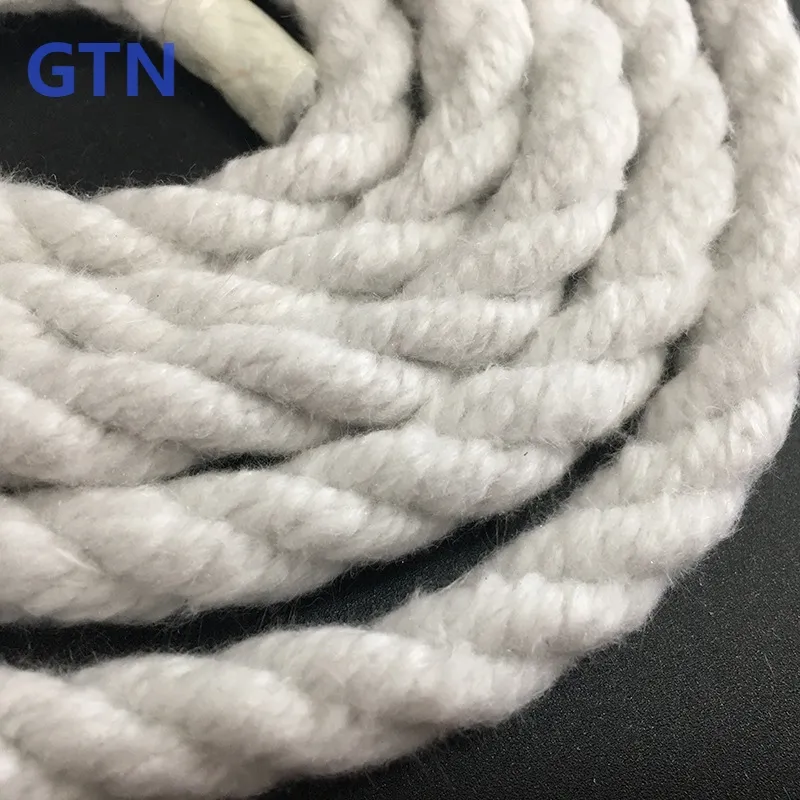

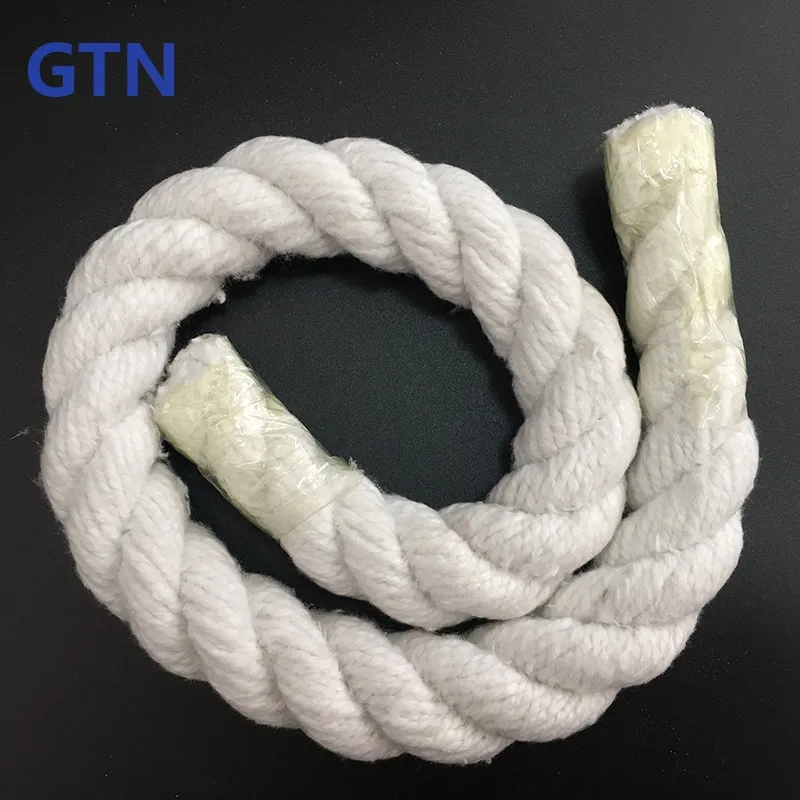

Note: Rope Dia size (mm): 6/10/12/20/25/32/38/50. Available Shapes: Round Braided, Twisted, and Square Braided.
