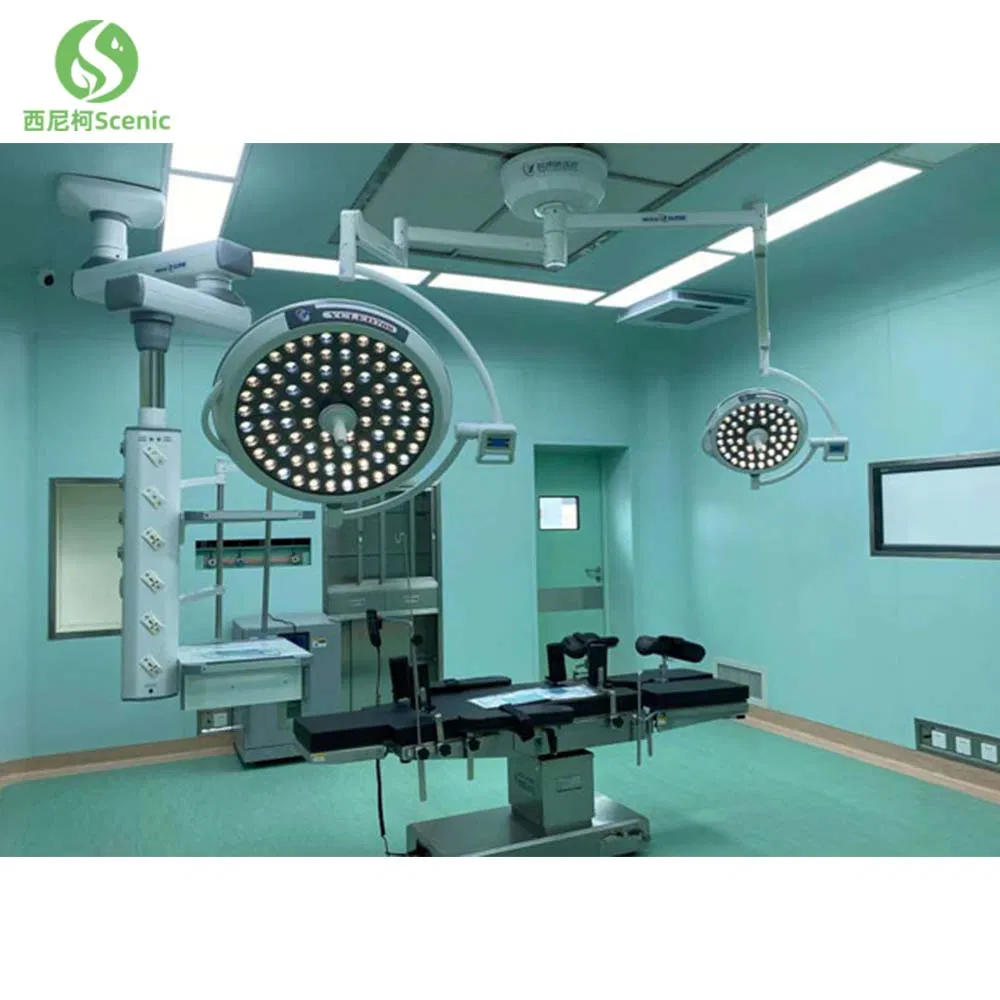

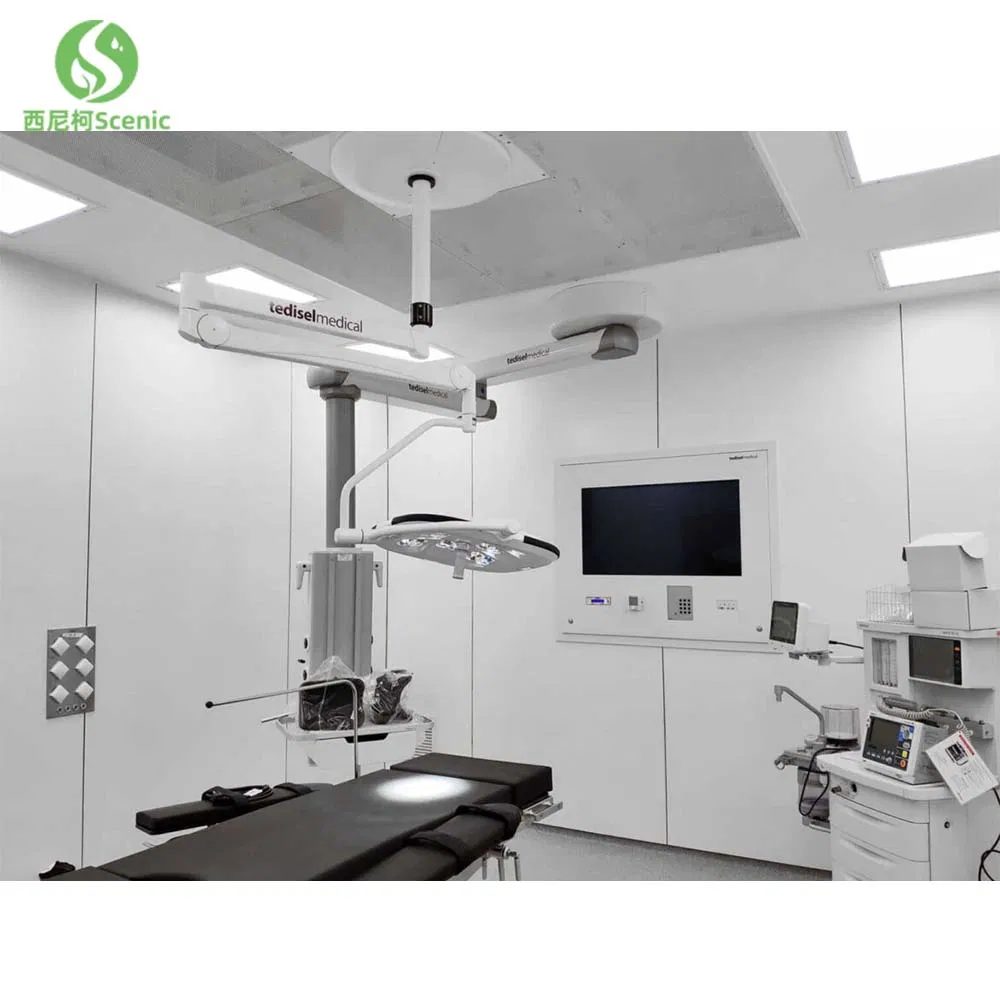

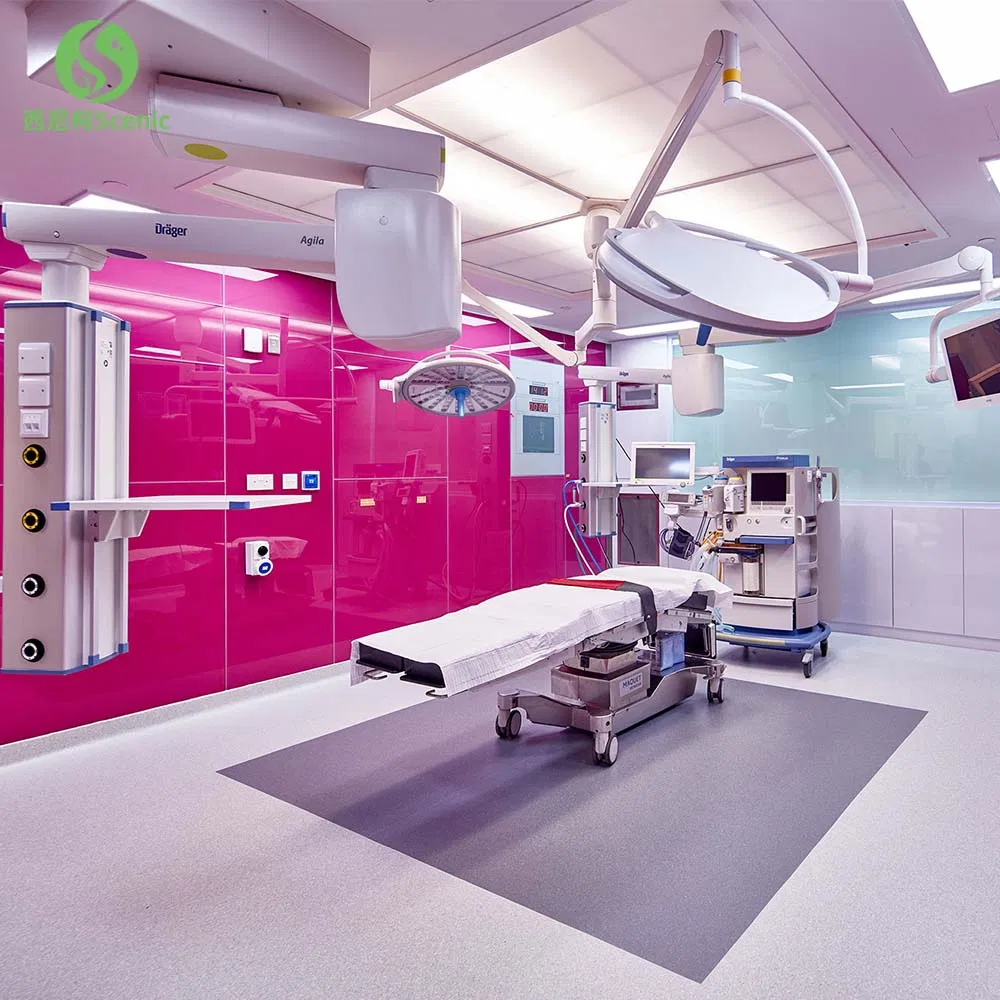

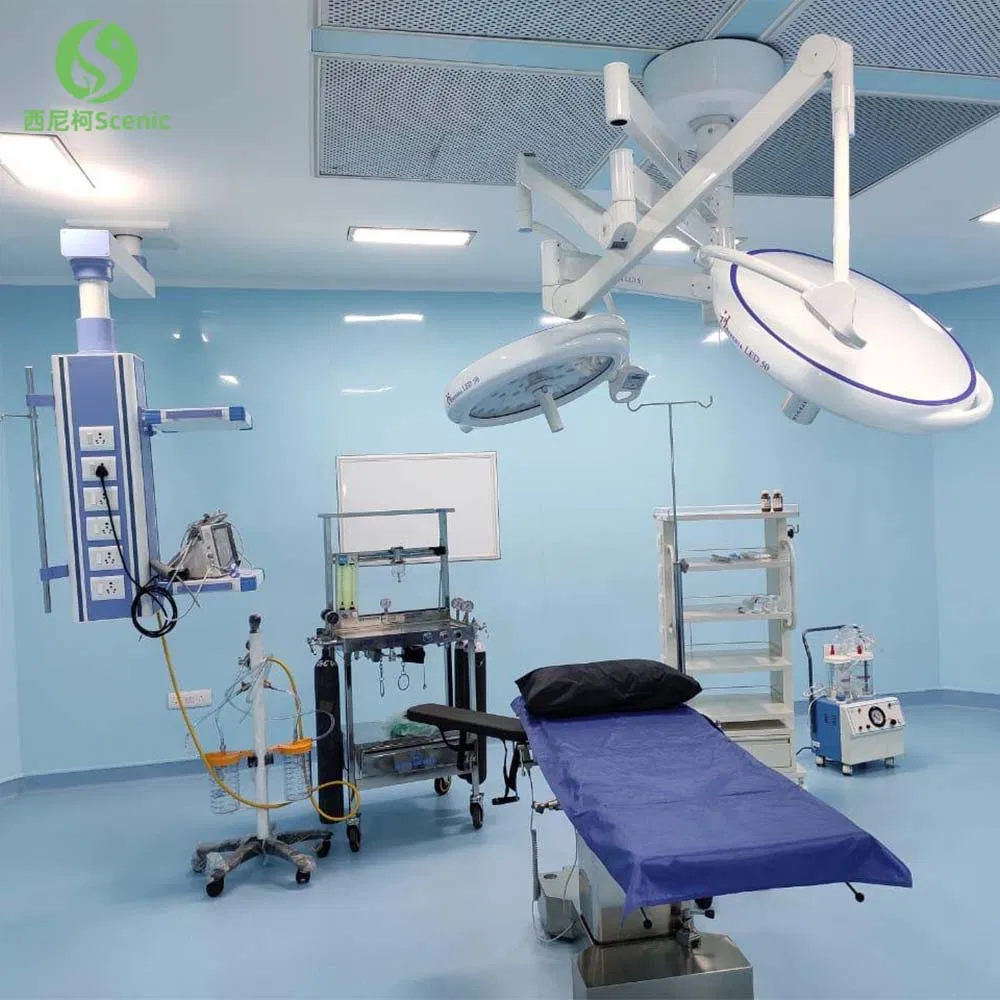

Advanced Modular Operating Room System with Laminar Flow Technology
Advanced Modular Operating Room System with Laminar Flow Technology
Advanced Modular Operating Room System with Laminar Flow Technology
Advanced Modular Operating Room System with Laminar Flow Technology
Advanced Modular Operating Room System with Laminar Flow Technology
1 / 5
Advanced Modular Operating Room System with Laminar Flow Technology
Advanced Modular Operating Room System with Laminar Flow Technology
Advanced Modular Operating Room System with Laminar Flow Technology
Advanced Modular Operating Room System with Laminar Flow Technology
Advanced Modular Operating Room System with Laminar Flow Technology

Advanced Modular Operating Room System with Laminar Flow Technology

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋Overview & Basic Info

Model NO.
Operating Room System
Fire Rating
1
Certification
CE
Cleanliness
Class 100-100000
Material
Electrolytic Steel Plate
Thickness
1.2mm
Application
Hospital / ICU
Package
Plywooden Box

🛠️Product Description

Advanced Modular Operating Room System

Our solution provides one-stop service for clean rooms such as hospital operating rooms, ICU, wards, biopharmaceuticals, and bio-labs. We manage the entire process from design and manufacturing to installation and after-sales service.

  • Composite Wall Panels: Adopts a module splicing type wall panel; production is completed in-factory with no site welding required.
  • Seamless Joints: Wall corner joints use R300mm steel arcs and R300 aluminum profile arcs.
  • High Durability: All joints are sealed and spliced with anti-aging, weather-resistant adhesive.

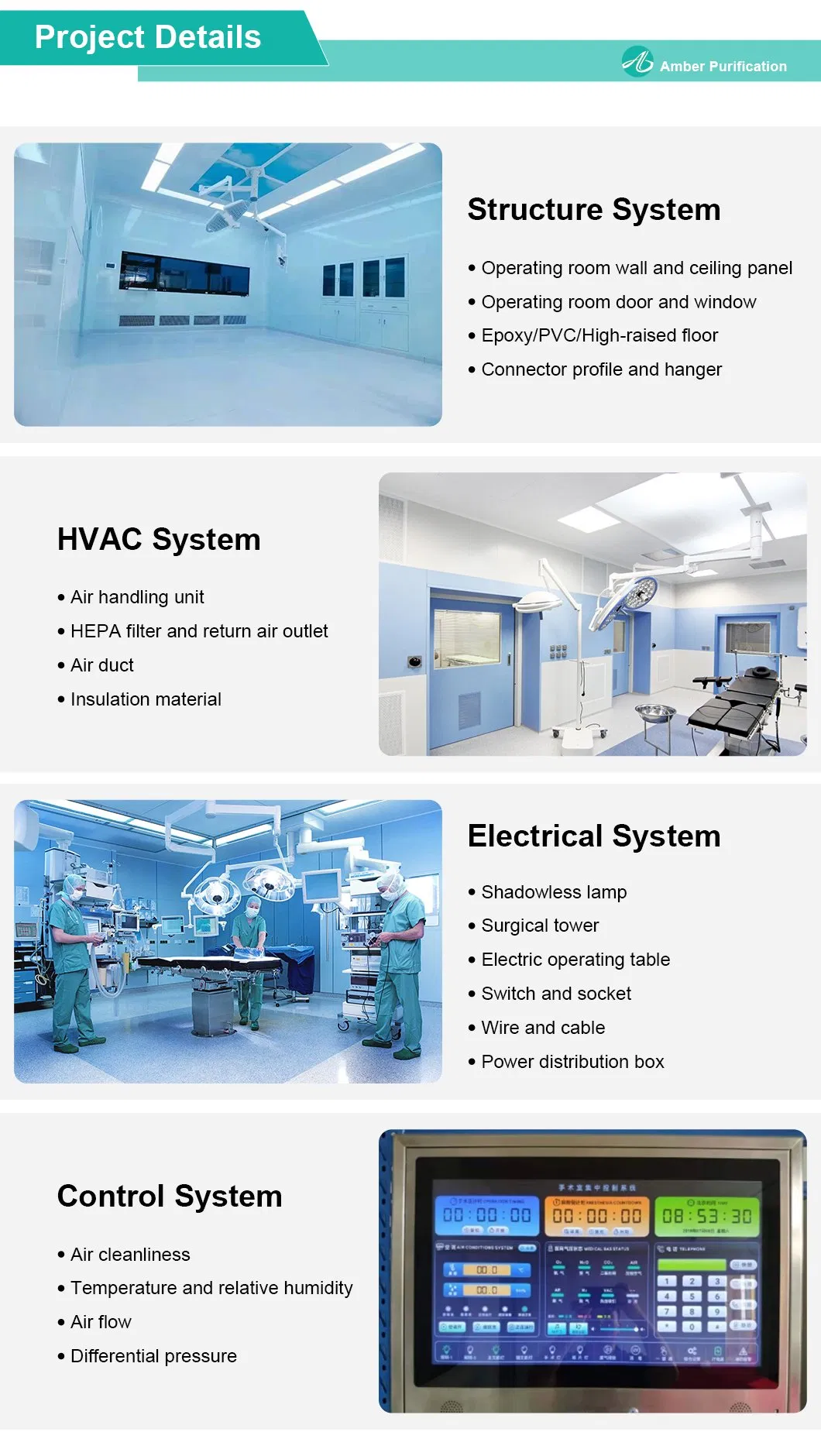

Operating Room Detail 1 Operating Room Detail 2 Operating Room Detail 3
Modular Operating Room Project Specifications
Cleanliness Available from Class 100 to Class 10000
Wall Panel 1. PVC electrolytic steel board; 2. Spray electrolytic steel board
Key Accessories • Medicine/Anesthesia cabinets (Concil Type)
• Antibacterial PVC floor
• Air-tight hermetic auto-sliding doors
• Air purification ceiling (Class 100-100000)
• LED film viewers & Gas connection terminals
• Shadowless lamps & OT room control systems
Environment Temp: 21-27°C | Humidity: 30-60% (Customizable)
Applications Operation Theatre, Hospital Center, ICU, etc.

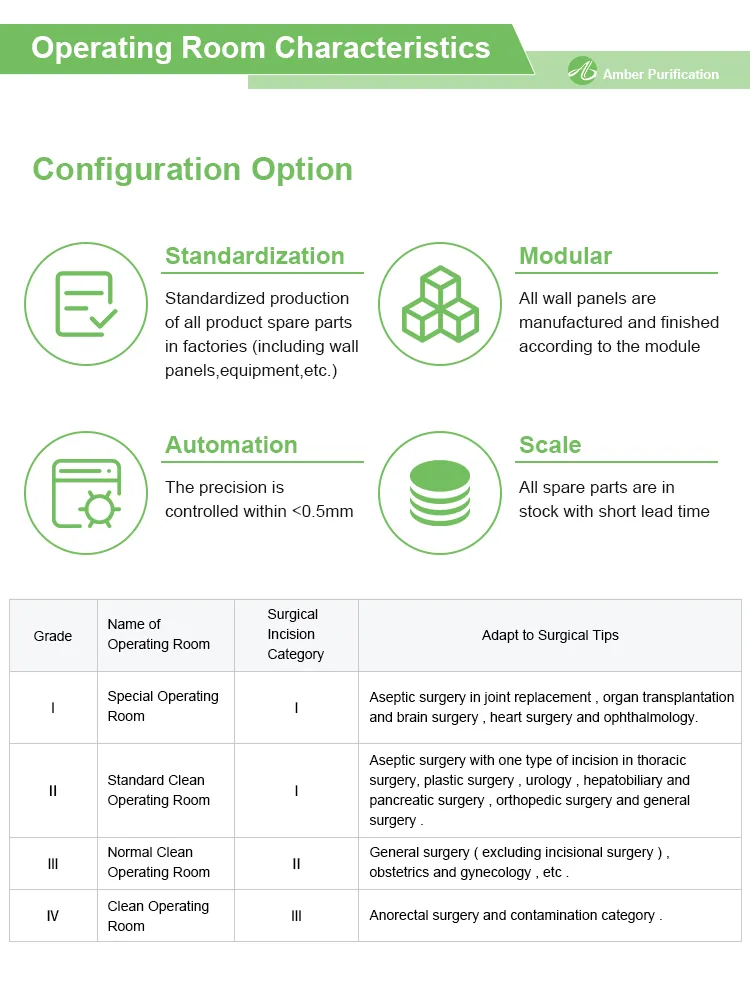

System Component 1 System Component 2 System Component 3
Installation 1 Installation 2
Equipment Detail 1 Equipment Detail 2 Equipment Detail 3
Control System Door System Panel Detail
Ceiling View Final View

❓Frequently Asked Questions

1. What air cleanliness levels can this system achieve?
The modular operating room system supports air purification levels from Class 100 up to Class 100,000, suitable for various surgical and medical requirements.
2. What materials are used for the modular wall panels?
Wall panels are constructed from high-quality electrolytic steel plates or fireproof gypsum boards, with options for PVC coating or spray-painted finishes.
3. Can the operating room dimensions and colors be customized?
Yes, the system is fully customizable. We provide tailored designs for wall panel colors, room sizes, and specific equipment integration based on the hospital's needs.
4. Does the system include environmental control?
Absolutely. The system controls temperature (typically 21-27°C) and humidity (30-60%) through an integrated control system to ensure optimal surgical conditions.
5. Is on-site welding required during installation?
No. The wall panels use a composite module splicing type. All components are prefabricated in the factory, allowing for a clean and efficient assembly on-site without welding.
6. What medical accessories are compatible with this system?
The system is designed to integrate medical cabinets, antibacterial flooring, air-tight sliding doors, shadowless lamps, ceiling-suspended pendants, and complete nurse control stations.
