Turnkey Fish Food Pellet Production Project Solution

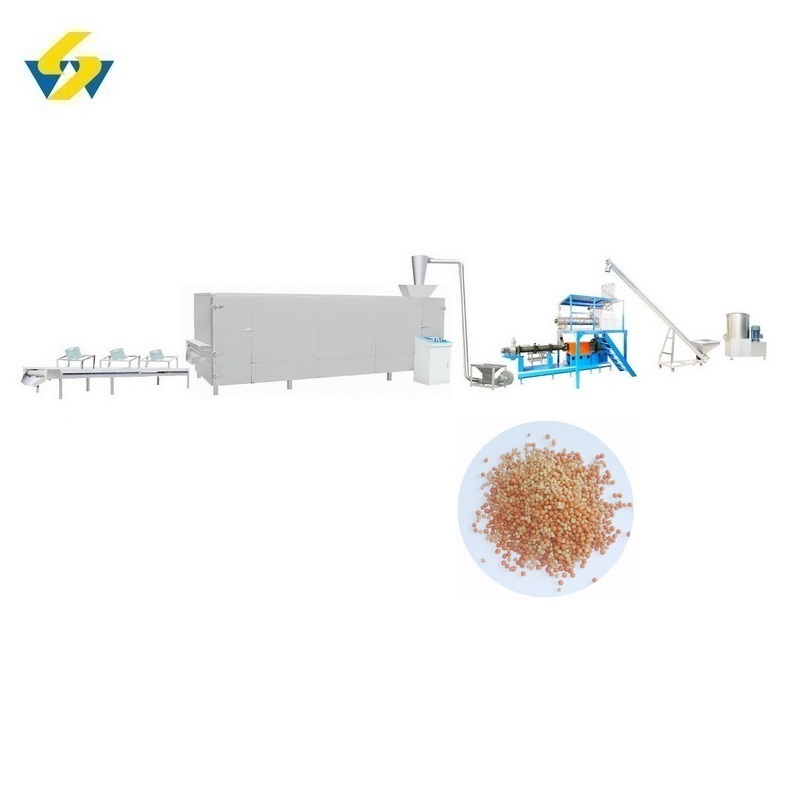

Expanded fish feed processing line introduction
The expanded fish feed processing line is mainly made up with raw materials treatment system, extrusion system, drying system, flavoring system and controlling system. It has high stability and automatic performance, which offers the possibility to control the expansion of the extrudate through various means to control the texture of the final product.
This line's core technology is co-rotating twin-screw extrusion. The twin-screw extruder is the core of this line, enabling the continuous production of expanded fish feed.

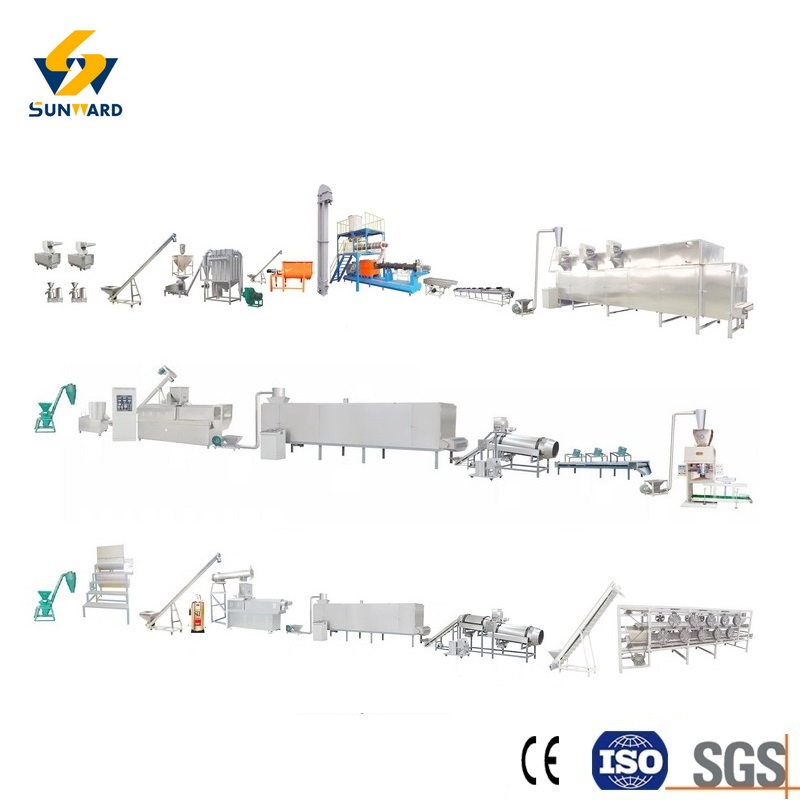

Processing Flow Chart
Raw materials → Extrusion → Drying → Flavoring → Cooling → Packing
Processing Line Features
- High work efficiency and automation degree.
- Low land occupation and power consumption.
- Various configurations and capacity choices.
- Can make both floating and sinking fish feed.
- Production factors can be quantified and controlled.
- World-class food grade fittings.
- All machines and fittings can be custom-made.
Processing Line Parameters
| Type |
Model |
Capacity (kg/h) |
Installed Power (kw) |
Actual Power (kw) |
| Dry Type | TSE65-P | 100-150 | 74 | 52 |
| Dry Type | TSE70-P | 200-250 | 105 | 75 |
| Dry Type | TSE85-P | 300-500 | 205 | 150 |
| Wet Type | TSE90-P | 800-1000 | 132 | 80 |
| Wet Type | TSE95-P | 1000-1500 | 165 | 106 |
| Wet Type | TSE120-P | 2000-2500 | 226 | 140 |

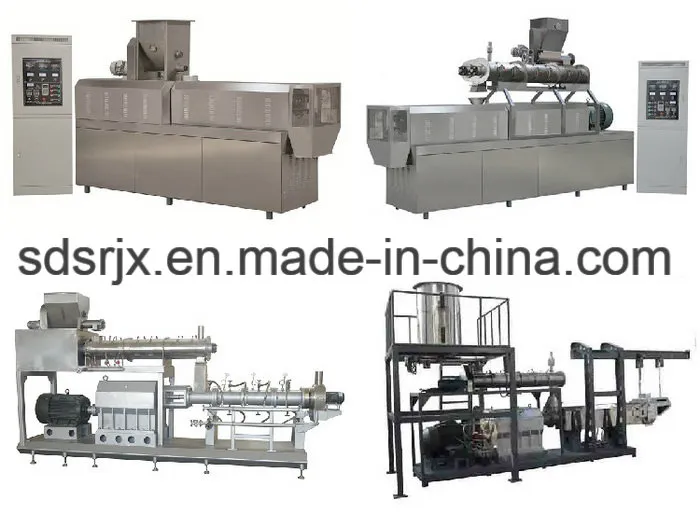

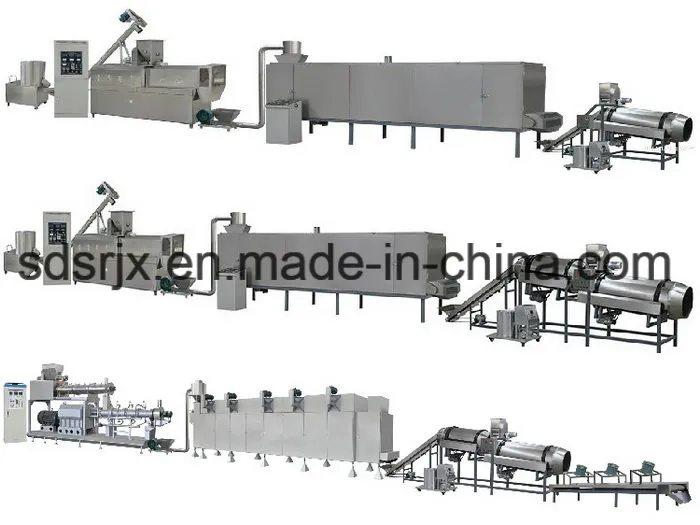

Series Machinery Showcase
Expanded Fish Feed Samples
Adopting cereals, vegetable proteins, vitamins, minerals, fish meal and fish oil as raw materials, expanded fish feed is made for both carnivorous and graminivorous fishes.
Advantages: (1) easier feeding management (2) lower wastage rate (3) lower water contamination (4) higher feed nutritional ingredient use ratio (5) longer storage time.
Professional Service & Support
- 1 year warranty period.
- Supply free fittings and general tool.
- Engineers available to service machinery overseas.
- Supply formula of raw materials.
- Workshop design suggestion.
About Our Manufacturing Facility
We are a leading expanded food machinery manufacturer. We design and manufacture machines to make expanded food for humans and animals. With 3 factories covering 5,000 square meters, we hold ISO9001:2008 & CE certificates and have passed SGS, BV & TüV inspections. Our machinery has been exported to more than 100 countries worldwide.
Frequently Asked Questions (FAQ)
Can this production line produce both floating and sinking fish feed?
Yes, the processing line is designed to produce both floating and sinking fish feed by adjusting the technical parameters and the formula. It can also produce pet food.
What is the core technology used in this machinery?
The core technology is co-rotating twin-screw extrusion, which ensures high stability, automation, and precise control over the texture of the extrudate.

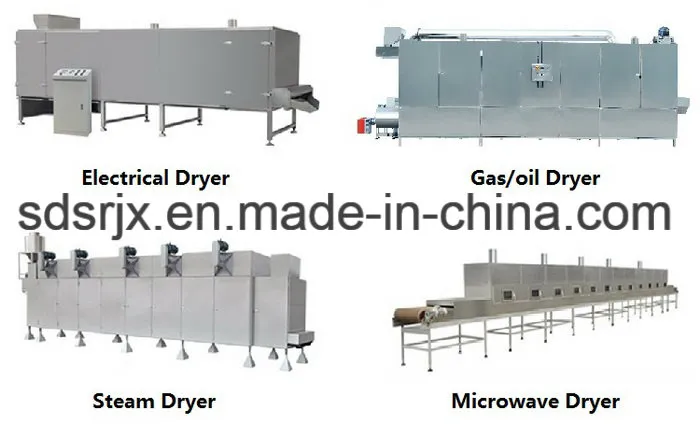

What heating options are available for the drying system?
The drying system is versatile and can be configured for electrical heating, gas-fired, oil-fired, or steam-based heating depending on your facility's requirements.
What is the material of the extruder components?
The main body is constructed from high-quality stainless steel, and the screws are made from durable 38CrMoAl material to ensure long service life.
Do you provide after-sales support and installation?
Yes, we provide a 1-year warranty, free fittings, and have engineers available to provide overseas machinery service, installation support, and workshop design suggestions.
Are the machines customizable for specific needs?
Absolutely. All machines and fittings can be custom-made. We offer ODM and OEM services to meet the specific capacity and configuration needs of our clients.
