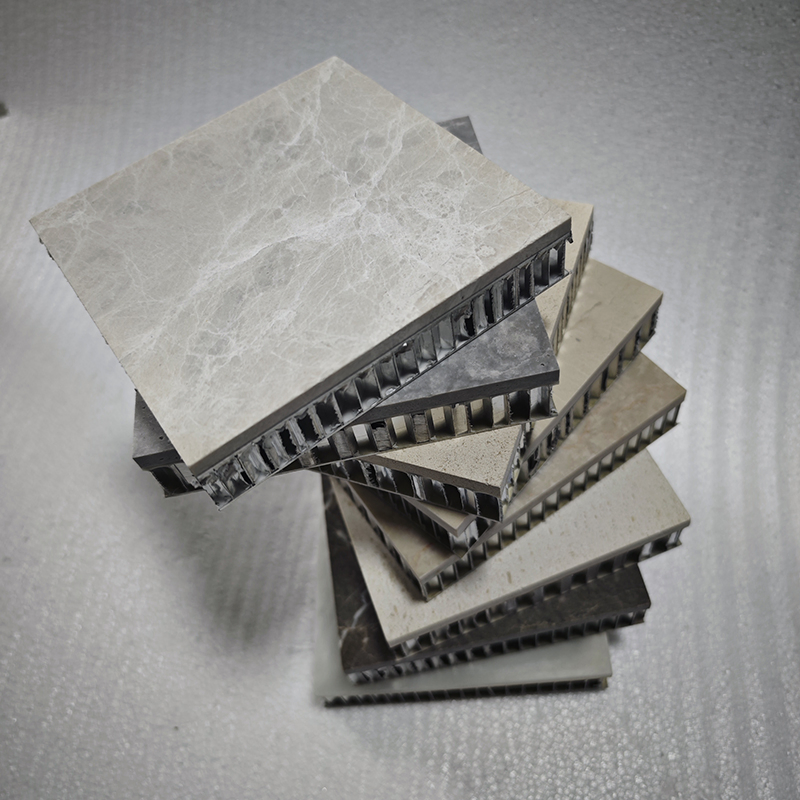

Thermal Insulation Lightweight Innovative Versatile Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Innovative Versatile Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Innovative Versatile Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Innovative Versatile Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Innovative Versatile Building Facades Composite Stone Honeycomb Panel
1 / 5
Thermal Insulation Lightweight Innovative Versatile Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Innovative Versatile Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Innovative Versatile Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Innovative Versatile Building Facades Composite Stone Honeycomb Panel
Thermal Insulation Lightweight Innovative Versatile Building Facades Composite Stone Honeycomb Panel

Thermal Insulation Lightweight Innovative Versatile Building Facades Composite Stone Honeycomb Panel

Customization: Available
After-sales Service: One Year
Warranty: One Year
Send Inquiry

Product Description

Basic Information
Model NO.
sc-01
Material
Stone Honeycomb
Performance
High Intensity
Function
Exterior Walls, Ceilings, Partitions
Level
Class A Fire Rating
Panel Thickness
10-30mm (Stone 3-5mm)
Flexural Strength
≥7.0MPa
Life Cycle
30 Years+
Sound Insulation
RW 15 dB
Transport Package
Plywood Boxes
Product Description
Building Facades Composite Stone Honeycomb Panel

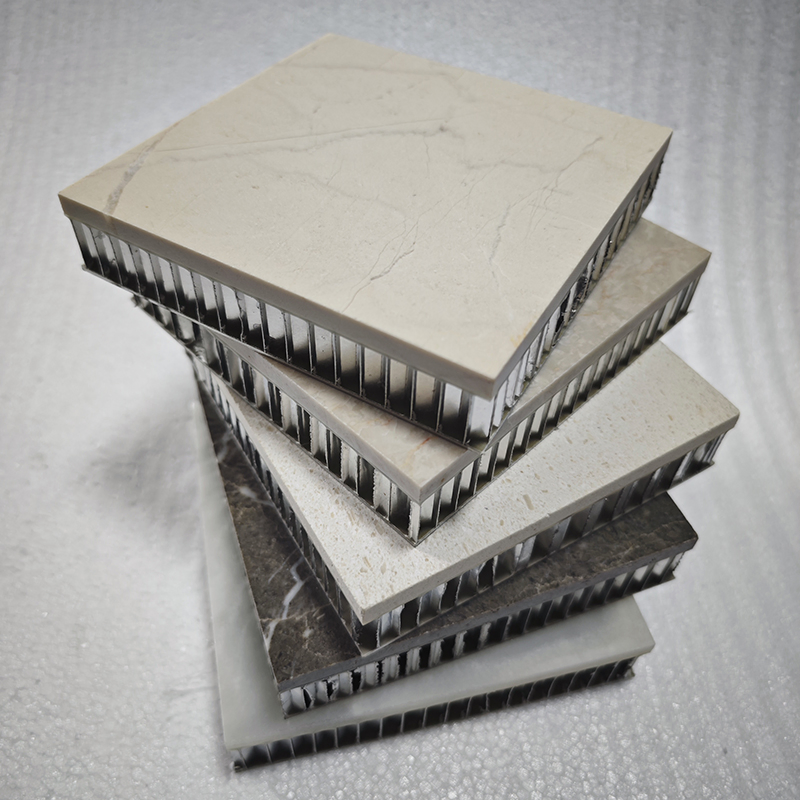

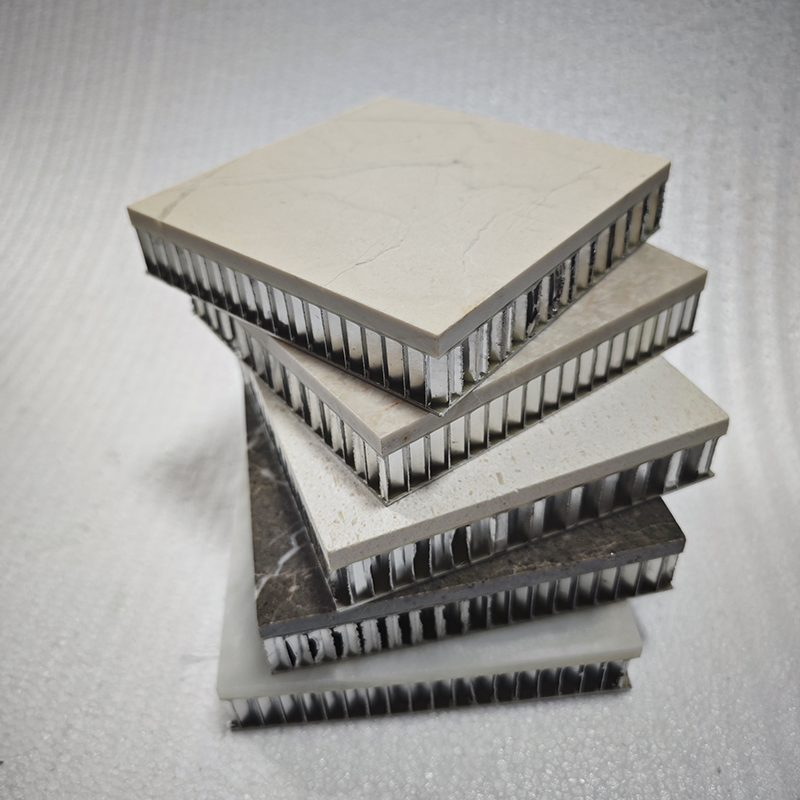

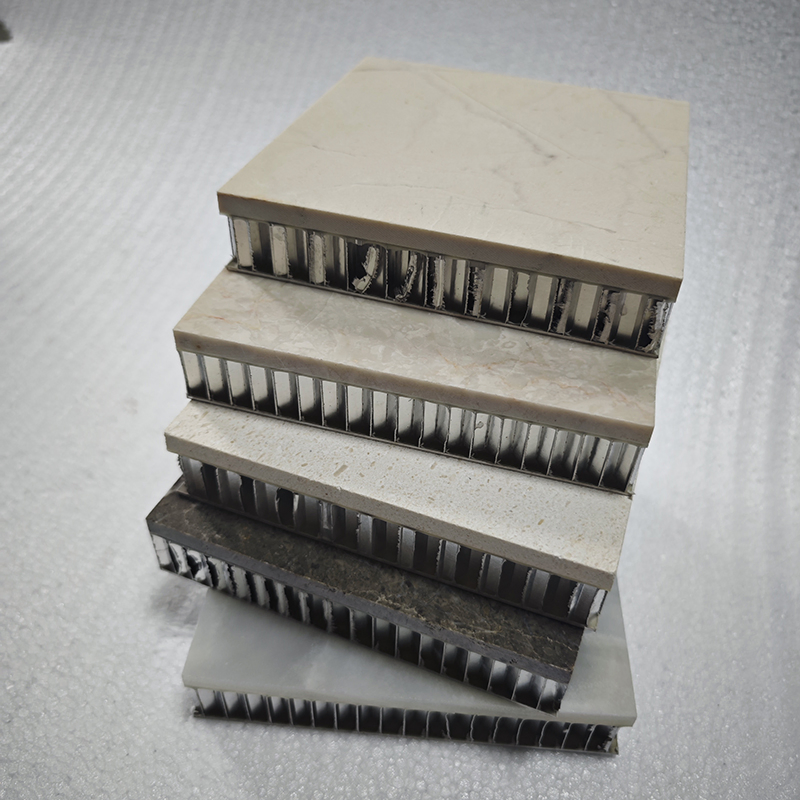

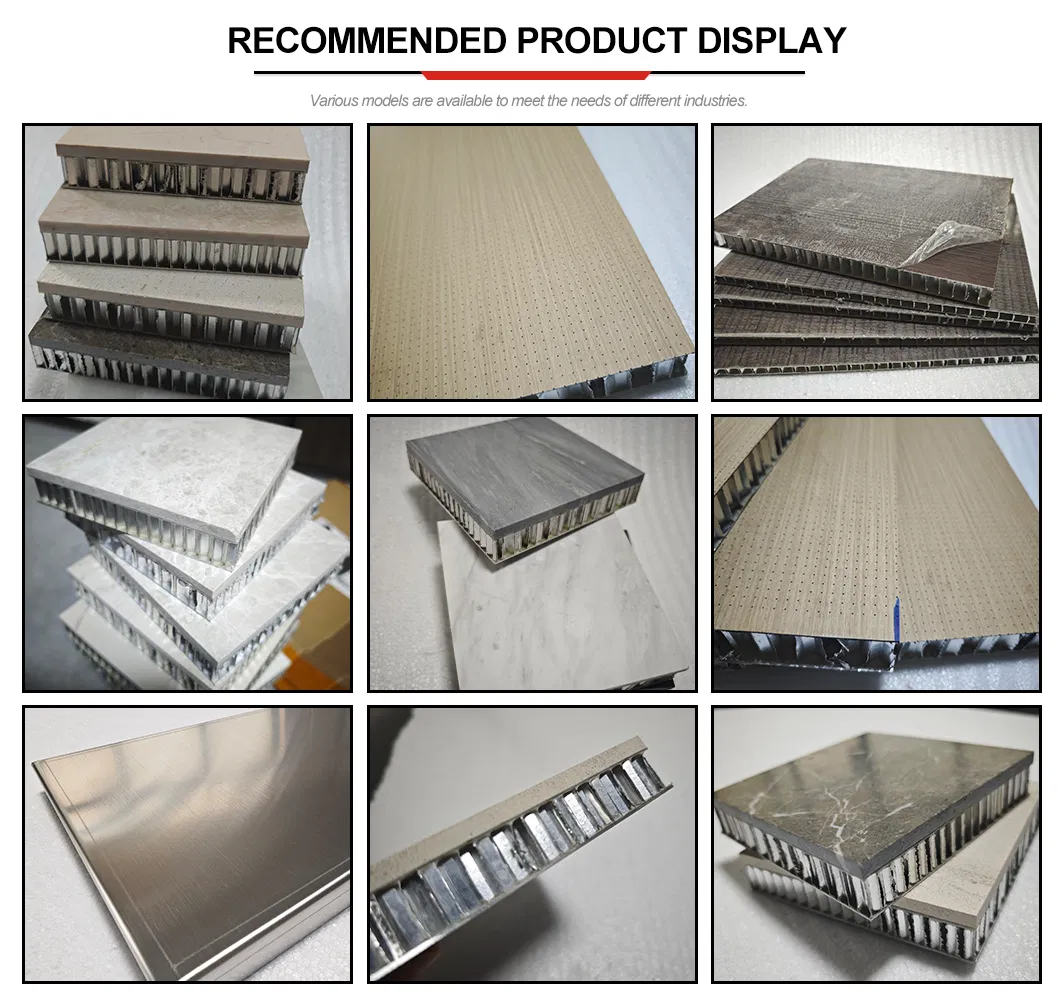

Composite Stone Honeycomb Panel Detail
Lightweight & High Strength Stone veneer (3-5mm) bonded to aluminum honeycomb core, 1/5 the weight of solid stone with 3x higher strength.
Authentic Stone Texture Natural granite/marble surface with original aesthetics and premium feel.
Thermal & Acoustic Insulation The honeycomb structure effectively blocks sound and heat, providing 15dB+ noise reduction.
Eco-Friendly Significantly reduces natural stone quarrying needs; the aluminum core is fully recyclable.

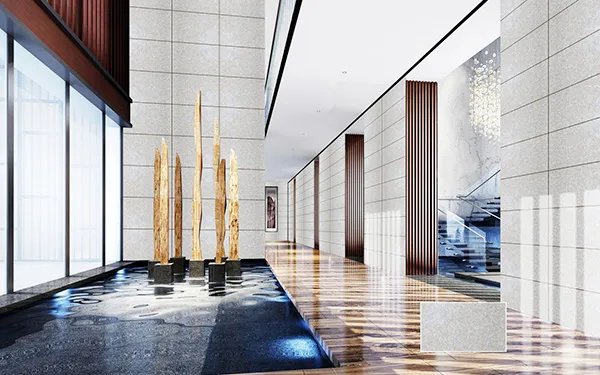

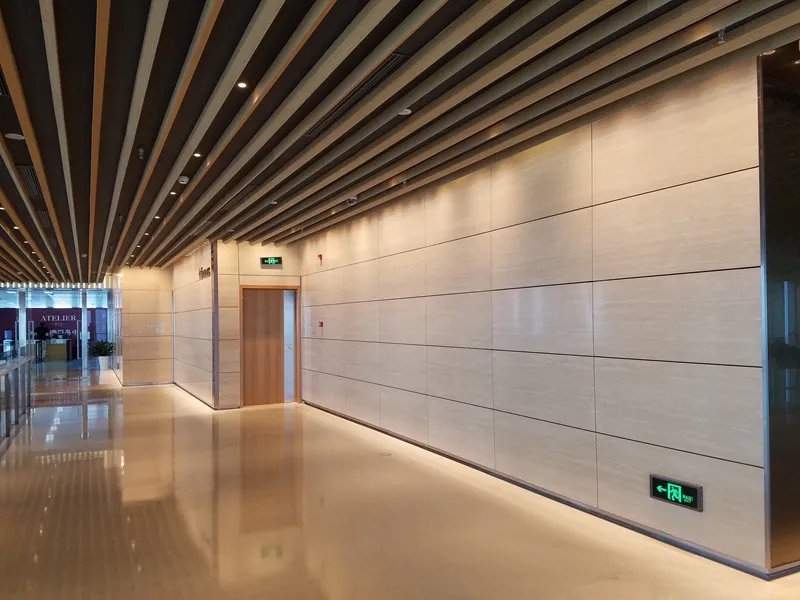

Stone Honeycomb Panel Application

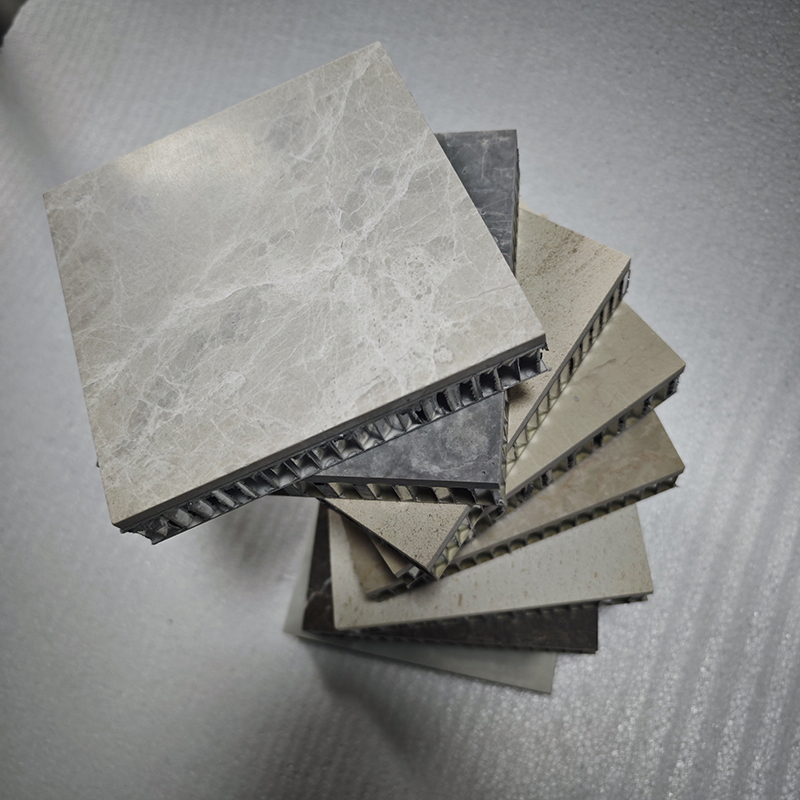

Stone Honeycomb Panel Texture
Technical Specification
Parameter Details Parameter Details
Panel Thickness 10-30mm (Stone 3-5mm) Flexural Strength ≥7.0MPa (GB/T 17748)
Fire Protection Class A2 (EN 13501-1) Weather Resistance 3000h Salt Spray (No Corrosion)
Packaging Plywood boxes, export standard Production Capacity 100,000 m²/year

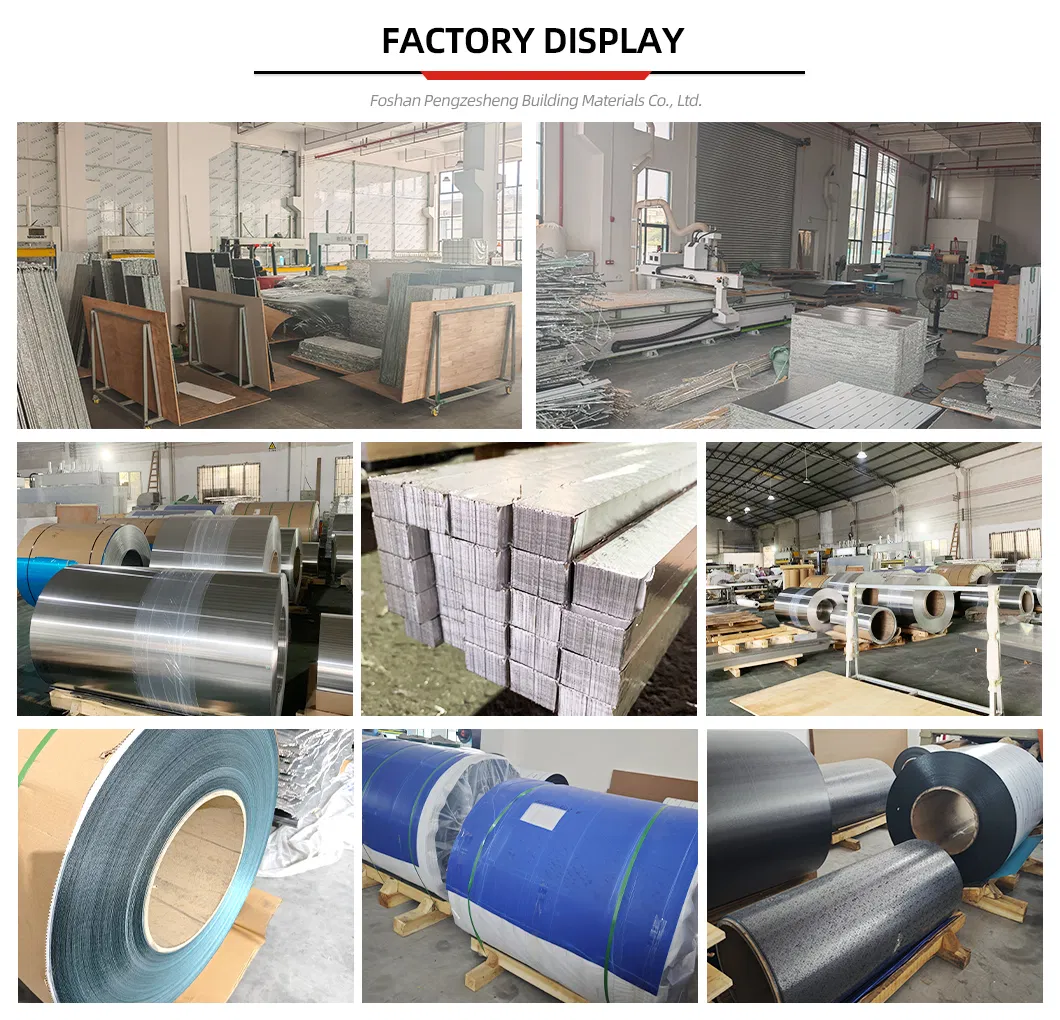

Production Excellence

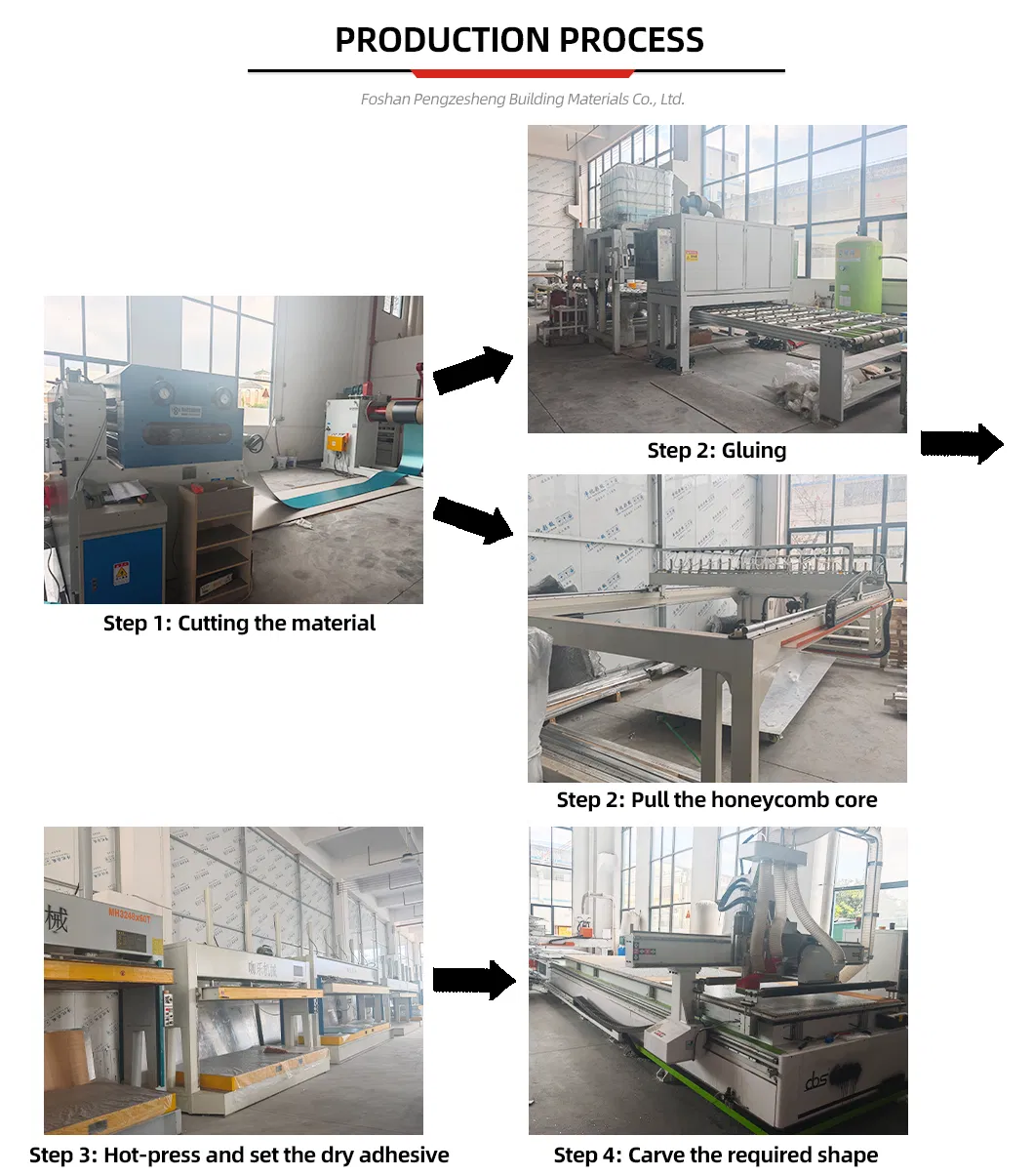

Manufacturing Process
1
Material Preparation: AA3003/AA5052 aluminum coils and natural stone veneer selection.
2
Pre-Treatment: Chemical conversion for maximum coating adhesion.
3
Core Stabilization: Aluminum foil expanded to precise cell sizes (Φ3-12mm).
4
Composite Bonding: Vacuum hot-press bonding at controlled temperatures (120-140℃).
5
QC Inspection: Rigorous testing for bond strength (≥7N/mm) and flatness.
Precision Cutting and QC

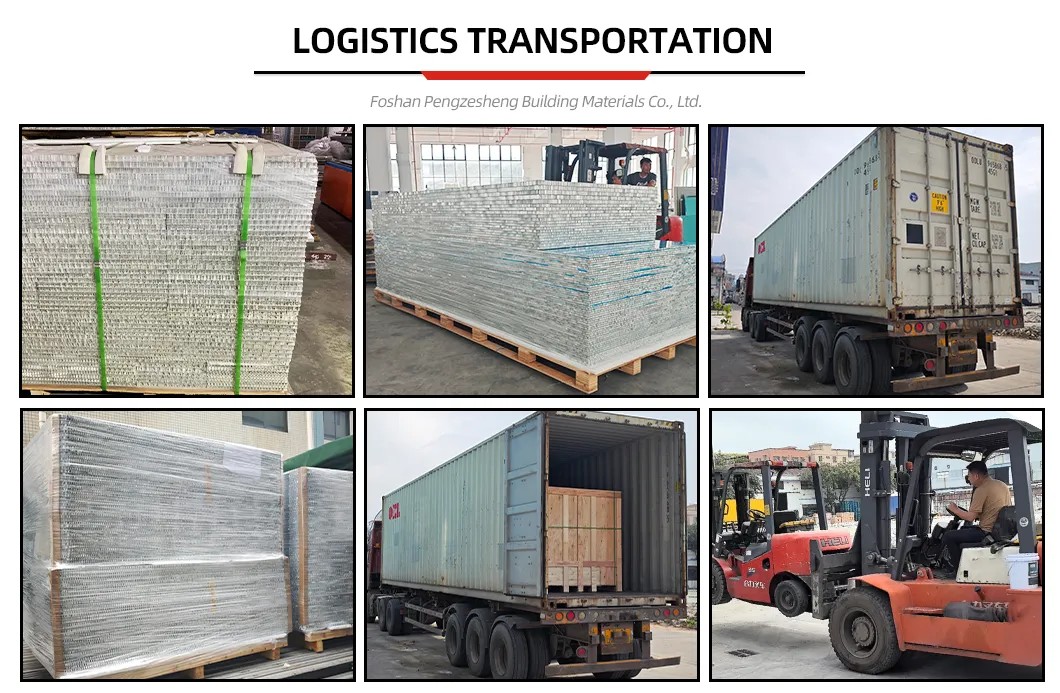

Packing & Delivery
Secure Plywood Packaging
Frequently Asked Questions
What is the main advantage of stone honeycomb panels over solid stone?
The main advantages are its lightweight nature (about 80% lighter) and superior impact resistance. It allows for easier installation and significantly reduces the structural load on buildings.
Are these panels fireproof?
Yes, our stone honeycomb panels meet Class A2 fire protection standards according to EN 13501-1, making them safe for high-rise buildings and marine applications.
Can the panels be used for curved surfaces?
While the panels are rigid, they can be pre-fabricated or grooved and folded to meet specific architectural requirements, including column covers and certain curved designs.
How do the panels perform in extreme weather?
They offer excellent weather resistance, passing 3000h salt spray tests with no corrosion. They are designed to withstand typhoon-level wind pressures and UV aging.
What is the typical lifespan of the product?
For outdoor curtain walls, the panels have a life cycle of 30 years or more with proper installation and minimal maintenance.
Is the stone surface natural or synthetic?
We use authentic 3-5mm thick natural stone veneers (granite, marble, or limestone), preserving the natural aesthetic and texture of the stone.
