Product Overview
Material:Aluminum Alloy
Performance:High Intensity
Function:Decoration
Aperture:8mm
Level:A
Application:Interior Decoration
Features:Lightweight, Strong, Custom Designs
Color:Ral Colors, Stone, Wood
Surface:Polished / Antique / Brushed
Weight:22kg/M2 (15mm)
Capacity:20000sqm Per Month
HS Code:6802999000

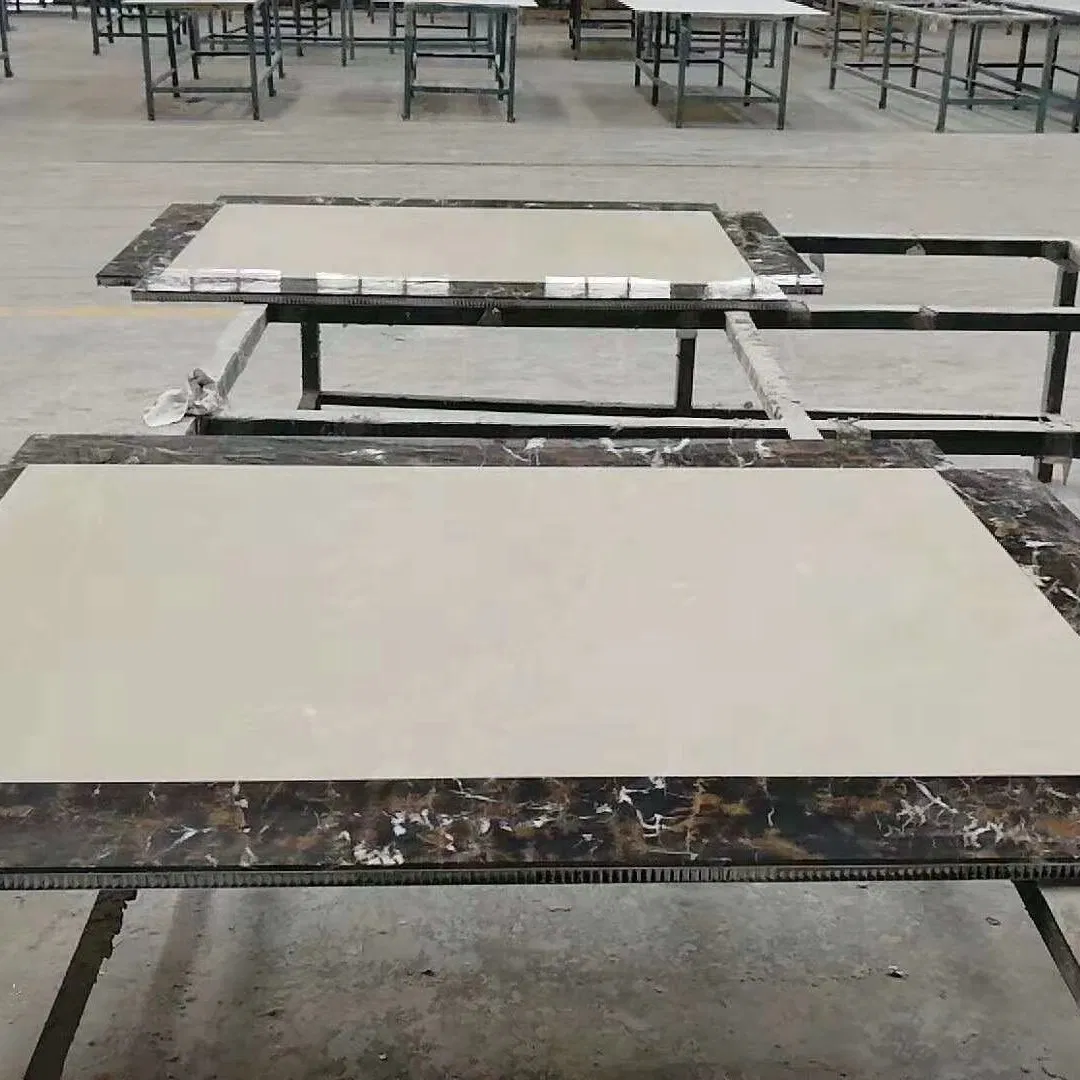

Stone Honeycomb Panels
Advanced Composite Engineering:

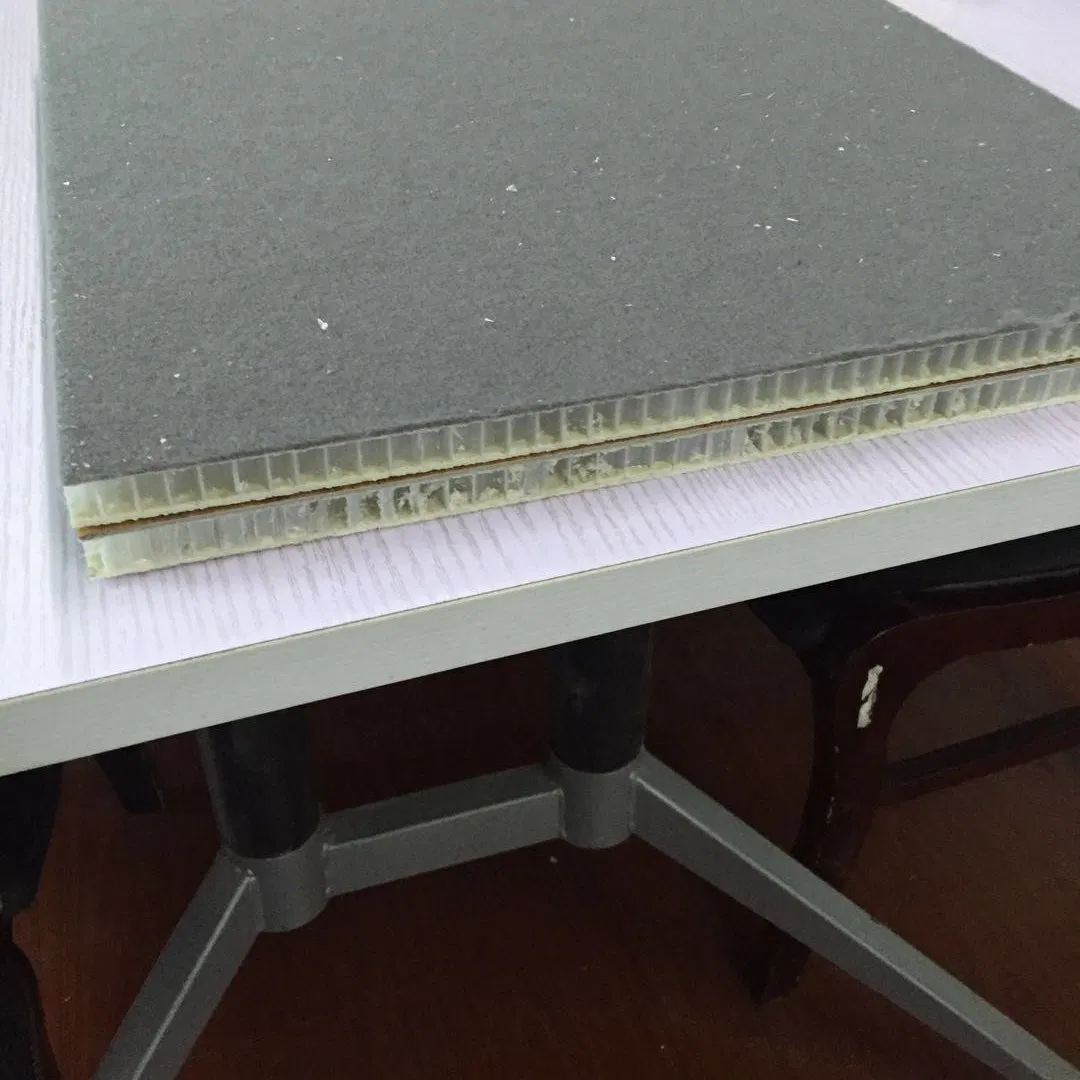

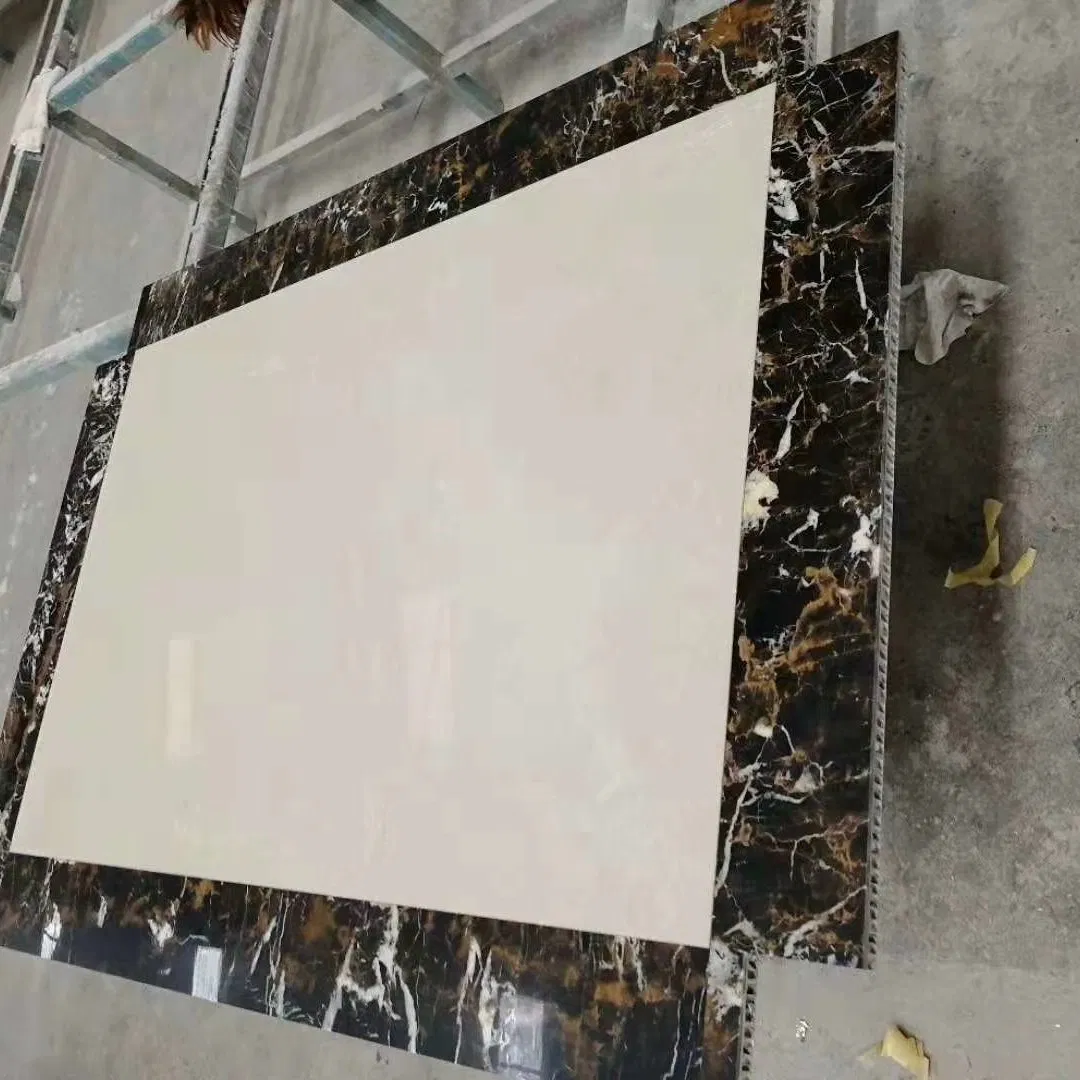

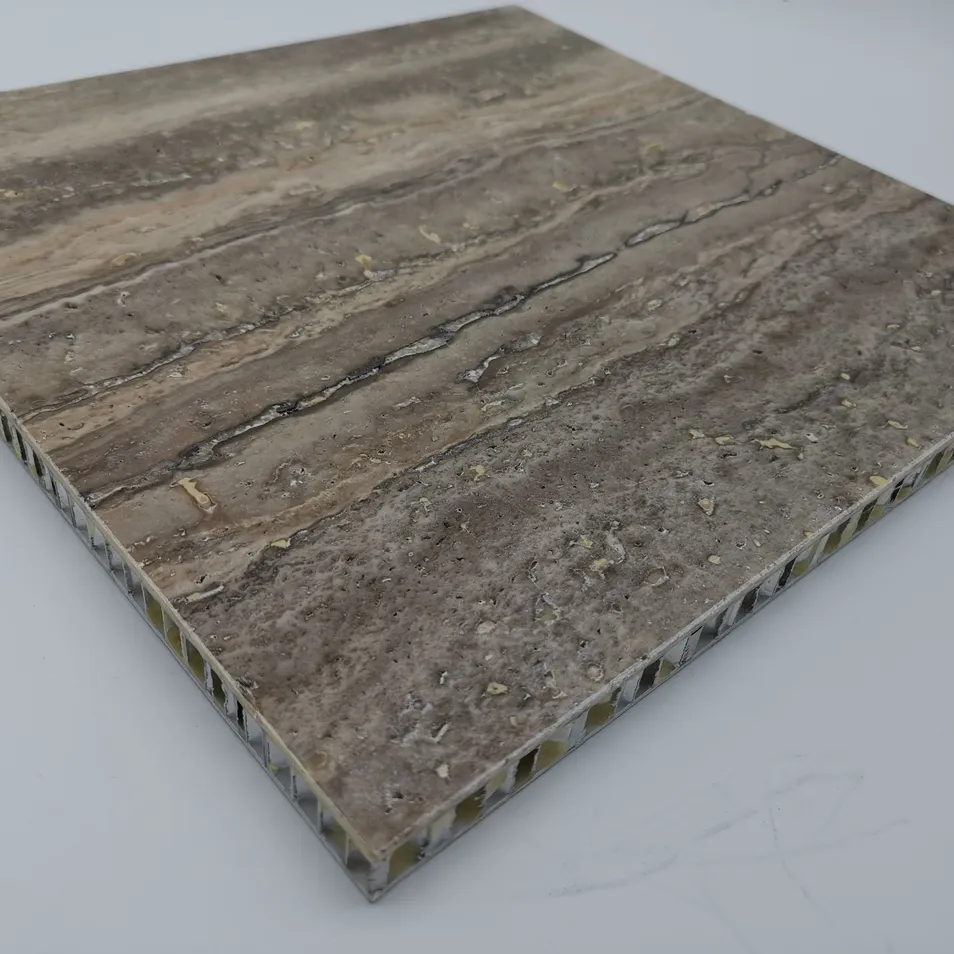

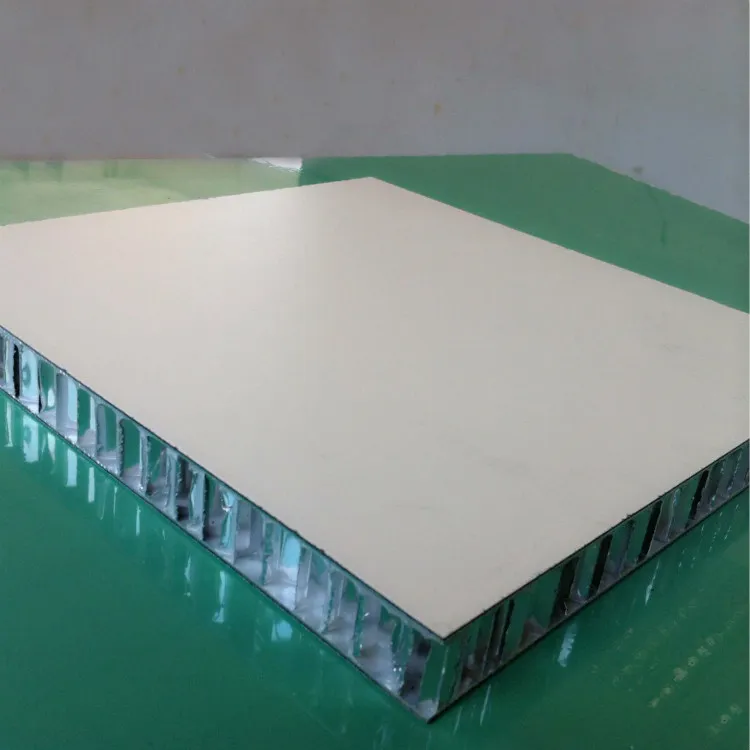

Stone honeycomb panels are advanced composite materials made by bonding a thin layer of natural stone (such as marble or granite) to a lightweight aluminum honeycomb core. This structure significantly reduces weight and improves strength, making it ideal for a wide range of architectural and decorative applications including exterior walls, interior cladding, elevators, yachts, and furniture.
| Item |
Specification |
| Stone Thickness | 3–5 mm |
| Total Panel Thickness | 10–25 mm (customizable) |
| Standard Size | 1200×2400 mm (Max: 1500×3000 mm) |
| Honeycomb Cell Size | 6 mm / 8 mm / 10 mm |
| Aluminum Foil Thickness | 0.05–0.08 mm |
| Backing Options | Aluminum / Fiberglass / Stainless Steel |
| Surface Treatment | Polished / Matte / Brushed / Anti-stain |
| Fire Rating | Class A2 |

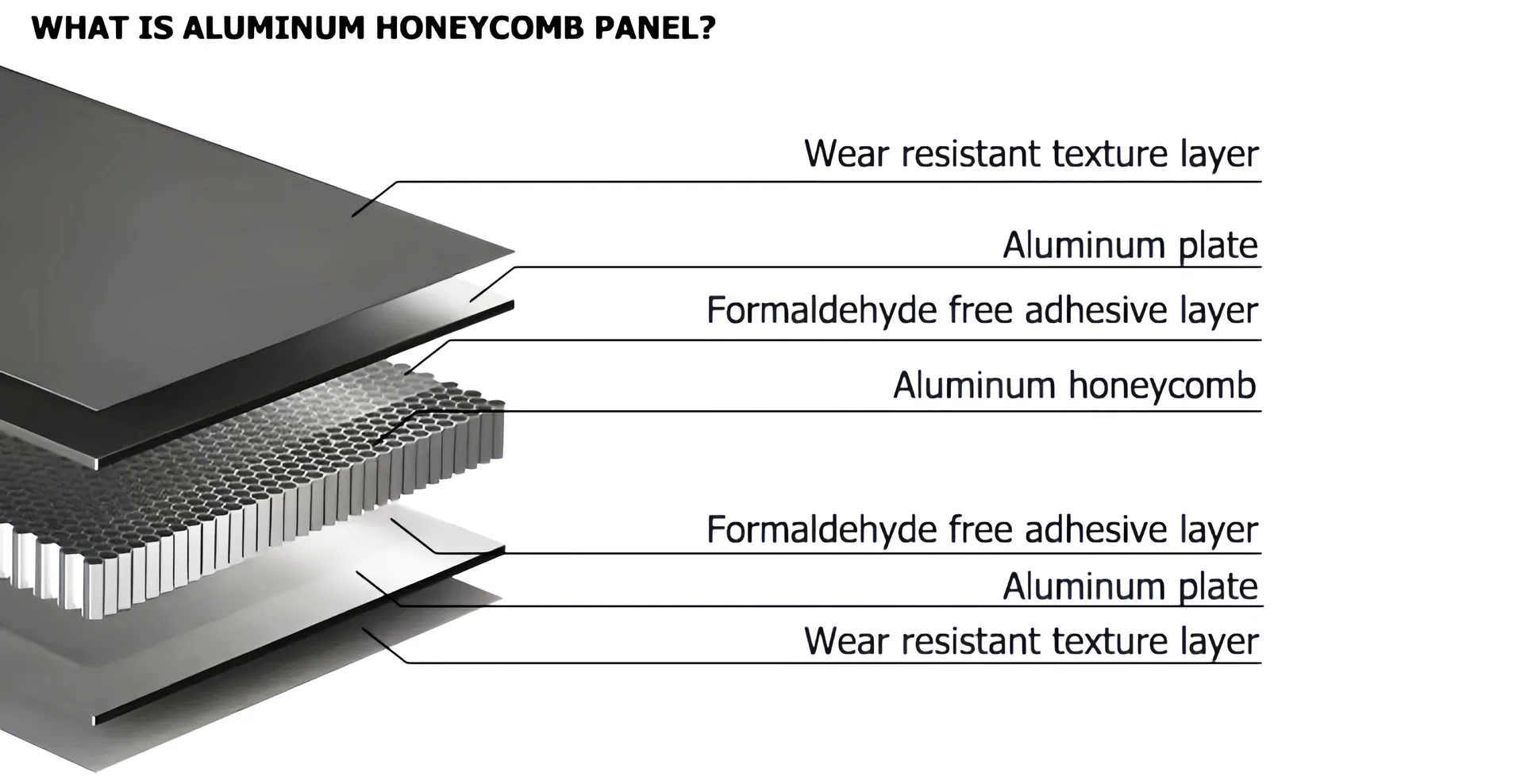

Structural Composition
- Surface: Natural stone veneer (3–5 mm)
- Core: Aluminum honeycomb core
- Back: Aluminum sheet / fiberglass board
- Bonding: High-strength adhesive pressing
Key Features
- Lightweight & High Strength
- Impact-Resistant & Crack-Proof
- Large Format & Flat Surface
- Easy Installation & Eco-Friendly

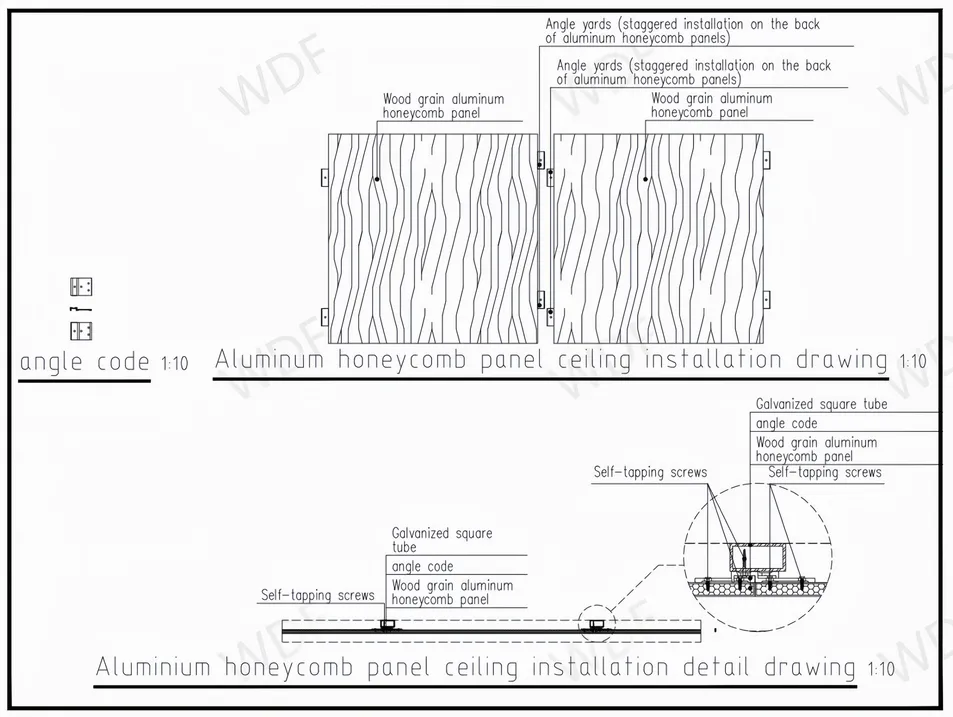

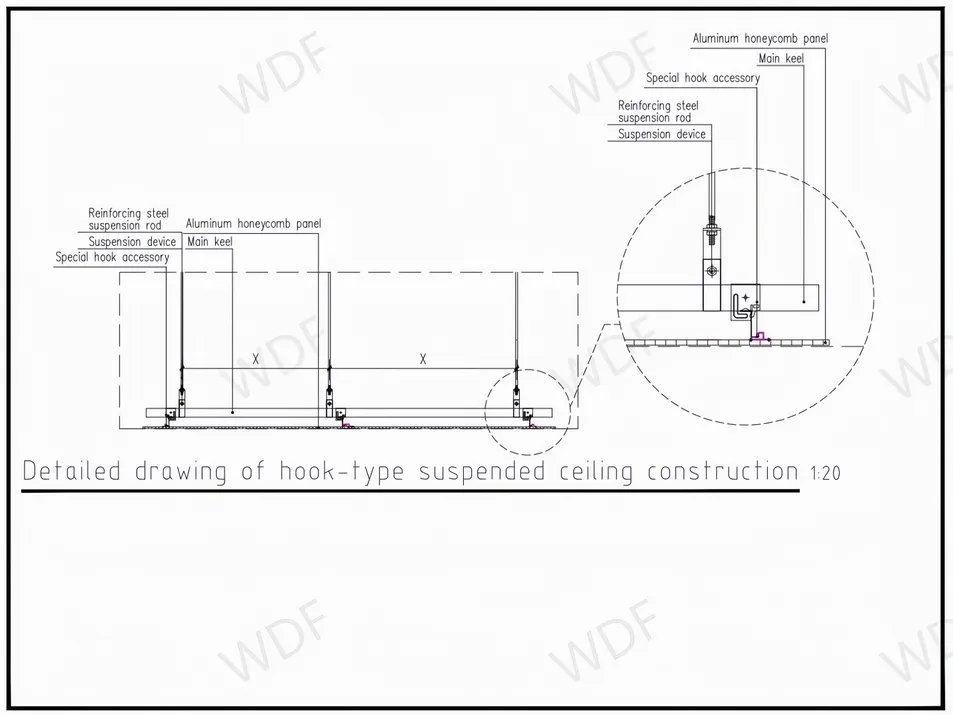

Installation Methods
Aluminum honeycomb panels are suitable for installation in dry hanging systems and exposed/dark keel structures. Supporting aluminum alloy hangers, pressure strips, sealants and other auxiliary materials are provided. It can also be installed by leveling the steel structure and fixing the corner code; the third method is to directly glue the wall after leveling.
Frequently Asked Questions
What is the typical lead time for an order?
Standard models are usually shipped within 7-10 days, while customized units tailored to specific project requirements typically take 15-20 days.
Can the panel specifications be customized?
Yes, we offer full customization. While standard thicknesses include 7mm to 20mm and regular sizes are 1220x2440mm, we can adjust dimensions, surface materials (aluminum, stainless steel, stone), and colors to fit your project.
What are the primary benefits of using stone honeycomb panels?
These panels provide the natural beauty of stone but are much lighter and stronger. They offer excellent impact resistance, fire protection (Class A2), and superior acoustic and thermal insulation.
Where are these panels most commonly applied?

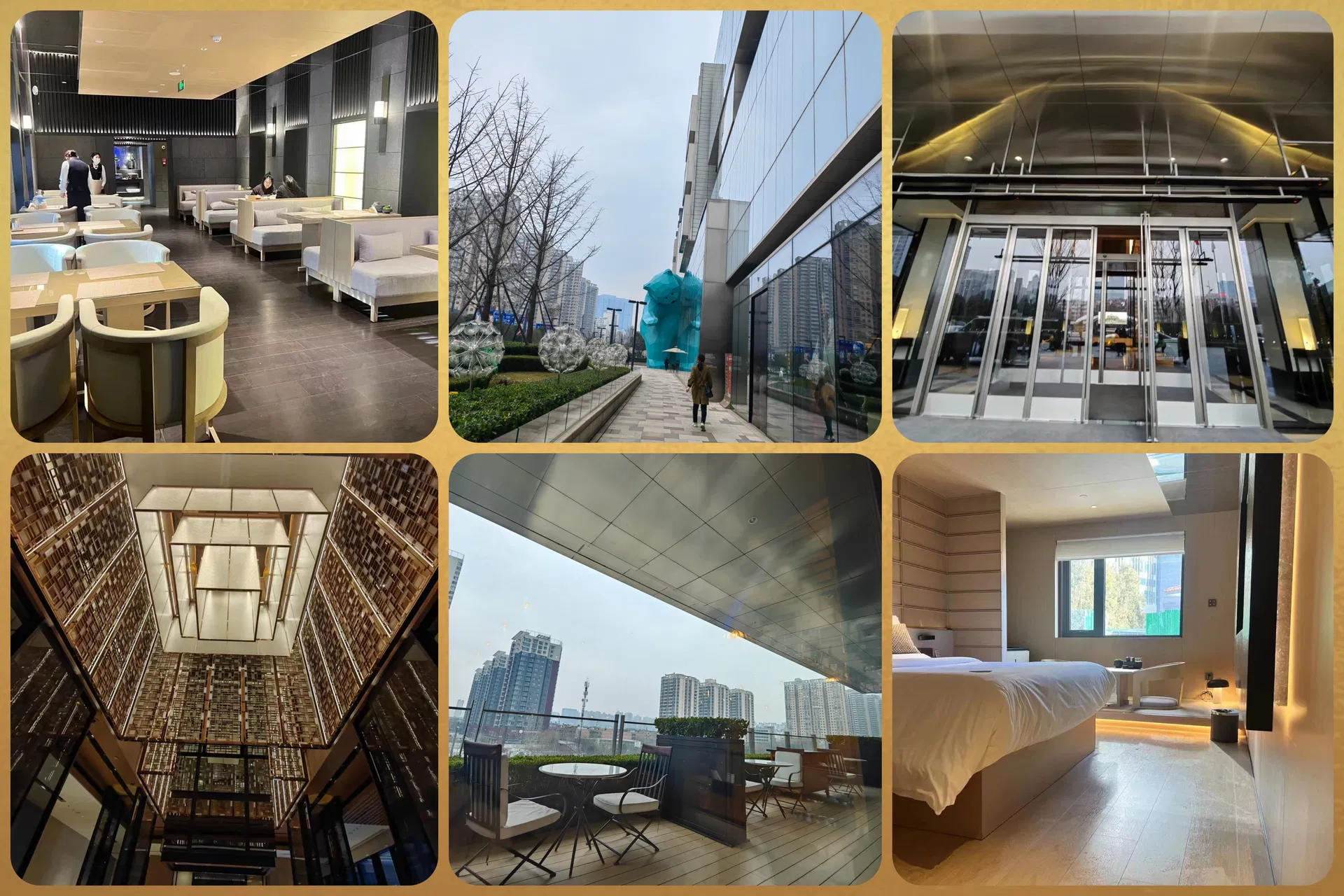

They are widely used in architectural curtain walls, interior wall cladding, ceilings, luxury ship interiors, rail transit, and high-end furniture panels.
What is the Minimum Order Quantity (MOQ)?
The MOQ for standard products is 200 square meters. Small samples are available for quality inspection, with shipping fees being negotiable.
Do you support OEM/ODM services?
Absolutely. We provide comprehensive OEM and ODM support, manufacturing according to your specific drawings, branding, and technical specifications.
