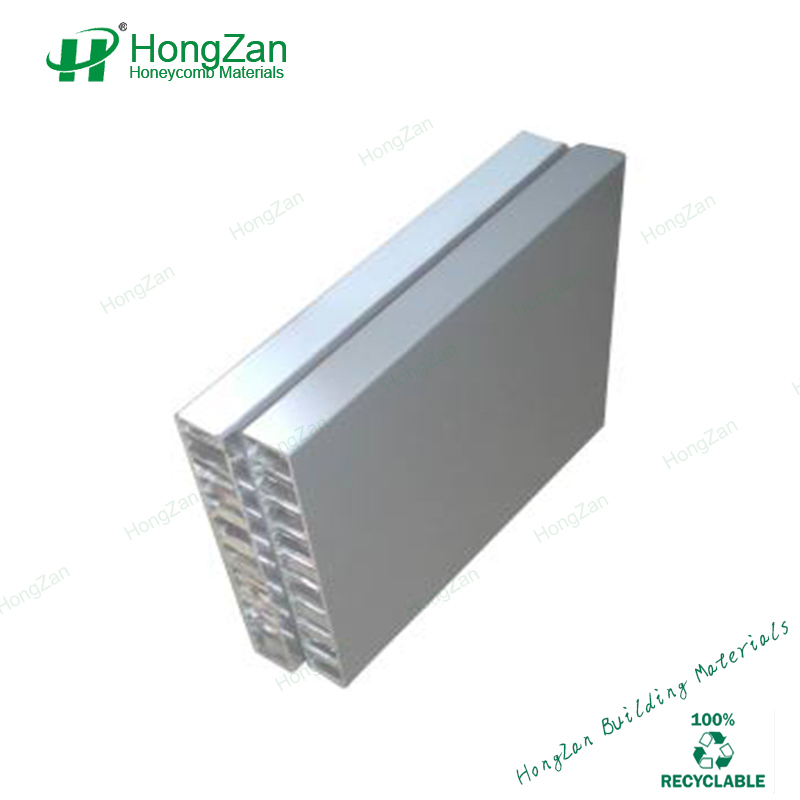

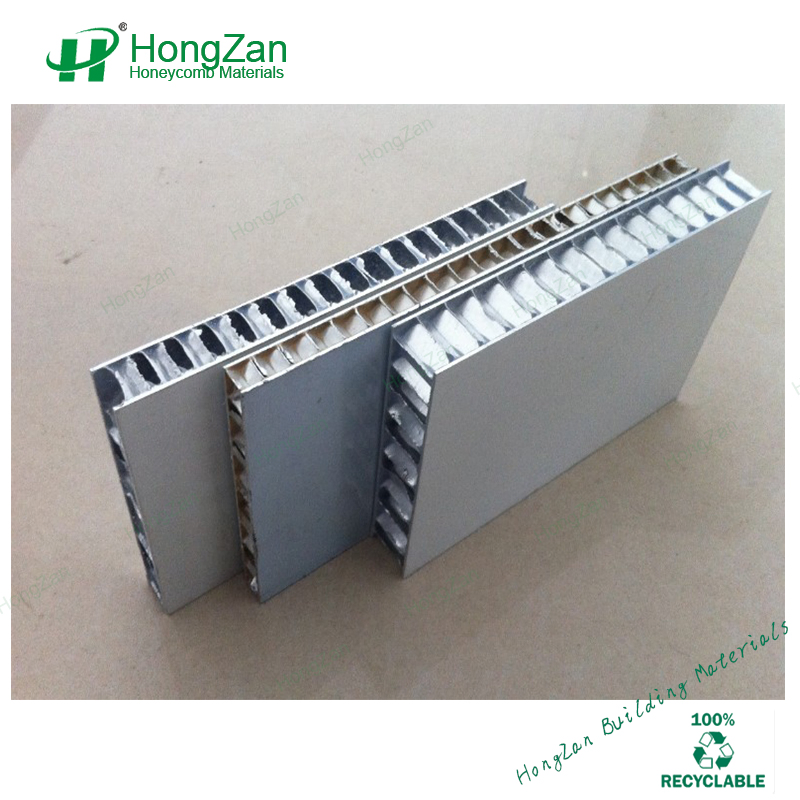

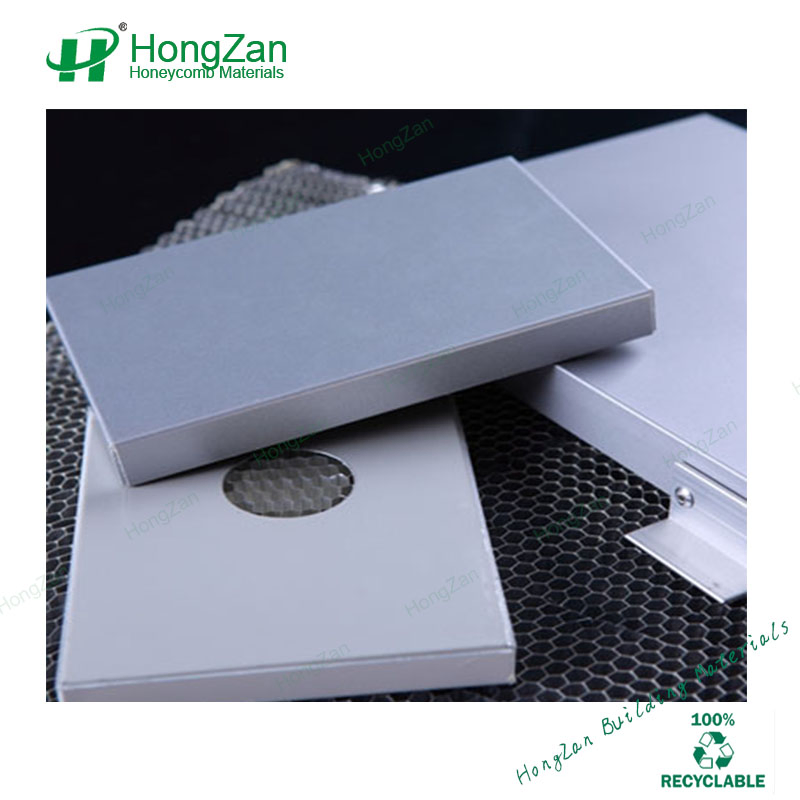

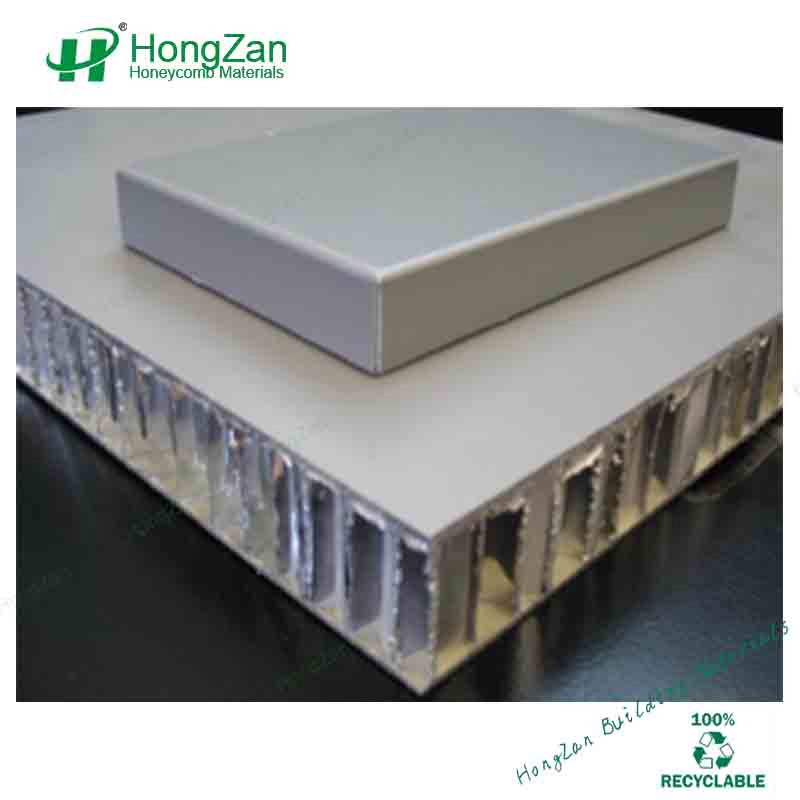

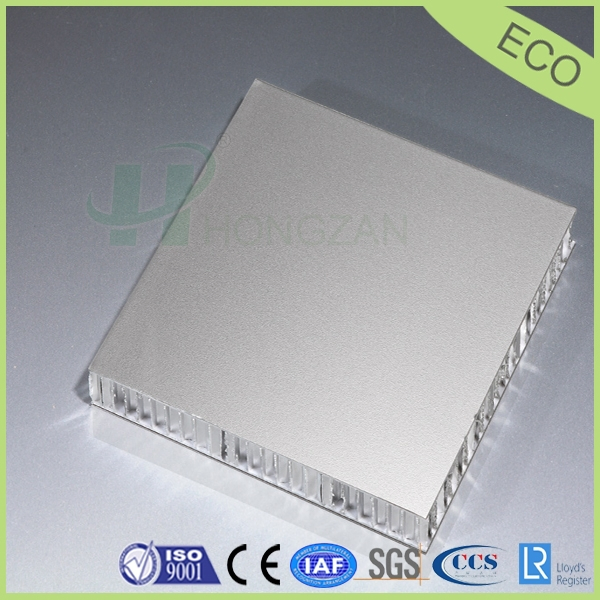

Aluminum honeycomb panels are high-performance environmental composite materials known for their perfect strength, super flatness, and excellent sound & heat insulation. These ultra-lightweight panels are designed for modern architectural needs.
Honeycomb panels have 1/5 the weight of aluminum panels but offer superior resistance to shearing and bending, maintaining high straightness even in large sizes.

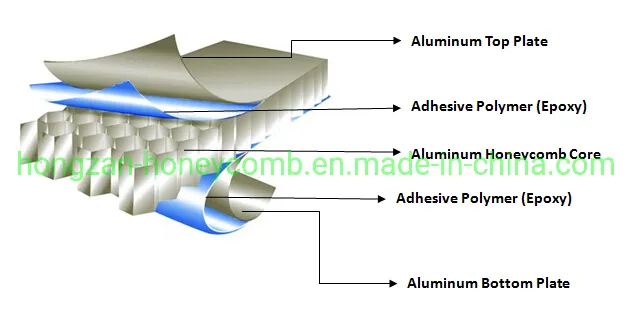

The enclosed cells stop air flow, blocking noise (20-30DB reduction) and acting as an ideal energy-saving material.
Continuous roller coating technology ensures color consistency and excellent weather resistance against industrial pollution.
| Parameter | 20mm Thickness | 25mm Thickness |
|---|---|---|
| Weight (kg/m²) | 7.4 | 7.8 |
| Inertia Moment (cm⁴/m) | 19.85 | 31.67 |
| Section Modulus (cm³/m) | 19 | 24 |
| Tensile Strength (N/mm²) | Rm ≥ 220 | |
| Core Size | 1/4'' (6.3mm) | |
| Compression Strength | 4N/mm² | |

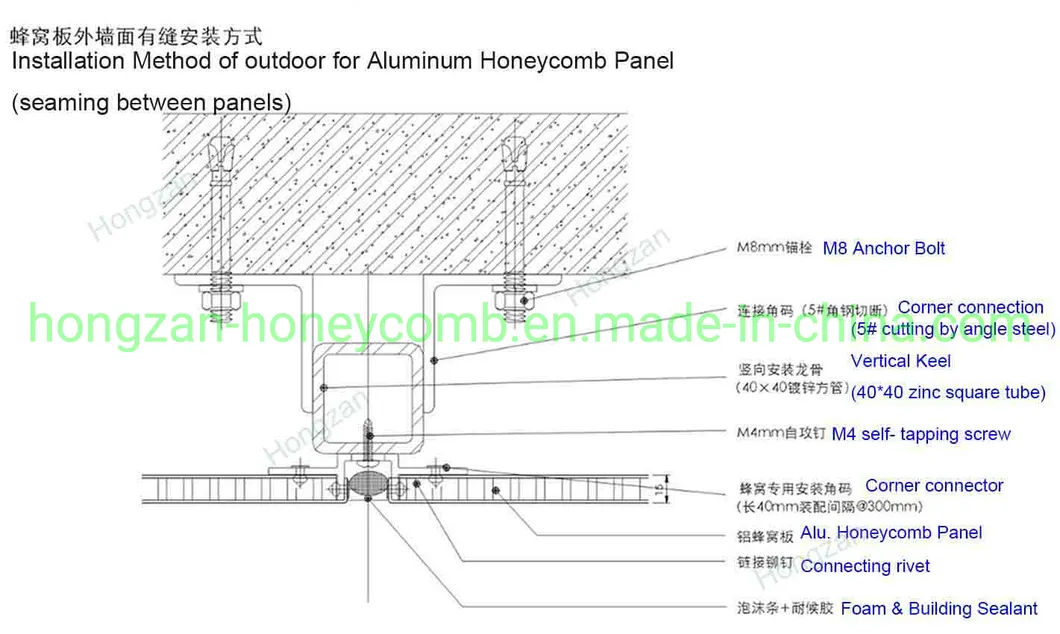

Type A: Standard Seaming

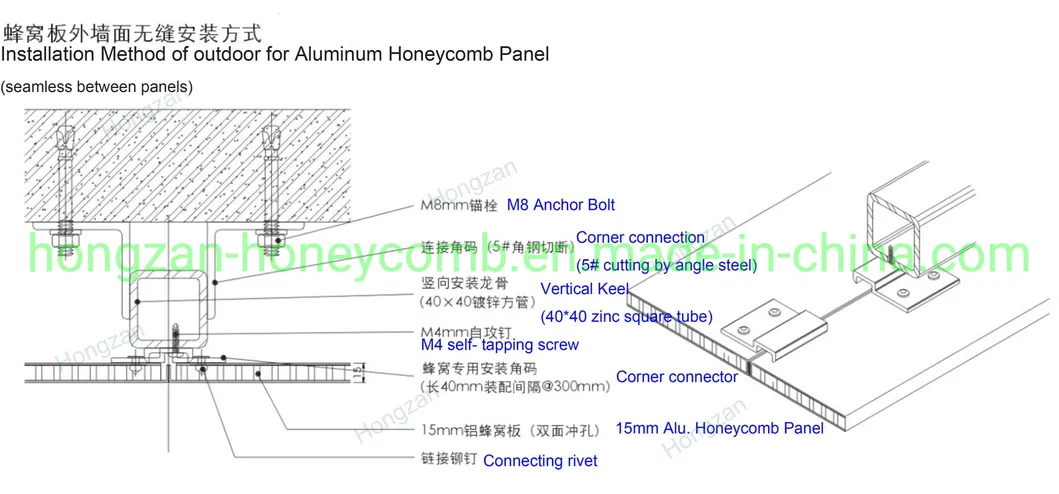

Type B: Standard Seamless
