Homecoxa Panels
1 / 5
| Feature | Environmental, Fireproof, Light Weight, Metal Panel |
| Fire Rating | 1 |
| Certification | ISO9001 |
| Surface Treatment | PE/PVDF/ Mill Finish/Anodised |

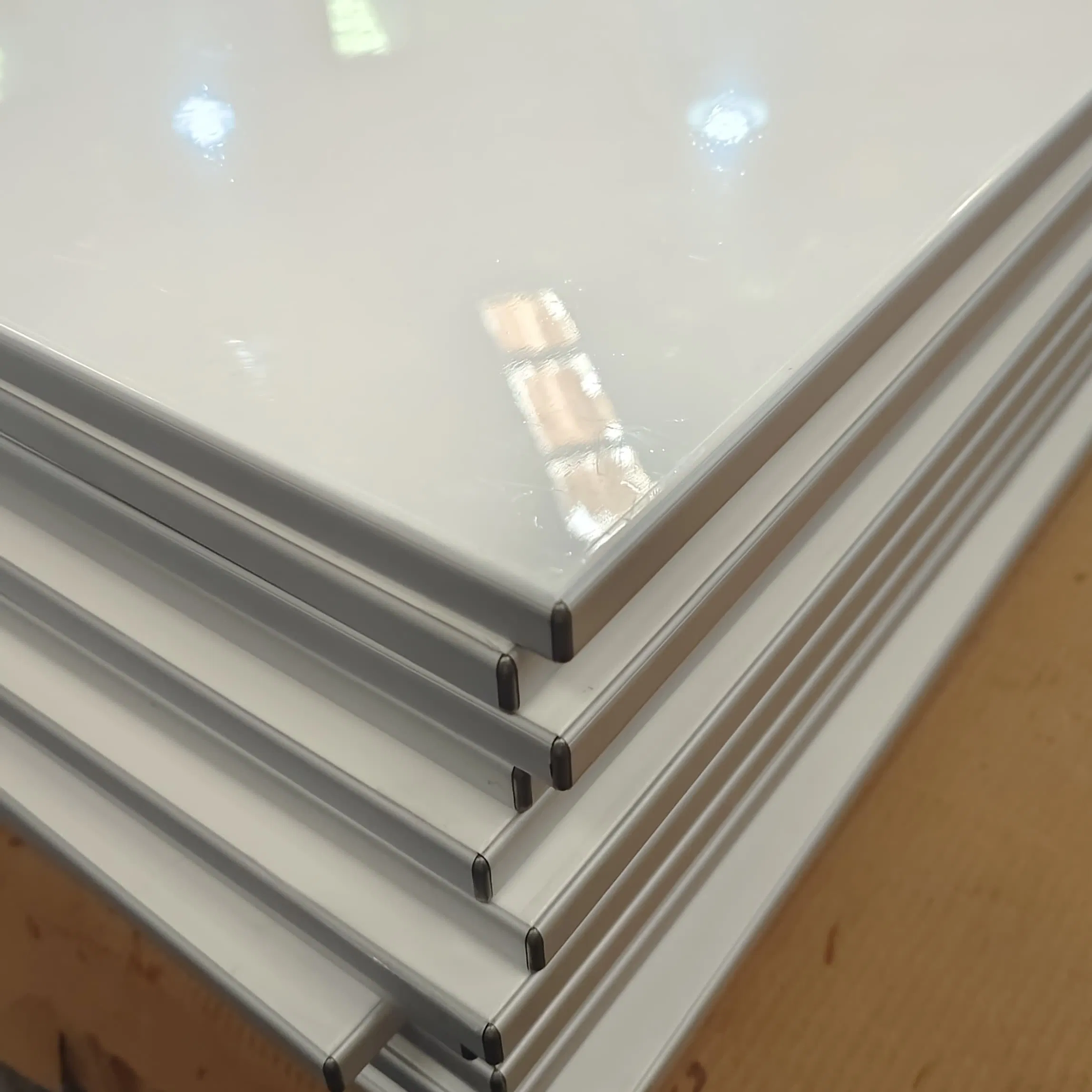

| Edge Treatment | Sealed/Unsealed |
| Adhesive | Epoxy |
| Shape | Flat, Curving, Carved, etc. |
| MOQ | 200m2 |
| Specification | 1220*2440mm, 2000*12000mm, custom made |
| Production Capacity | 50000sqm Per Month |

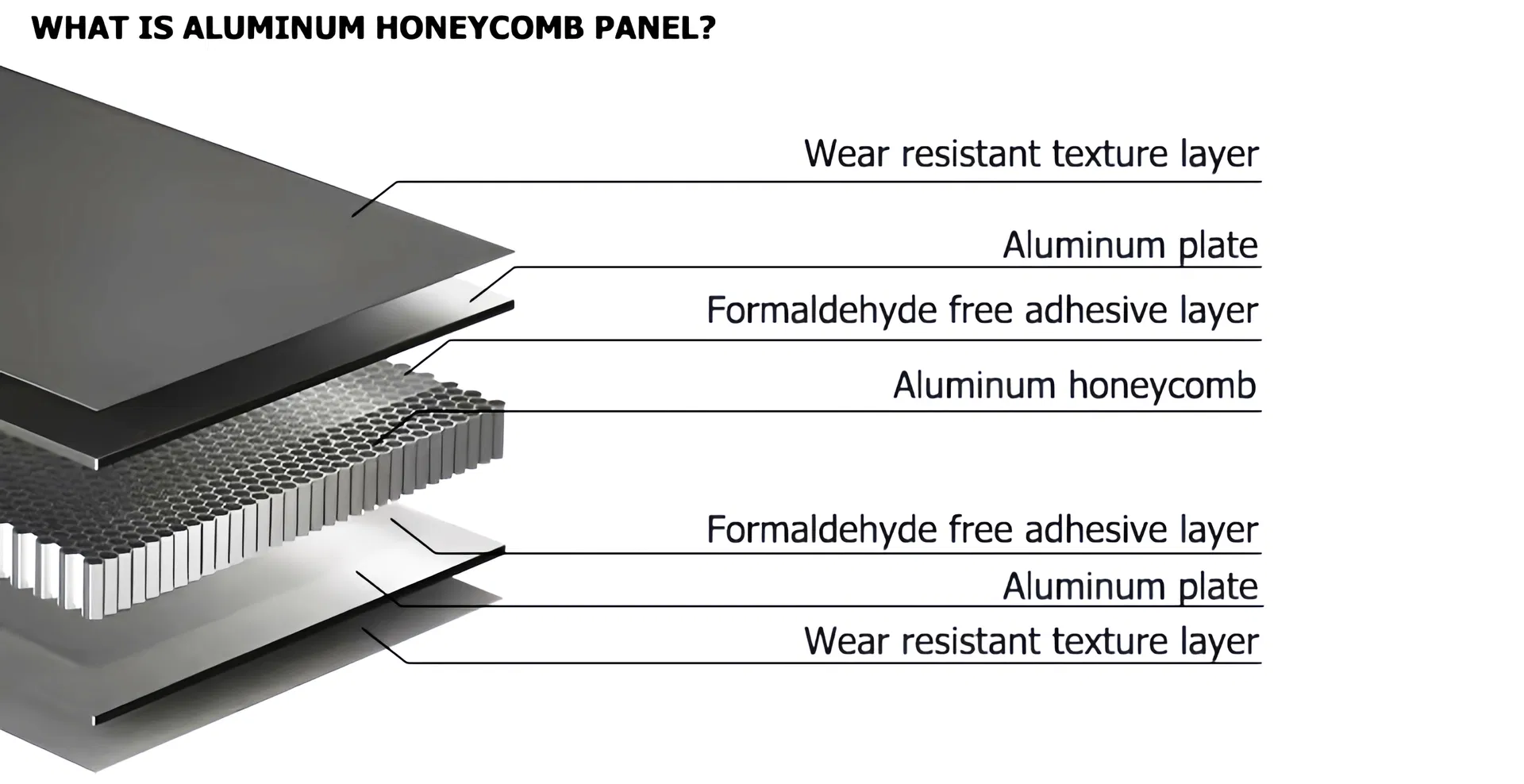

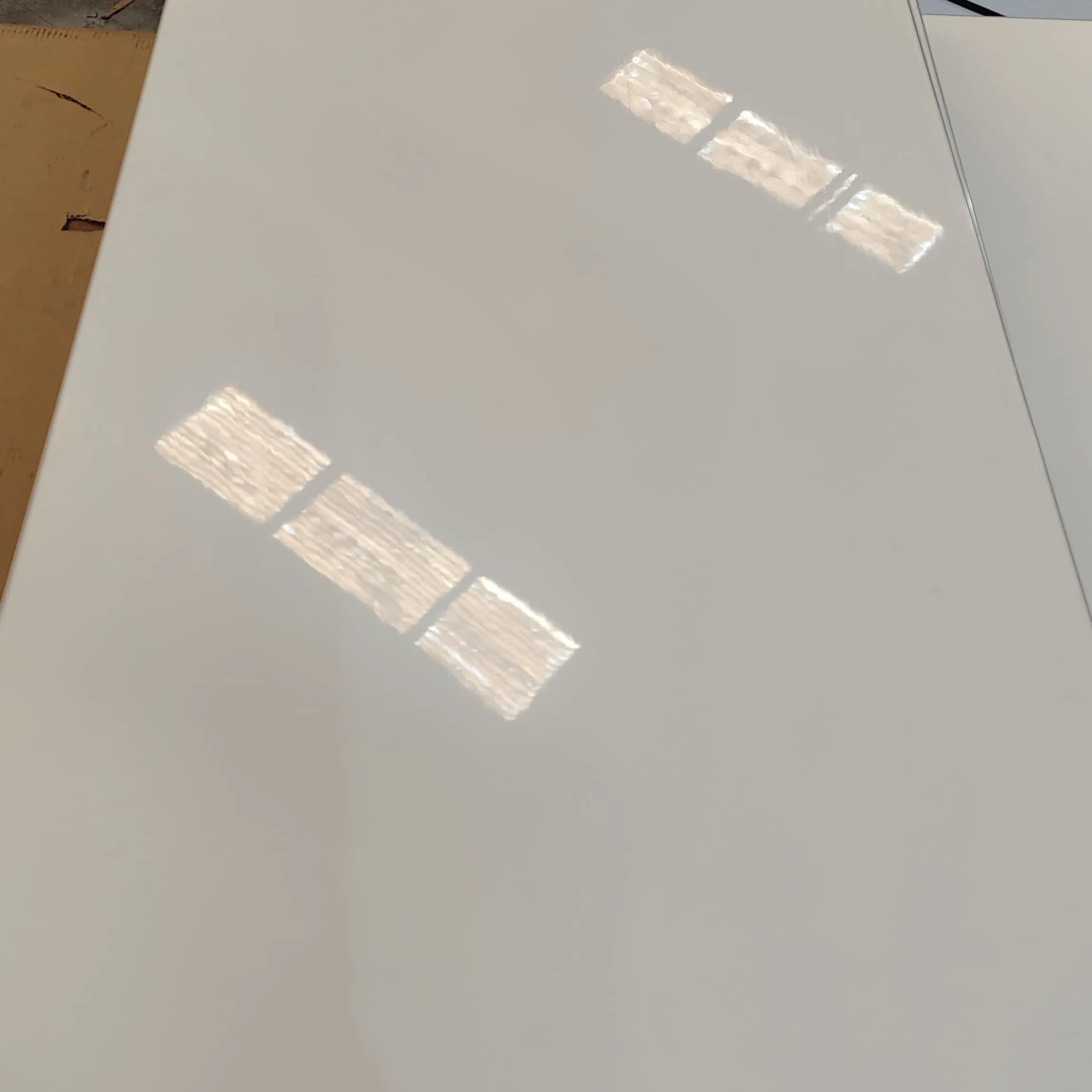

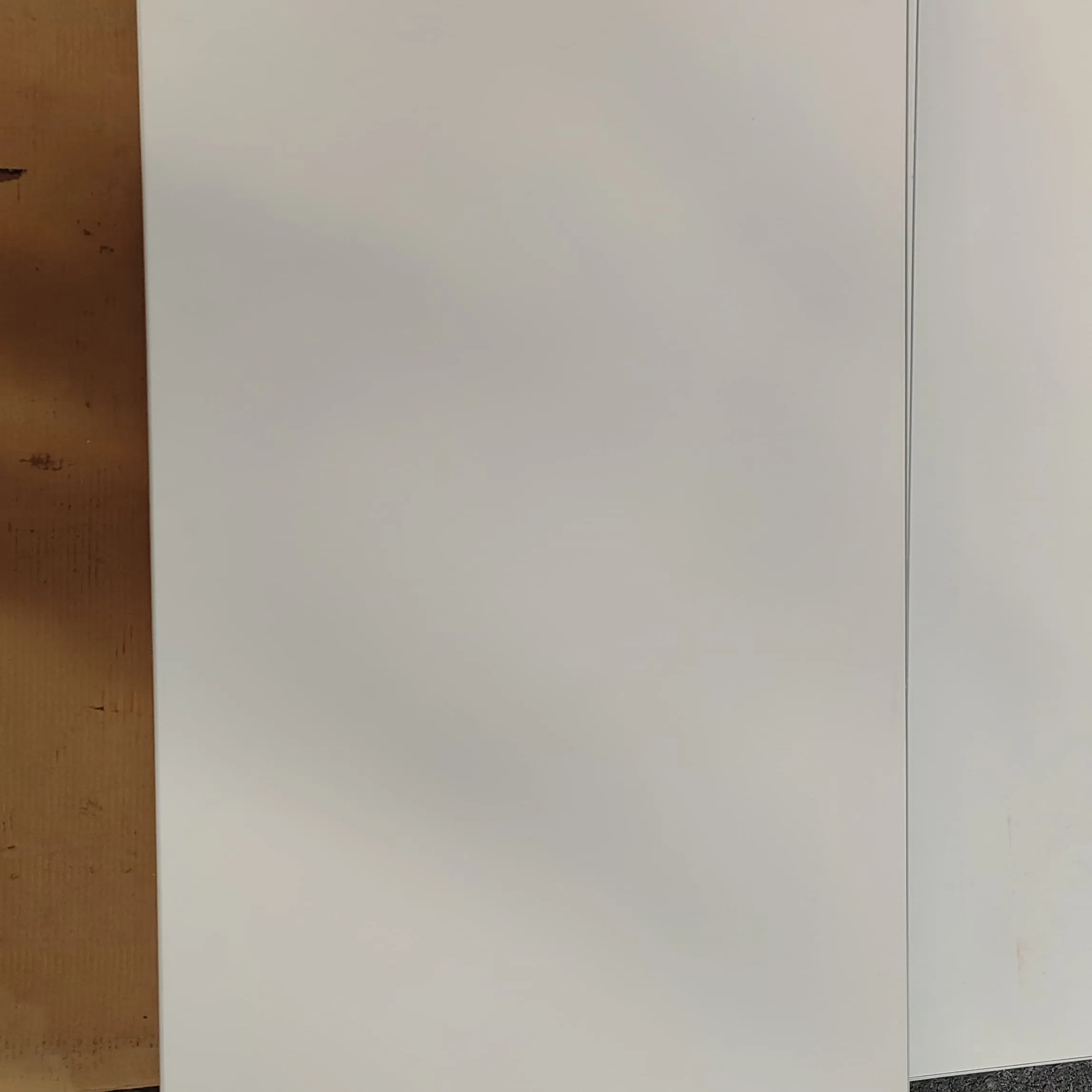

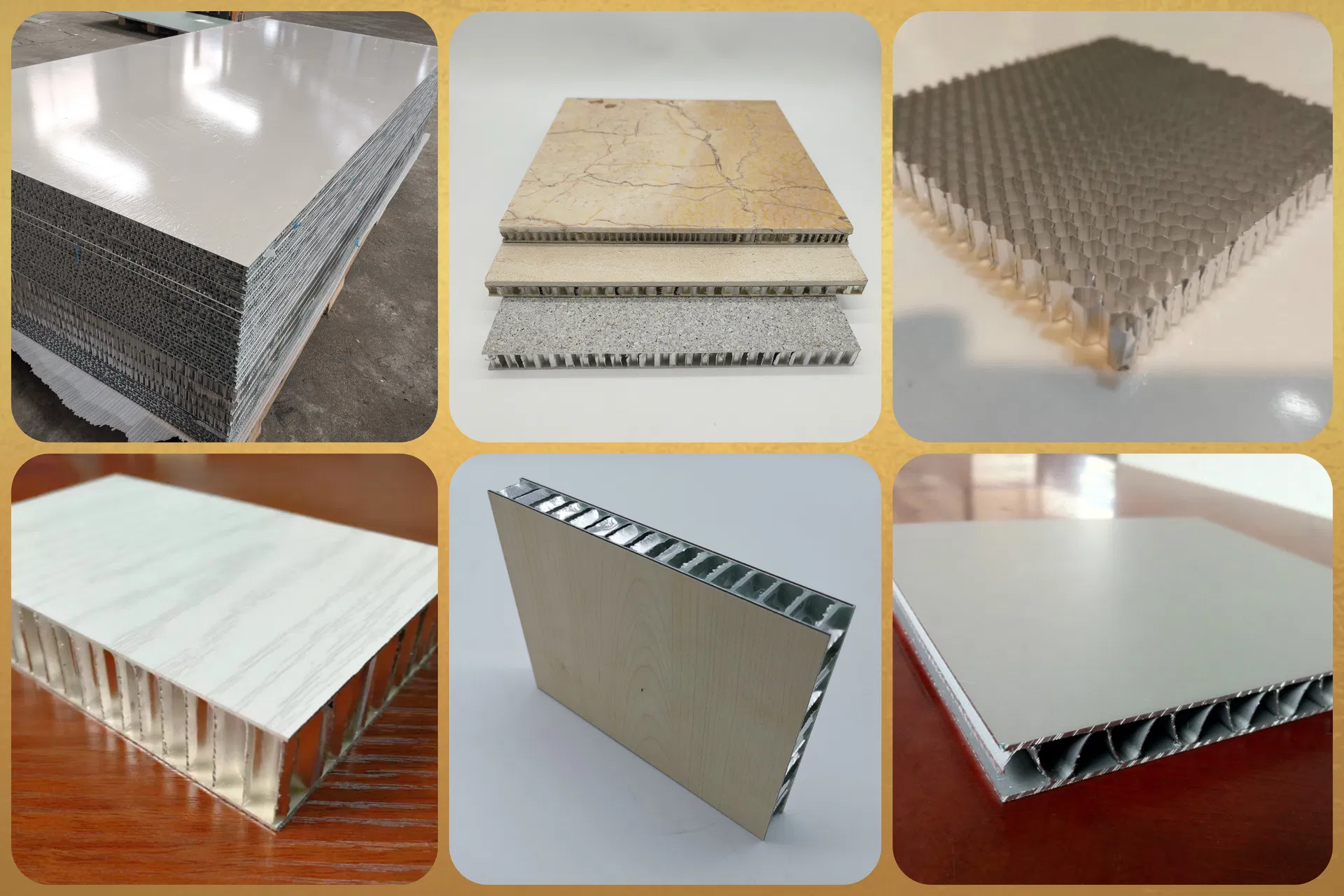

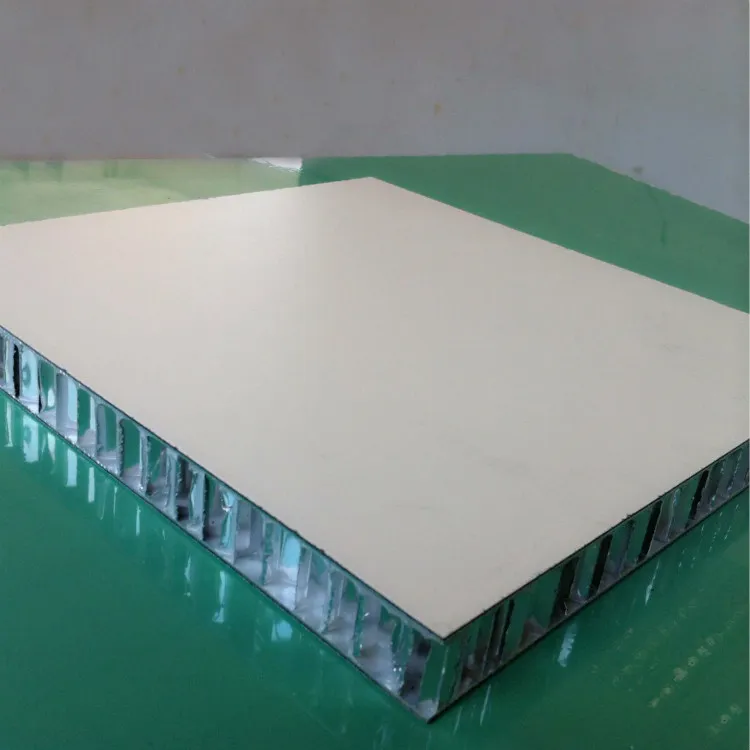

Aluminum honeycomb panels are lightweight composite materials made of two aluminum sheets bonded to a honeycomb-shaped core. They offer high strength-to-weight ratio, rigidity, and good thermal and acoustic insulation. Commonly used in architecture, transportation, and aerospace, they provide structural efficiency and aesthetic appeal.
| Item | Parameter Description |
|---|---|
| Product Name | All-aluminum honeycomb panel |
| Regular size | 1220×2440mm, 1200×2800 (customization supported) |
| Thickness range | 7mm ~ 30mm |
| Panel thickness | 0.7mm ~ 2mm aluminum plate |
| Honeycomb core | Side length 3mm~10mm |
| Aluminum foil | 0.035mm ~ 0.1mm thickness |
| Panel material | 3003/5052 aluminum alloy |
| Fireproof grade | A2/B1 (according to GB8624 standard) |

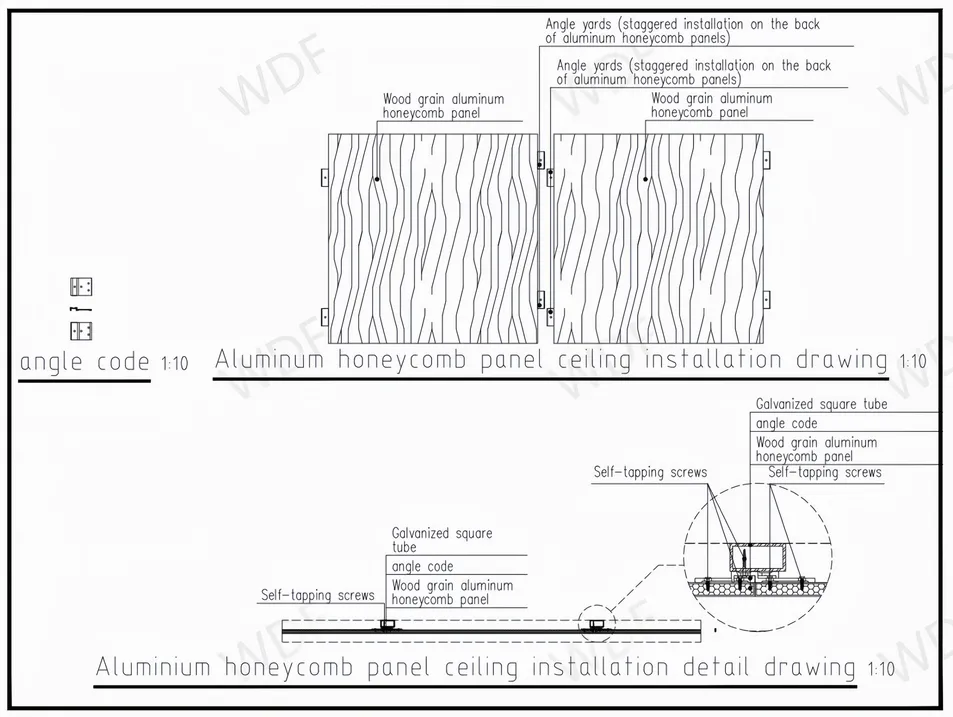

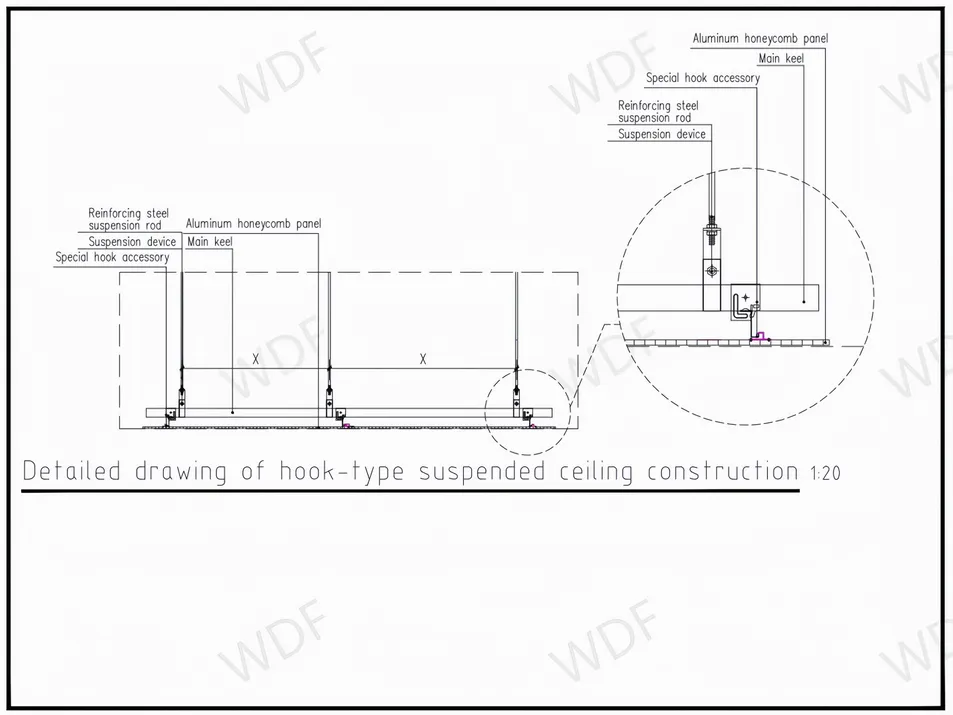

Aluminum honeycomb panels are suitable for installation in dry hanging systems and exposed/dark keel structures. Supporting aluminum alloy hangers, pressure strips, sealants and other auxiliary materials are provided. It can also be installed by leveling the steel structure and fixing the corner code, or by directly gluing to the wall after leveling.
Aluminum Honeycomb Panel

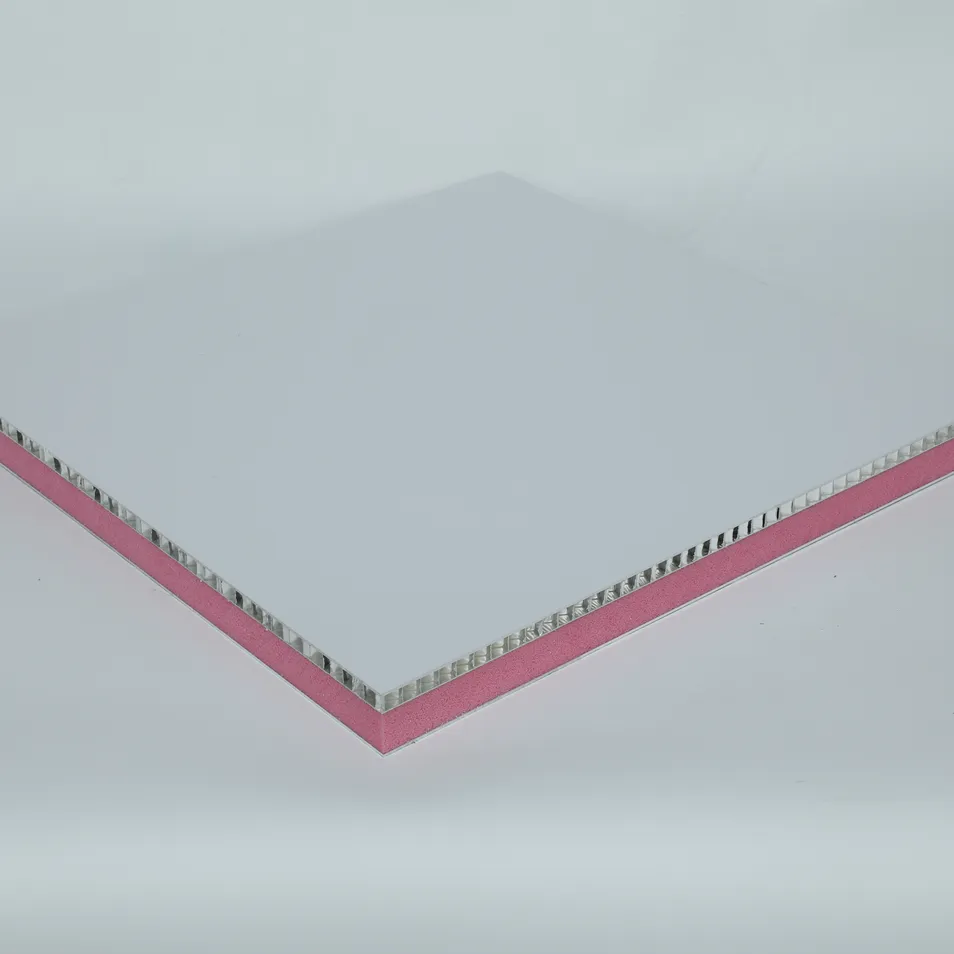

Alu EPS Panel

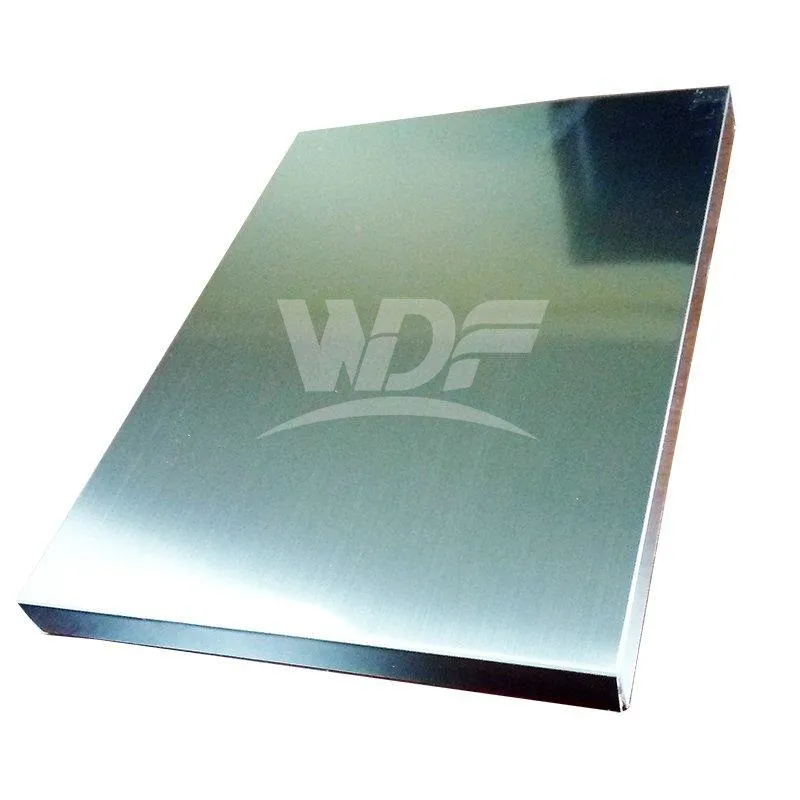

Stainless Steel Honeycomb Panel

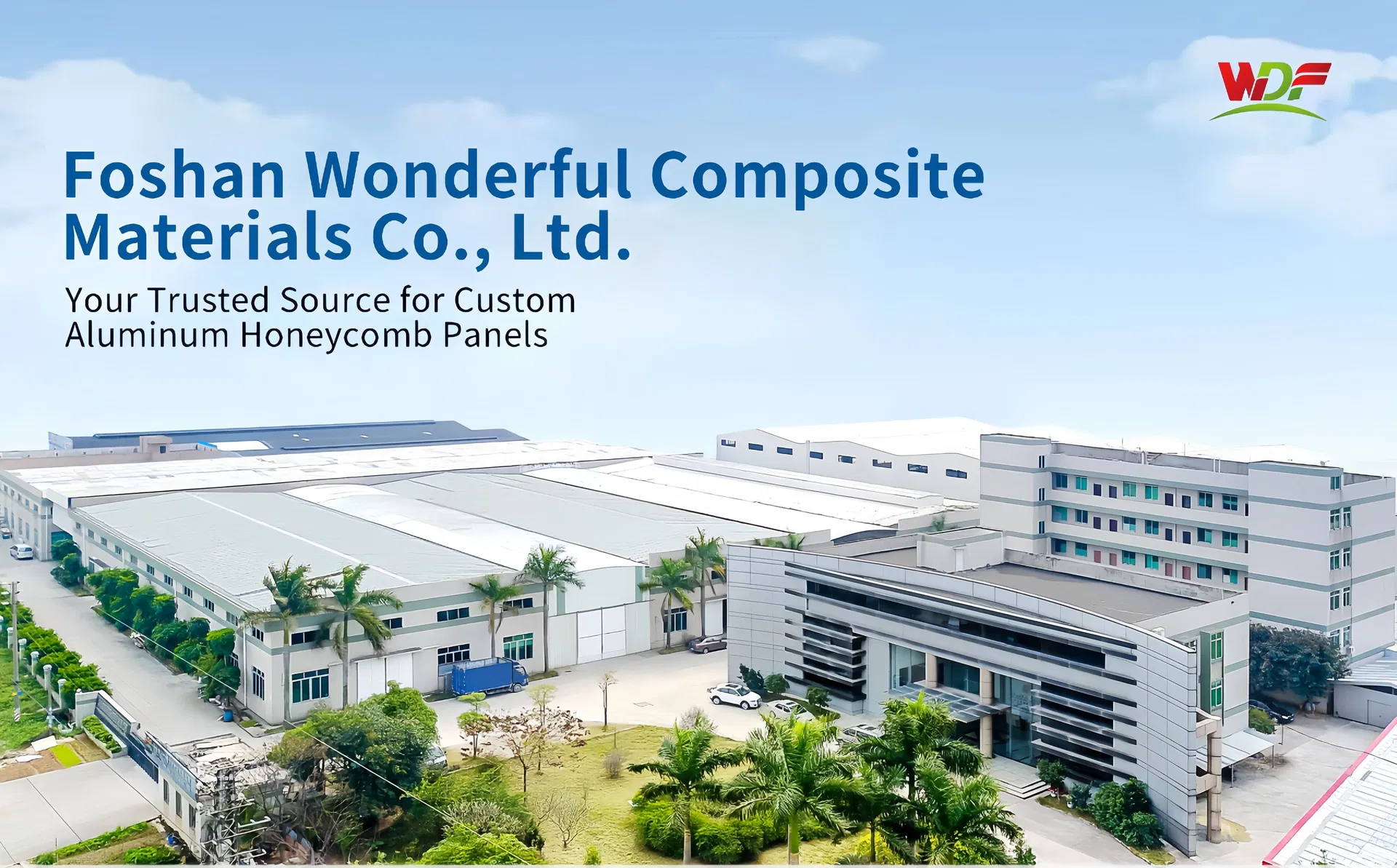

Our facility is specialized in new composite materials research, development, and production. Spanning more than 30,000 square meters with a building area of over 20,000 square meters, we utilize advanced equipment and technology for producing aluminum honeycomb cores, plastic plates, glass fiber reinforced panels, and stainless steel composite panels.
