Basic Information
Model NO.GK-ACF4-30
Surface FinishingCoating
Panel Thickness4mm
Aluminum Thickness0.3mm
FunctionFireproofing, Anti-static, Anti-Bacterial, Mould-proof
UsageExternal Wall, Curtain Wall, Interior, Advertising
CertificationCE, ISO
CoatingPE Coating / PVDF Coating
Colors60 Colors, Special Colors Available
Transport PackagePacking Bulk or Paking in Bulk
Specification1220*2440mm and customized
HS Code7606119100
Production Capacity300000 Square Meters/Month
Product Description

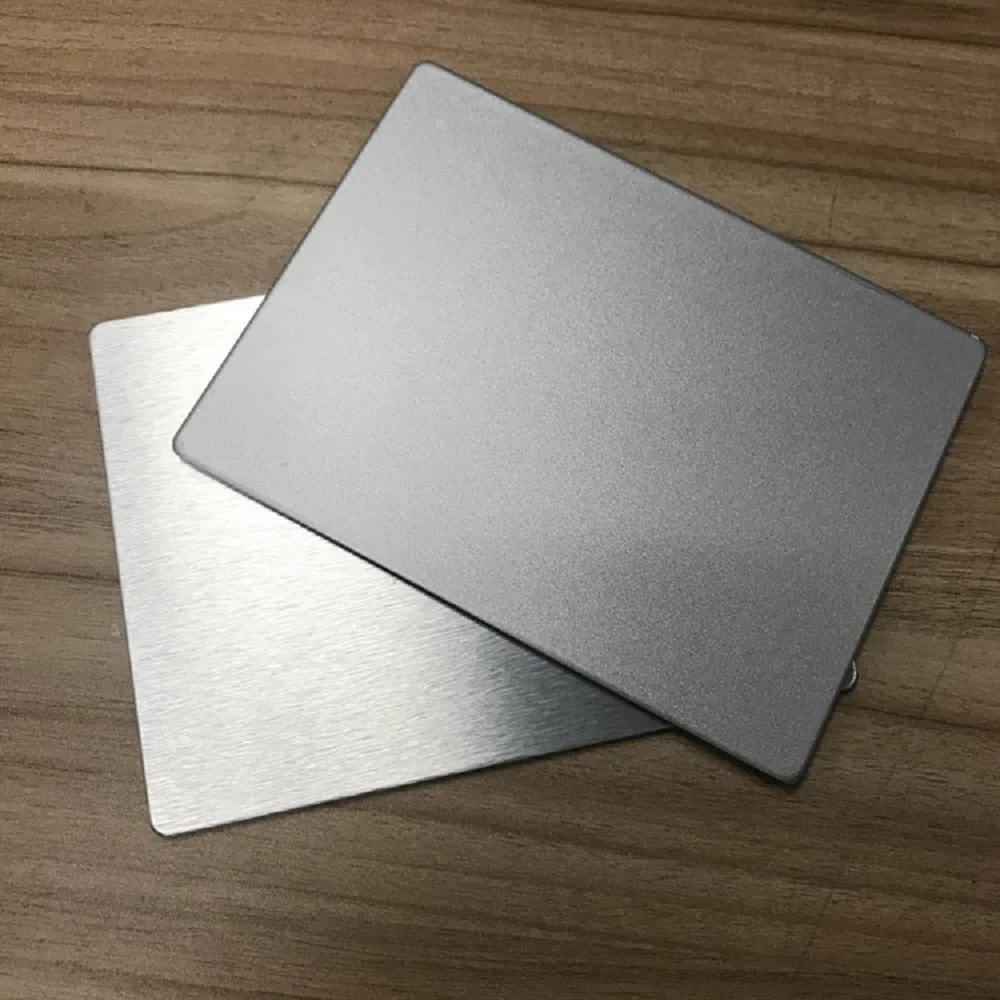

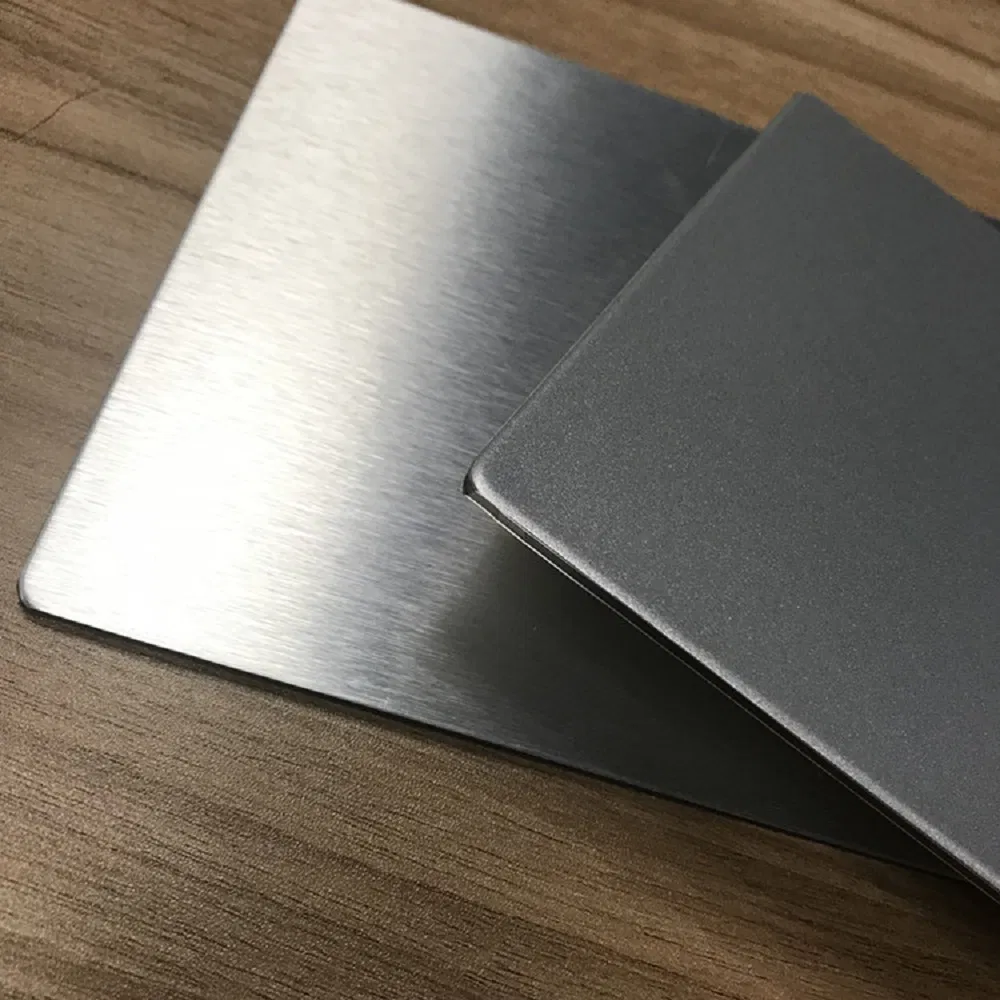

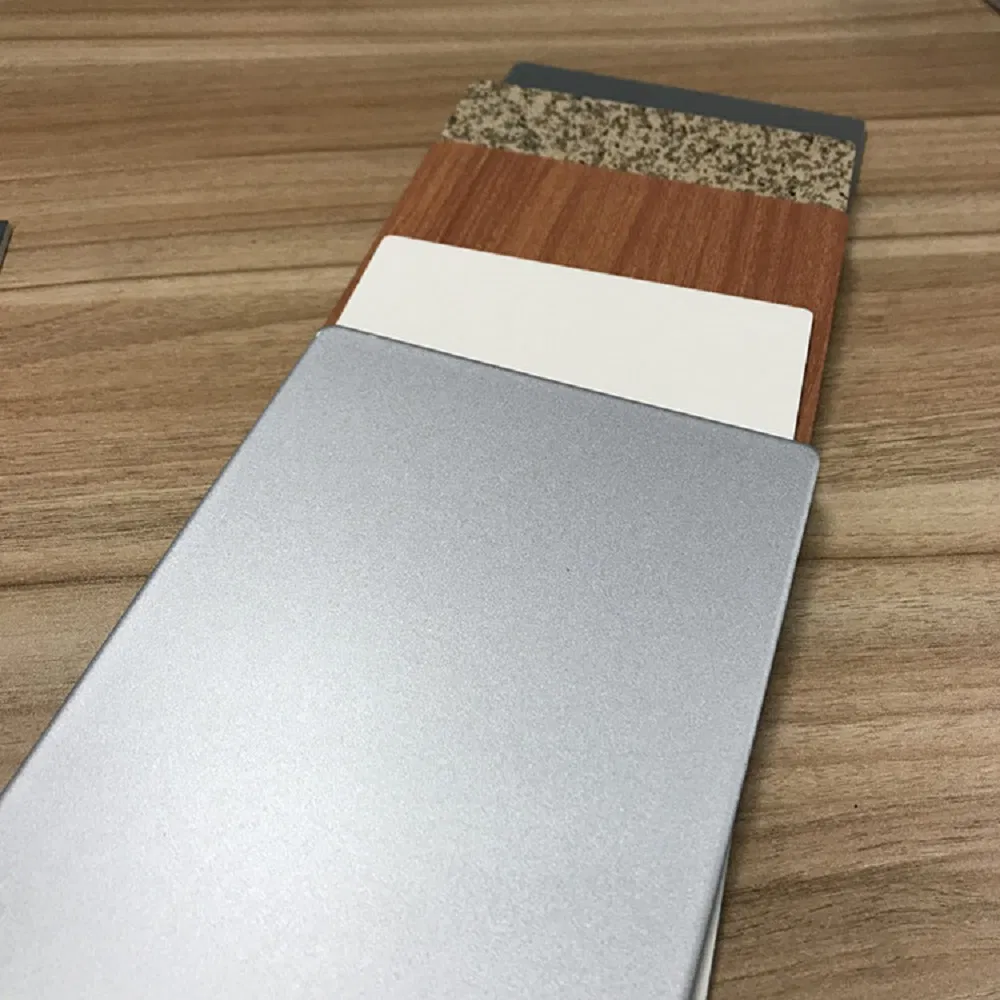

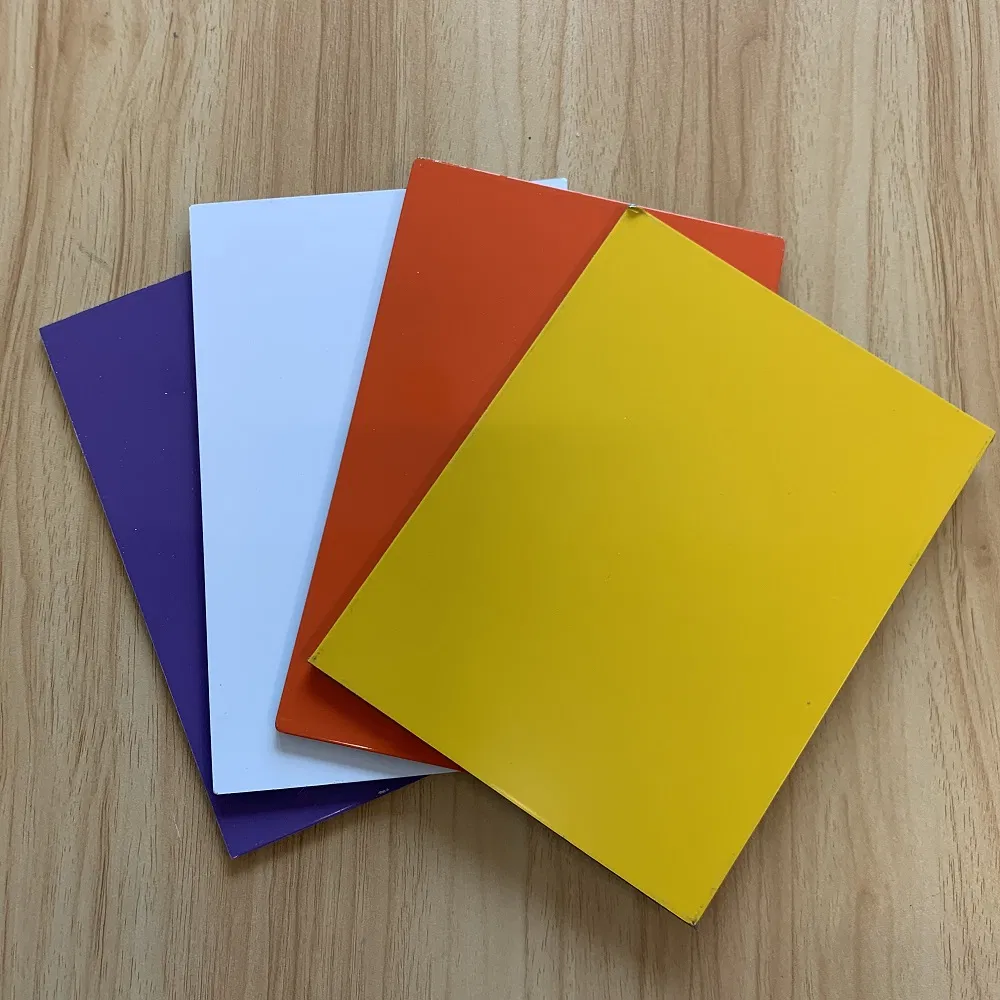

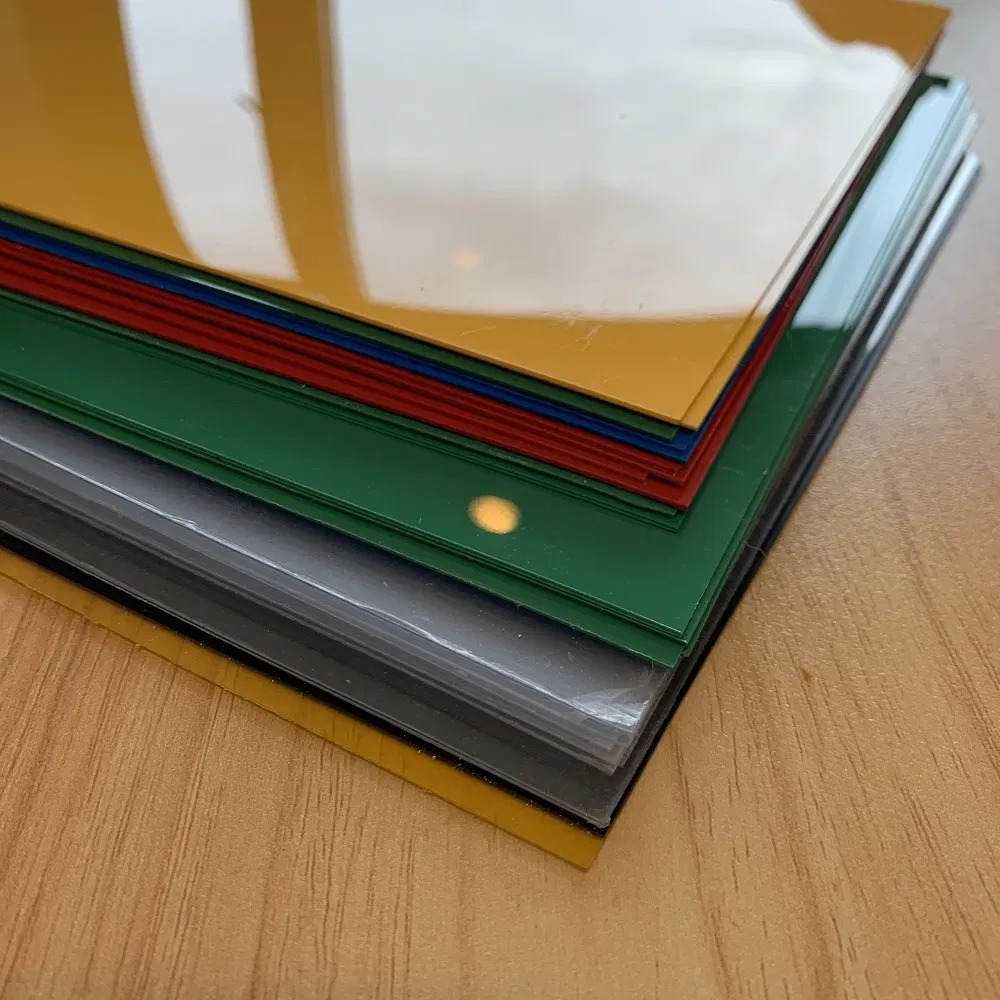

Short Description: Aluminum composite panel (ACP) consists of polyester aluminum composite panel and PVDF aluminum composite panel.
Polyester aluminum composite panel consists of aluminum layers on both sides with a polyethylene core, coated with a polyester lacquer. This lightweight material is easy to fabricate, making it ideal for creative indoor and outdoor applications.

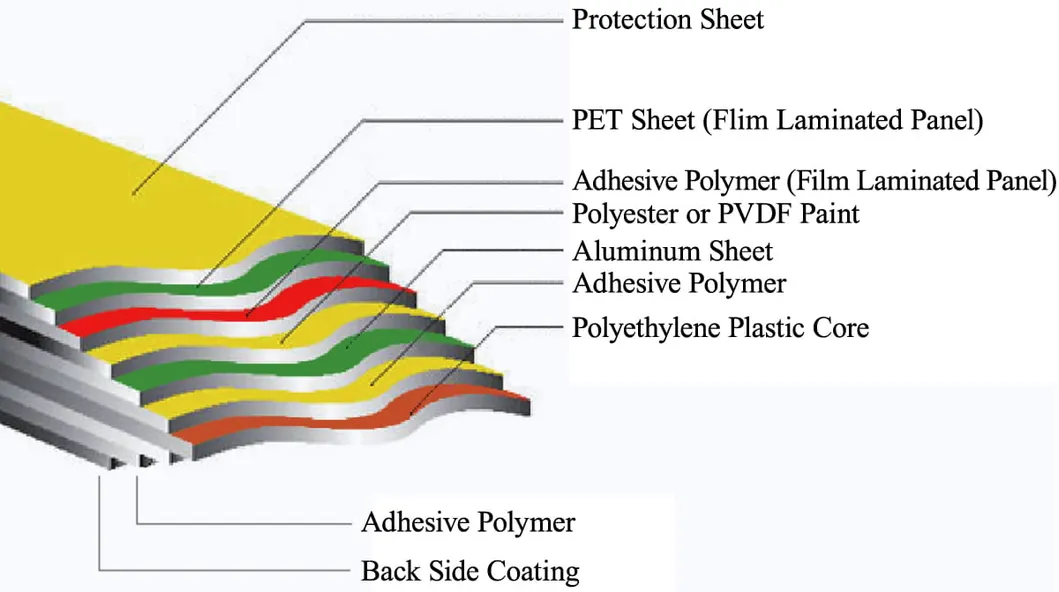

PVDF aluminum composite panel features two layers of aluminum skin sandwiching a PE core via continuous extrusion. The outer surface uses PVDF Kynar500 fluorocarbon coating for a long-lasting, durable finish for wall cladding.
Main Features
- High Mechanical Strength & Toughness
- Anti-Fungus & Super Peel Strength
- Both Rigid & Flexible
- Low & High Temperature Resistance
- Superior Weathering Resistance
- Light Weight & Easy For Process
- Excellent Fire-Resistance Property
- Coating Evenness & Diversified Colors
- Easy For Maintenance & Impact Resistance
- Quickly Installed & Self-Cleaning
Technical Specifications
| Specification Item |
Detail Details |
| Product | Aluminum Composite Panel, ACP |
| Aluminum skin | 0.08/0.1/0.12/0.15/0.18/0.21/0.25/0.30/0.35/0.4/0.45/0.5mm |
| Panel Thickness | 2-8mm |
| Standard Size | 1220*2440mm, 1250mm*3050mm, 1500*3050mm, 2000*3000mm |
| Color Options | 60 colors, special colors available upon request |
| MOQ | 500 sqm |
| Delivery Time | 10-15 days after confirmation |
Technical Performance Data
| Color difference | ΔE <= 2.0 |
| Pencil hardness | >= 2H |
| Coating adhesion | Grade 1 |
| Impact test | No split |
| Peeling strength | 5N/mm |
| Resist solvent | No change (100 times Dimethy benzene) |
| Thermal Expansion | 2.4mm/m (at 100ºC diff) |
| Detergent resistance | No change (3%) |
| Chemical resistance | No change (2% HCI or 2% NaOH) |
| Boiling water resistance | No change (2 hours) |

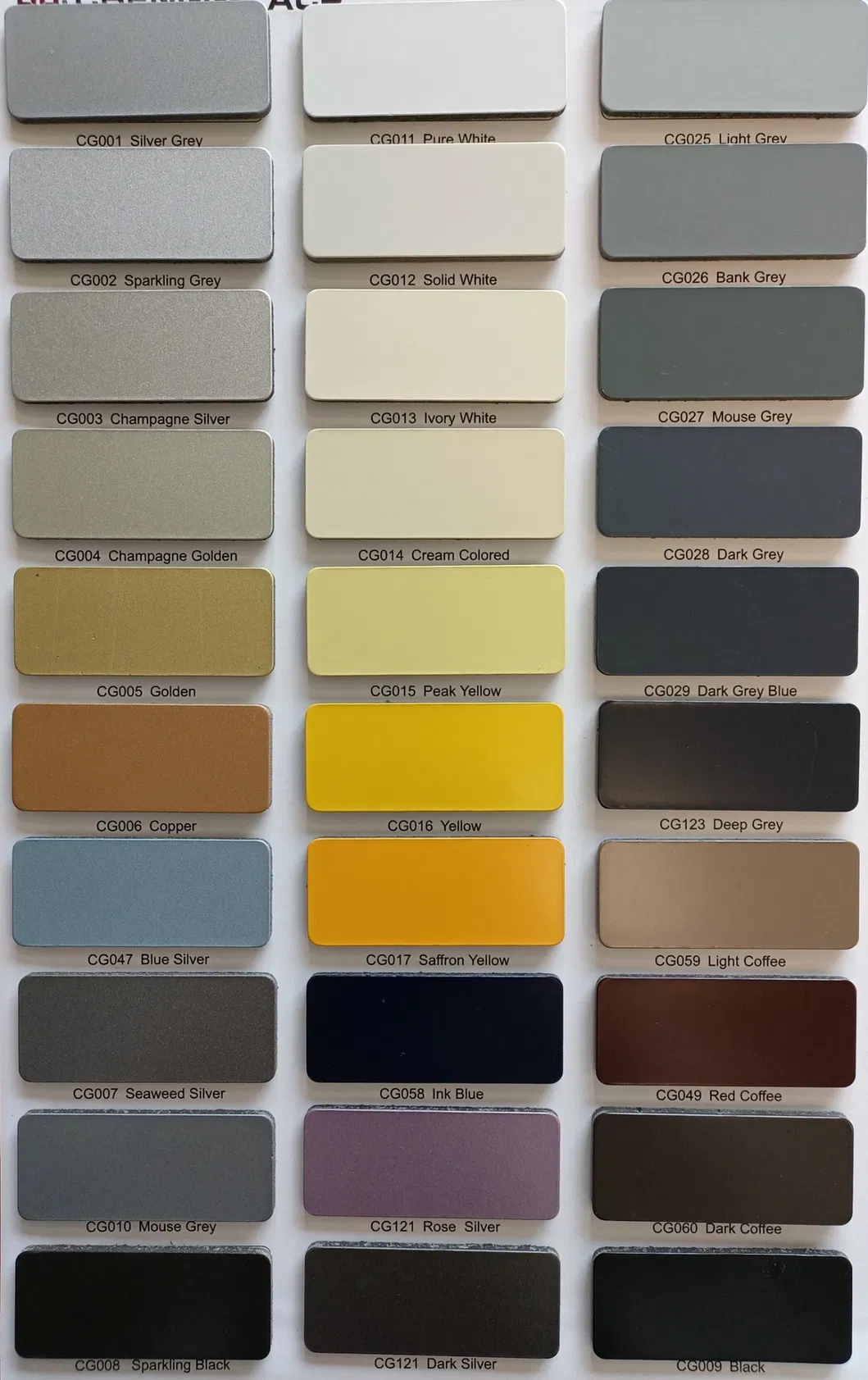

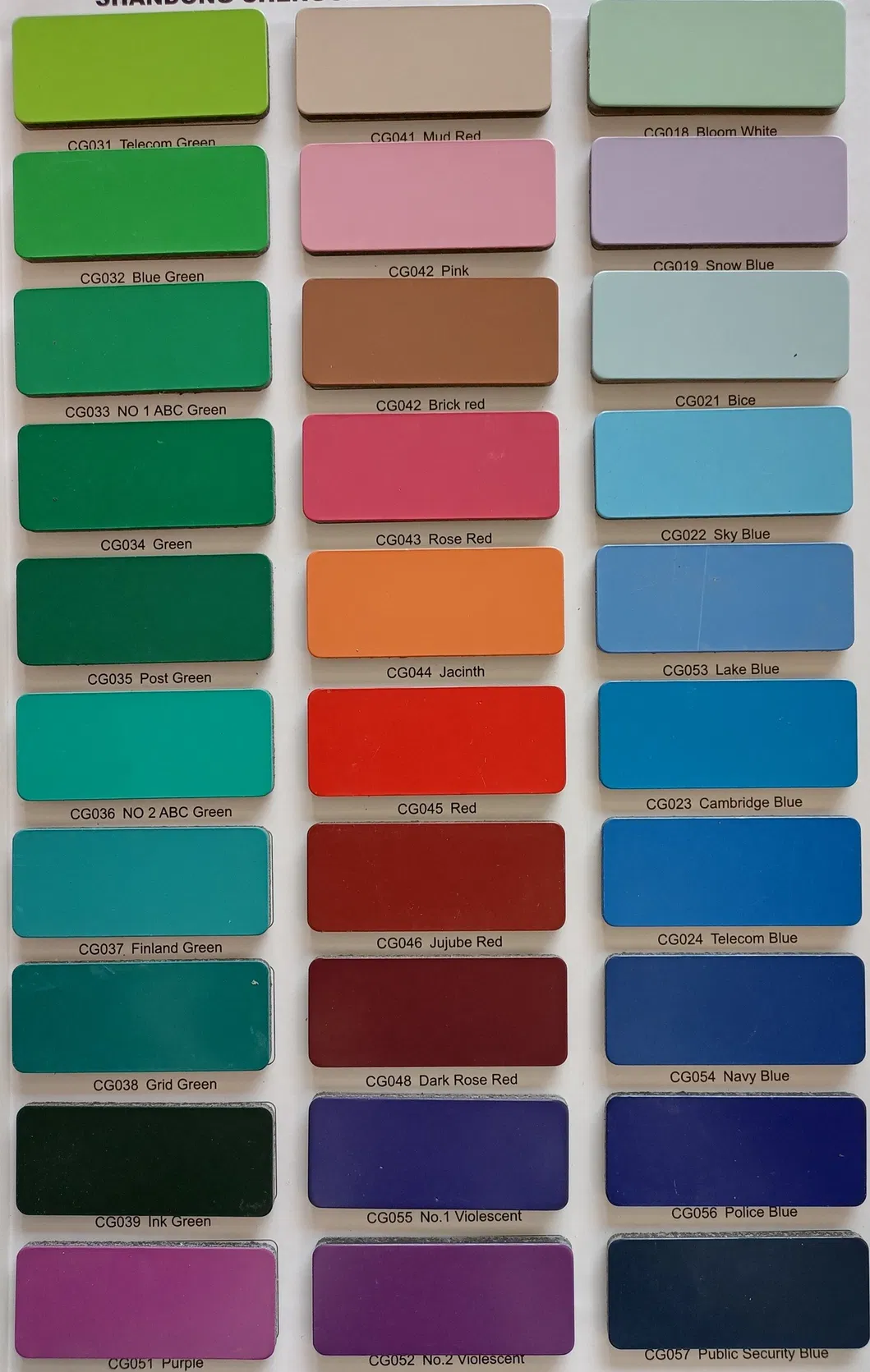

Color Chart & Selection

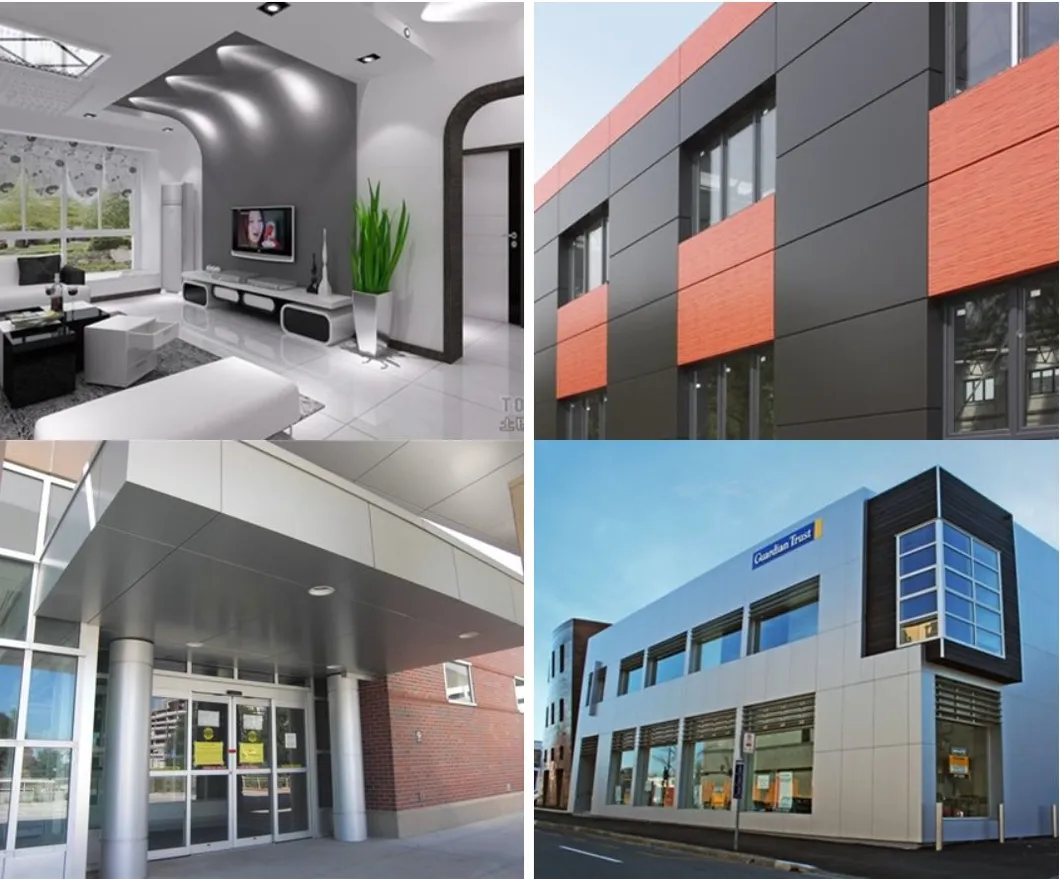

Product Applications
- Wall curtain, Cladding and Facade
- Roof edges and Parapet walls
- Dado, Separation walls and Partitions
- Interior walls, Ceilings, Bathrooms, Kitchens
- Advertisement boards and display platforms
- Column covers and Beam wraps
- Industrial and transport materials

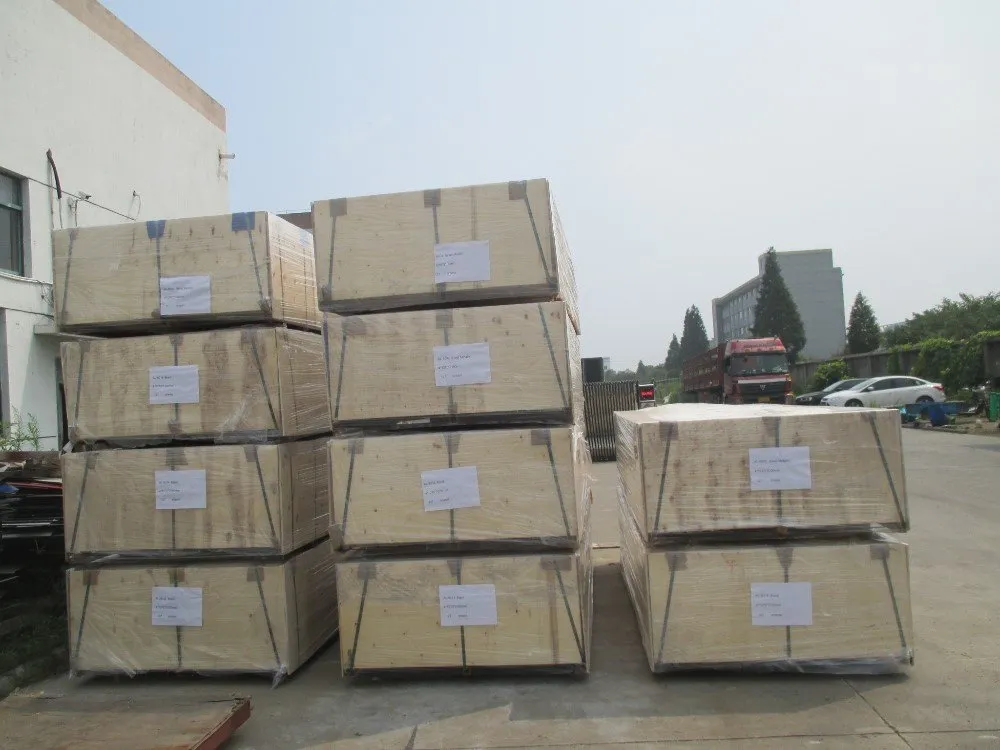

Packaging & Logistics
Our Advantages & Service
Core Advantages:
- Free OEM production for all partners
- Free customized color charts
- 15-20 days fast delivery efficiency
- Annual volume rebates (2%~3% for >60,000 SQM)
- Provision of all installation auxiliary materials
Quality Guarantee:
- PVDF Coating: 20 years guarantee
- PE Coating: 5-8 years guarantee
- Comprehensive after-sale problem solving and installation charge coverage for major quality issues
Frequently Asked Questions
Q1: What are your standard payment terms?
We typically offer two main payment options: TT (Telegraphic Transfer) or LC (Letter of Credit) at sight.
Q2: What packaging methods are available for ACP?

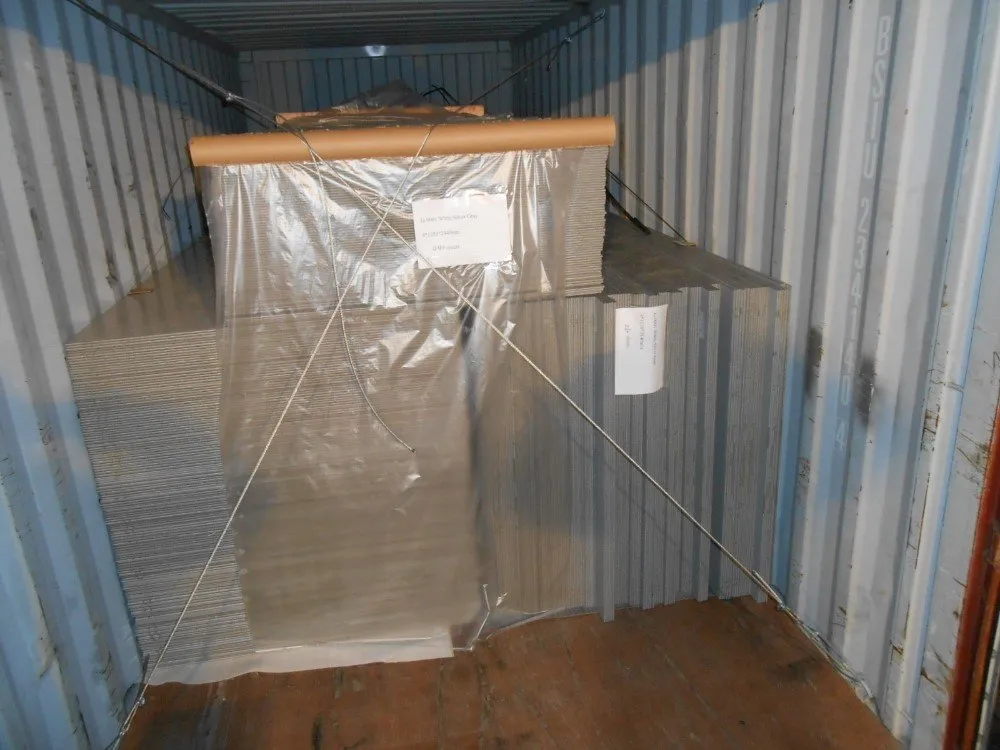

We offer two types: Bulk packaging (panels loaded directly into the container) and wooden box packaging for extra protection.
Q3: Do you have international test certificates?
Yes, our products are manufactured to high standards and have passed ISO, CE, and SGS certifications to ensure stable quality.
Q4: Do you provide OEM services with custom logos?
Yes, OEM is fully accepted. We can design custom protective films featuring your company logo for your selection.
Q5: Are samples available before placing a bulk order?
Yes, we provide samples to interested customers to verify the quality and color before proceeding with orders.
Q6: What is the delivery lead time?
Normally, the production and delivery cycle takes approximately 10 to 15 days after the order confirmation.
