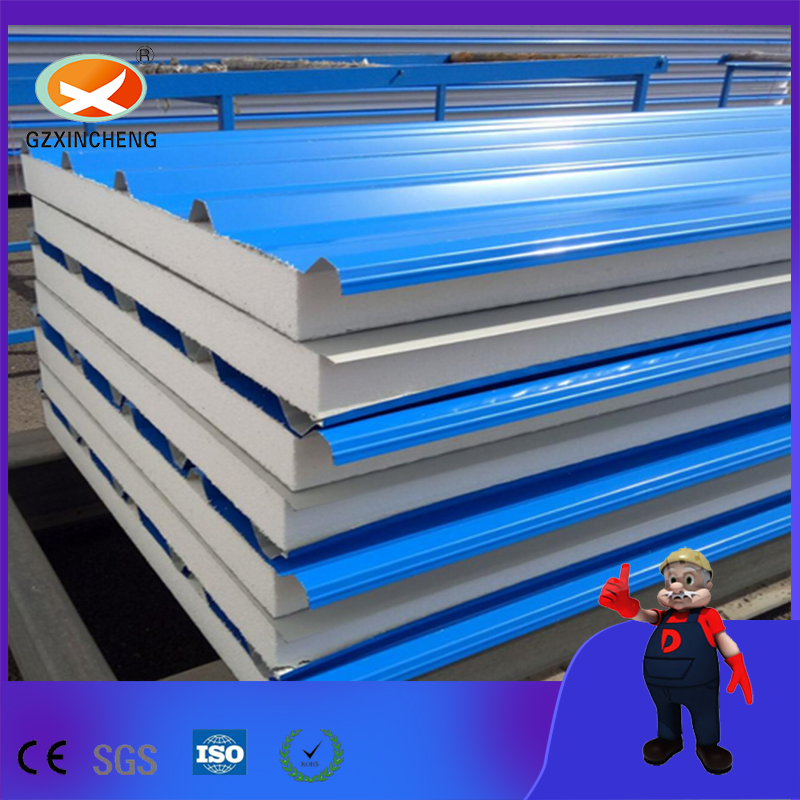

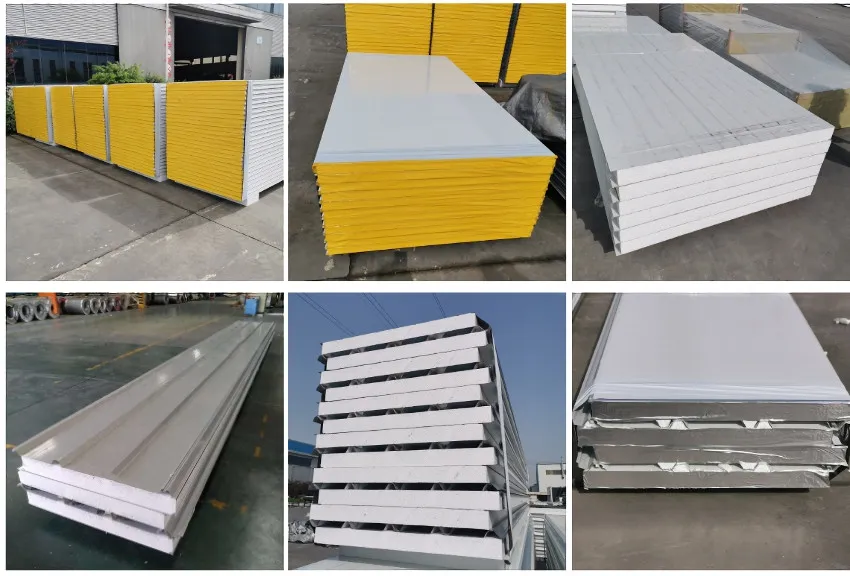

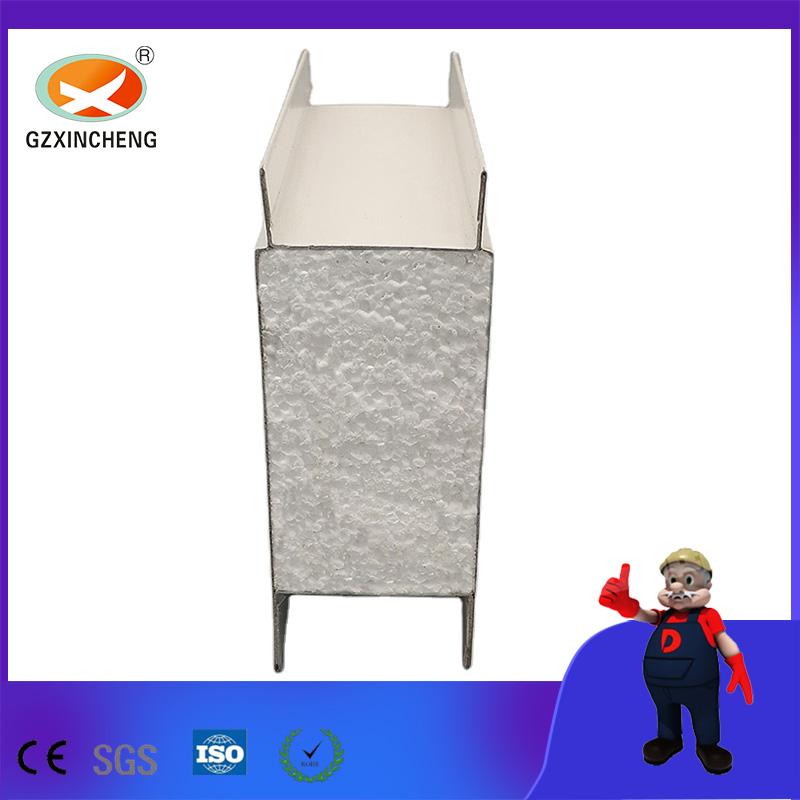

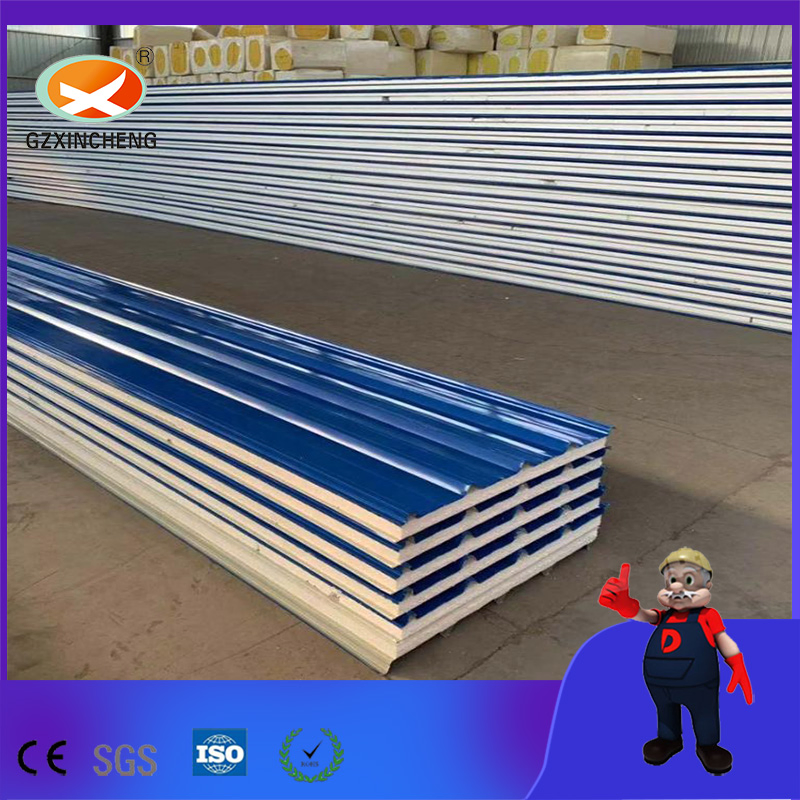

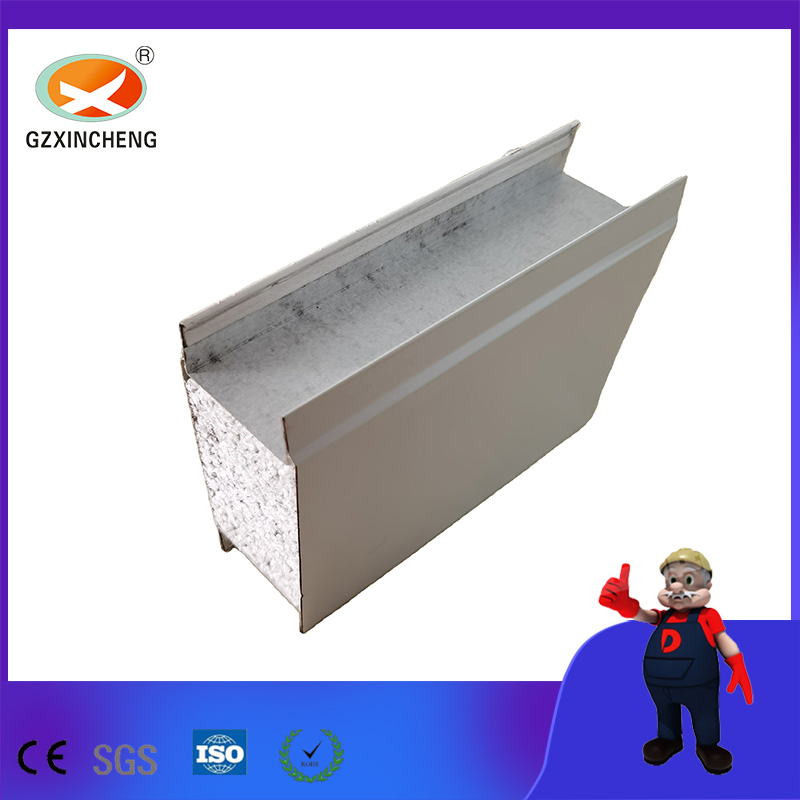

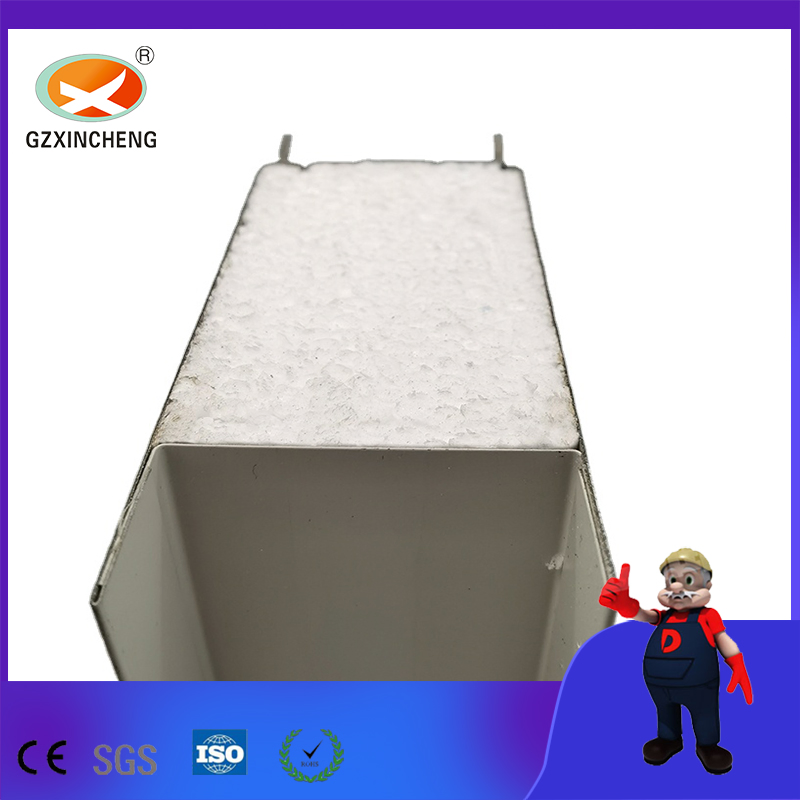

The EPS Sandwich Panel is suitable for various roofs and walls referring to large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purification workshops, garages, shops, and more. It features excellent temperature-keeping, heat insulation, weight-bearing, and weatherproof capabilities with rich colors and a professional appearance.
| Product Name | EPS Sandwich Panel |
| Density of EPS | 8-20kg/m3 |
| Effective Width | 950mm / 1150mm |
| EPS Core Thickness | 50mm, 75mm, 100mm, 150mm, 200mm |
| Steel Thickness | Normal: 0.3-0.6mm |
| Length | Customized (Standard less than 11.8m for containers) |
| Color | China Red, Sea Blue, White Grey, etc. |
| Thermal Conductivity | 0.038W/M.K |
| Water Absorption | ≤6% |
| Compression Strength | ≥69KPa |
| Dimensional Stability | ≤5% (70ºC, 48h) |
| Application Temp | -20ºC to 75ºC |
