1) The 110 series is an elegant and affordable casement system featuring a integrated mesh design. The glass sash opens outwards, while the mesh sash and burglar grill open inwards for maximum convenience.

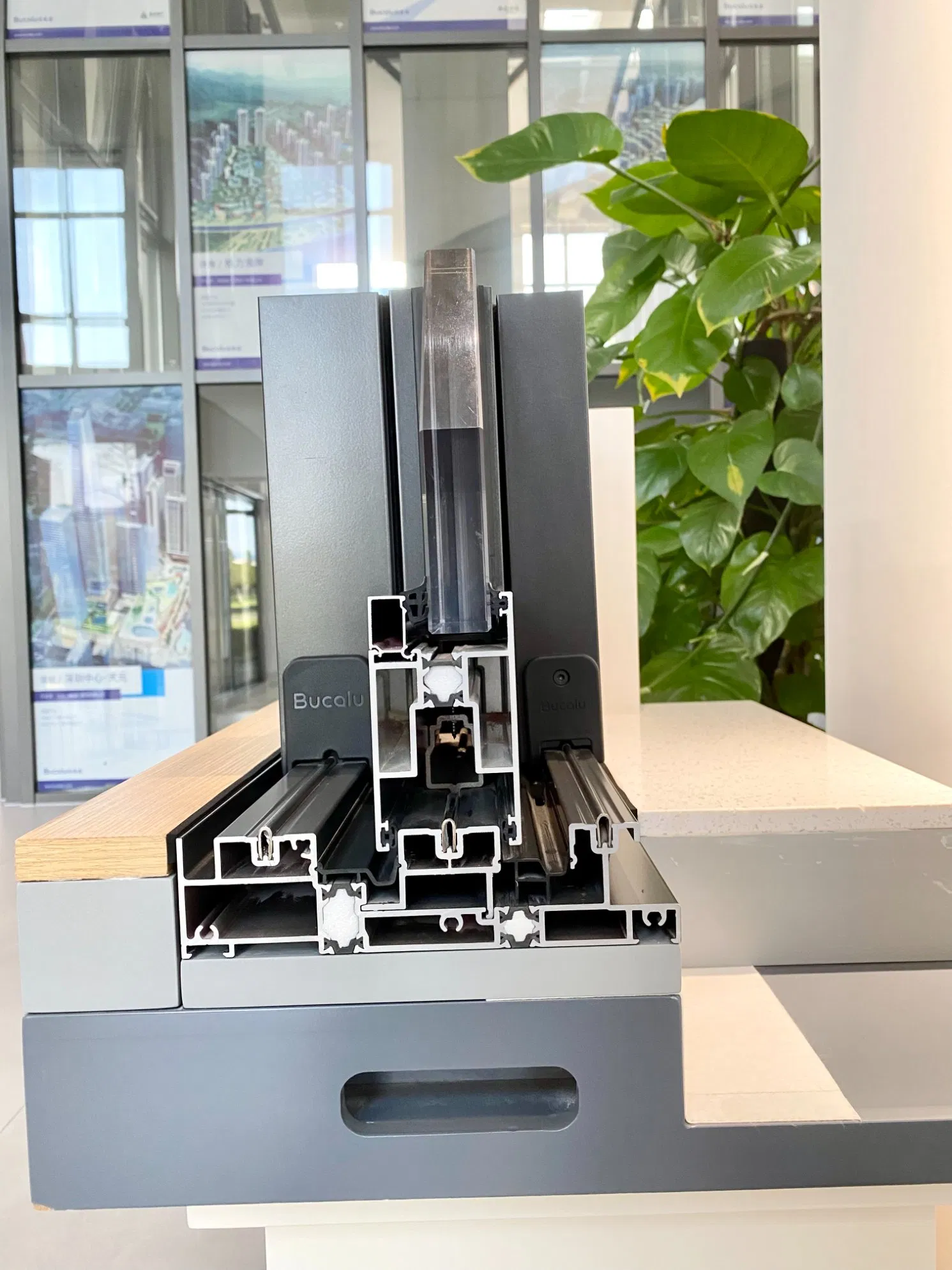

2) Utilizing high-quality EPDM tape and a triple-seal design, this system guarantees exceptional air and water tightness.

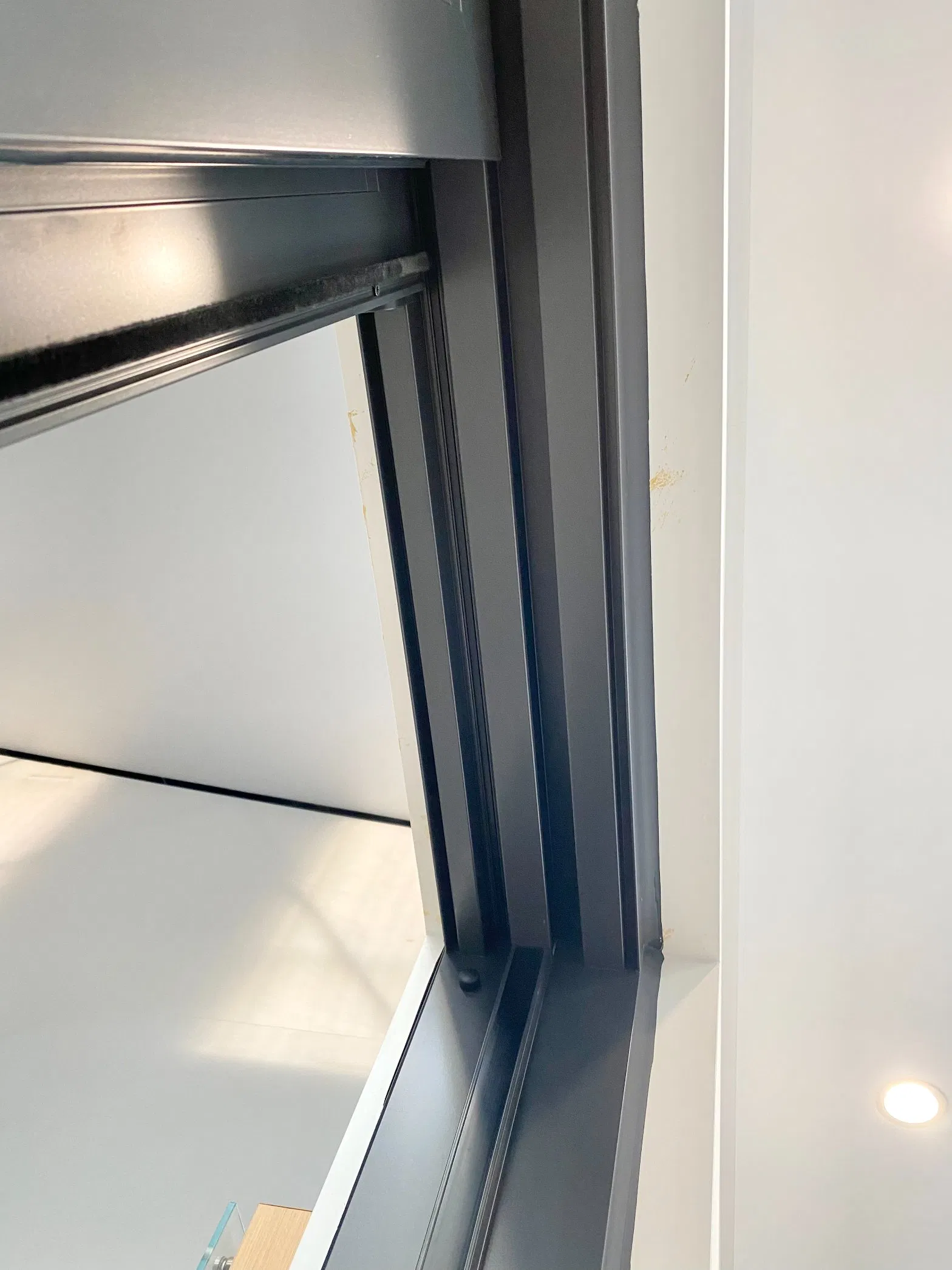

3) The opening sash flushes perfectly with the interior frame side, ensuring a neat and clean perimeter aesthetic.
| TECHNICAL PARAMETERS & PERFORMANCE | ||||
|---|---|---|---|---|
| Heat Preservation | Sound Insulation | Watertight | Airtight | Wind Resistance |
| 2.0-2.2 W(m2.k) Level 6 |
35DB Level 4 |
500PA Level 5 |
Level 6 | 4.1KPA Level 7 |
| DIMENSION PARAMETERS | |||
|---|---|---|---|
| Sash Range (mm) | Visible Width (mm) | Depth (mm) | Glass Thickness |
| Width: 300-800 Height: 300-1600 Max Weight: 40kg |
Frame: 52mm Sash: 70mm |
Frame: 110mm Sash: 55mm |
DGU: 30mm |

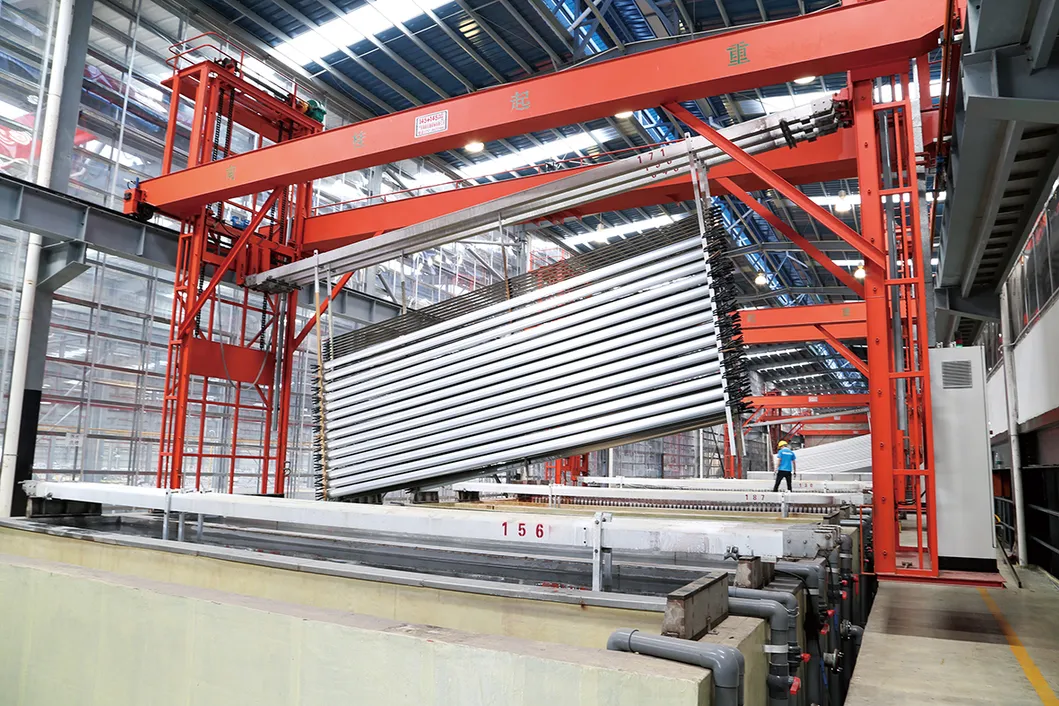

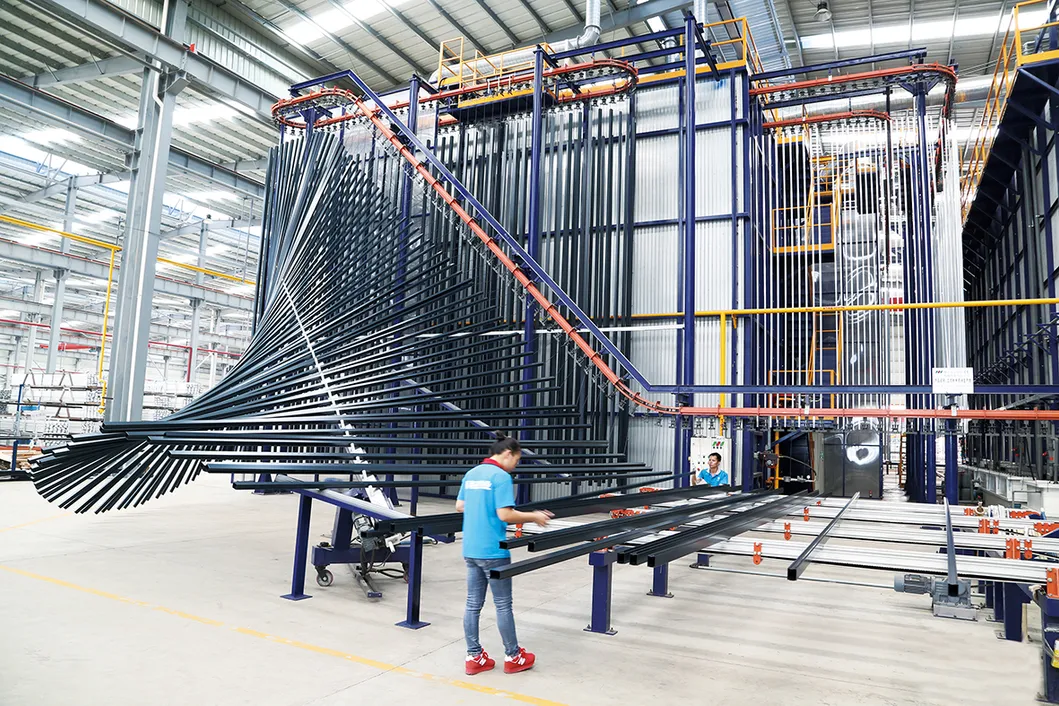

POWDER COATING, ANODIZED AND WOODEN FINISH

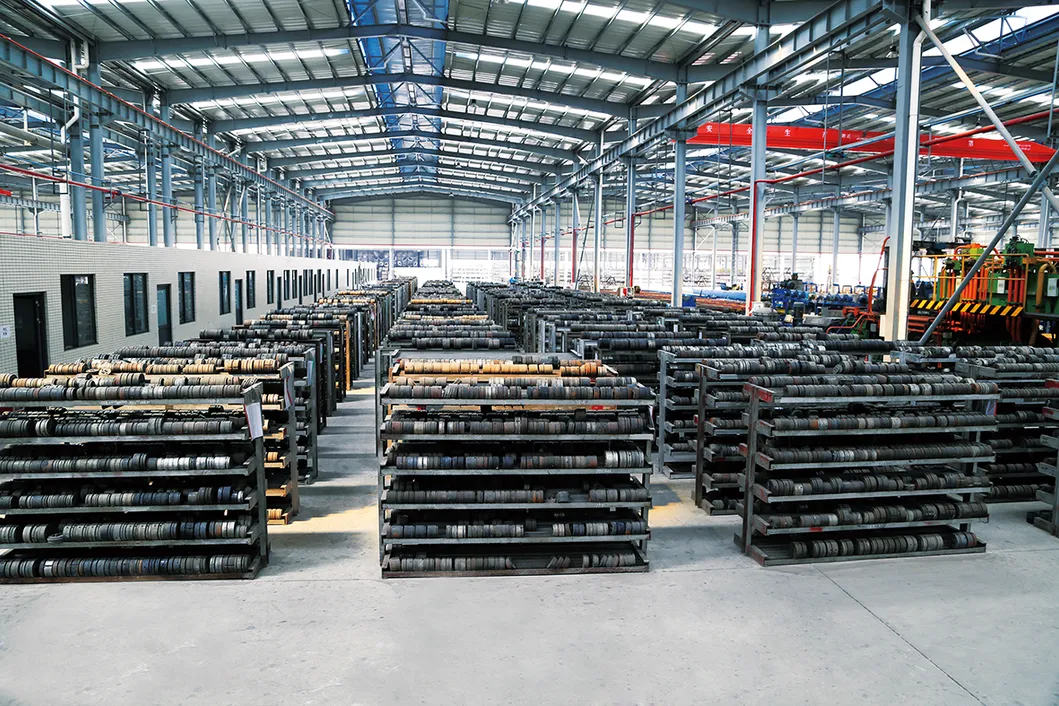

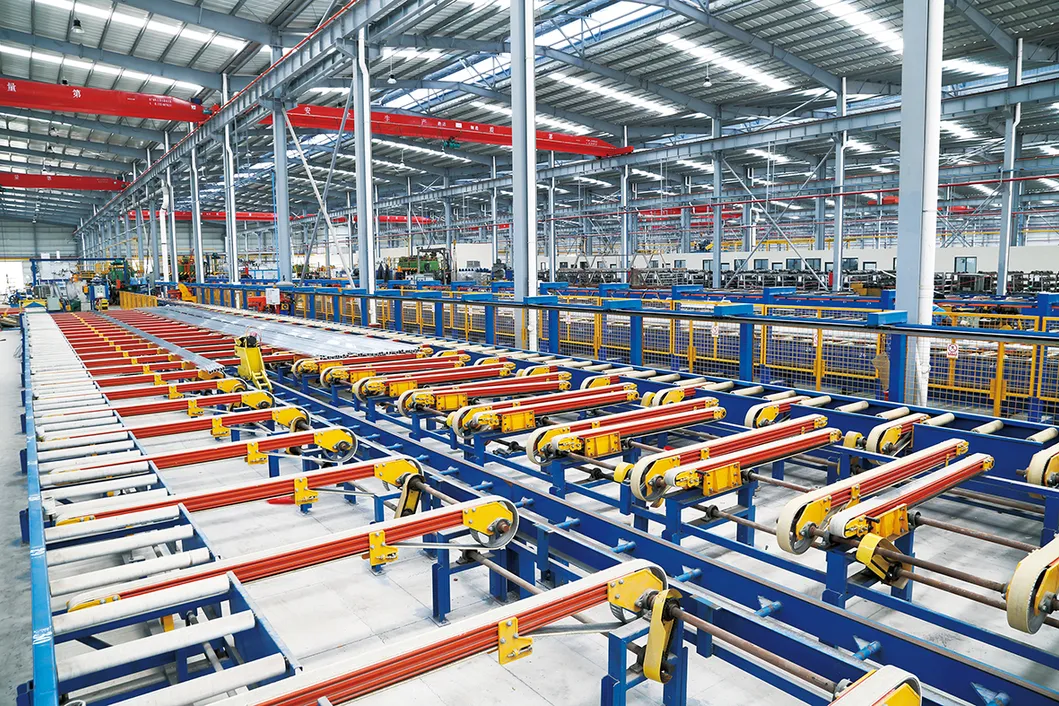

MANUFACTURING CAPACITY
| Aluminium Alloy | Extrusion Diameters | Lines | Annual Output |
| 6063/6061-T4,5,6 | 80mm-300mm | 14 Extrusion Lines 2 Casting Lines |
100,000 Tons |
Available Product Range:
Professional Services:
• Customized Solutions: Professional suggestions for engineering and design needs across complex projects.
• Technical Support: Wind load calculations, façade optimization, and detailed installation guides.
• System Design: Development of new window and door systems matched with high-quality accessories.
