Basic Specifications
Model NO.
Aluminum formwork
Surface Treatment
Paint Spraying
Transport Package
Standard Package
Package Size
30.00cm * 20.00cm * 10.00cm
Product Description

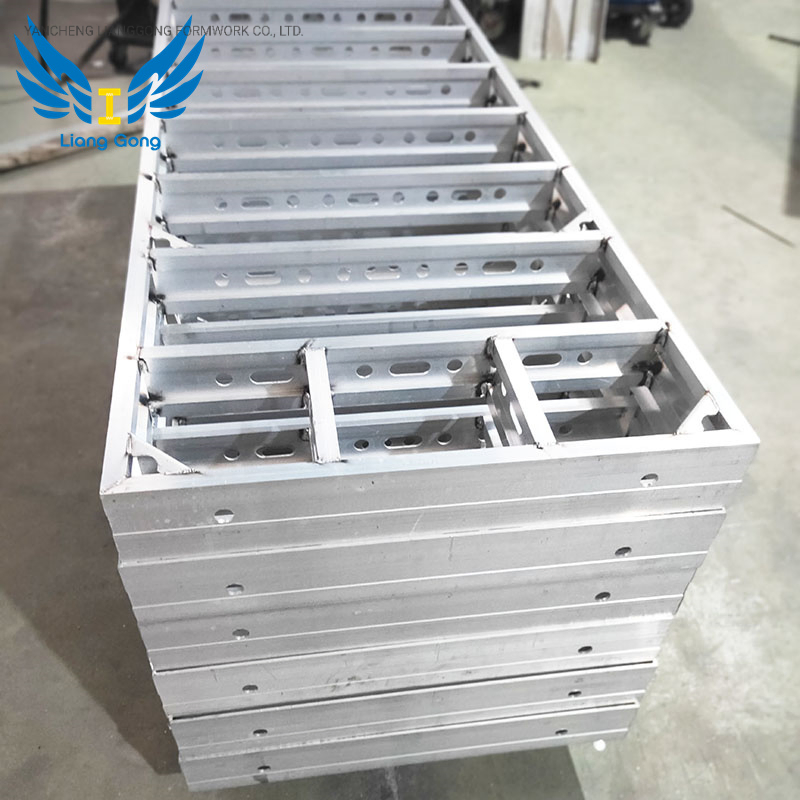

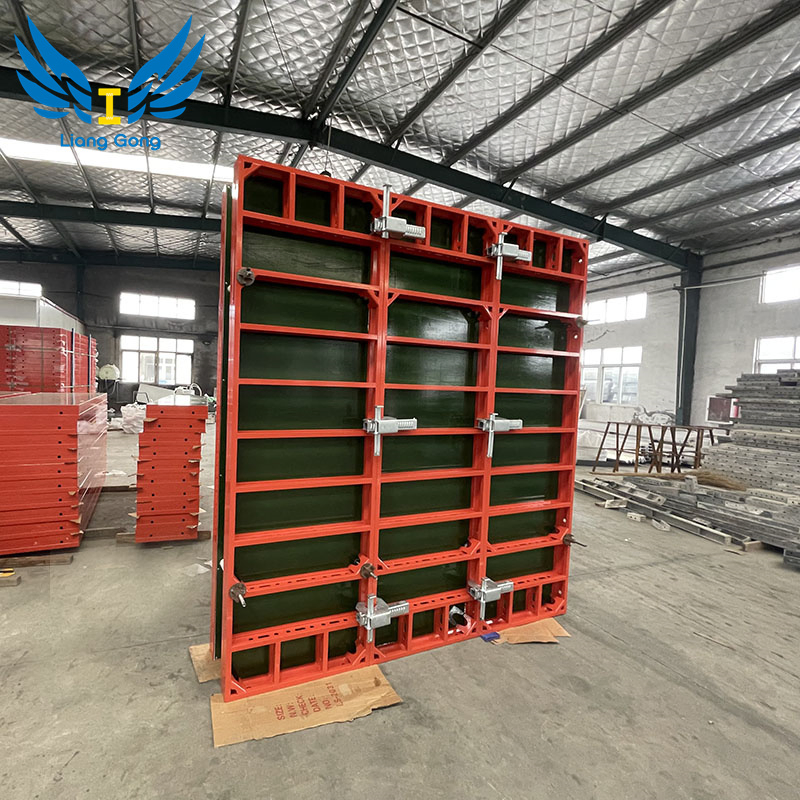

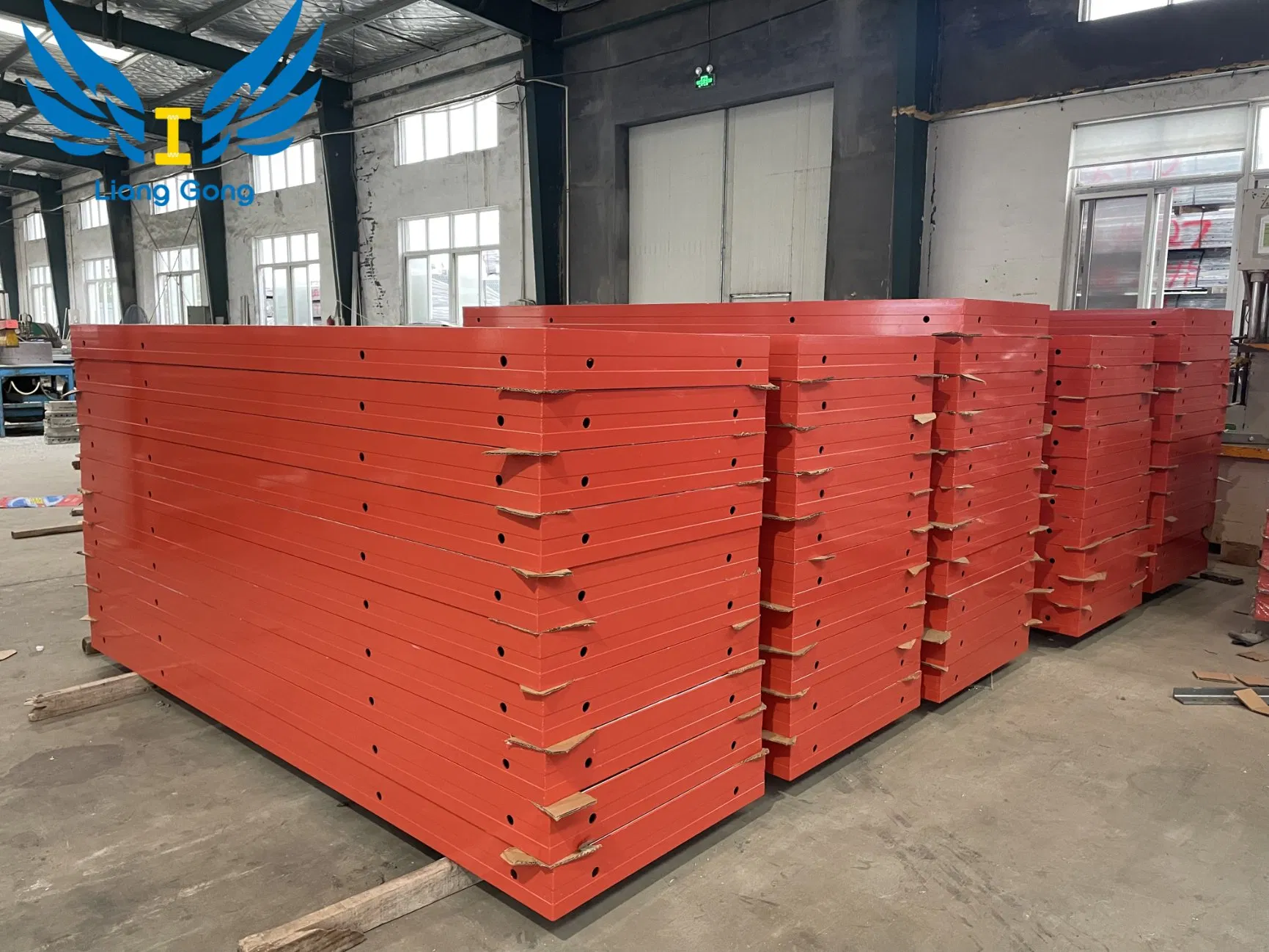

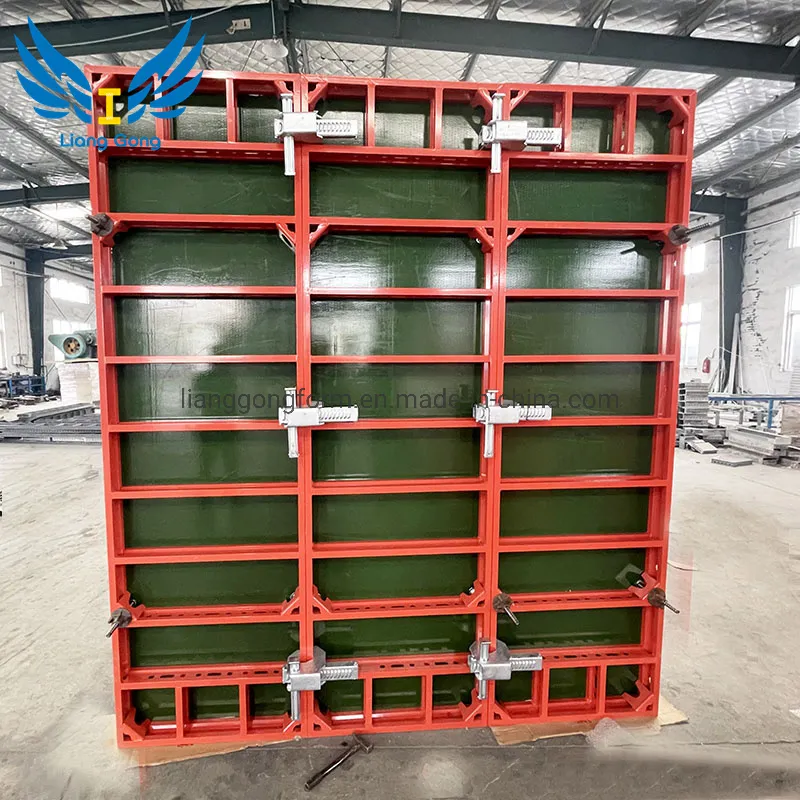

🔷 Aluminum Frame Formwork System
The aluminum-framed panel system is ideal for vertical construction, and small, medium to large jobs. With various standard panel sizes, assembling and disassembling can be achieved in an extremely short period without compromising on quality while allowing for immediate cost savings. Suited for foundations. Designed for an allowable concrete pressure of 60KN/m2, the panel is manufactured with high-strength aluminum extrusion profiles and is suited for man-handling, and they can be assembled easily with clamps without alignment walers.
All panels are powder-coated to enhance their lifespan and available in steel as an alternative. The high strength and lightweight panels comes in heights of 3000, 2500 & 1250mm with 4 standard widths of 1000, 750, 500 & 250mm. With a total of 12 standard sizes to choose from, you stand to benefit from a high utilization rate with lesser inventory parts.
| No. |
Code |
Description |
Dimension(mm) |
Weight(Kg/pc) |
| 1 | LG-Alu30001000 | ALu Frame panel | 3000 x 1000 | 70.9 |
| 2 | LG-Alu3000750 | ALu Frame panel | 3000 x 750 | 56.72 |
| 3 | LG-Alu3000500 | ALu Frame panel | 3000 x 500 | 42.54 |
| 4 | LG-Alu3000250 | ALu Frame panel | 3000 x 250 | 28.36 |
| 5 | LG-Alu25001000 | ALu Frame panel | 2500 x 1000 | 59.5 |
| 6 | LG-Alu2500750 | ALu Frame panel | 2500 x 750 | 47.6 |
| 7 | LG-Alu2500500 | ALu Frame panel | 2500 x 500 | 35.7 |
| 8 | LG-Alu2500250 | ALu Frame panel | 2500 x 250 | 23.8 |
| 9 | LG-Alu12501000 | ALu Frame panel | 1250 x 1000 | 31.00 |
| 10 | LG-Alu1250750 | ALu Frame panel | 1250 x 750 | 24.8 |
| 11 | LG-Alu1250500 | ALu Frame panel | 1250 x 500 | 18.6 |
| 12 | LG-Alu1250250 | ALu Frame panel | 1250 x 250 | 12.4 |
Key Characteristics
✓ Lightweight aluminum panel formwork, easy for manual movement.

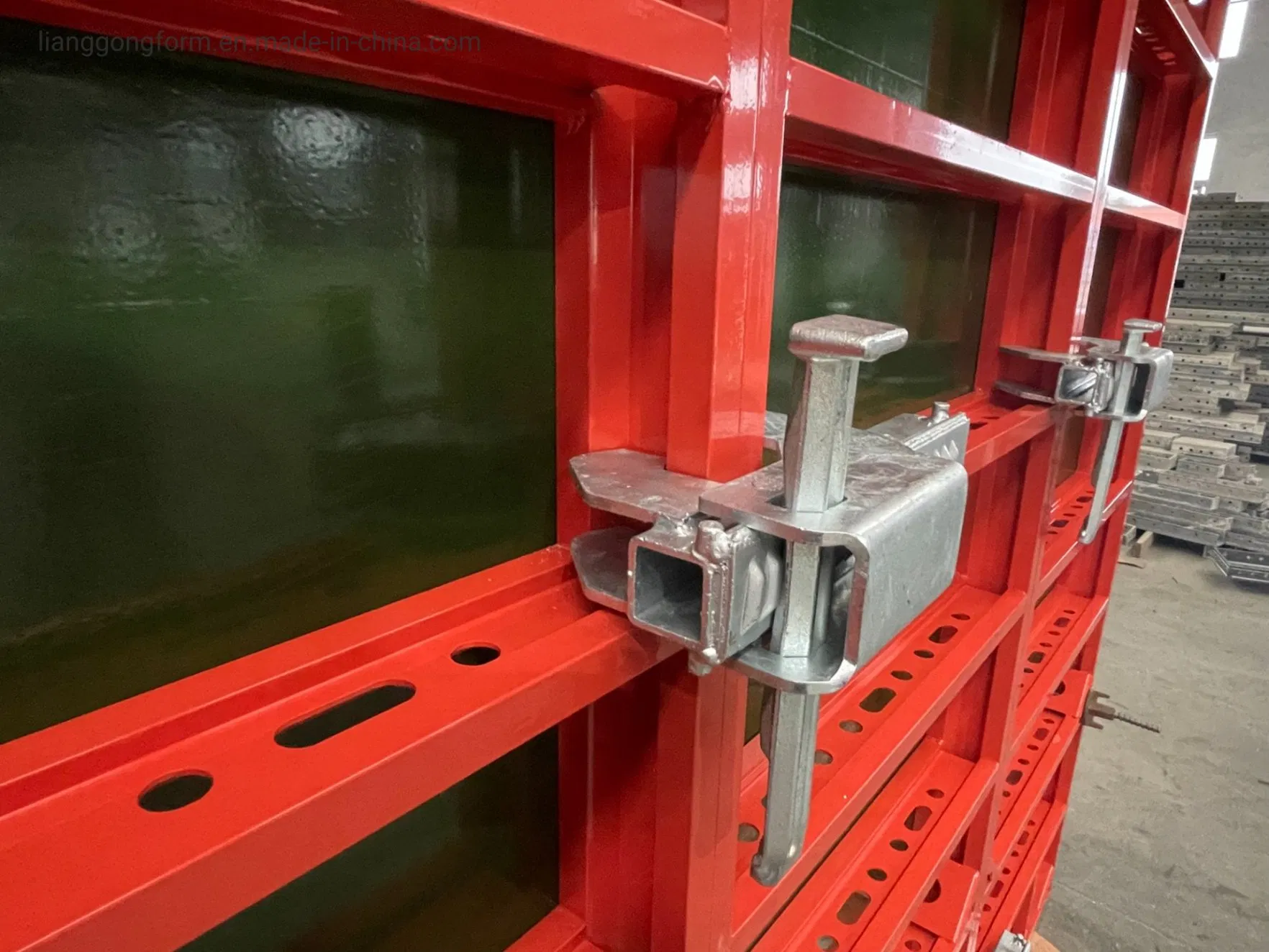

✓ Simple assembly with adjustable steel clamps.
✓ Highly economical and rapid construction cycles.
✓ Maximum permissible fresh concrete pressure: 60KN/m².

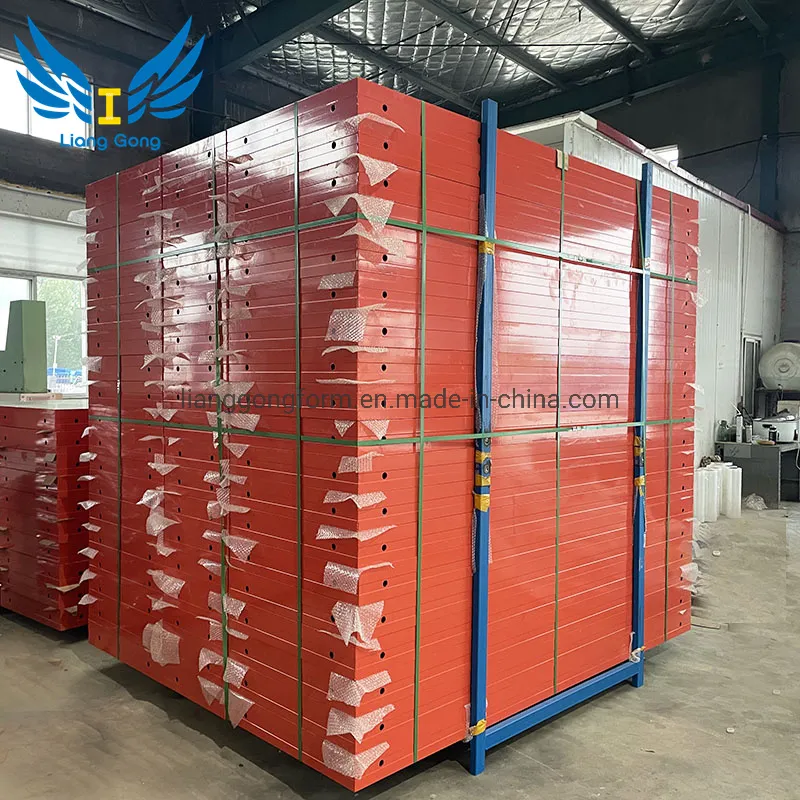

Packing & Delivery

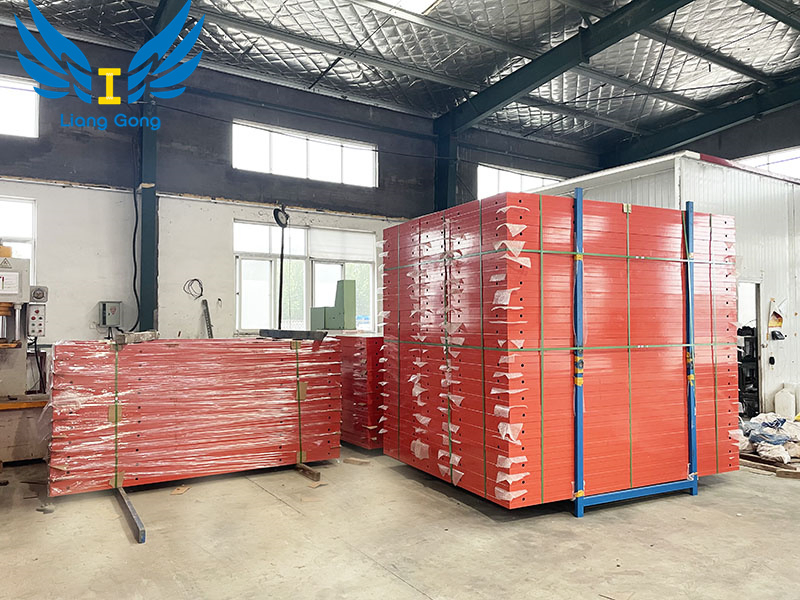

📦 Packaging Details
1. Total net weight of loaded container is generally 22 to 25 tons (confirmed before loading).
2. Product-specific packaging:
- Bundles: Timber beams, steel props, tie rods.
- Pallets: Small parts in bags, then palletized.
- Wooden cases: Available on customer request.
- Bulk: Irregular goods loaded in bulk.
🚚 Delivery Schedule
1. Production: 20-30 days for full container after down payment.
2. Transportation: Subject to destination port distance.
3. Special requirements are open for negotiation.
Professional Services
⭐ Consulting & Design: Customized shoring proposals via Auto-CAD based on structural drawings.
⭐ Quality Inspection: Large-scale production and professional quality inspection teams providing test reports.
⭐ Packing & Shipment: Standard export packages ensuring quick on-site delivery.
⭐ Guidance: Remote or on-site instruction to ensure customer satisfaction.

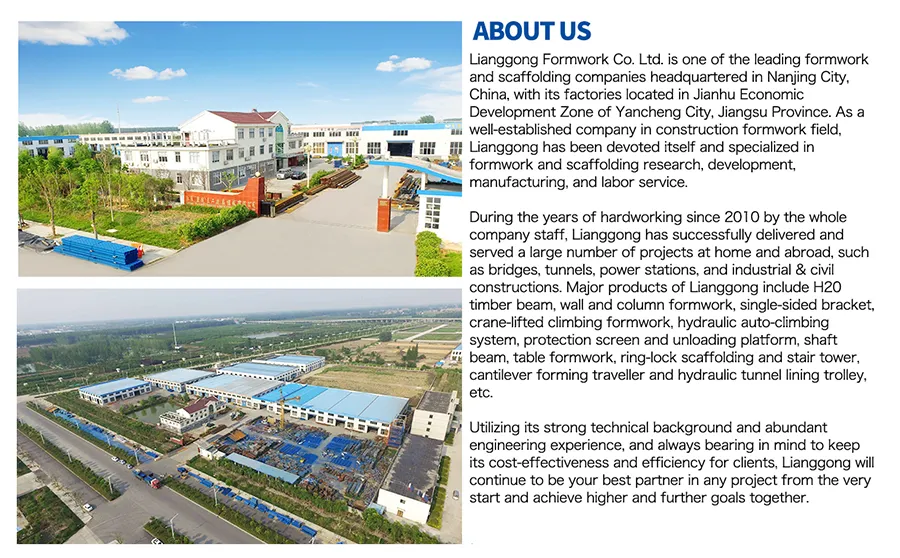

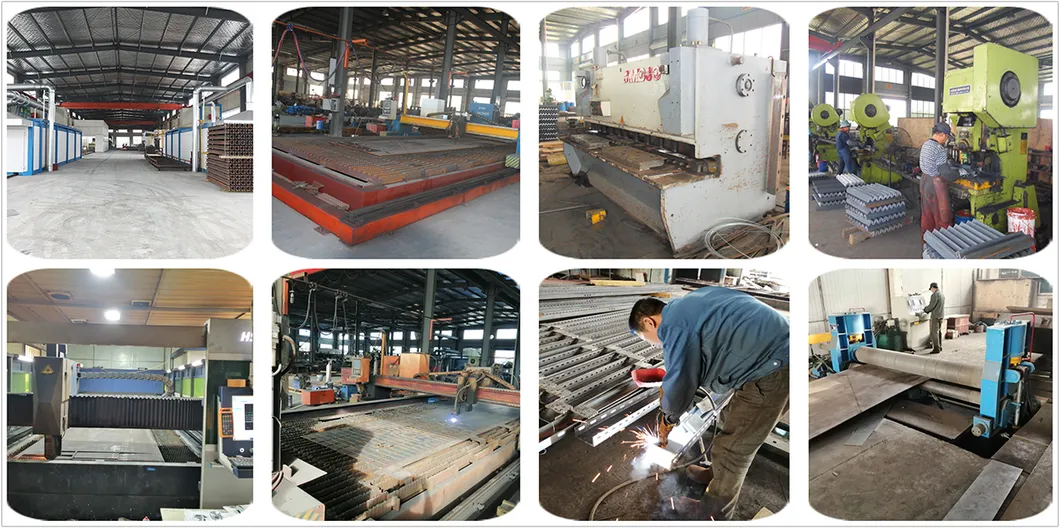

Facility & Global Presence
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a professional factory dedicated to high-quality formwork production.
Q: How long is the standard delivery time?
A: Generally 5-15 days if items are in stock, and 15-20 days for non-stock items, depending on the quantity.
Q: Can I request product samples?
A: Yes, we provide samples free of charge; however, the freight cost is the responsibility of the customer.
Q: What are your accepted payment terms?
A: For orders ≤ $1,000, 100% in advance. For orders ≥ $1,000, 30% TT in advance with the balance due before shipment.
Q: What is the maximum concrete pressure the aluminum panel can handle?
A: The aluminum frame panel system is designed to withstand an allowable concrete pressure of 60KN/m².
Q: Do you offer customized sizes for specific projects?
A: Yes, we provide customized dimensions and design proposals based on your project's structural drawings.
