Curtain Wall System / Glass Curtain Wall / Aluminum
Material
Aluminum Alloy, Tempered Glass, Laminated Glass
Glass Kind
Frameless / Structural Glazing / Stick System
Supporting Construction
Aluminum Frame / Steel Frame / Concrete Wall
Number of Layers
Double
Shape
Flat / Curved / Customizable
Usage
Exterior Wall, Interior Wall
Color / Finish
Silver, Gray, Black, Wood Grain, Custom
Glass Functionality
Low-E, Anti-UV, Soundproof, Self-Cleaning
Transport Package
Packed in Wooden Crates or Cartons to Ensure Safety
Production Capacity
100,000 Square Meters Per Year
Aluminum & Glass Curtain Wall System
Our Aluminum & Glass Curtain Wall System is designed for modern commercial and residential buildings, providing a stylish and durable facade solution. Made of high-quality aluminum alloy frames and tempered laminated glass, our curtain walls are strong, lightweight, and customizable.
High Quality Materials

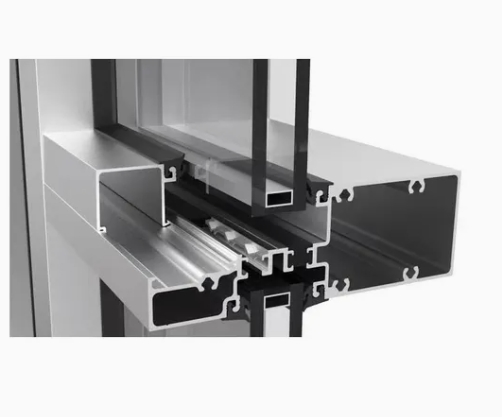

Aluminum alloy frame with tempered or laminated glass ensures long-lasting durability.
Customizable Design
Standard or custom dimensions and shapes available to fit any architectural project.
Advanced Functions
Options for PDLC smart glass, energy-saving, fireproof, soundproof, or ventilated systems.
Modern Aesthetics

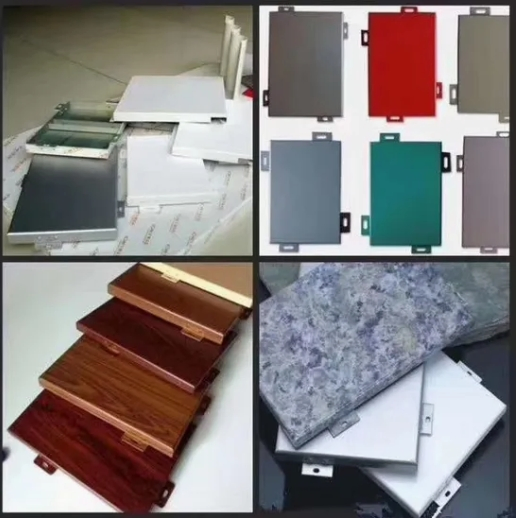

Sleek surfaces with multiple finishes including silver, gray, black, and wood grain.
Specifications
Panel Size
1830×2440 mm (customizable)
Glass Type
Laminated tempered glass / PDLC smart glass
Glass Thickness
5+5 mm or 6+6 mm
Frame Material
Aluminum alloy or stainless steel
Installation
Stick system, unitized system, or semi-unitized
Warranty
2 Years & After-sales Support
Packaging & Delivery
Package Size
100.00cm * 50.00cm * 50.00cm
Gross Weight
30.000kg
Frequently Asked Questions
What materials are used in the curtain wall system?
The system utilizes high-quality aluminum alloy frames combined with tempered or laminated glass for maximum durability and strength.
Can the panel sizes be customized?
Yes, while the standard panel size is 1830×2440 mm, we offer fully customizable dimensions to fit your specific building design.
What types of glass functionality can be integrated?
We offer Low-E, anti-UV, soundproof, self-cleaning, and even PDLC smart glass options for privacy and energy efficiency.
What are the available installation methods?
The system supports stick system, unitized system, and semi-unitized system installations depending on the project requirements.
What applications is this system suitable for?
It is ideal for high-rise commercial buildings, offices, hotels, shopping malls, and premium residential projects.
What kind of after-sales support do you provide?
We provide a 2-year warranty along with professional after-sales support to ensure the long-term performance of the installation.
