HVAC System Pehnolic Foam Board Ventilation System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

VPP-A6-30

Application

Alu Foil Phenolic Pre-Insulated Duct Panel

Shape

Rectangle

Performance

Alu Foil Phenolic Pre-Insulated Duct Panel

Panel Thickness

20mm

Aluminium Foil

60um

Transport Package

Carton Box

Specification

Available

Origin

China

Production Capacity

20 Containers Per Month

Product Description

This HVAC system phenolic foam board ventilation system is suitable for all HVAC ducting. It can be fabricated into different kinds of shapes by cutting and adhesive connecting. Compared with traditional GI ducting, phenolic pre-insulated duct panel offers significant advantages including low weight, fast installation, fire-resistance, sound insulation, and energy saving.

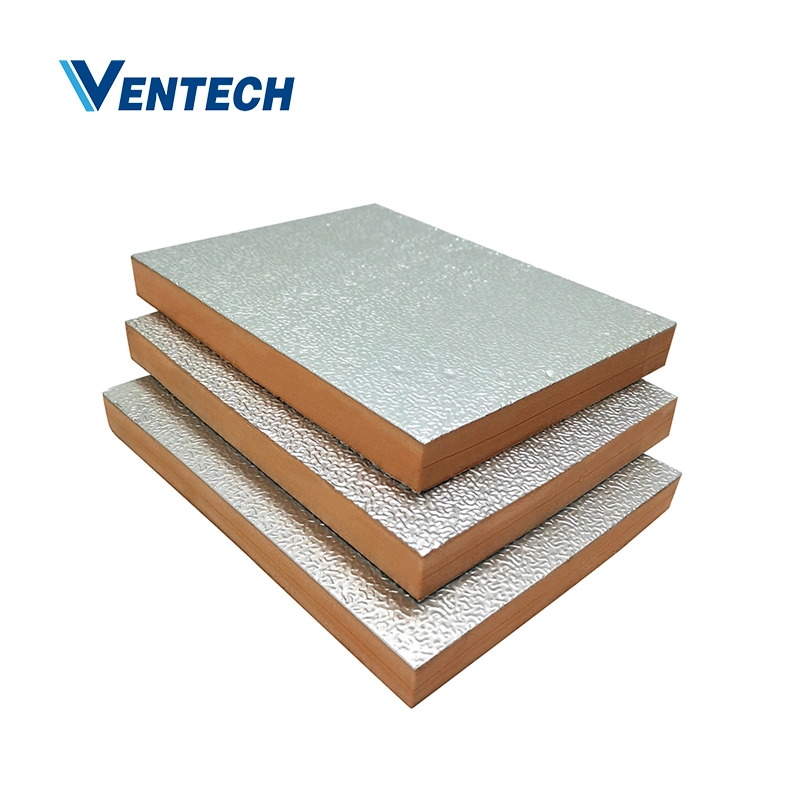

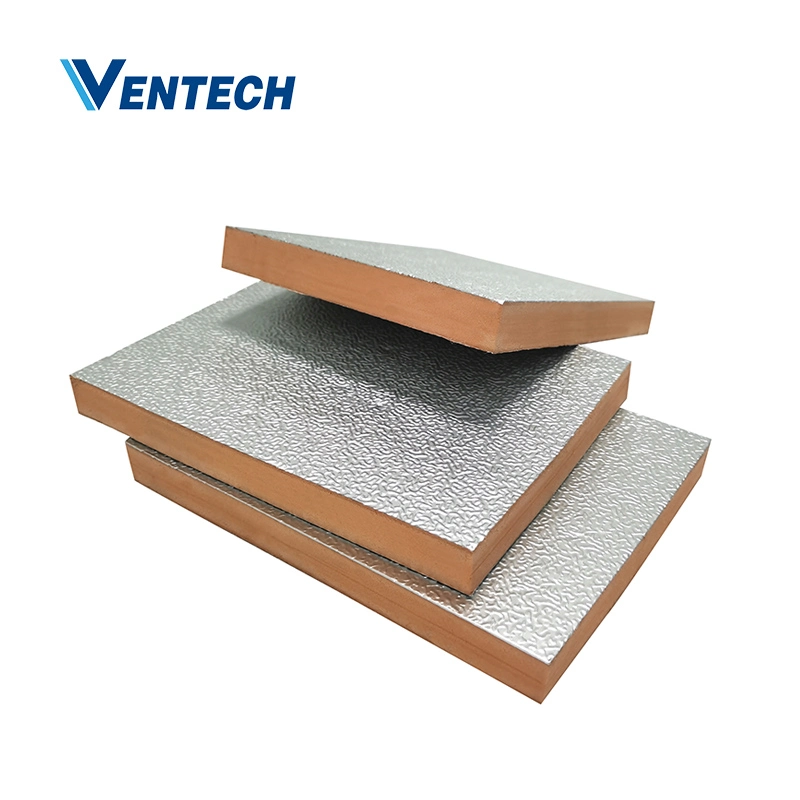

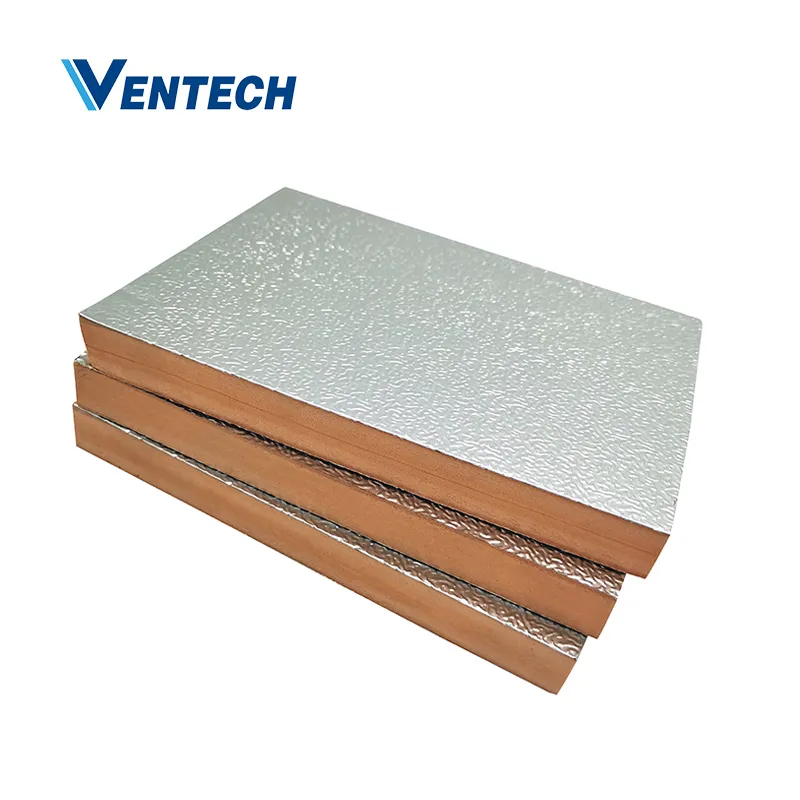

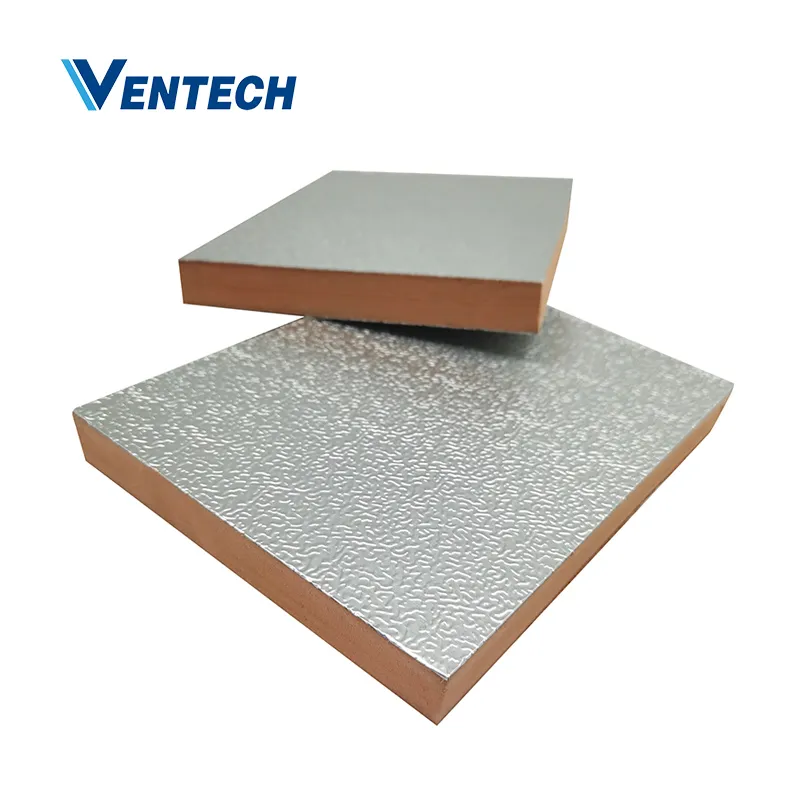

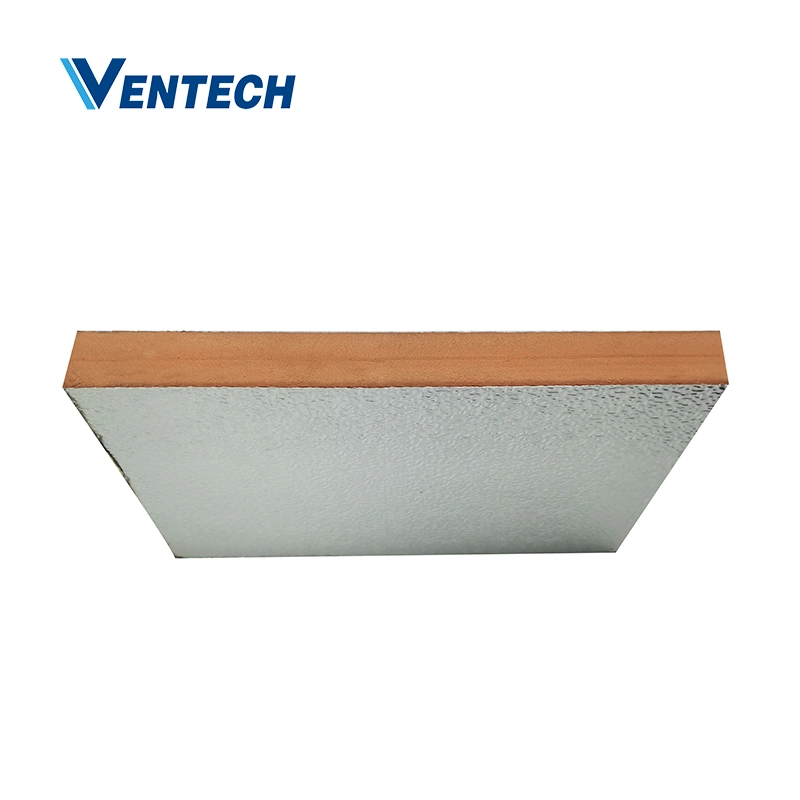

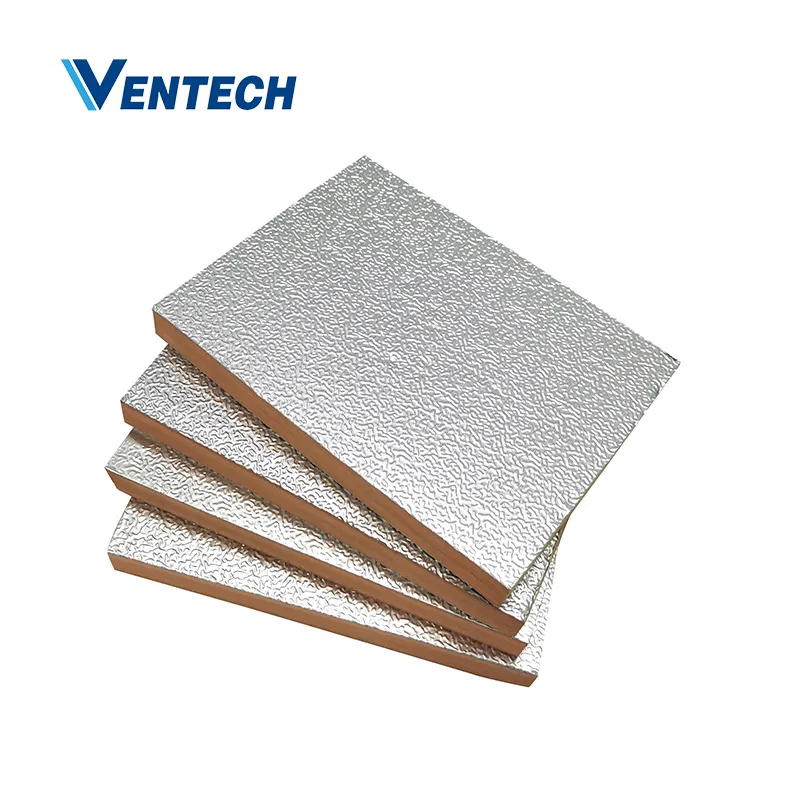

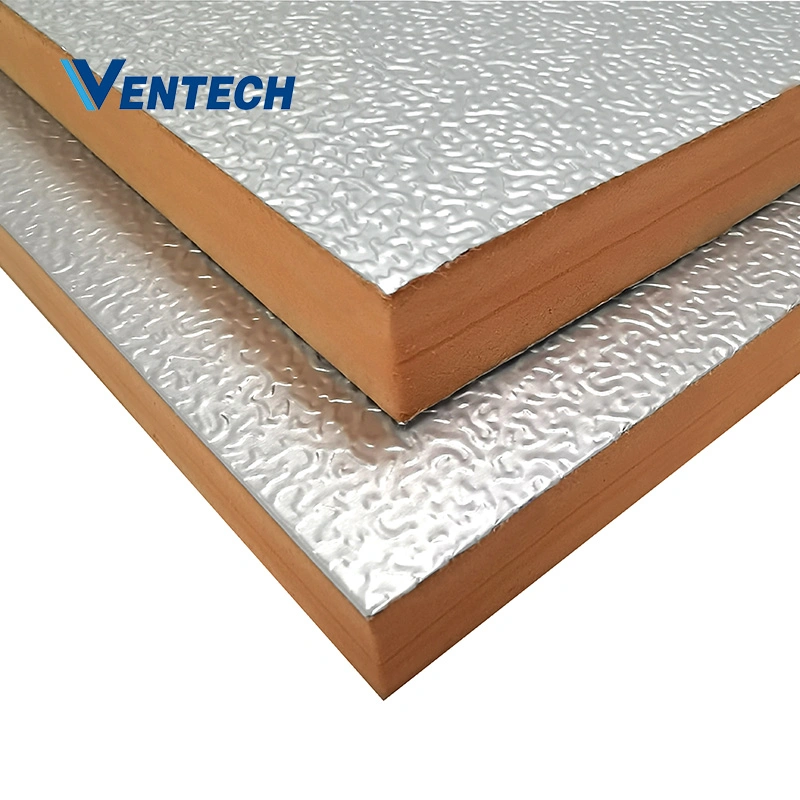

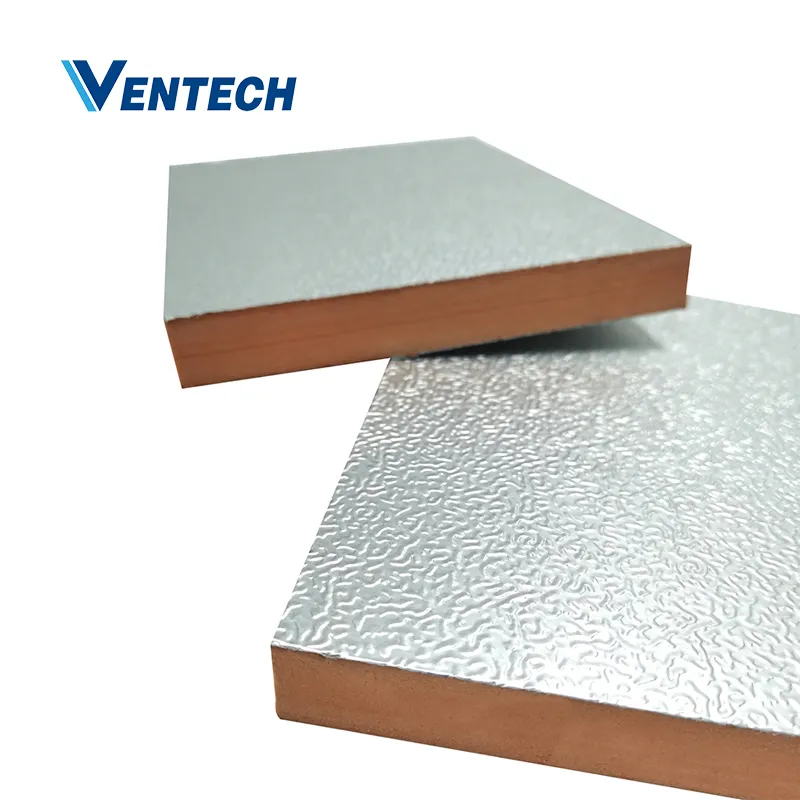

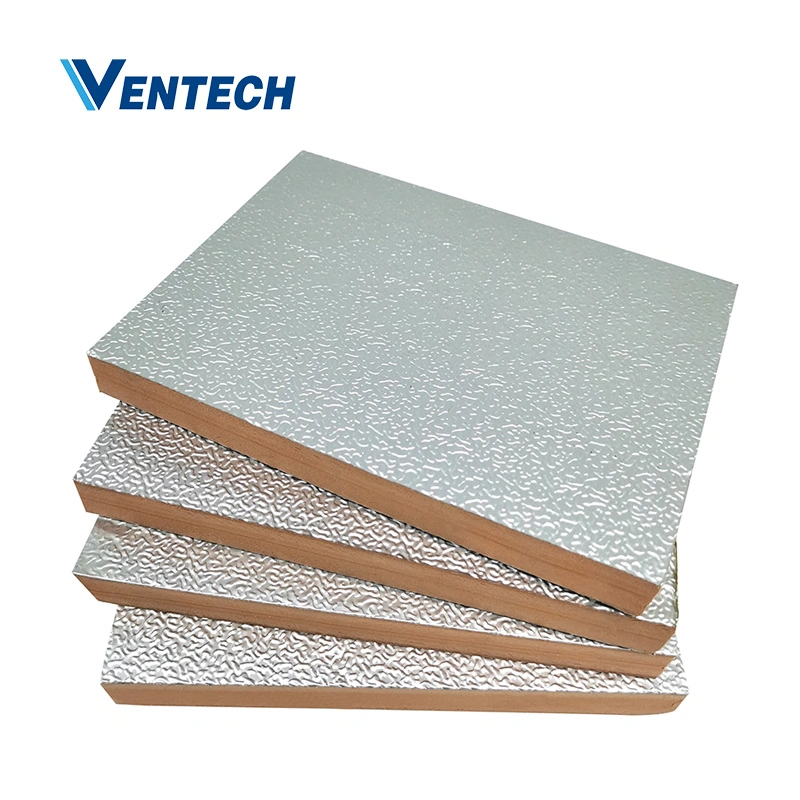

The phenolic pre-insulated duct panel is constructed with 2 layers of aluminium foil on both sides and 1 layer of high-quality phenolic foam in the middle.

Phenolic Board Specification
Length	3950/3900mm
Width	1200mm
Thickness	20, 25, 30mm
Thermal conductivity	0.030W/m.k
Density	55-65kg/m³
Compressive Strength	0.31Mpa
Water Absorption	0.60%
Dimension Stability	0.20%
Operating Temperature Limits	-25°C to 80°C
Application	Indoor
Fire and smoke performance	ASTM E84
Combustibility Property	Class 0

Alu foil phenolic pre-insulated duct panels are manufactured using a set of special tools. The process follows standardized procedures: tracing, cutting, gluing, folding, taping, flangeing, reinforcement, and sealing. This ensures consistency regardless of the duct element shape.

These panels are widely utilized in ventilation systems for central air conditioning units across various sectors, including hotels, supermarkets, airports, stadiums, workshops, food stores, and industrial facilities.

Product Features

✓

Superior Insulation: Panel thickness up to 30mm with double-faced fiberglass aluminum foil for maximum thermal efficiency.

✓

Fire Safety: Class 0 combustibility property, meeting ASTM E84 standards.

✓

Lightweight Design: Significantly reduces the structural load compared to galvanized iron ducts.

Frequently Asked Questions

1. What are the main benefits of using phenolic pre-insulated duct panels?

Phenolic panels offer excellent thermal insulation, are fire-resistant (Class 0), lightweight for easy handling, provide great sound insulation, and allow for faster installation compared to traditional GI ducting.

2. What is the fire rating of these panels?

The panels are tested according to ASTM E84 standards and achieve a Class 0 combustibility property, making them highly safe for indoor ventilation applications.

3. Can these panels be used for outdoor applications?

According to the technical specifications, these phenolic pre-insulated duct panels are primarily designed for indoor applications within ventilation systems.

4. What is the operating temperature range?

The product is designed to operate effectively within temperature limits ranging from -25°C to 80°C.

5. How are the ducts fabricated from the panels?

Fabrication involves a standardized process of tracing, cutting, gluing, folding, and taping using a specialized set of tools, followed by flangeing and sealing for a secure fit.

6. What is the standard density and thermal conductivity?

The panels have a density of 55-65kg/m³ and a very low thermal conductivity of approximately 0.030W/m.k, ensuring high energy efficiency.
