Basic Specifications
Model NO.MY-CR-02
FeatureEnvironmental, Fireproof, Light Weight, Metal Panel, High Strength, Walkable
Fire Rating1 (Grade A)
CertificationISO9001, CE GMP, SGS
Metal MaterialGalvanized Steel, Stainless Steel
Core TypeHandmade Honeycomb
Wall ProtectionProvided
Package Size210.00cm * 90.00cm * 5.00cm
Production Cap.50000sqm/Year
HS Code9406900090
★
Product Overview

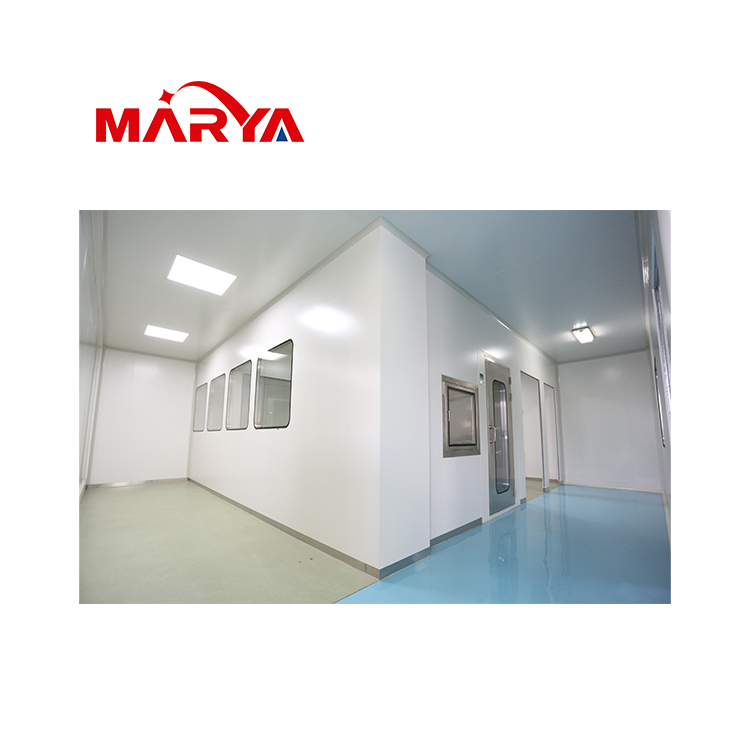

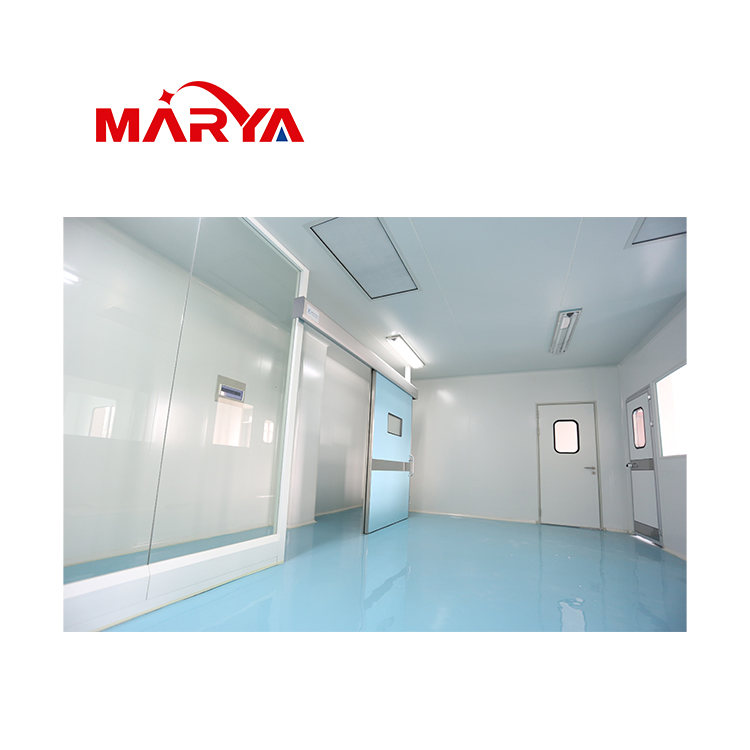

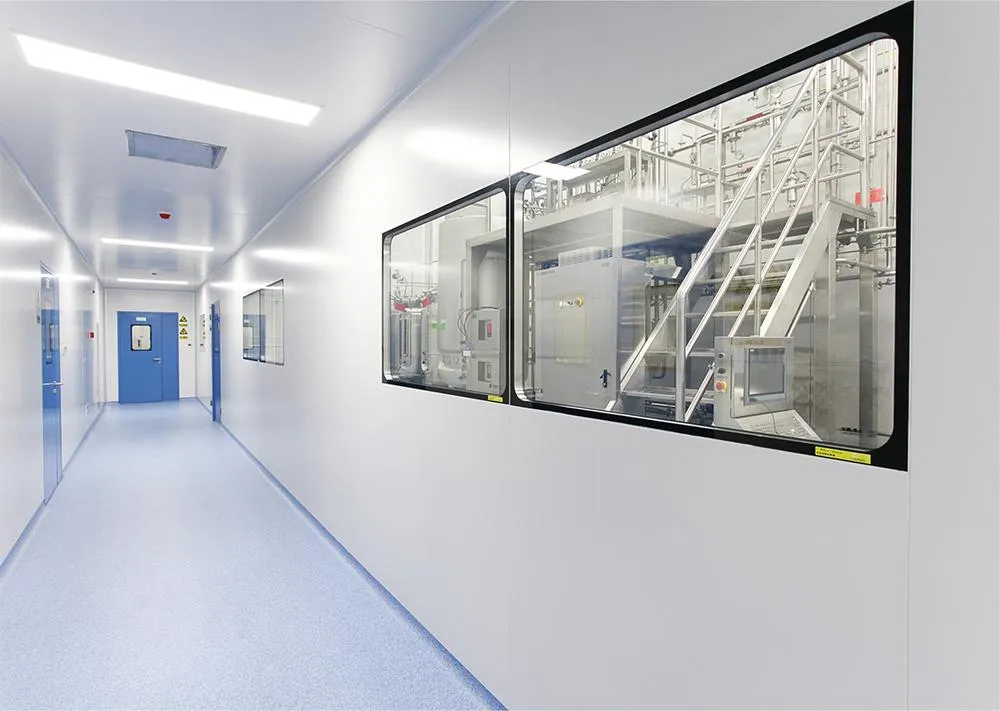

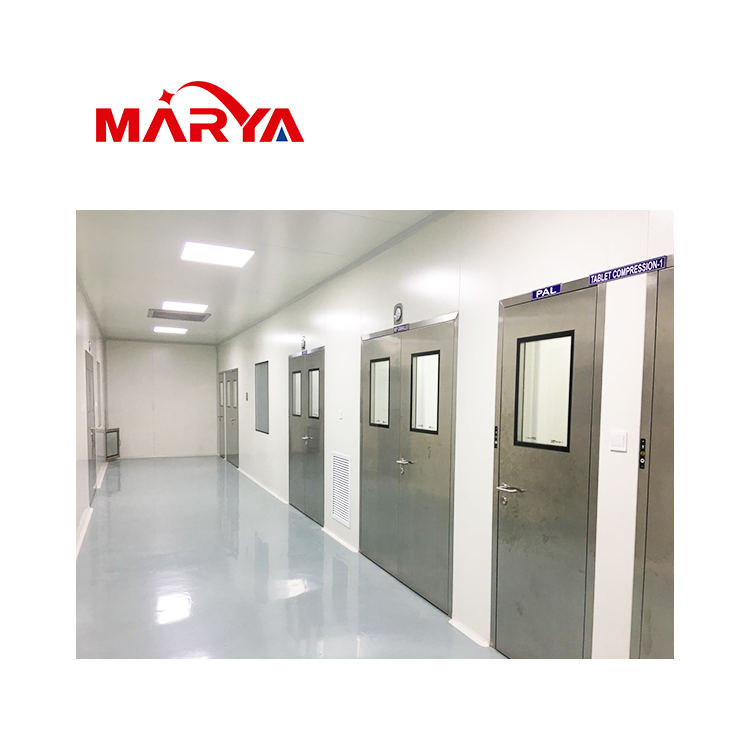

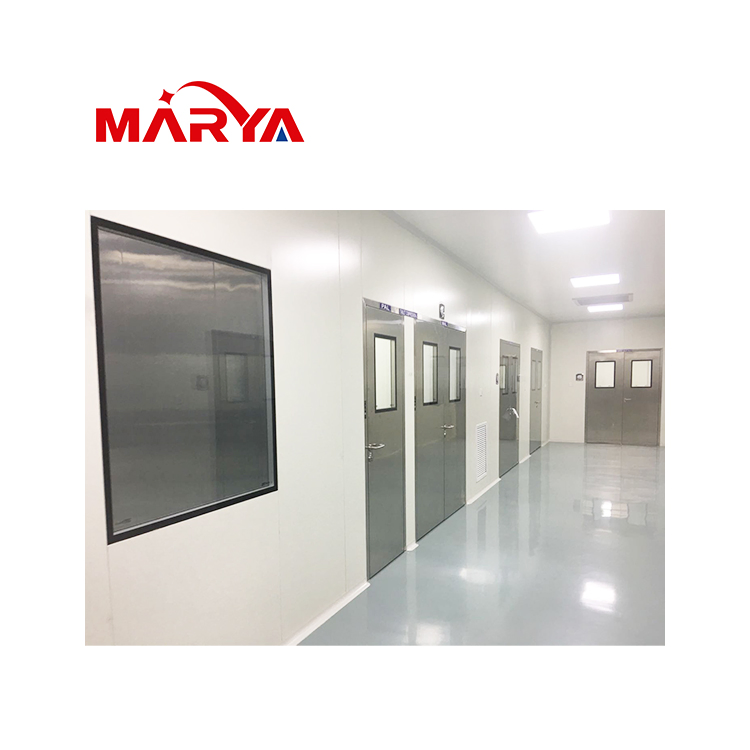

High Performance Honeycomb Modular Cleanroom Panel Wall Systems are specifically engineered for the demanding environments of pharmaceutical, life sciences, and semi-conductor industries. This system is widely used for manufacturing facilities in food, beverage, cosmetic, and electronic sectors. As Good Manufacturing Practice (GMP) standards require, the production environment must be strictly controlled.
The cleanroom wall system features various core materials to satisfy diverse requirements, including fire resistance, heat preservation, noise reduction, and moisture-proof capabilities. Our modular wall panels can be reinforced and pre-assembled with line pipe boxes in the factory to effectively reduce secondary pollution during site installation.
⚙
Technical Parameters
| No. |
Parameter Name |
Detailed Specification |
| 1 | Panel Thickness | 50 / 75 / 100 mm |
| 2 | Standard Width | 980 / 1180mm or customized |
| 3 | Height | Customized according to site requirements |

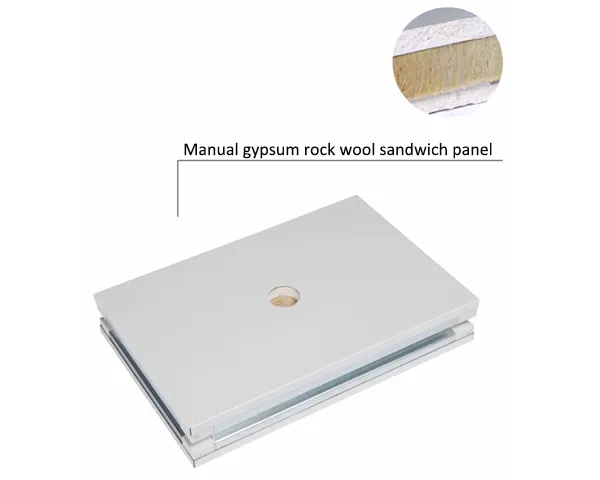

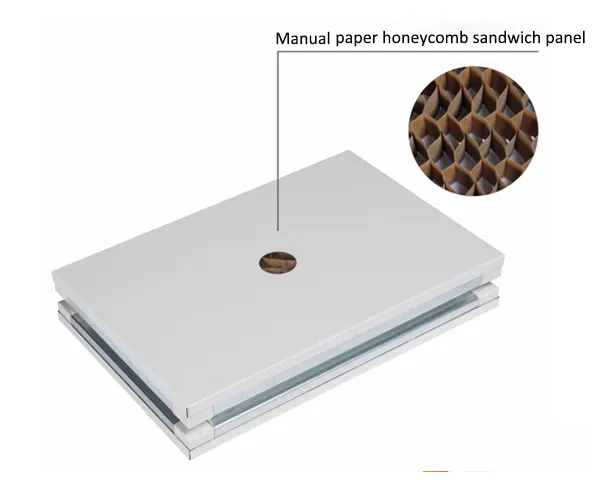

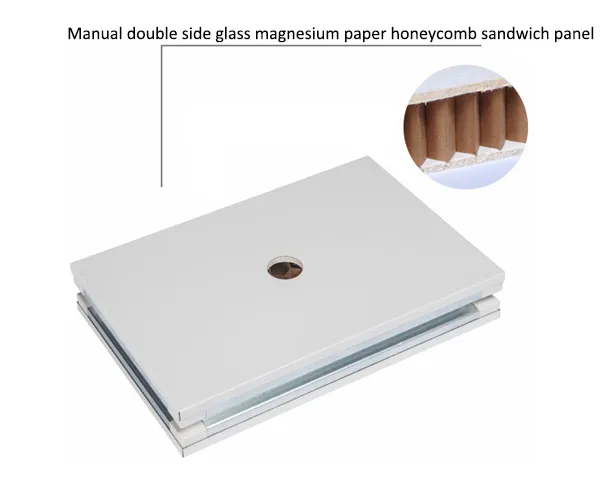

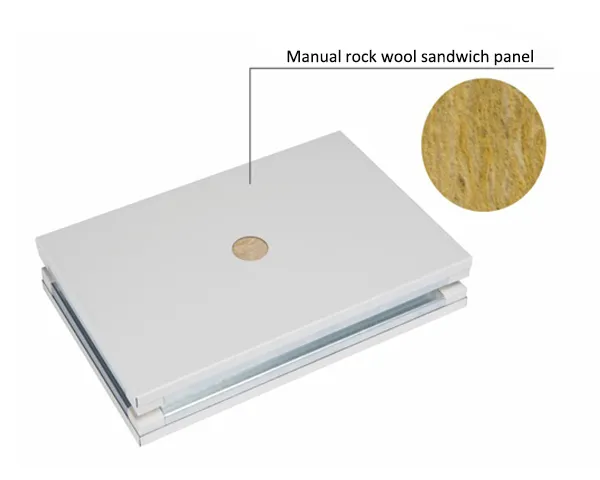

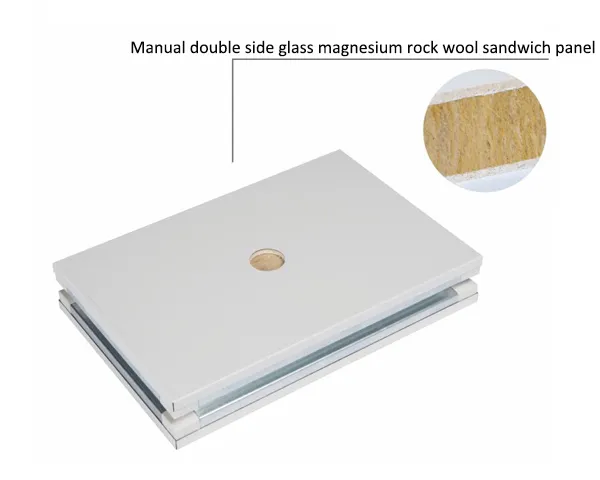

| 4 | Filling Material | Mineral wool / PU / EPS / Paper Honeycomb / Aluminum Honeycomb |
| 5 | Manufacturing Type | Handmade Precision |
| 6 | Fireproof Rating | Class A |
| 7 | Surface Material | Galvanized Steel / Stainless Steel |
| 8 | Steel Thickness | 0.5 - 0.8mm |
| 9 | Accessories | High-grade Aluminum Alloy |
✔
Key Features & Benefits
1
High-quality surface materials providing excellent chemical and mechanical resistance.
2
Superior thermal insulation with four-edge sealing to prevent sandwich material leakage and pollution.
3
Pre-embedded conduits and pipeline passages designed to facilitate seamless utility integration.
4
Handmade composite structure offering high impact resistance, seismic performance, and easy installation.
🏗
Integrated Cleanroom Solutions

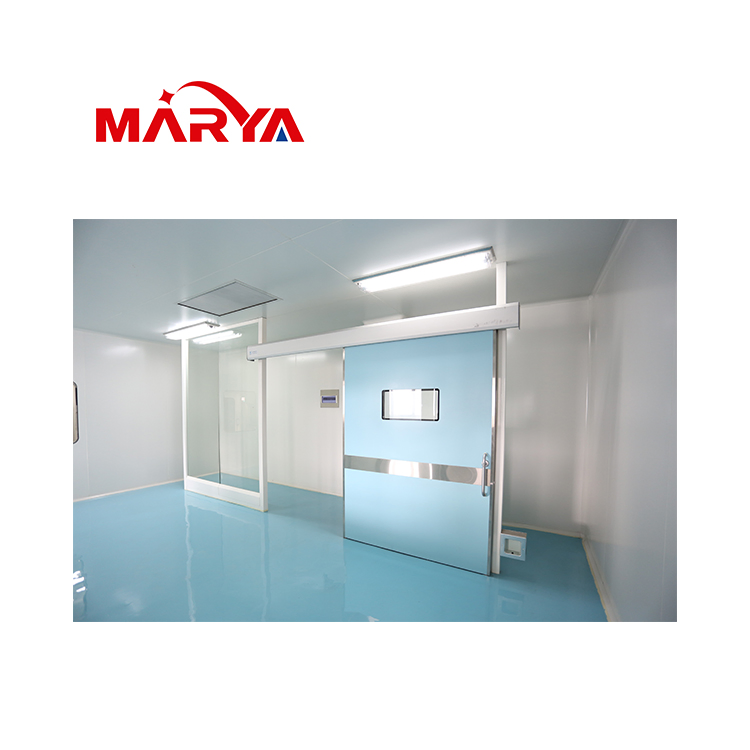

We provide full Engineering Procurement Construction (EPC) services, including Cleanroom Doors, Windows, FFU (Fan Filter Units), AHU (Air Handling Units), Chiller Systems, Flooring Systems, and complete Lighting & Electricity systems for your production facility.
Frequently Asked Questions
What are the core filling options for these modular panels?
The panels can be filled with Mineral Wool, PU, EPS, Paper Honeycomb, or Aluminum Honeycomb based on your specific requirements for fireproofing and insulation.
Are the cleanroom panels fire-resistant?
Yes, our handmade panels are classified as Grade A fireproof building materials, offering superior safety for pharmaceutical and electronic facilities.
Can the panels be customized for specific dimensions?
Absolutely. While standard widths are 980mm and 1180mm, the height, thickness (50/75/100mm), and internal reinforcements are fully customizable to fit your design.
How do you ensure the panels don't cause contamination?
All four edges are strictly sealed to prevent leakage of core materials. Furthermore, conduits are pre-embedded in the factory to minimize dust and pollution during onsite assembly.
What surface materials are available?
We offer panels in high-quality Galvanized Steel and Stainless Steel, with thicknesses ranging from 0.5mm to 0.8mm to ensure structural integrity and corrosion resistance.
Is the system suitable for high-vibration areas?
Yes, our handmade panels are known for high strength, impact resistance, and excellent seismic performance, making them durable for various industrial environments.
