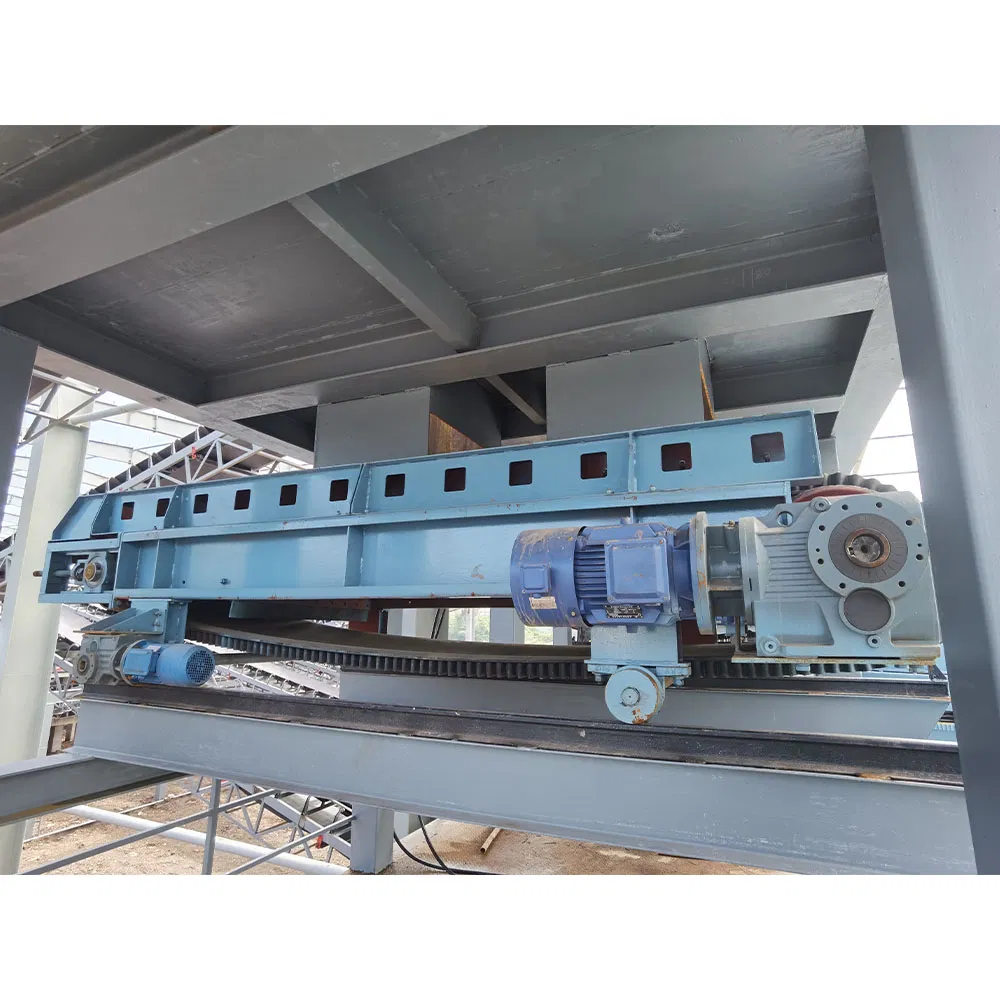

High-Capacity Volumetric Feeder for Coal Power and Industrial Applications
The Belt Feeders are designed to withdraw fines or wet materials from hoppers, bins, or stock pipes to accurately and reliably feed downstream systems like screens, crushers, and conveyors.

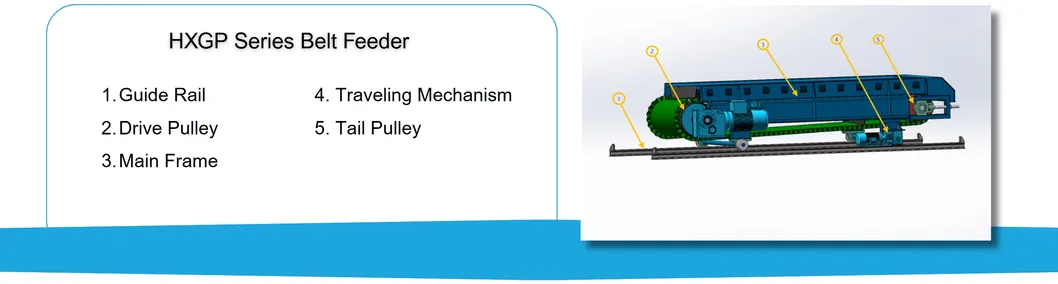

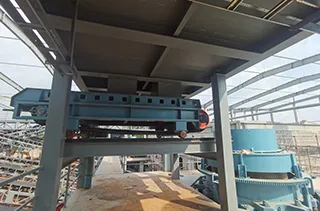

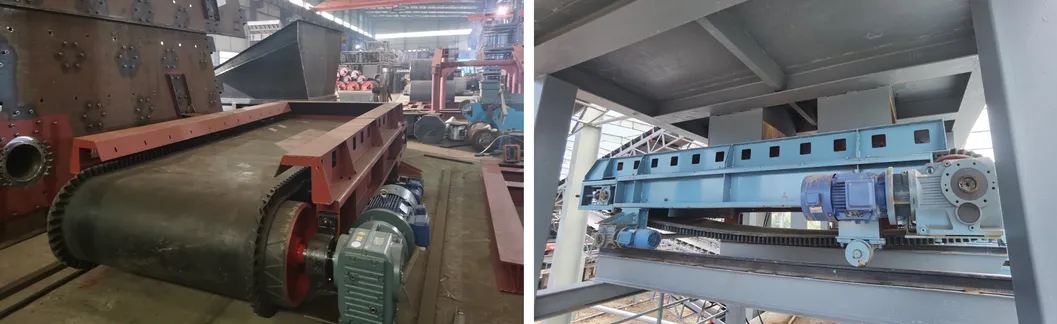

The belt feeder delivers material through a controlled process involving a hopper, gate, and a special wear-resistant, anti-tear skirted conveyor belt. Bulk material falls from the hopper onto the moving belt. The bin pressure is managed by impact-resistant support rollers and retaining plates.

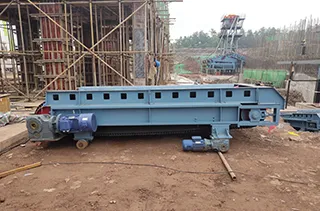

🚀 Easy Transportation: Fitted with wheels for maximum operational mobility.
⚖️ High Capacity & Precision: Consistent, even flow with adjustable feed rates via VFD control.
🛠️ Built to Last: Engineered with top-brand bearings and gearboxes for long-term reliability.
🔇 Low Noise & Energy Efficient: Robust design ensures smooth operation with reduced energy consumption.
🛡️ Improved Safety: Equipped with protective covers to enhance workplace safety.

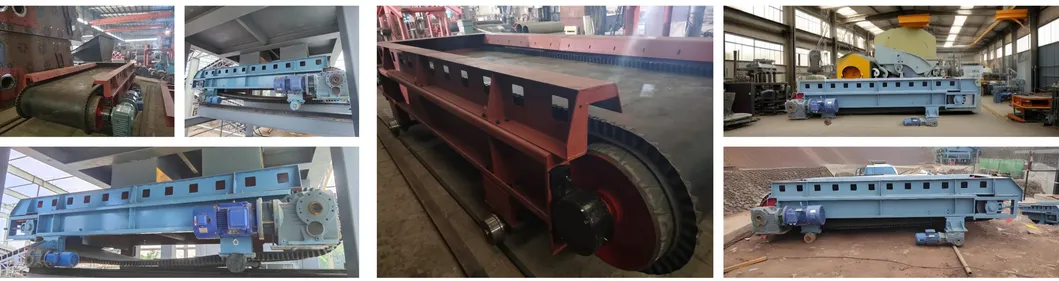

Widely used for controlled, continuous feeding of bulk materials in:
| Model | Conveyor Width (mm) | Feeding Rate (t/h) | Feeding Size (mm) | Power (kw) |
|---|---|---|---|---|
| HXGP0845 | 800 | 150-300 | ≤200 | 7.5+1.5 |
| HXGP1015 | 1000 | 300-500 | ≤200 | 7.5+1.5 |
| HXGP1245 | 1200 | 400-700 | ≤200 | 11+1.5 |
| HXGP1445 | 1400 | 600-1000 | ≤200 | 15+1.5 |
*The length of the conveyor can be tailored to meet your specific site requirements.
