Heat Transfer Anti-Impact Steel Structure Outside Wall System for Warehouse Commercial Building
Heat Transfer Anti-Impact Steel Structure Outside Wall System for Warehouse Commercial Building
Heat Transfer Anti-Impact Steel Structure Outside Wall System for Warehouse Commercial Building
Heat Transfer Anti-Impact Steel Structure Outside Wall System for Warehouse Commercial Building
Heat Transfer Anti-Impact Steel Structure Outside Wall System for Warehouse Commercial Building
1 / 5
Heat Transfer Anti-Impact Steel Structure Outside Wall System for Warehouse Commercial Building
Heat Transfer Anti-Impact Steel Structure Outside Wall System for Warehouse Commercial Building
Heat Transfer Anti-Impact Steel Structure Outside Wall System for Warehouse Commercial Building
Heat Transfer Anti-Impact Steel Structure Outside Wall System for Warehouse Commercial Building
Heat Transfer Anti-Impact Steel Structure Outside Wall System for Warehouse Commercial Building

Heat Transfer Anti-Impact Steel Structure Outside Wall System for Warehouse Commercial Building

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
ZJT-F
Feature
Environmental, Fireproof, Light Weight, Metal Panel, Waterproof
Fire Rating
4
Certification
CCC, ISO9001, CE, SGS
Facing Panel
Fiber Cement Board/Calcium Silicate Board
Core Material
Cement, EPS and Sand, Fly Ash
Anti-Pressure
>3.5MPa
Capacity
100,000 Sqm Per Month

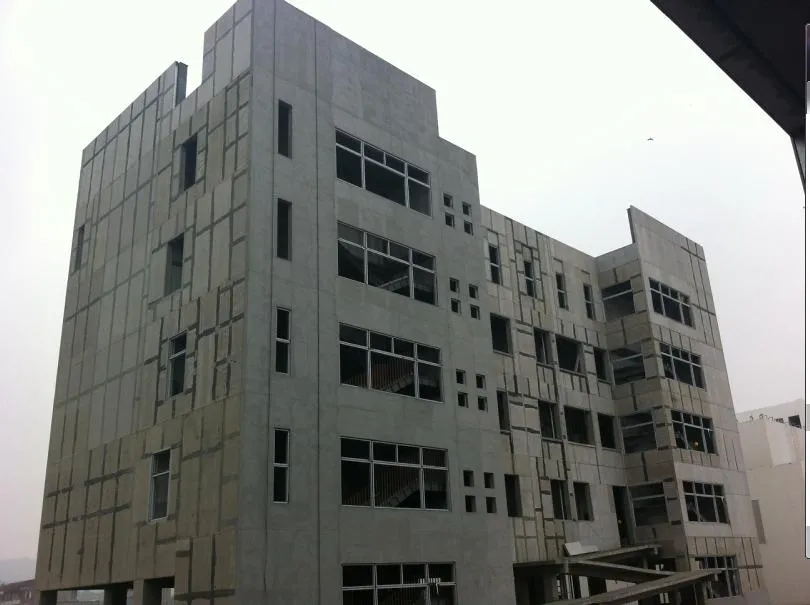

Heat Transfer Anti-Impact Steel Structure Outside Wall System

Product Description

ITEM DESCRIPTION
ProductLightweight panels
Composition5mm Calcium silicate board (face board) + EPS/Cement/Sand(core material) + 5mm Calcium silicate board (face board)
CharacterLightweight, insulation, fireproof, waterproof, fast installation, and environmental etc
ApplicationFloor, Roofing, Wall, Villa, Prefabricated house, Building, School, Hotel...
DimensionLength: 2270/2440mm; Width: 610mm; Thickness: 60/75/90/100/120/150mm
PackagingPacked with plastic film, protected by belt and placed in pallet

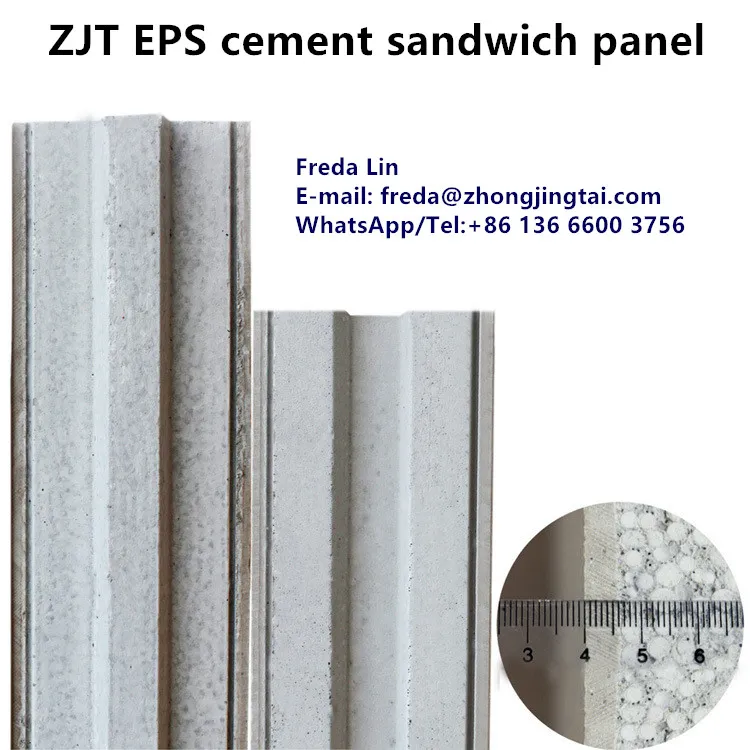

Product Structure Details

Core Advantages

01Green & Eco-friendly100% free of harmful substances, A non-radioactive products, standard GB6566-2001.
02Lightweight & EconomicVolume-weight only 750-800kg/m3; 75mm board is 60kg/m2, equal to 1/6 of brick weight.
03Increase Valid SpaceUsing 75mm boards can increase valid space by 6m2 per 100m2 area compared to traditional masonry.
04Waterproof & Moisture ProofKeep dry without stains. Suitable for wet areas like kitchens, bathrooms, and basements.
05Superior FireproofFireproof limit is more than 4 hours under 1000 degrees. Reaches national A-class standard.
06Heat & Sound Insulation90mm thickness gains sound insulation of 42dB. Adjusts moisture automatically.
Performance Testing

Applications & Specifications

Suitable for interior/exterior partition walls, plants, apartments, hotels, office buildings, and public constructions. Ideal for bathrooms, kitchens, and high-rise housing renovation projects.

2270mm Standard 2440mm Standard Application
2270*610*60/75mm2440*610*60/75mmRoof
2270*610*90/100mm2440*610*90/100mmInterior Wall
2270*610*120mm2440*610*120mmExterior Wall / Floor
2270*610*150mm2440*610*150mmExterior Wall

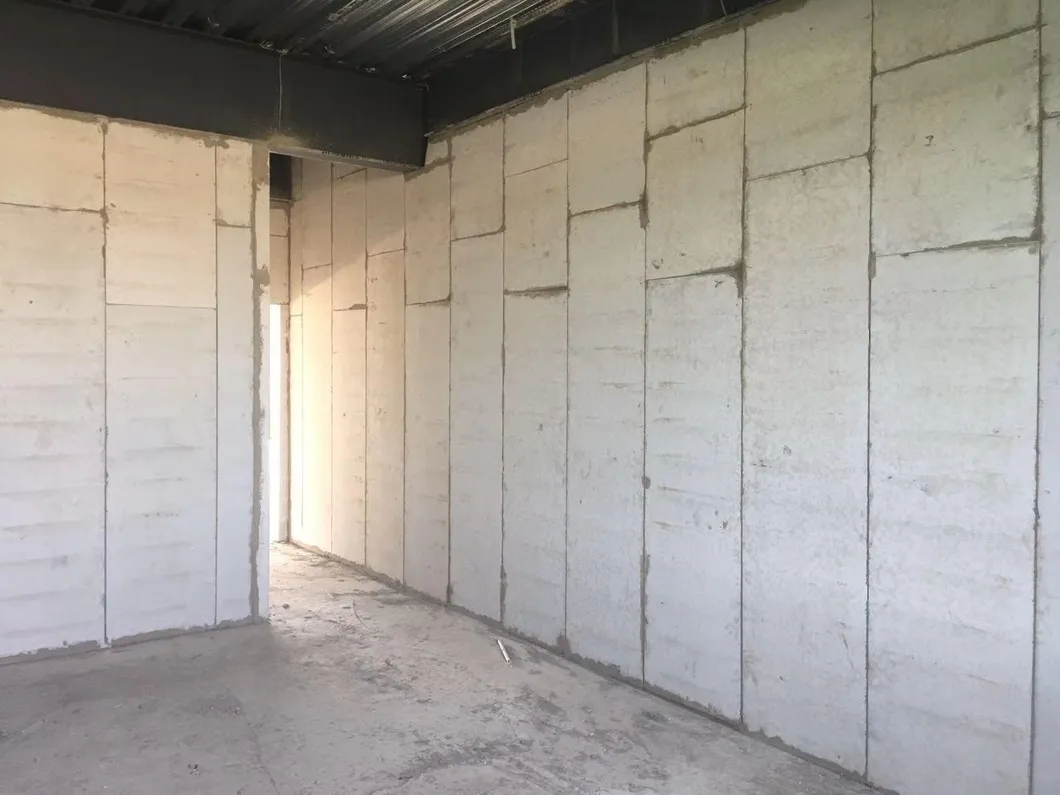

Application Scenario 1

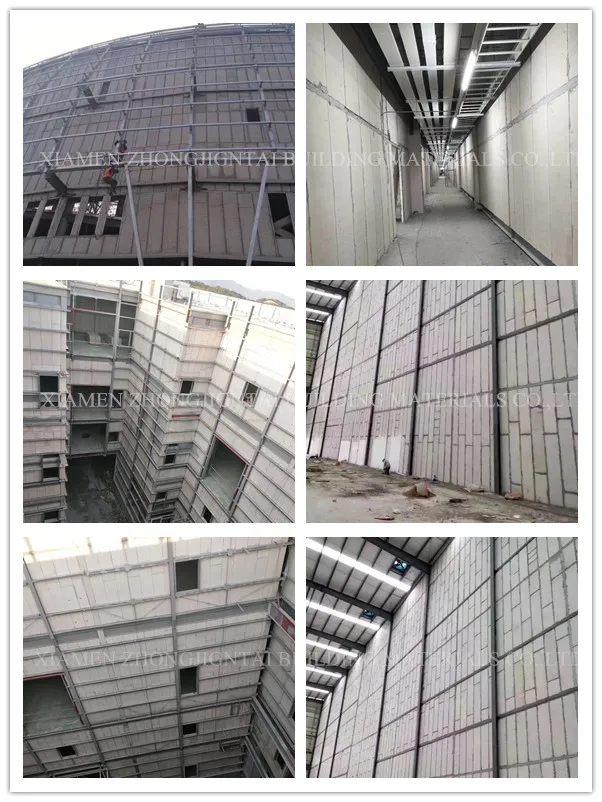

Application Scenario 2

Frequently Asked Questions

What is the fire resistance limit of these panels?
The fireproof limit of the panels is more than 3 to 4 hours, and they do not emit toxic gases even under 1000 degrees Celsius.
How much weight can the panels withstand for hanging objects?
The panels have excellent hanging nail force and can be nailed or grooved to hang heavy objects like air conditioners or cabinets directly.
Are these panels suitable for wet areas like bathrooms?
Yes, they are moisture-proof and waterproof. The boards will not condense water or leave stains even during humid days.
What is the installation speed for a typical project?
The installation is very fast and easy. One person can typically install approximately 15 square meters per day.
How do these panels help in increasing usable floor space?
Due to their high strength and thin profile (e.g., 75mm thickness), they reduce wall width significantly compared to traditional bricks, increasing valid space by about 6m2 per 100m2.
Which certifications have these products obtained?
Our lightweight panels are certified by SGS, TUV, ISO, and CE, covering tests for compressive strength, impact, and fire resistance.
