Basic Information
Type
Paperbacked Plasterboard
Ceiling Tile Shape
Rectangle
Surface Treatment
Paper Face
Function
Fireproof, Moisture-Proof, Smoke-Proof, Waterproof
Certification
CE, ISO, SGS
Raw Materials
Pure Gypsum Powder; Quality Wood-Pulp Paper; Fiber G
Production Capacity
100,000 Square Meters / Day

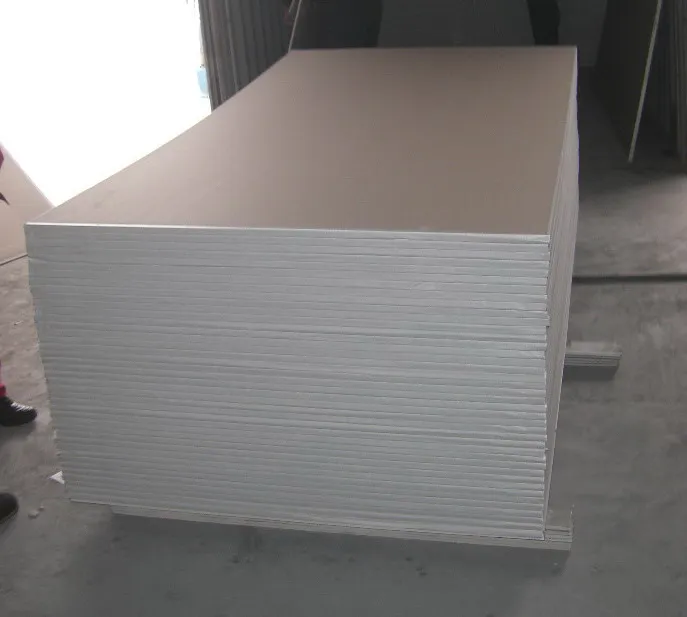

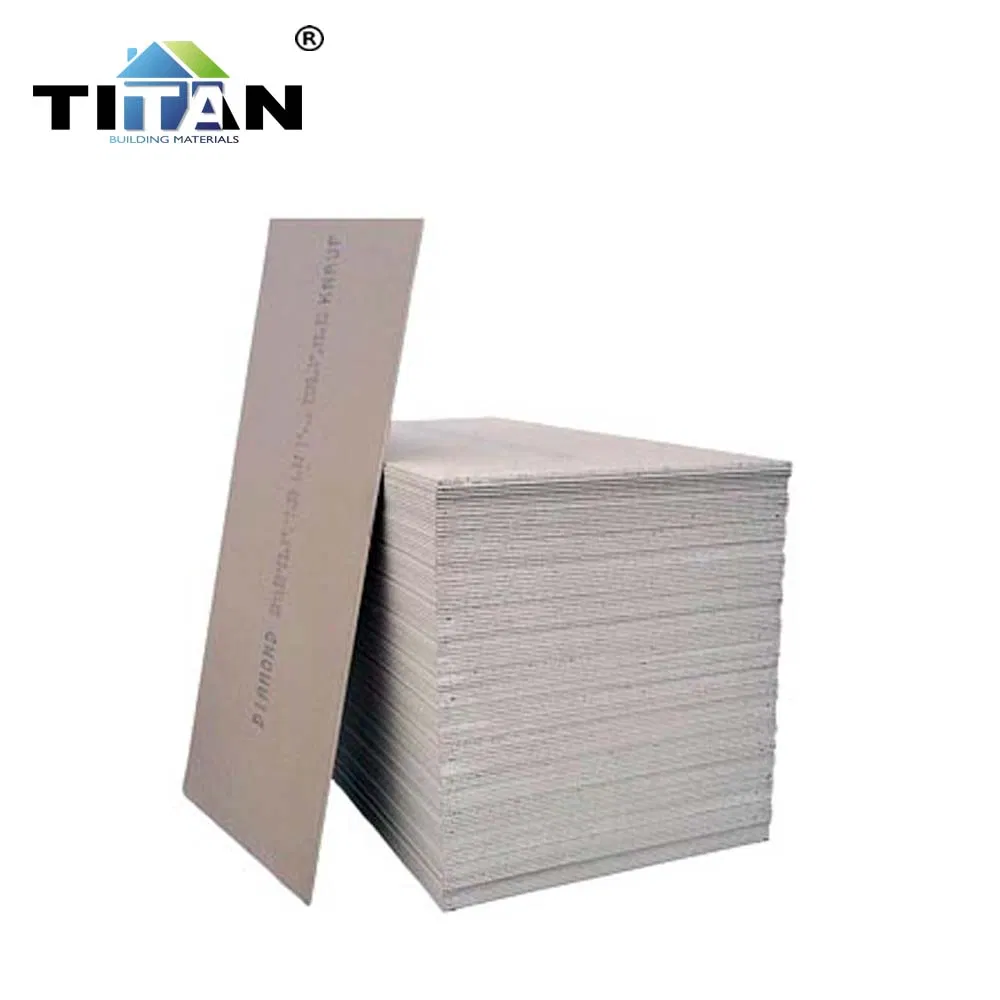

Product Description
Gypsum board, often called drywall, wallboard, or plasterboard, differs from other panel-type building products like plywood or fiberboard due to its noncombustible core and paper facers. When joints are covered with a joint compound system, it creates a seamless surface suitable for interior decoration.
Main Characteristics
Environmental friendly
Non-combustible
Strong nail holding power
Heat & sound insulation
Smoothness ceiling board
Light weight
| Type |
Description & Appearance |
Application |
| Regular Gypsum Board |
Ivory face, Gray back. Standard building gypsum with lightweight material. |
Office Buildings, Restaurants, Houses, Hospitals, Schools, Factories. |
| Fire Resistant |
Pink face. Inorganic fireproof fiber material for enhanced core binding. |
Areas requiring high fire resistance performance on partitions and ceilings. |
| Moisture/Waterproof |
Green face. Fiber reinforced with water-proof additives. |
Kitchens, Bathrooms, Laundries, and moist environments. |

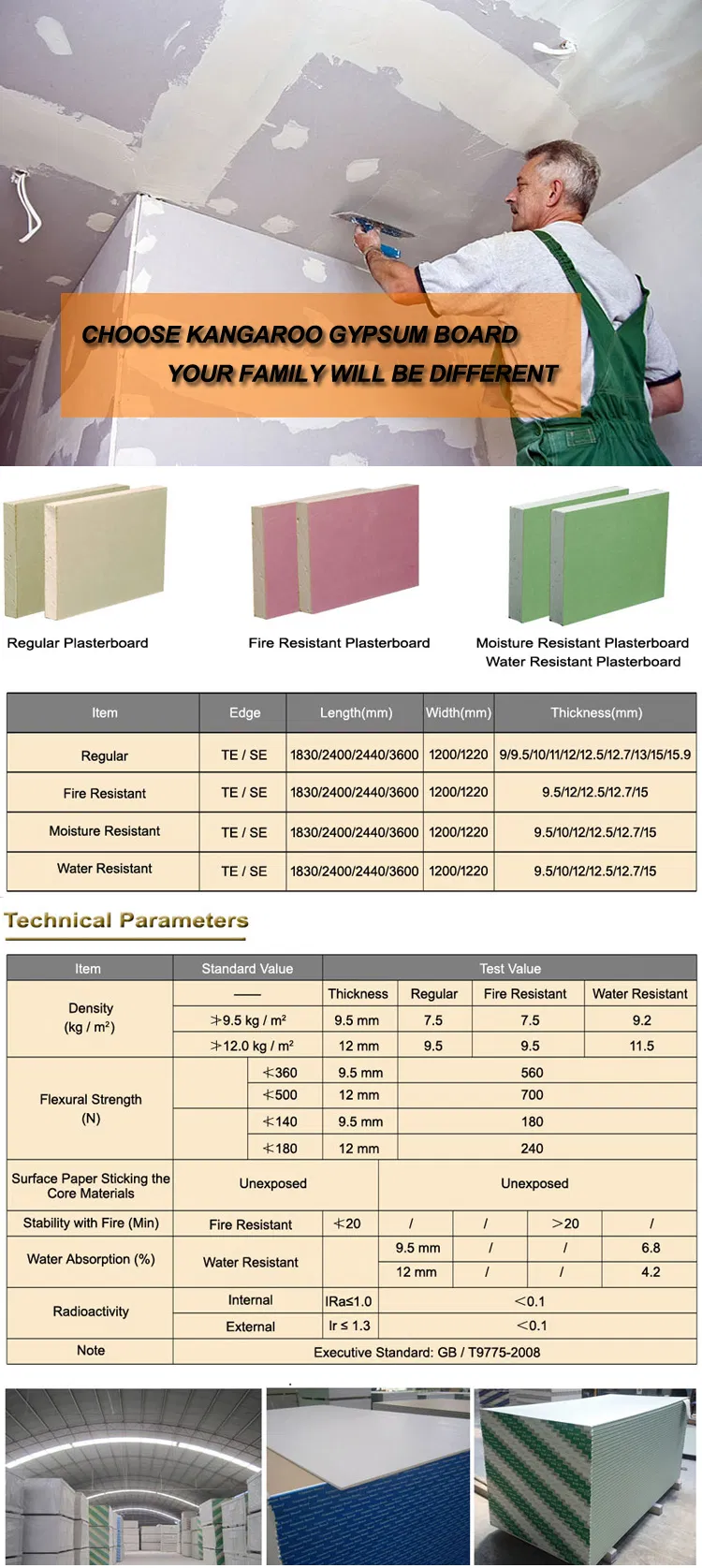

Specifications & Dimensions
| Normal Size | 1200mm × 2400mm / 1220mm × 2440mm |
| Length | 2400mm / 2440mm / 3600mm / 3660mm |
| Width | 1200mm / 1220mm |
| Thickness | 7mm ~ 15.9mm |
| Edge Type |  |
Loading Capacity (20' Container)
| Thickness |
Weight (Kg/m²) |
PCS / 20' Container |
| 9.5mm | 7.6 | 880 |
| 12mm | 8.8 | 720 |
| 12.7mm | 9.2 | 670 |
| 15mm | 11.6 | 520 |
| 15.9mm | 12 | 480 |
Frequently Asked Questions
What are the different types of gypsum boards available?
We offer three main types: Regular (Ivory), Fire Resistant (Pink), and Moisture/Waterproof (Green) gypsum boards to suit various construction needs.
What are the standard dimensions for these boards?
Standard sizes are 1200mm x 2400mm and 1220mm x 2440mm, with thicknesses ranging from 7mm to 15.9mm.
Can gypsum board be used in wet areas like bathrooms?
Yes, our Moisture/Waterproof gypsum board (green face) is specifically designed with water-proof additives for use in kitchens, bathrooms, and laundries.

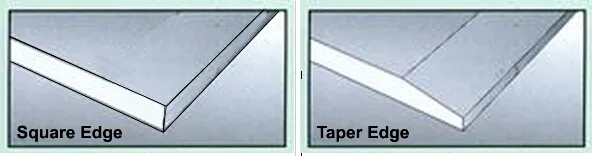

What edge types do you provide?
We provide both Tapered edge and Square edge options to ensure the best fit for your installation method.
Is the material environmentally friendly?
Yes, our gypsum boards are made from pure gypsum powder and quality wood-pulp paper, making them an eco-friendly choice for modern building.
How many sheets can fit in a 20ft container?
The quantity depends on the thickness. For example, a 20' container can hold approximately 880 pieces of 9.5mm board or 720 pieces of 12mm board.
