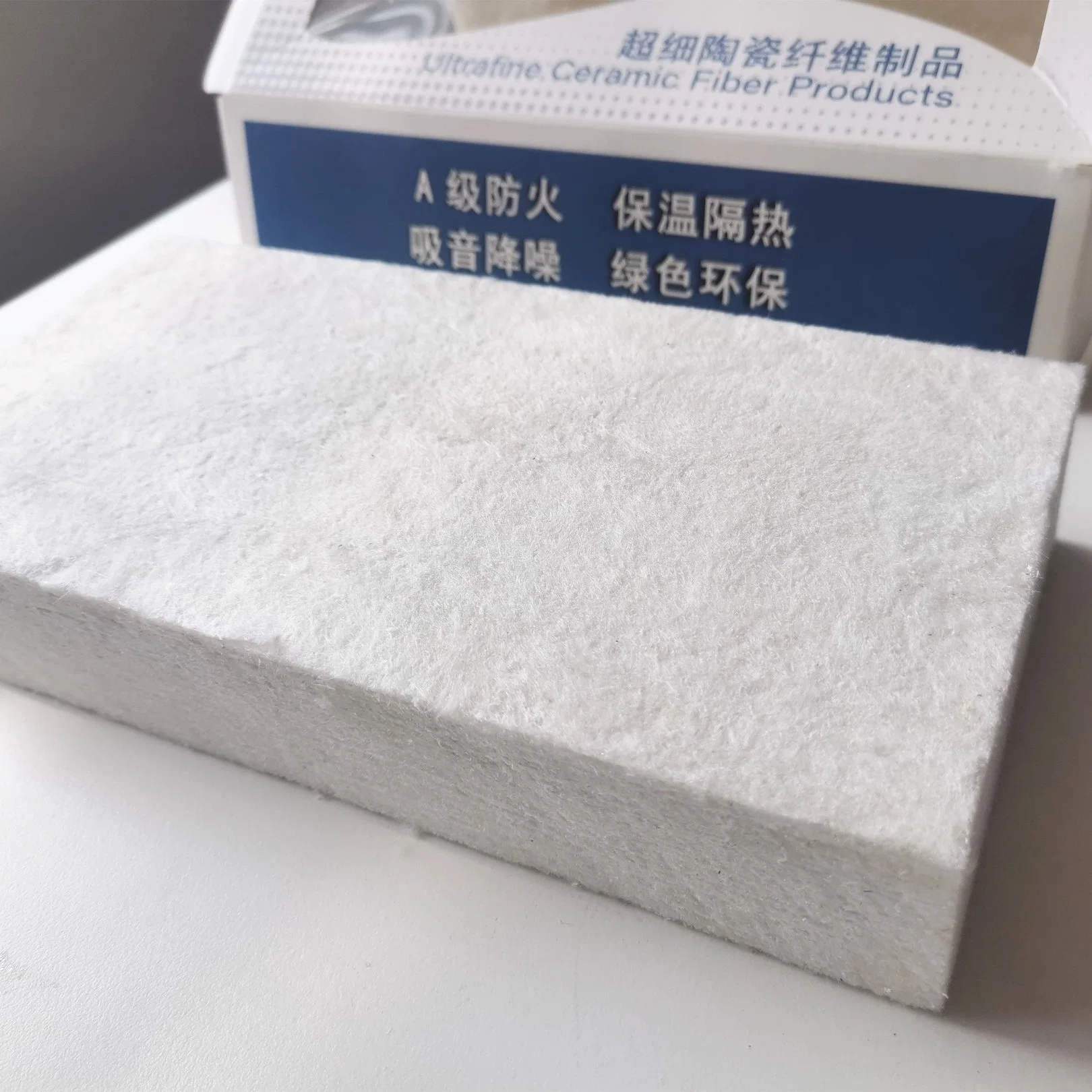

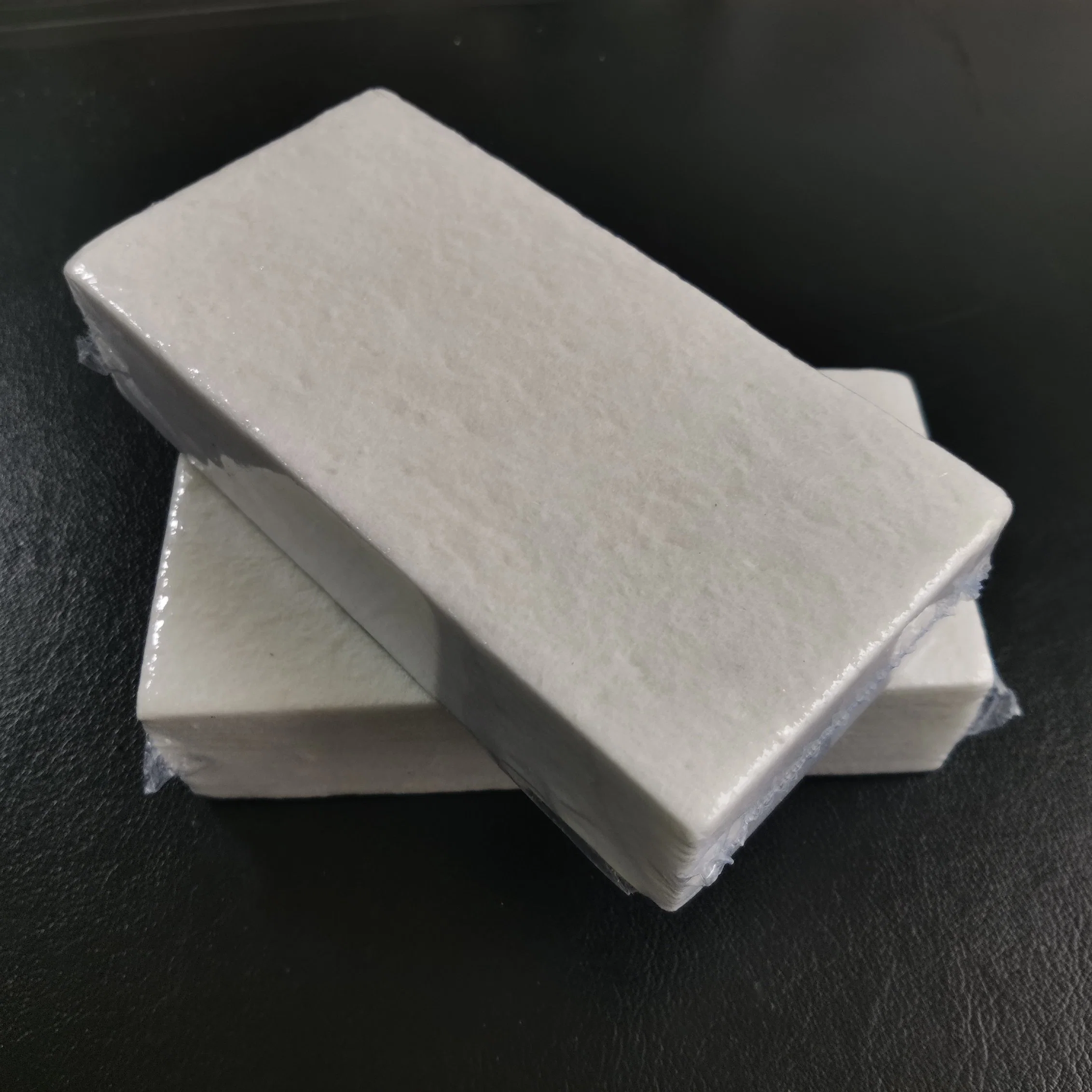

Ultrafine ceramic fiber board is a plate-like material formed by ultrafine ceramic fiber cotton through a special double-sided needling process. Utilizing a precise proportion of binding agents and processed through advanced automatic vacuum absorption machinery and specialized drying techniques, it results in a superior thermal insulation solution.
Ideal for exterior wall insulation in construction; backing thermal insulation for cement and building materials; kiln backing in petrochemical, metallurgical, ceramic, and glass industries; non-ferrous metal industry backing; and high-temperature reaction equipment linings.
| Performance Indicator | National Standard | Product Parameters |
|---|---|---|
| Appearance | No specific requirement | Pale, smooth surface, straight cut |
| Density (kg/m³) | --- | 180-240 |
| Thermal Conductivity (25ºC) | ≤0.040 W/(m,k) | ≤0.033 W/(m,k) |
| Thickness Deviation | ±3 mm | ±3 mm |
| Compression Strength | ≥40 KPa | ≥44 KPa |
| Drawing Strength | ≥7.5-15 MPa | ≥16.5 MPa |
| Water Absorption | ≤5.0% | ≤5.0% |
| Hydrophobicity | ≥98% | ≥98% |
| Operating Temp | ≤400ºC | -40 ~ 1700ºC |
| Project | Organic (XPS/PU/EPS) | Rock Wool | Ultrafine Ceramic Fiber Board |
|---|---|---|---|
| Fire-proof Level | B1 / B2 | A2 | A1 |
| Density (kg/m³) | 30-40 | 100-160 | 200-240 |
| Thermal Conductivity | 0.018 - 0.04 | ≥0.05 | 0.015 - 0.038 |
| Expansion Coeff. | High / Variable | ≤0.003 | ≤0.003 |
| Water Resistance | Good | Low (absorbent) | Basically zero absorption |
| Environmental | Energy Intensive | High Risk (Cancer/Pneumoconiosis) | Protection & Low Energy |
