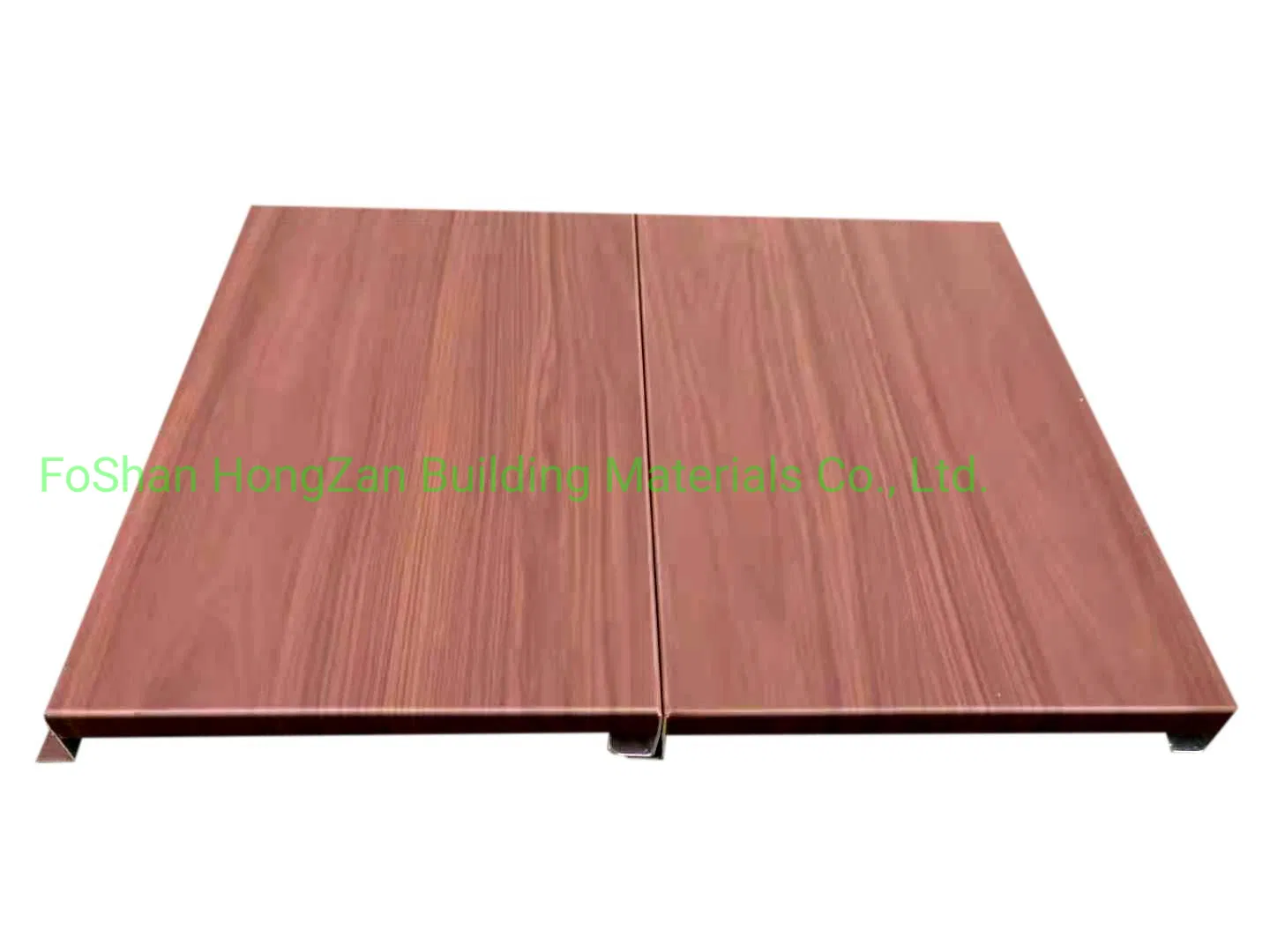

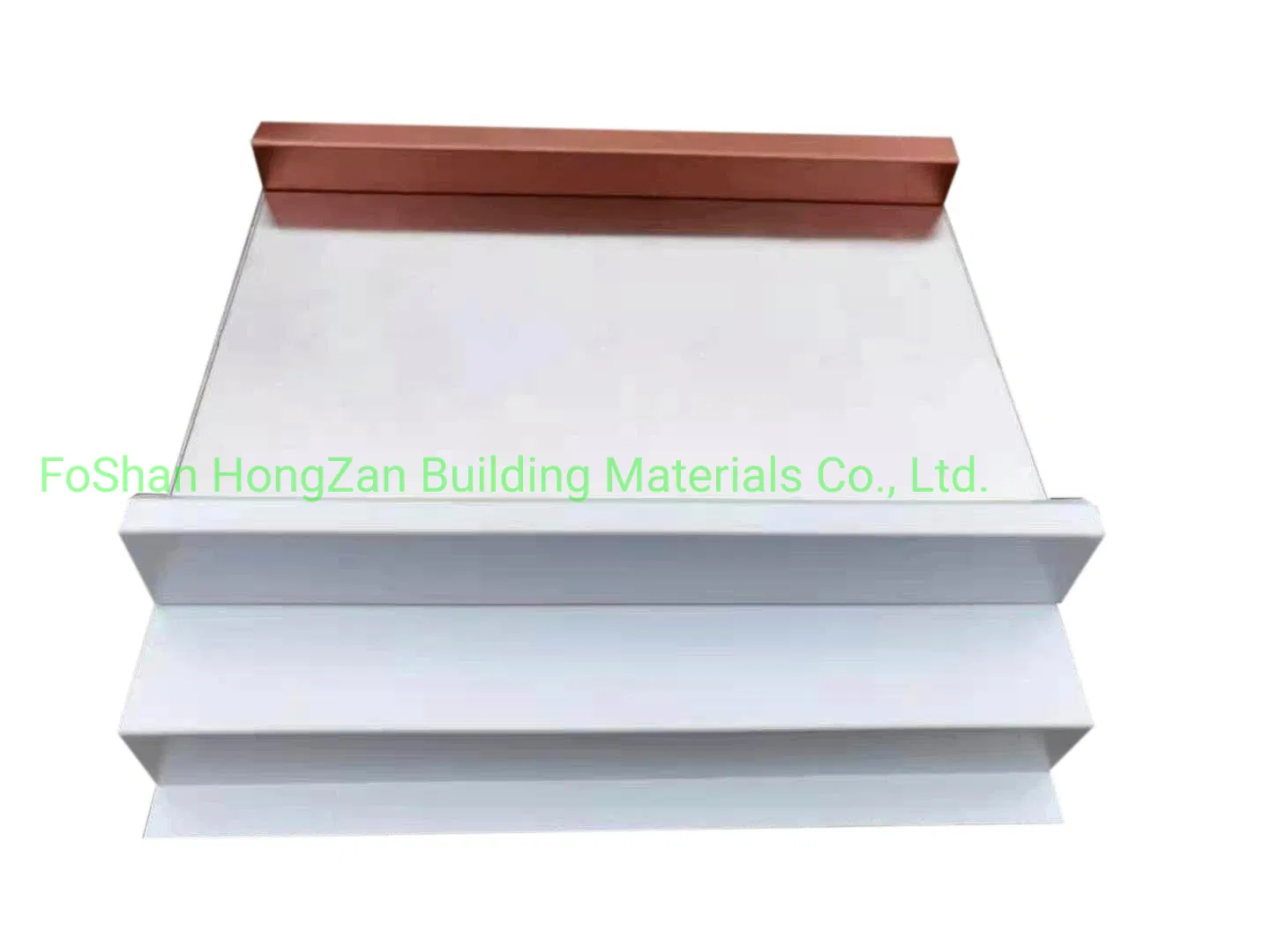

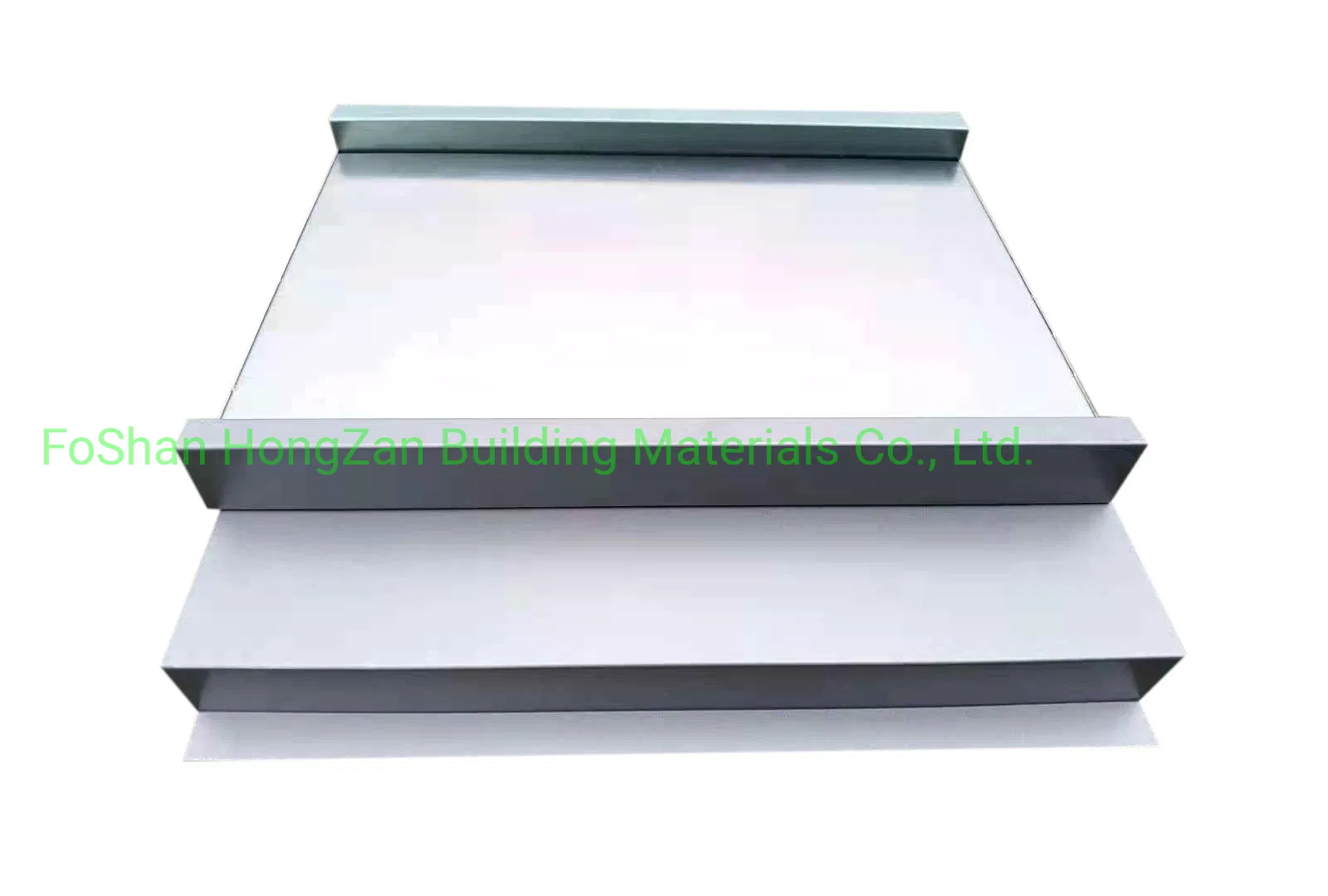

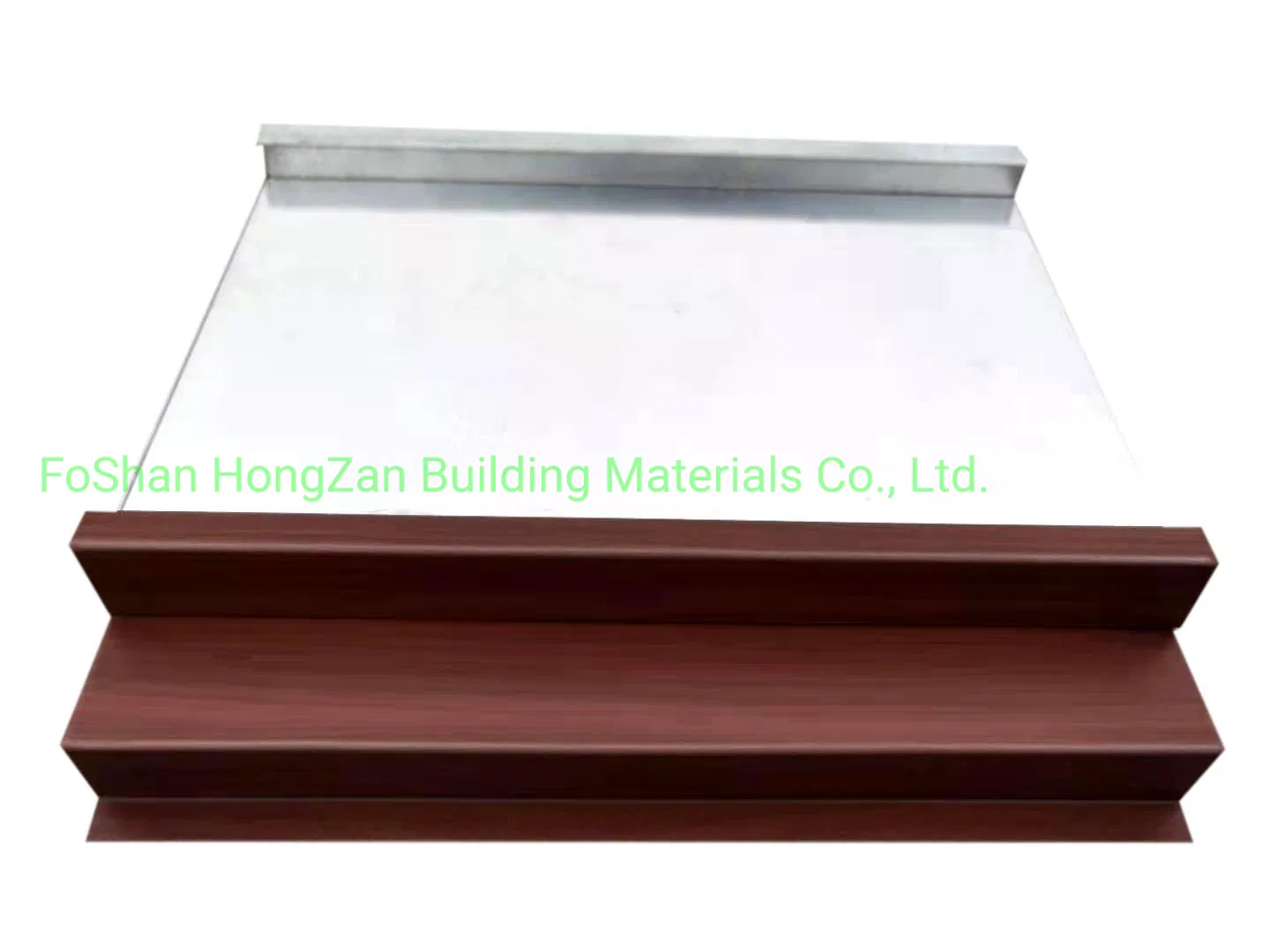

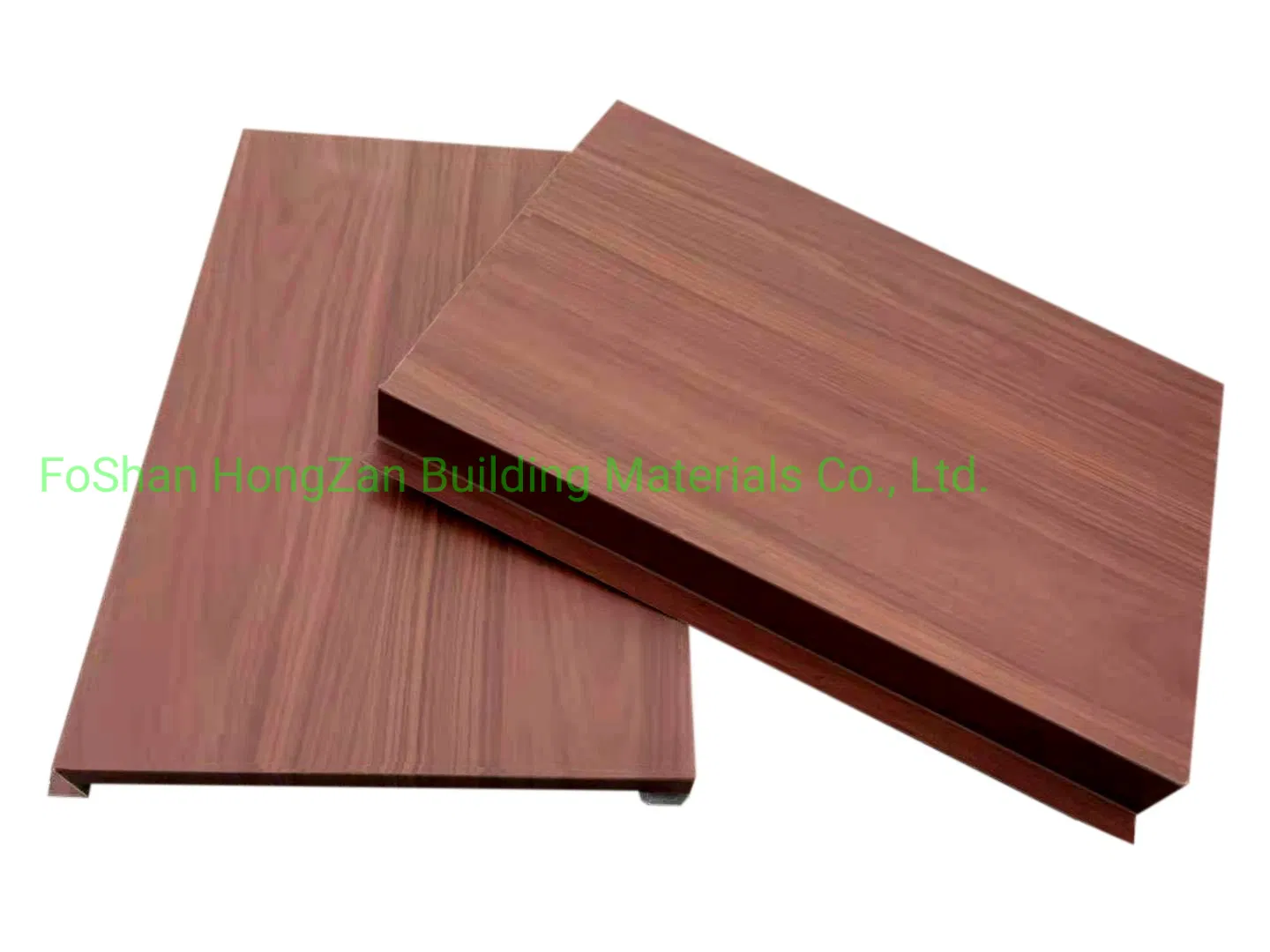

Fashionable Commercial Aluminum Exterior Wall Cladding Panels Building Facade Systems
Fashionable Commercial Aluminum Exterior Wall Cladding Panels Building Facade Systems
Fashionable Commercial Aluminum Exterior Wall Cladding Panels Building Facade Systems
Fashionable Commercial Aluminum Exterior Wall Cladding Panels Building Facade Systems
Fashionable Commercial Aluminum Exterior Wall Cladding Panels Building Facade Systems
1 / 5
Fashionable Commercial Aluminum Exterior Wall Cladding Panels Building Facade Systems
Fashionable Commercial Aluminum Exterior Wall Cladding Panels Building Facade Systems
Fashionable Commercial Aluminum Exterior Wall Cladding Panels Building Facade Systems
Fashionable Commercial Aluminum Exterior Wall Cladding Panels Building Facade Systems
Fashionable Commercial Aluminum Exterior Wall Cladding Panels Building Facade Systems

Fashionable Commercial Aluminum Exterior Wall Cladding Panels Building Facade Systems

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
AHP-039
Surface Finishing
Coating
Panel Thickness
6mm - 20mm or Customized
Aluminum Thickness
0.7mm - 1.2mm
Function
Fireproofing, Anti-static, Anti-Bacterial
Usage
External/Internal Wall, Ceiling, Partition
Certification
CE, ASTM, ISO, Fire-Rated
Core
Hexagonal Aluminum Core
MOQ
200sqm
H.S.Code
7616999000
Our Advantages
✔
Cost-Efficiency: Save budget by choosing direct manufacturing of aluminum honeycomb cores and panels with in-house export handling.
✔
Full Solutions: Get complete panel and fixing system solutions, including professional shop drawings from experienced engineering teams.
✔
Labor & Transport Savings: Ultra-lightweight panels (3 times lighter than solid panels) significantly reduce transportation fees and job site installation hours.
✔
Safety & Durability: High rigidity and fire-rated properties increase building durability and safety while reducing overall structural weight.
Applications
  • Building exterior/internal curtain walls
  • Marine partitions, ceilings, and decks
  • Toilet partitions and bathrooms
  • Renovations for old buildings
  • Kitchens and balconies
  • Shop door decorations
  • Advertisement boards & signboards
  • Wallboards for tunnels
  • Truck body and vehicle materials
  • Cleanroom wall cladding
Product Parameters & Structure

Aluminum honeycomb panels are premium composite materials known for perfect strength, super flatness, and excellent sound/heat insulation. They are widely used in architectural and marine decorations.

Structure of Honeycomb Panel
Technical Feature 20mm Thickness 25mm Thickness
Front Panel1.00mm1.00mm
Back Panel1.00mm1.00mm
Weight (kg/m²)7.47.8
Inertia Moment (cm⁴/m)19.8531.67
Section Modulus (cm³/m)1924
Sound Insulation (ISO717)23 dB25 dB
Main Features
A. Lightweight & High Rigidity: Honeycomb panels weigh only 1/5 of aluminum panels and 1/10 of iron panels for the same rigidity, offering unmatched straightness even for large sizes.
B. Insulation Performance: Enclosed cells stop air flow, blocking heat and sound waves (20-30dB reduction). Ideal energy-saving material with a heat conduction coefficient of 0.104-0.130W/M.k.
C. Surface Quality: High flatness with fluorocarbon (PVDF) coating ensures color stability for 15-20 years, even under industrial pollution and harsh weather.
Installation Instructions

Type A: Standard Seaming Method

Standard Seaming Installation

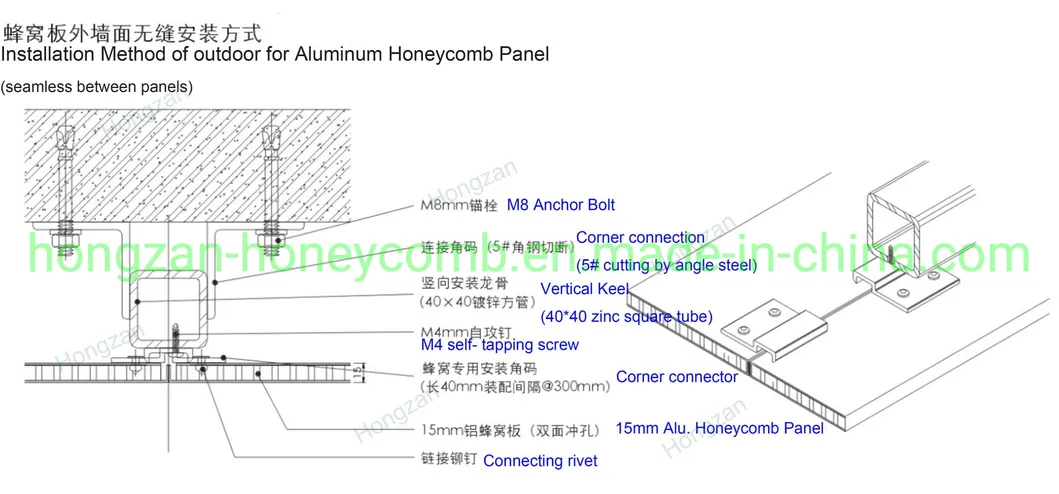

Type B: Standard Seamless Method

Standard Seamless Installation
Factory & Project Gallery

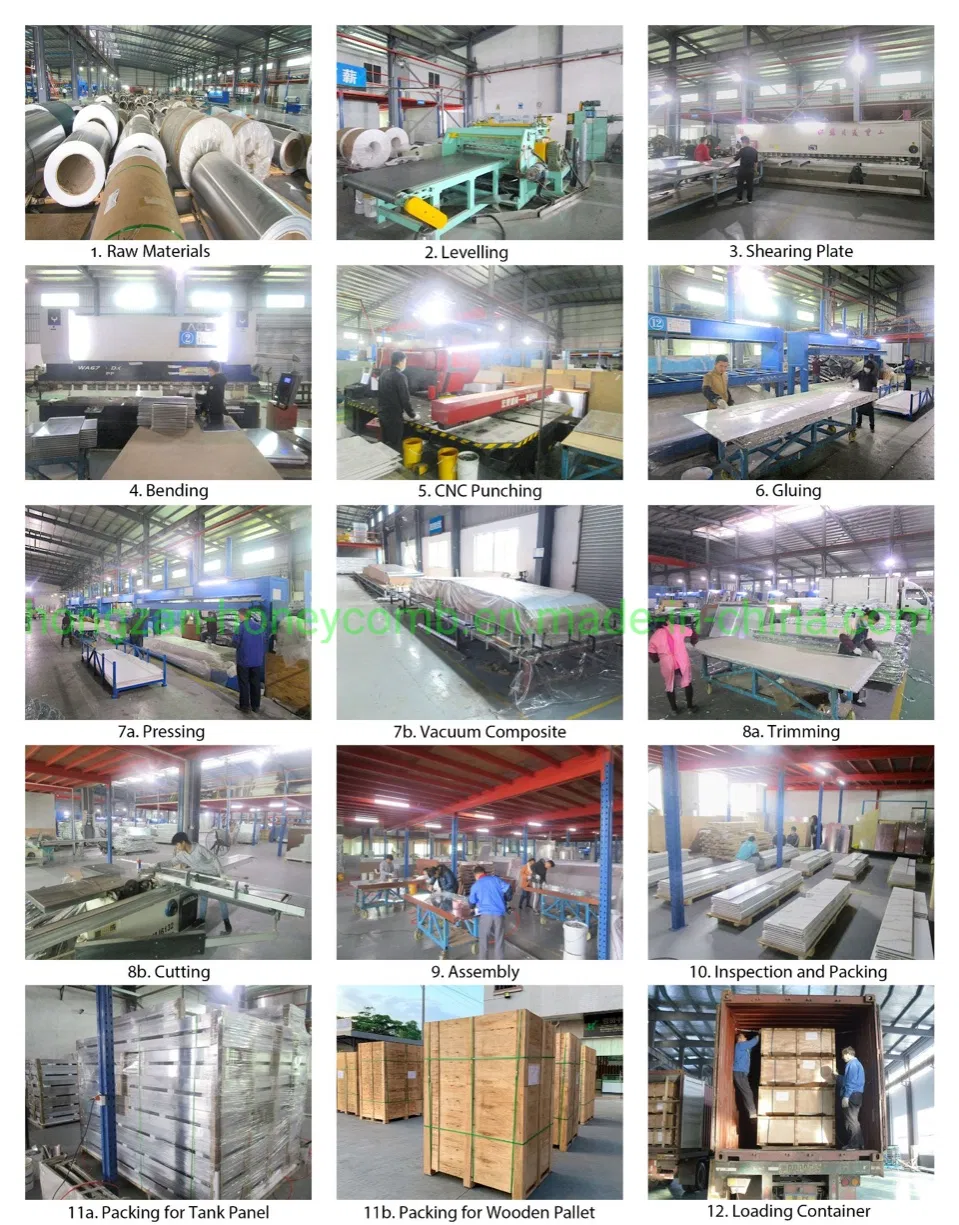

Factory Show

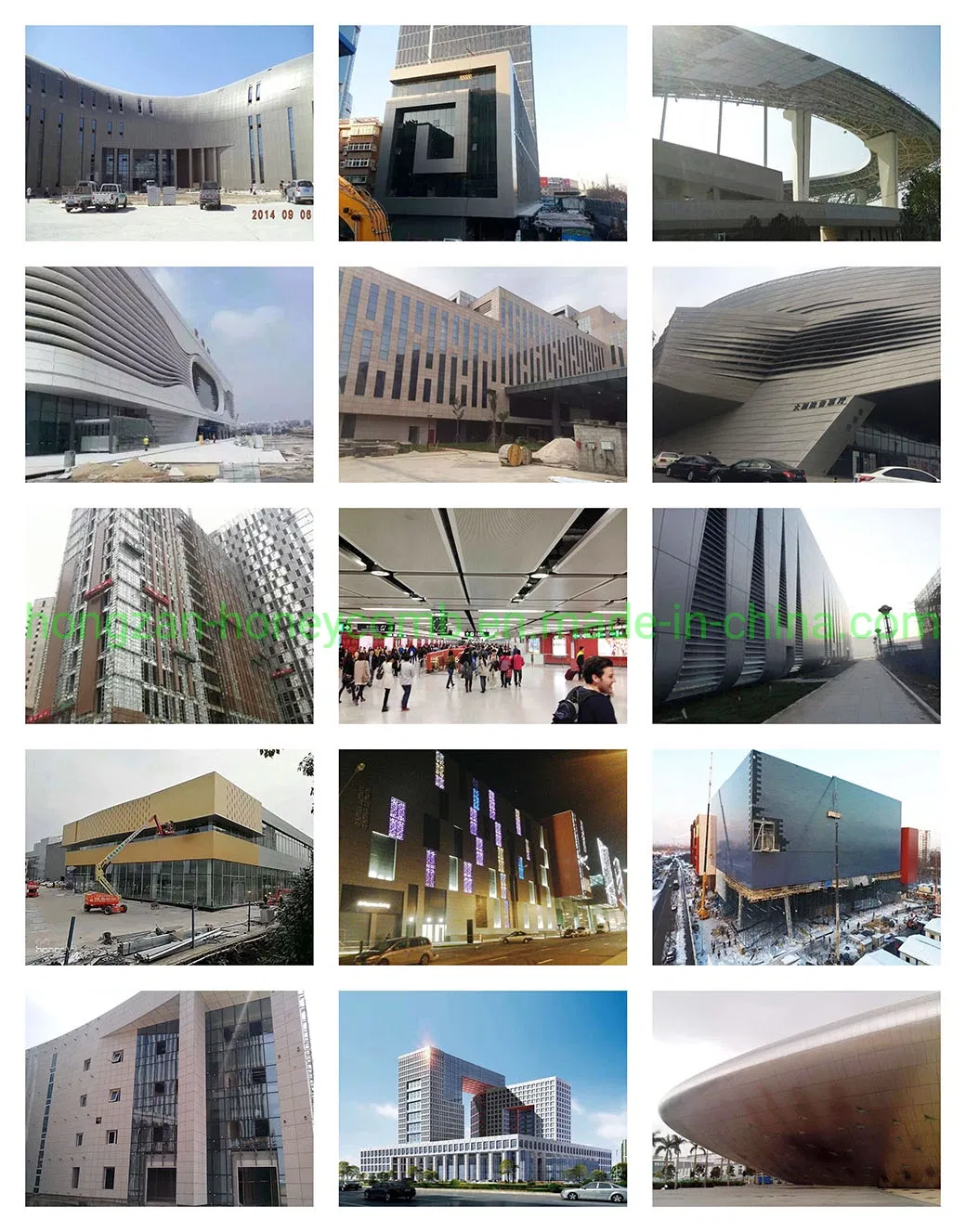

Projects Study
Global Certifications

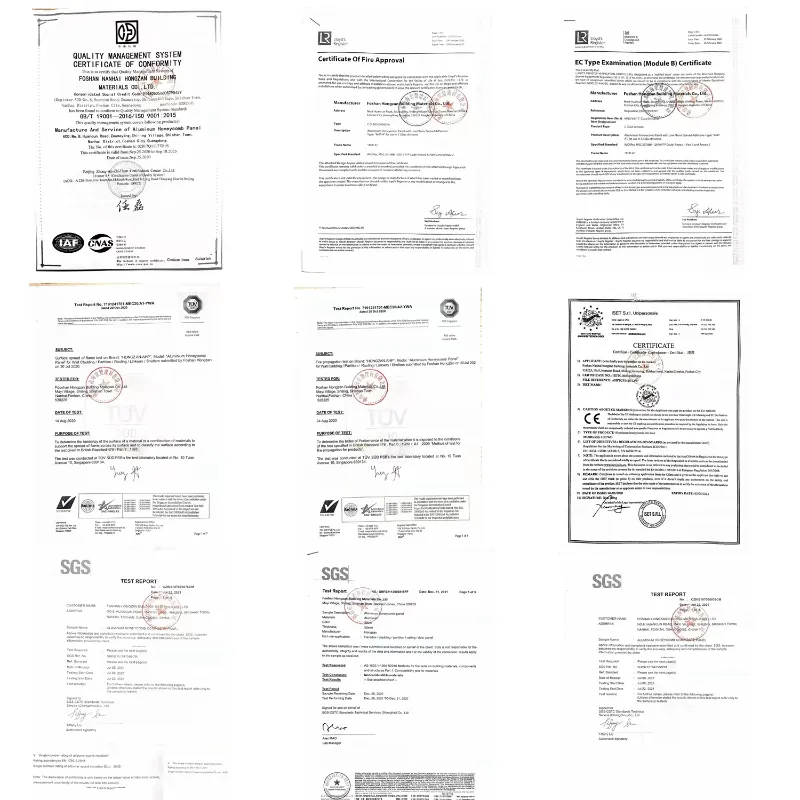

Certificates

Compliant with: ISO 9001:2008, IMO MED (Lloyd's Marine Association), BS 476/475, EN13501-1, ASTM, and CE EN Certificates.

Frequently Asked Questions
Do you provide free samples?
Yes, we provide samples free of charge for quality testing.
Do you offer the best price?
As a direct manufacturer with export rights, we always provide the most competitive prices paired with high-quality products.
How do you ensure reliable quality?
We operate under a strict QA system (ISO 9001:2008) and our products have passed BS, IMO, CE, and ASTM tests. We welcome third-party QC inspections.
What is your production capacity?
Our monthly production capacity is 50,000 square meters for honeycomb panels and 500,000 square meters for cores.
Can we have a video factory tour?
Of course! We are happy to arrange a live video session to show you our facility and production lines.
Are customized specifications available?
Yes, we can customize shapes (curved, L-type, U-type), sizes, surface treatments, and colors according to your architectural design.
