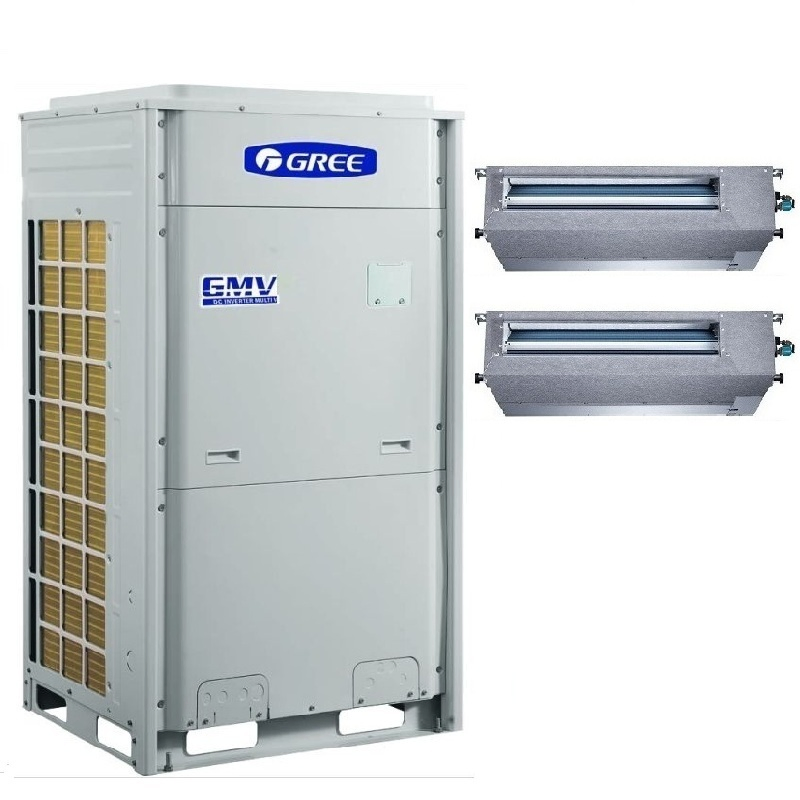

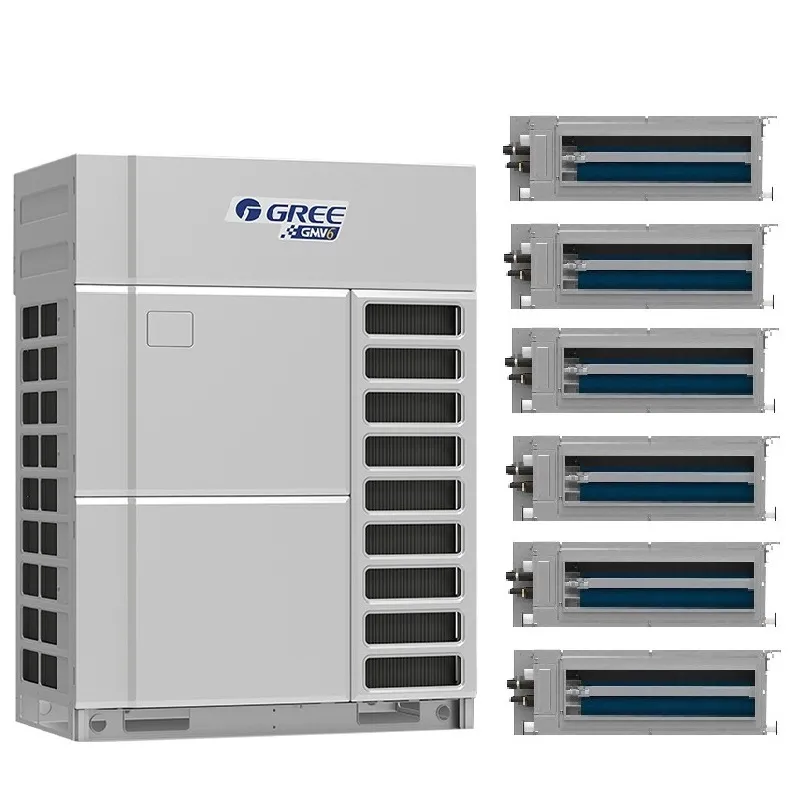

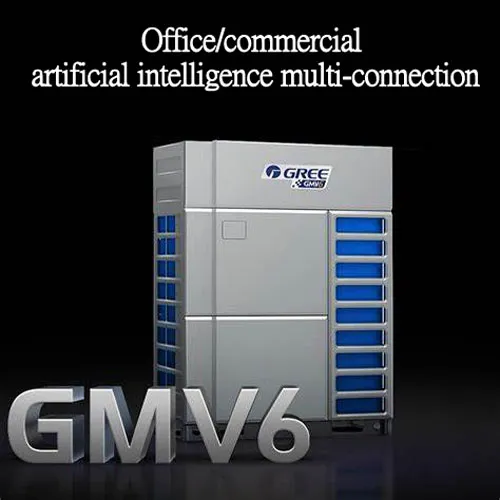

The latest generation of VRF (Variable Refrigerant Flow) products represents market-leading technology.

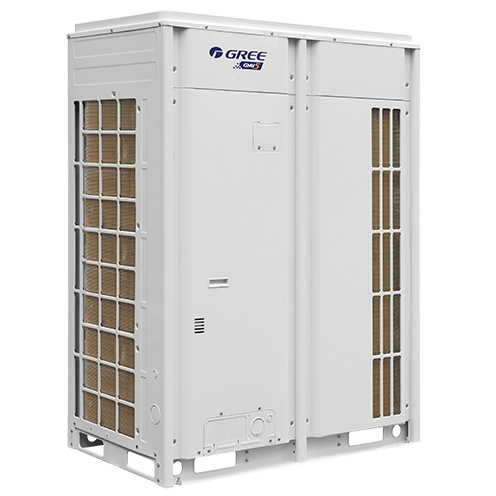

The Modular DC Inverter Multi VRF System adopts advanced technologies to ensure peak performance. It operates in a wide temperature range from -30ºC to 55ºC, providing a comfortable environment from severe winters to hot summers.

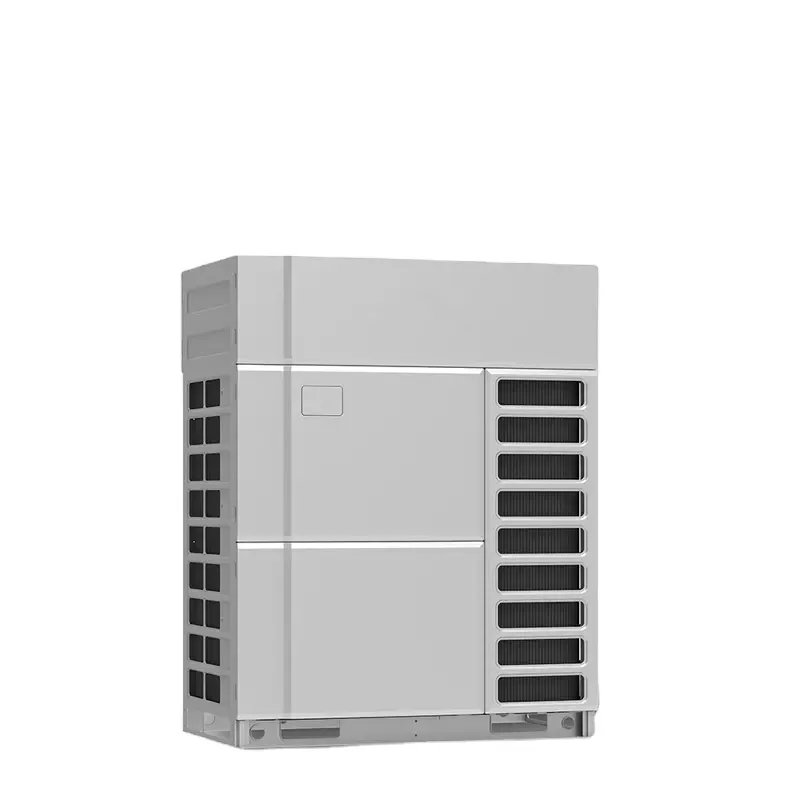

With a capacity range from 22.4kW to 246kW (8HP ~ 88HP) across 41 models, it offers flexible installation for large office buildings, factories, or malls. The CAN+ communication technology ensures intelligent control for up to 80 indoor units with ultra-quick response times.
Equipped with a DC inverter low-temperature enthalpy-adding scroll compressor and a high-pressure chamber for excellent performance. The sensorless DC inverter fan motor realizes speed regulation between 5Hz-90Hz, significantly reducing energy loss.
Upgraded component designs allow the unit to operate at low noise levels. 9 different quiet modes are available, with noise values as low as 40dB(A).

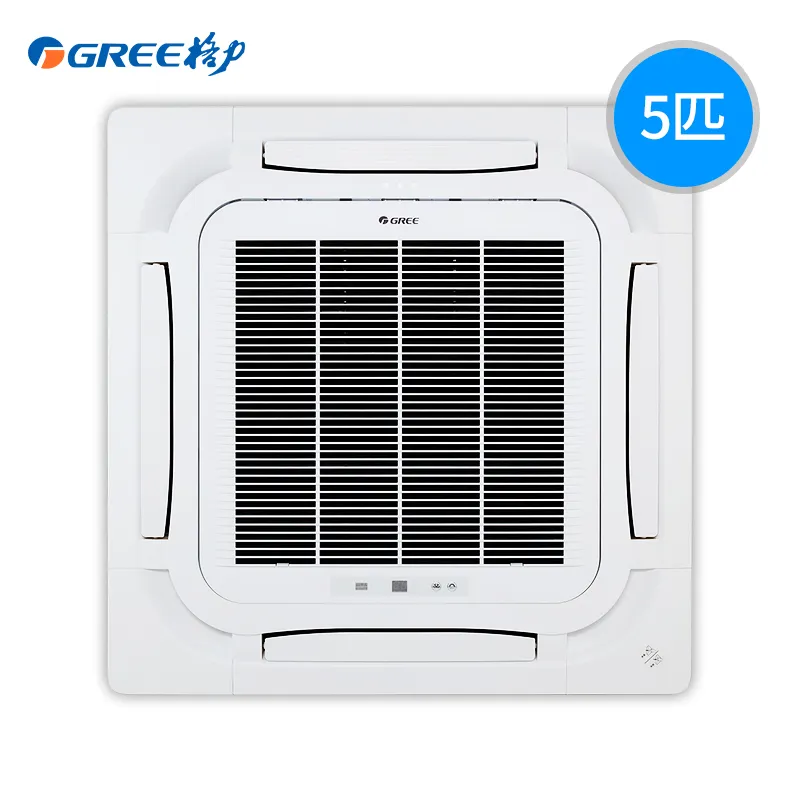

System output capacity adjusts automatically based on usage characteristics and load matching over a 24-hour cycle to achieve silent operation. Indoor units (IDU) also utilize DC inverter motors to reach noise levels as low as 22dB(A).
Includes sophisticated oil return control, exclusive oil storage technology, and balancing oil control among compressors to ensure long-term system stability.
Features auto address allocation, non-polarity communication, and auto error detection. The system can automatically detect the quantity of IDU and ODU units and perform real-time pipeline abnormality judgments.
Dual energy-saving modes (Auto and Forcible) allow users to meet peak power consumption requirements. Includes emergency stop functionality linked to fire alarm signals for enhanced safety.
Maximum total pipe length reaches 1,000m, making it suitable for complex architectural structures and reducing installation costs. Supports up to 80 indoor units in a single cooling system.

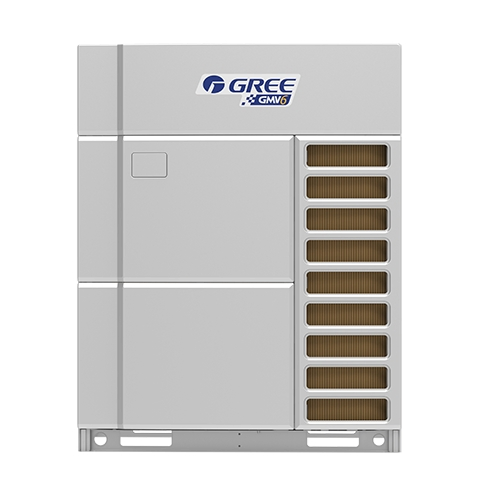

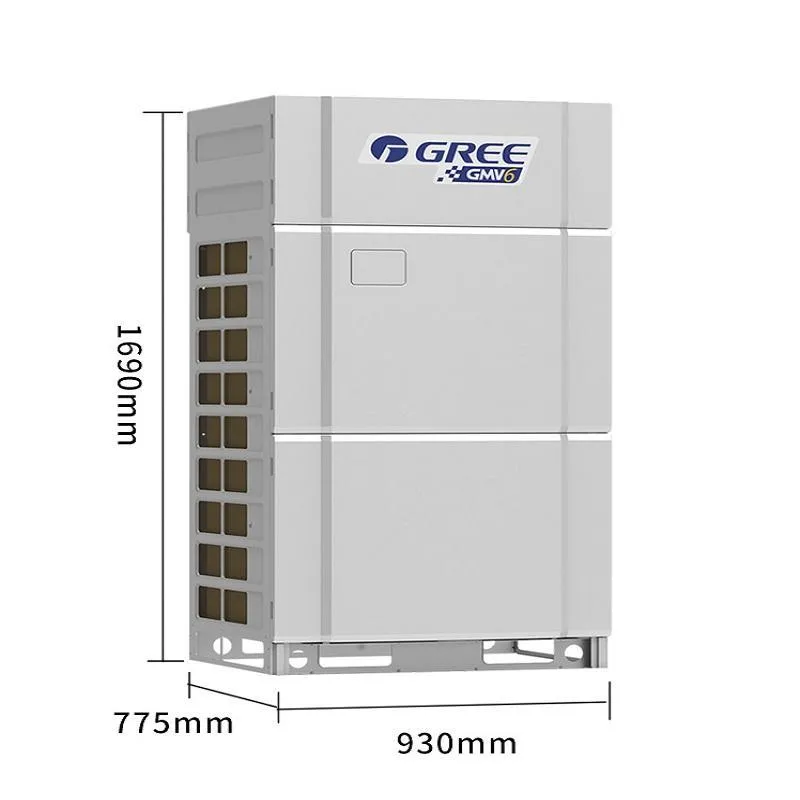

Outdoor units (ODU) feature high static pressure design (up to 110Pa), allowing for flexible placement, including indoor installations.
