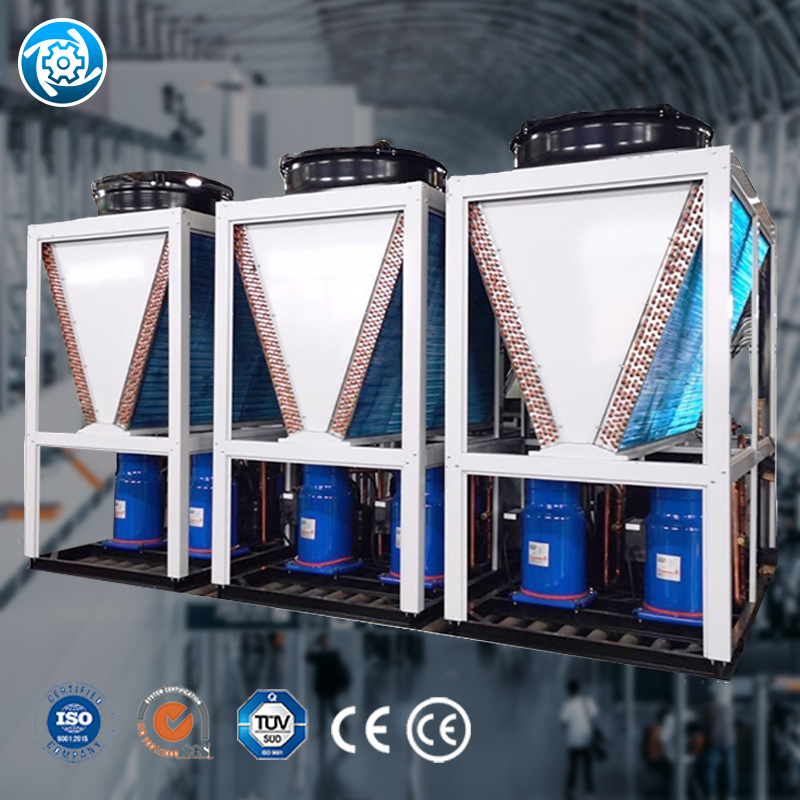

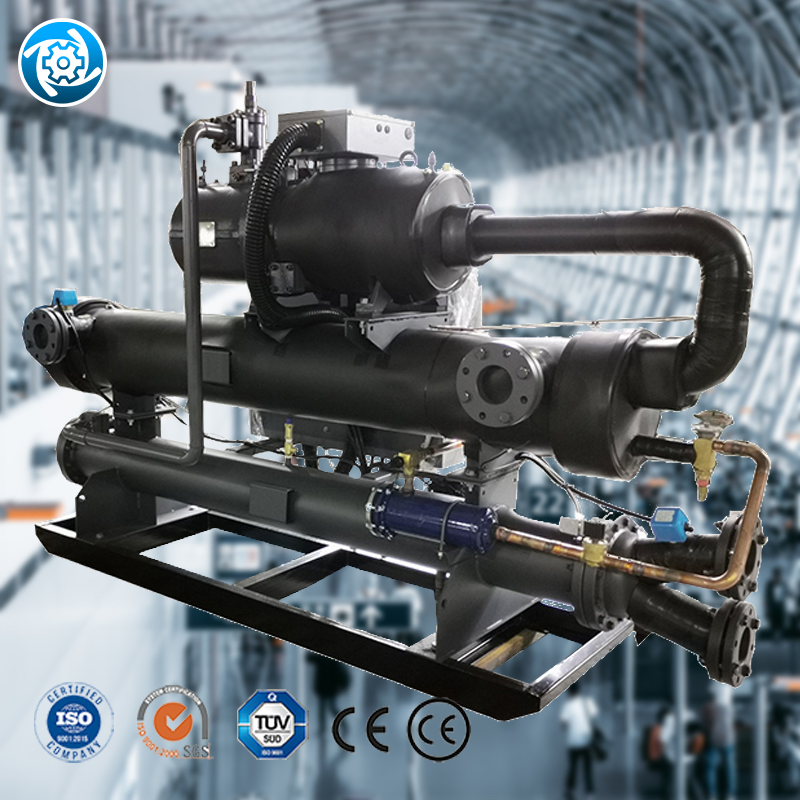

Advanced Energy-Efficient Floor Standing Heating and Cooling System

1 / 5

Advanced Energy-Efficient Floor Standing Heating and Cooling System

Customization:	Available
After-sales Service:	Overseas After-Sales Department
Warranty:	5years

Send Inquiry

Product Description

Basic Information

Model NO.DECENT70931

TypeChiller

Air Tube MaterialGalvanized Sheet

Corrosion DurabilityUltrahigh

Operating Voltage380/400 VAC

Noise LevelUltra Low

Application FieldsMechanical Engineering

MountingFloor Standing

Lifetime>20 years

CertificationISO, CE, CCC

Cooling Capacity68kw

Compressor TypeHermetic Scroll Type

Refrigerant TypeR410A

Evaporator TypeShell-Tube

OriginChina

Production Capacity10000 Sets/ Year

Product Description

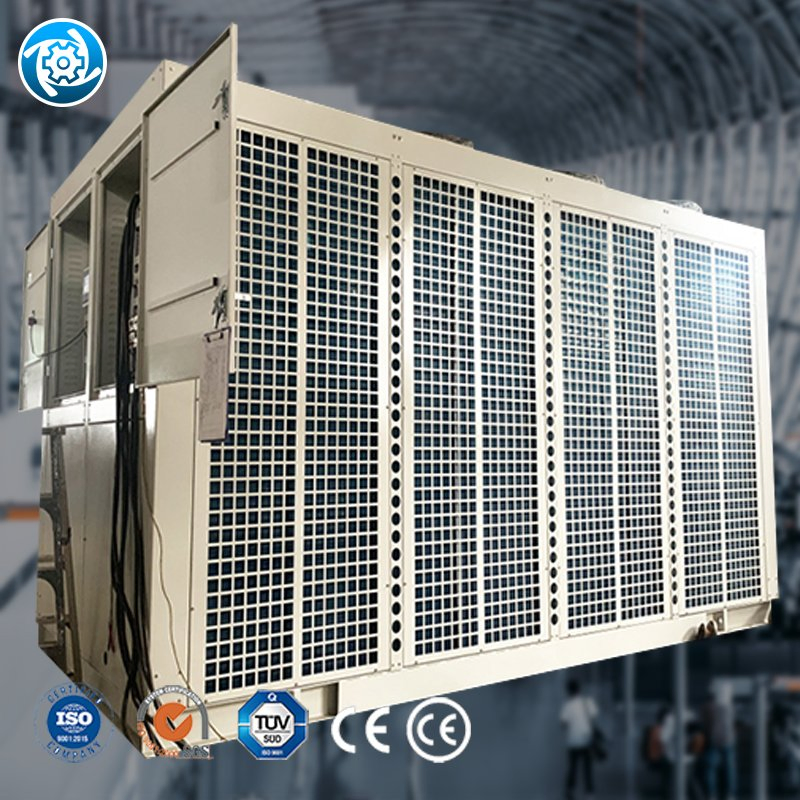

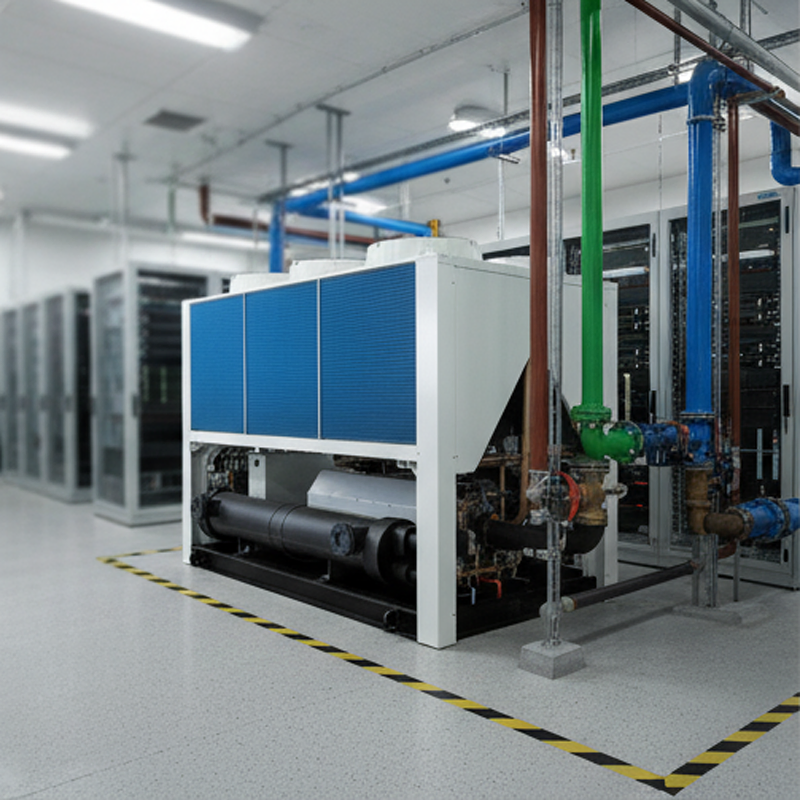

The modular air cooled chiller and heat pump is designed for cooling and heating operations in large commercial and industrial buildings. The chiller and heat pumps will often be installed in malls, hotels, hospitals, and office buildings. The machine set can be installed on the roofs, balconies, courtyards, and other suitable outdoor positions. The equipment does not need to be installed in a specially built water chiller machine room.

Key Advantages:

Easy to install and save space.
100% heat recovery is optional.
Modular design ensures each cooling system operates independently.
Standard modules are light weight and take up minimal space.
Various combinations of modules can be created based on client needs.
Computerized alternate start of compressors reduces current impact on power networks.

Technical Parameters

Product		Air cooled water chiller and heat pump - Scroll compressor
Model		68	90	136	204	272	340	408	476
Cooling capacity	kW	68	86	136	204	272	340	408	476
Cooling input power	kW	21.1	16	42.2	63.2	84.3	105.4	126.5	147.6
Heating capacity	kW	70	92.4	140	140	140	140	140	140
Heating power	kW	22.1	15.8	44.1	66.2	88.2	110.3	132.4	154.4
Compressor		Hermetic scroll type
Quantity		2	2	4	6	8	10	12	14
Refrigerant Type		R410A
Water flow (m³/h)		11.7	13.4	23.4	35.1	46.8	58.5	70.2	81.9
Net weight (kg)		700	900	1400	2100	2800	3500	4200	4900

Core Technologies

Ultra-low Temperature Operation Technology: Intelligent defrosting based on running time, exhaust temperature, and ambient conditions, shortening defrosting time by 20%.

Jet Enthalpy Technology: Increases refrigerant flow through a second suction port on the scroll, improving cooling capacity by 10% and enhancing stability in extreme cold.

Shell and Tube Heat Exchanger: Features large heat exchange area and high efficiency, resistant to scaling compared to plate exchangers.

Our Advantages

Frequently Asked Questions

Can you customize motor and compressor brands?

Yes, we can customize the motor and compressor brands as well as the operating voltage according to your local standards and specific project requirements.

What information is needed to get an accurate price?

Please share technical specifications such as airflow (CMH or CFM), cooling/heating capacity, application area, and any special environmental requirements for a tailored quotation.

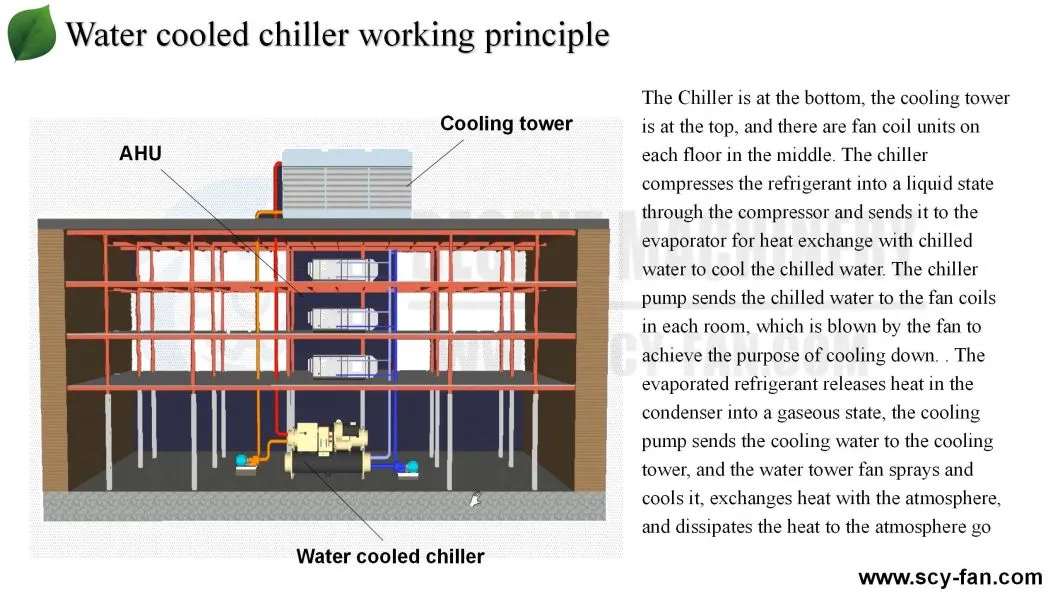

What is the main difference between water-cooled and air-cooled units?

Water-cooled units use water and cooling towers for higher efficiency but need more infrastructure. Air-cooled units use ambient air, are easier to install, and are ideal for areas with limited water supply.

Which compressor brands are commonly used in your units?

We commonly utilize globally recognized brands such as Bitzer, Copeland, Danfoss, and Sanyo, selected based on your specific capacity and voltage needs.

What is the difference between a fresh air unit and an air conditioning unit?

A fresh air unit focuses on supplying filtered outdoor air to improve air quality, while an air conditioning unit regulates both temperature and humidity within the space.

What materials are used for the AHU panels?

Panels are typically made of double-skin galvanized steel with 25-50mm polyurethane insulation. Stainless steel or aluminum alloy options are available for hygiene-sensitive environments.
