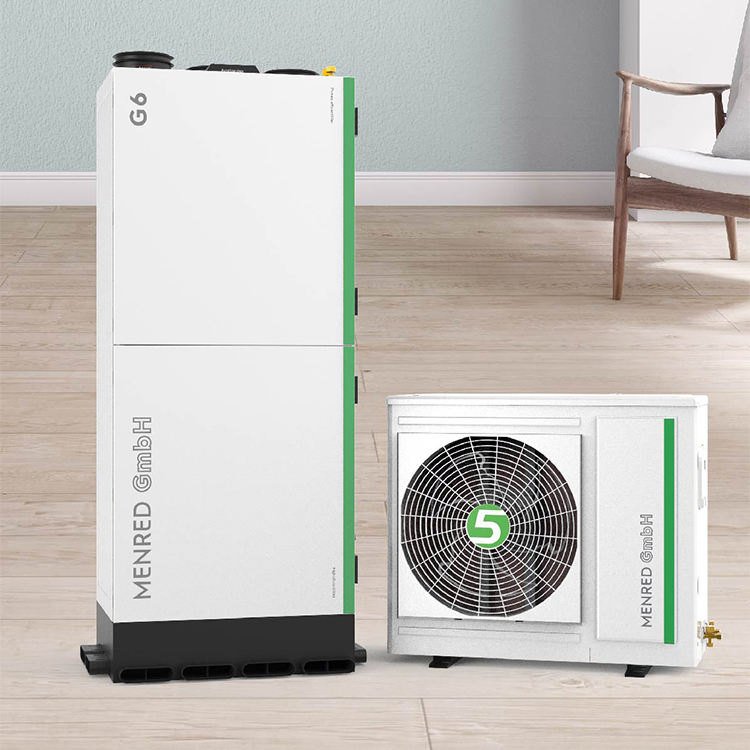

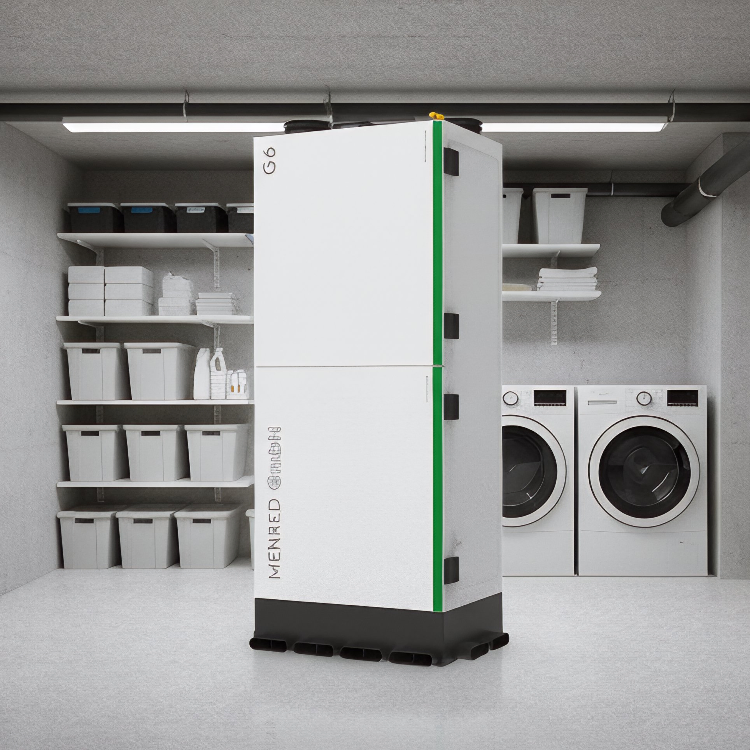

Efficient Menred G6 Ventilator Erv HVAC System Enhance Comfort with Superior Energy Recovery

Still deciding? Get samples of $ !
Request Sample

Product Description

📄 Basic Specifications
Model NO.
G6
Type
Venetian-Style Outlet
Certification
CE
Warranty
3 Years
Rated Noise
36dB(a)
Net Fresh Air Volume
345m³/H
Design Style
Modern, European
Feature
Energy Saving
Voltage
220V~50Hz
Application
Villa, Hotel, Apartment, etc

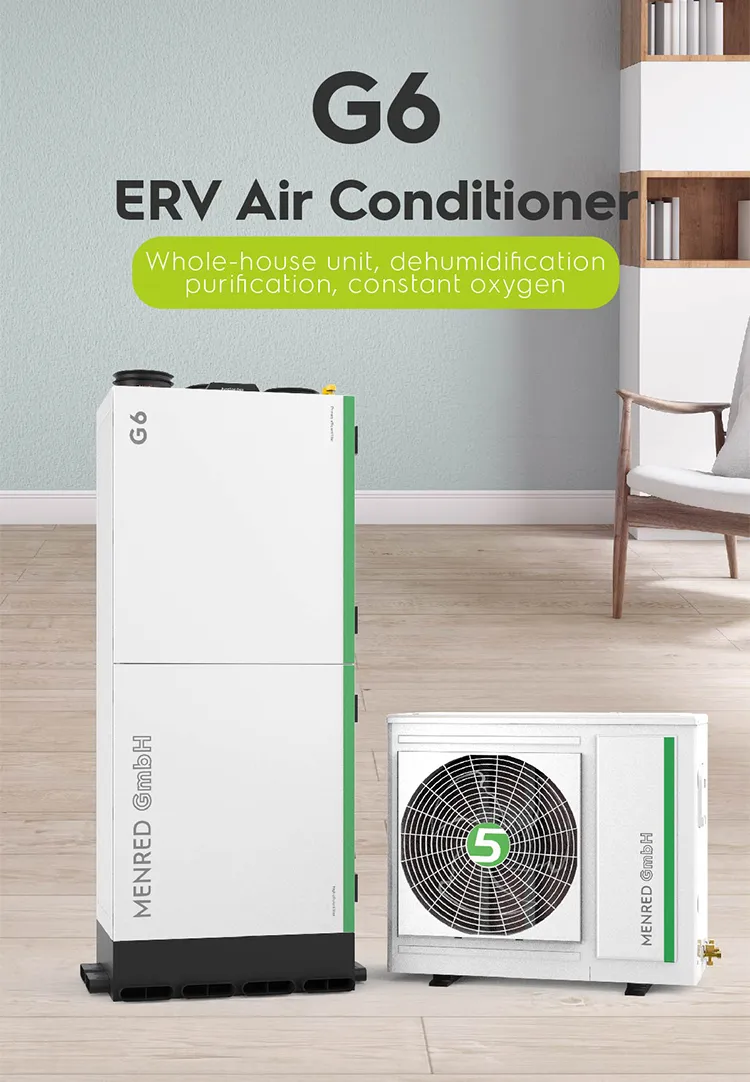

G6 Ventilator System
🔍 Product Description

Recuperator ventilation is a mechanical system that controls air circulation and provides fresh air in rooms. It has several core functions, including expelling foul air. Warm air from outside is passed through advanced filters to remove dirt, dust, and pollen.

Fresh Air Provision: Warm air is supplied with specific parameters, such as temperature, moisture, and efficiency.

Heat & Humidity Recovery: The system recovers heat and humidification from polluted air. These can be used for energy recovery in homes, schools, pharmaceutical industries, and hospitals.

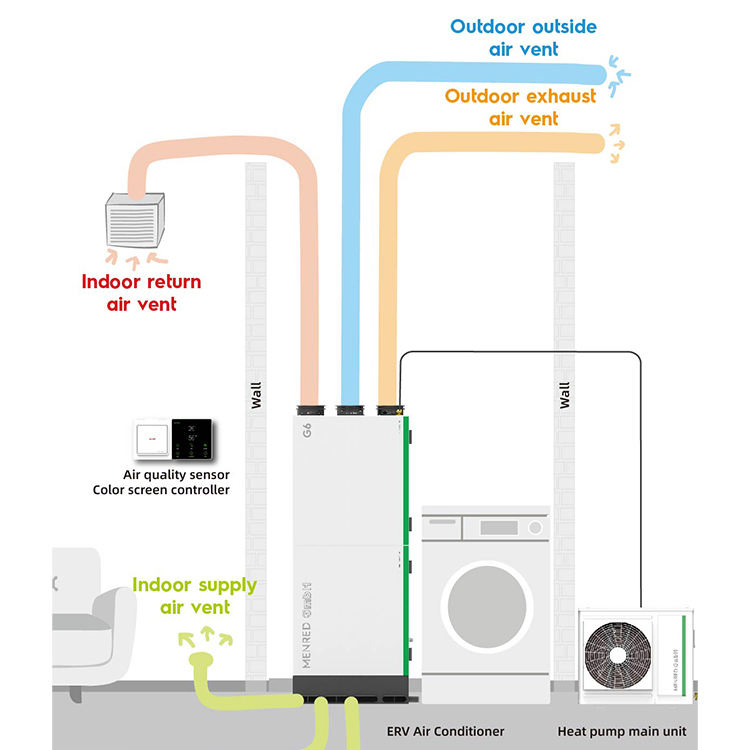

The Energy Recovery Ventilation System will exhaust stale air out of the home and bring fresh air from the outside back in. These two air streams are directed through a highly developed air-to-air energy exchange core, physically separated by many layers of plates to ensure no mixing or contamination of the fresh air.

The unique moisture transfer capability of the ERV core also eliminates condensation and frost build-up in most applications.

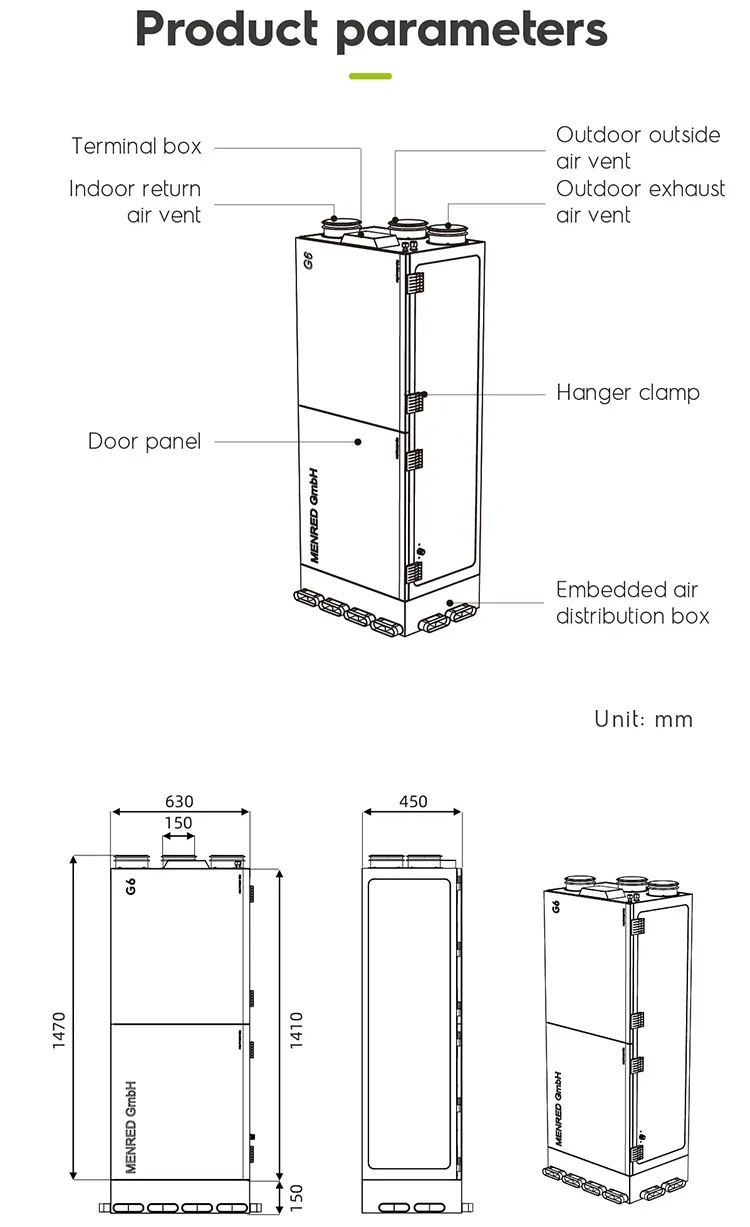

Technical Layout
📊 Technical Data
Voltage220V/50Hz
Max. Air Volume600m³/h
Rated Air Volume350m³/h
Rated Power130W
Net Fresh Air Rate98.5%
Cooling Enthalpy Efficiency67%
Heating Enthalpy Efficiency72%
PM2.5 Filtration Efficiency99.8%
Heat Pump Cooling Capacity3500W
Heat Pump Heating Capacity4200W
Weight87kg
📸 Product Showcase

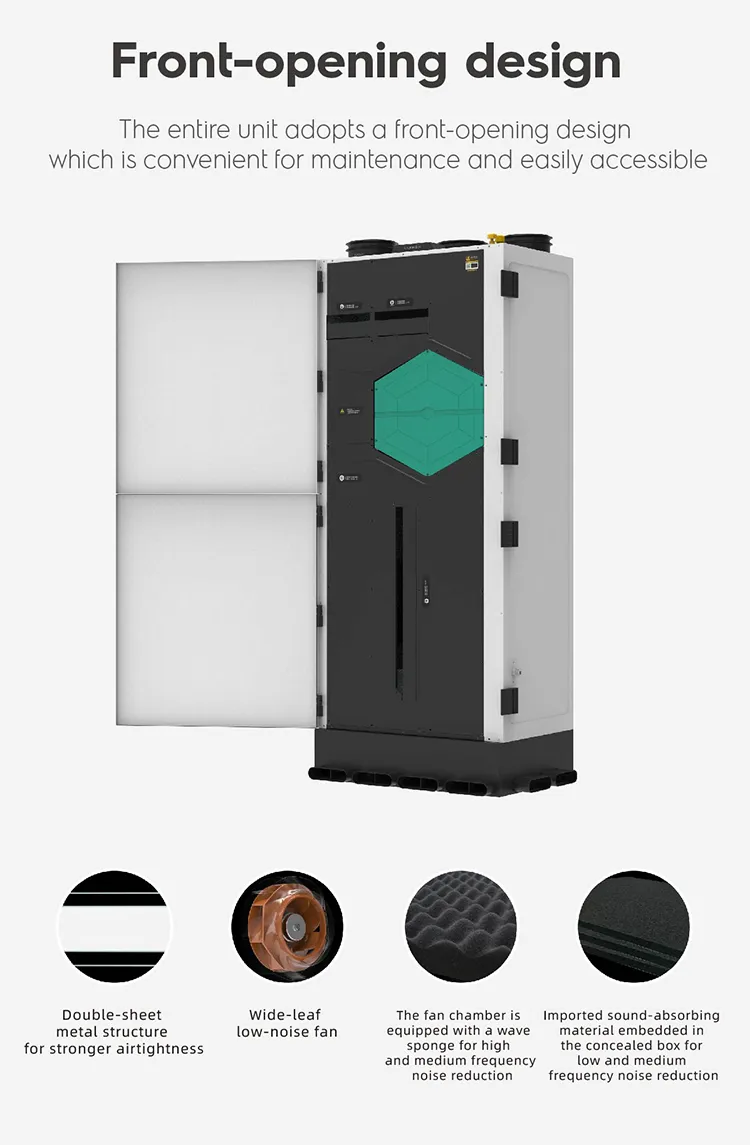

Detail 1

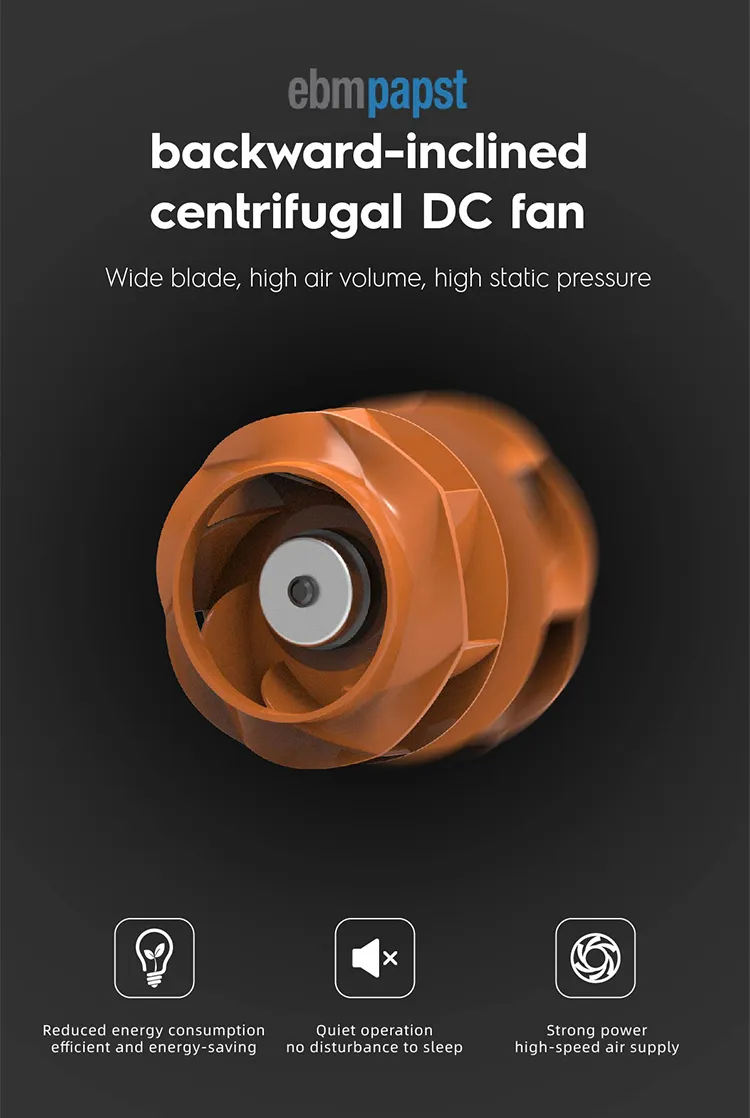

Detail 2
Detail 3

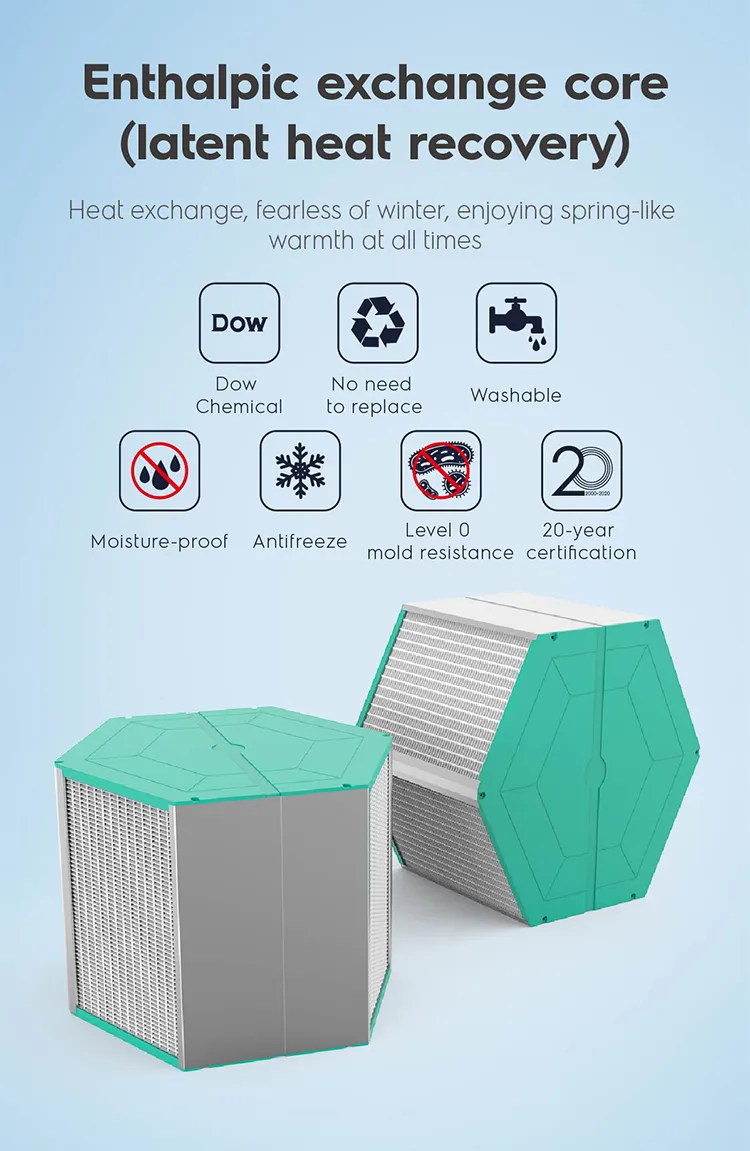

Detail 4
Detail 5
Detail 6

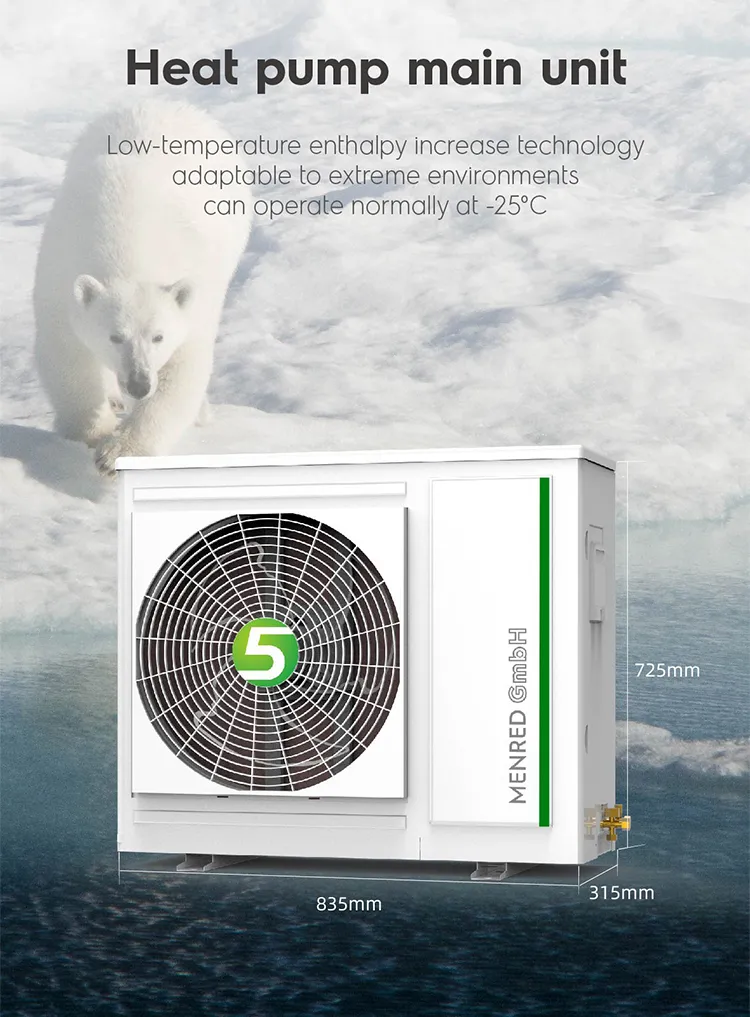

Detail 7

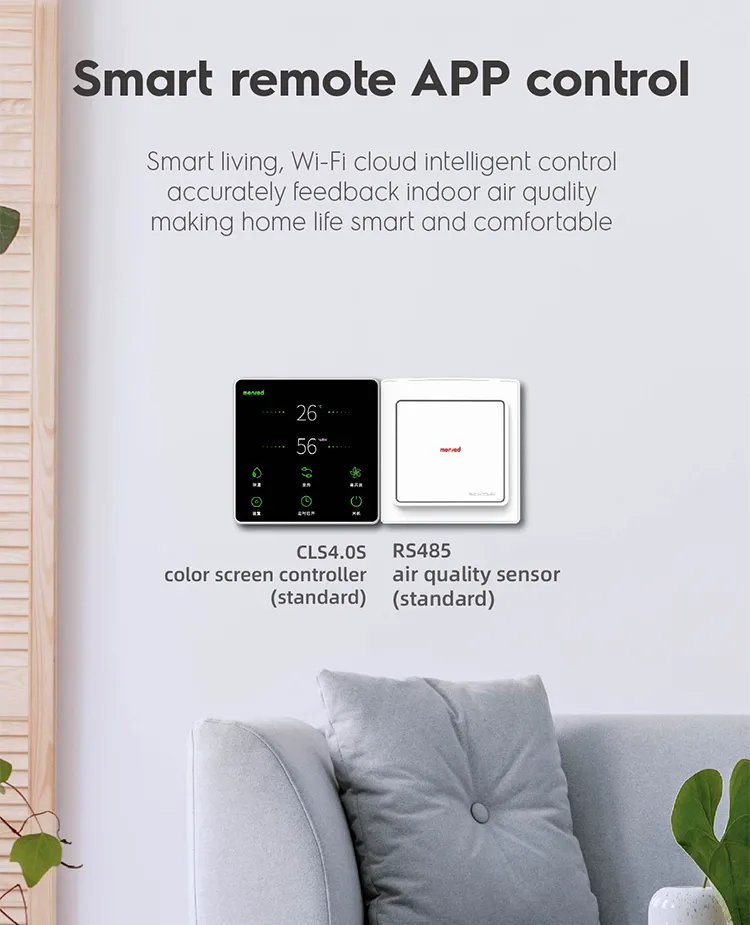

Detail 8

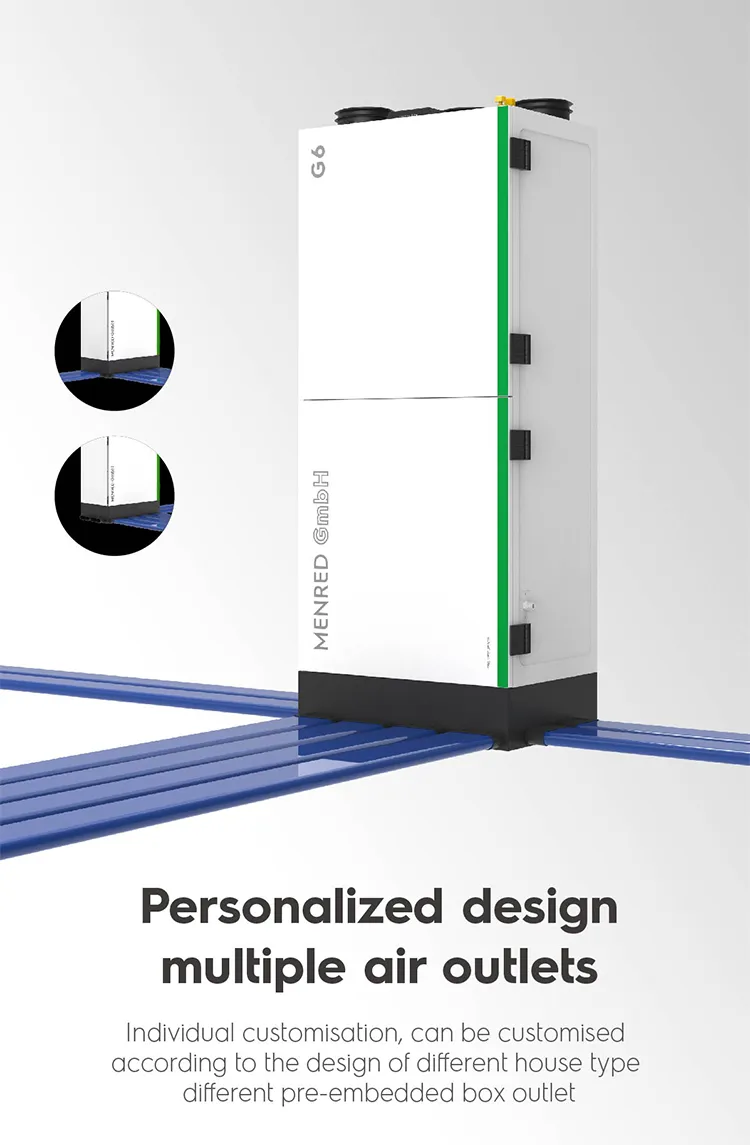

Detail 9

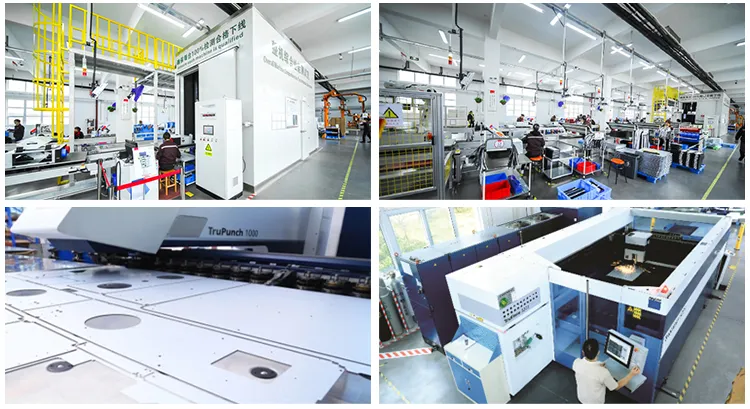

Manufacturing
Quality Control
❓ Frequently Asked Questions
What is the warranty period for the G6 system?
We provide a comprehensive guarantee of three years for our products to ensure long-term reliability.
Are samples available for quality checking?
Yes, we can provide samples. Typically, we offer 1-3 pieces for testing or quality verification. Please reach out to request your samples.
How are the orders shipped and is it safe?
Small packages are sent via Express (DHL, FedEx, UPS, TNT). Large orders are shipped by Air or Sea. We use robust packaging to ensure the safety of all deliveries.
Can you provide customized products or packaging?
Yes, we have extensive experience in creating customized solutions for our customers, including bespoke product designs and branded packaging.
What if I cannot find a specific product in the catalogue?
If a required product is not in our current catalogue, let us know your requirements. We can design and manufacture new molds to produce specific items as needed.
Is there an application fee to become a retail partner?
No, it is completely free to apply for a retail partnership, whether you operate an offline or online store.
