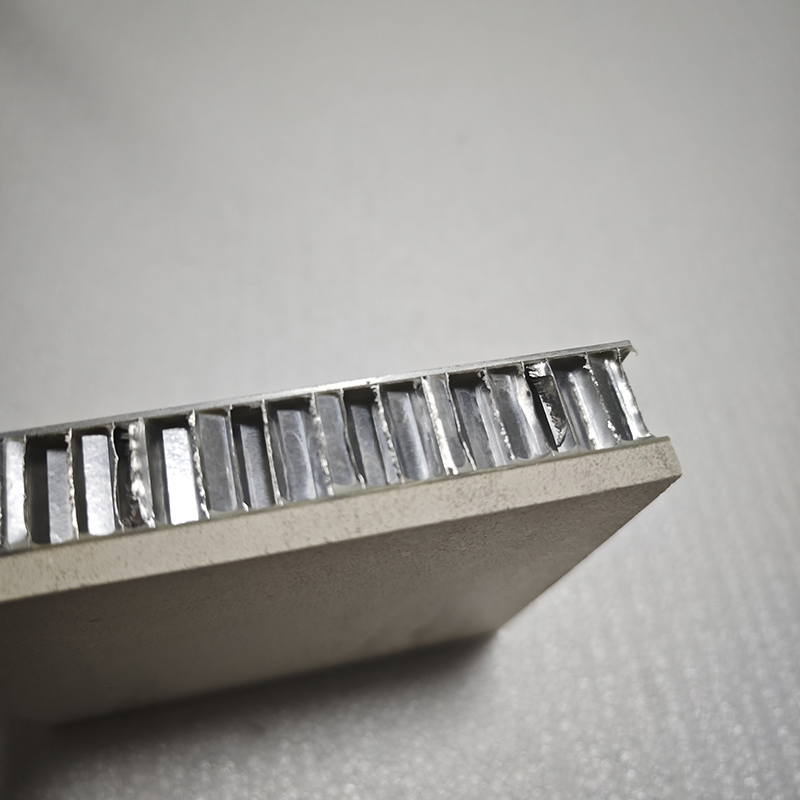

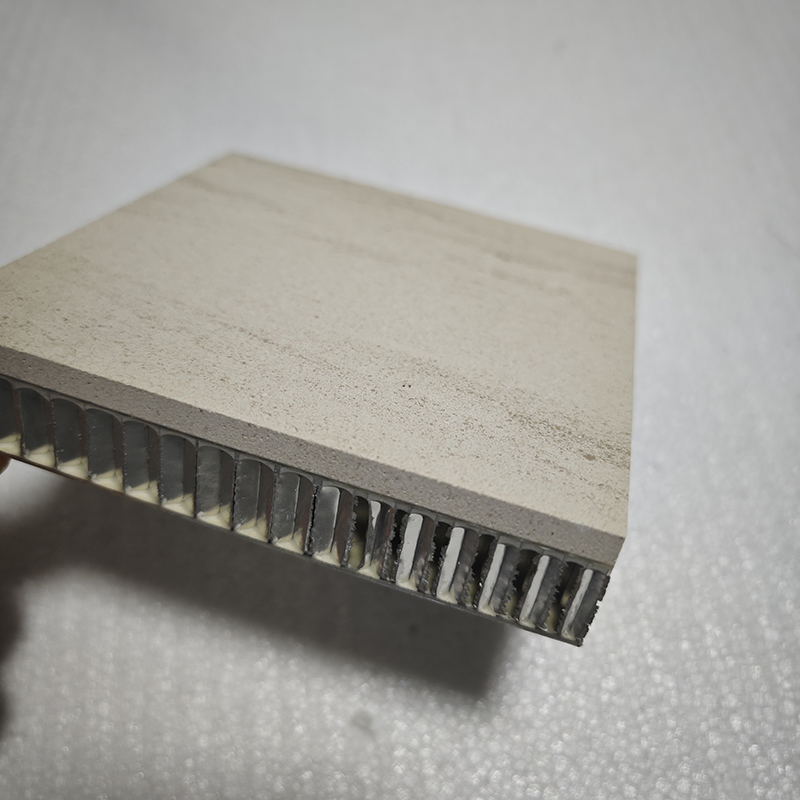

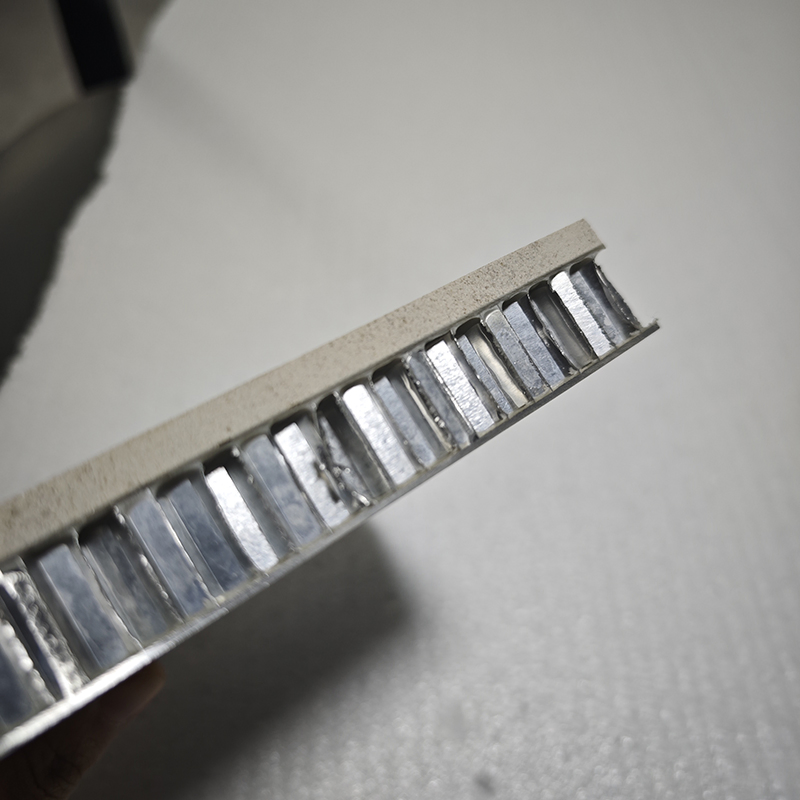

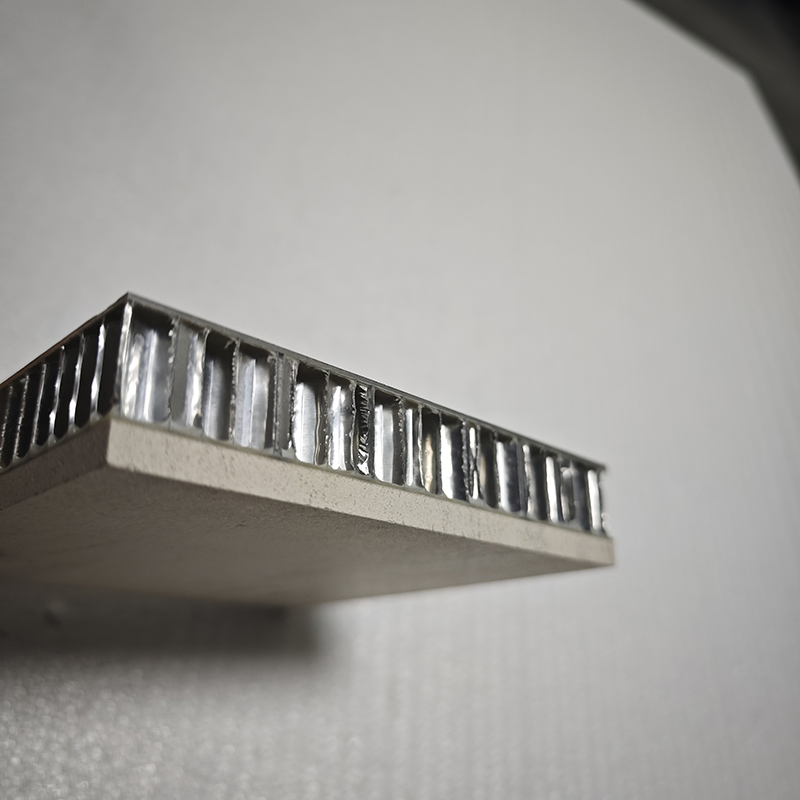

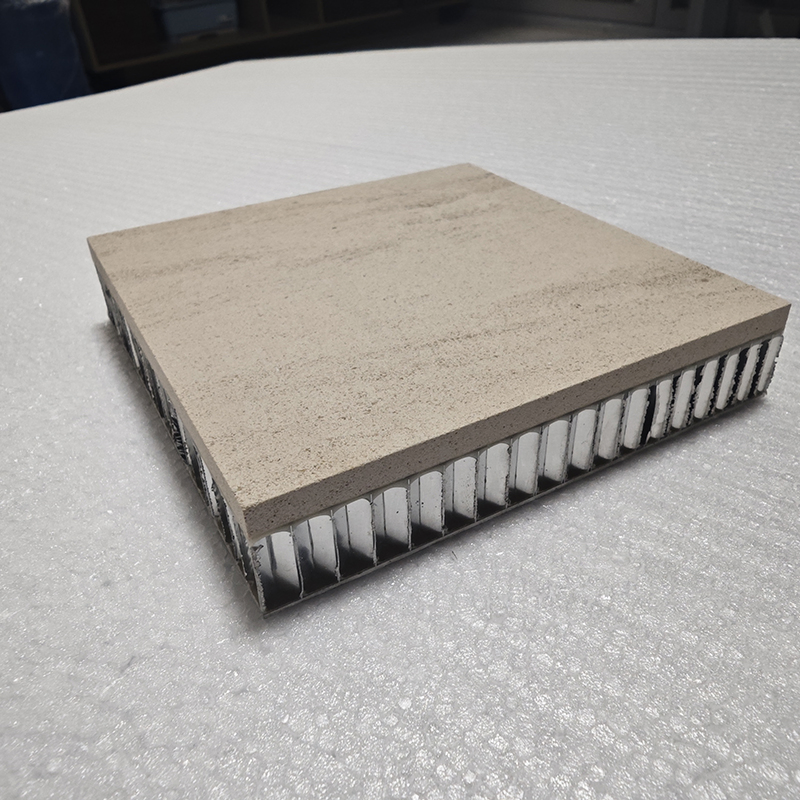

Stone Honeycomb Panel Features:
Functions & Applications:
1. Exterior Cladding: Curtain walls, canopies, column covers.

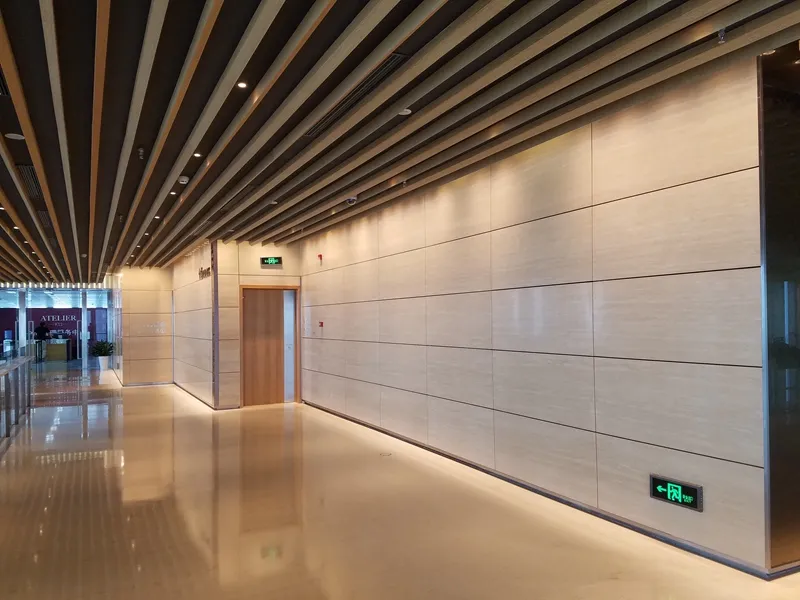

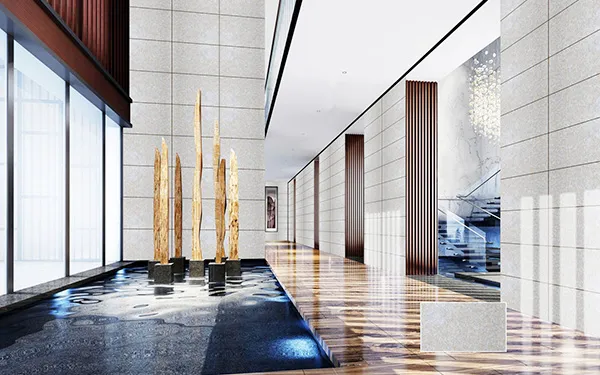

2. Interior Design: Wall panels, ceilings, elevator lobbies, furniture tops.
3. Special Applications: Ship interiors, medical cleanrooms (dust-free surface).
4. Infrastructure: Skyscrapers, historic building renovation, airports.
Key Advantages:
• Seismic/Wind Resistant: Passes JIS/GB wind pressure tests.
• Thermal/Acoustic Insulation: 15dB+ noise reduction.
• Low Maintenance: No staining risk; easy cleaning.
• Flexible Installation: 50% faster installation via mechanical fixing.
| Panel Thickness | 10-30mm (stone 3-5mm + aluminum core) | Flexural Strength | ≥7.0MPa (GB/T 17748) |
| Fire Protection | Class A2 (EN 13501-1) | Weather Resistance | 3000h Salt Spray Test (ASTM B117) |
| Packaging | Export Plywood Boxes | Function | Walls, Ceilings, Partitions, Marine |
| Production Capacity | 100,000 m²/year | Service Life | 25-30+ Years |

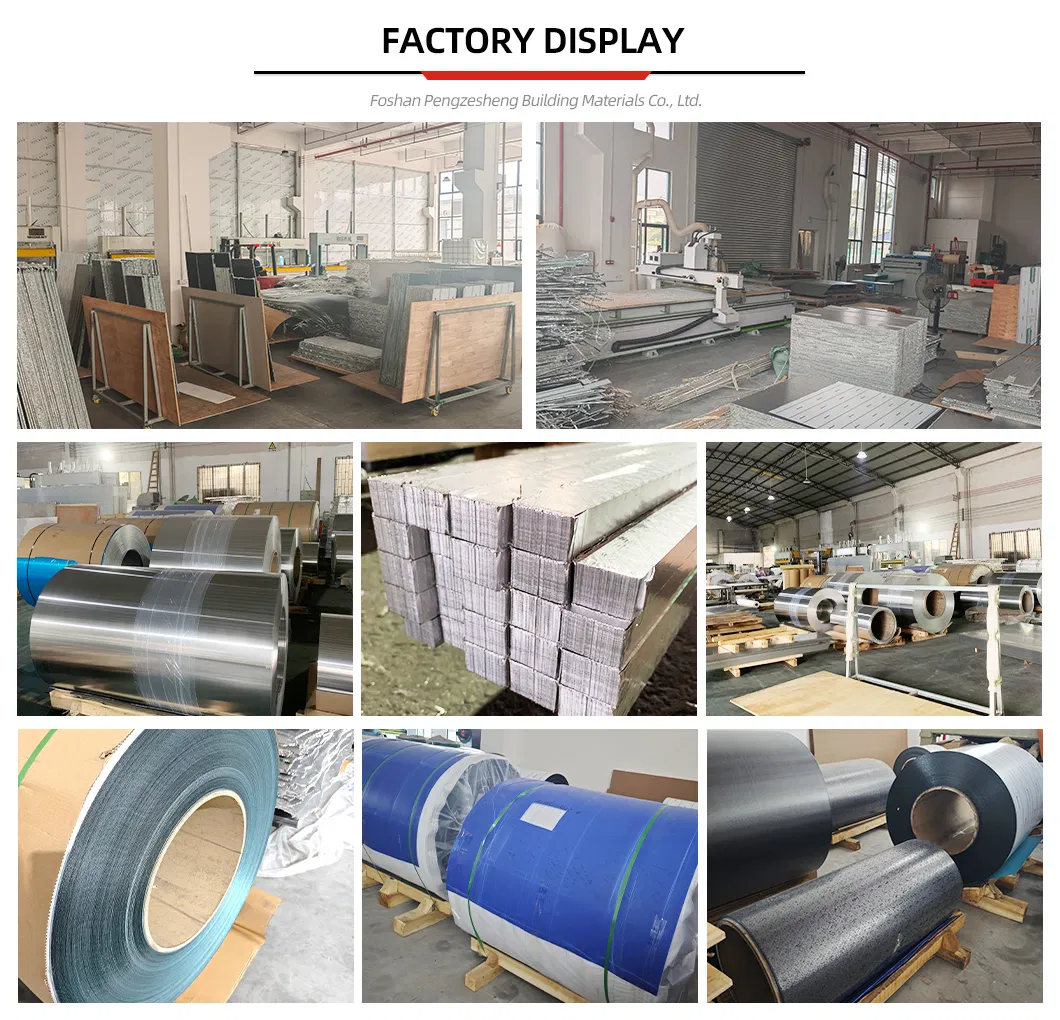

With 10 years of specialized expertise in advanced honeycomb composite panels, our manufacturing protocols deliver precision-engineered solutions for global architectural facades. As an ISO-certified production base, we utilize automated cutting lines and vacuum hot-press bonding systems to ensure SGS-certified peel strength >7MPa.

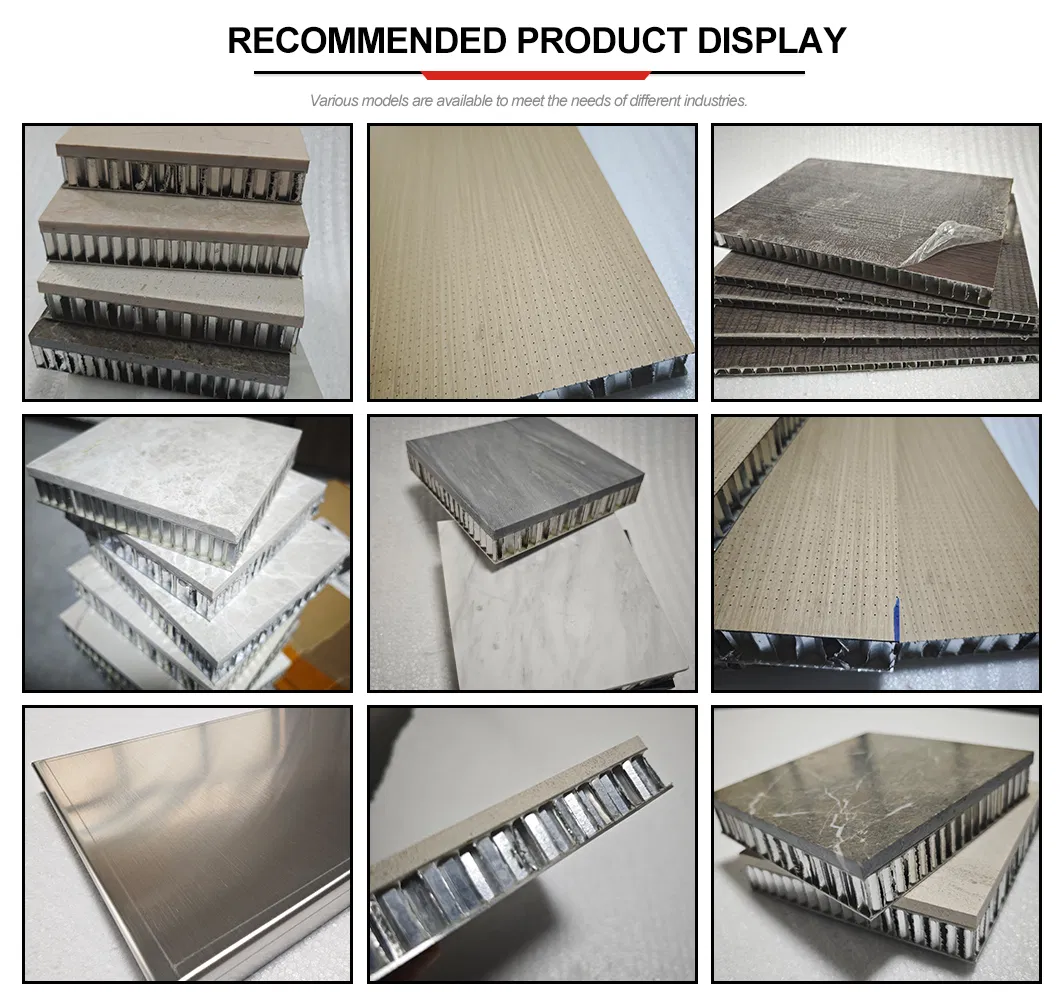

Core Expertise: Aluminum Honeycomb, Ultra-thin Stone Honeycomb, and Stainless Steel composite panels designed for hygienic, marine, and high-traffic environments.

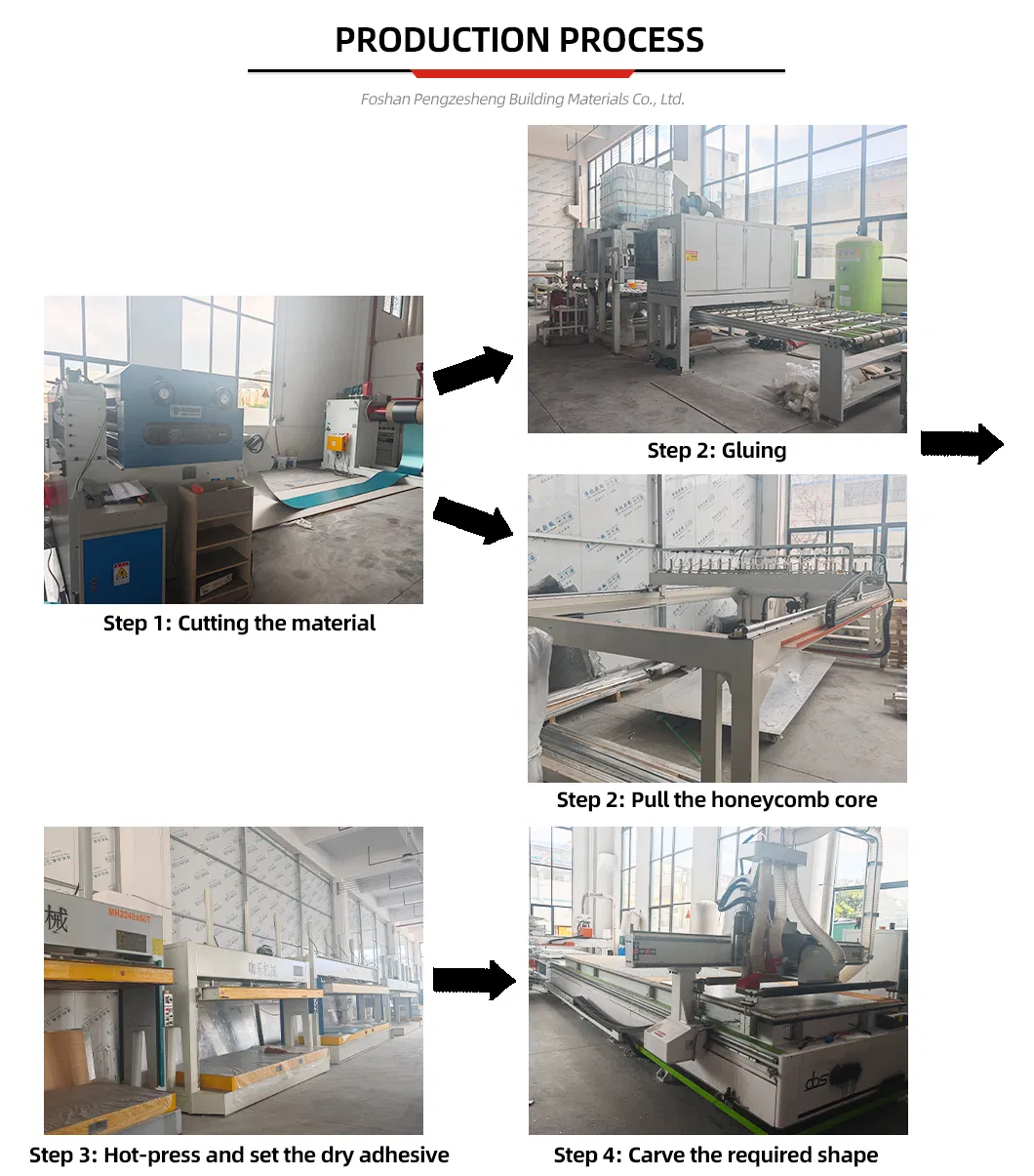

1. Material Preparation: AA3003/AA5052 aluminum coils and aluminum foil cores (H18) are degreased and cleaned.
2. Pre-Treatment: Chemical conversion (chromating) and PVDF coating cured at 230℃ for maximum durability.
3. Composite Bonding: Layup of face-core-face sandwich using epoxy or PU glue under vacuum hot pressing (0.8-1.2MPa).
4. Post-Processing: CNC trimming and cutting with ±0.5mm tolerance. Edge sealing via aluminum profiles or sealant.
5. Quality Control: Rigorous testing for bond strength (≥7N/mm), flatness (≤0.5mm/m²), and UV aging resistance.

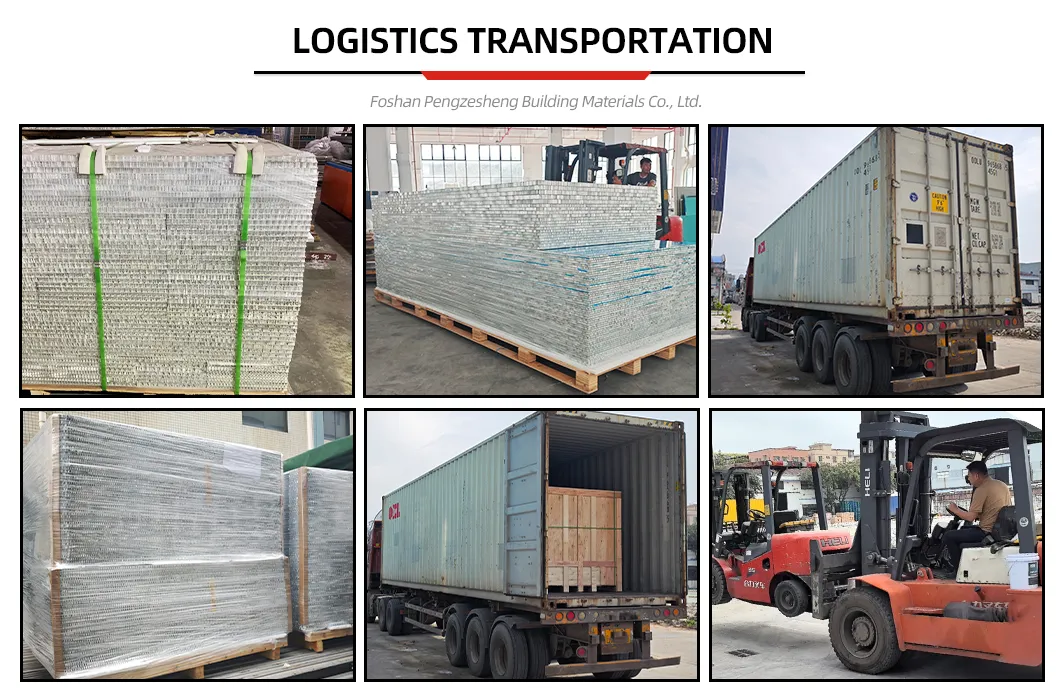

All panels are securely packed in heavy-duty export plywood boxes to ensure protection during international sea and air freight.
