Product Description

Basic Specifications

Model NO.	LFW-01	Material	Aluminum Alloy
Performance	High Intensity	Fire Prevention	Class A
Functions	Exterior Walls, Ceilings, Partitions, Ships	Thickness	5mm~30mm (Customizable)
Temperature Range	-50ºC to +150ºC	Life Cycle	30 Years+
Recyclable	100% Recyclable Aluminum	Sound Insulation	RW 25 dB

Product Description

Features & Selling Points

Ultra-light & High-strength: 1/5~1/8 weight of traditional stone with 3~5x bending strength.
Flat & Non-deformed: Stress-dispersing core ensures flatness even for large-area installations.
Easy Processing: Supports cutting, bending, punching, and curved surface designs.
Fast Installation: Dry hanging reduces construction time by over 50%.

Environmental Performance

100% Recyclable: Sustainable aluminum panels and honeycomb cores.
Energy Saving: 70% less energy compared to natural stone mining.
Non-Toxic: Zero formaldehyde release; LEED/BREEAM certified.
Waste Reduction: Modular installation keeps waste rate below 3%.

Fire Resistance & Safety

Class A non-combustible material compliant with GB 8624 / ASTM E84 standards. The honeycomb core acts as a structural fire barrier, blocking vertical flame spread with a high melting point of 660℃ and non-toxic smoke release.

Technical Specification

Parameter	Detail	Parameter	Detail
Conventional Thickness	5mm~30mm	Panel Options	Natural Stone (3-5mm), Aluminum (1-2mm), Ceramic
Temp Resistance	-50℃ to +150℃	Service Life	30 Years+ (Outdoor)
Packaging	Export Plywood Boxes	Production Capacity	100,000 m2/year

Engineered Composite Solutions

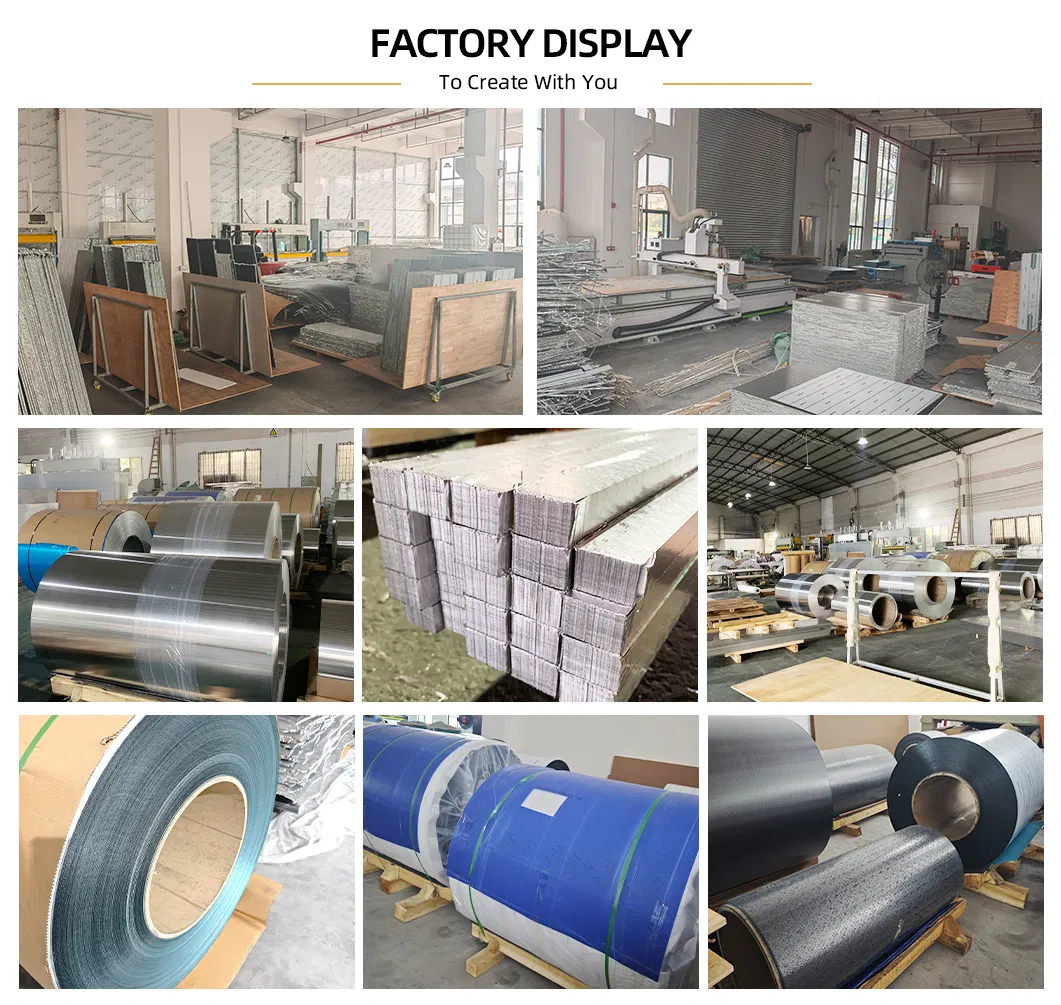

With 10 years of specialized expertise in advanced honeycomb composite panels, we provide precision-engineered solutions for architectural facades, interior systems, and industrial applications. Our 15,000m² production base is equipped with automated cutting lines, CNC routers, and vacuum hot-press bonding systems, ensuring adherence to GB, ASTM, and EN standards.

Global Applications

Architecture: Curtain walls, ceilings, and column cladding for skyscrapers and luxury hotels.
Transportation: High-speed train interiors and marine fireproof bulkheads.
Specialized Spaces: Antibacterial panels for hospitals and cleanroom systems.

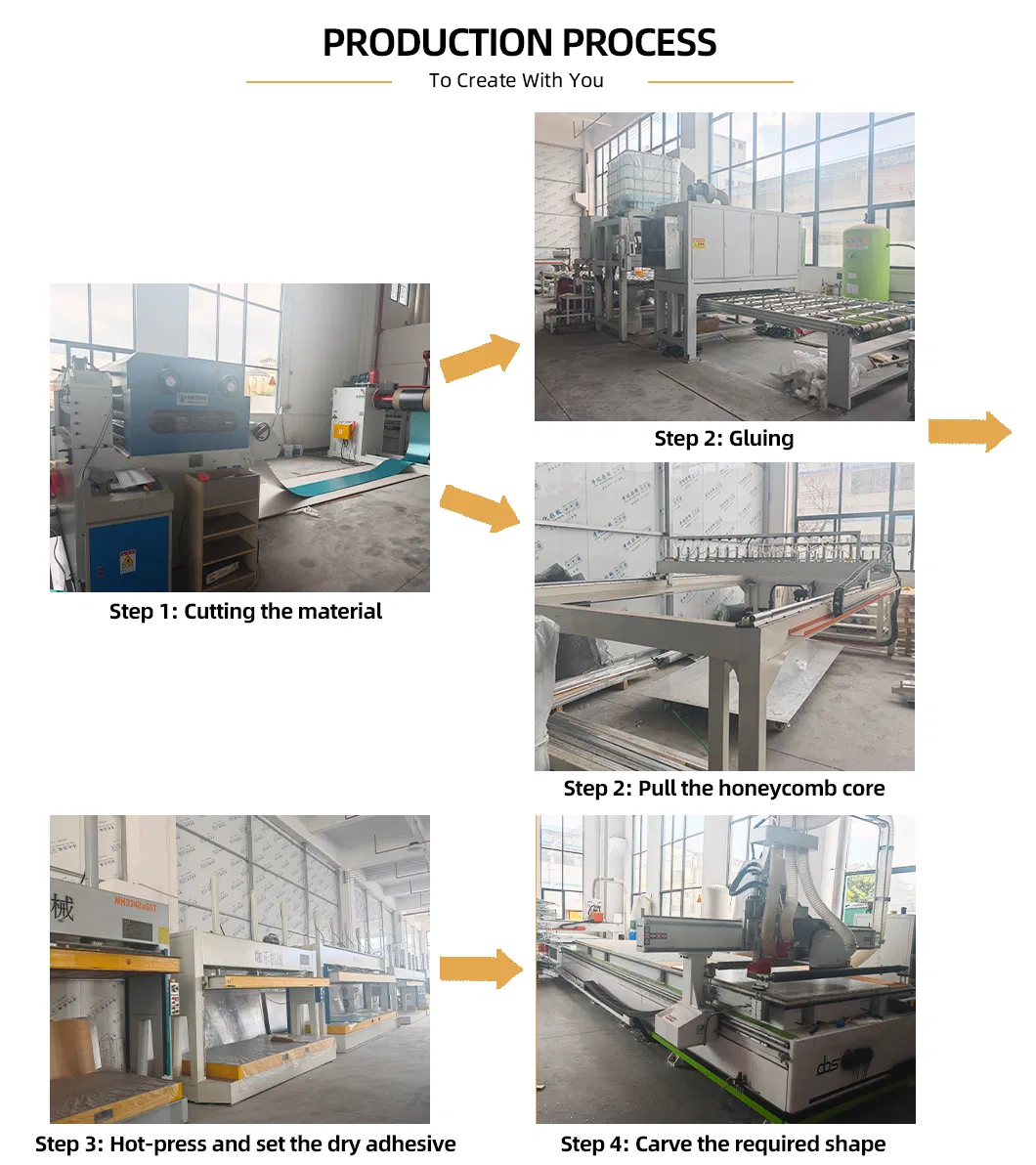

Production Process

1. Raw Material: AA3003/AA5052 aluminum coils and AA3003H18 honeycomb foils.

2. Pre-Treatment: Chemical conversion and PVDF/Anodizing coating for weather resistance.

3. Core Stabilization: Phenolic resin dipping and controlled expansion to target density.

4. Composite Bonding: Vacuum hot-pressing at 120-140℃ with high-grade epoxy/PU adhesives.

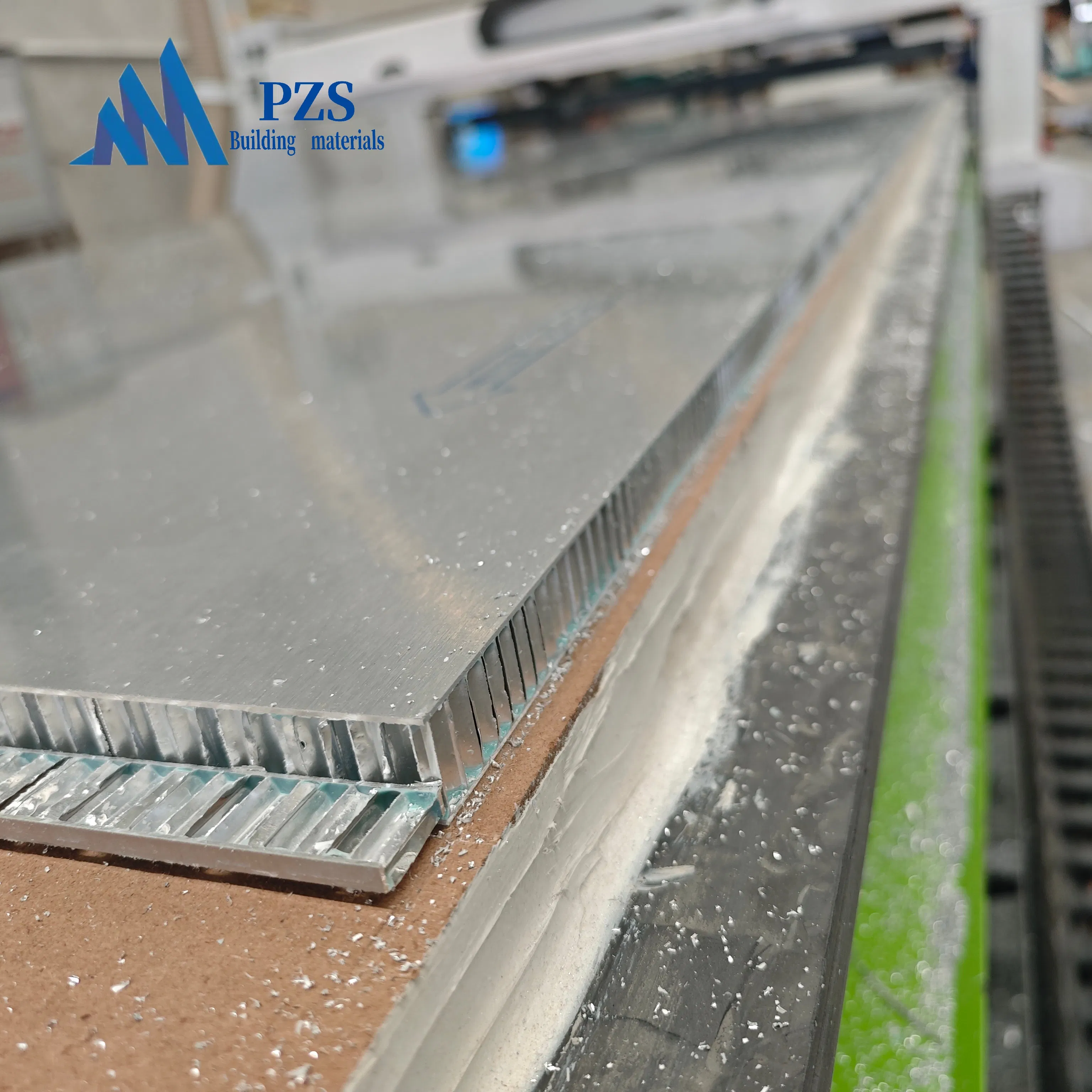

5. Post-Processing: CNC waterjet trimming and edge sealing for precise tolerances.

6. Quality Control: Peel strength tests (≥7N/mm) and salt spray resistance (>4000h).

Packing & Delivery

All products are securely packed in export-grade plywood boxes to prevent damage during international transit. Standard modules are protected with protective films and cushioning materials.

Frequently Asked Questions

What is the fire rating of these panels?

The panels are Class A non-combustible, meeting GB 8624 and ASTM E84 standards, making them safe for high-rise buildings and marine use.

How long is the expected service life for outdoor use?

For outdoor curtain walls, the life cycle is 30+ years, thanks to high-quality PVDF coatings and corrosion-resistant aluminum alloys.

Can the size and thickness be customized?

Yes, we support total thicknesses from 5mm to 30mm (or more) and custom dimensions up to 2000mm in width and 10000mm in length.

Are the materials environmentally friendly?

Absolutely. Both the aluminum panels and honeycomb cores are 100% recyclable, and the production process is VOC-free.

What are the main advantages over solid stone?

Honeycomb panels offer an 80% weight reduction compared to solid stone, while providing 3 times the safety factor and better sound insulation (25dB+).

What is the typical peel strength of the composite?

Our panels achieve a peel strength of ≥7N/mm, ensuring long-term structural integrity even under extreme weather conditions.
