Comprehensive Steel Structure Workshop Construction Featuring Portal Frame Solutions

Customization:	Available
After-sales Service:	Full Drawing, Install Guide or Training
Install:	Online Guidance

Send Inquiry

Product Description

Basic Information

Model NO.GY-SW108

MobilityFixed

MaterialSteel Structure

Structure FramePortal Frame

Steel CodeQ355 & Q235

Wind Loading80km/H-120km/H

ConnectionBolts Connection

Warranty30-50 Years Service Life

Capacity2000 Tons Per Month

StandardASTM

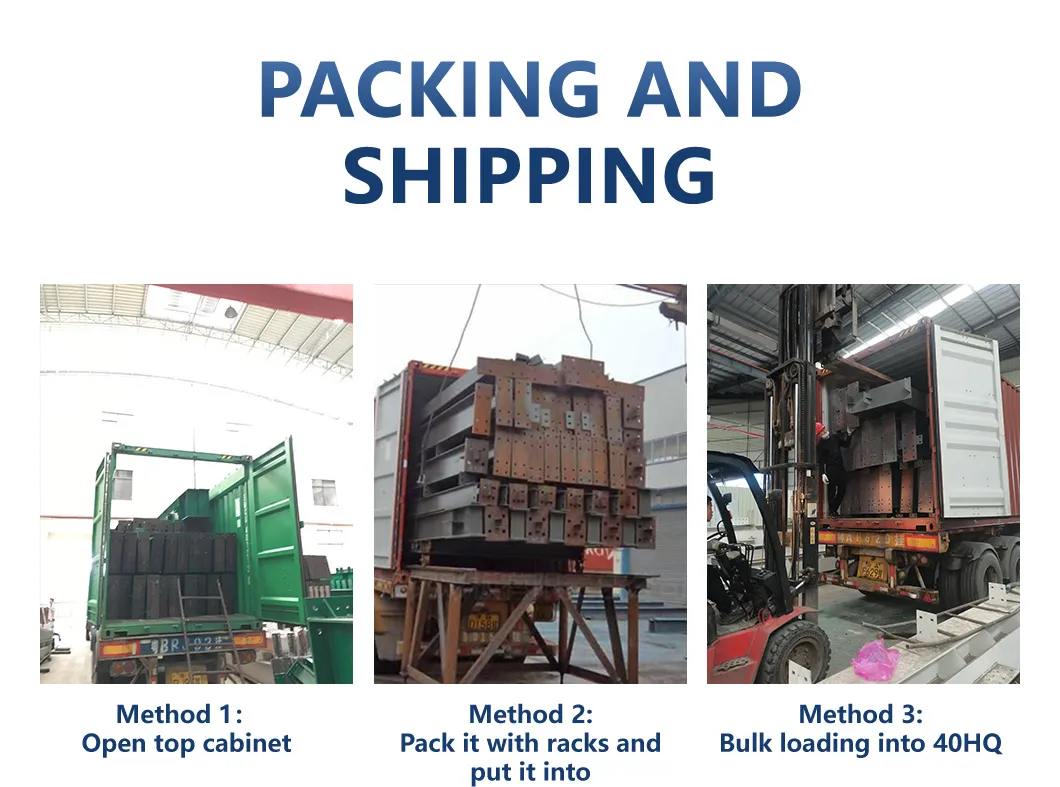

Packaging & Delivery

Package Size1164.00cm * 65.00cm * 20.00cm

Gross Weight700.000kg

Product Description

Advantages of Steel Structure Building

📐

Flexible Layout

Experience unparalleled flexibility that opens up endless possibilities for innovative design and space utilization.

🏗️

High Strength

Exceptional ductility and strength. Standing resilient against seismic and wind forces for unmatched safety.

⚡

Rapid Construction

Swift and efficient assembly, minimizing project timelines while ensuring extended longevity.

🌱

Eco-Friendly

Completely recyclable or biodegradable materials, minimizing your ecological footprint.

Technical Specifications

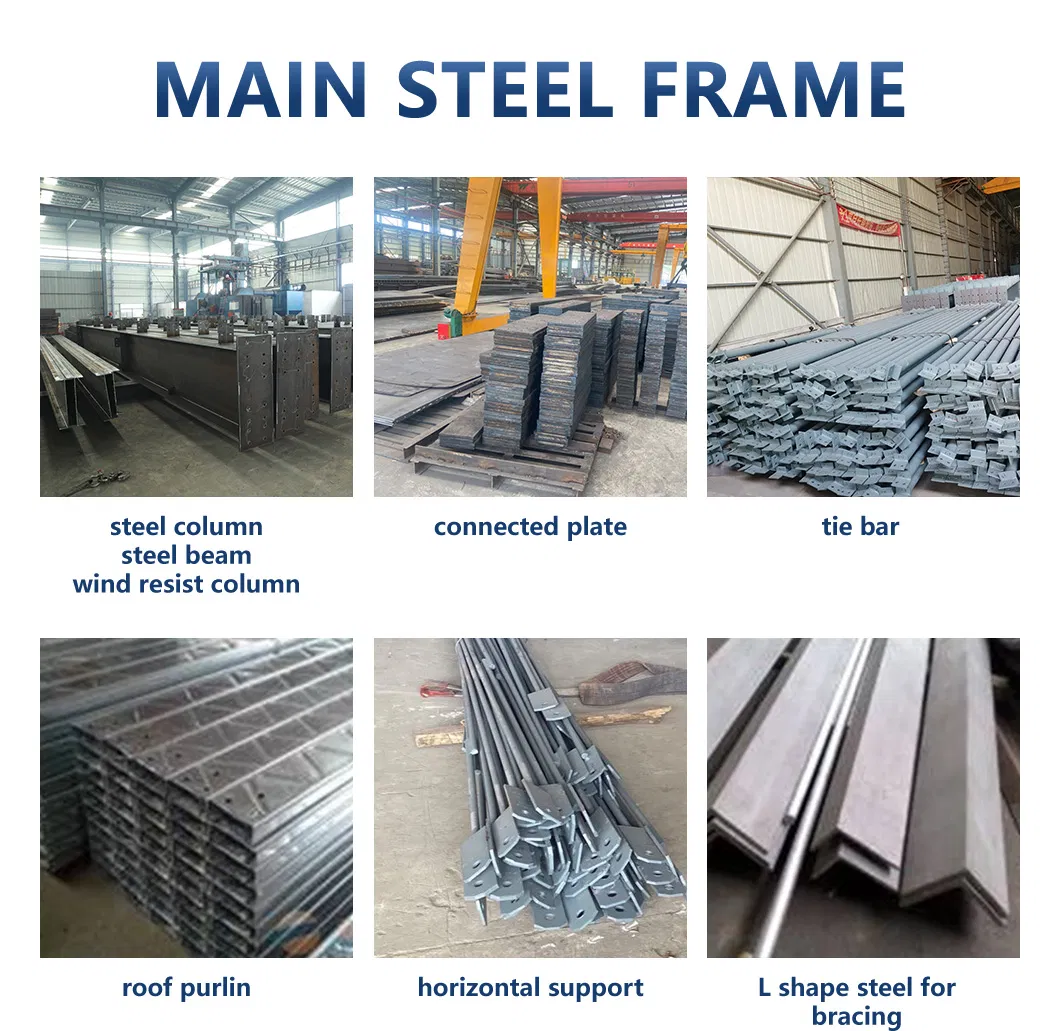

Component	Description	Material/Size
Steel Column/Beam	Hot rolled H-beam or welded H beam	Q355B
Tie Bar	Steel tube ¢89*3	Q235B
Roof Purlin	C1605020*2.0 or customized	Q235B Galvanized

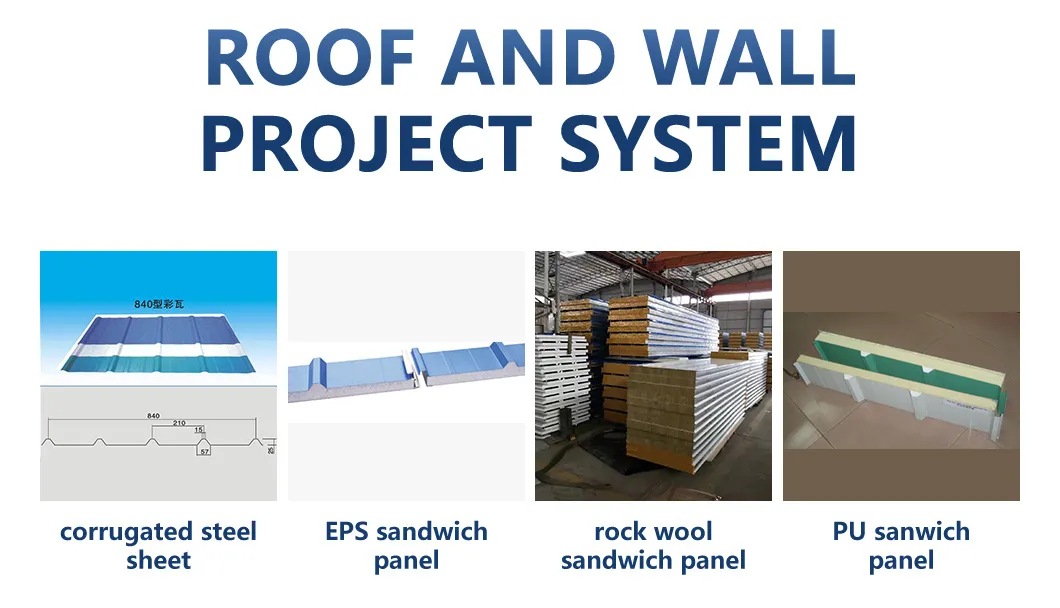

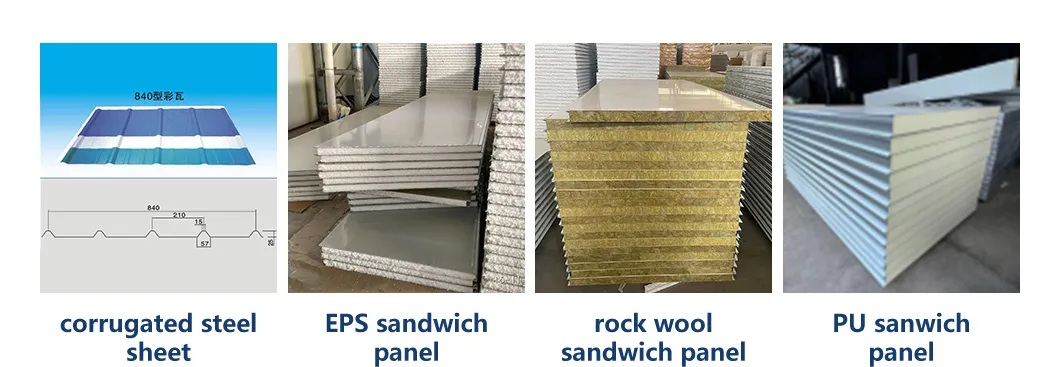

Roof Cladding	EPS/Rock wool/PU Sandwich Panel	0.426mm - 0.476mm skin
Wall Cladding	Corrugated Steel Sheet or Sandwich Panel	L*840 or customized
Surface Treatment	Painting or Hot-dip Galvanize	Any color available

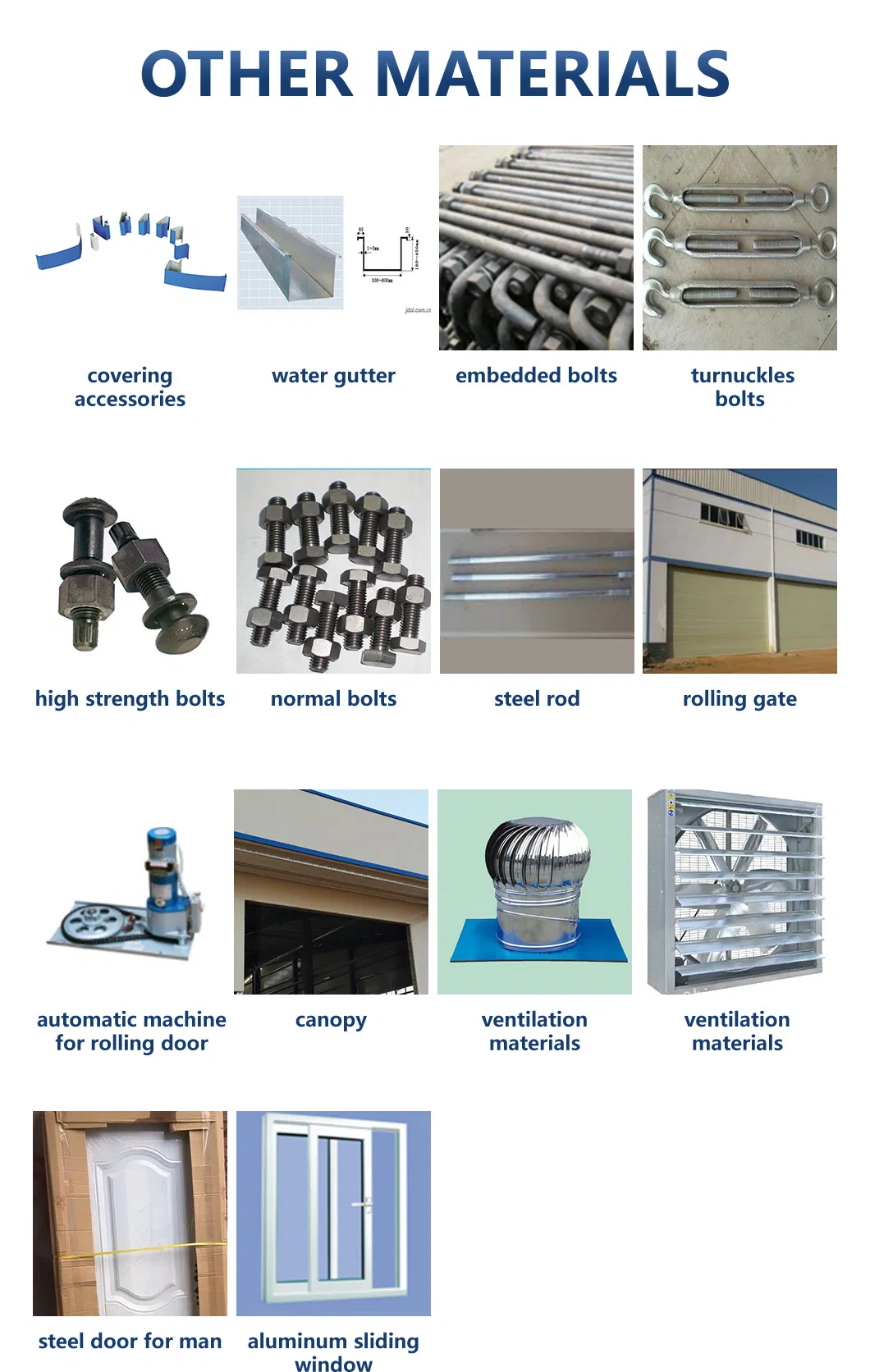

Covering Accessories & Components

Water Gutter	0.8mm Stainless Steel	Water Pipe	D110 or D160
High Strength Bolts	M20*80	Embedded Bolts	M24
Rolling Gate	4000mm*5000mm	Sliding Window	1500mmx3000mm

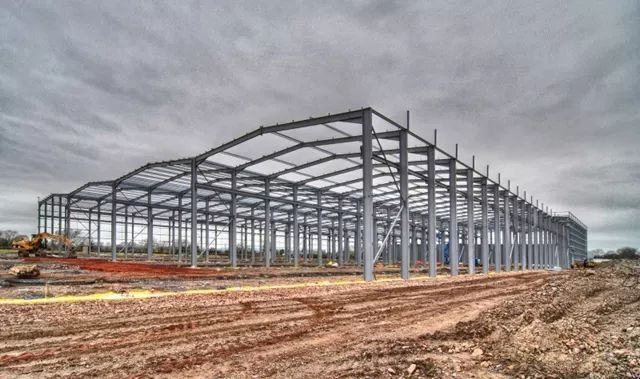

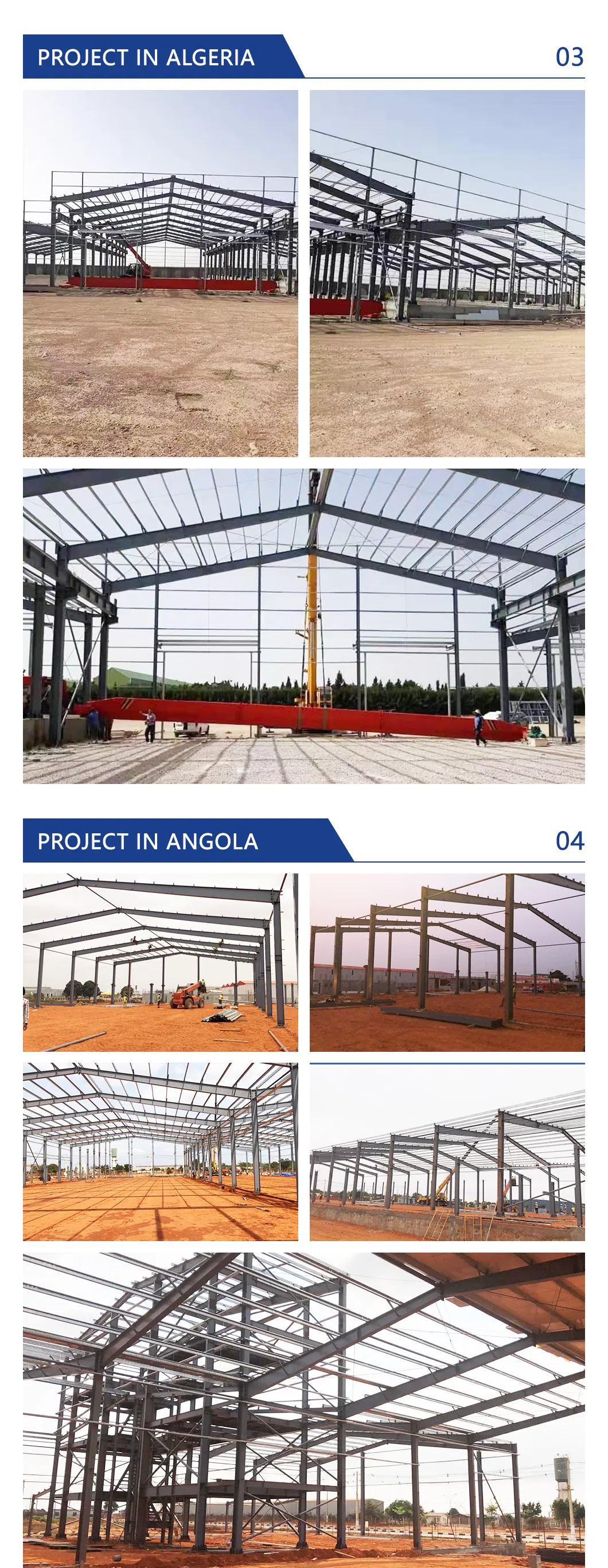

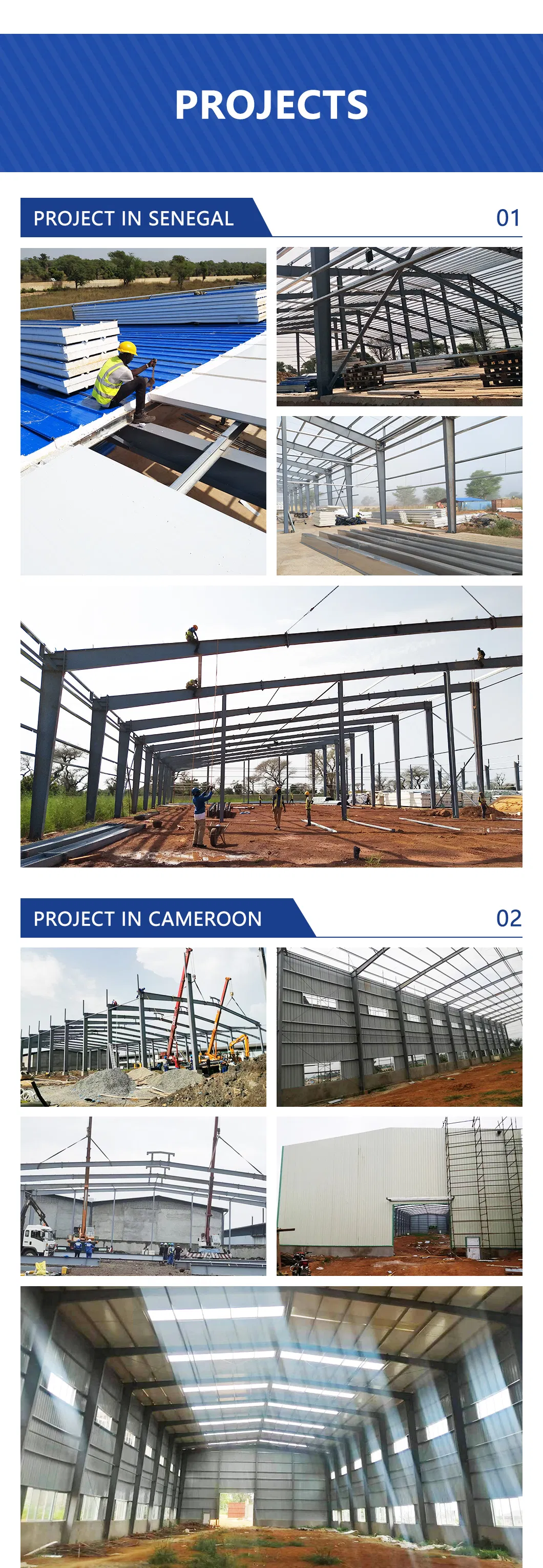

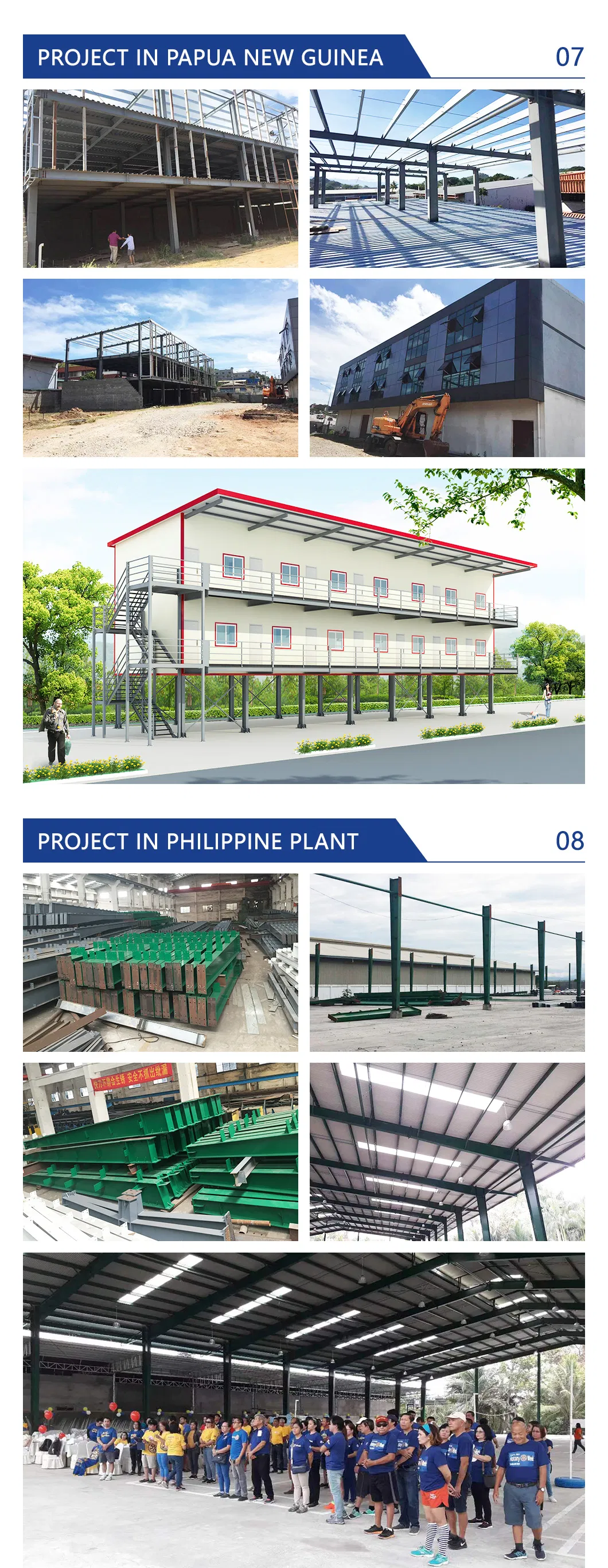

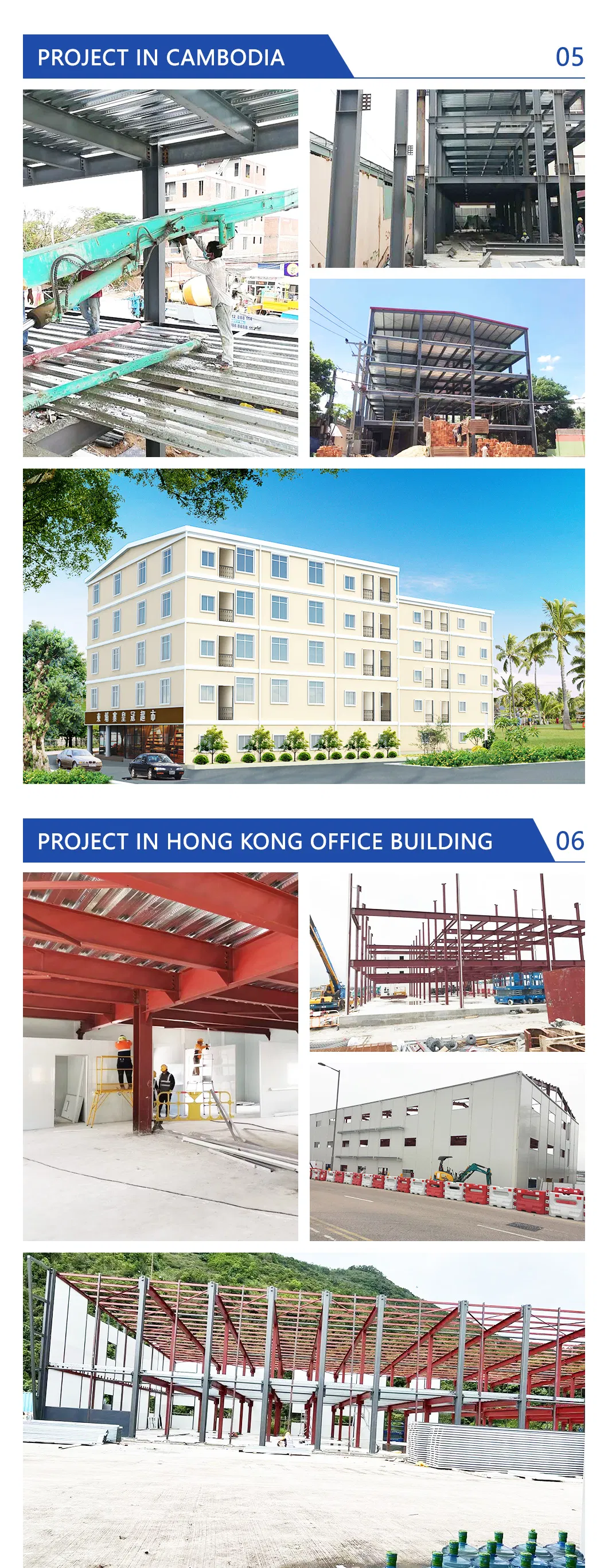

Project Showcase

Our Services

Professional Engineering

Expert team ensures precise and innovative design solutions tailored to your unique requirements.

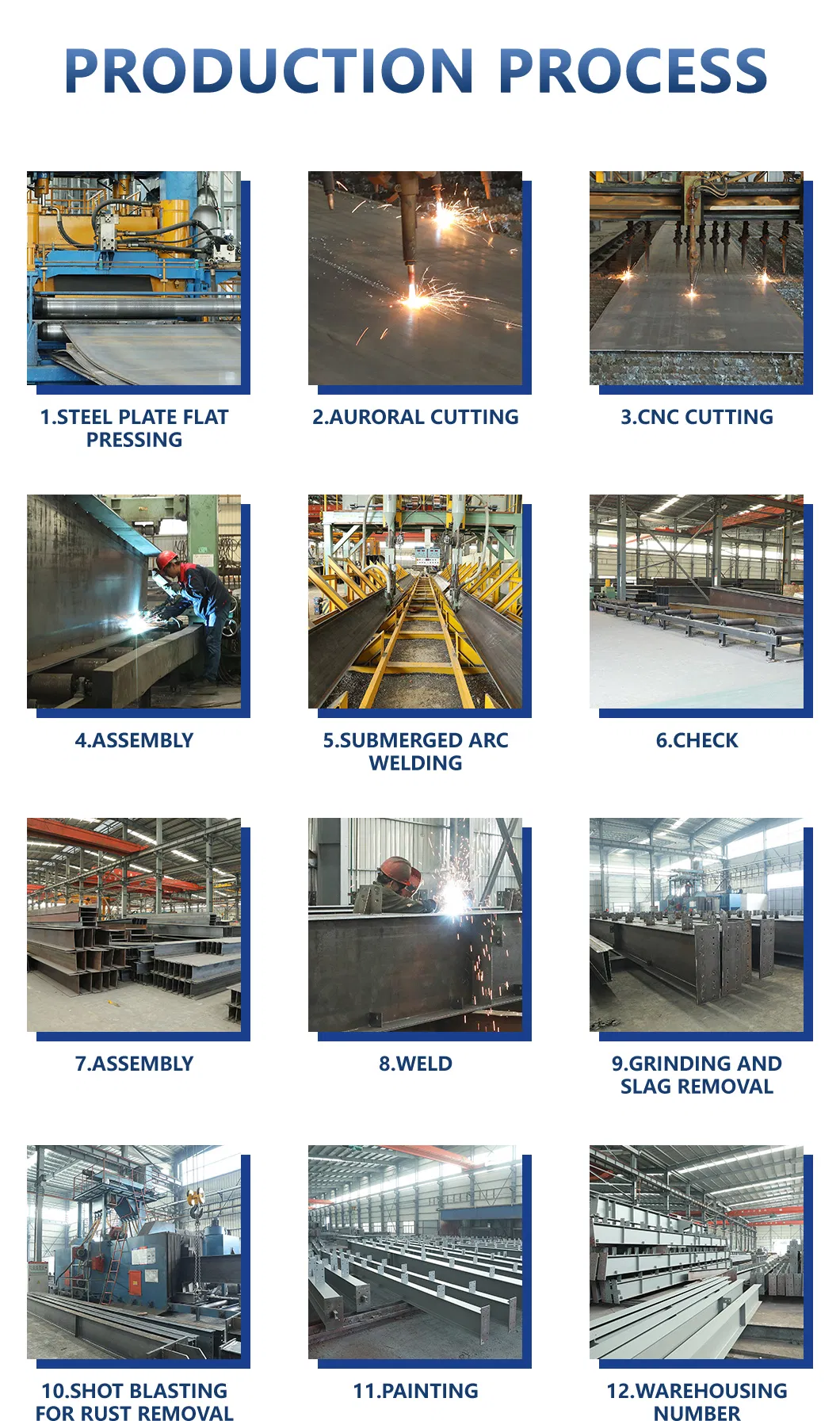

Quality Procurement

Meticulous procurement adhering to strict ISO standards for superior fabrication using cutting-edge technology.

Site Supervision

We provide skilled engineers for installation supervision and technical guidance for flawless execution.

Customization Guide

Design Requirements

To provide an accurate blueprint and quote, please provide the following details:

✅ Location: Local weather & seismic data.
✅ Dimensions: Length * Width * Height.
✅ Wind/Snow Load: Max speed and height.
✅ Building Purpose: Office, Workshop, or Warehouse.
✅ Insulation: EPS, Rockwool, or PU panels.
✅ Crane Info: Lifting capacity and height.

Frequently Asked Questions

Are you a manufacturing factory?

Yes, we are a manufacturing factory. Our quality control flow and professional facilities ensure we provide the best quality at competitive prices.

How do you control product quality?

We have established procedures to check products at all stages: raw materials, in-process, validated/tested materials, and finished goods. SGS and BV testing are available.

Do you offer custom design services?

Yes, we have an excellent design team that can create full solution drawings based on your specific operational requirements.

Can you provide installation guidance on-site?

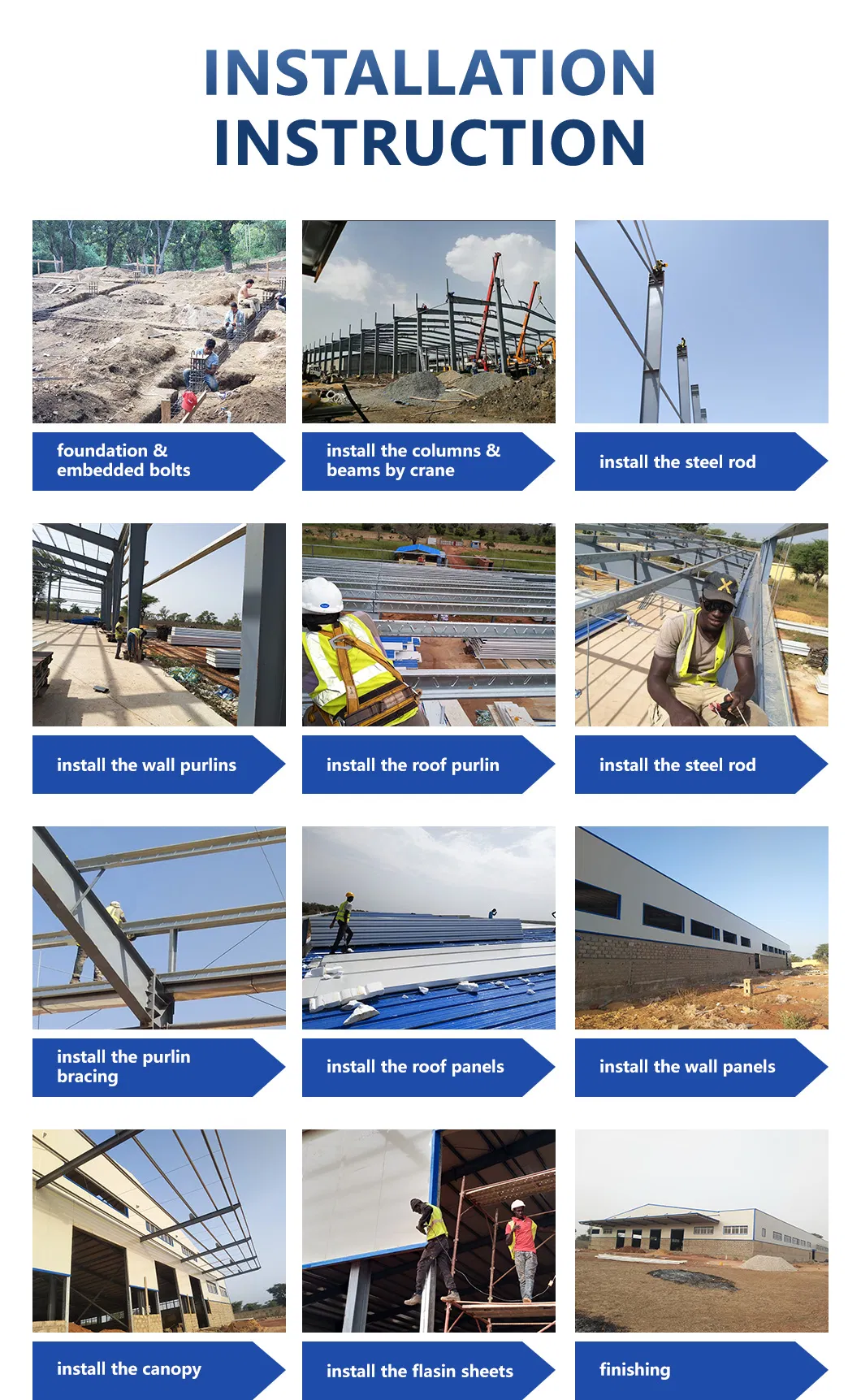

We provide detailed installation drawings and videos. If required, we can also provide on-site supervision and training through our engineering team.

What is the expected lifespan of your steel structures?

Our steel structures are designed for long-term durability, typically offering a service life of 30 to 50 years depending on the environment and maintenance.

What information is needed for a quick quote?

We need the building dimensions (L*W*H), local wind speed, snow load requirements, and your preferred cladding materials (sandwich panels or steel sheets).
