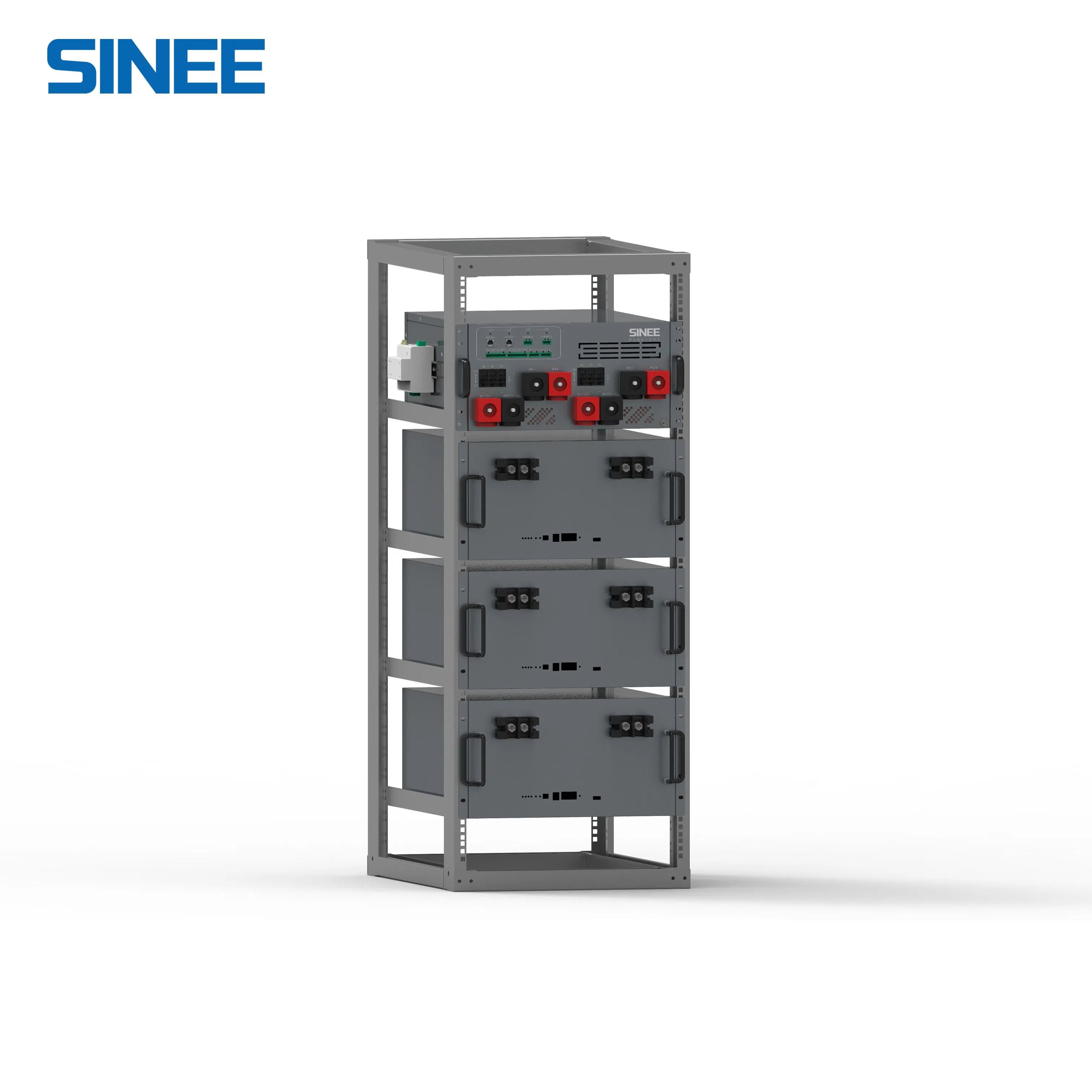

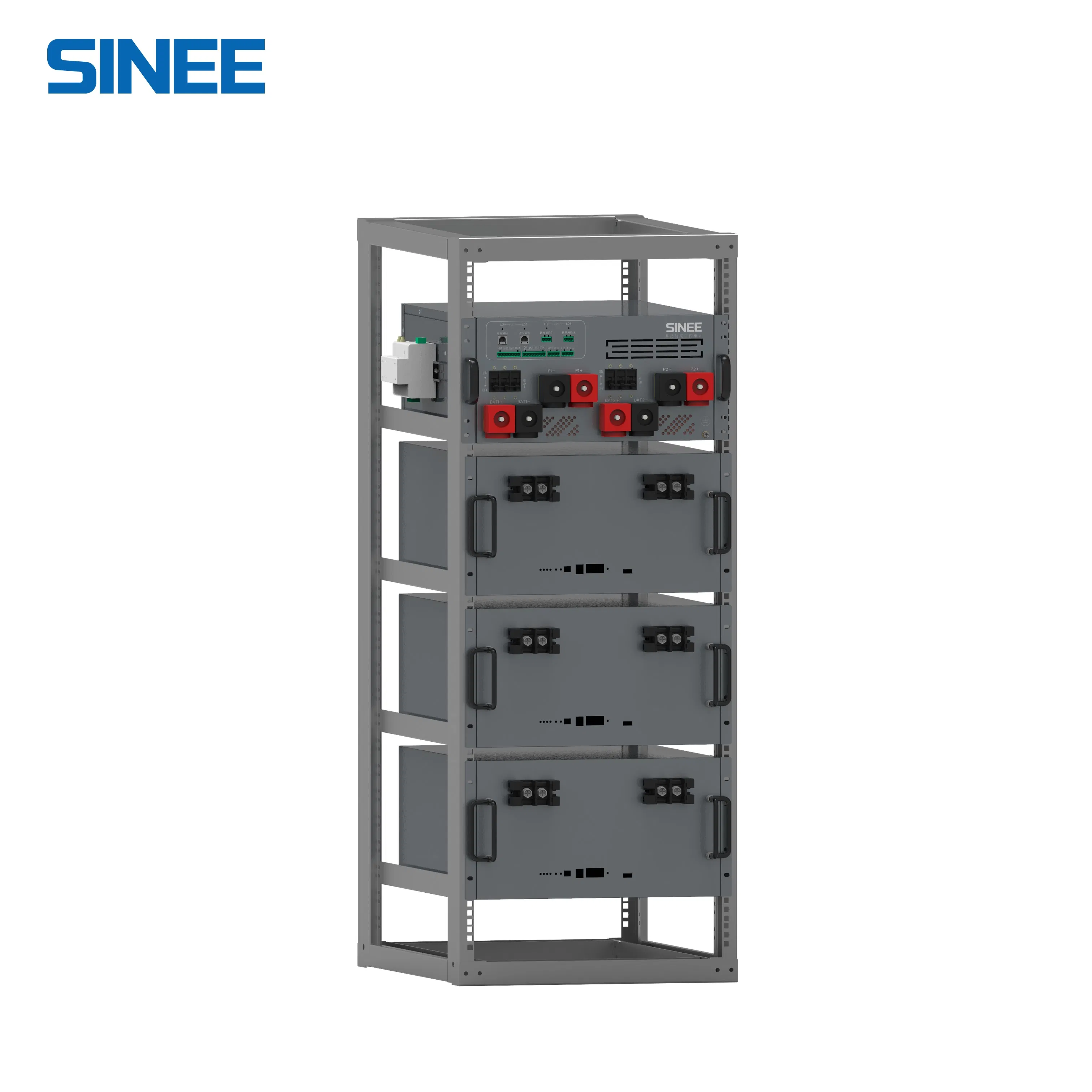

The one-stop energy storage system for communication base stations is specially designed for base station energy storage. Users can use the energy storage system to discharge during load peak periods and charge from the grid during low load periods, reducing peak load demand and saving electricity costs, thus achieving the purpose of improving load characteristics and participating in system peak regulation, while saving electricity costs and maximizing arbitrage.

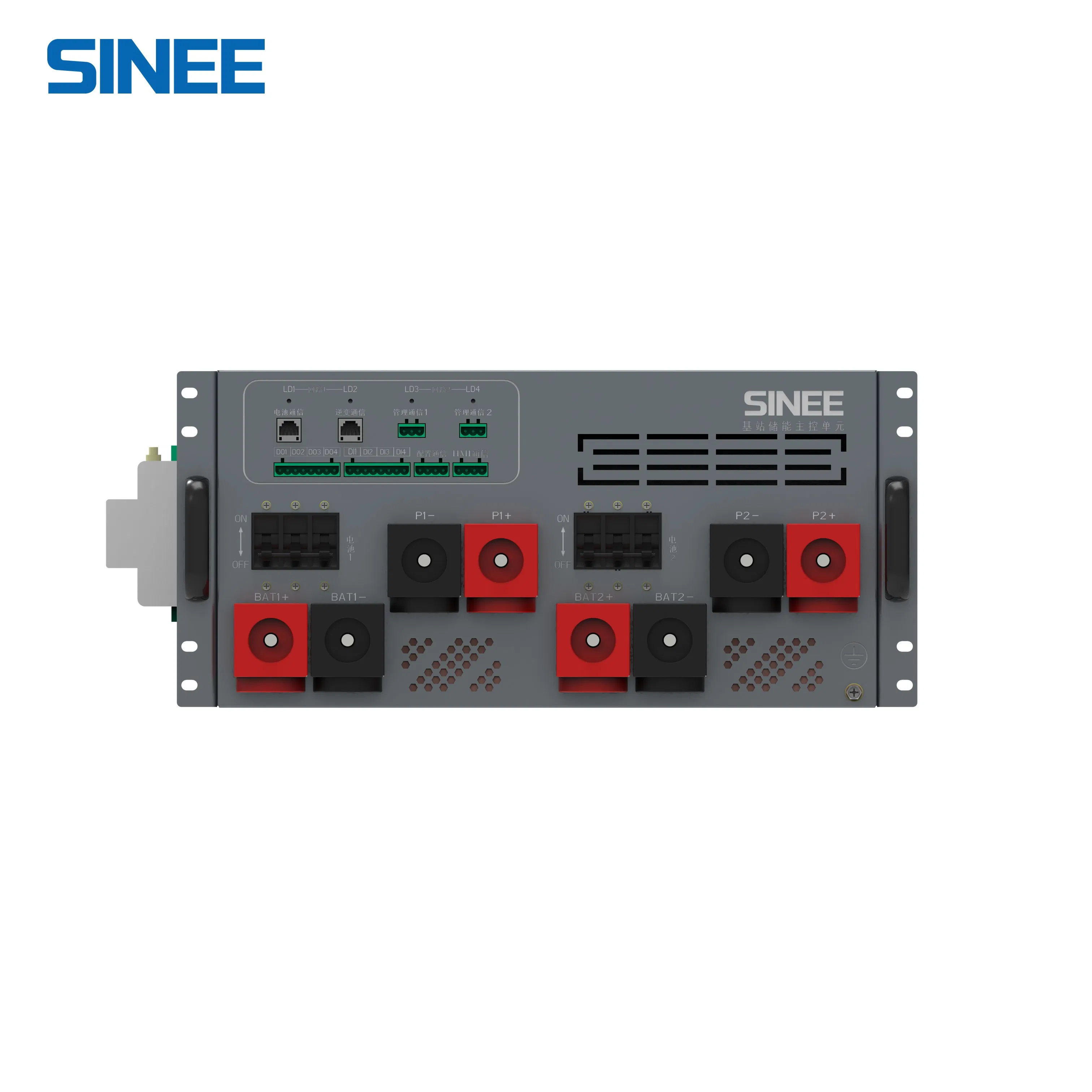

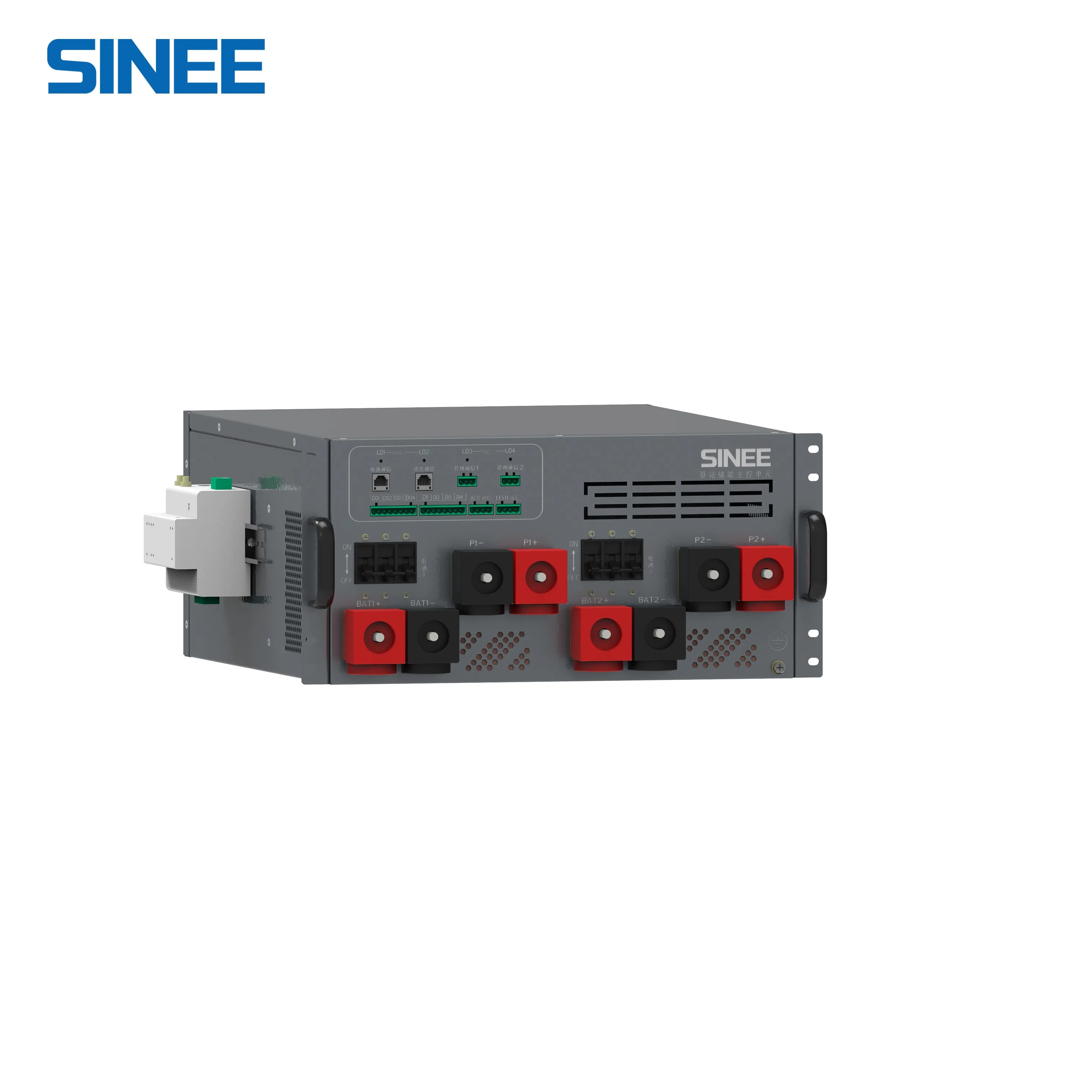

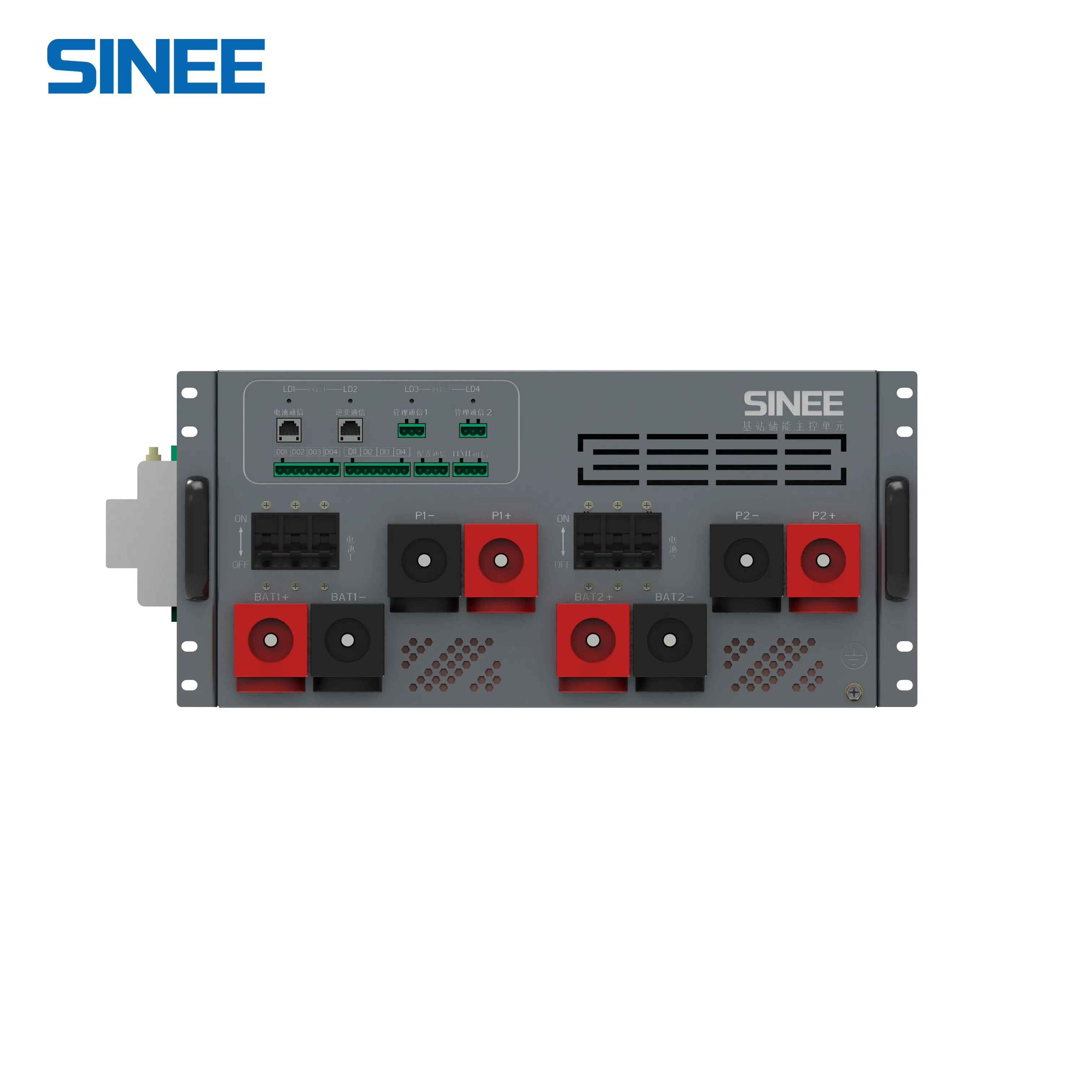

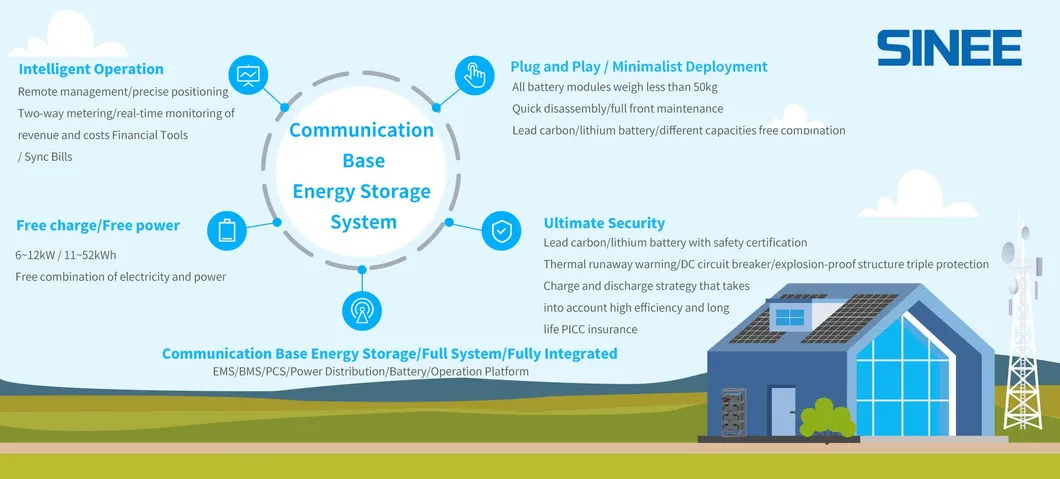

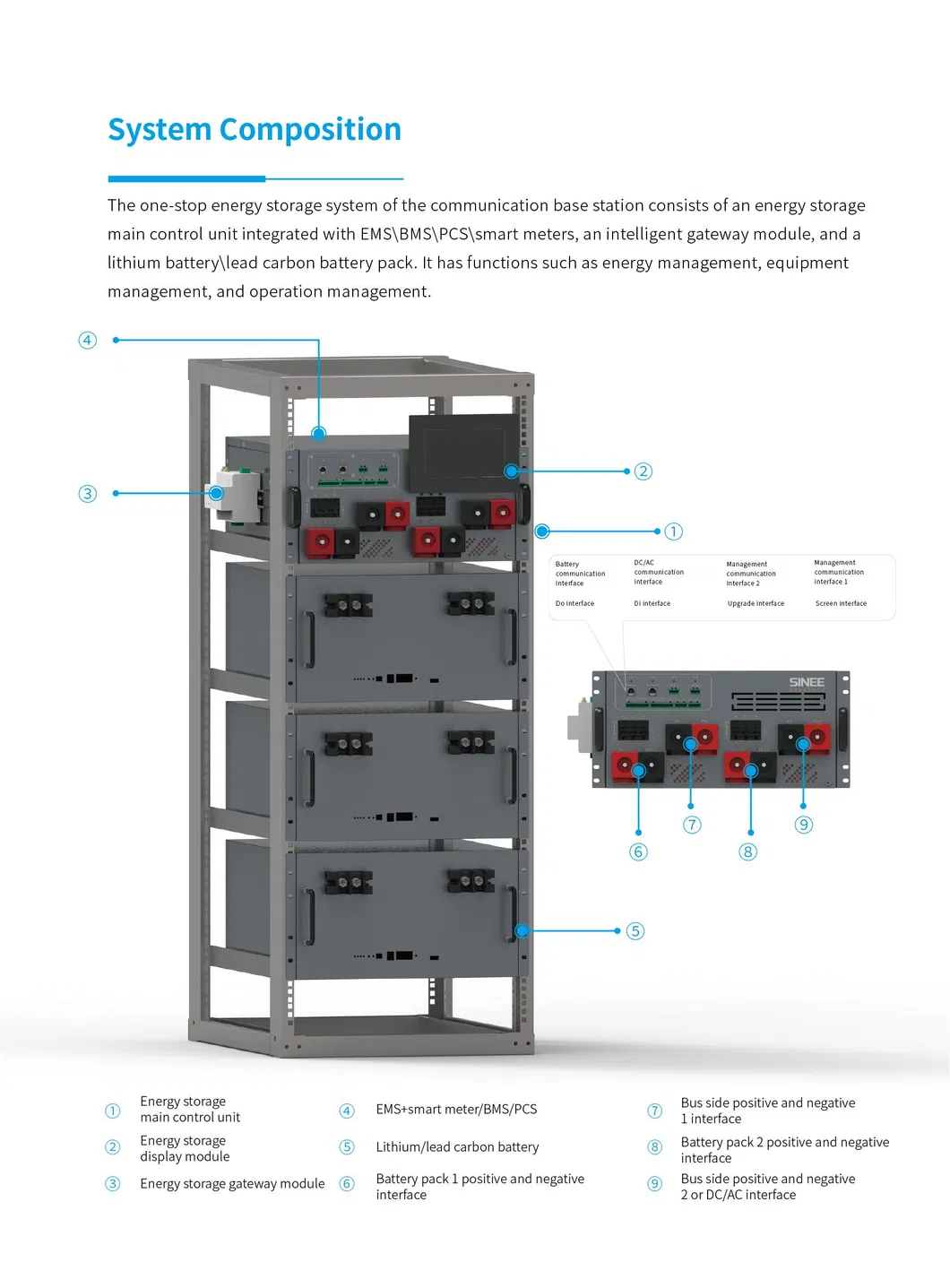

Integrate EMS / BMS / PCS / power distribution / battery / operation platform to provide one-stop system solutions.
Each group of batteries is independently controlled, without risk of circulation.
Compatible with mainstream batteries on the market, allowing batteries of different types, capacities and batches to be used in parallel.
Thermal runaway warning / DC circuit breaker / explosion-proof structure triple protection design.
Modular design enables quick disassembly and assembly; installation takes only 15 minutes.
Full frontal maintenance support, freeing up base station space without needing maintenance channels.
Remote monitoring and interconnection of thousands of stations for efficient operation and revenue calculation.
| Category | Lead Carbon System | Lithium Battery System | |
|---|---|---|---|
| Mechanical Properties | Specification | Rack mount | Rack mount |
| Weight | 860kg (2V500Ah 22 pieces/group) | 370kg (3.2V230Ah 15 pieces/group) | |
| Size (L*W*H) | 1040mm*540mm*1485mm | 680mm*489.5mm*1528mm | |
| Cooling | Air Cooling | Air Cooling | |
| Electrical Characteristics | Power Capacity | 22kWh | 33.12KWh |
| Voltage (DC Bus) | 42VDC ~ 58VDC | 42VDC ~ 58VDC | |
| Efficiency | ≥95% | ≥95% | |
| MTBF | >100000 Hours (25ºC) | >100000 Hours (25ºC) | |
| Environment | Temperature | -20 to 50ºC | -20 to 50ºC |
| Protection | IP21 | IP21 | |
