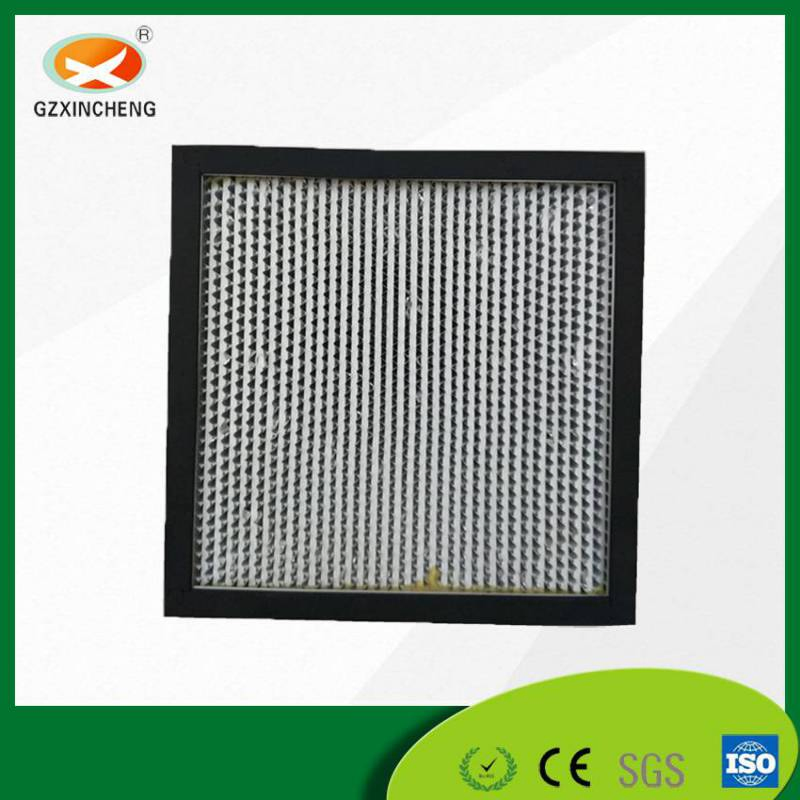

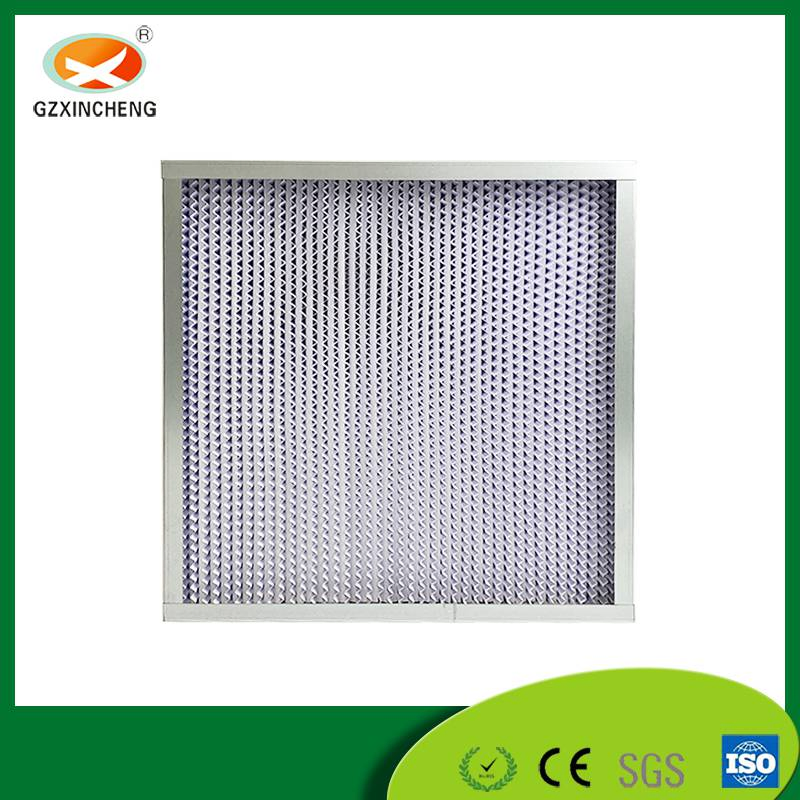

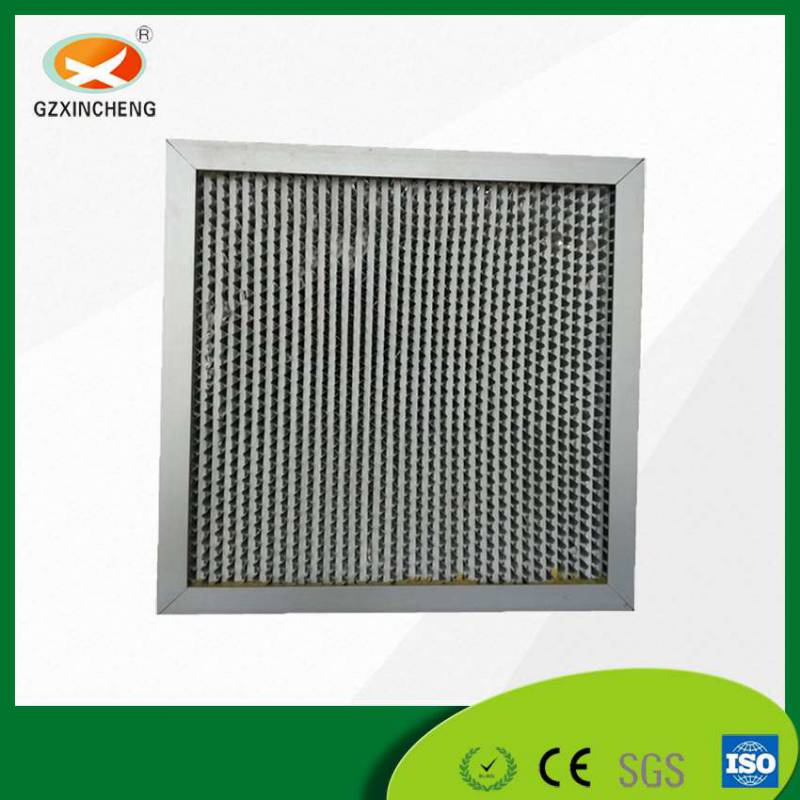

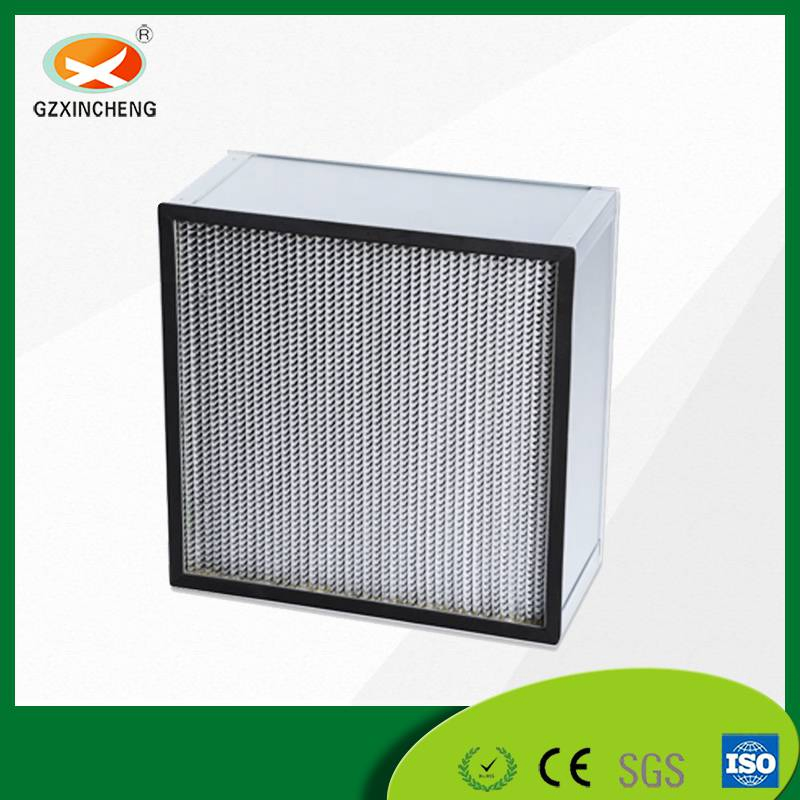

Commercial Aluminium Deep Pleat H13 Air Conditioning System
Commercial Aluminium Deep Pleat H13 Air Conditioning System
Commercial Aluminium Deep Pleat H13 Air Conditioning System
Commercial Aluminium Deep Pleat H13 Air Conditioning System
Commercial Aluminium Deep Pleat H13 Air Conditioning System
1 / 5
Commercial Aluminium Deep Pleat H13 Air Conditioning System
Commercial Aluminium Deep Pleat H13 Air Conditioning System
Commercial Aluminium Deep Pleat H13 Air Conditioning System
Commercial Aluminium Deep Pleat H13 Air Conditioning System
Commercial Aluminium Deep Pleat H13 Air Conditioning System

Commercial Aluminium Deep Pleat H13 Air Conditioning System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

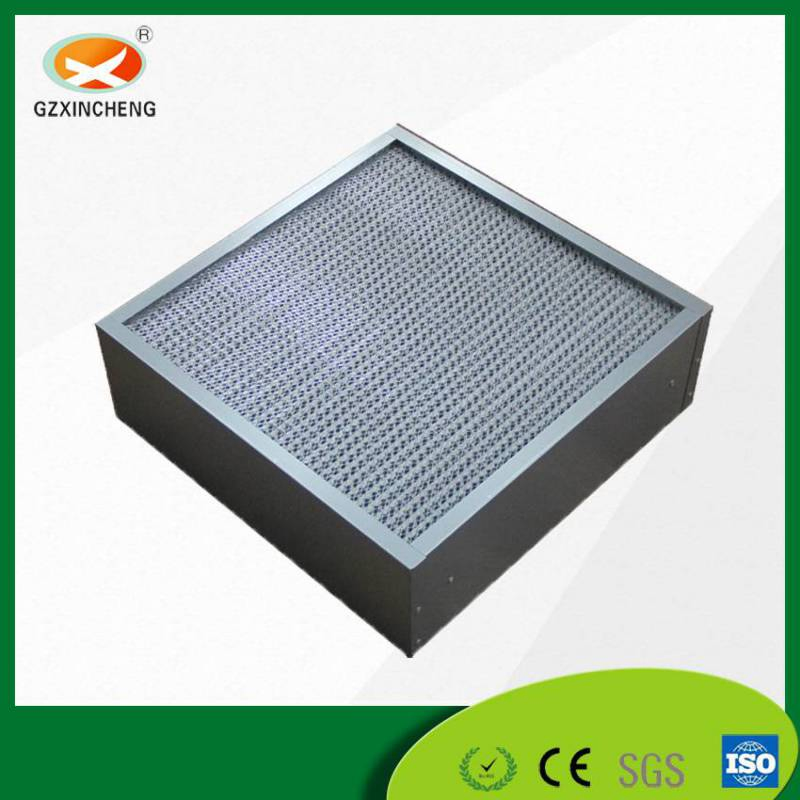

Commercial Aluminium Deep Pleat H13 Air Conditioning System
Basic Specifications
Model NO.
XC-AF004
Efficiency
H13
Filtration Grade
HEPA Filter
Type
Panel Filter
Min. Order
20 Pieces
Suitable Site
Electronics, Hospital, Automobile
Frame
Aluminum Alloy/Galvanized/Stainless Steel
Usage
End Filtration for Clean Room
Certificate
CE, RoHS, ISO9001
Transport Package
Carton
Specification
610*610*120(Customizable)
HS Code
8421391000
Capacity
2500/Month
Product Introduction

The filtration material of the Hepa filter with clapboard adopts high density paper of super fine glass fiber, which is folded and then separated with aluminum foil which is pleated with a special machine.

External FrameAluminum alloy, galvanized steel, stainless steel, plastic or wooden.
Filter MaterialUltra-thin glass fiber filter paper, artificial fiber filter paper
SeparatorCorrugated double glue paper or corrugated aluminum foil
Filtration GradeH10, H11, H12, H13, H14 (EN779)
Efficiency99.99%, 99.999% (ASHRAE52.1-1992)
Porosity≥0.5μm, ≥0.3μm
Temperature Resistance≤80ºC
Humidity≤100%RH
Key Features
📐
Adopting wave type partition to keep fold spacing, ensuring the least resistance and optimal use of filter material.
🛡️
Filtration material features 180-degree turnover on both sides to form shape folds, preventing damage to the media.
🔬
High precision performance capable of capturing 0.3μm particles effectively.

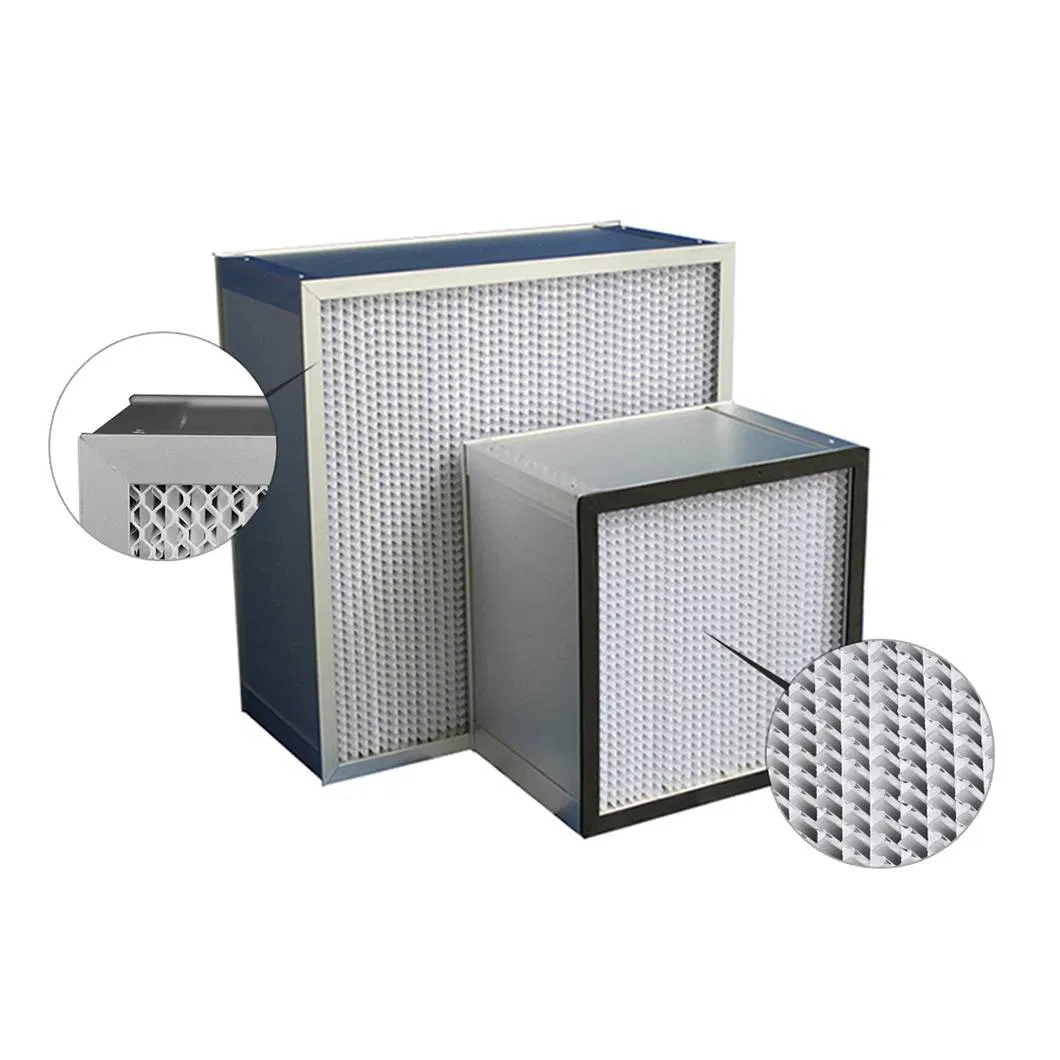

HEPA Filter View 1

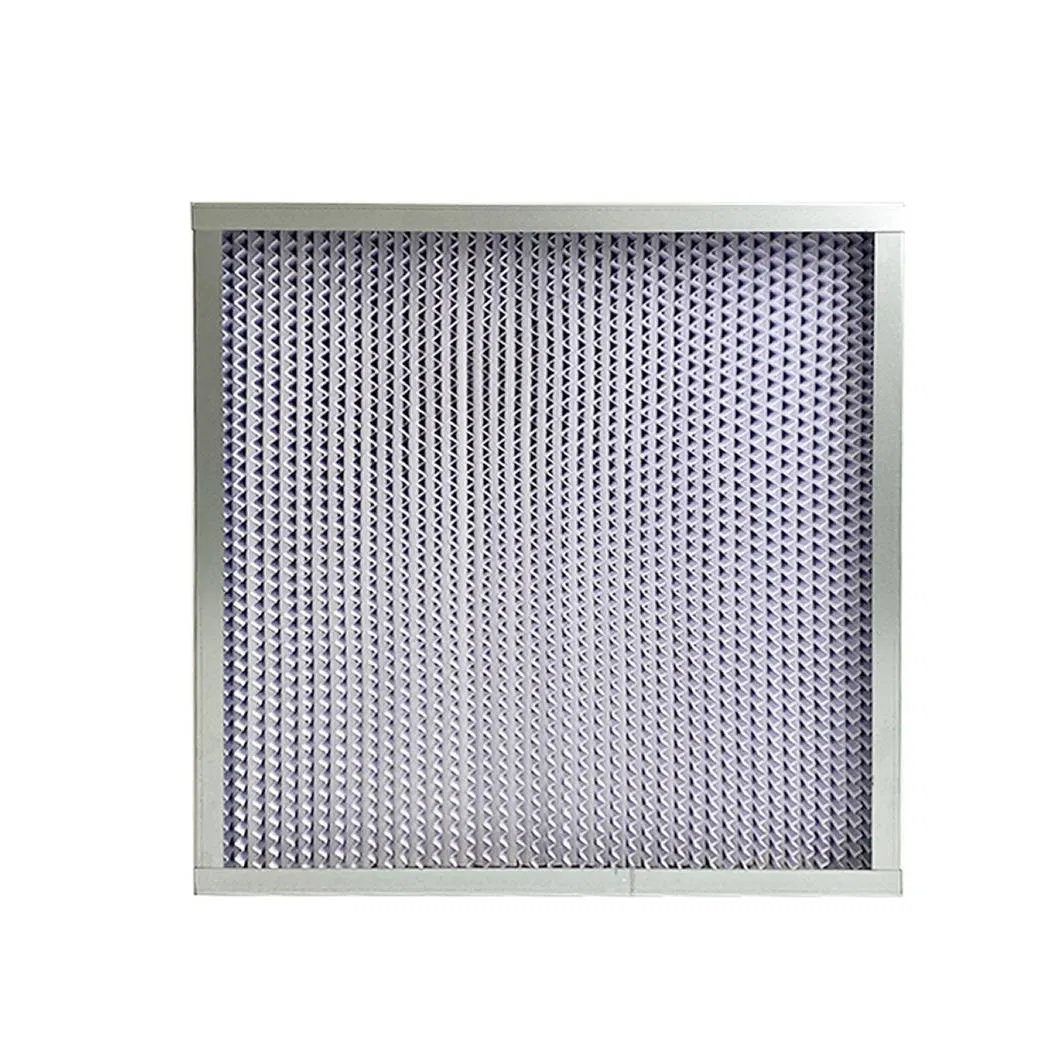

HEPA Filter View 2

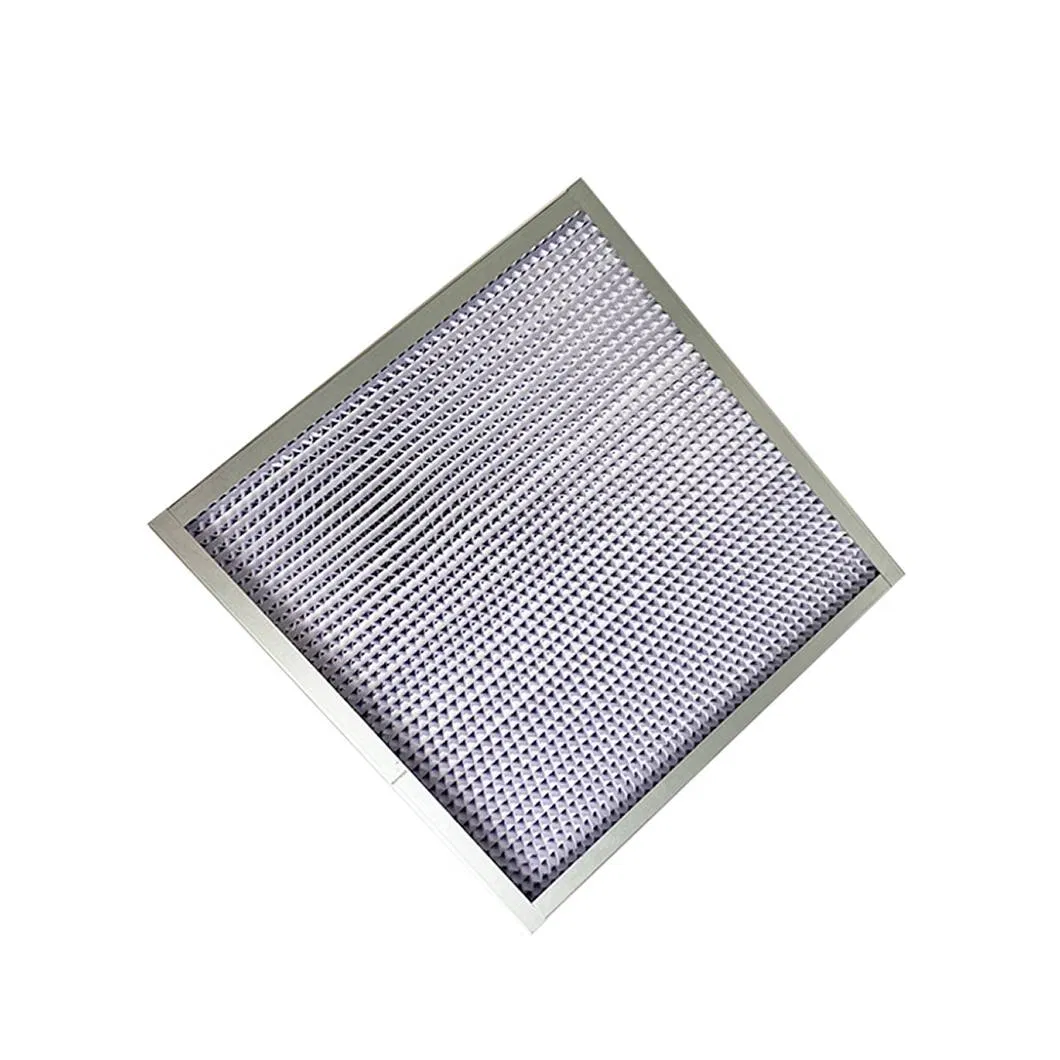

HEPA Filter View 3
Industrial Applications
🏢
Final filtration of clean room fresh air-conditioning systems and air outlets of dust-free workshops.
⚙️
Main filtration of HEPA air outlets for specialized purification equipment.
🏥
Widely used for electronics, optics, semiconductors, coating, chemical, cosmetics, pharmacy, hospitals and automobile industries.
Application Scenario
Quality Assurance & Exhibition
Certificates
Exhibition Display
Our Professional Service
  • ✅ Customized options available to meet specific project needs.
  • ✅ Prompt delivery of samples and efficient bulk production.
  • ✅ Advanced production lines with strict quality control procedures.
  • ✅ Competitive pricing and long-term after-sales support.

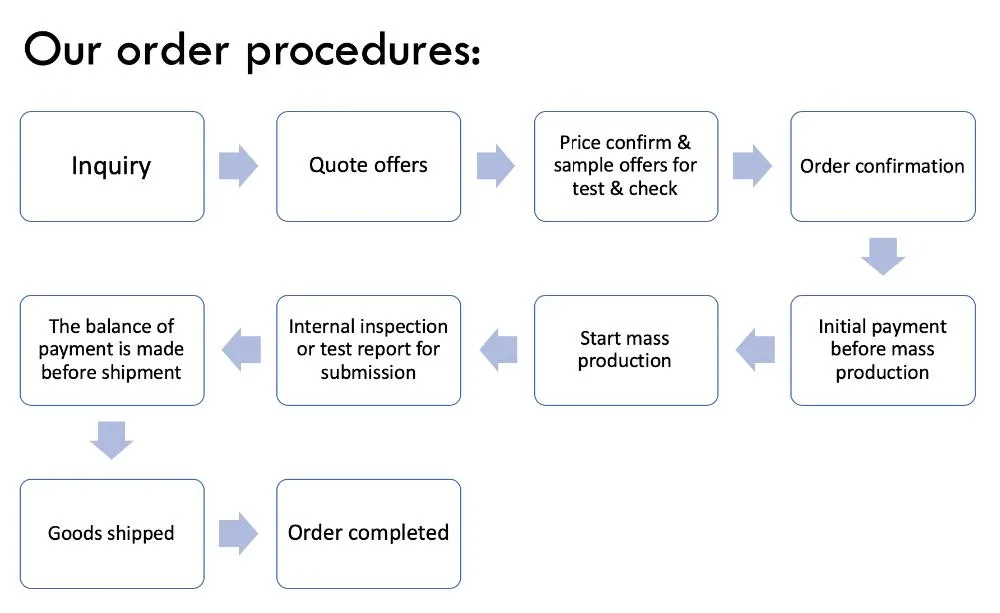

Service Image
Packing & Shipping

Packing: We offer various methods including cartons and wooden cases, or customized packing according to customer requirements.

Shipping: Options include air, express, or sea transportation. Customers may also use their own forwarders.

Shipping Logistics
Payment Terms
1. Multiple methods: Bank transfer, L/C, Paypal, Western Union etc.
2. Sample order: 100% payment before production.
3. Bulk order: 30% Deposit in advance, 70% balance before delivery.
Payment Methods
Frequently Asked Questions
How long is the delivery time?
Usually, orders are completed within 7-15 working days after receiving payment.
What certifications do your products have?
Our filters are certified with CE, ROHS, ISO9001, and REACH standards.
Are custom sizes available for these filters?
Yes, we provide fully customizable specifications to fit your specific air conditioning system or clean room requirements.
How are the products delivered?
Depending on order quantity, we arrange delivery via LCL, full container, air freight, or express courier.
Do you have experience in international export?
Yes, we hold a formal export license and have extensive professional experience in international logistics for filter products.
What is the filtration efficiency of this model?
The XC-AF004 is an H13 grade HEPA filter with an efficiency rating of up to 99.99% for particles ≥0.3μm.
