China Shelley Factory Grain Steel Silos Used Temperature Monitoring Sensors Cables System for Sale

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Shape
Cables System
Type
Temperature Monitoring
Usage
Monitoring Temperature in Grain Steel Silos
Material
Plastic + Electronic Components
Temperature Range
-30~ 70 ℃
Sensor
Ds18b20
Warranty
3 Years
Capacity
100,000m/Year
Grain Storage Temperature Monitoring System

The Temperature Monitoring System is the key component of grain storage control system. It is vital to keep stored grains at the right temperature to prevent spoilage and loss of value. Temperature changes of stored products indicate potential problems inside the grain storage silos, such as rotting or pest infestations. This system is capable of measuring real-time temperature changes to ensure grain safety.

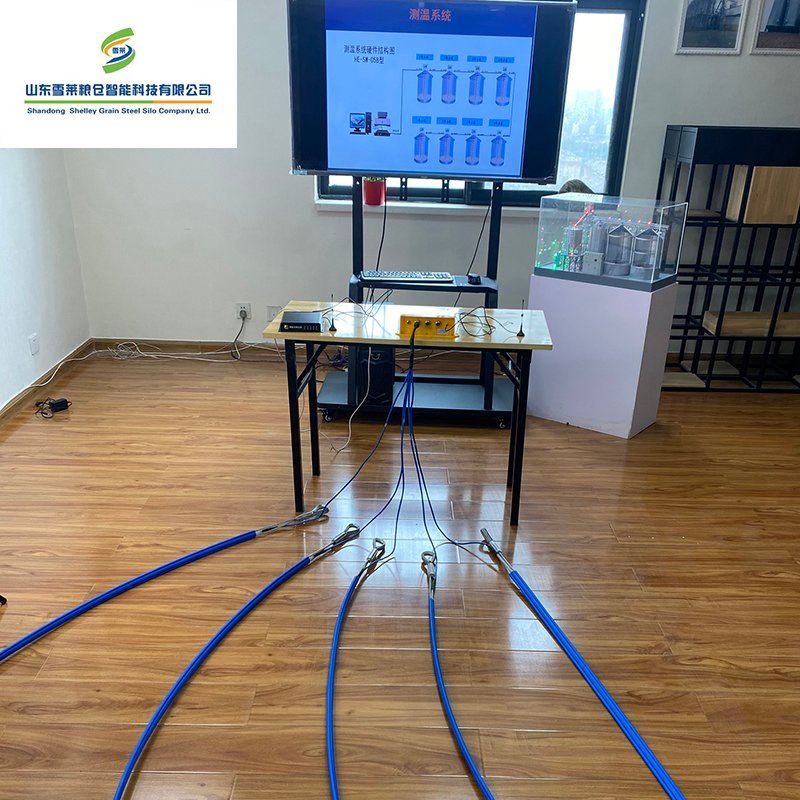

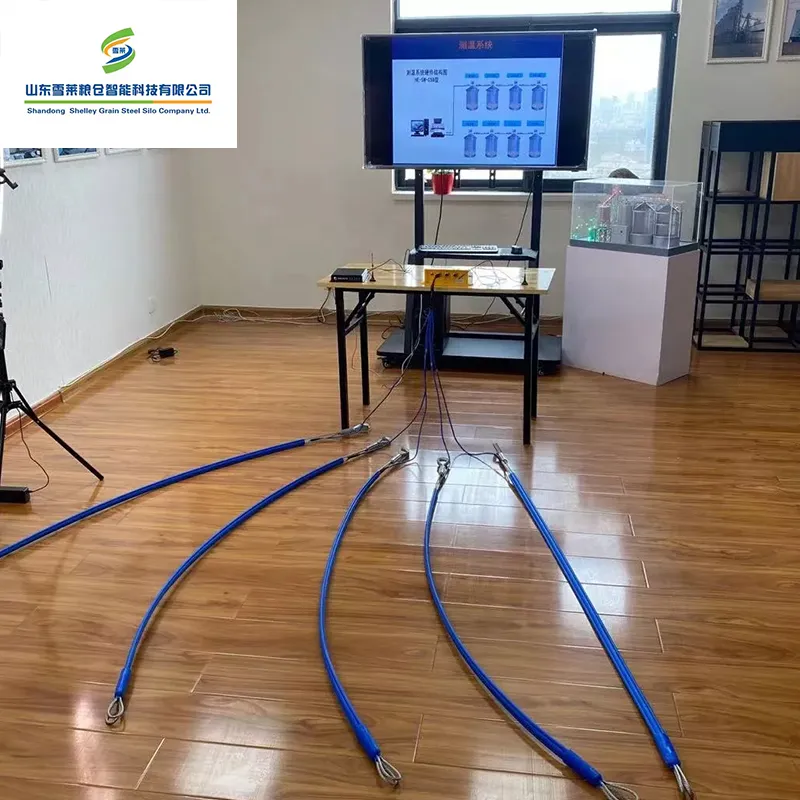

Grain Temperature Monitoring System
📊
Technical Performance Data:
• Measuring Range: -30ºC to +70ºC
• Resolution Ratio: 0.2ºC
• Measurement Error: ±1ºC

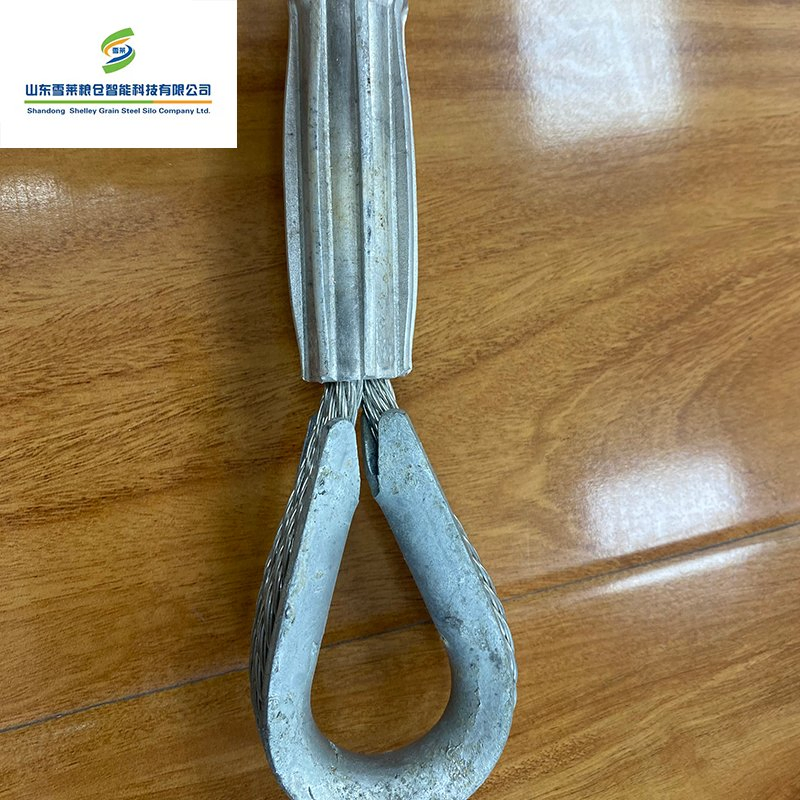

• Cable Tension: Not less than 2.5 tons
Technical Equipment

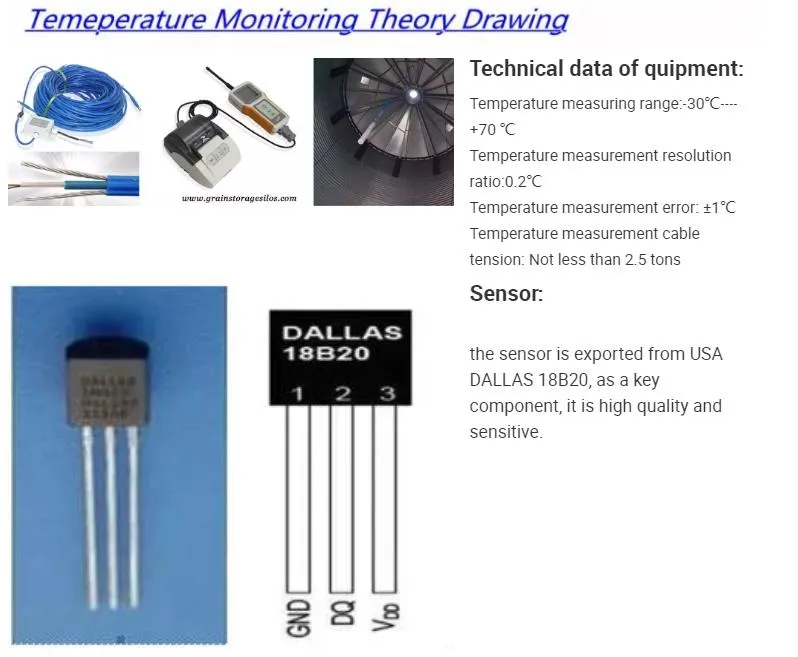

High Precision Sensor Technology

The system utilizes the 18B20 sensor, a high-quality and sensitive component designed for precision monitoring in industrial environments.

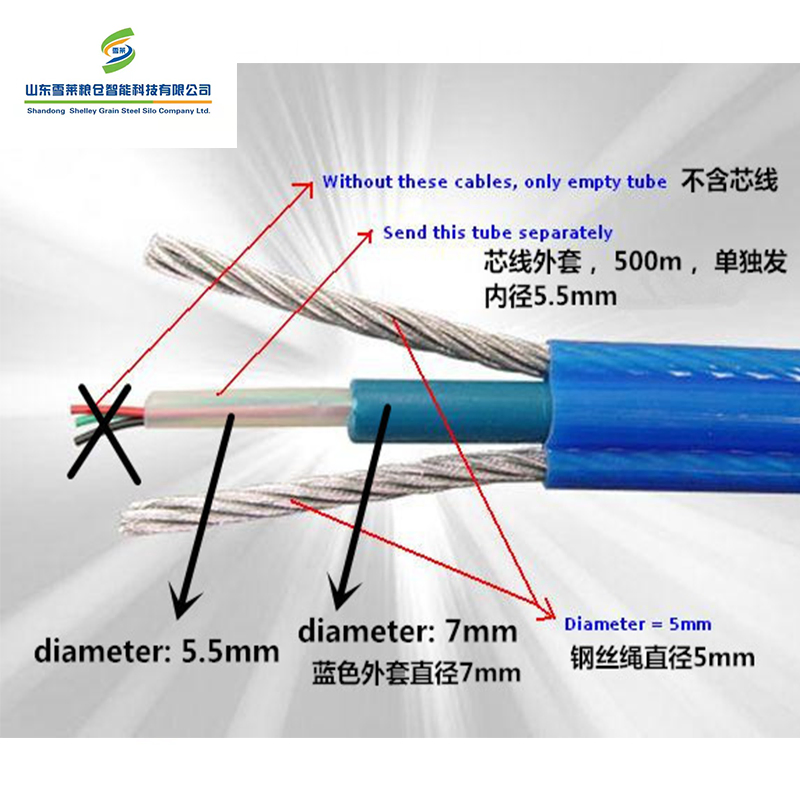

Temperature Sensor Components

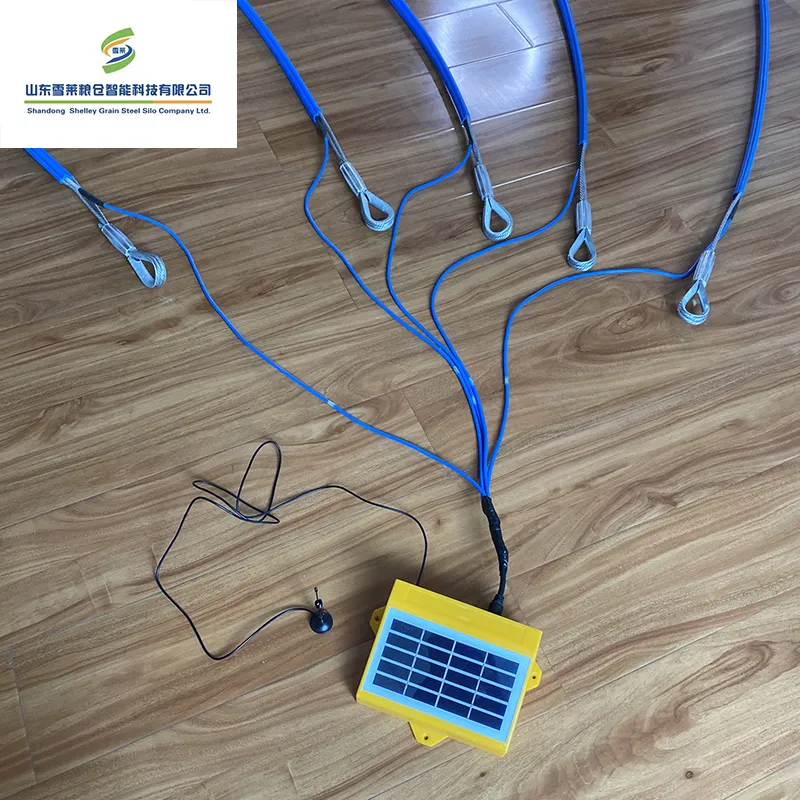

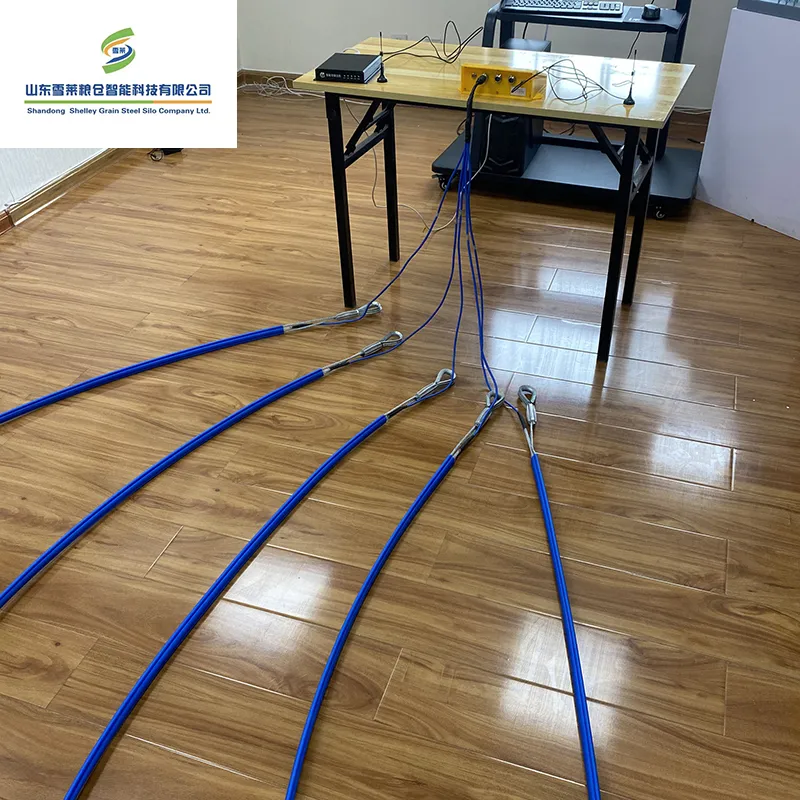

System Specifications & Boxes
ITEM MODEL QTY Remark
ComputerStandard1 set-
PrinterStandard1 set-
Monitoring SoftwareBL-111 set-
HostBL-111 set-
ExtensionBL-114 sets-
Temperature Cables8 points/14m60 pcs6 lines per silo, 8 points per line
Humidity Sensor150011 pcs-

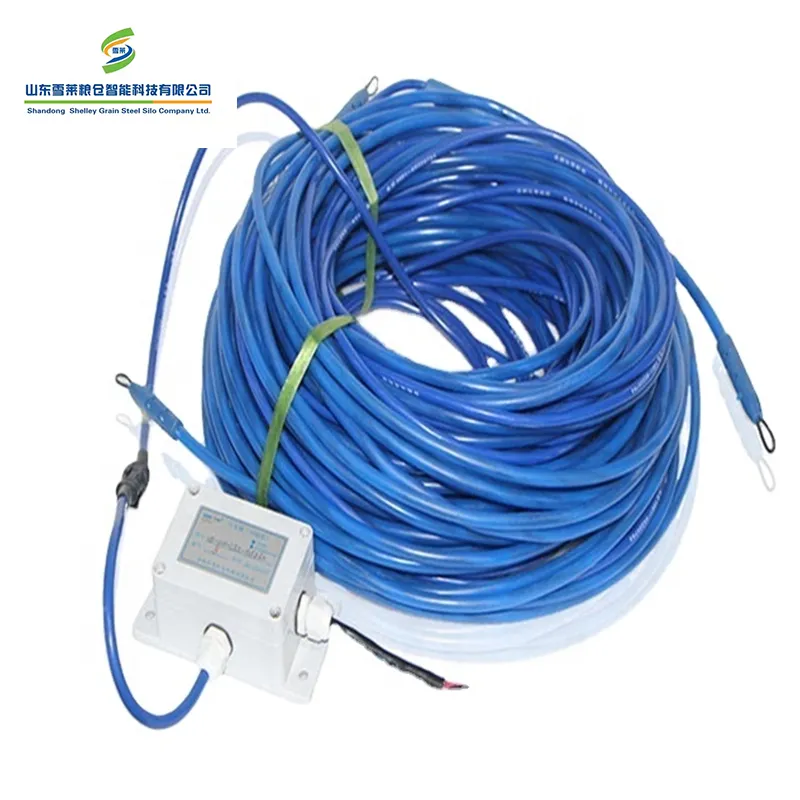

Packing & Delivery

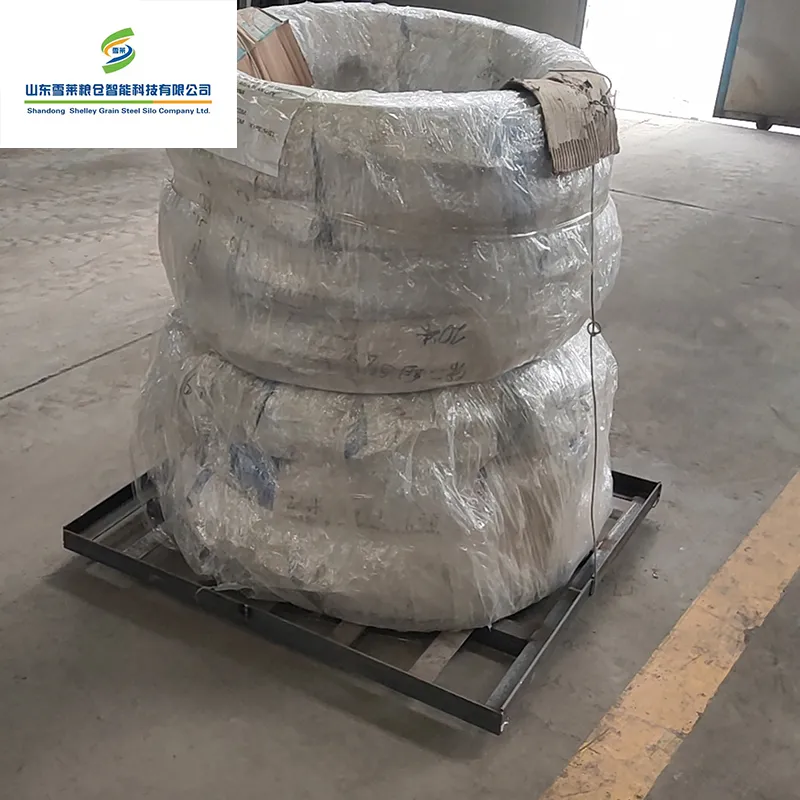

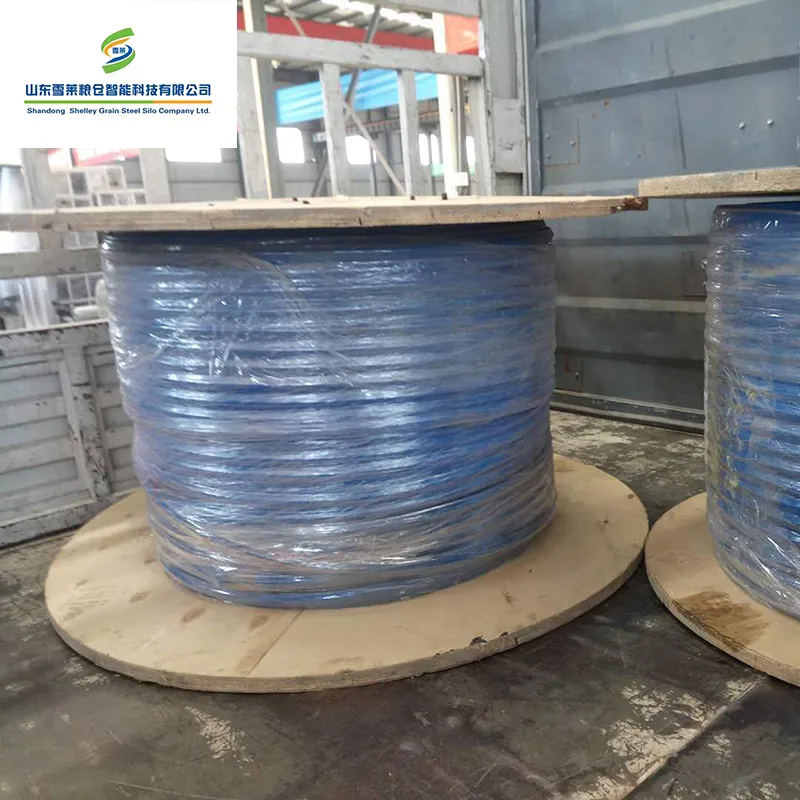

Materials consist of plastic and electronic components. Standard packaging involves PE Film in rolls, secured on pallets, or customized according to specific requirements.

Certifications & Quality
🛡️
Our systems are manufactured in modern facilities equipped with fiber laser cutting and CNC bending machines to ensure high product quality and competitive delivery times.
Frequently Asked Questions
What certifications do the products carry?
The equipment holds ISO certification, BV certification, and CE certification to ensure international quality standards.
What is the export HS Code for this system?
The export customs code for this product is 8544200000 (cables) or 7309000000 (silo systems).
Can you provide custom designs?
Yes. While standard steel silo diameters are fixed, we can provide customized production for square silos, flour silos, and cement silos.
How is the installation handled for international projects?
For international projects, we generally provide 1-2 experts to guide the installation process on-site.
What materials are used in the construction?
The warehouse tops and barrels use galvanized steel sheets. Cone bottoms vary by diameter, using galvanized sheets for smaller sizes and carbon steel for larger dimensions.
Is supporting equipment available?
Yes, we provide full supporting equipment including cleaning screens, dust removal systems, hoists, scrapers, and belt or screw conveyors.
