Product Description

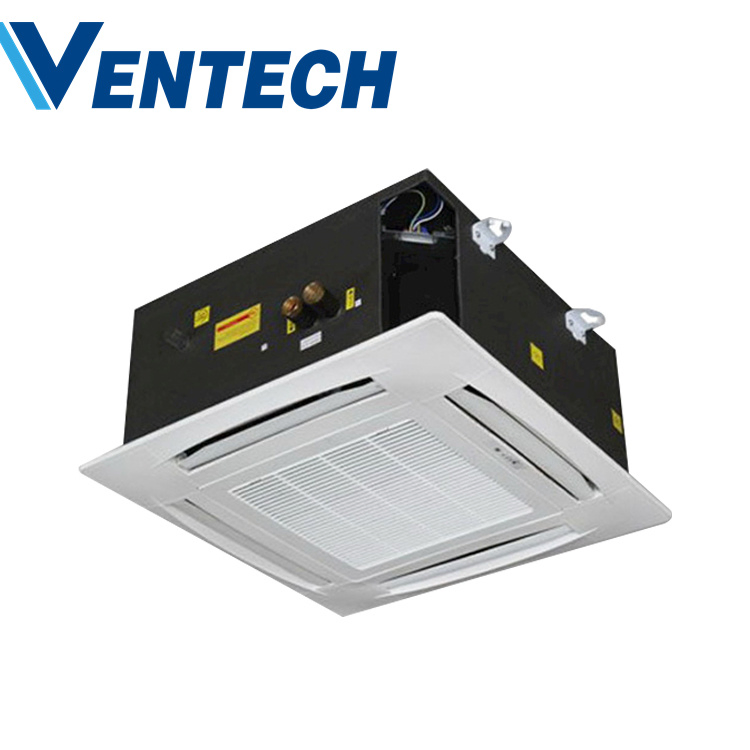

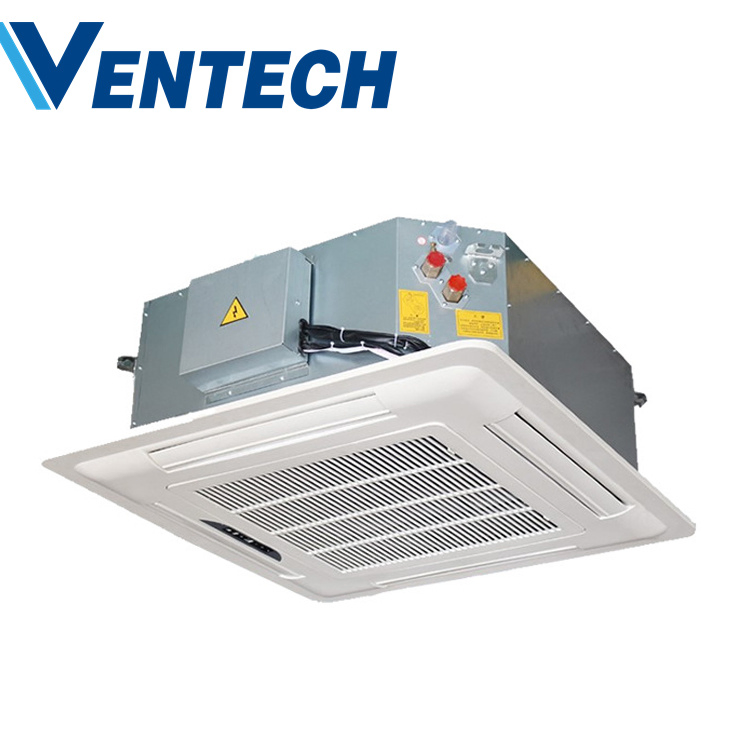

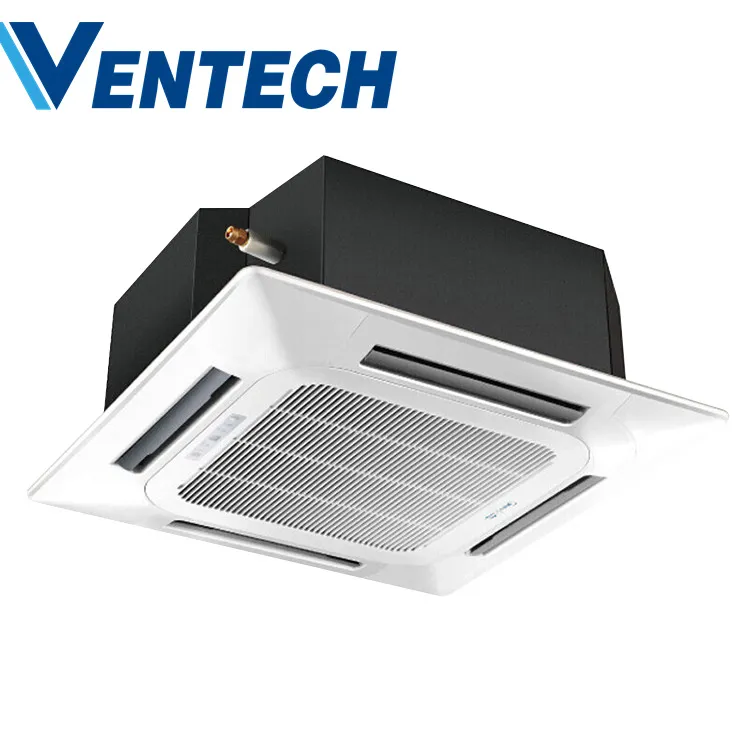

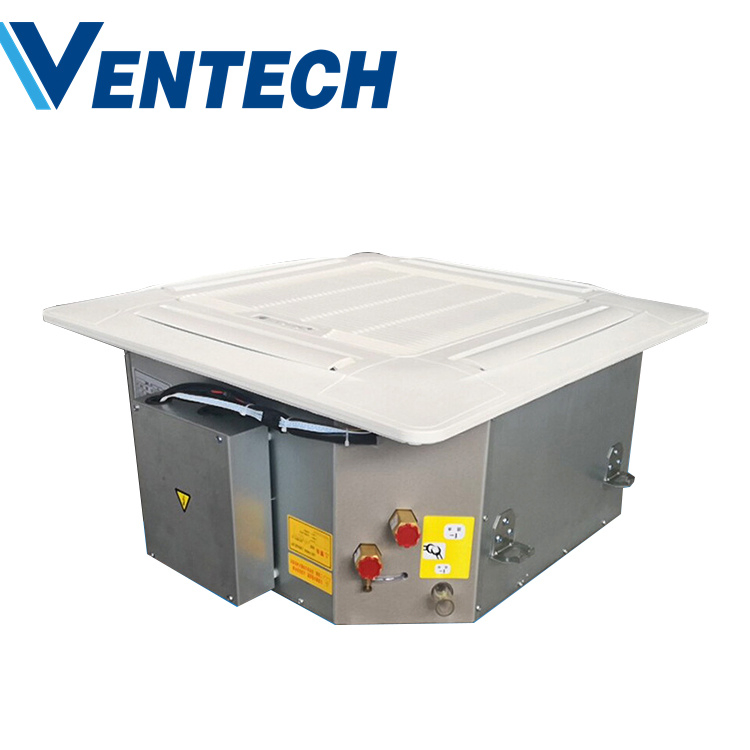

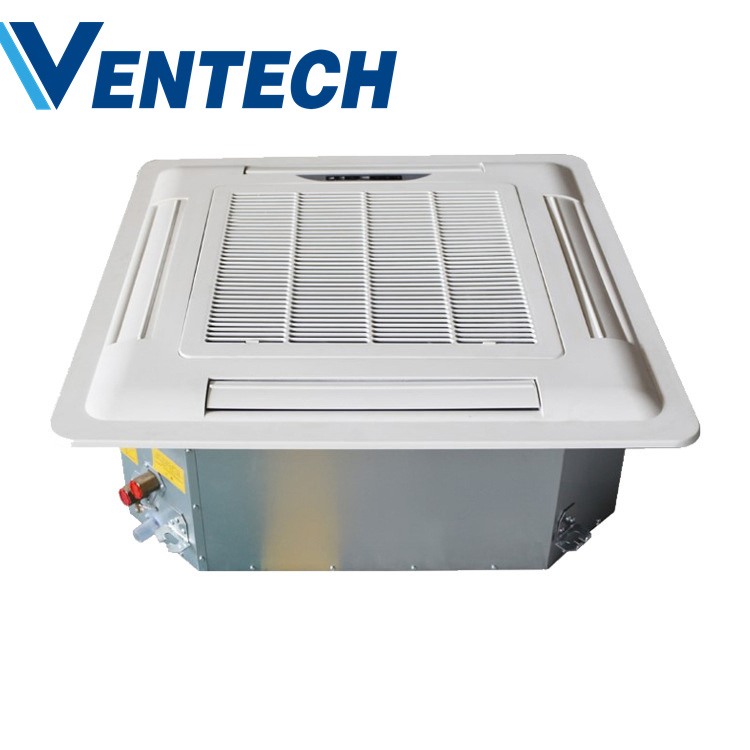

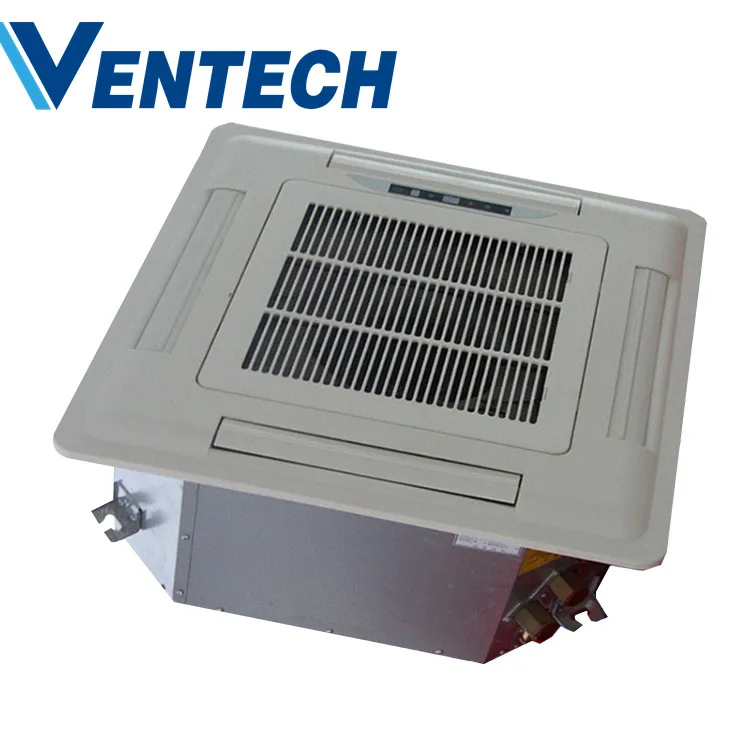

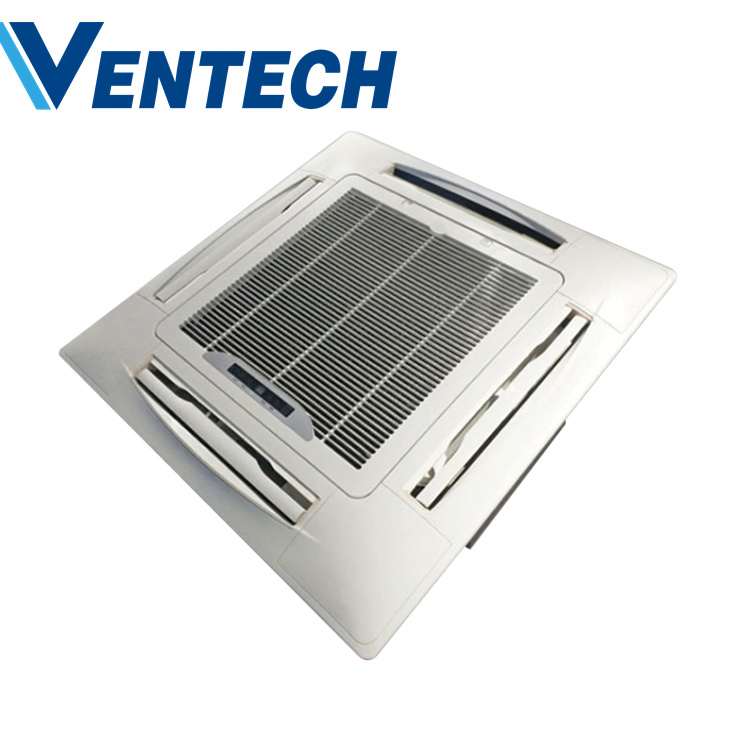

Ceiling Cassette FCU Fan Coil Unit

Fan coil units are primarily composed of centrifugal fans and coil heat exchangers. As a terminal device of central air conditioning systems, it is widely utilized in hotels, restaurants, factories, hospitals, and commercial buildings to meet cooling, dehumidification, and heating requirements.

Basic Specifications

📋

Type:Air Handling Unit

🛠️

Material:Phenolic Pre-Insulated Panel

🔇

Noise:Ultra Quiet Operation

🏗️

Mounting:Ceiling Mount

⏳

Lifetime:10~15 years

🛡️

Certification:CE Certified

Product Technical Data

Model		FP200KM4	FP400KM4	FP600KM4	FP800KM4	FP1000KM4-Q	FP1400KM4
Air Volume	High (m³/h)	360	680	1020	1360	1700	2380
Air Volume	Low (m³/h)	200	460	600	800	1010	1410
Cooling Capacity	High (W)	2000	3620	5440	7200	9100	12500
Cooling Capacity	Medium (W)	1700	3100	4485	6000	7050	10500
Heating Capacity	High (W)	3000	5440	8160	10800	13700	18600
Heating Capacity	Medium (W)	2810	4650	6700	9350	10600	15260
Noise Level	≤dB(A)	37	41	45	46	48	52
Power Source	220-240V/1Ph/50Hz
Net Weight	(kg)	26	28	34	36	50	50

Key Features & Benefits

Uniform Air Supply: Multidirectional air supply ensures consistent temperature throughout the application site.
Ultra Silent Operation: Advanced turbine centrifugal fan with three-dimensional modeling reduces vibration and motor noise significantly.
High Lift Pump: Equipped with a 750mm high lift pump and water level switch protection to prevent leakage hazards.
Fresh Air Intake: Features a fresh air inlet to improve indoor air quality for a healthier environment.
Ultra-Thin Body: Fuselage thickness as low as 290mm, simplifying installation without the need for extensive ductwork.
