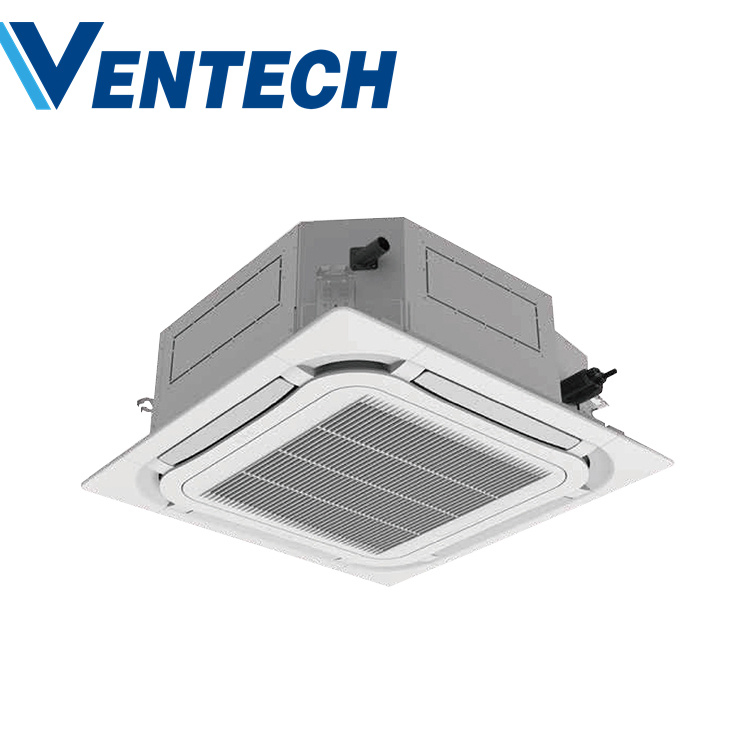

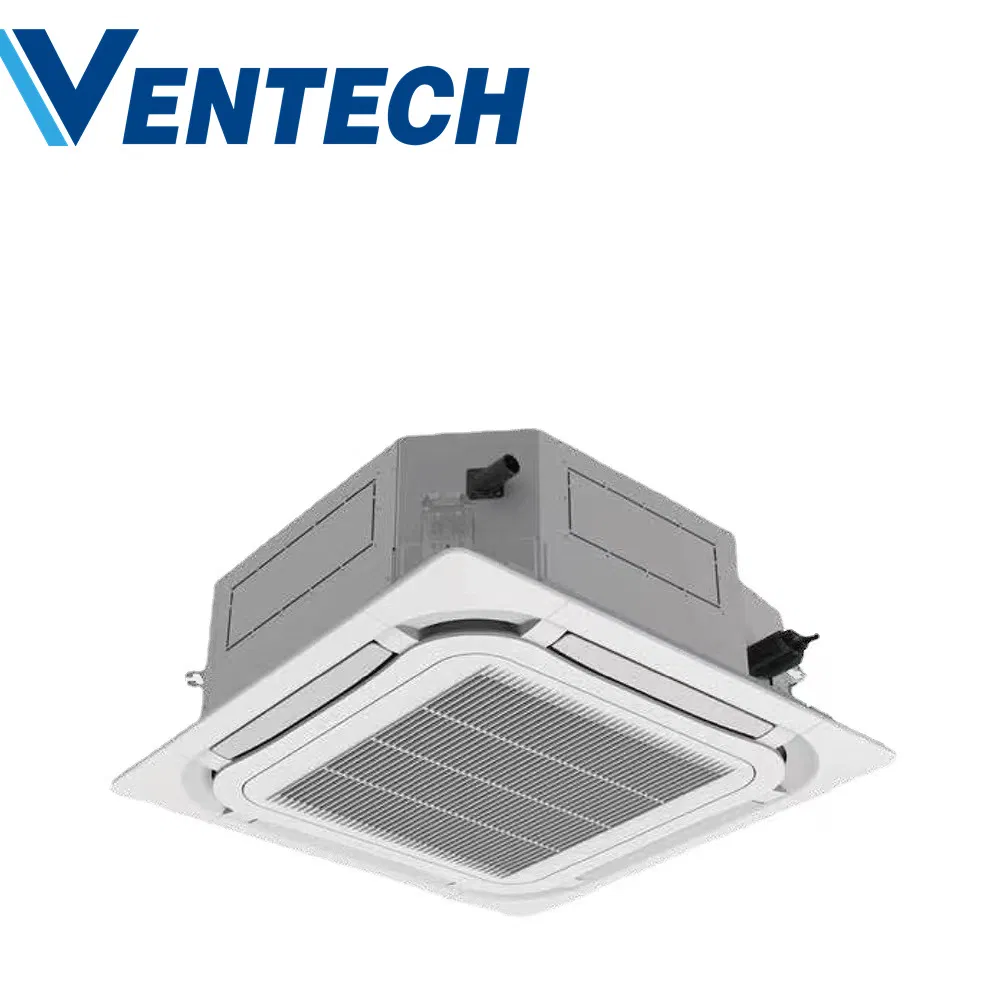

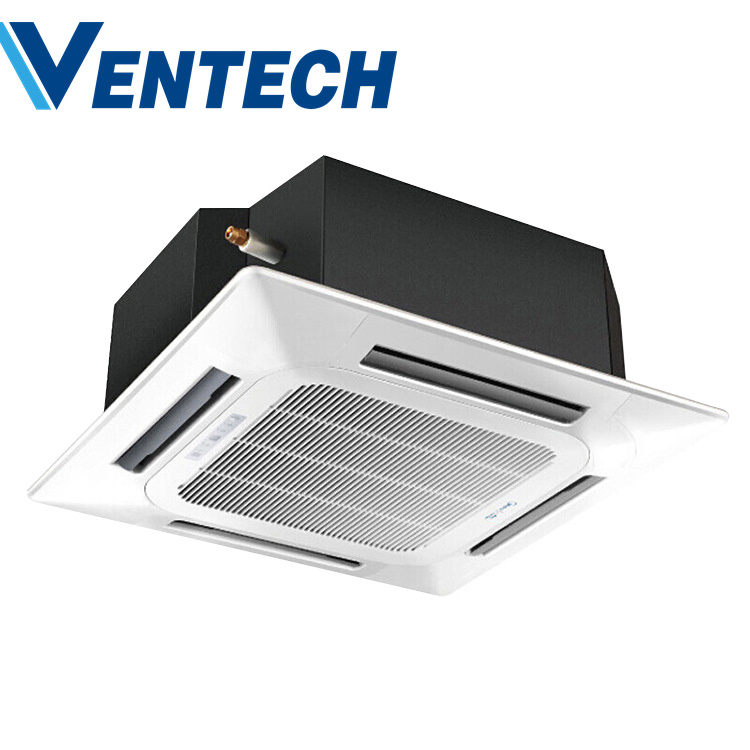

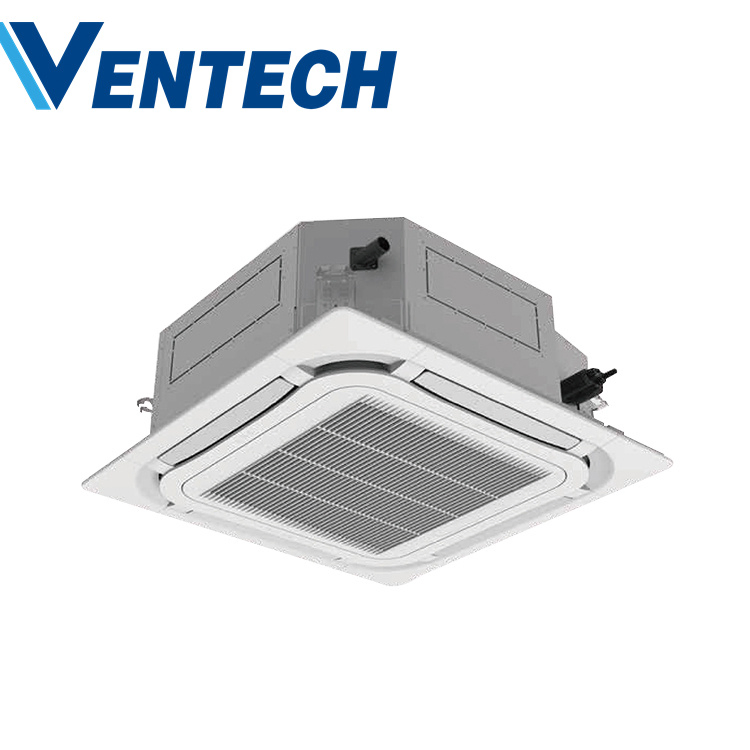

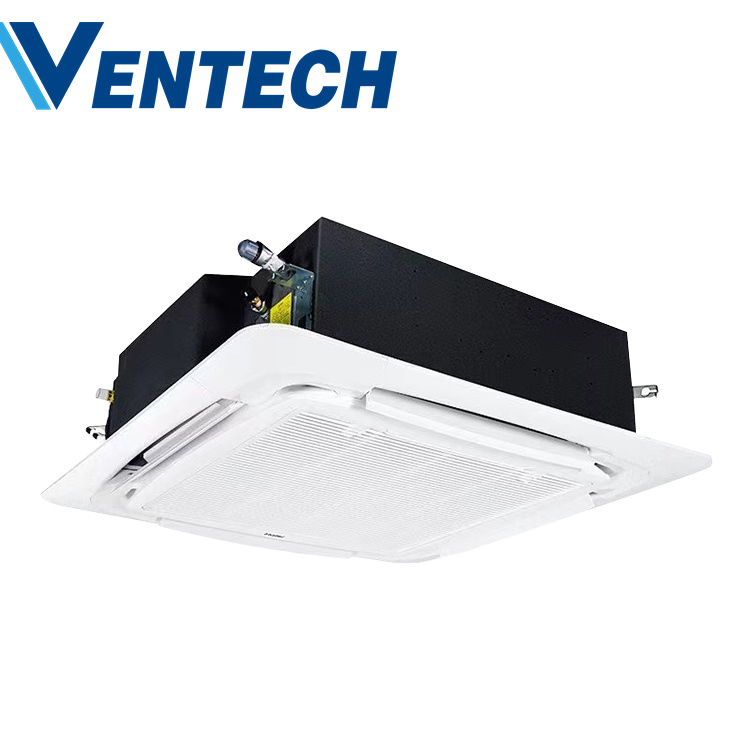

Central Air Conditioner Options Ceiling Cassette Fcu Fan Coil Units HVAC System

1 / 5

Central Air Conditioner Options Ceiling Cassette Fcu Fan Coil Units HVAC System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Type

Air Handling Unit

Air Tube Material

Phenolic Pre-Insulated Duct Panel

Corrosion Durability

Higher

Noise Level

Ultra Quiet

Application Fields

Mechanical Engineering

Mounting

Ceiling Mount

Lifetime

10~15 years

Certification

Condition

New

Product Description

Fan coil units are mainly composed of centrifugal fans and coil heat exchangers. It is the terminal device of the central air conditioning system. It is widely used in hotels, restaurants, factories, hospitals, exhibition galleries, shopping malls and moving buildings. It is used to meet the requirements of cooling, dehumidification, heating, creating a fresh and tranquil working and living environment.

Technical Performance Data

Model Parameters			Unit	FP200	FP400	FP600	FP800	FP1000	FP1400
Air Volume	High	H	m3/h	360	680	1020	1360	1700	2380
	Medium	M	m3/h	250	560	780	1050	1310	1830
	Low	L	m3/h	200	460	600	800	1010	1410
Cooling	Capacity	H	W	2000	3620	5440	7200	9100	12500
Cooling	Water Flow	-	m3/h	0.31	0.65	0.98	1.28	1.65	2.26
Heating	Capacity	H	W	3000	5440	8160	10800	13700	18600
Heating	Water Flow	-	m3/h	0.31	0.65	0.98	1.28	1.65	2.26
Noise Level			dB(A)	37	41	45	46	48	52
Power Source			V/Ph/Hz	220-240V / 1 / 50Hz

Product Gallery

Key Features

🌀

Uniform air supply: Multidirectional air supply makes the temperature in the application site more uniform.

🔇

Ultra silent operation: Streamlined large-diameter turbine centrifugal fan with advanced 3D modeling design ensures high efficiency and low noise.

💧

High lift pump design: 750mm high lift pump allows flexible layout of condensate pipes with water level switch protection.

🍃

Fresh air integration: Outdoor fresh air can be introduced through the inlet to significantly improve indoor air quality.

📏

Ultra thin body: Fuselage as thin as 290mm, making it easy to install without cumbersome air duct work.

Frequently Asked Questions

What components are included in this fan coil unit?

The units are primarily composed of high-efficiency centrifugal fans and coil heat exchangers, serving as the terminal device for central HVAC systems.

How long is the expected lifetime of the unit?

Under normal operating conditions and maintenance, the product has an estimated lifetime of 10 to 15 years.

Is the operation of the ceiling cassette unit noisy?

No, the unit features an ultra-silent design with a turbine centrifugal fan that utilizes sinusoidal slot technology to minimize vibration and motor noise.

What is the minimum order quantity (MOQ)?

The standard MOQ for an order is 10 pieces, though mixed sizes and items are generally allowed.

Does the unit support fresh air intake?

Yes, it is designed with a fresh air inlet that allows outdoor air to be drawn in, ensuring a fresh indoor environment for users.

What is the delivery lead time?

The typical delivery time is approximately 30 days after order confirmation.
