610X610 Blind Aluminum Raised Access Floor System Fs2000

1 / 5

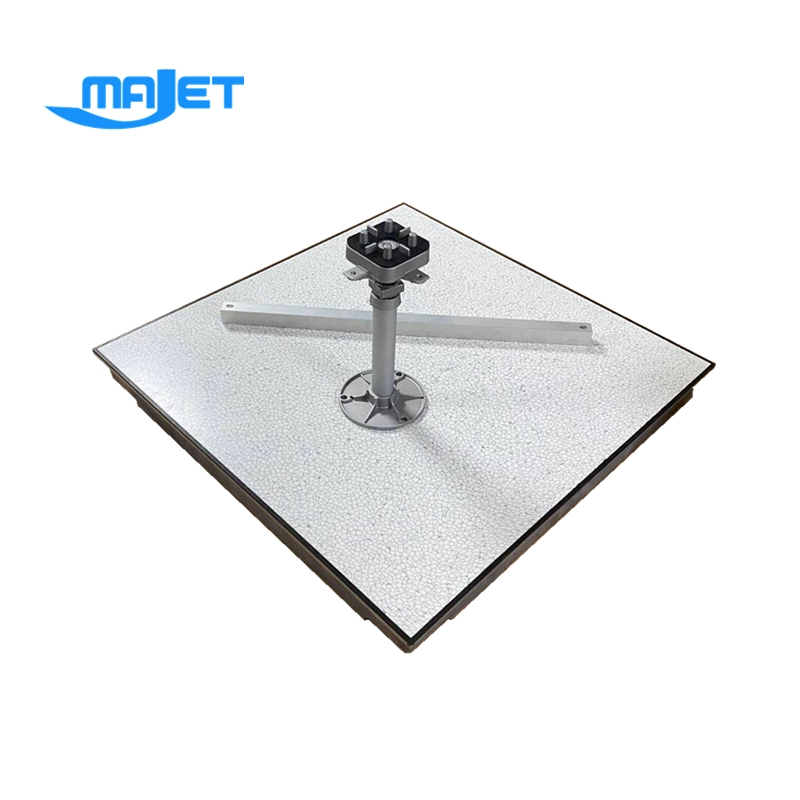

610X610 Blind Aluminum Raised Access Floor System Fs2000

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Technical Specifications

Model:FS1000/FS1250/FS1500/FS2000/FS2500

Material:Die-Cast Aluminum Alloy (ADC12)

Size:600X600mm, 610X610mm, 24"X24"

Functions:Thermal Insulation, Anti-static, Fireproof, Waterproof

Ultimate Load:10kN ~ 40kN

Surface Finish:HPL, PVC, Ceramic, Conductive Epoxy

Fire Resistance:Non-Combustible

Certification:CE, ISO, ASTM

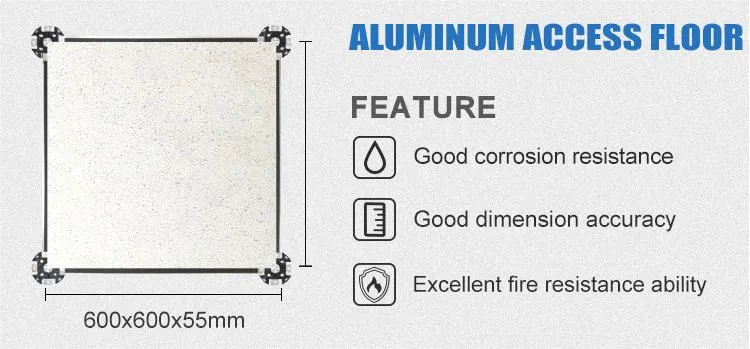

Aluminum Raised Access Floor System

High-quality die-cast aluminum (ADC12) is utilized for its superior mechanical properties, dimensional stability, and light weight. This system offers high load-bearing capacity and excellent corrosion resistance, making it an ideal choice for commercial and industrial environments.

System Components

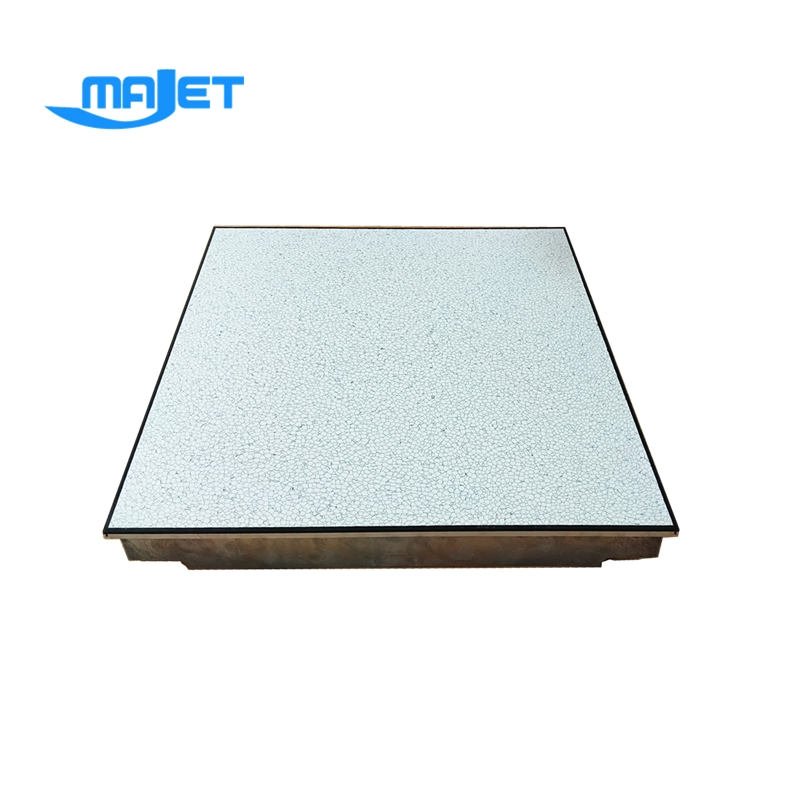

Main Panel: Die-cast aluminum alloy ADC12 with epoxy or nickel-chromium treatment.
Surface Veneer: Anti-static HPL or PVC options for specialized environment needs.

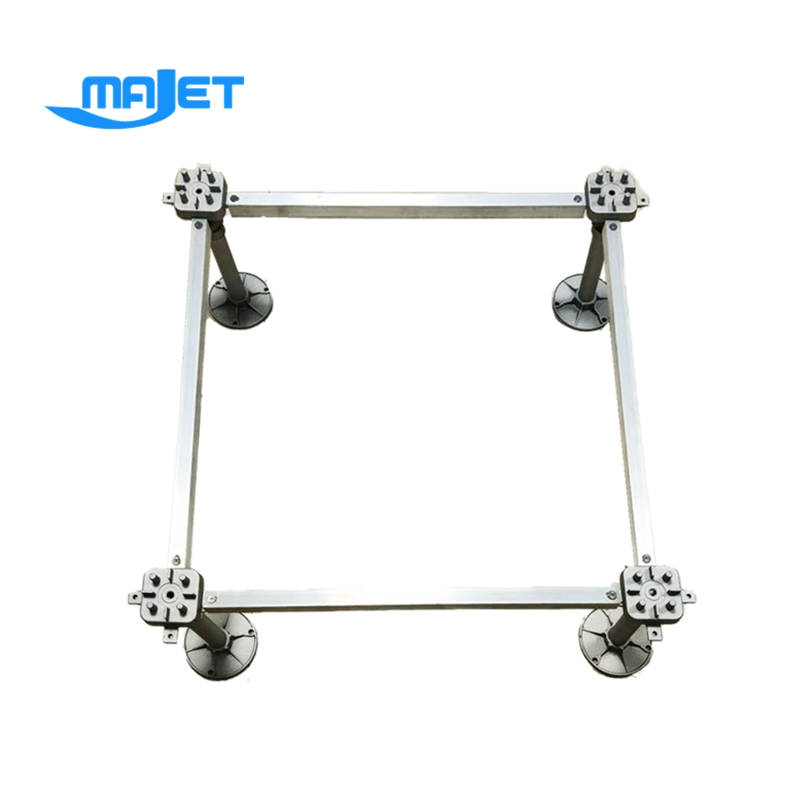

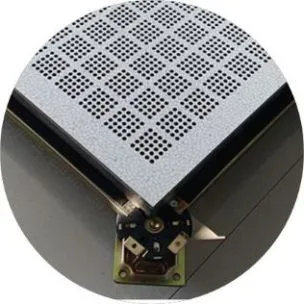

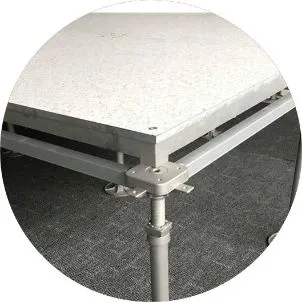

Underfloor Support: Adjustable steel or aluminum pedestal systems with galvanized coating.

Key Benefits & Features

Lightweight yet high load-bearing performance.
Conductive and static-dissipative coatings for anti-static protection.
Highly resistant to corrosion, moisture, and fire.
High dimensional accuracy for easy installation.
Eco-friendly materials and 100% recyclability.

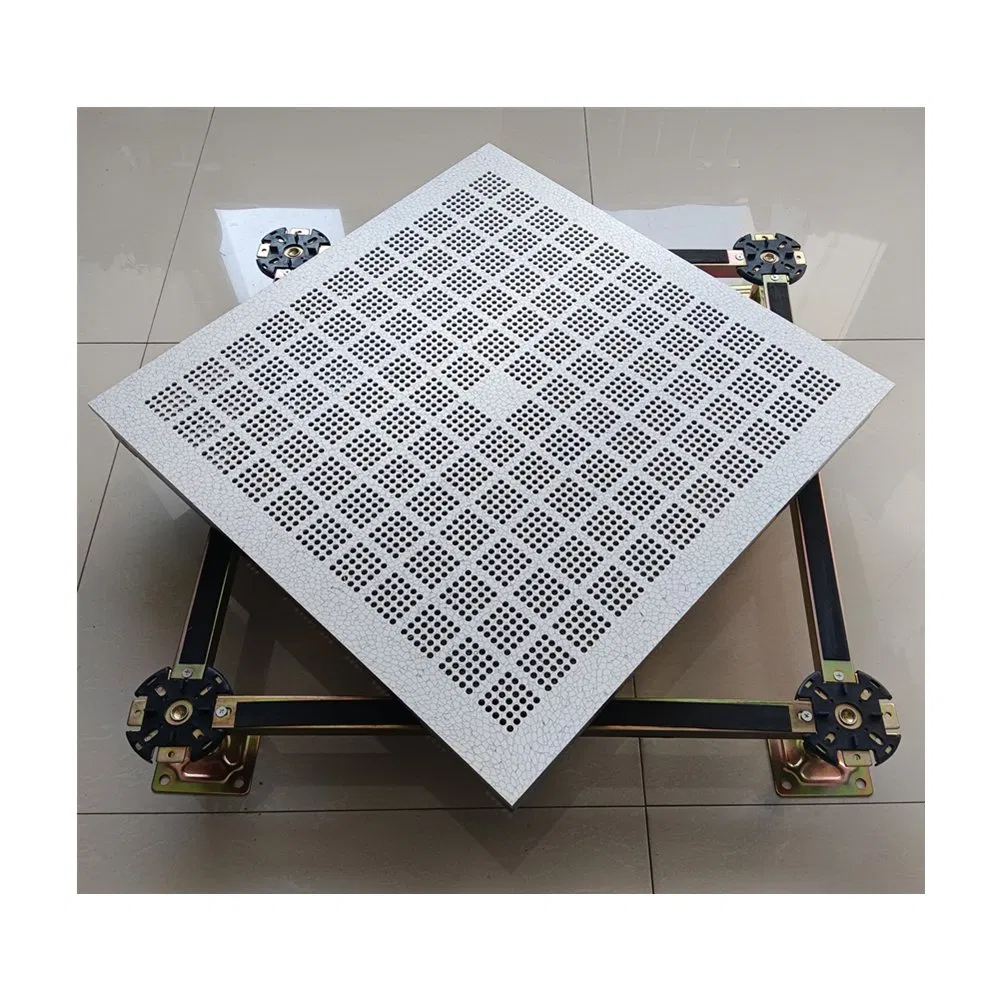

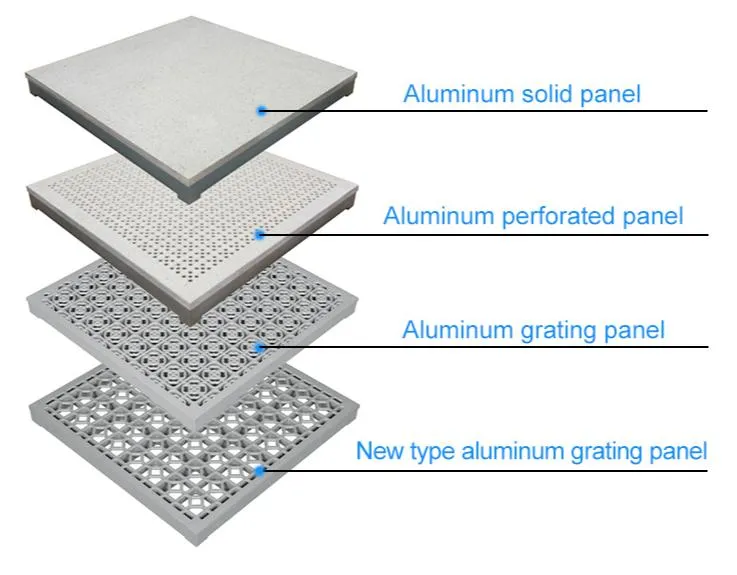

Flexible design with various perforated panels and grilles for airflow control.

Load Bearing Performance

Our raised floors follow the CISCA standard for load-bearing classification.

Model	Concentrated (N)	Impact Load (N)	Ultimate Load (N)	Uniform Load (N/m²)
SC668	≥2990	670	≥8890	≥12500
SC800	≥3590	670	≥10799	≥19796
SC1000	≥4498	670	≥13494	≥23294
SC1250	≥5595	670	≥16797	≥33084
SC1500	≥6693	670	≥20090	≥42581
SC2000	≥8898	670	≥26685	≥49784

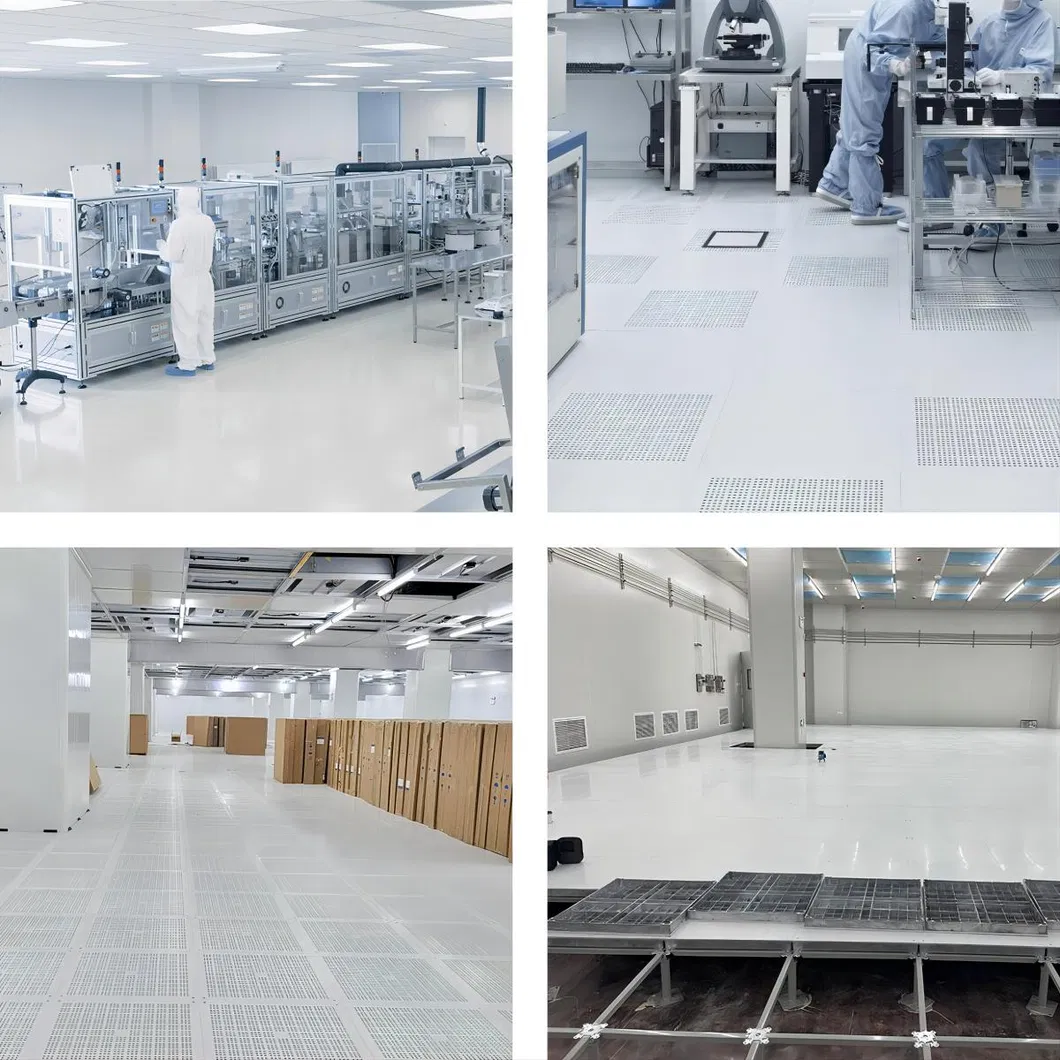

Primary Applications

Data Centers

Precise temperature control and cable management for server rooms.

Cleanrooms

Maintains sterile conditions and allows for utility routing in labs.

Office Spaces

Provides flexibility for dynamic layouts and power access.

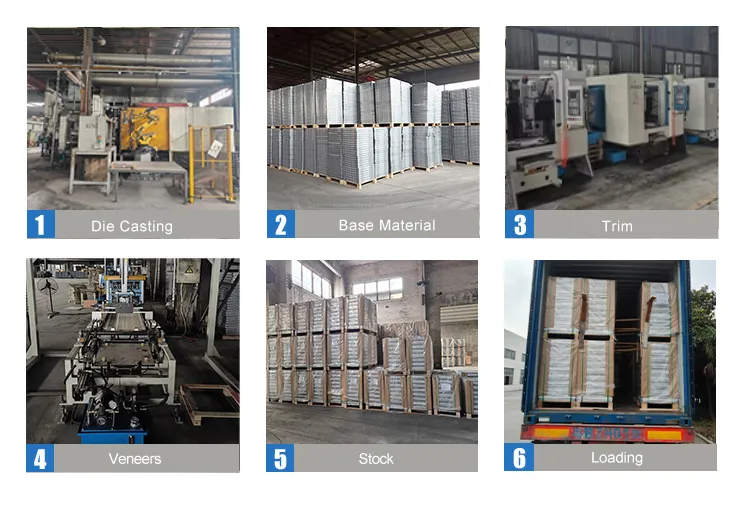

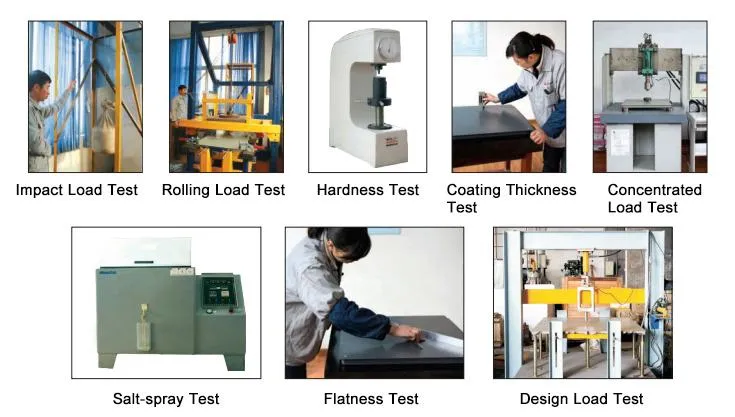

Manufacturing & Quality

Frequently Asked Questions

How does aluminum flooring help achieve clean room requirements?

Aluminum provides excellent anti-static properties and smooth surfaces that are easy to clean, effectively reducing bacteria growth. It also allows for ventilation panels to control air quality and circulation accurately.

What are the disadvantages of aluminum flooring?

The primary disadvantage is the initial cost, which is higher than traditional steel or wood-core flooring. However, its long-term performance in specialized environments often justifies the investment.

How can diversified designs be achieved through veneer materials?

Veneer options like carpet, ceramic tiles, and HPL offer various aesthetic choices. Carpet reduces noise, ceramic offers high wear resistance, and HPL provides numerous color patterns including wood grain and marble.

What certification does the product hold?

The system is fully certified with ISO, KS, CISCA, and MOB reports, as well as static, VOC, and SGS testing to ensure international quality standards.

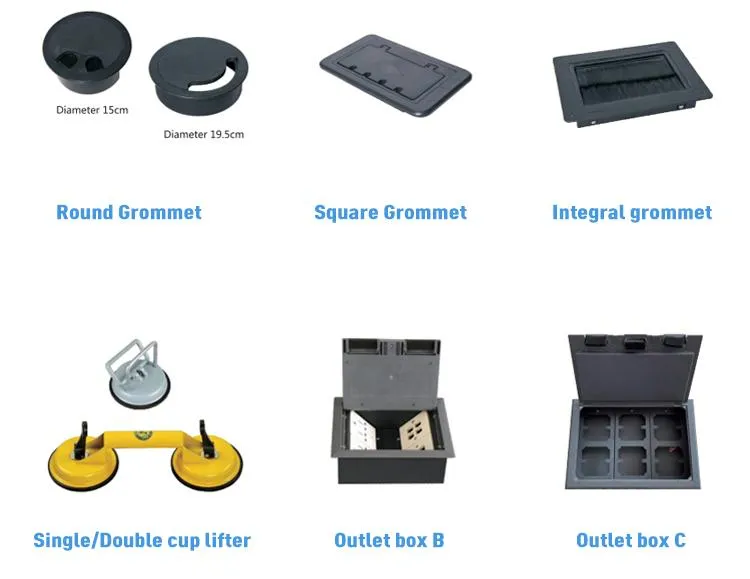

What accessories can be used with the aluminum raised floor?

The modular design supports integration with air conditioning units, floor boxes, diffusers, fans, and cable grommets for a comprehensive underfloor management solution.

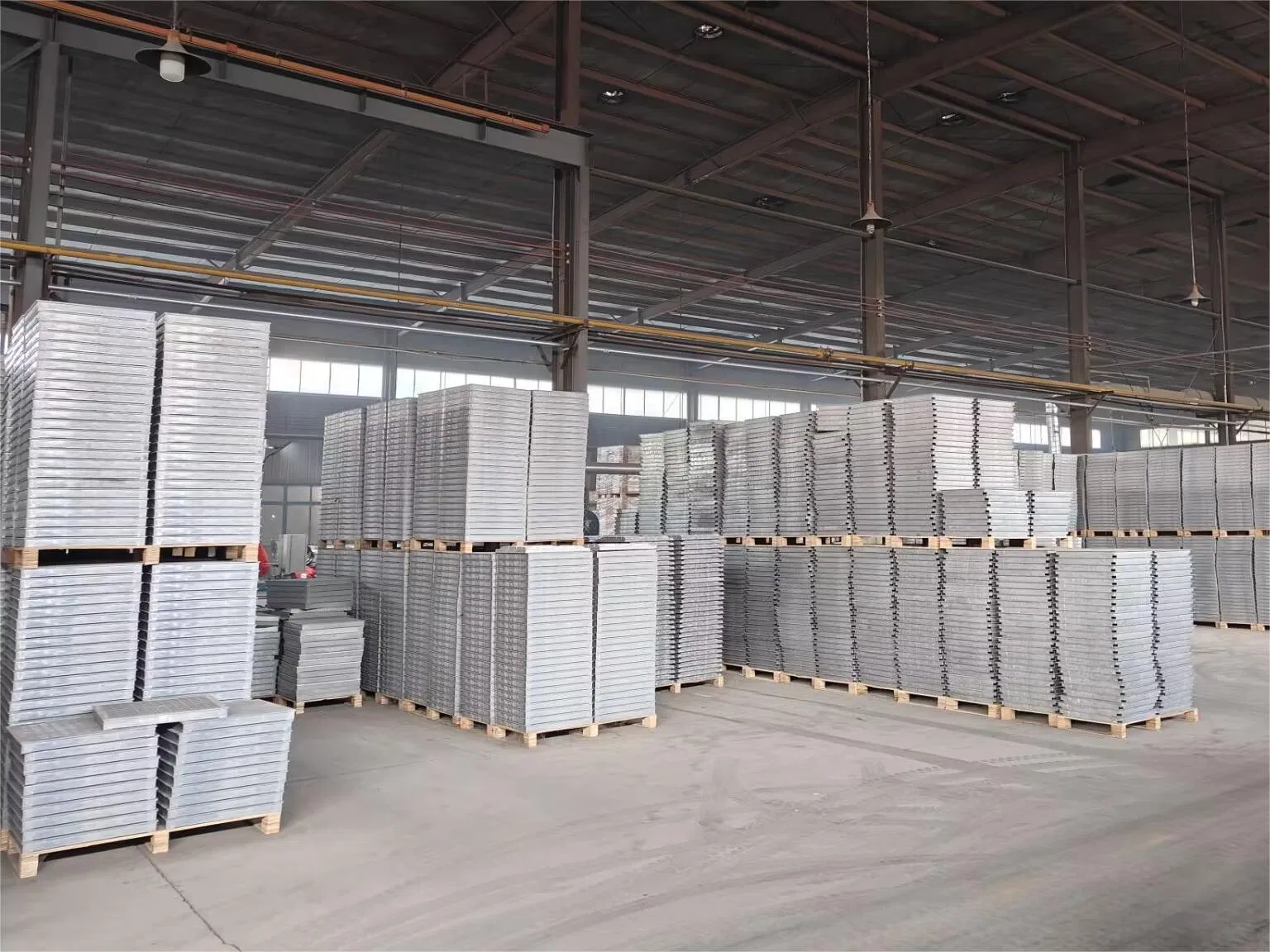

What is the standard packaging for shipping?

Panels are typically packed on wooden pallets and covered with protective plastic film. A 20GP container can hold between 1,100 to 1,500 pieces depending on the specific floor type.
